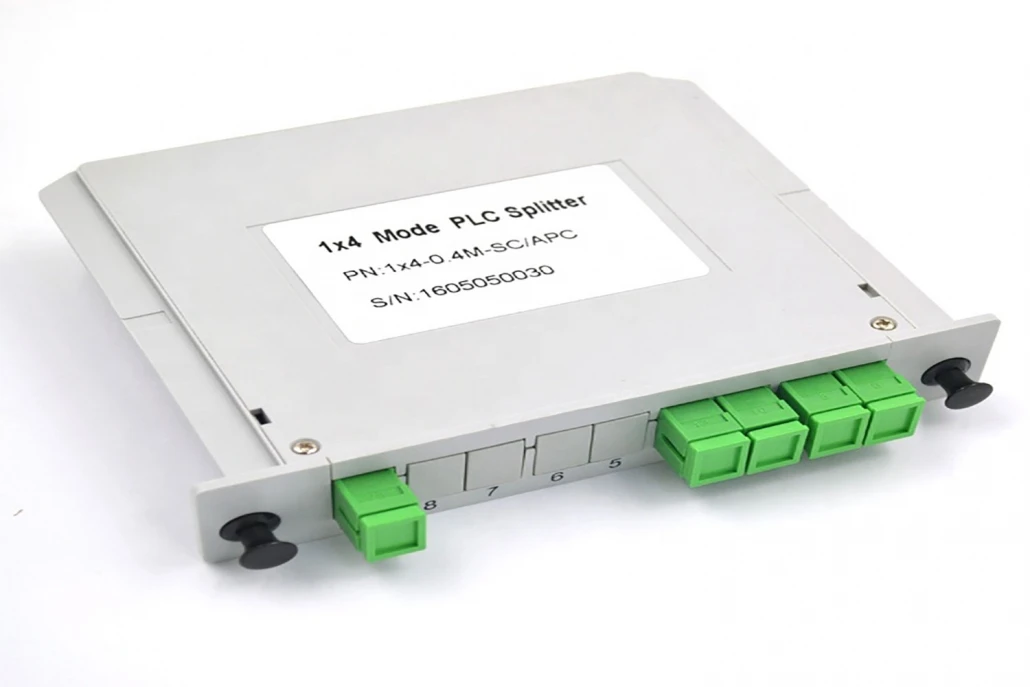

1x4 FTTH Box FIBERVISION FTTH Fiber Optical Splitter with SC/APC Connector PLC slot box splitter ABS box type splitter plc
- Category: >>>
- Supplier: Hangzhou Huaxun Technology Co. Ltd.
Share on (1601283556712):
Product Overview
Description
Products Description

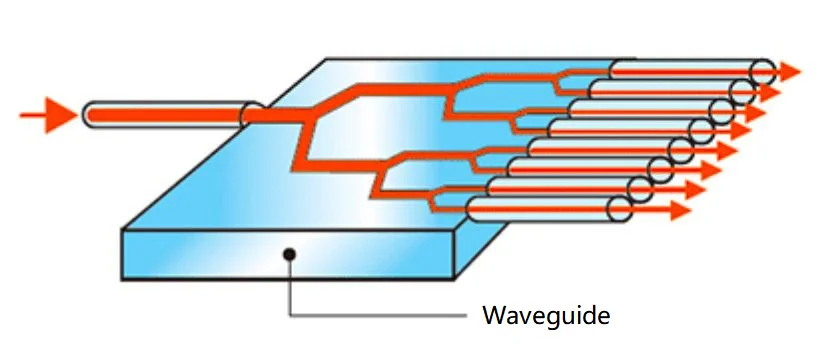

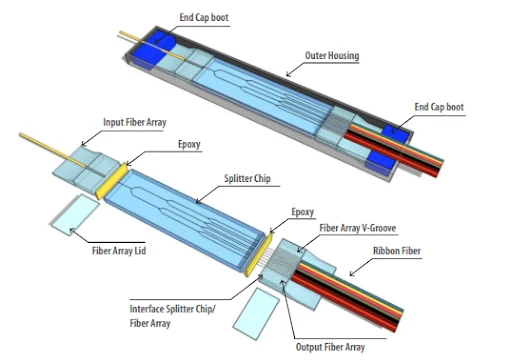

FIBERVISION PLC splitter (Planner Light-wave Circuit Splitter) is based on planner light wave technology, and it has the
advantages as smart appearance, wide range in working wave, high reliability and excellent uniform distribution. PLC splitters are widely used to connect the terminal device and distribution the light signals in FTTX, EPOM, and GPON field. We are variable to supply 1xN and 2xN series products, complying RoHS, which is customized to produce TLC certificated splitters in all occasions.
advantages as smart appearance, wide range in working wave, high reliability and excellent uniform distribution. PLC splitters are widely used to connect the terminal device and distribution the light signals in FTTX, EPOM, and GPON field. We are variable to supply 1xN and 2xN series products, complying RoHS, which is customized to produce TLC certificated splitters in all occasions.
-ADVANTAGES
-Uniform power splitting
-Low Insertion Loss and High Retum Loss
-Good channel-to-channel uniformity
-Low polarization-dependent loss (PDL)
-Compact size for installation
-Low Insertion Loss and High Retum Loss
-Good channel-to-channel uniformity
-Low polarization-dependent loss (PDL)
-Compact size for installation
Wavelength Range: 1260~1650nm
Compliant with Telcordia GR-1209-core/GR-1221-core specification and RoHS requirements.
Compliant with Telcordia GR-1209-core/GR-1221-core specification and RoHS requirements.

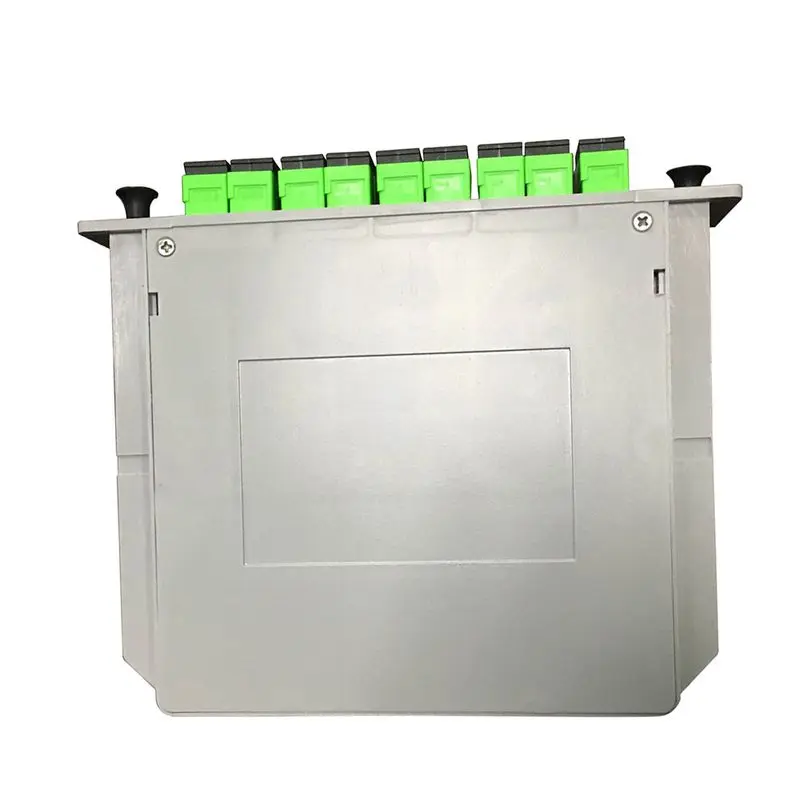

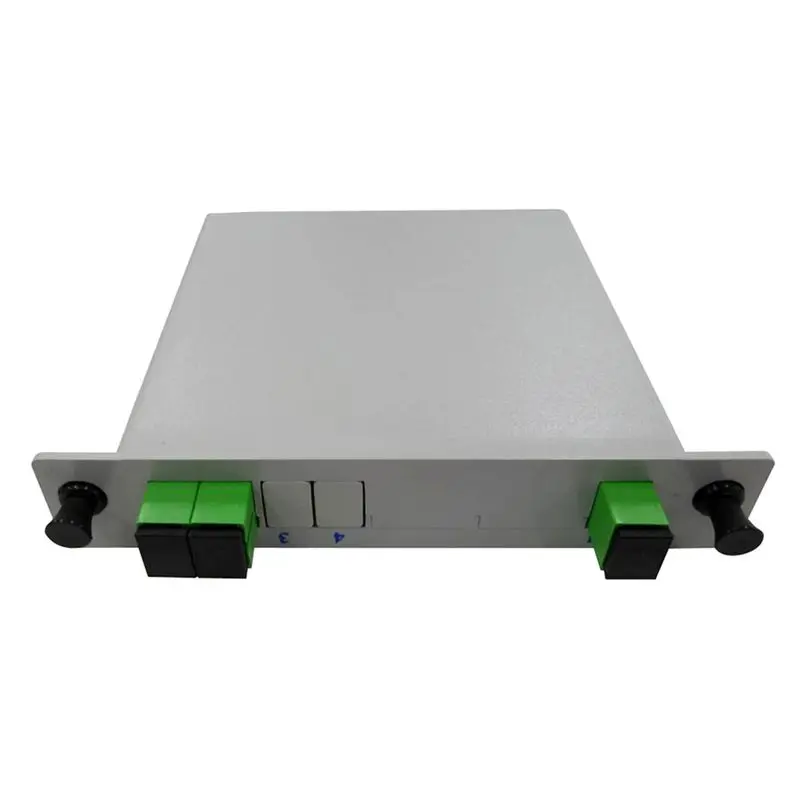

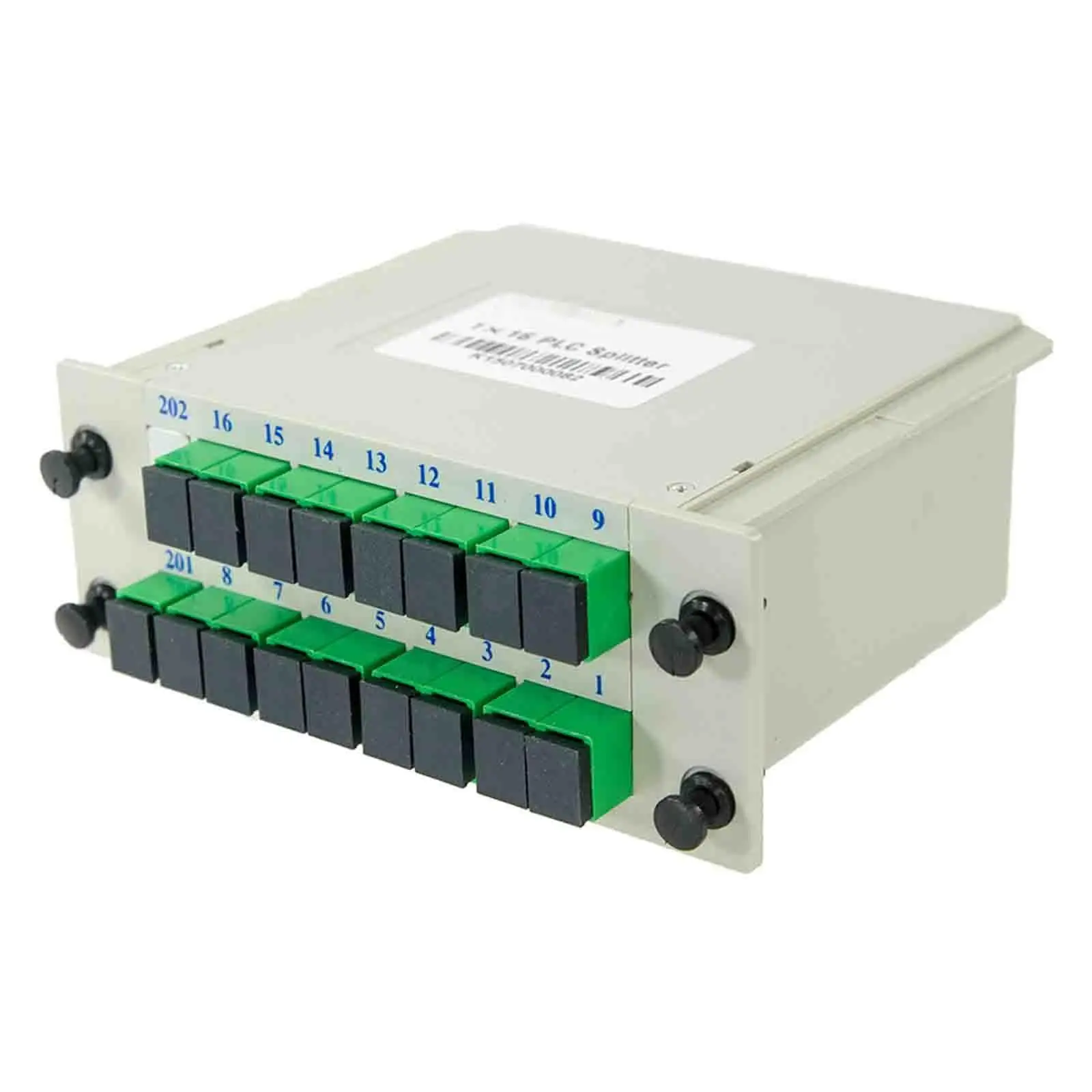

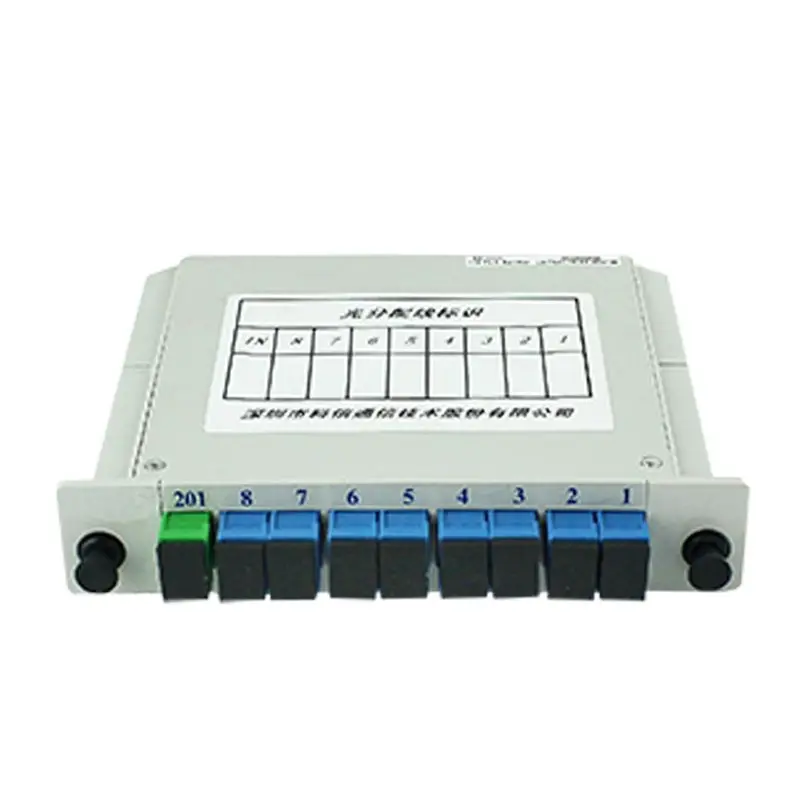

Details Images
Technical Paramenters
Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 | |||||||
Fiber Type | G.657A or as per client’s request | |||||||||||||
Working Wavelength | 1260nm~1650nm | |||||||||||||
Standard InsertionLoss (dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 | |||||||
P- Grade InsertionLoss (dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 | |||||||
Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |||||||
Polarization Dependent Loss (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |||||||
Wavelength Dependent Loss (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |||||||
Return Loss (dB) | ≥50 | |||||||||||||
Directivity (dB) | ≥55 | |||||||||||||
Operating Temp. Range | -40℃~ +85℃ | |||||||||||||
Note: Above Insertion Loss value for 1310nm, 1490nm and 1550nm, the Insertion Loss value for 1260~1300nm and 1600~1650nm will be 0.3dB higher | ||||||||||||||
Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | |||||||
Fiber Type | G.657A or as per client’s request | |||||||||||||
Working Wavelength | 1260nm~1650nm | |||||||||||||
Standard Insertion Loss (dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 | |||||||
P- Grade Insertion Loss (dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 | |||||||
Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | |||||||
Polarization Dependent Loss (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |||||||
Wavelength Dependent Loss (dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | |||||||
Return Loss (dB) | ≥50 | |||||||||||||
Directivity (dB) | ≥55 | |||||||||||||
Operating Temp. Range | -40℃~ +85℃ | |||||||||||||
Note: Above Insertion Loss value for 1310nm, 1490nm and 1550nm, the Insertion Loss value for 1260~1300nm and 1600~1650nm will be 0.3dB higher | ||||||||||||||

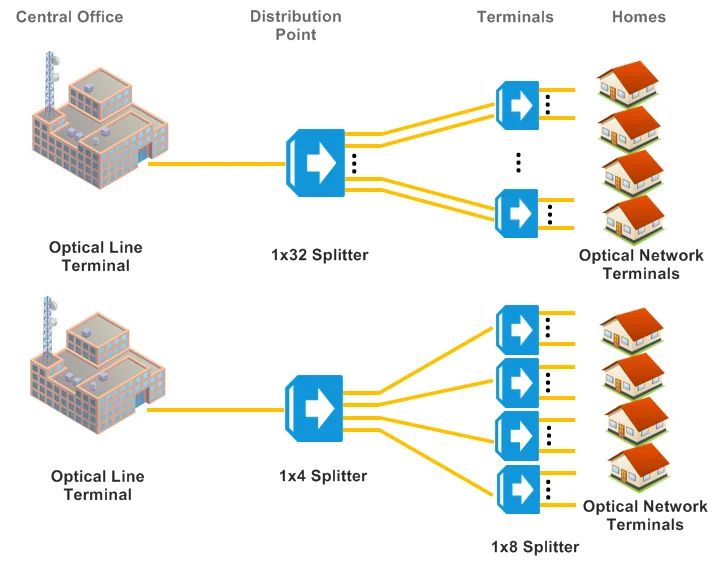

Application

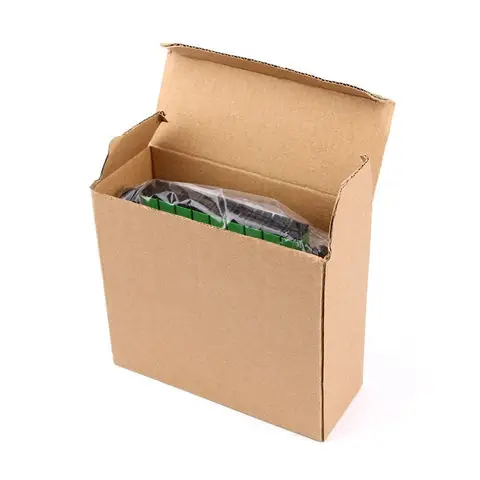

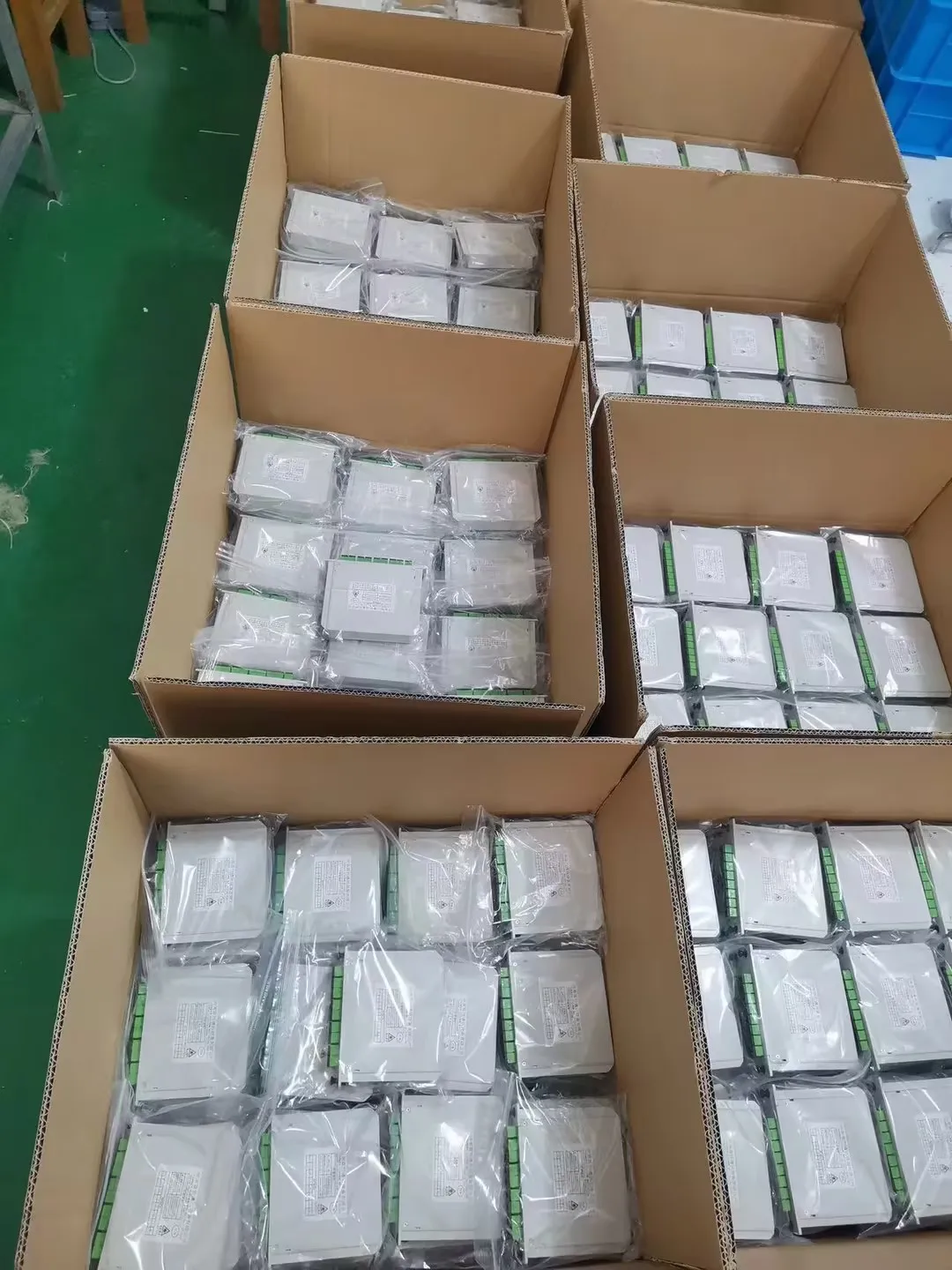

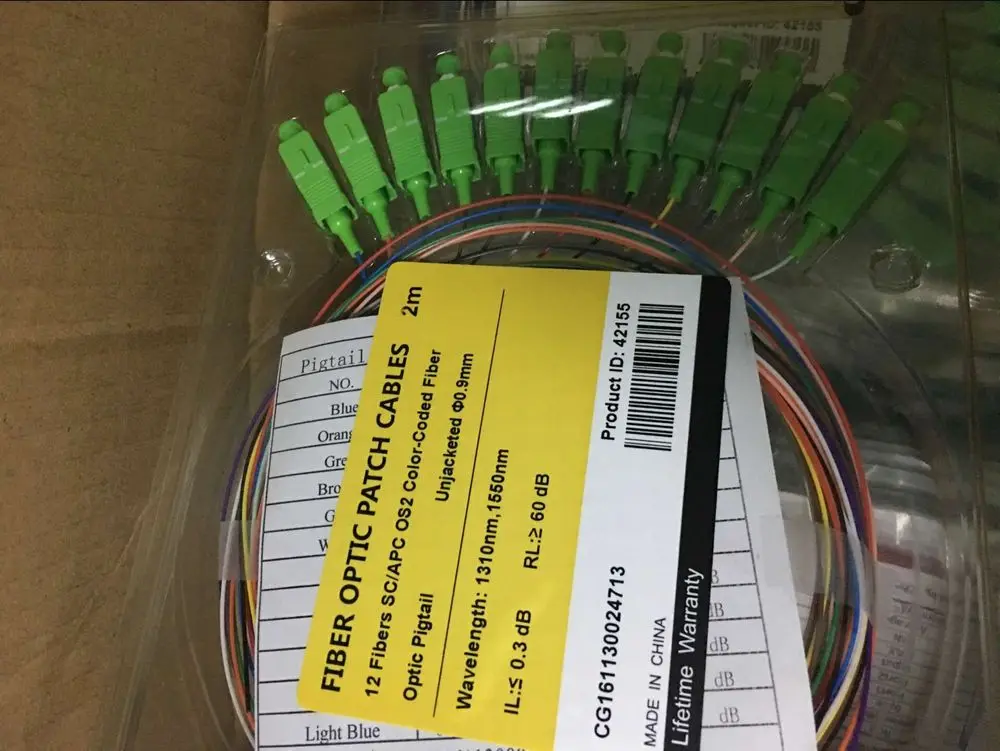

Product packaging
Company Profile
FIBERVISION is a leading manufacturer & one-step provider of fiber optic cables and communication products, boasting over a decade of industry experience. Sustained by a robust management system and serving as the bastion of innovation, we offer customers top-tier, competitive products, and comprehensive solutions. Our skilled R&D team, comprising of seasoned engineers, can create tailored products upon request while we also accept OEM and ODM orders. We can fully customized your ideas or concepts, togo through drawings/3D molding, then prototype sample evlations, and offer you the final products with satisification.
Our products span over 30 countries worldwide, with key markets in South-eastern Aisa, North America, and Europe. We specialize in an array of superior products including fiber optic cables, fiber patch cords, optical distribution network management products, like fiber distribution boxes, fiber splice closures, meanwhile, we also offer a wide range of optic network testing instruments and tools, installation fittings from our partners.
Our factories hold certifications such as ISO 9001, CE, and RoHS, cementing our commitment to high-quality standards,
professional service, competitive pricing, and unwavering integrity. We value your feedback and suggestions, continuously
endeavoring to improve our products and services.
professional service, competitive pricing, and unwavering integrity. We value your feedback and suggestions, continuously
endeavoring to improve our products and services.

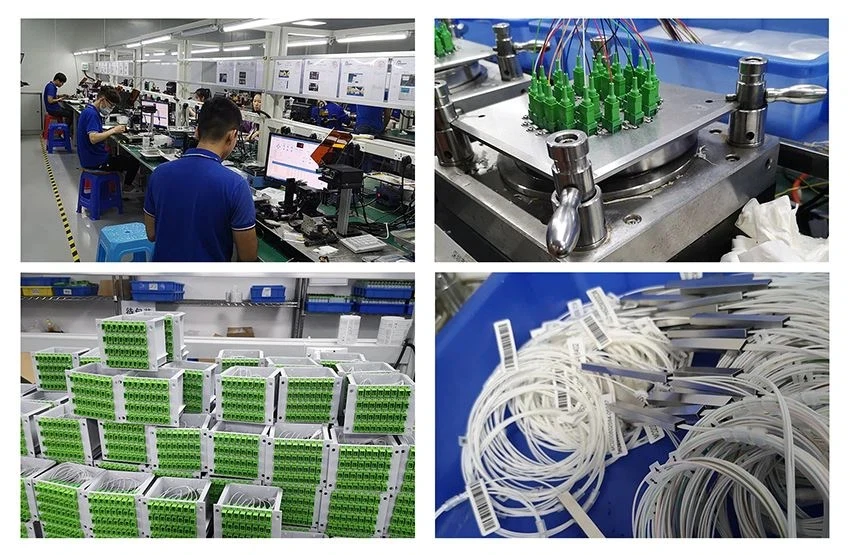

PLC Splitter Prodcution
Why Choose Us
FAQ
Q: Who are you & what products can you offer?
A: FIBERVISION is a company specilized in Fiber Optic Products for Telecom Industry since 2016. We offer a wide range of products for Fiber Telecom industry, such as Fiber Optic Cables, Fiber Cable Assemblies, ODN products, Testing & Installation Tools & Accessories, etc.
Q: How can you guarantee quality?
A: We always have IQC for materials before mass production,
We always have IPQC & 100% test for key parameters during production.
We always have FQC sampling based on AQL standards.
\t Additional OQC/DAT will be carried if client requires, and provide full testing reports.
Q: What are your trade terms ?
A: We accept Currency in USD,GBP, Euro, CNY, HKD.
\t We accept Delivery Terms: EXW, FOB,CFR,CIF,DDU, DDP, etc.
We accept Payment Terms by T/T, L/C, D/P, Western Union and Paypal.
Q: Can you accept small order?
A: Yes, we accept small orders. We understand that some customers may have smaller requirements, and we are happy to accommodate them.
Q: Do you provide OEM/ODM service?
A: Yes, we provide OEM/ODM service to meet the specific needs of our customers. Please contact us for more information and to discuss your requirements.
Q: Do you offer after-sales service?
A: Yes, we offer after-sales service to ensure customer satisfaction. If you encounter any problems with our products, please contact our customer service team for assistance.
Q: What is your warranty policy?
A: We offer a warranty on all of our products. The length of the warranty may vary depending on the product, so please refer to the product page or contact our customer service team for more information. If you encounter any problems with our products during the warranty period, please contact us for assistance.
