Price:$310.00-356.00

Quantity:


Product Overview

Description







MODEL
TTEV-HI3.6K+2.56kWh
TTEV-HI4.2K+5.12kWh
TTEV-HI6.2K+4.8kWh
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC
Start-up Voltage/Initial Feeding Voltage
60VDC/90VDC
MPPT Voltage Range
Maximum Input Current
1/18A
1/18A
1/22A
GRID OUTPUT(AC)
Nominal Output voltage
220/230/240VAC
Output Voltage Rang
195.5~253VAC
Nominal Output Current
18.2A
18.2A
27.0A
Power Factor
>0.99
BATTERY
MODEL
25.6V100AH
25.6V200AH
48V100AH
Normal charging voltage
29.2V
29.2V
54.75V
Maximum charging current
100A(Recommended)
100A/200A (Recommended 100A)
100A(Recommended)
Discharge termination voltage
20V
20V
37.5V
Recommended discharge termination voltage
22.4V
22.4V
42V
Maximum discharge current
100A
100A/200A
100A
Single cell charging overvoltage protection
3.65V
3.65V
3.65V
Overvoltage protection for the whole battery
29.2V
29.2V
54.75V
Low voltage protection for single cell discharge
2.5V
2.5V
2.5V
Low voltage protection for whole group discharge
20V
20V
37.5V
Charge overcurrent protection
110A
110A/220A
110A
Discharge overcurrent protection
110A
110A/220A
110A
GENERAL PHYSICAL
Dinension,D*W*H(mm)
701*441*231
Cartoon Dimension,D*W*H(mm)
800*530*340
Net Weight(kgs)
42KG
59KG
58KG
Gross Weight(kgs)
44.7KG
61.7KG
60KG
INTERACE
communicating port
RS232/RS485/WIFI/GPRS
ENVIRONMENT
Humidity
5%to 95%Relative Humidity(Non~condensing)
Working temperature
-20℃~+65℃
Storage temperature
0℃~+65℃
STANDARD
compliance Safety
CE UN38.3 MSDS
















Q1: Are you factory?
A: Wenzhou Smartdrive New Energy Technology Co., Ltd. is a professional manufacturer of Lithium Ion batteries, Home storage battery,LiFePO4 storage battery. With eight advanced manufacturing lines, over 500 engineers and technicians and assembly line workers.

Q2: What is the typical capacity of a all in one inverter battery?
A: all in one inverter batteries generally have a capacity between 100Ah - 200Ah.

Q3: How to determine the quality of all in one inverter batteries?
A: Consider cycle life, self-discharge rate, safety features, brand reputation, and user feedback.

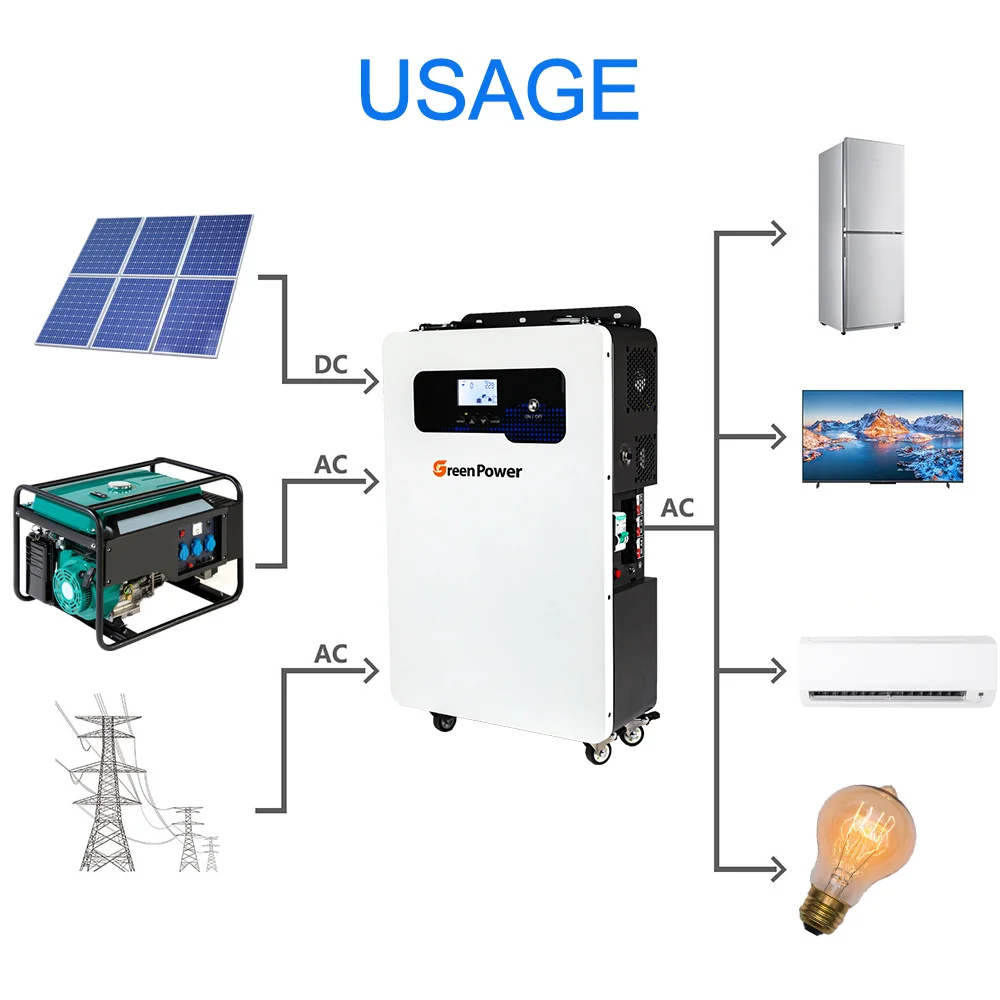

Q4: In which scenarios can all in one inverter batteries be applied?
A: Used for household energy storage, emergency lighting, power for monitoring equipment, charging electric tools, and as a backup power source in areas with unstable power supply.

Q5: What about after -sale service?
A: We will offer you 1 year guarantee. If there are any problems , please inform us,we will offer you positive solutions.

Q6: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
