Keyso KP25 25W 20W mini portable handheld fiber laser marking printing engraving machine for Racus QS laser source
- Category: >>>
- Supplier: Keyso Co. Ltd.
Share on (1601283665595):
Product Overview
Description
Products Description

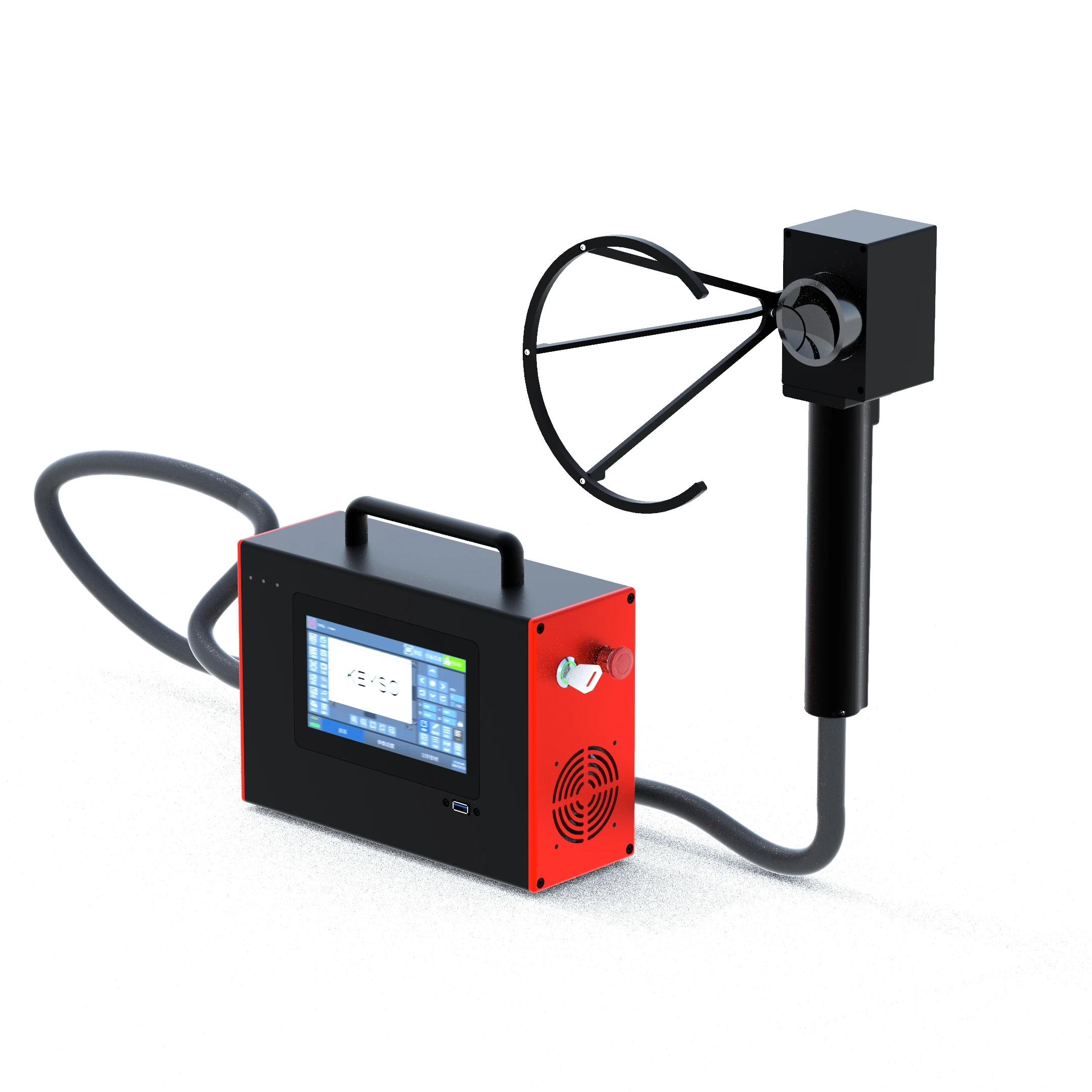

Portable Outdoor Industrial Fiber Laser Marker and Cleaner
Pulsed laser clean, low heat
Portable handheld laser marking
Technical Specifications
Model | KP20 | KP25 | |
Laser technology | Fiber laser, wavelength 1064 nm | ||
Laser power | 20 W @27kHz | 25 W @40kHz | |
Frequency | 27~60 kHz | 40~60 kHz | |
Pulse width | 90 ns | 100 ns | |
Scanner speed | Up to 5 m/s (198 in/s) | ||
Filed lens quantity | 1pcs | 1pcs | |
Filed lens size (mm) | 110*110 mm | 110*110 mm | |
Filed lens size (in) | 4.3*4.3 in | 4.3*4.3 in | |
Communication interfaces | USB, I/O | ||
Compatible software | KeysoPad | ||
Laser safety classification | Class 4 | ||
Power consumption rate | 200 W | 230 W | |
Rated voltage | 110~250 VAC, 50~60 Hz | ||
Operating temperature | 10 to 40°C (50 to 104 F) | ||
Humidity level | 10-85% | ||
Net weight | 8 kg | 8 kg | |
Package size | L*W*H=40*40*35 cm | ||
Package weight | 12 kg | 12 kg | |

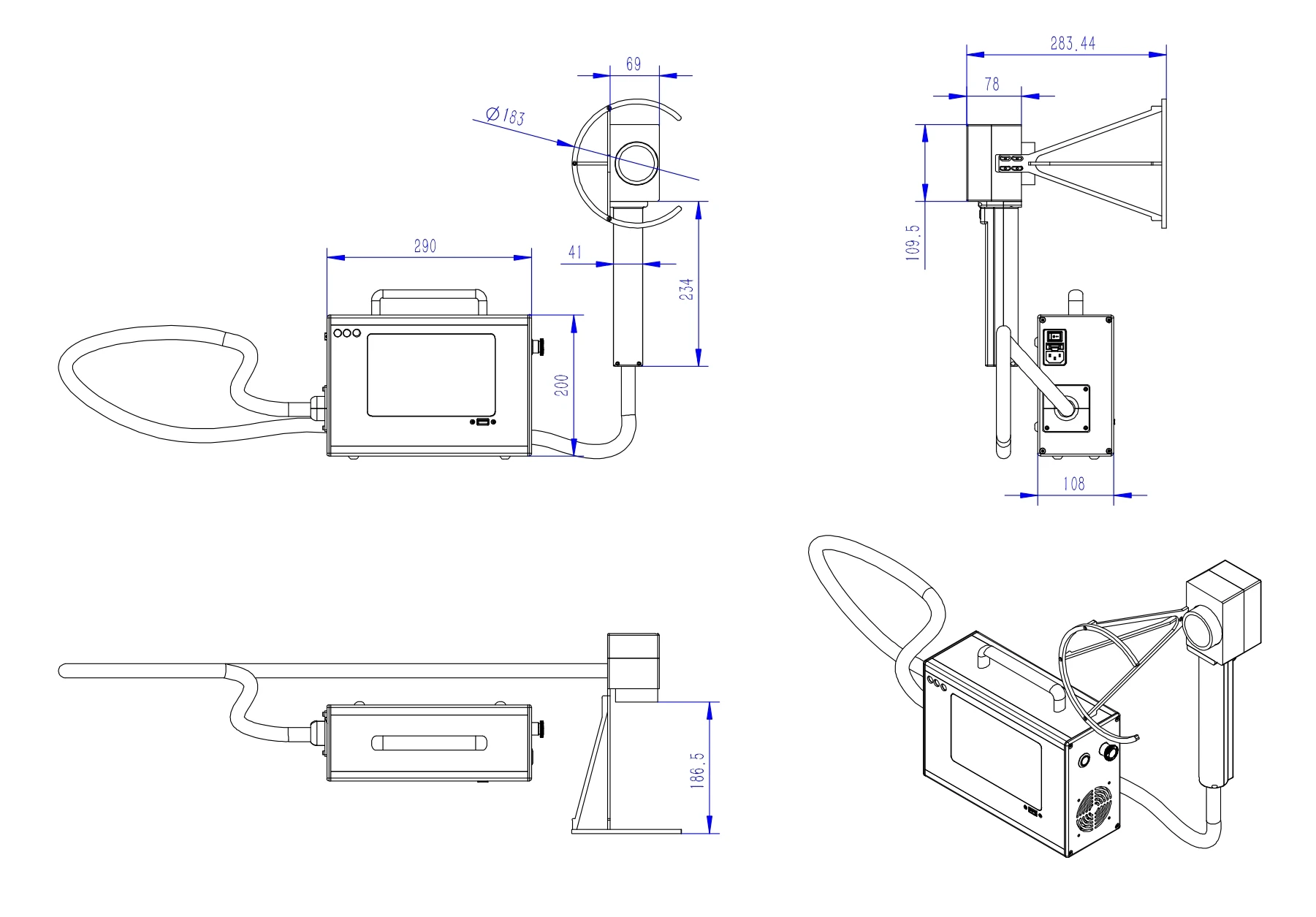

Overall Dimension
Compact design, small size, space saving

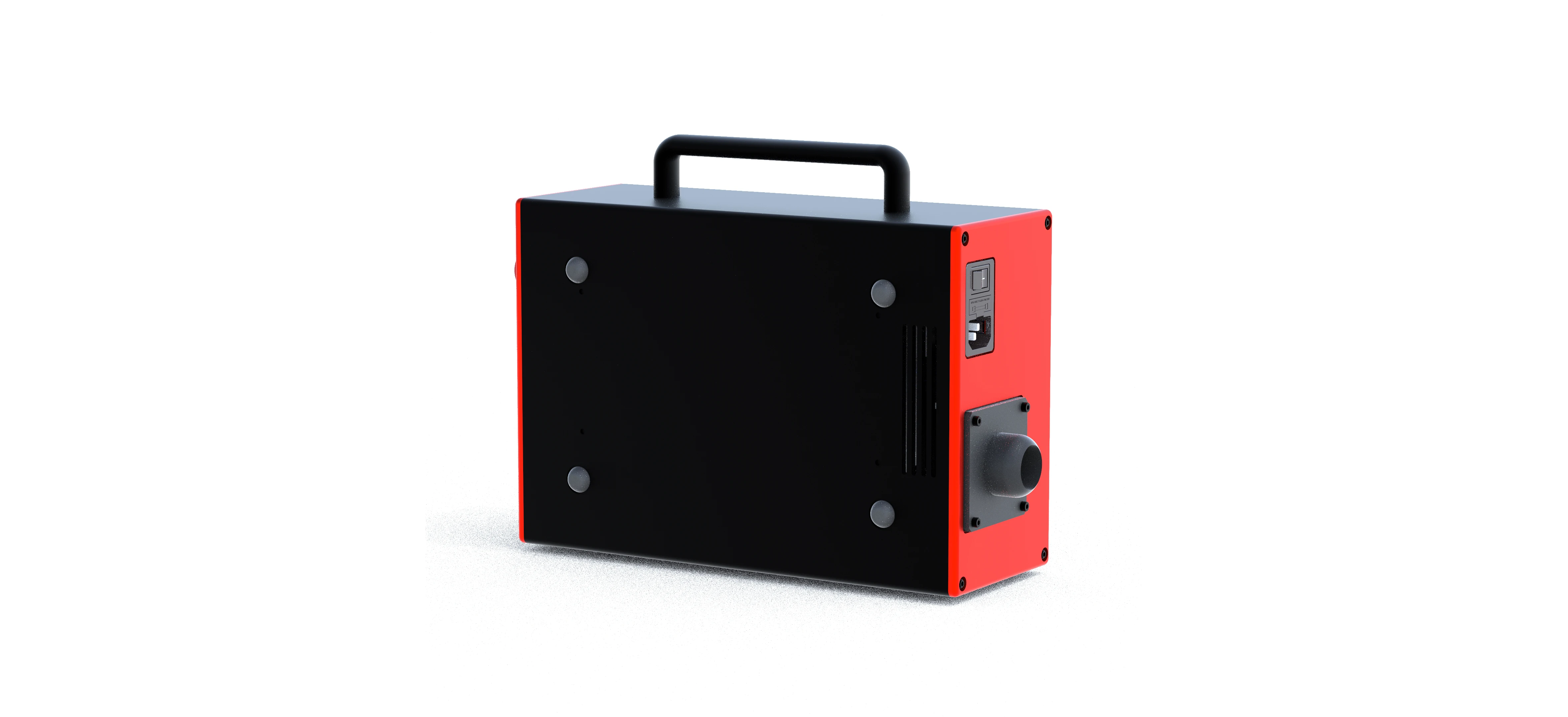

Features of KEYSO K fiber Series

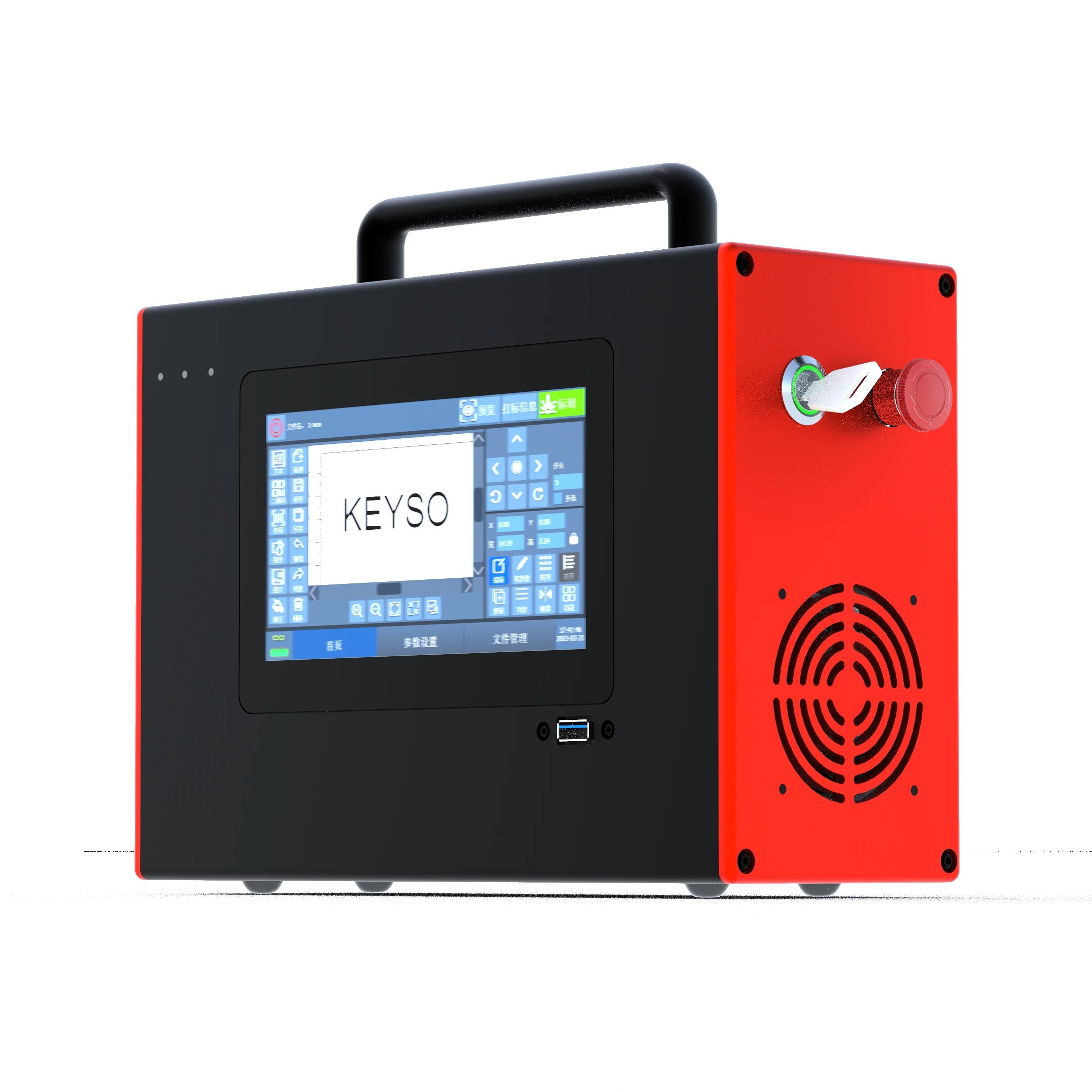

Extruded aluminum head and case
Integrated design, small size, cut by high accuracy CNC center
Anodized dyeing for durable color
Anodized dyeing for durable color
Industrial standard laser source
20W~50W high laser power
100000 hours designed laser life
A real high-speed scanner
Rated marking speed 5m/s
Rated positioning speed 10m/s
**Note:
5m/s tested in condition of 3mm front in 110*110mm lens.
Rated positioning speed 10m/s
**Note:
5m/s tested in condition of 3mm front in 110*110mm lens.
Field lens
Equipped with 110X110mm field lenses as standard, surficient for outdoor marking and clearning.
Easy maintenance
Fully screw mounted, easy access to all parts, low maintenance cost

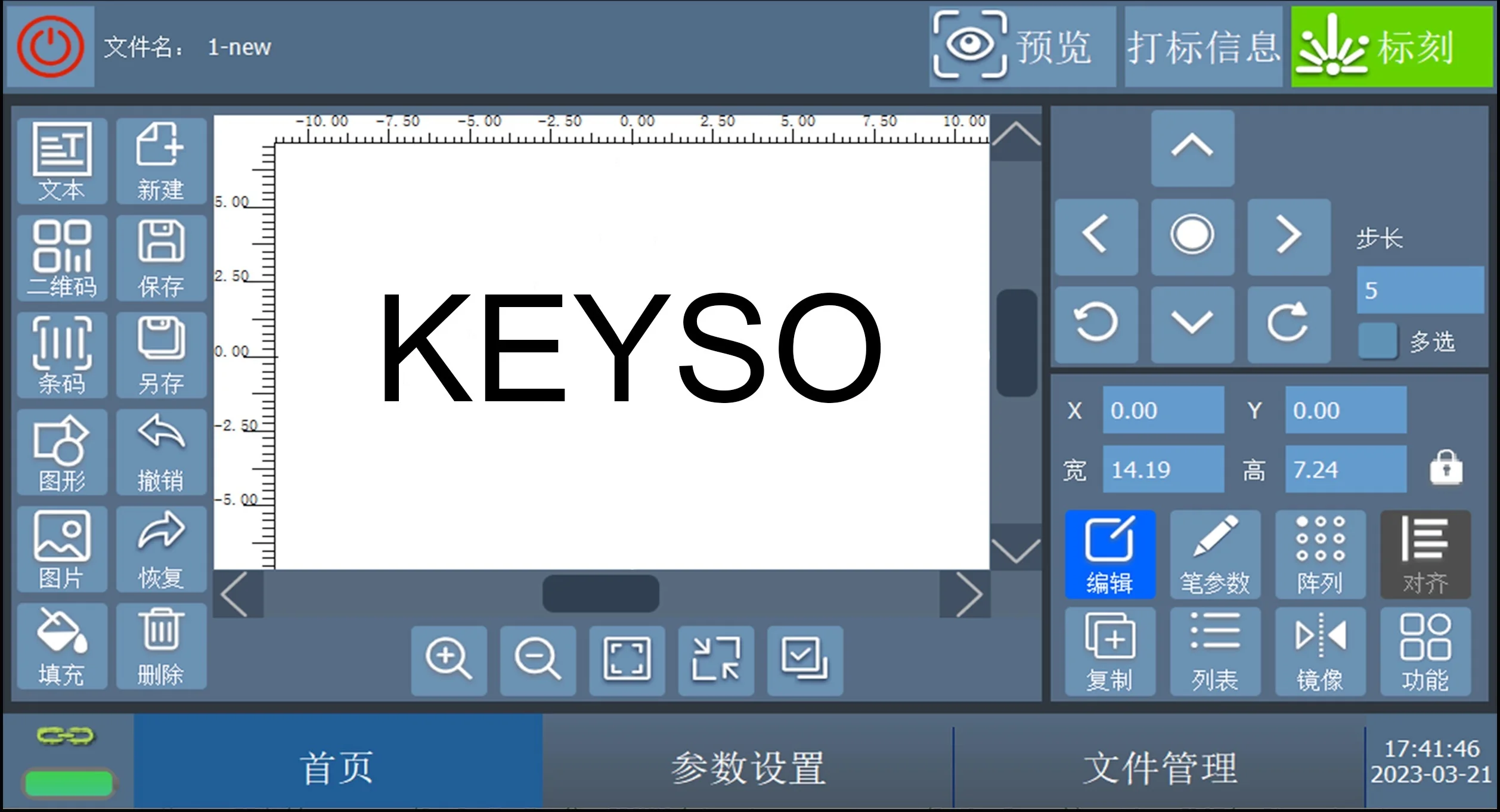

Software KeysoPad
Build in laser clean and marking system.
Support multi language.
Exquisite accessory package
CE certified OD6+ grade protective goggles 1 pcs
*Optical density (OD) is used to express the percentage of laser light of a specific wavelength that can pass through laser protective glasses.
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%
Power cable choice
USA plug, EU plug, UK plug, AU plug
Optional: Smoke and dust filter
200W power, 280m³/h
AC220V (AC110V available)
Software functions
The supported function and file types are listed as following
Logo/Graphic/Image |
Texts & Numbers (in any fonts) |
QR code/2D code/Barcode |
Deep Marking/Etching |
Batch Number/Serial Number/Vin Number |
Ring & Rotate Marking |
Cut Thin Materials |
KEYSO Laser Marker Model Compare
Note: M=Marking; C=Cutting, E=Engraving/Deep marking;
KEYSO Laser Marker | K series fiber | Ki UV series | Ki CO2 series | |||
1065nm | 355nm | 10.3um | ||||
Organics | ||||||
Ceramic | M | M | M | |||
Electrical/medical ceramic | M | M | M | |||
Leather | M | M | ||||
Paper, cardboard, cork | M | M / C | ||||
Rubber | M | M | ||||
Silicon | M | |||||
Wood, varnished wood | M | M / E | ||||
Food | M | M | ||||
Glass, crystal | M | M | ||||
Stone, granite, marble | M | M | ||||
Textiles | M | M / C | ||||
Plastics | ||||||
ABS | M | M | E | |||
Laminates | M | M | E | |||
PA | M | M | E | |||
PE, BET | M | M | E | |||
PMMA, Acrylic | M | M | E | |||
POM - PBT | M | M | E | |||
PP | M | M | E | |||
PC | M | E | ||||
Foam | M | C / E | ||||
Metal | ||||||
Aluminum | M / C / E | M | ||||
Anodized Aluminum | M / C / E | M | M | |||
Brass | M / C / E | M | ||||
Carbide | M / E | M | ||||
Coated metal | M / E | M | M | |||
Copper | M / C / E | M | ||||
Gold, silver, nickel, platinum | M / C / E | M | ||||
Stainless steel | M / C / E | M | ||||
Steel | M / C / E | M | ||||
Titanium | M / E | M | ||||
