Product Overview

Description

Product Introduction

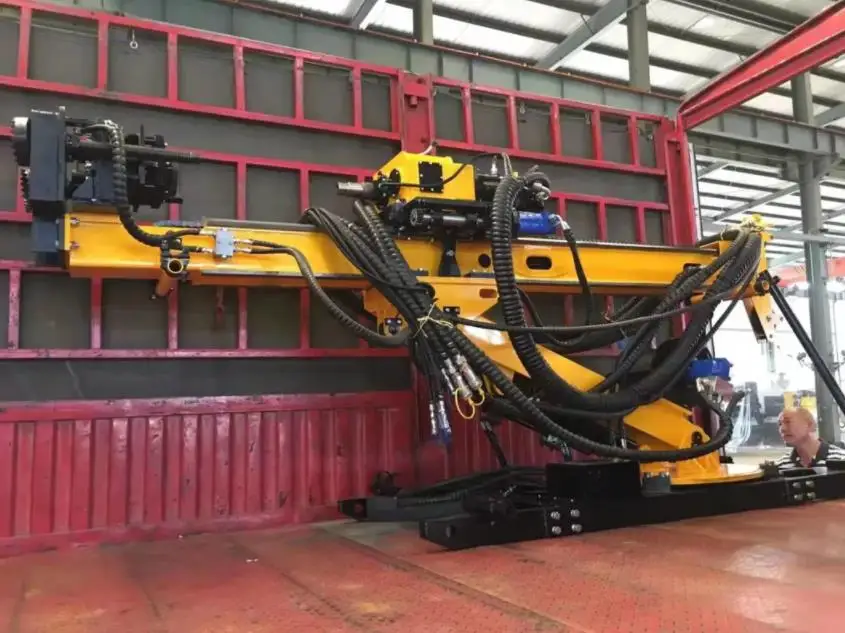

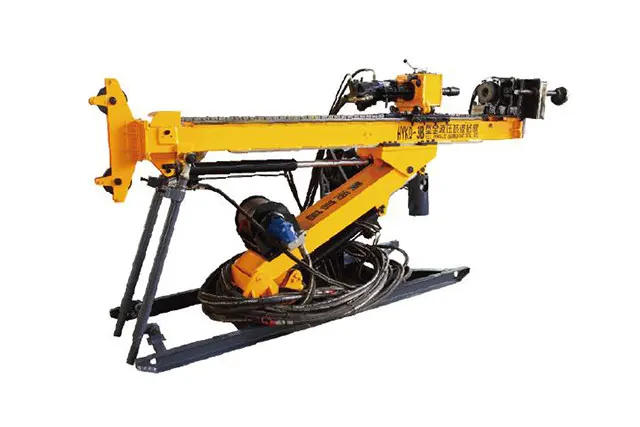

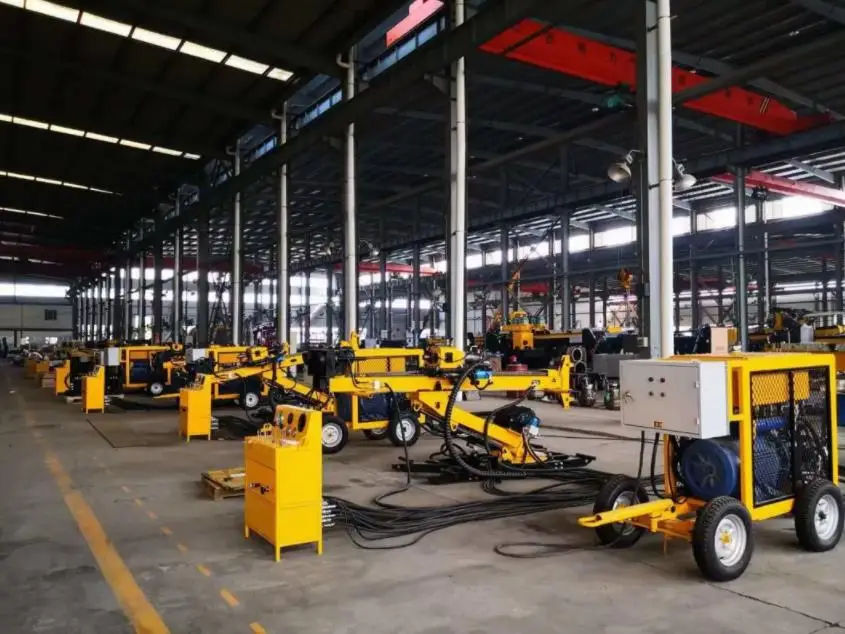

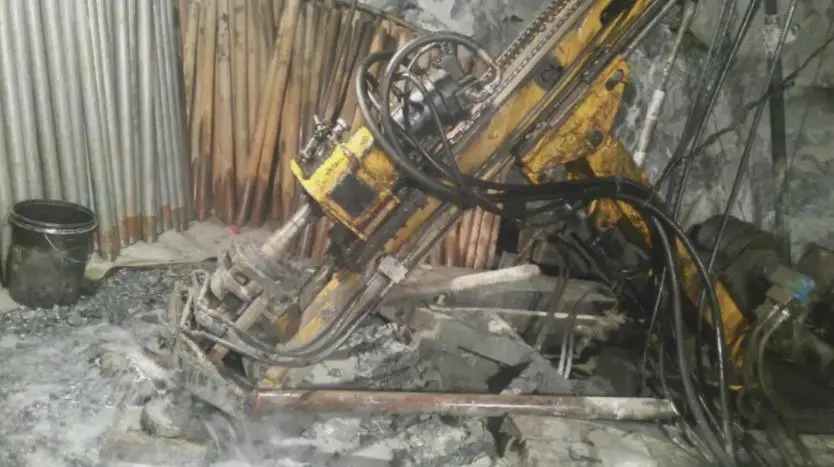

The HYKD-3B fully hydraulic tunnel drilling rig is mainly suitable for industries such as coal, geology, metallurgy, and engineering. It is used for large-diameter gas drainage drilling, water injection drilling, and large-diameter horizontal drilling construction in mines, tunnels, underground coal mines, and surface engineering. Meet the requirements of large-diameter cone drilling, large-diameter hard alloy drilling, and impact rotary drilling.

Technical characteristics

1. Split layout, small size, light weight, convenient relocation, and flexible operation.

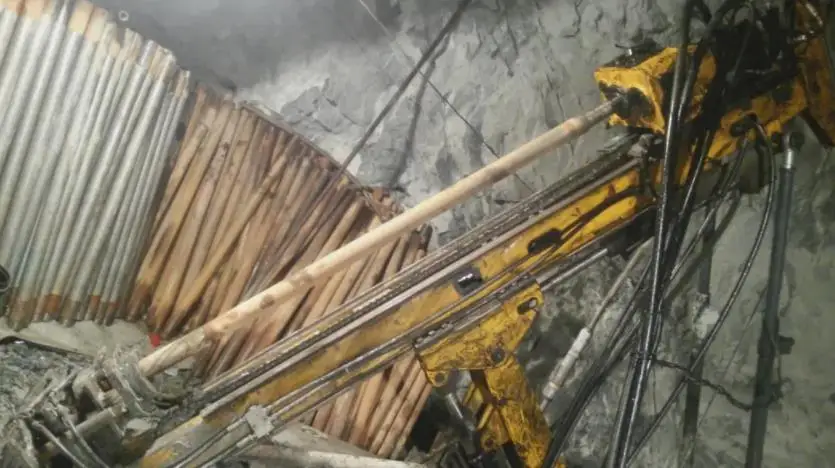

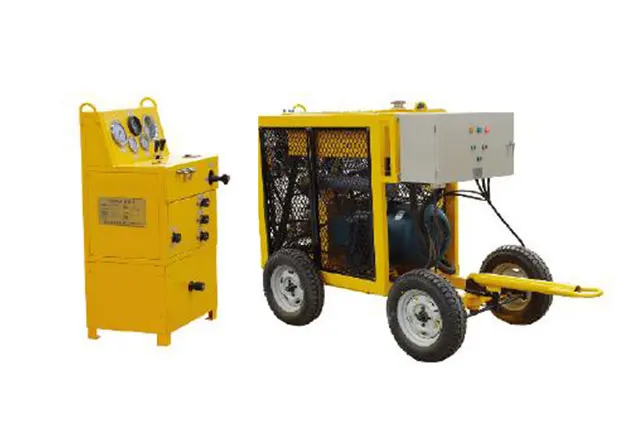

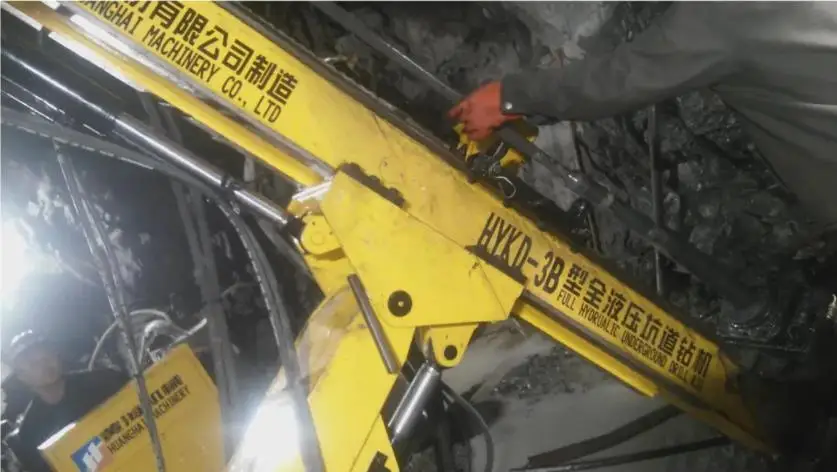

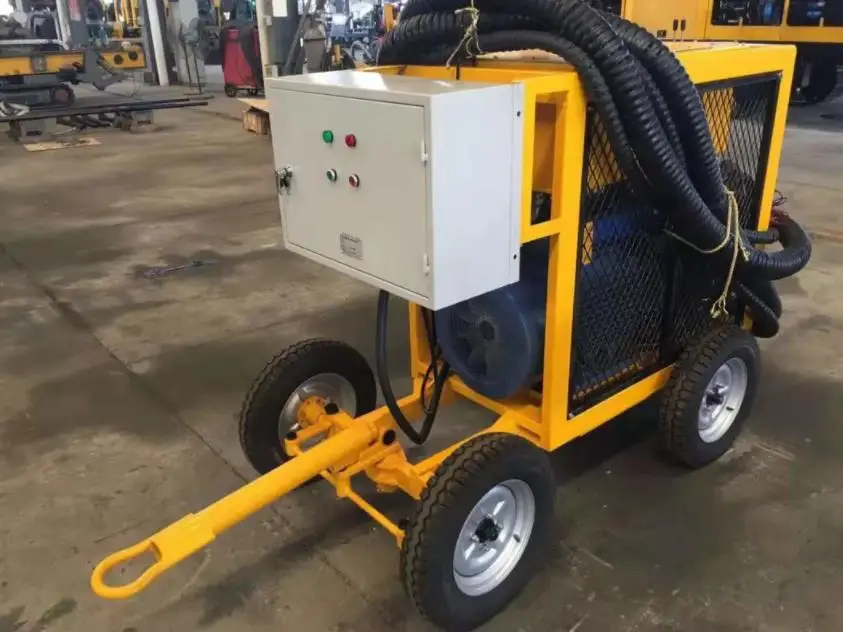

2. The power unit is driven by an explosion-proof motor and control system to drive the hydraulic pump. The motor drives the spindle rotation and the oil cylinder chain speed doubling mechanism to achieve the feeding and rotation functions of the power head.

3. The hydraulic chuck fully meets the functions of clamping and disengaging the drill pipe, as well as power-off protection.

4. The sliding and expansion function of the mast facilitates the adhesion between the mast and the foundation during drilling, enhancing the stability of the work.

5. The up and down swing of the swing arm and mast is suitable for multi angle drilling requirements.

6. The spindle speed range of the power head is wide, and the rotational torque is large.

performance parameter

project		unit	parameter
Drill depth(m)		BQ	400
		NQ	300
		HQ	200
Rated torque of power head		Nm	855
rotation speed		r/min	0-1200
Lifting force/feeding force		kN	60/30
rated power of motor		kW	45
Rated speed of electric motor		r/min	1480
Power head stroke		mm	1800
system pressure		MPa	25
Rope hoist lifting force		kN	8
Wire rope diameter of rope hoist		mm	6
Drilling angle		°	0-180
weight	host	kg	1450
	POWER station	kg	1140

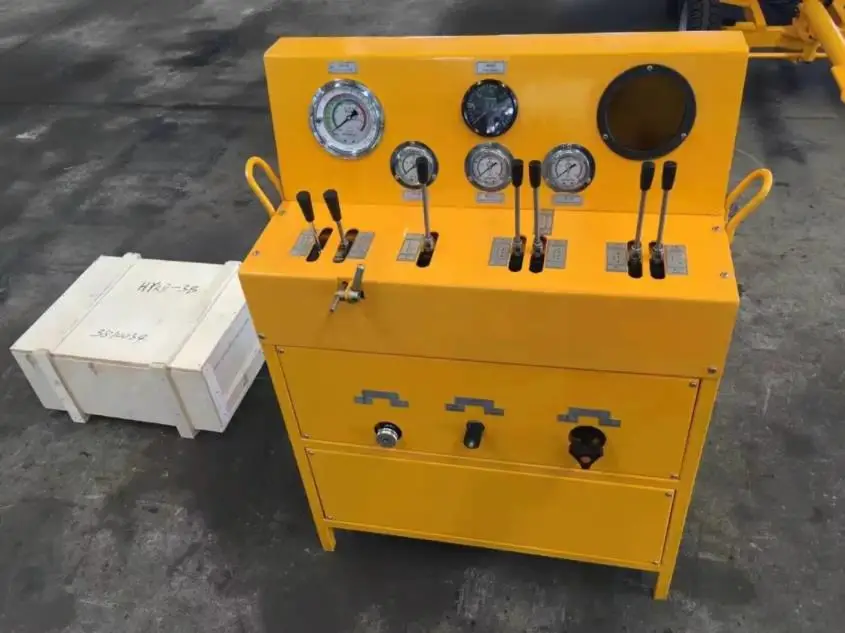

	Control cabinet	kg	130
External dimensions	host	mm	3456*1290*1620
	POWER station	mm	2530*1000*1550
	Control cabinet	mm	870*450*1045
