Made In China Cheap Brand New 3 Axle Stainless Steel Oil Fuel Tanker Tanks 60000l Semi Trailer for Sale
- Category: >>>
- Supplier: Liangshan Juxin Machinery Co. Ltd.Liangshan Ltd.
Share on (1601283679587):
Product Overview
Description
Products Description

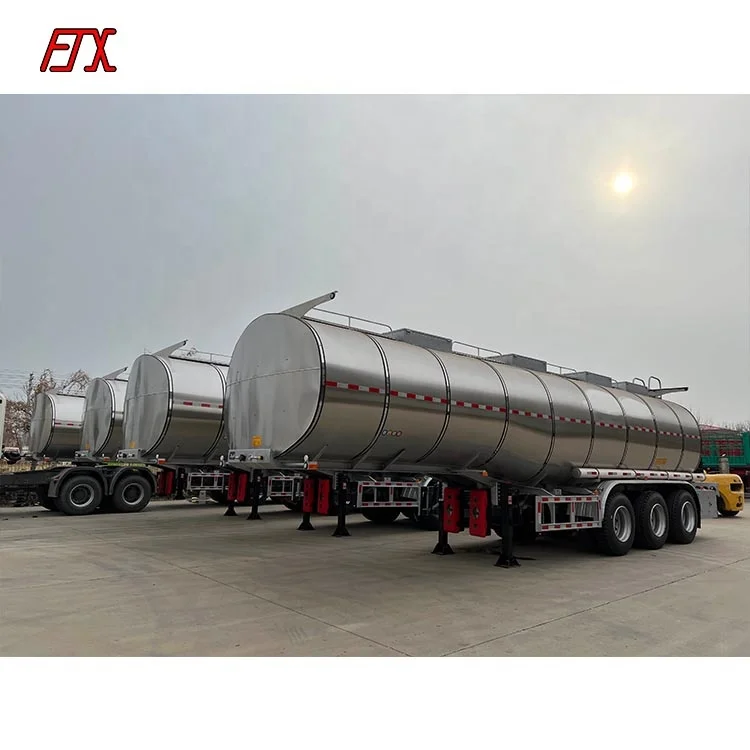

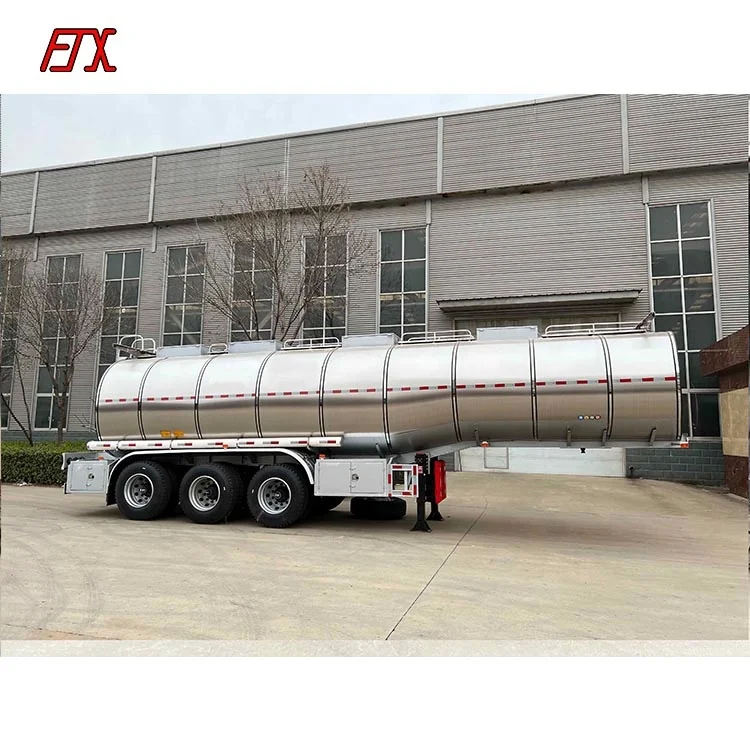

JUXIN High quality 3 axle oil fuel tank semi trailer adopt advanced design concept. We also can produce the tanker trailers for different liquid like fuel, petrol, water, palm oil etc.
To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent oil
leakage, when emergency happens.
JUXIN Fuel tanker trailers Major parts and components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.
The following specifications for your reference.
To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent oil
leakage, when emergency happens.
JUXIN Fuel tanker trailers Major parts and components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.
The following specifications for your reference.
Name | Fuel tanker semi trailer | ||||
Trailer Model | Round Shape or Ellipse | ||||
Outside Dimensions | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm | ||||
Tare weight | About 8-12.8T | ||||
Total Volume | 25m³-60m³ | ||||
Material | 1.Q235B/Q345B carbon steel 2.5XCT4aluminum5454 3.304 stainless steel | ||||
Tanker Body Material | 1. 6mm/5mm Q235B/Q345B carbon steel 2. 7mm/6mm 5XCT4 aluminum 5454 3. 5mm/4mm 304 stainless steel | ||||

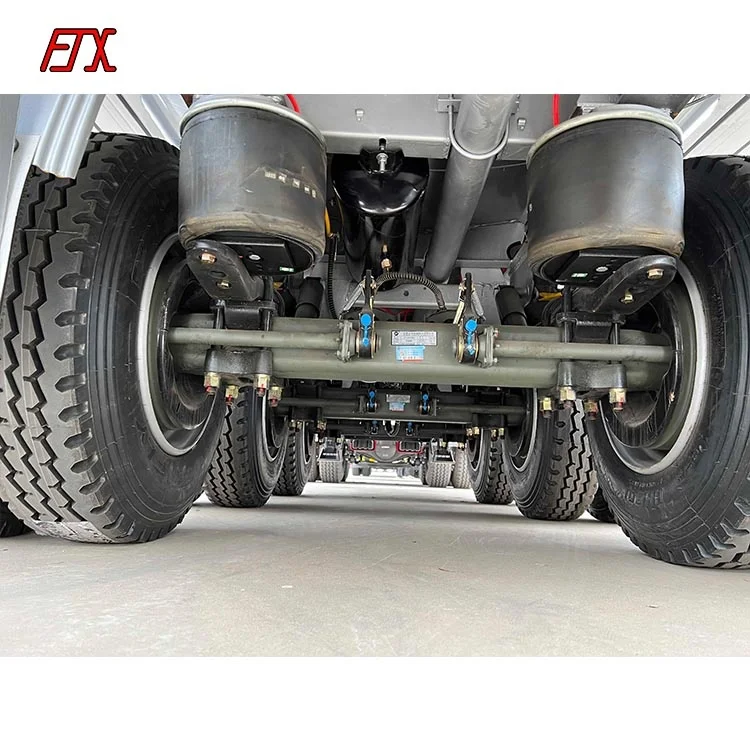

Axles | 13T/16T, FUWA/BPW/HuaJing brand | ||||
Axle Number | 2/3/4/ Axle or multi axle | ||||
Main Beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel . | ||||
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) | ||||

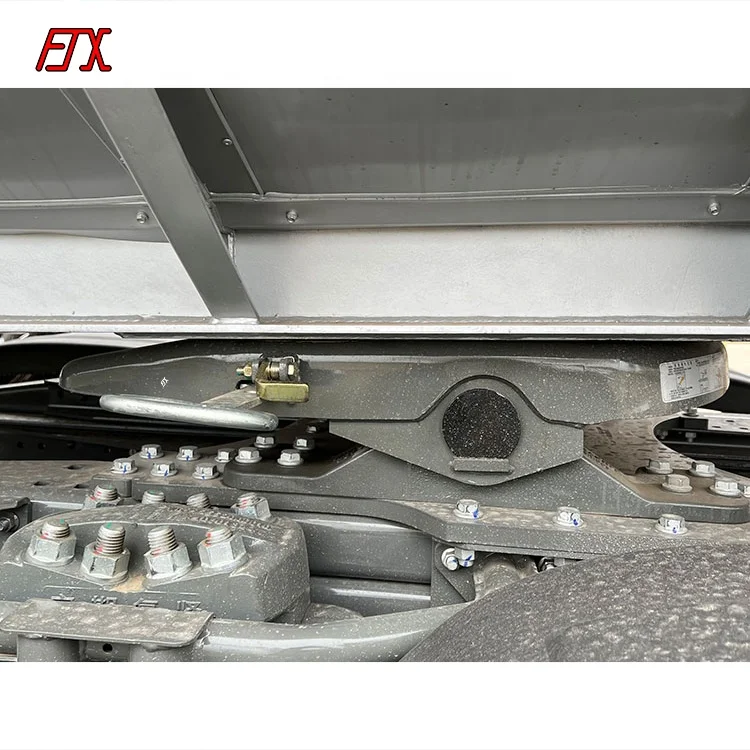

King Pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type | ||||
Support legs | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) | ||||

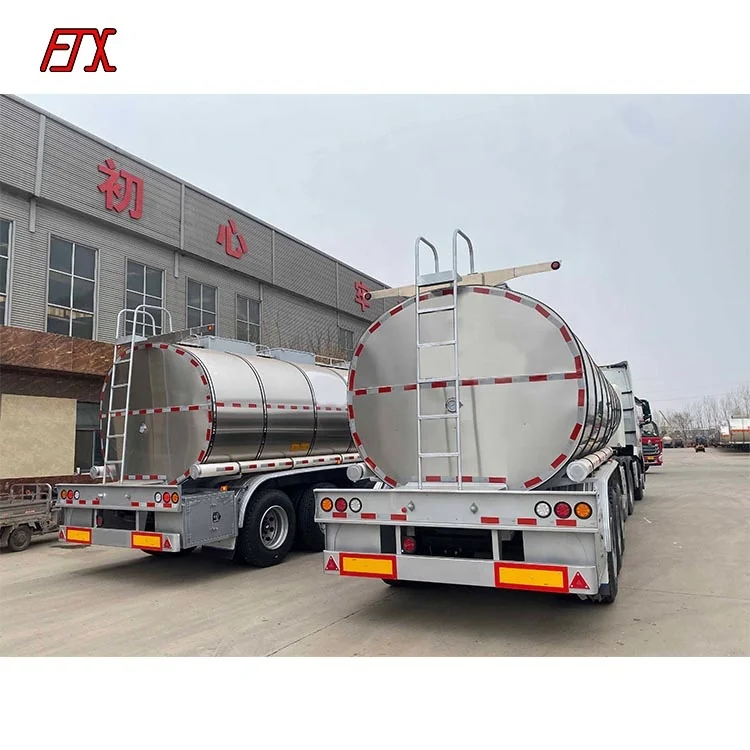

Rear ladder | Dismountable or foldaway | ||||
Wheelbase | 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm | ||||
Spring leaf | 8/10/12/16 pieces | ||||
Manhole Cover | 2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards | ||||
Brake Chamber | 6 double brake chamber | ||||
Electrical System | 24V, 7core socket, lights according to European standards | ||||
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher | ||||
Other tools | A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) | ||||
Discharge mouth | diameter is 280mm | ||||
Receptacle | 7ways (7wire harness) | ||||
The Above Information is Standard Spec.If you want get more specific Spec.Please send inquity to us. | |||||
