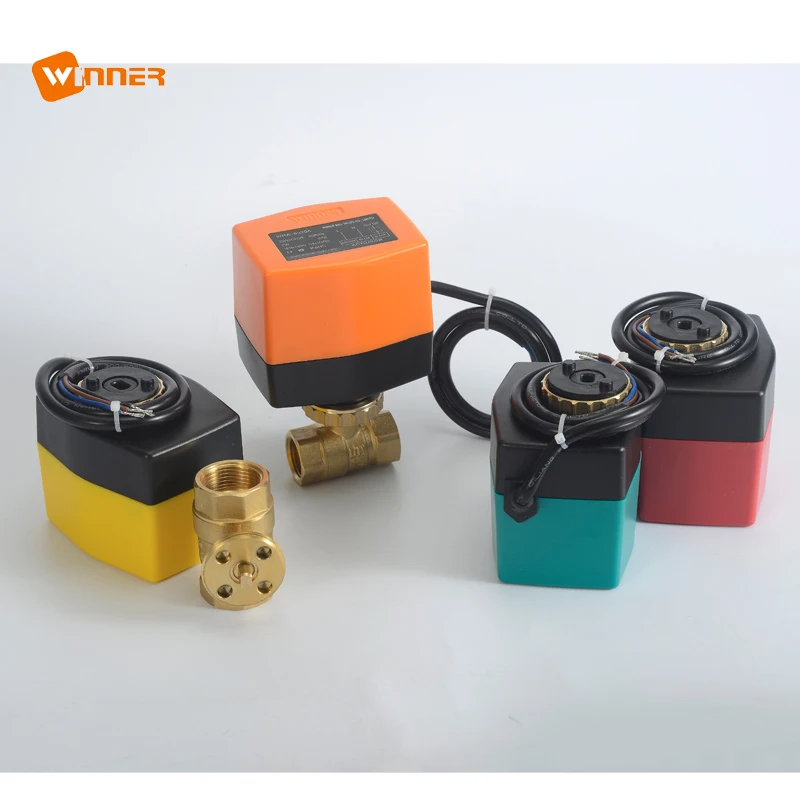

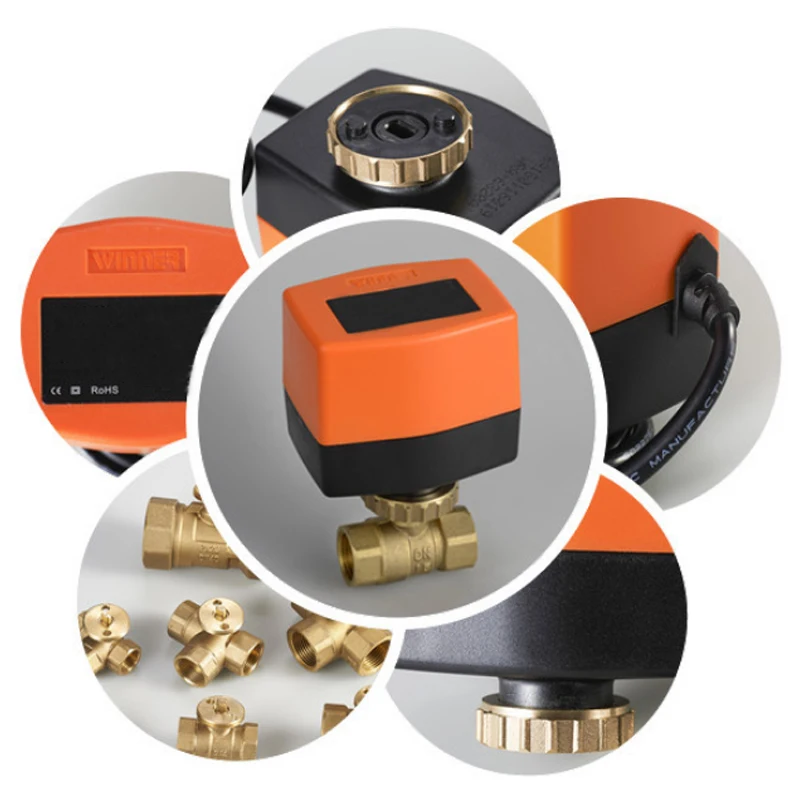

Winvall 110V Actuator 2 way Electric Valve Motorized Actuated Brass Ball Valve FCU Two Way Water Flow Control Valve PN20 600WOG

Description of Motorized Water Valve
Winner motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.

Application

HVAC system, heating system, Water treatment system, Industrial equipment

Valve body:

Medium: cold/hot water, with 50% glycol                                 Temperature of medium:  -20°C...110°C

Rated pressure: PN20                                                             Pipe connector: internal thread

Ambient temp. range: −5…+60°C; 0…90%RH

 Material
Valve body: forged brass, Hpb59-1                                         Seal: ball: EPDM+PTFE
Ball: chrome-plated brass                                                       Stem: EPDM O-rings

Actuator

 Wiring Diagram
