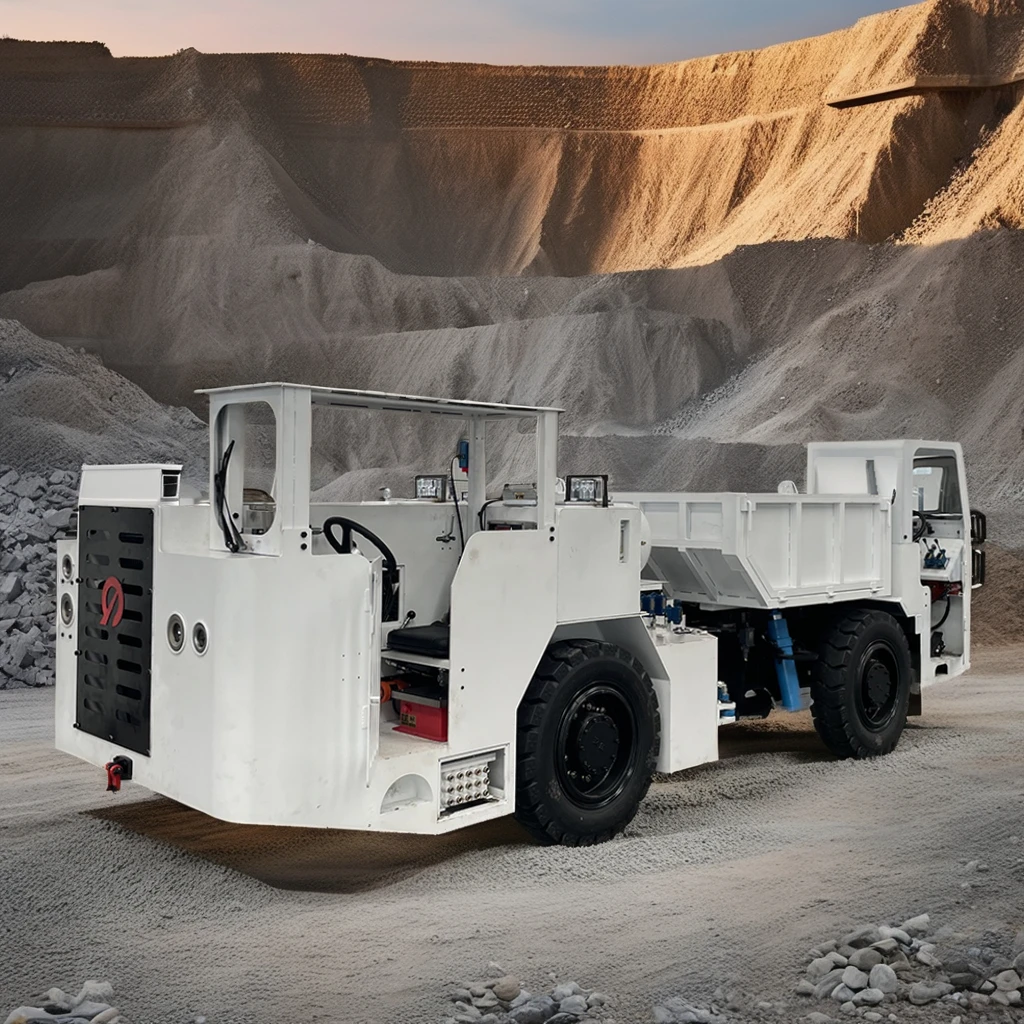

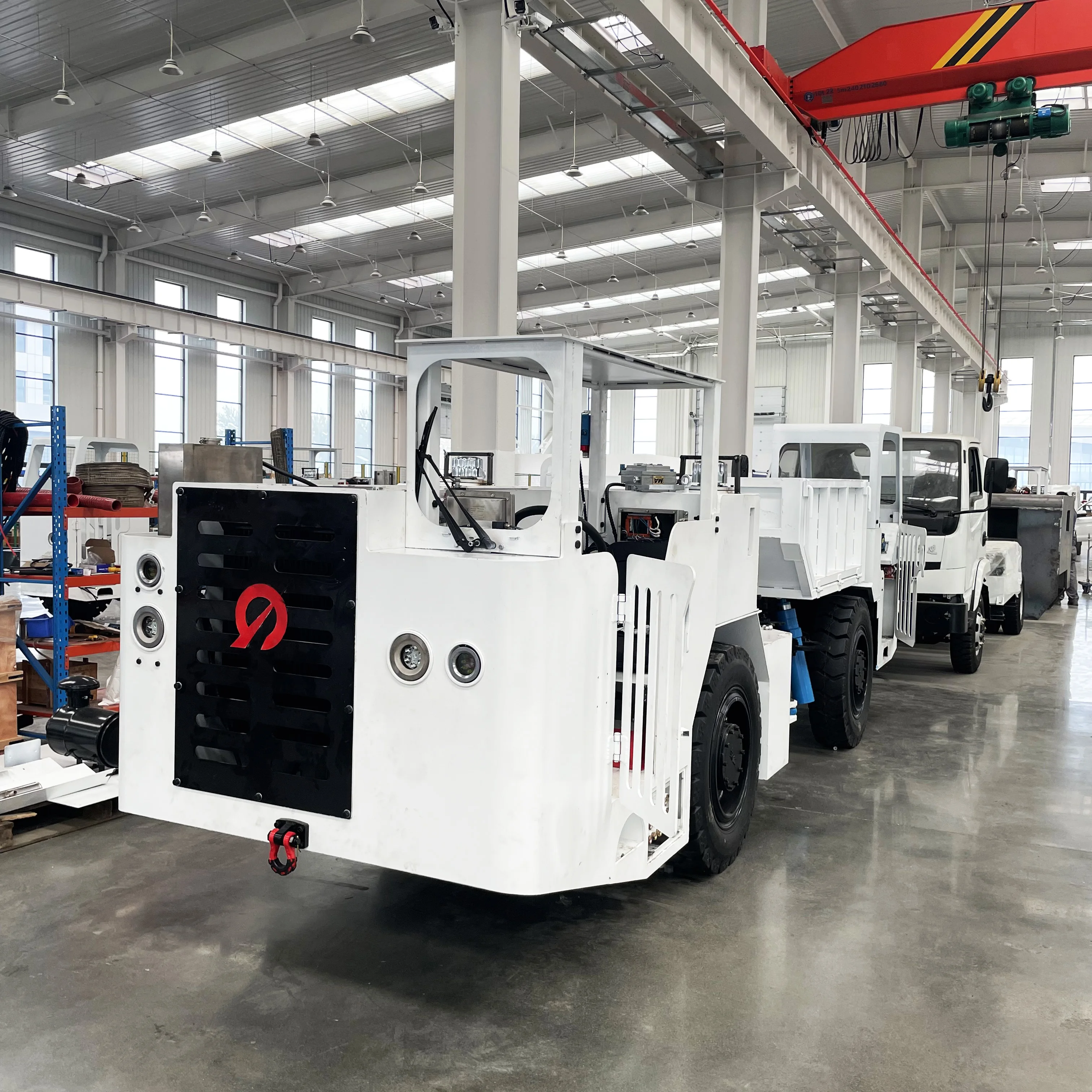

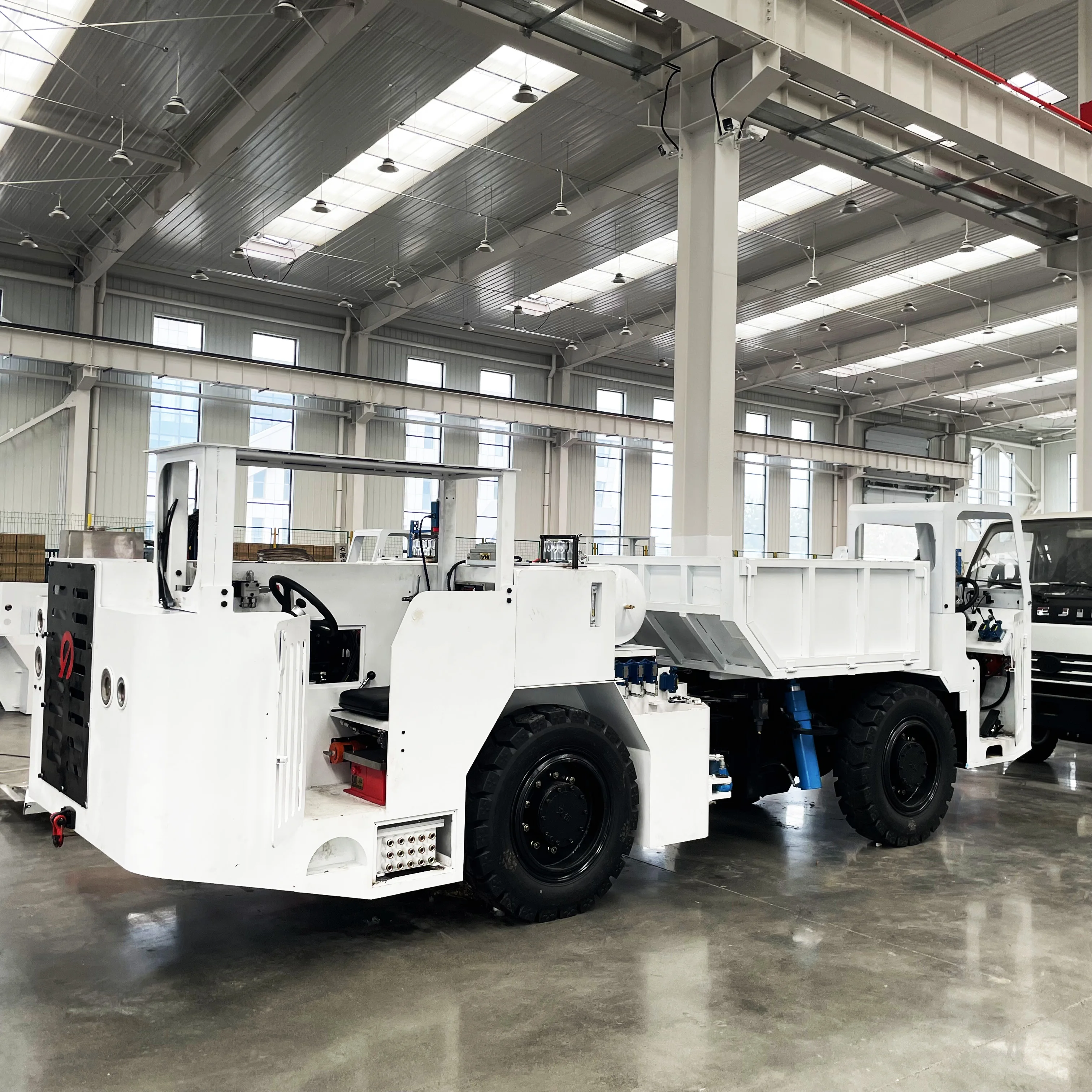

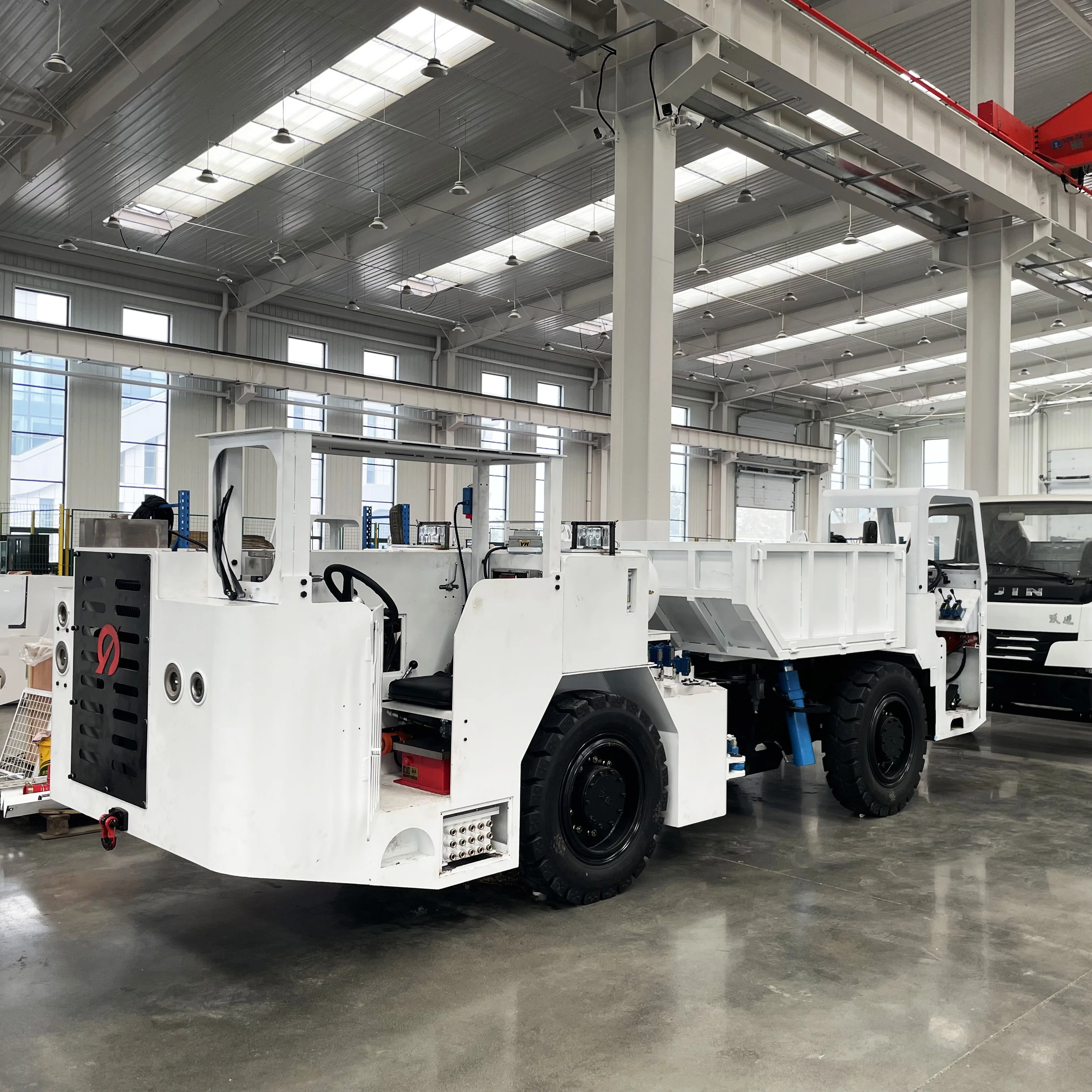

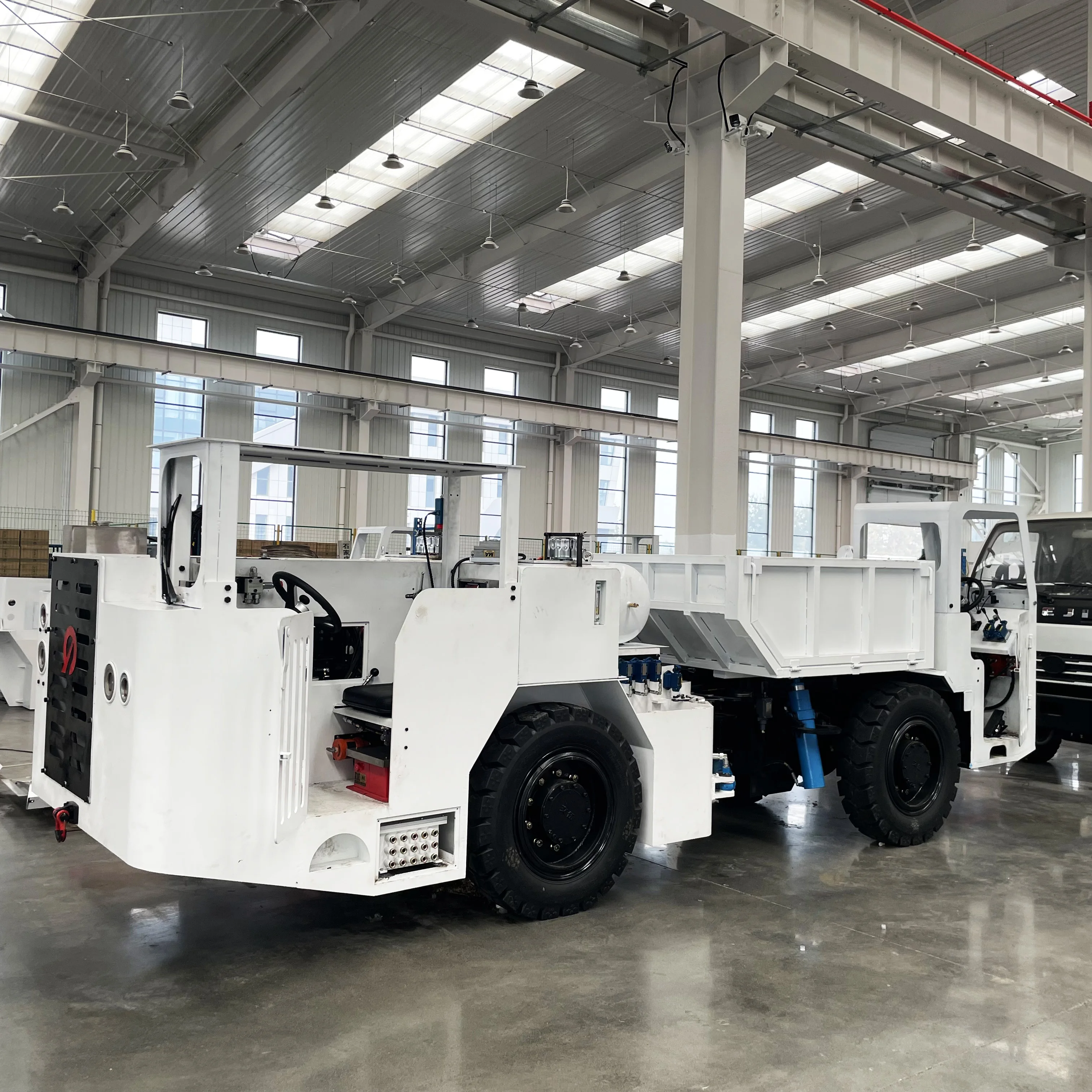

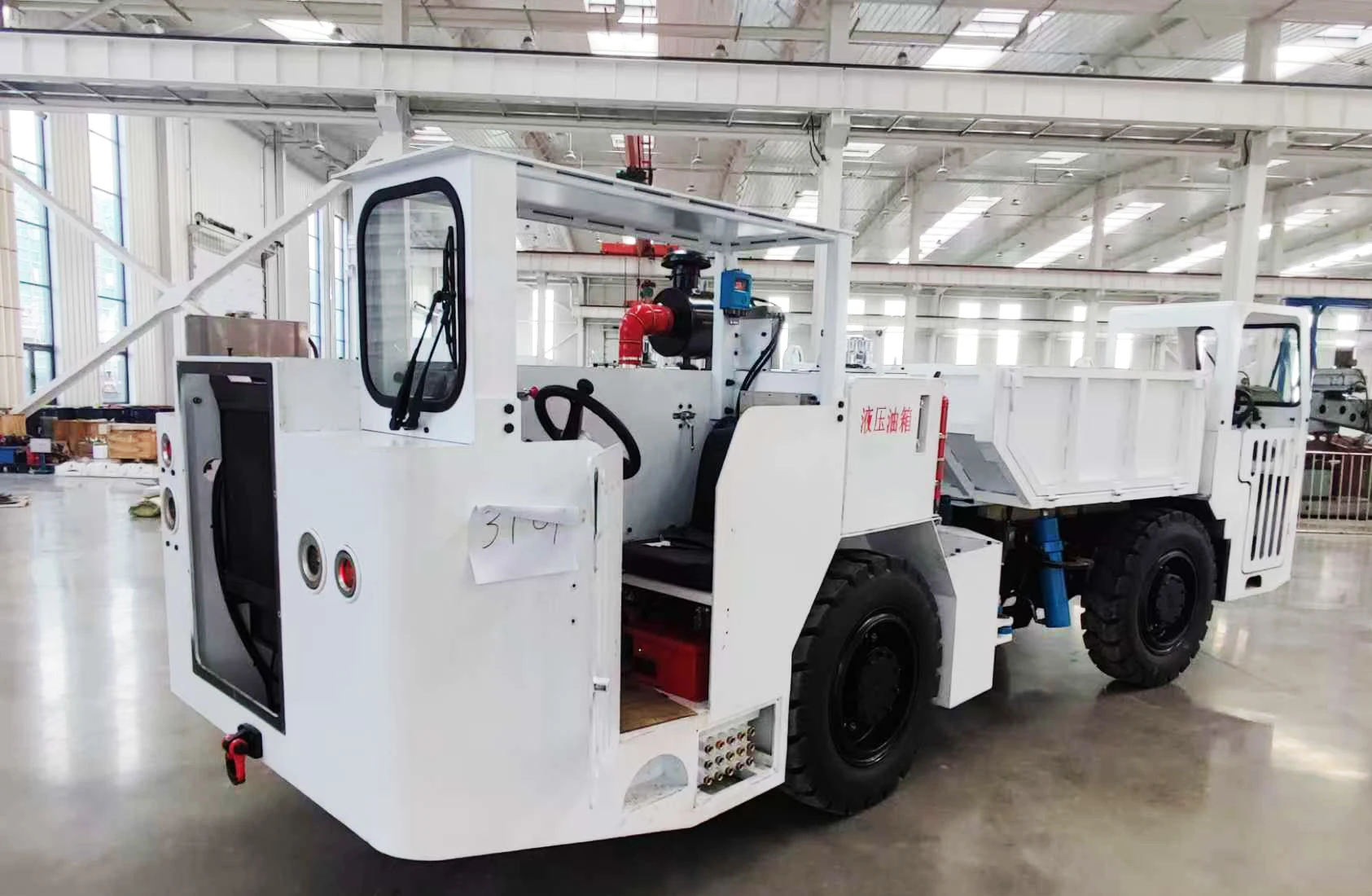

5Ton Truck Ton Mine Underground Mining Dump Truck 3.5Ton Mining Haul Truck
- Category: >>>
- Supplier: Shijiazhuang Milestone Technology Co. Ltd.Shijiazhuang Ltd.
Share on (1601283773623):
Product Overview
Description

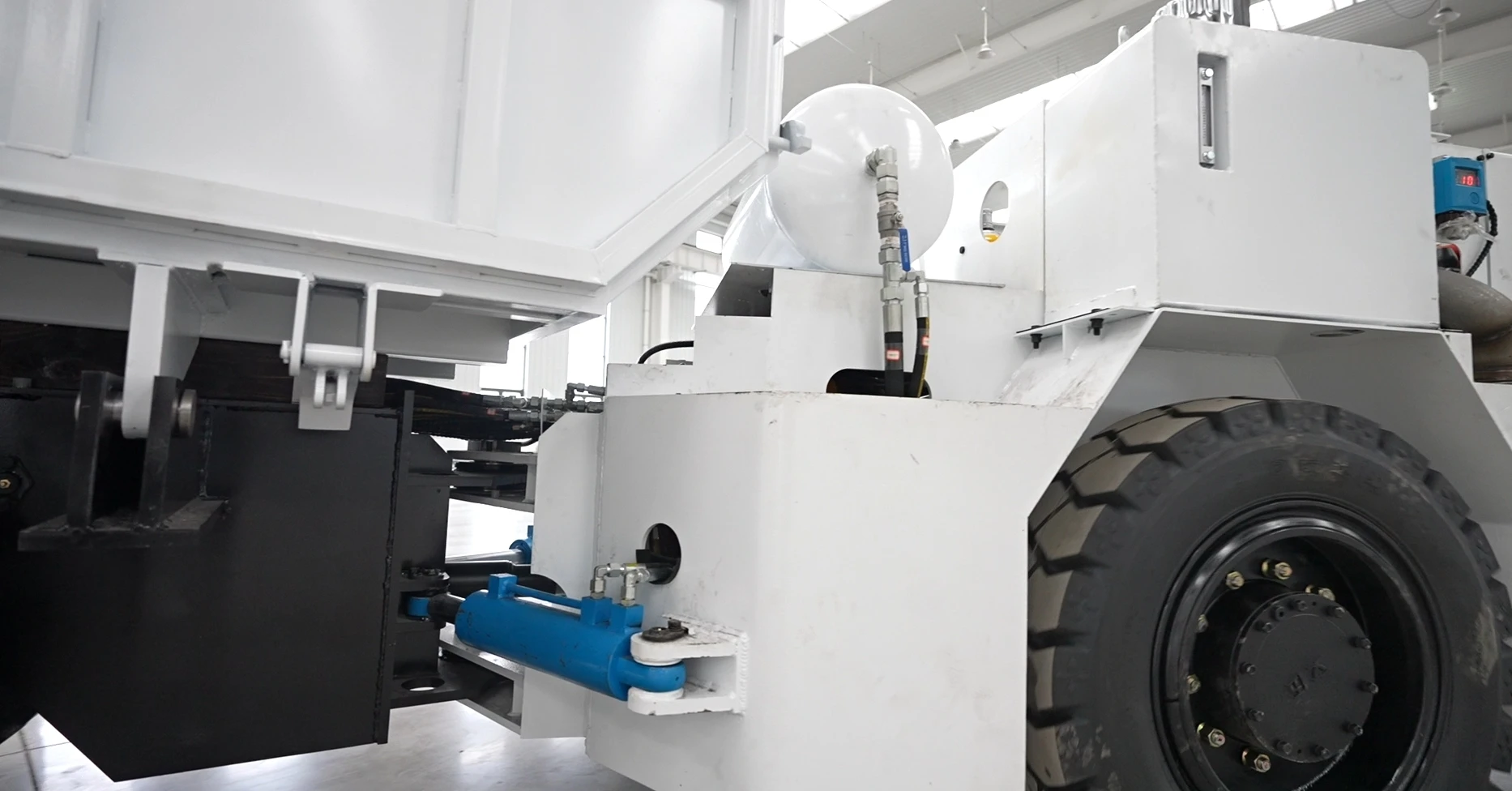

Equipped with a self dumping function, it can be reset through the carriage's own gravity and hydraulic control, making it easy to
quickly unload goods.
quickly unload goods.
Rear wheel drive and four-wheel drive are optional, provides better traction and stability when climbing hills or requiring high
loads. Powerful driving mode.
loads. Powerful driving mode.

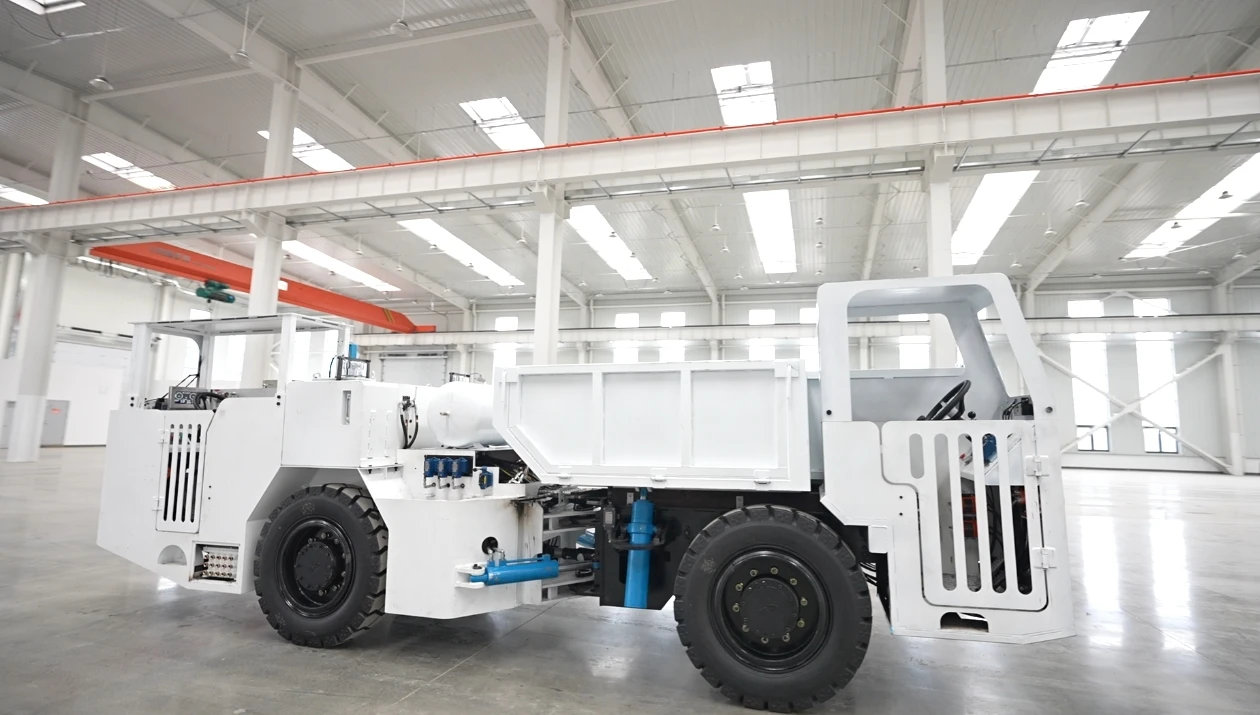

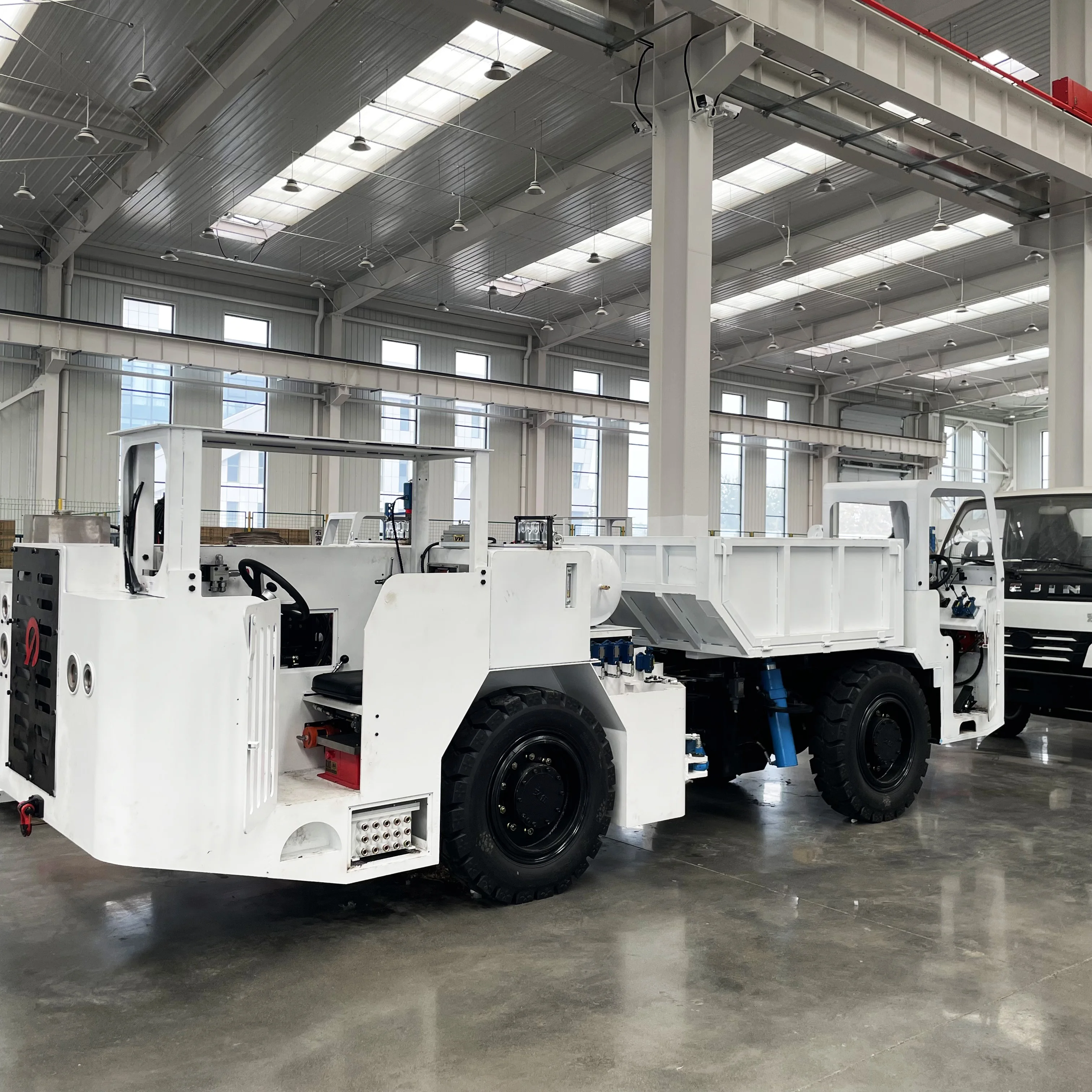

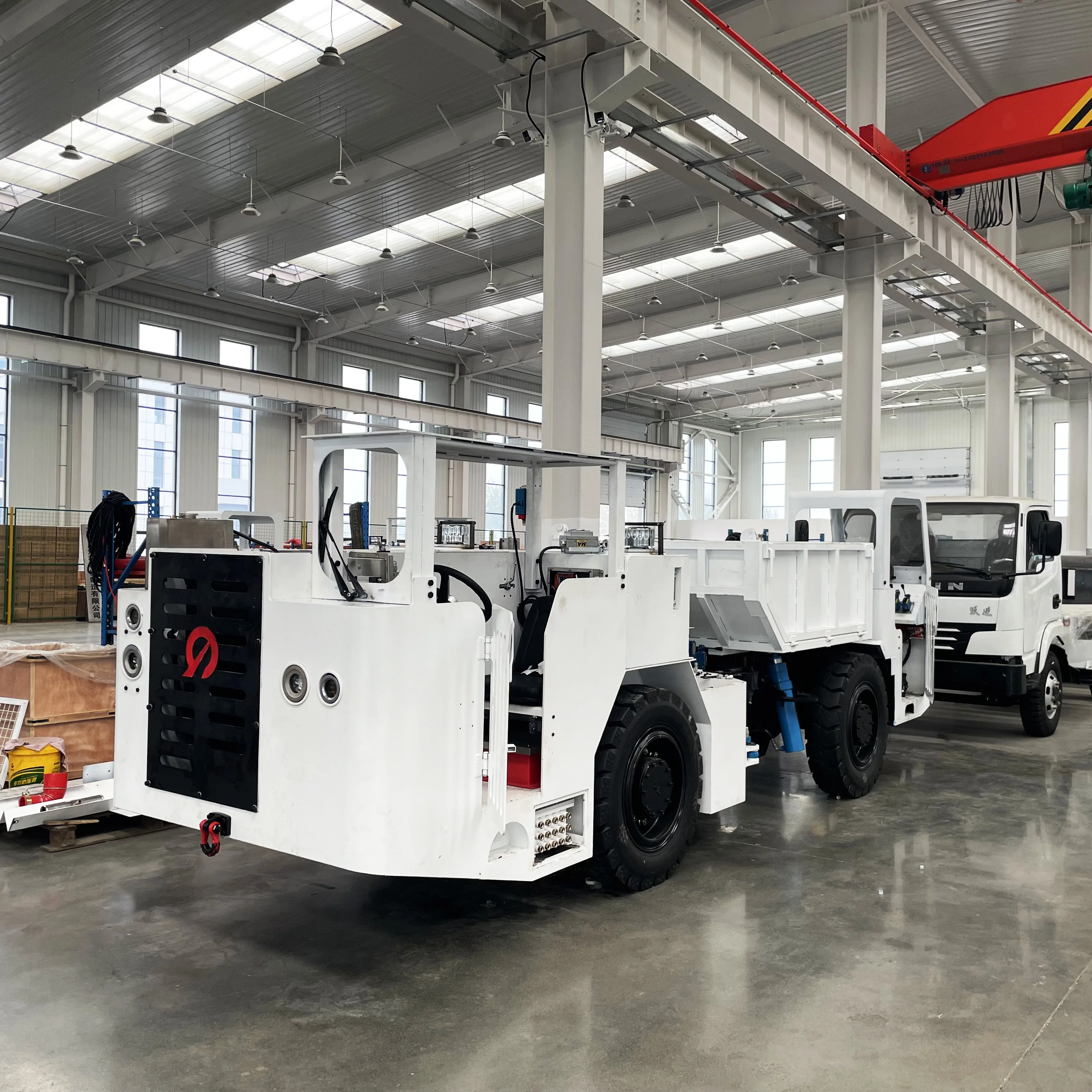

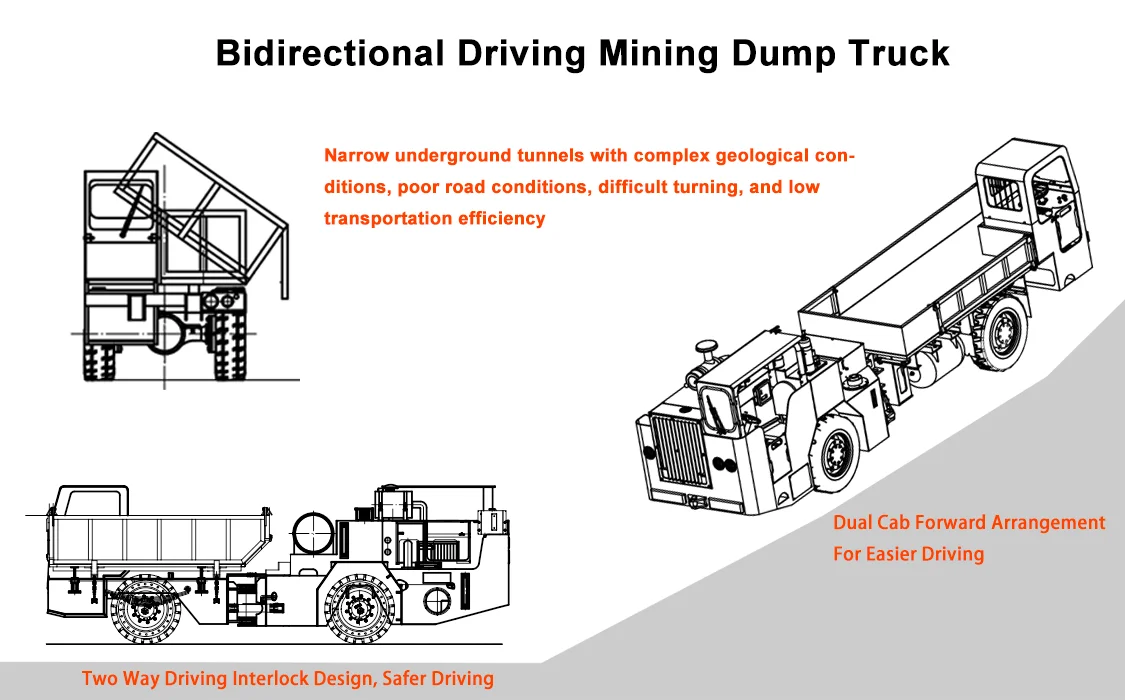

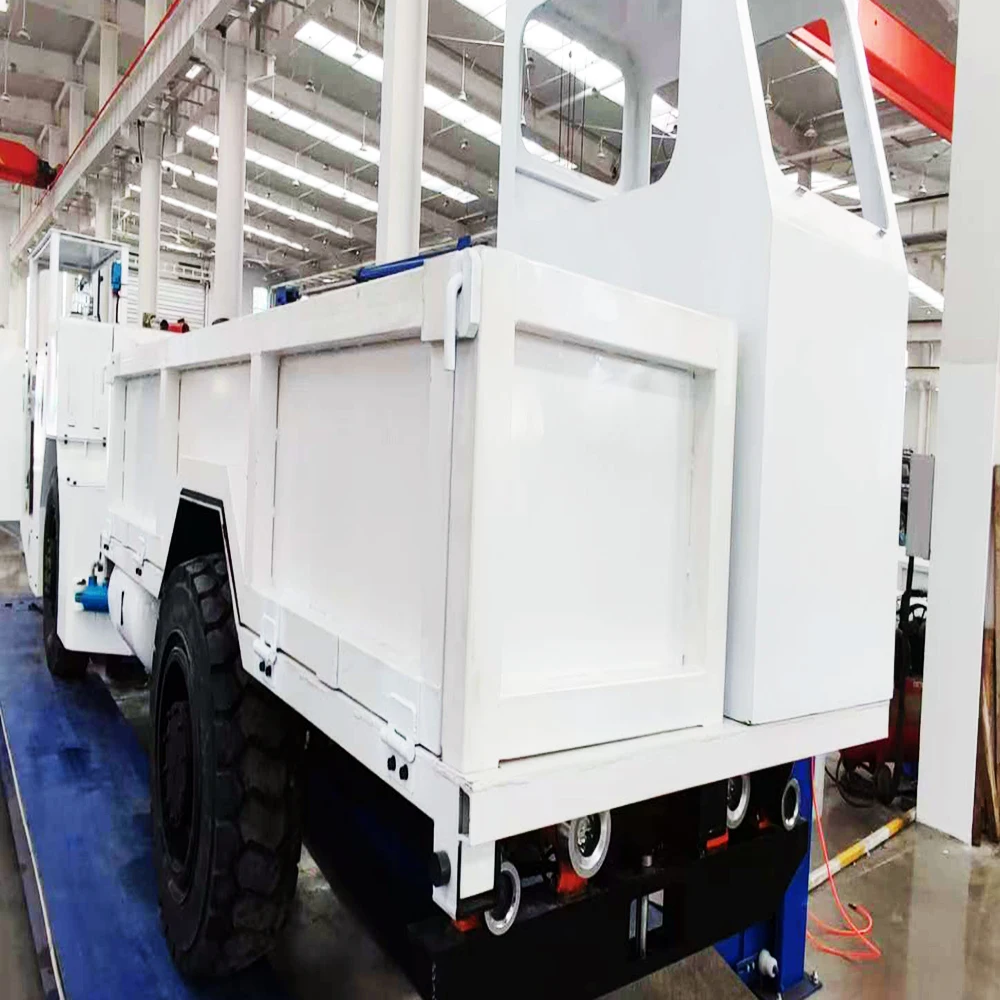

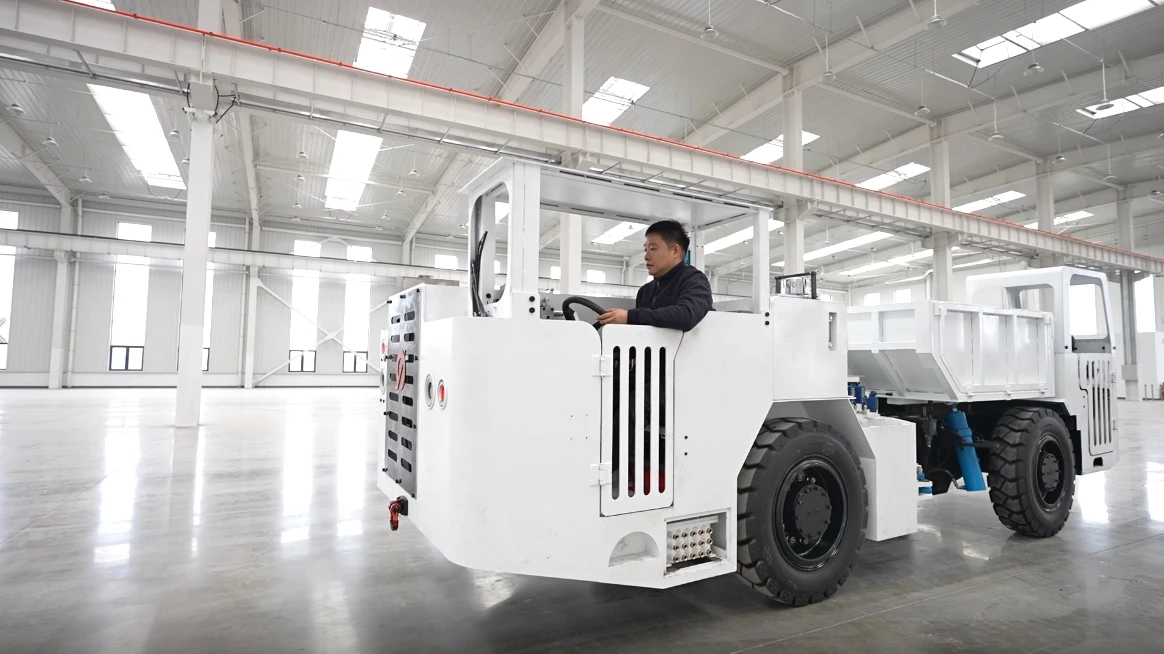

It adopts overall high-strength frame structure,with front and rear open cab. Two-way driving can lock independent operates.The power tail can switch the driveing direction of hydraulic, electricity and compressed air.
It adopts full-time six wheel drive, it can 360 degree slip steering in all terrain. The instrument and display monitoring
isintegrated on the dual platform, it can be locking and operate independently.It adopts irregular hopper and side unload, 120L
fuel tank, solid filled engineering tires, etc.
isintegrated on the dual platform, it can be locking and operate independently.It adopts irregular hopper and side unload, 120L
fuel tank, solid filled engineering tires, etc.
Item Name | Value | |
Basic Parameter | Model | WCS3Y / WCS3Y(Narrow) |
System Strcture | Overall- Load-Bearing Dual Cab Structure | |
Dimensions（mm） | 5700×1600×2000/5700×1500×2000 | |
Rated Loading Weight（kg） | 3000/3000 | |
Net Weight （kg） | 6300/6100 | |
Max. Traction Force (kN) | 50 | |
Max. Speed（km/h） | 20(Shaft 15) | |
Max. Climbing Ability | 12º | |
Engine Parameter | Diesel Engine Model | XTW4110DZLQFB（DongFangHong） |
Rated Power(kW)/ Rotation(r/min) | 85/2200(DongFangHong） | |
Max. Torque（N.m） | 409/1700(DongFangHong) | |
Exhaust Gas Emission | National III | |
Performance Parameter | Starting Mode | Compressed Air Starting |
Transmission Mode | Full Hydraulic-Compact Mechanical Transmission | |
Driving Mode | Full Time Six Wheel Drive | |
Turning Mode | Sliding Turning | |
Universal Hopper Dimensions（mm） | 1900×1600×500＋1200×1060×500（3t） | |
Narrow Hopper Dimensions（mm） | 1900×1500×550＋1200×900×550 （3t） | |
Unloading Mode（º） | 45 （ Lateral Lifting Unloading） | |
Brake | Rear Wheel Left and Right Wet Muilt-Disc Braking | |
Fuel Tank | 120L | |
Tyre | 7.50-16 28 Solid Filled Engineering Small Pattern Tyre |
Shijiazhuang Milestone Technology Co., Ltd
have two production base in Hebei and Shandong, totally covers an area of more than 30 acres, plant area of more than 10,000㎡, investment scale of 100 million yuan. Milestone is dedicated to research, design,manufacture, sell and repair electric or diesel mining tricycle, electric or diesel mining dump truck, underground mining personnel vehicle, material transport vehicle, trackless rubber tyred vehicles, utility vehicle, service vehicle for infrastructure, agriculture, and mining industry. Milestone can provide turn-key service according to customer’s special working condition and requirement.

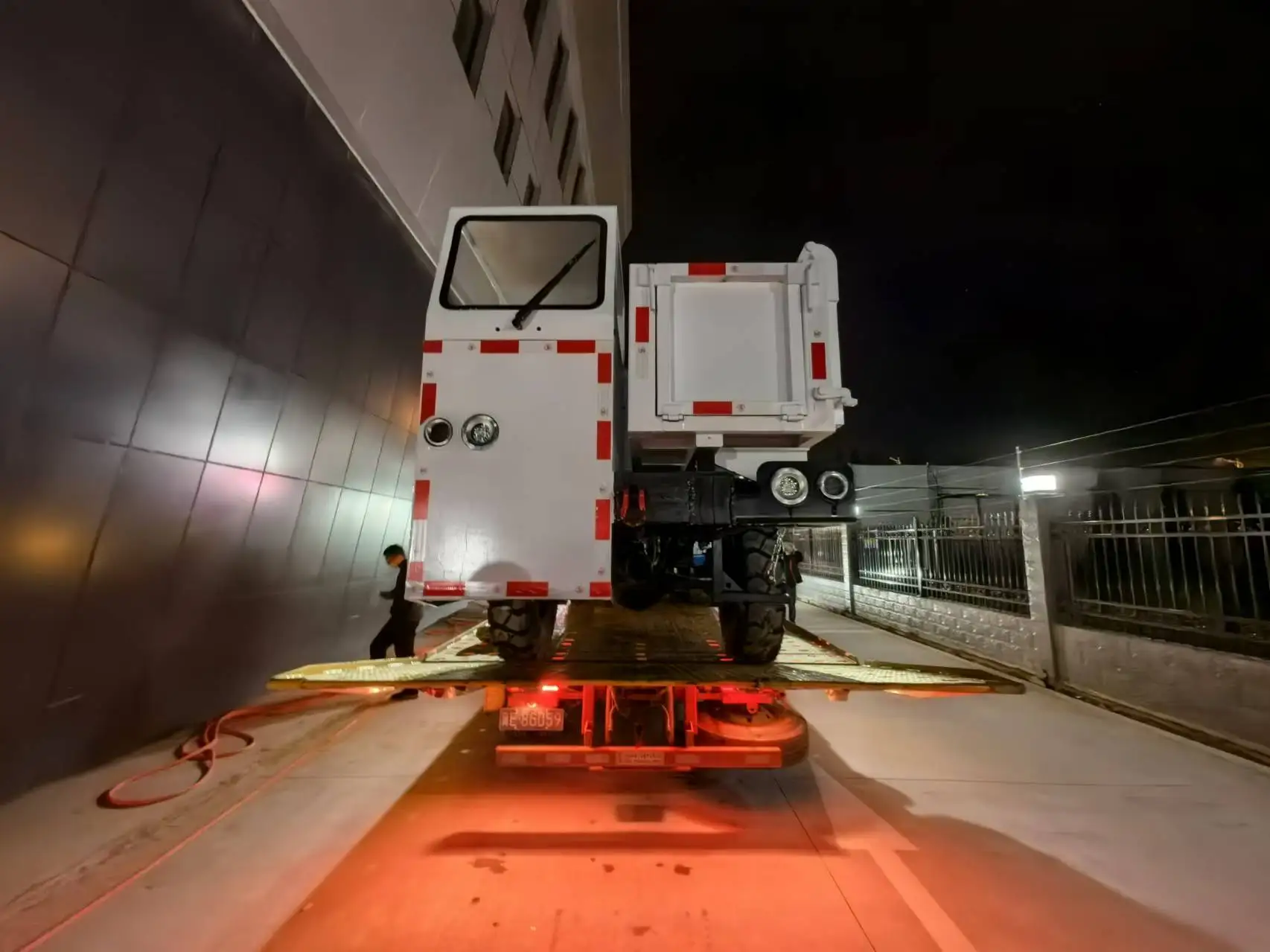

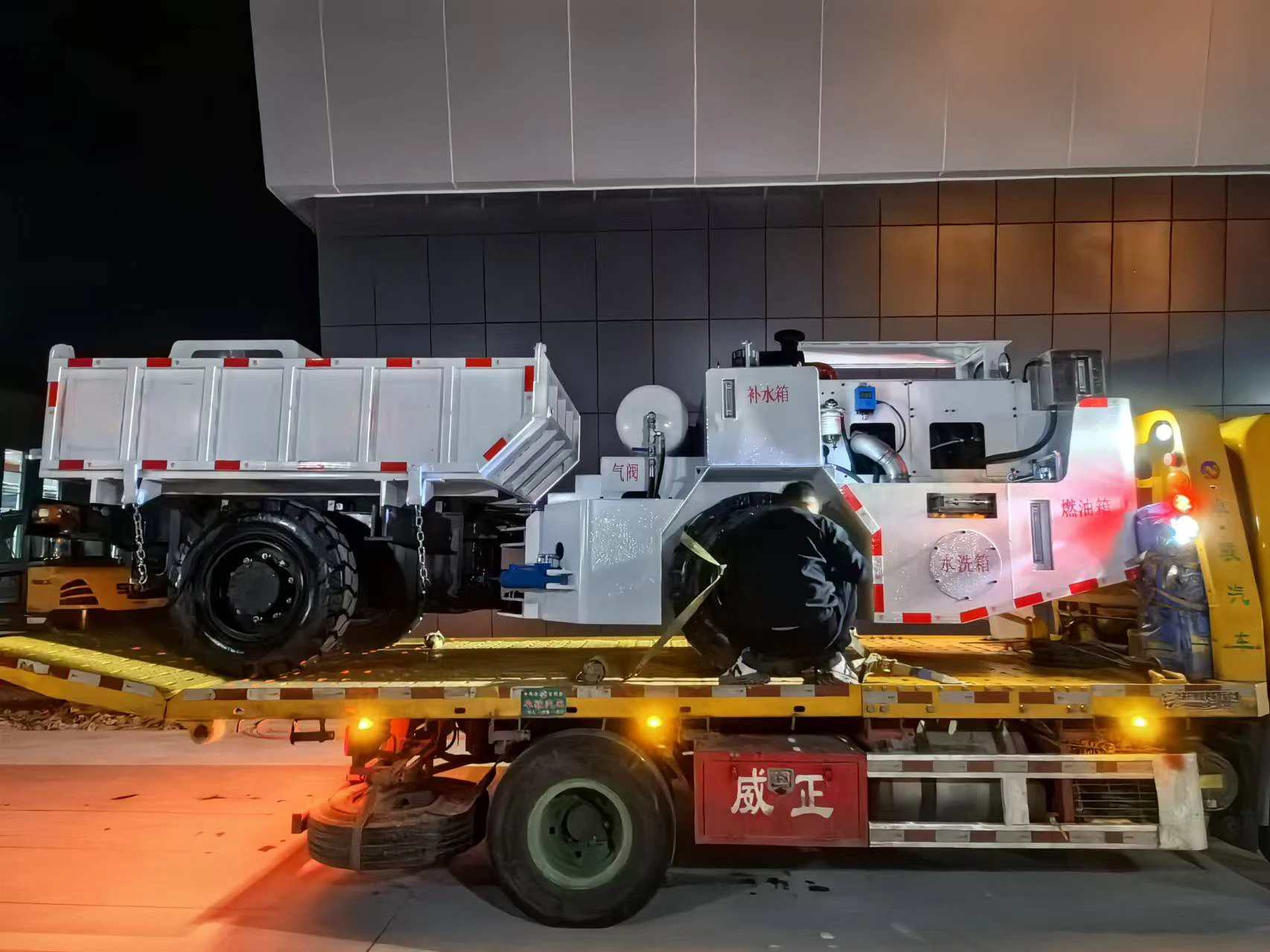

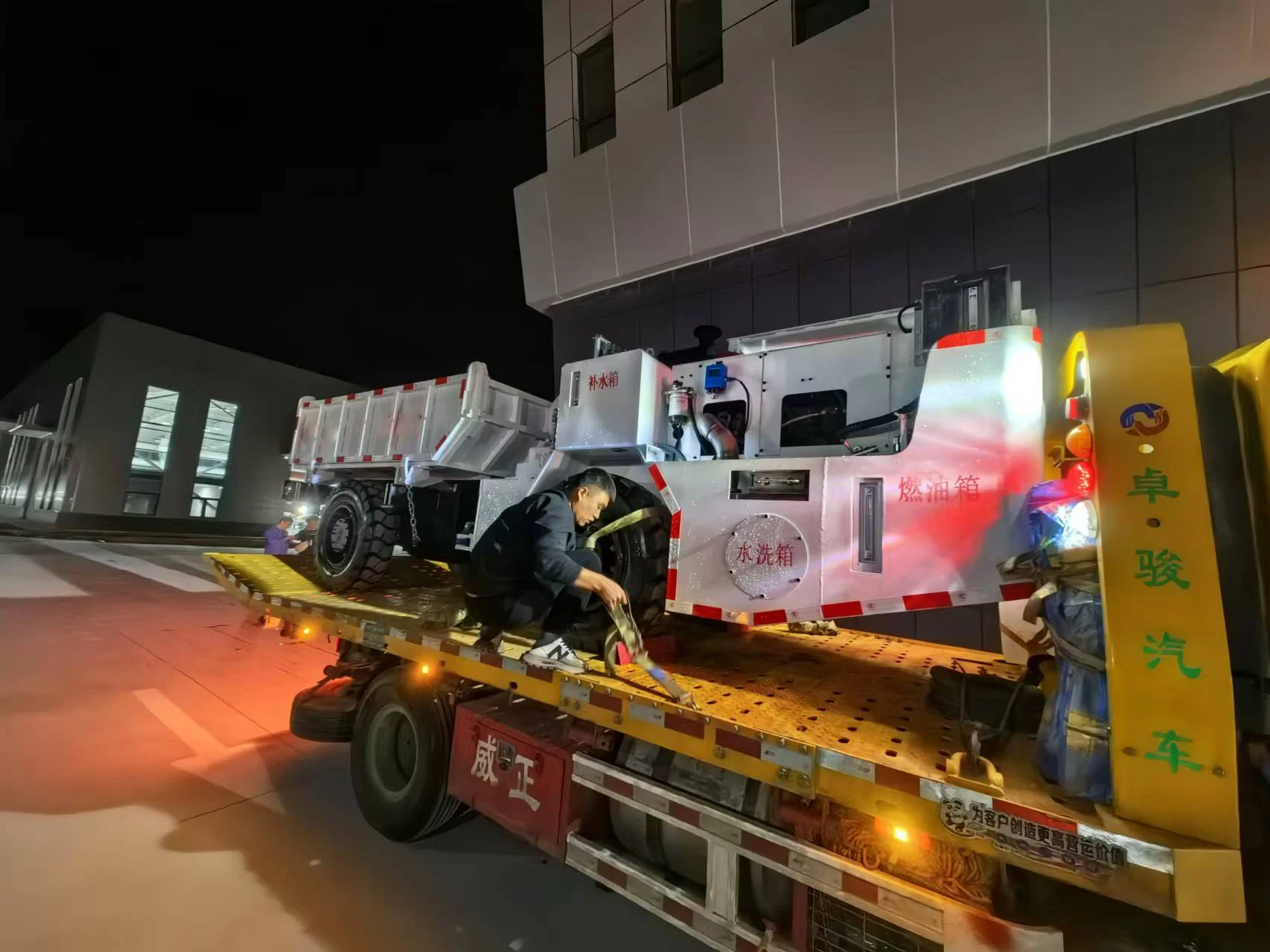

We have a professional logistics team and advanced transportation equipment to ensure that your goods can be delivered safely and
on time. Our strict quality control system and efficient operation process guarantee the stability and dependability of our
freightservice. You can trust us to handle your shipments with care and professionalism.
on time. Our strict quality control system and efficient operation process guarantee the stability and dependability of our
freightservice. You can trust us to handle your shipments with care and professionalism.
1、How to confirm the quality before place the order?
Your are always welcomed to visiting our factory to check the quality and exchange views on detailed technology problem, and visiting our office to feel milestone culture and business philosophy. If it’s not convenient for you to visit us, video online conference is a nice way to solve your doubt and understand each other quickly and directly.
2、How to confirm the quality before place the order?
T/T or L/C is regular and accepted, of course you can feel free to contact us for more details and possibilities.
3、What about the Minimum Order Quantity?
1 set vehicle or spare parts will be highly valued as well.
4、Could you stick customers brand on the products?
To help our respected customer success is our target, customer’s success is our success, so customers brand or other oem requirement is definitely okay for us if there’s no infringement.
5、How about the after-sale services?
Our factory has rich foreign sales experience, and we have mature parts manuals for your reference. Some free spare parts will be shipped out with the vehicle. 1 year or 2 year spare parts package according to customer’s operating frequency and intensity is optional and recommended for long service life. If there’s any problems during your operation, please do not hesitate to contact us for consulting, our engineer will reach and service you at appointed time without delay.
