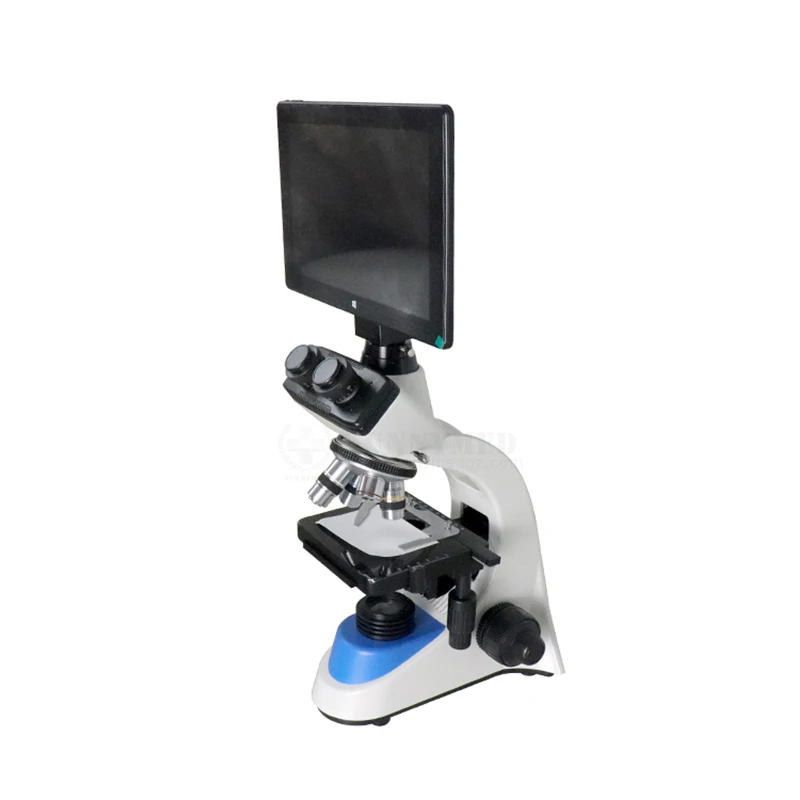

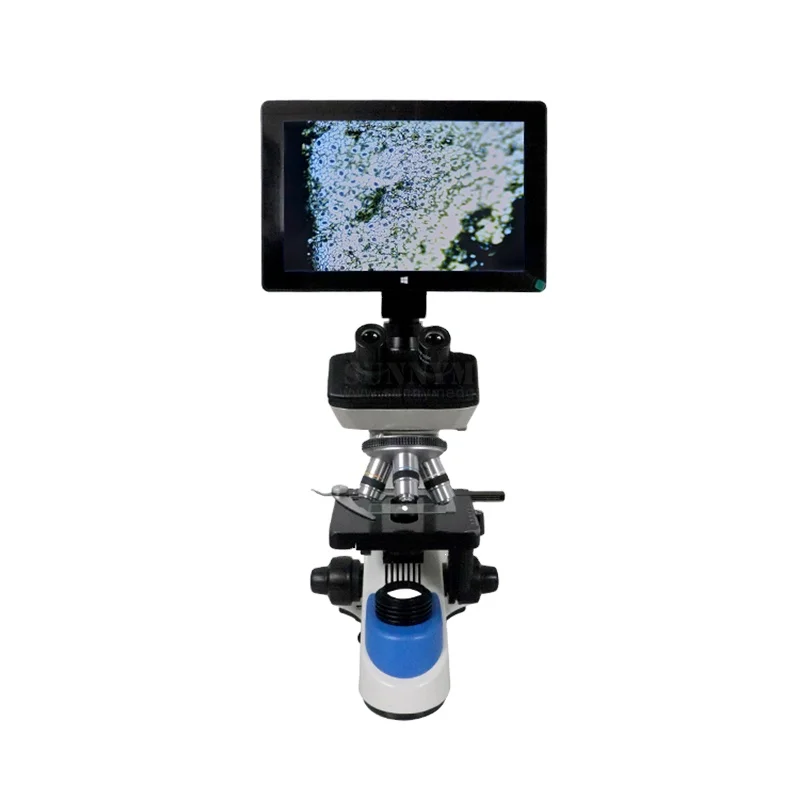

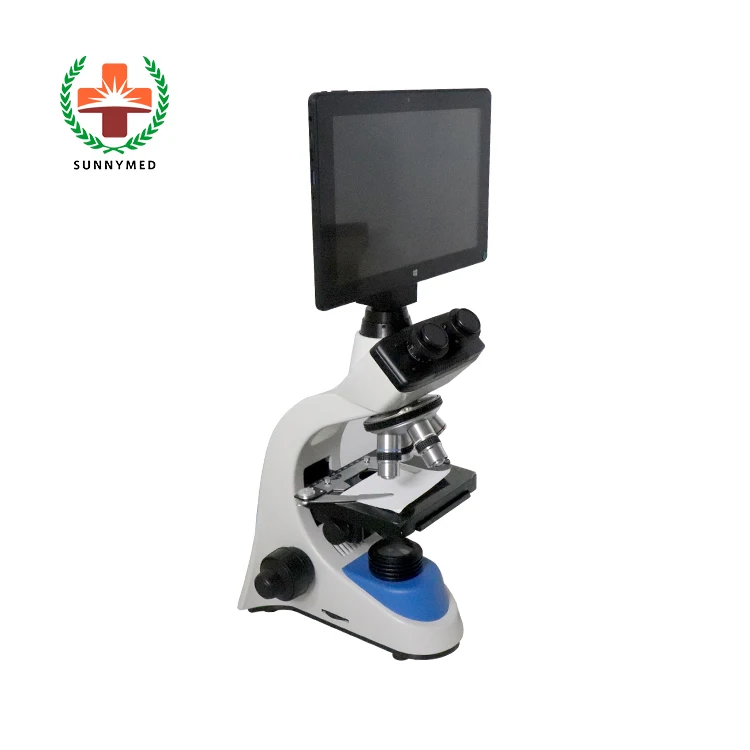

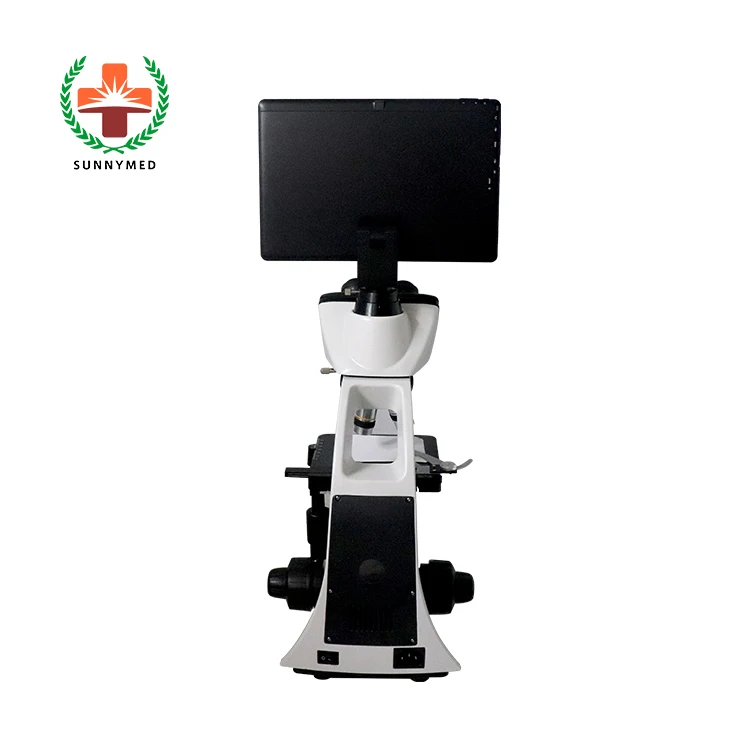

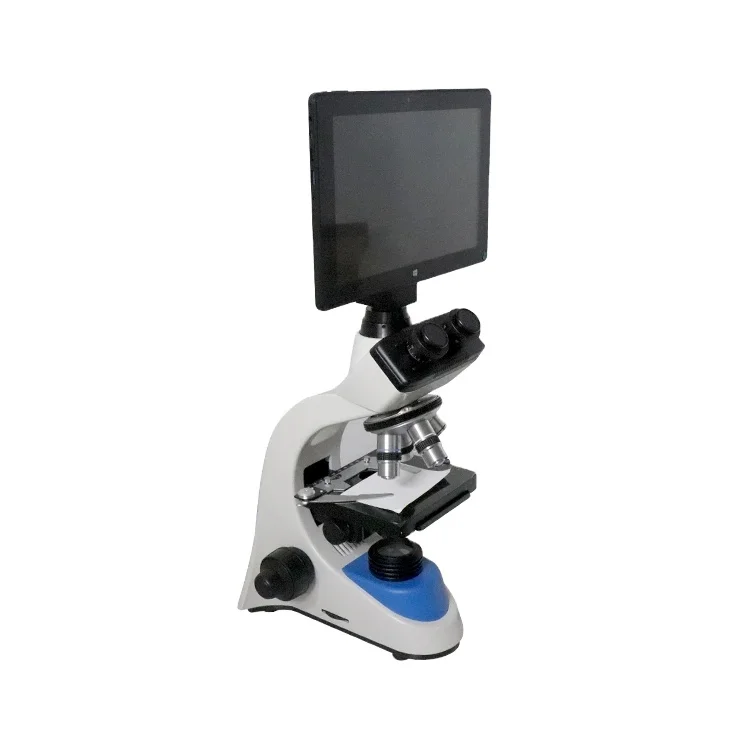

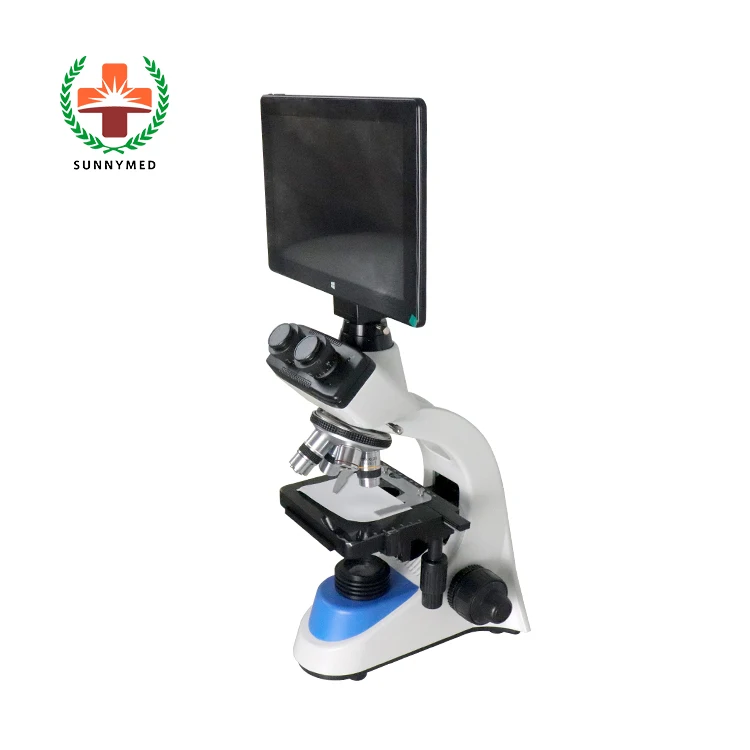

SY B129F2 new type optical and mechanical systems Microscope 10 inch tablet display biological microscope
- Category: >>>
- Supplier: Guangzhou Sunnymed LimitedGuangzhou Limited
Share on (1601283823830):
Product Overview
Description
Product Description
Specification
1, magnification: 40X-1000X
2, the first observation: 30 degrees inclined shaft type binocular head, dual diopter can be adjusted; IPD 55X75mm.
3, Eyepiece: Wide field eyepiece WF10X18mm
4, the objective lens: achromatic objective 4X / 0.10,10X / 0.25,40X0.65 (shells), 100X1.25 (bombs, oil).
5, the focusing mechanism: coaxial coarse focusing mechanism, tension can be adjusted with coarse arbitrary limit, and locking mechanisms, to avoid damage to the objective lens and the lens. The stage at a stroke of 20 mm, fine-tuning grid is 0.002 mm.
6, revolving nosepiece: four-hole conversion mechanism.
7. stage: Double moving platform 140X135 mm, moving range 50X75 mm.
8. Condenser: Abbe condenser NA1.25 often Iris diaphragm and filter rack lift adjustment mechanism is adjustable.
9, built-in lighting system LED 3W cold light source 220V/50Hz light intensity continuously adjustable.
10, 10-inch tablet, camera 5 million Technical Functional Description This machine consists of two parts of the optical and mechanical systems, all of the optical system uses a unique anti-fungal measures to protect the long-term best optical performance, suitable for all levels of medical institutions, laboratories, routine testing Jishengjitong, biological Research and teaching in clinical trials and for bacteriological demonstration.
2, the first observation: 30 degrees inclined shaft type binocular head, dual diopter can be adjusted; IPD 55X75mm.
3, Eyepiece: Wide field eyepiece WF10X18mm
4, the objective lens: achromatic objective 4X / 0.10,10X / 0.25,40X0.65 (shells), 100X1.25 (bombs, oil).
5, the focusing mechanism: coaxial coarse focusing mechanism, tension can be adjusted with coarse arbitrary limit, and locking mechanisms, to avoid damage to the objective lens and the lens. The stage at a stroke of 20 mm, fine-tuning grid is 0.002 mm.
6, revolving nosepiece: four-hole conversion mechanism.
7. stage: Double moving platform 140X135 mm, moving range 50X75 mm.
8. Condenser: Abbe condenser NA1.25 often Iris diaphragm and filter rack lift adjustment mechanism is adjustable.
9, built-in lighting system LED 3W cold light source 220V/50Hz light intensity continuously adjustable.
10, 10-inch tablet, camera 5 million Technical Functional Description This machine consists of two parts of the optical and mechanical systems, all of the optical system uses a unique anti-fungal measures to protect the long-term best optical performance, suitable for all levels of medical institutions, laboratories, routine testing Jishengjitong, biological Research and teaching in clinical trials and for bacteriological demonstration.
1 | 5 mega-pixel color camera |
2 | 9.7" HD LED backlit touch screen |
3 | VMS3.6 image analysis software |
4 | 720p video preview |
5 | Android 2.3 operating system, 1.2 GHz core processor ARM Cortex®AB |
6 | Support for external mouse or USB flash drive |
7 | 3 hours of battery life |
8 | Wi-Fi and Bluetooth ready |
9 | Standard C-mount |

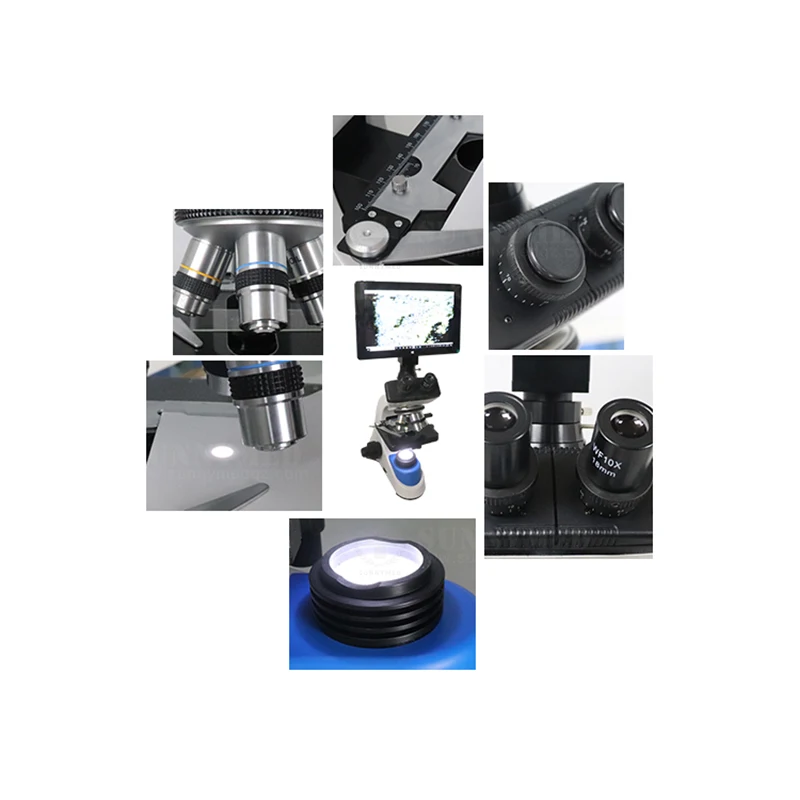

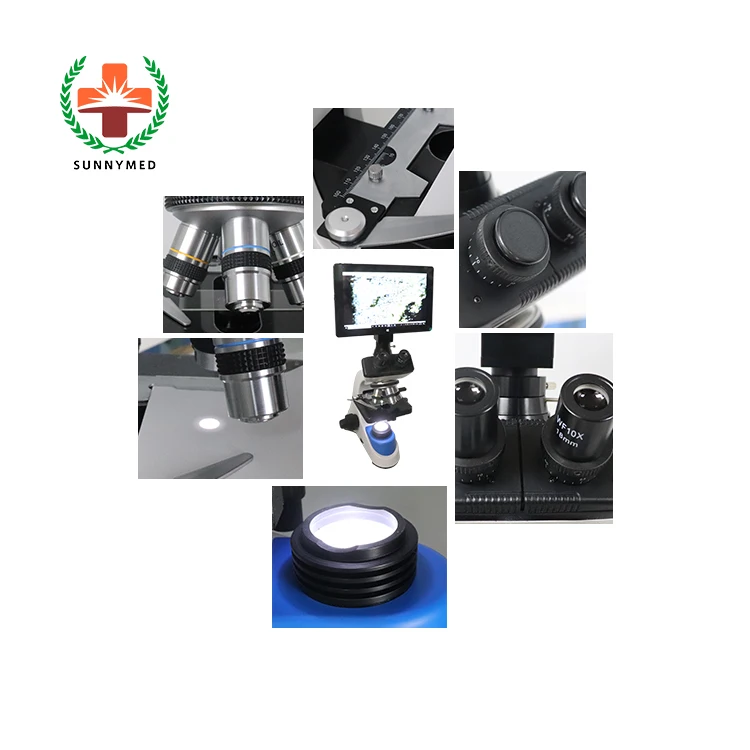

Details Images
For more detailed images and videos
please contact with us!

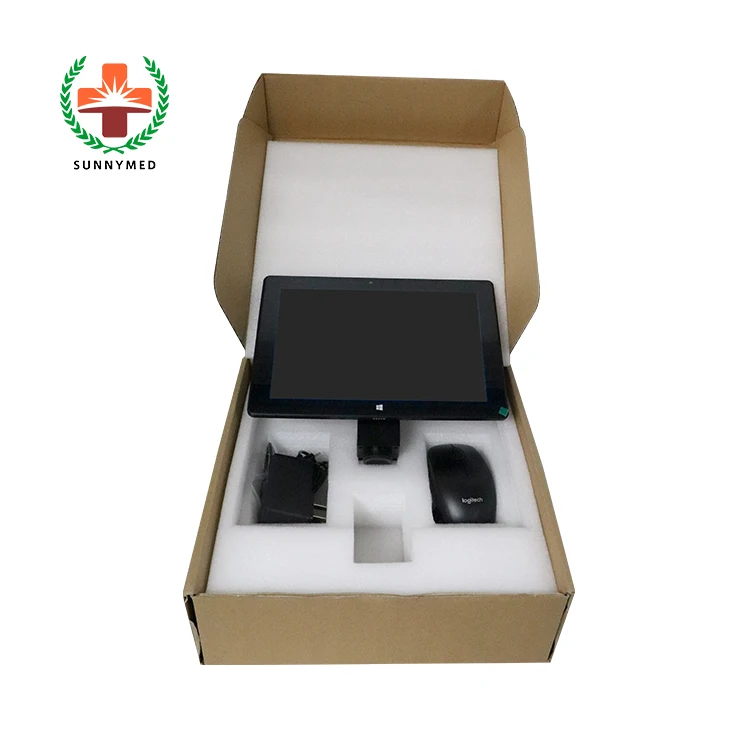

Packing & Delivery
