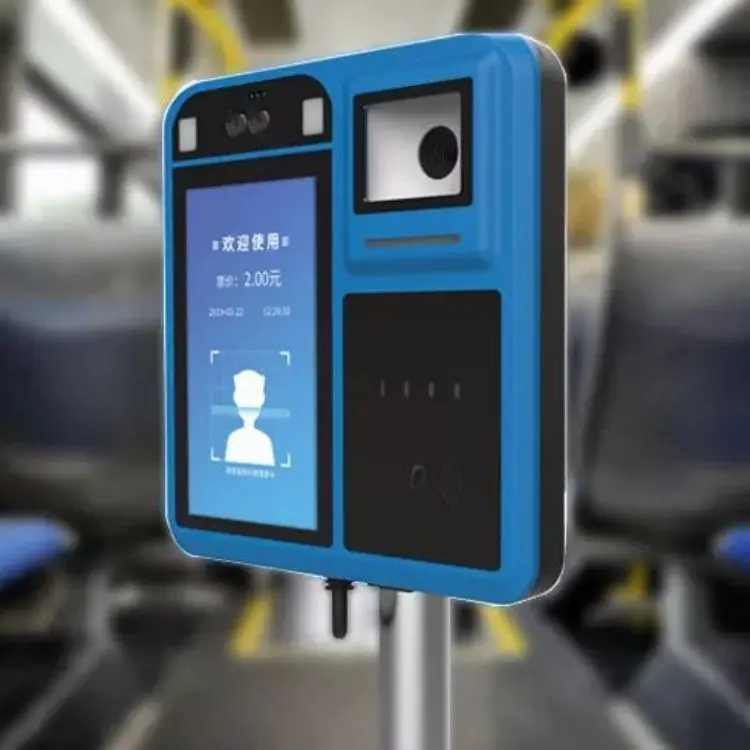

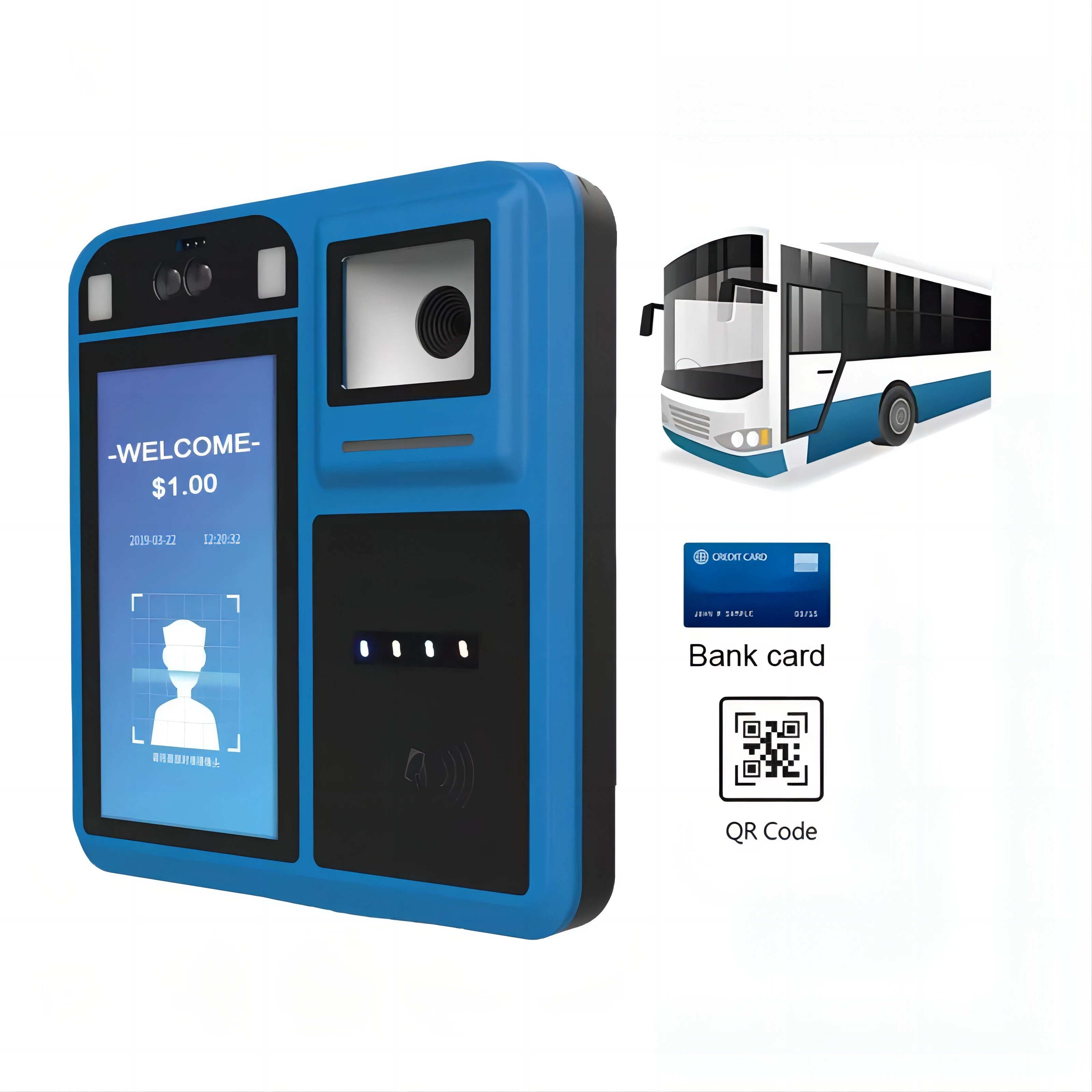

Android 9.0 QR Code Scanner Cashless Payment POS Card Reader NFC Bus Ticket Validator P18 Q
- Category: >>>
- Supplier: Shenzhen Hcc Technology Co. Ltd.
Share on (1601283823942):
Product Overview
Description

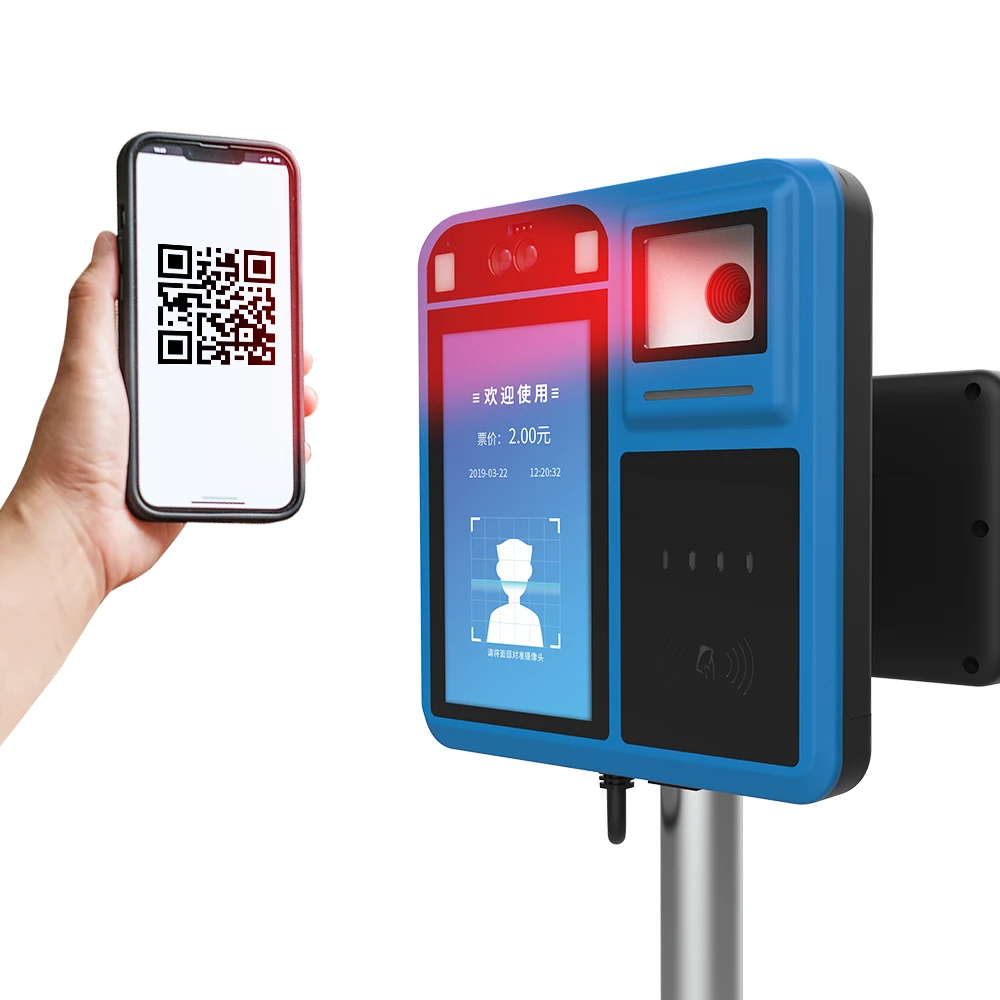

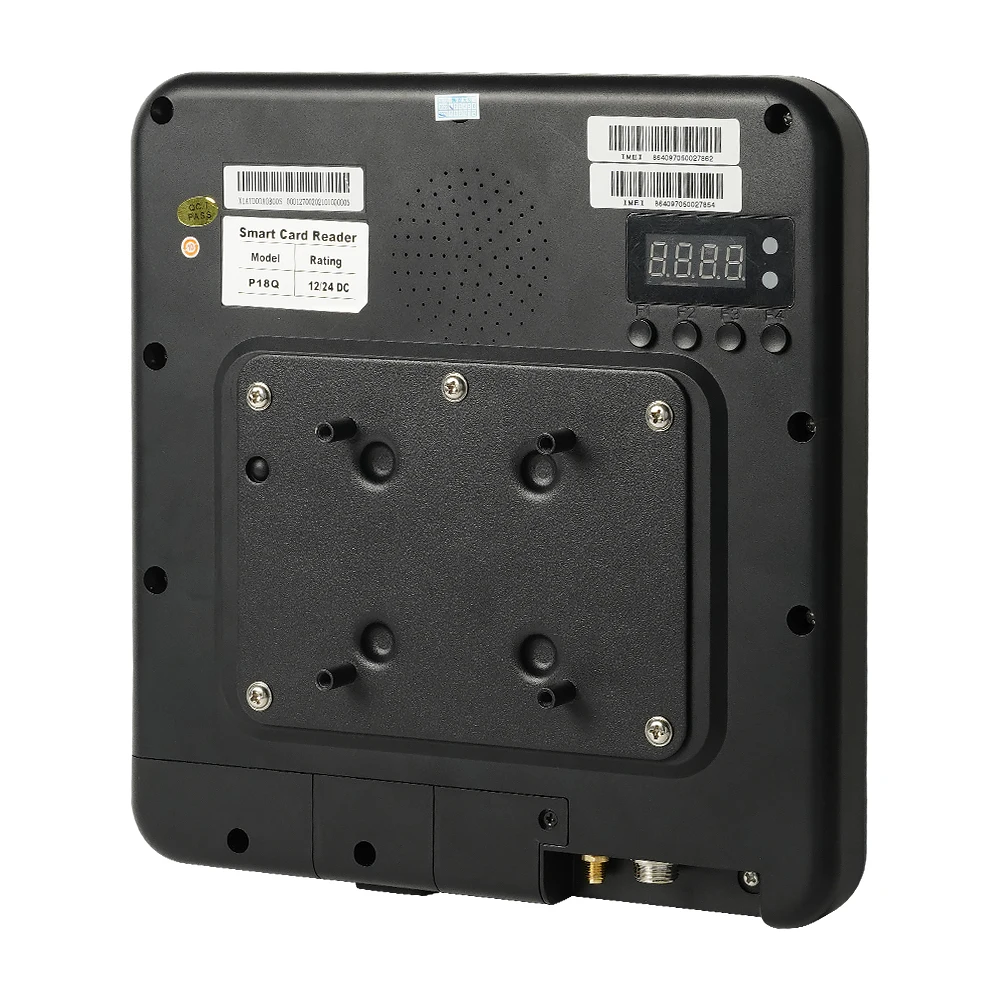

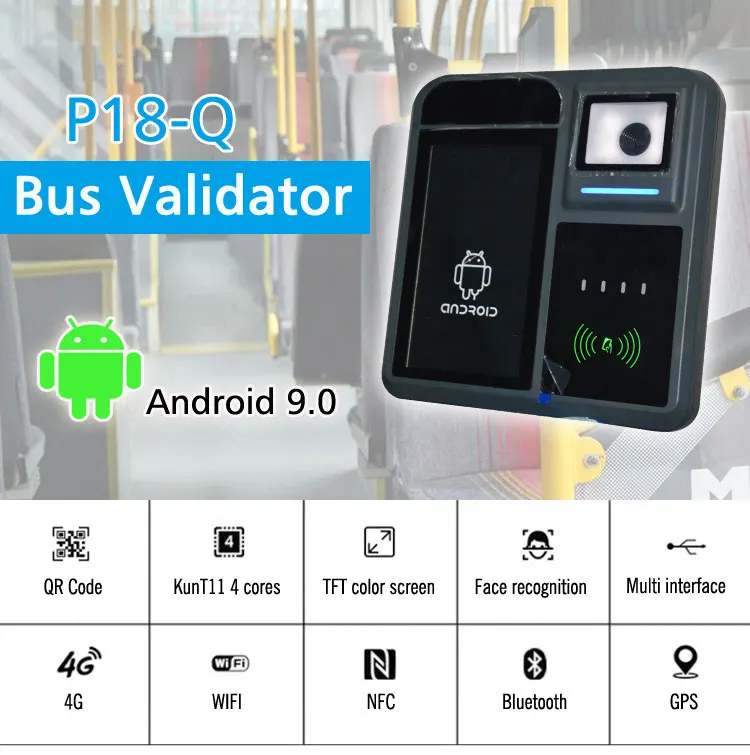

Android 9.0 QR Code Scanner Cashless Payment POS Card Reader NFC Bus Ticket Validator P18-Q
Details Images
Product Paramenters
Physical Specifications | ||
Case Color | Blue, black (grey, black, optional) | |

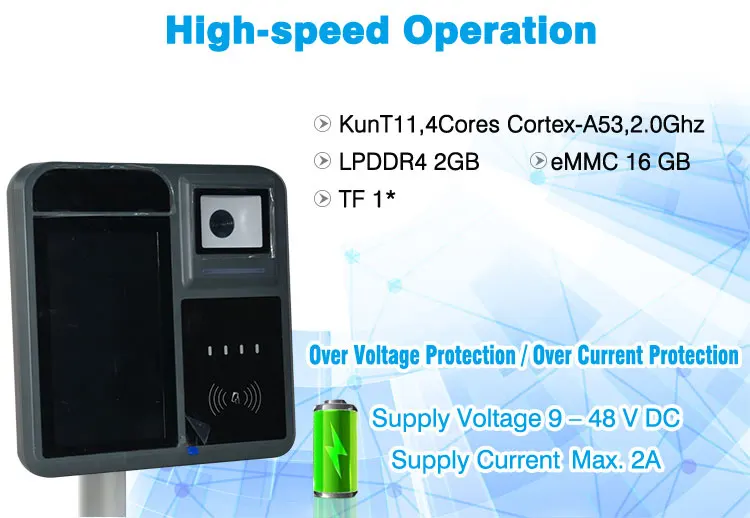

Processor | KunT11 4 Cores Cortex-A53,2.0Ghz | |
Operating System | Android 9.0 | |
Memory | LPDDR4 2GB eMMC 16 GB | |
Power | ||
Supply Voltage | 9-48 V DC | |
Over Voltage Protection | Supported | |
Over Current Protection | Supported | |

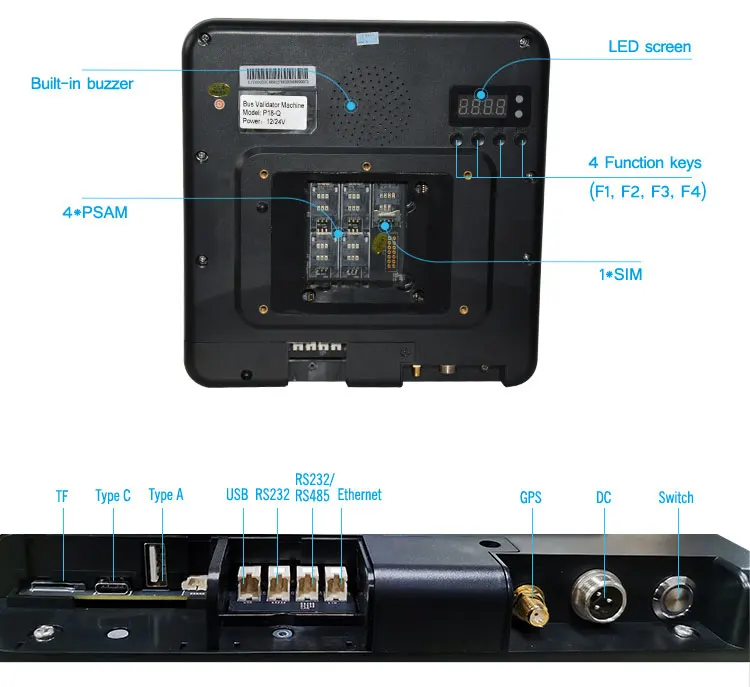

Connectivity | ||
RS232 | 1RS232 interface with 5v voltage output | |
RS485 | 1RS485 interface with 5v voltage output | |
Ethernet | Built-in 10/100-base-T with RJ45 connector | |
USB | 2 USB 2.0 Host Full Speed | |
USB TypeC | OTG interface | |
WiFi | IEEE 802.11 b/g/n/ac | |
GPS | Supported | |
Bluetooth (Optional) | BT4.0 + BR/EDR + BLE | |
Barcode Scanner | 1D Barcode Scanning | |
2D Barcode Scanning | ||
QR Code Scanning | ||

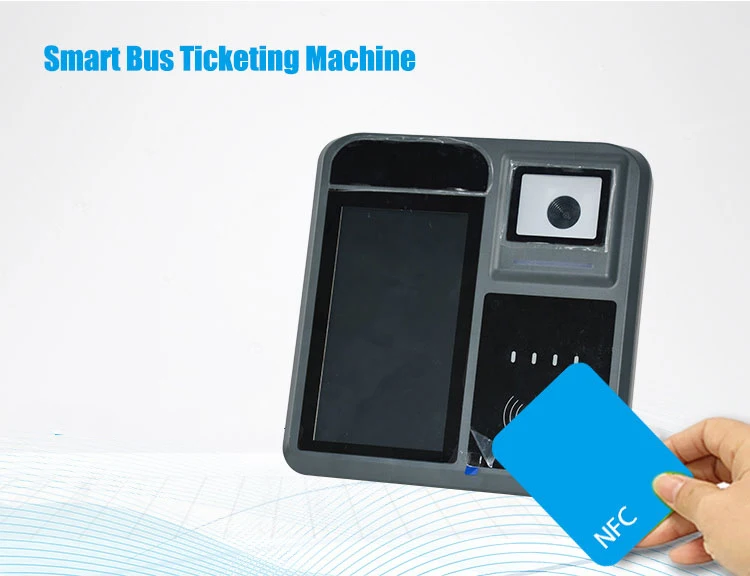

Contactless Smart Card Interface | ||
Standard | ISO-14443 A & B part 1-4 | |
Protocol | Mifare® Classic Protocols, T=CL | |
Operating Distance | Up to 50 mm | |
Operating Frequency | 13.56 MHz | |
SAM Card Interface | ||
Number of Slots | 4 ID-000 slots | |
Card Connector Type | Contact | |
Standard | ISO/IEC 7816 Class A, B (5V, 3V, 1.8V) | |
Protocol | T=0 or T=1 | |
Firmware Upgradeable through | RS232 | |
Built-in Peripherals | ||

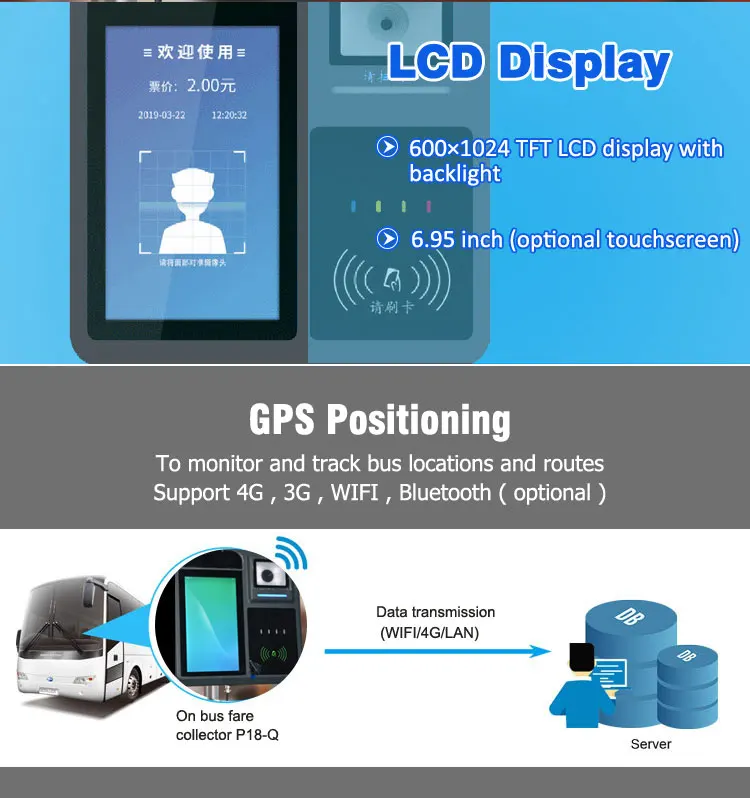

LCD Display | 600×1024 TFT LCD display with backlight, 6.95 inch (optional touch screen) | |
Second screen(optional): 1024*600,HDMI | ||
Speaker | Supported | |
Buzzer | Supported | |

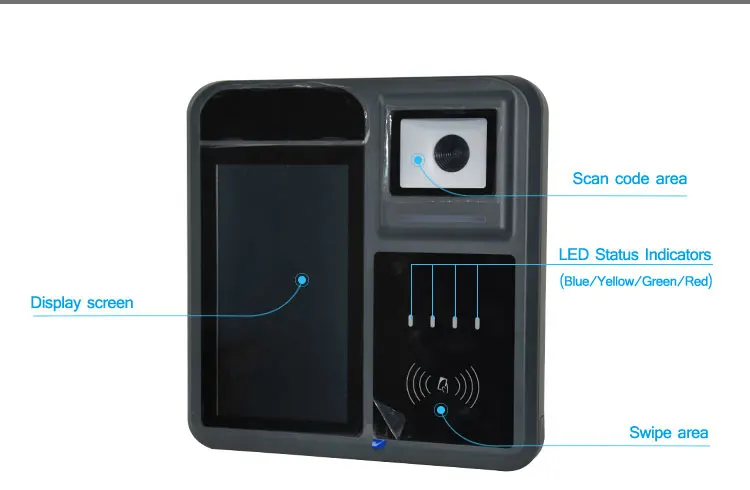

LED Status Indicators | 4 LEDs for indicating status (from left most: blue, yellow, green, red) | |
Other Features | Real Time Clock | |
Face recognition(Optional) | Dual Camera | |
Work Conditions | Temperature: -30°C ~70°C Humidity: 5% to 93%, non-condensing | |
Certifications /Compliance | QPBOC L1, qPBOC L2, CE/FCC, RoHS, CCC, Contactless EMV L1/L2, IP54, IK06,Visa-VCTKS, Mastercard-Paypass,E-mark | |
