European Warehouse 860W Balcony Solar Power Plant Balcony Solar System Solar Mounting With Halterung For Home Application
- Category: >>>
- Supplier: Wuxi Sunket New Energy Technology Co. Ltd.
Share on (1601283833673):
Product Overview
Description
Product Introduction：

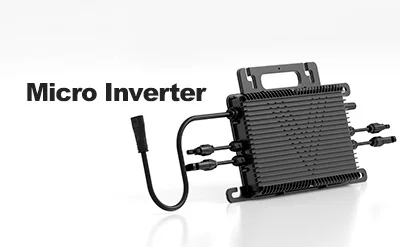

Sunket 860w balcony solar system consists of solar panels, micro inverter, micro battery module and bracket.

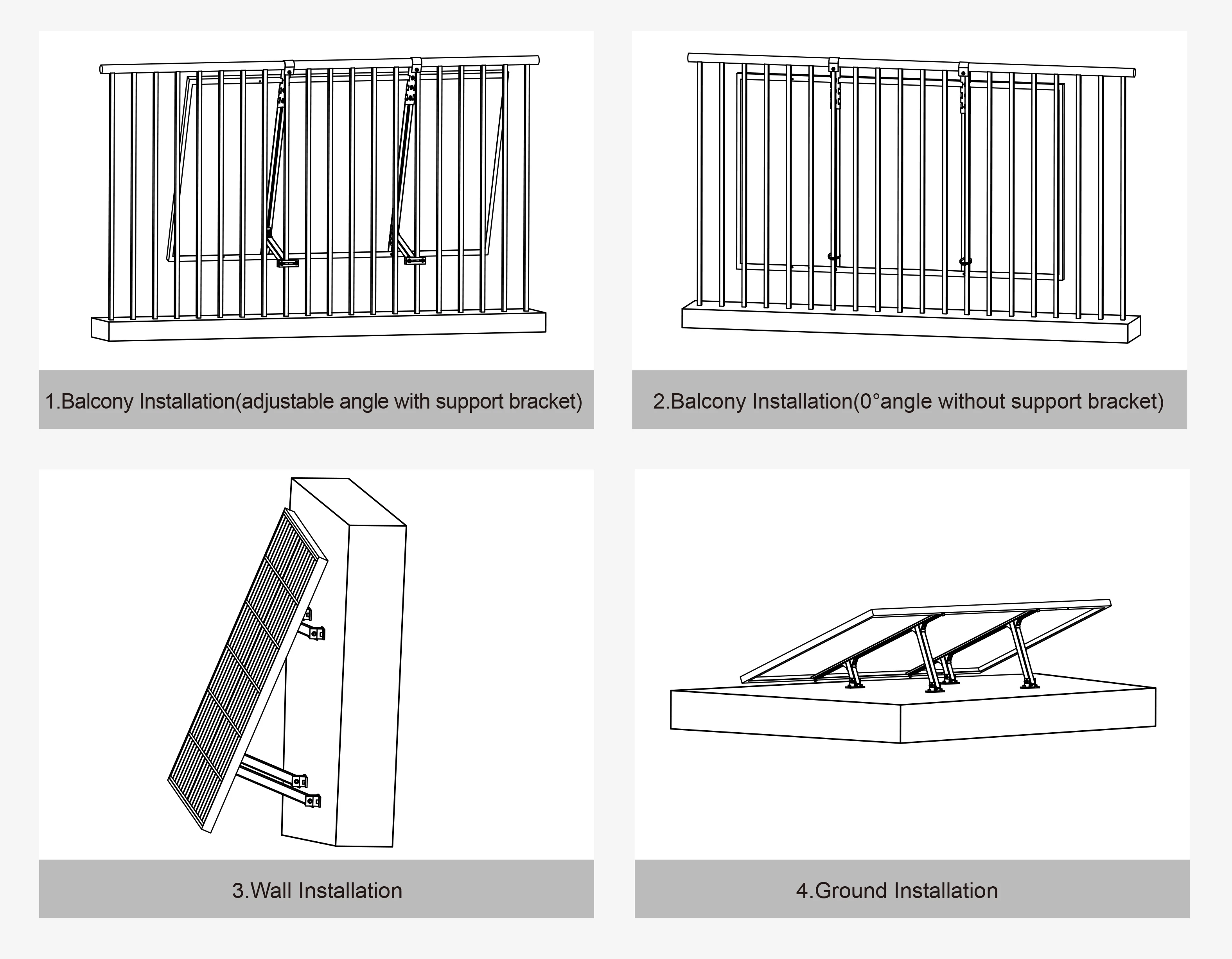

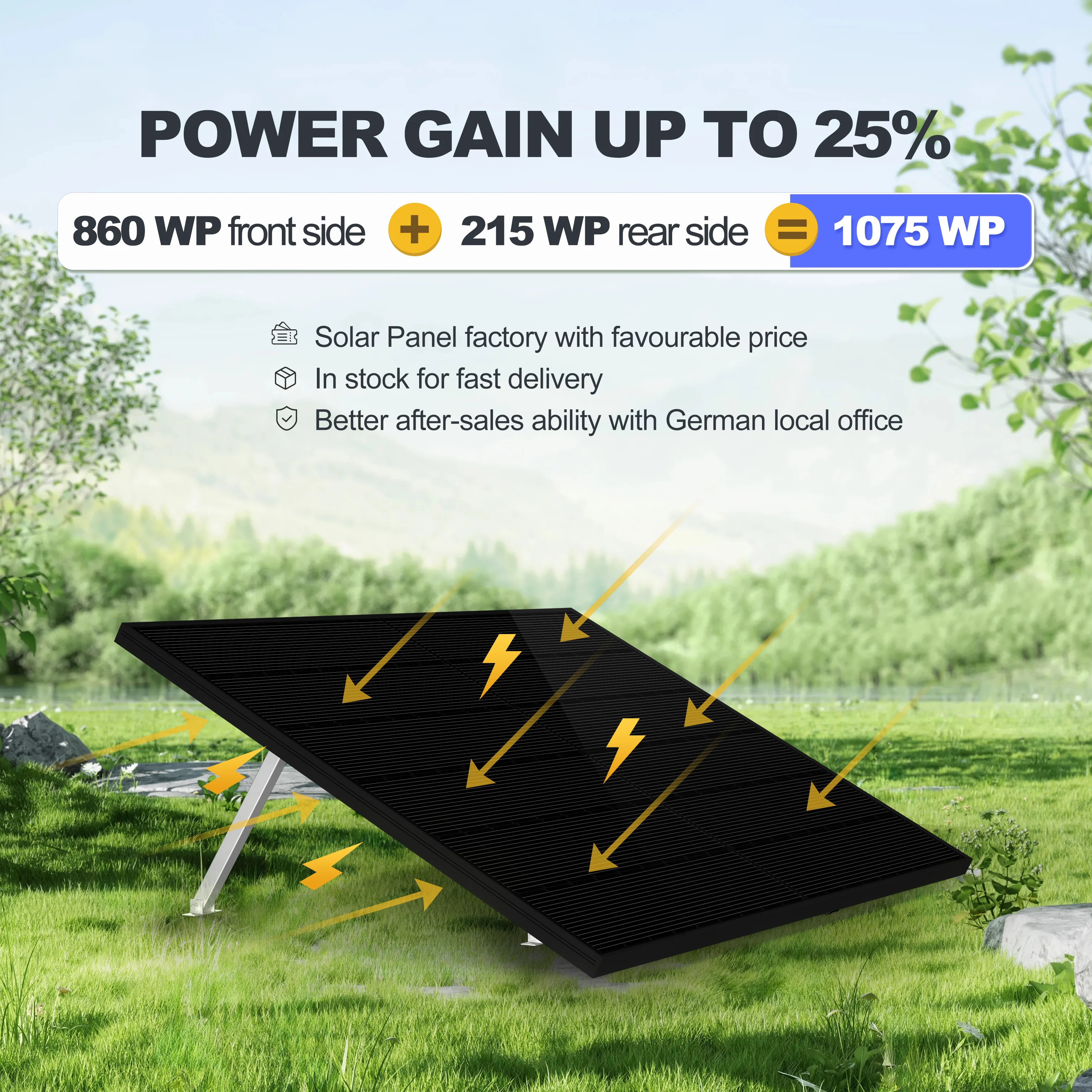

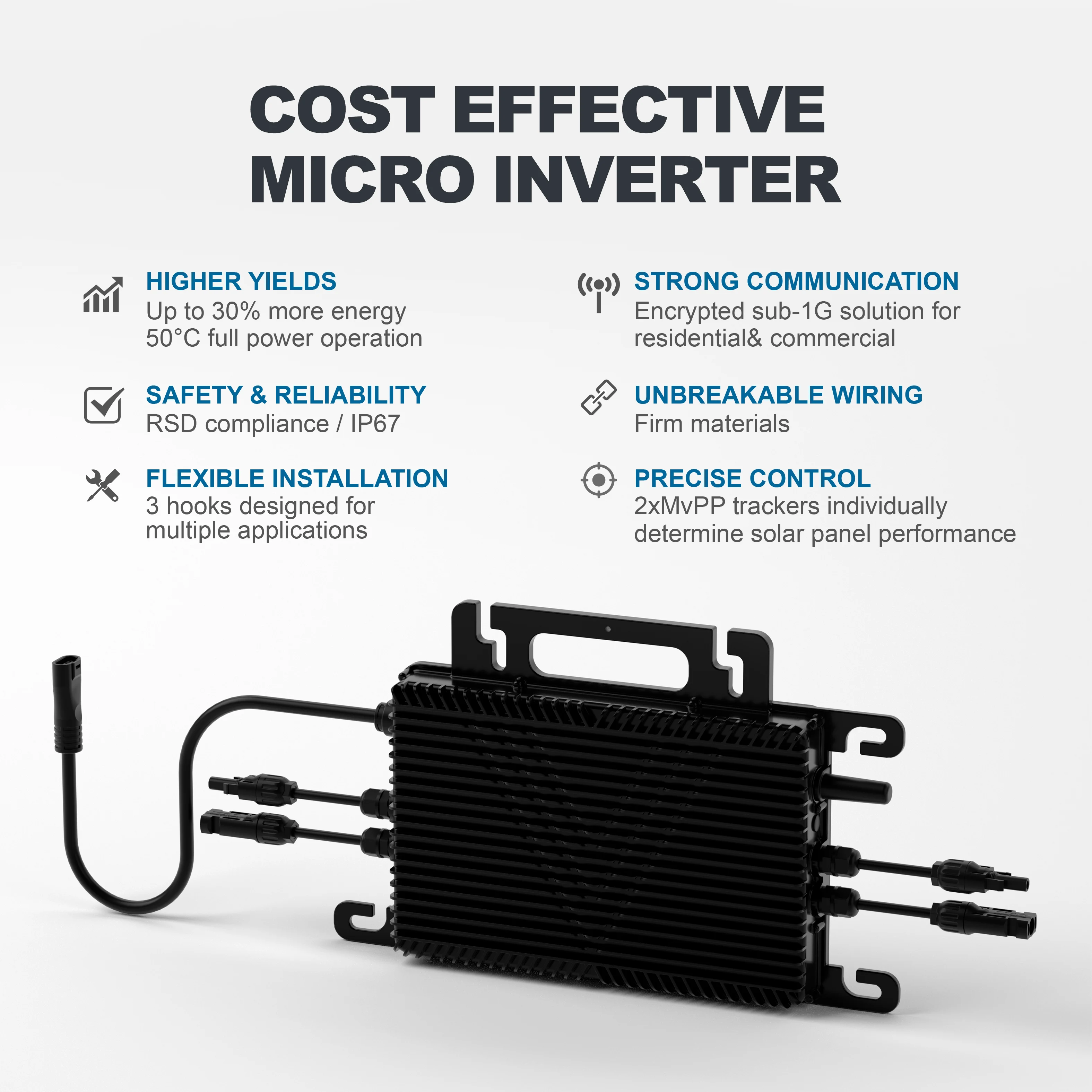

Our solar panels's rear side power gains up to 25%. Micro inverter is highly secure with 1GB of built-in encrypted storage. The set of bracket is freely adjustable and it supports 4 mounting methods. Most importantly, as the sunshine time goes by, users can freely adjust the mounting scenario to maximize the power generation efficiency, and it remains strong in bad weather.
Our solar panels's rear side power gains up to 25%. Micro inverter is highly secure with 1GB of built-in encrypted storage. The set of bracket is freely adjustable and it supports 4 mounting methods. Most importantly, as the sunshine time goes by, users can freely adjust the mounting scenario to maximize the power generation efficiency, and it remains strong in bad weather.
On top of that, we have warehouses in Europe with stock available for delivery within 3 days, enabling customers to enjoy the benefits of our products as early as possible. Welcome to contact us and order our products!
Why Choose SUNKET?

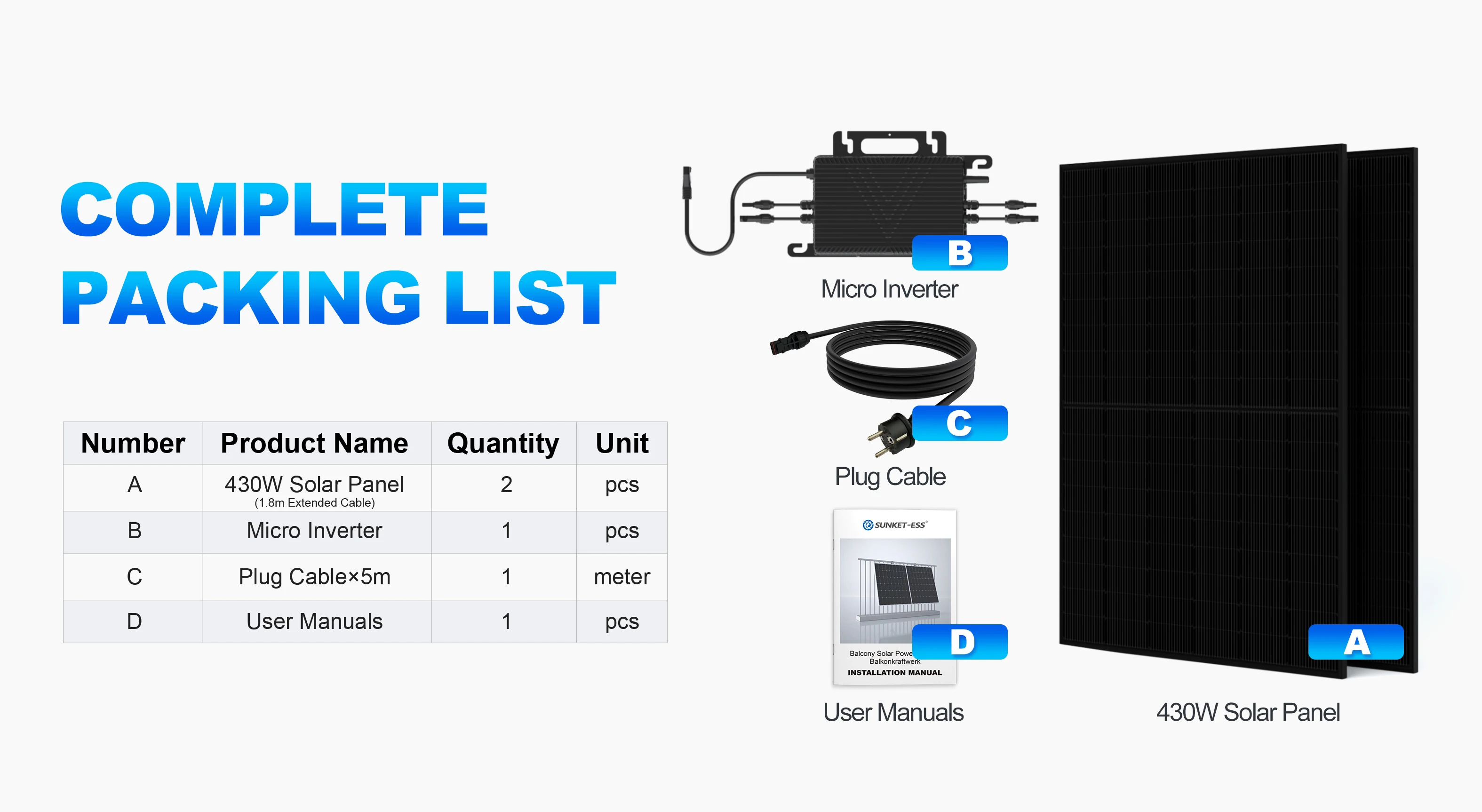

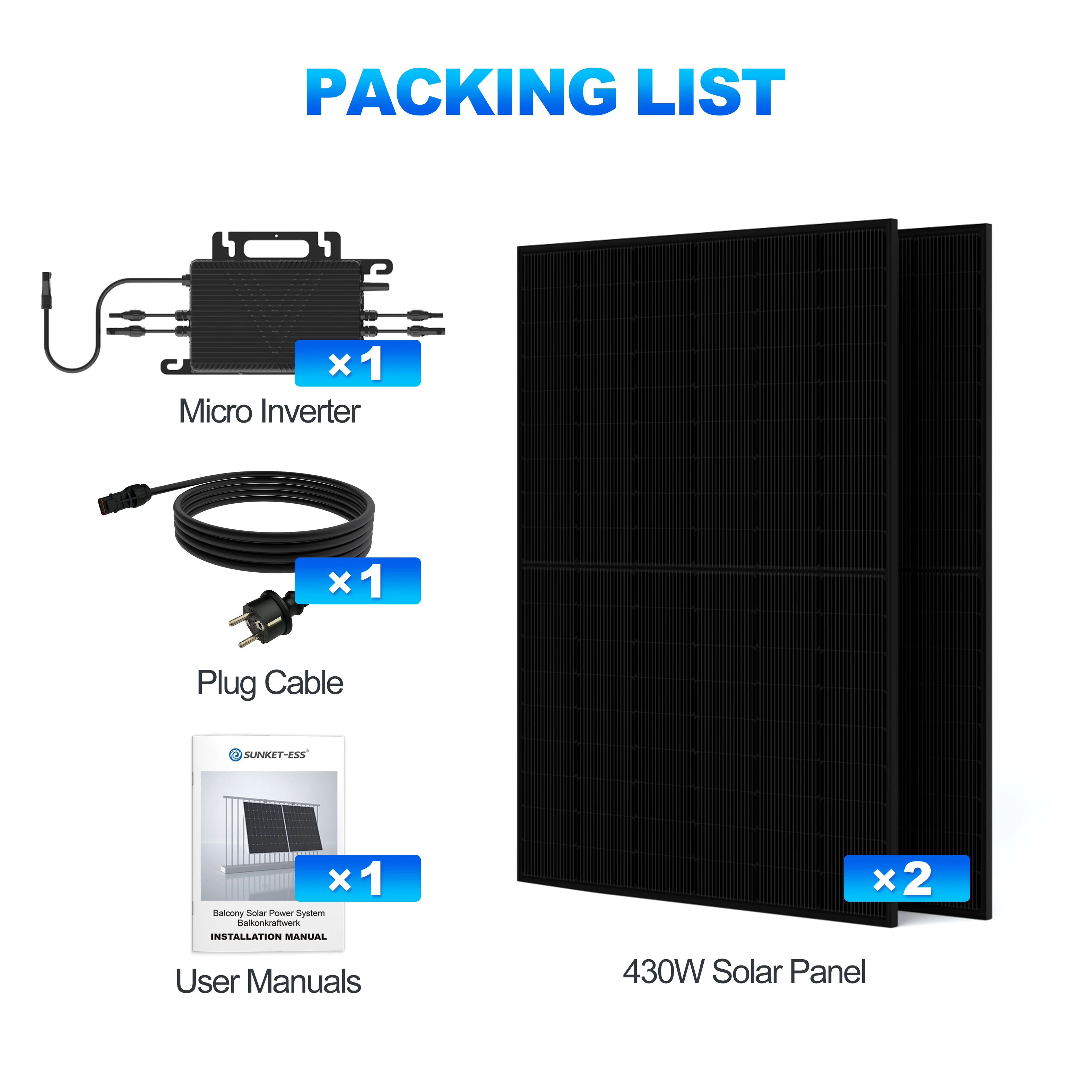

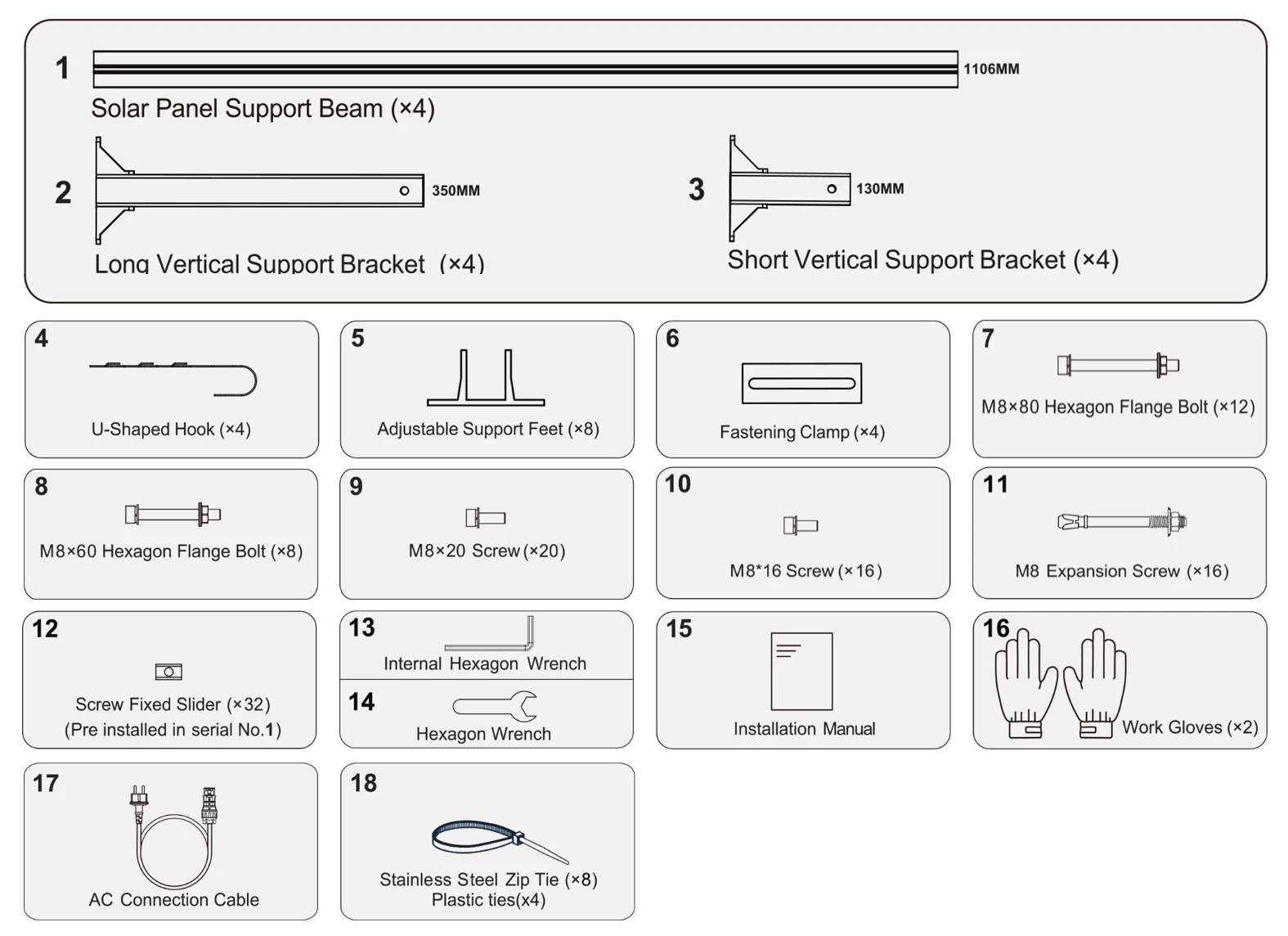

Packing List
Technical Specifications
Input/ DC | ||
Model | SUN-1000WE-P2 | |
Commonly Module Power (W) | 390 to 680+ | |
Start-up Voltage (V) | 21 | |
Maximum Input Voltage (V) | 65 | |
Maximum Input Current (A) | 2×17 | |
Maximum Input Short Circuit Current (A) | 2×25 | |
Number of MPPTs | 2 | |
Number of Inputs per MPPT | 1 | |
Output |AC | ||
Rated Output Power (VA) | 1000 | |
Rated Output Current (A) | 4.3 | |
Maximum Units per 10AWG Branch | 7 | |
Maximum Units per 12AWG Branch | 4 | |
Nominal Output Voltage/ Range (V) | 230 / 240 | |
ominal Frequency/Range (Hz) | 50 /60 | |
otal Harmonic Distortion | ＜3% | |
General Data | ||
Ambient Temperature Range (°C) | -40 to +65 | |
Dimensions (WxHxDmm) | 361x222x36.5 (including 3 hooks) | |
Weight (kg) | 3.2 | |
Enclosurerating | Outdoor IP67 (NEMA 6) | |
Communication | Wifi | |
Monitoring | Cloud via App | |
Compliance | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/-2/-3/-4, EN50549-1:2019, VDE-AR-N 4105: 2018,CEI0-21, TOR Erzeuger, R25: 2019, EN 300 220-1/-2, EN300328, EN301489-1/-3/-17, EN62311, C10/11PN- EN50549-1:2019, NC- RfG, ORDINANCE 140_2022 | |
Product Advantages
Pruduct Advatage：
Sunket new energy tech – 860W Balcony Solar System, embodies the advantages of simplicity, resilience, and forward-thinking, offering a blueprint for the future of new energy.
Faster -- effortless installation in just 15 mins;
Simpler -- plug-and-play for instant convenience;
Smarter -- with smartphone monitoring, manage it all from anywhere with a tap;

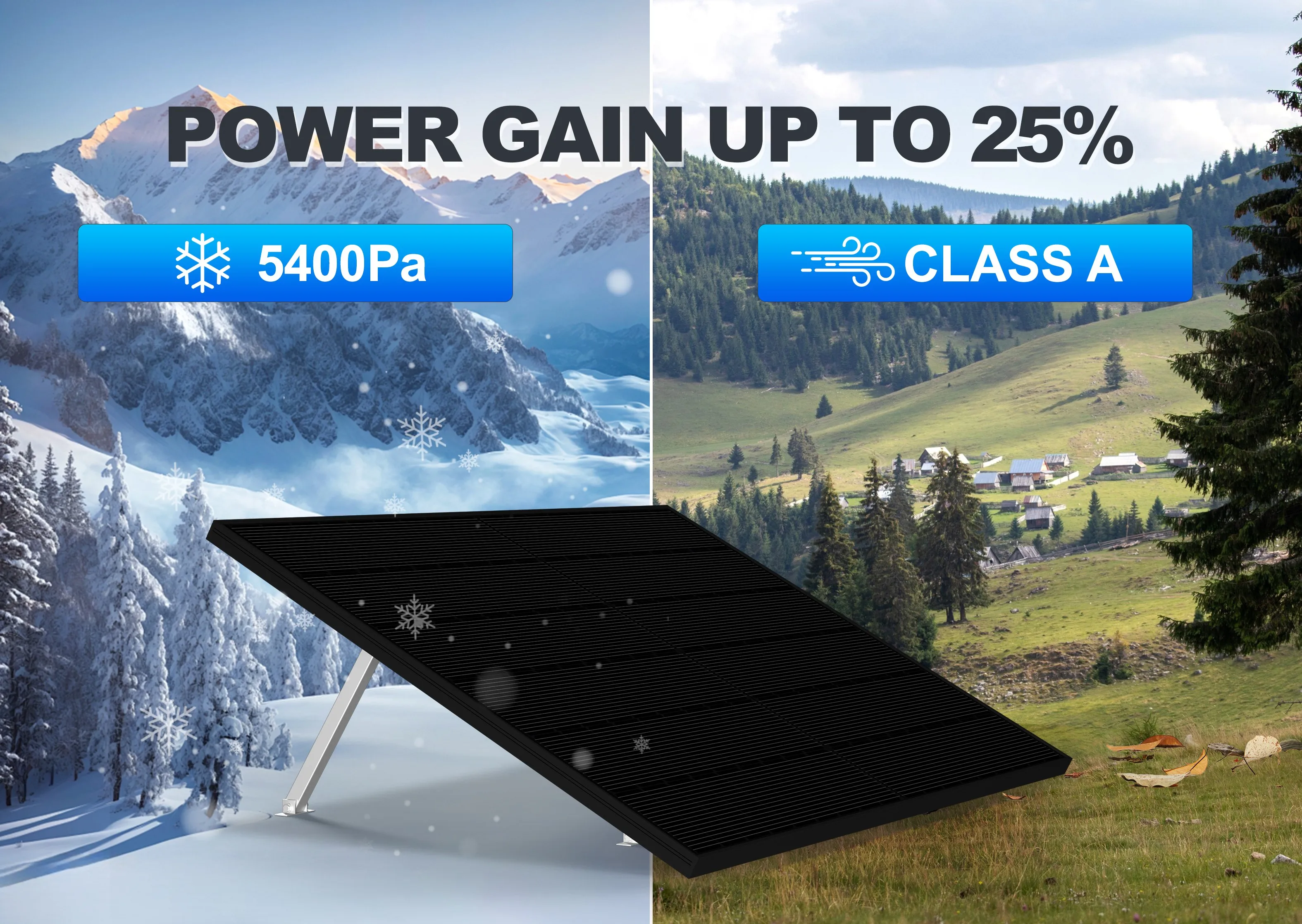

Safer -- facing Europe's toughest weather, it stands strong with classA wind resistance, even under 5400Pa snow load.
Simpler -- plug-and-play for instant convenience;
Smarter -- with smartphone monitoring, manage it all from anywhere with a tap;
Safer -- facing Europe's toughest weather, it stands strong with classA wind resistance, even under 5400Pa snow load.

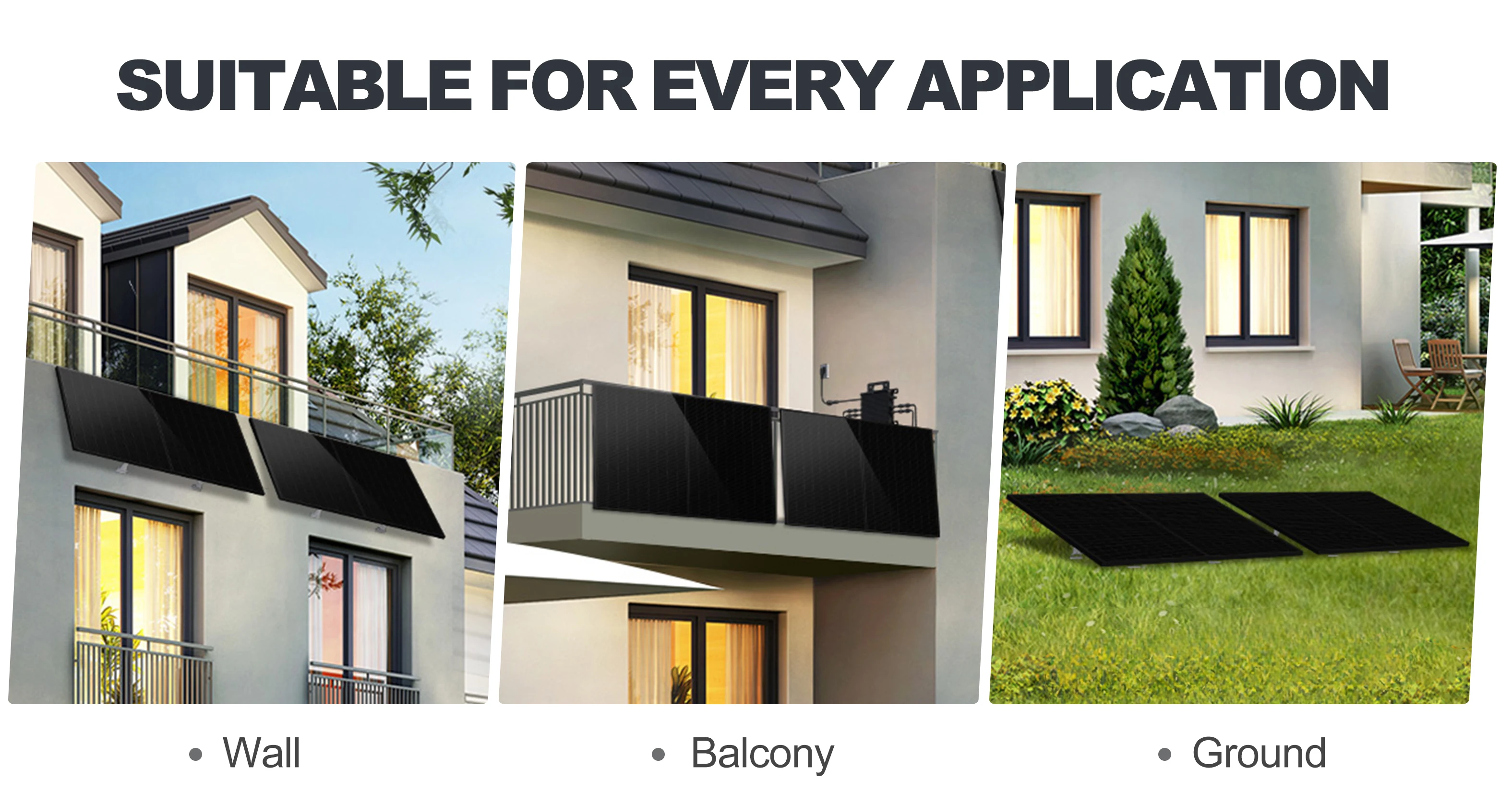

Application

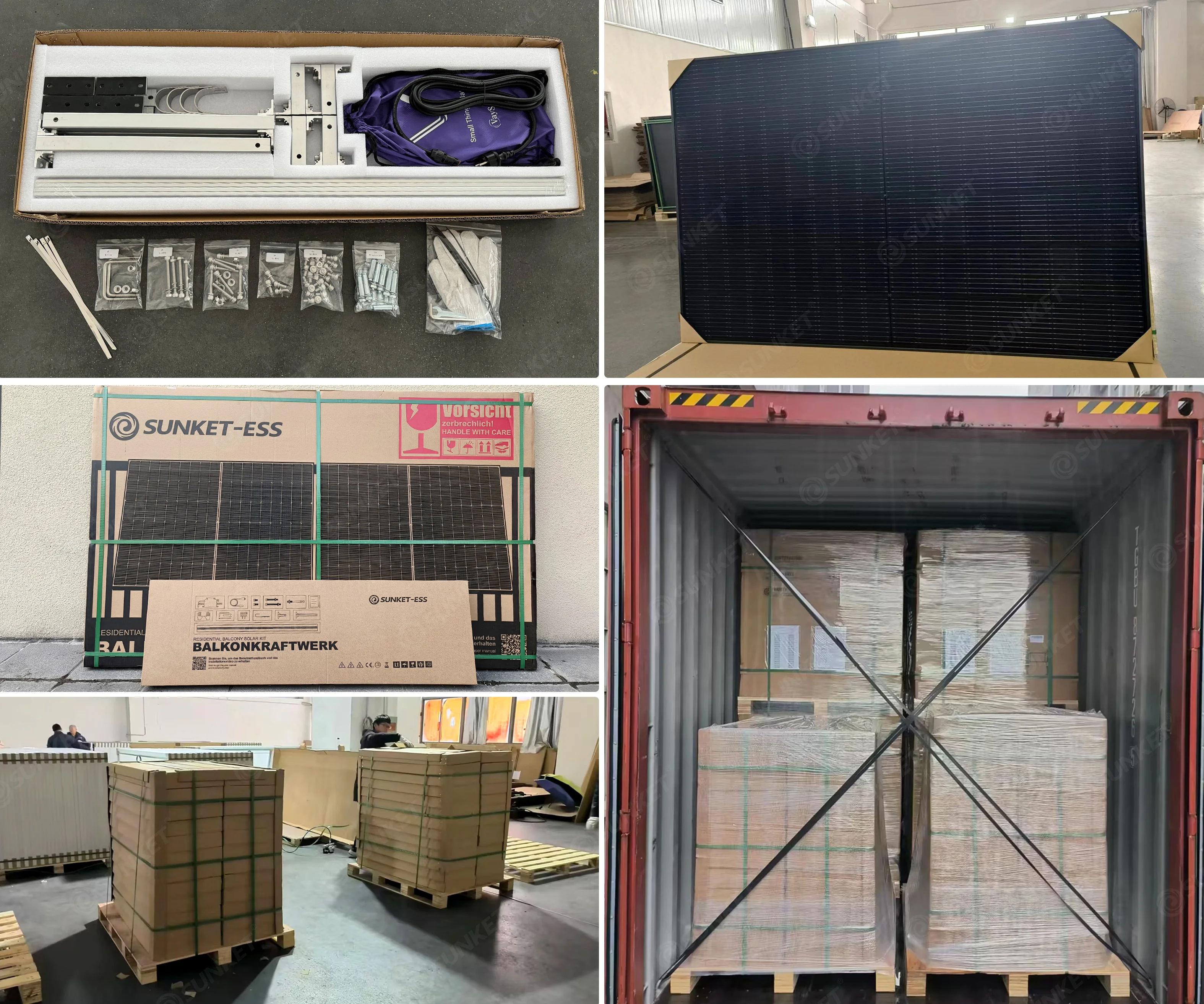

Product Packing
Recommend Products

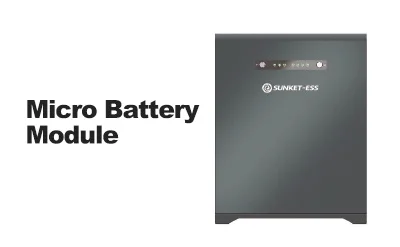

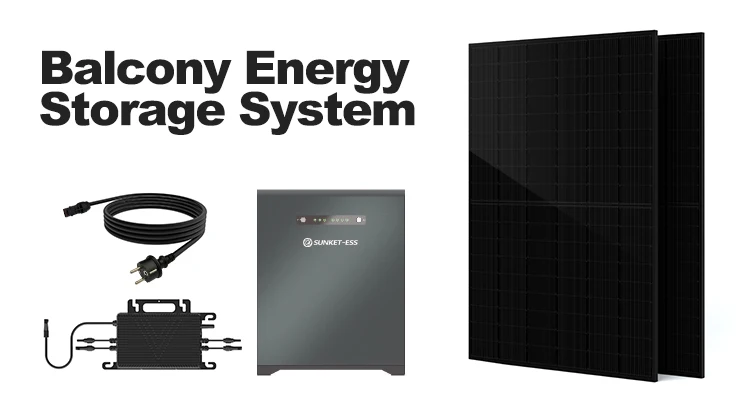

Sunket provides all customers a variety of new energy solutions, including micro inverters purchased separately, micro storage batteries purchased separately, and balcony systems that include micro storage batteries. You can choose any combination of purchases you like, so feel free to place an order！
Purchase Option 1
Purchase Option 2
Puechase Option 3
