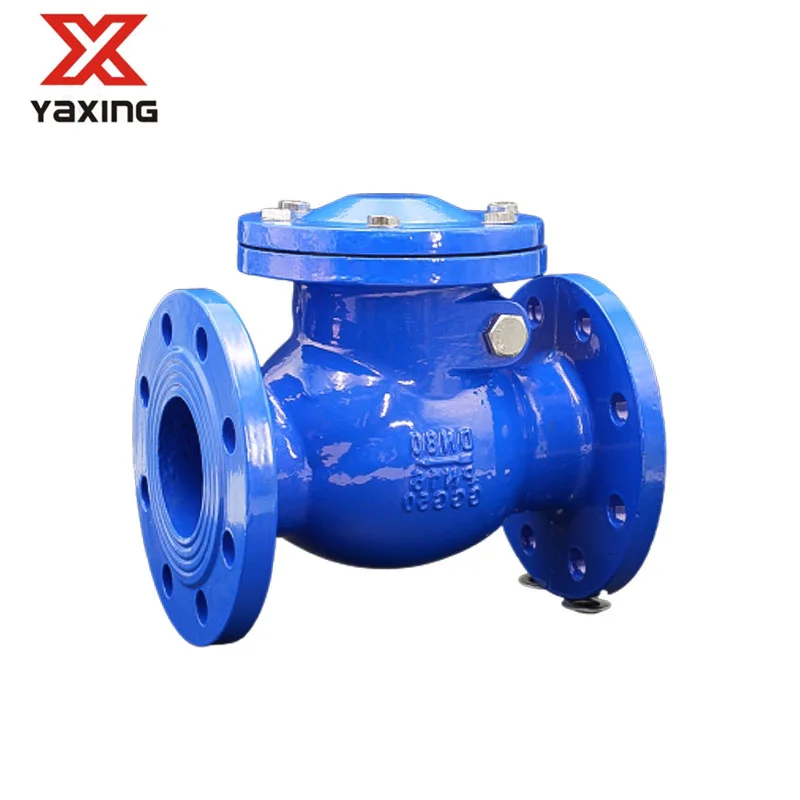

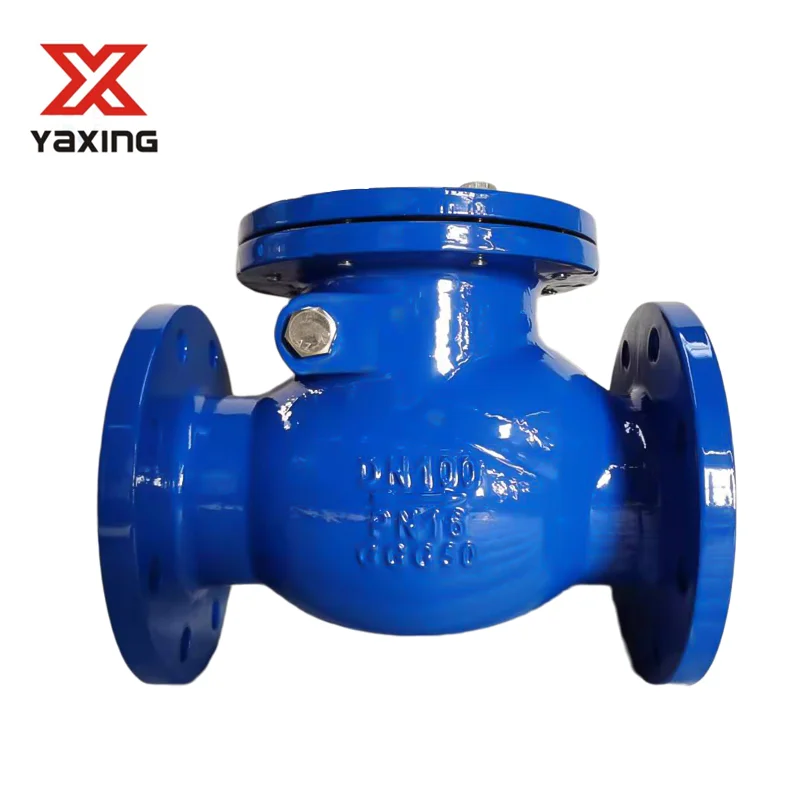

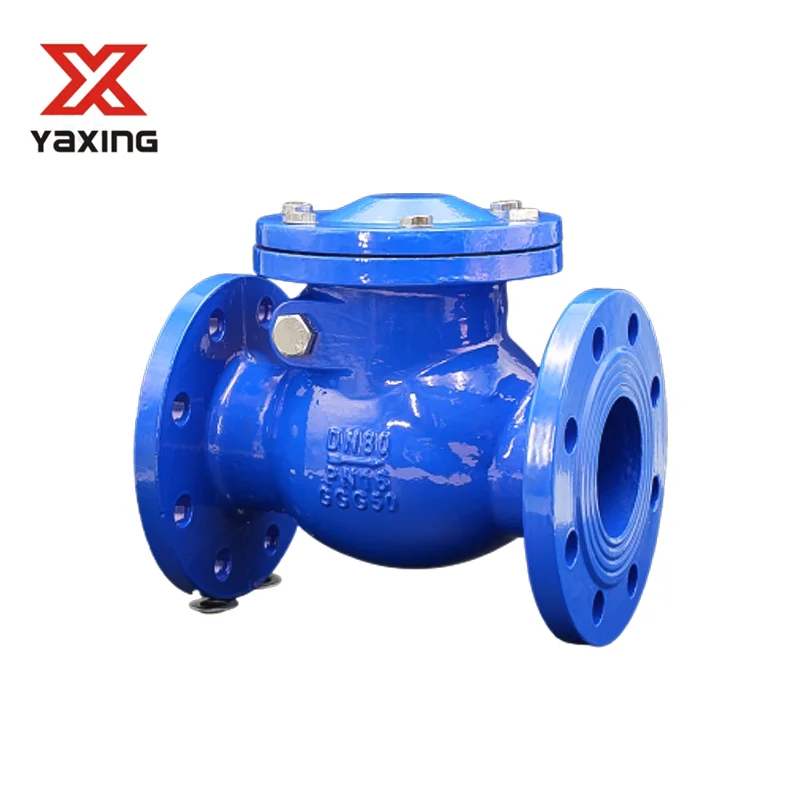

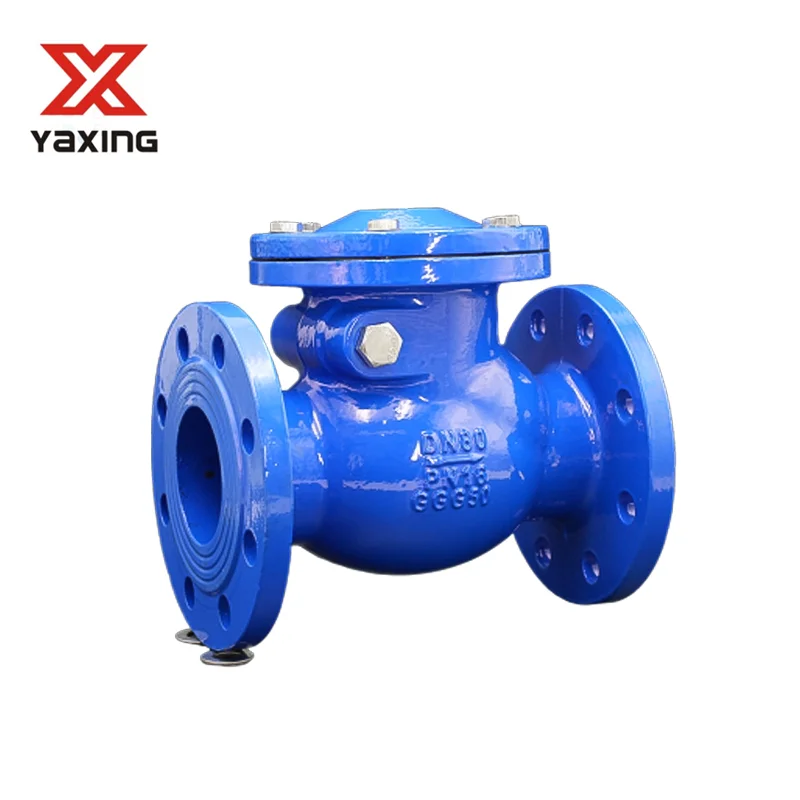

Wholesale Swing Check Valve Ductile Iron Body Metal Seat Soft Seal Check Valve Double Flanged Check Valve
- Category: >>>
- Supplier: Botou Yaxing Fluid Equipment Co. Ltd.Botou Ltd.
Share on (1601283858172):
Product Overview
Description

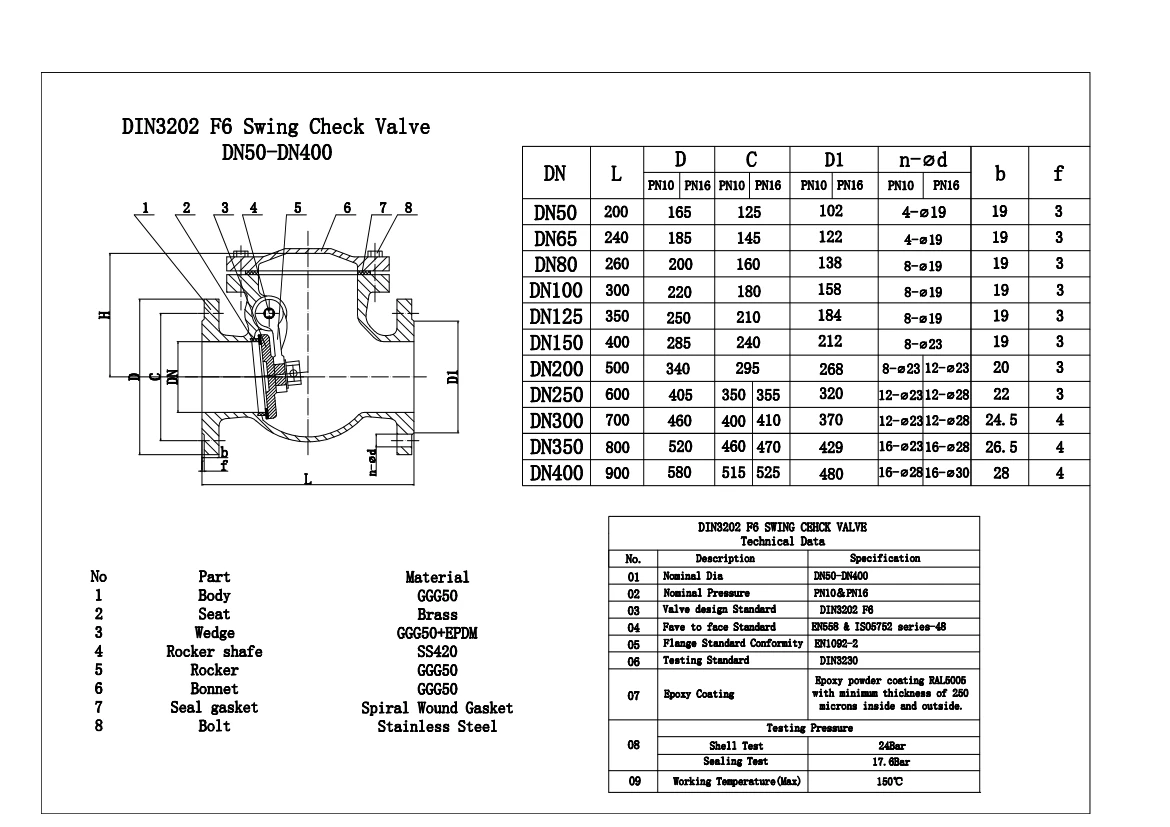

Part & Materials | ||||
No | Part | Material | ||
1 | Body | Ductile Iron GGG50 | ||
2 | Seat | Brass | ||
3 | Disc | GGG50+Brass /EPDM | ||
4 | Shafe | SS420 | ||
5 | Rocker | Ductile Iron GGG50 | ||
6 | Bonnet | Ductile Iron GGG50 | ||
7 | Seal Gasket | Metallic Gasket / Rubber | ||
8 | Bolts | A2-70 | ||
Technical Data | ||||
No | Description | Specification | ||
1 | Nominal Dia | DN50-DN400 | ||
2 | Nominal Pressure | PN10&PN16 | ||
3 | Valve Design Standard | DIN3202 F6 | ||
4 | Face to Face Standard | EN558&ISO5752 Series-48 | ||
5 | Flange Standard Conformity | DIN2533 | ||
6 | Testing Standard | DIN3230 | ||
7 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. | ||
8 | Testing Pressure | |||
Shell Test | PN*1.5Times | |||
Sealing Test | PN*1.1Times | |||
9 | Working Temperature(Max) | 120℃ | ||
Q;Are you a trading company or a manufacturer?
A:We are a manufacturer,and we have spent over 10 years in making valve
A:We are a manufacturer,and we have spent over 10 years in making valve
Q:How do you ensure quality?
A:Each valve is taken pressure test for two times before leaving the factory! And we offer each valve a guarantee period of
12months.
A:Each valve is taken pressure test for two times before leaving the factory! And we offer each valve a guarantee period of
12months.
Q;Do you accept factory inspection？
A;Yes, we accept third party and personal inspection.
A;Yes, we accept third party and personal inspection.
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 15 Days for delivery, according to your order quantity.
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 15 Days for delivery, according to your order quantity.
