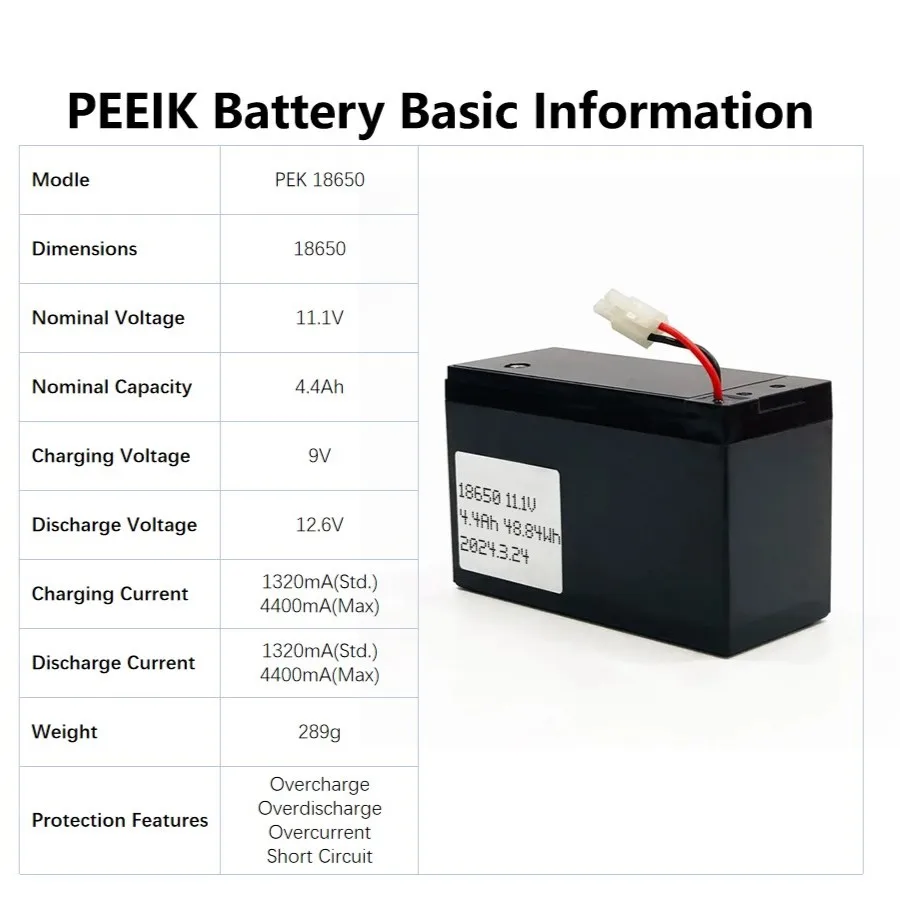

Items | Parameter | Notes |
Cell Model | 18650 | |
Design Scheme | Cell+PCM+Terminal | |
Battery Size | 18650 | |
Nominal Voltage | 11.1V | |
Shipment Voltage | 9V | |
Charging Voltage | 12.6V | |
Minimum Capacity | 4400mAh | |
Battery Energy | 4400mAh | |
Standard Charging Current | 1320mA | 0.2C |
Max Charging Current | 4400mA | 1C |
Standard Discharging Current | 1320mA | 0.2C |
Max Discharging Current | 4400mA | 1C |
Battery Weight | 289g | |
Cell Impedance | ≤ 280mΩ | |
Operating Temperature | Charging: 0°C ~ 45°C | |
Discharging: -20°C ~60°C | ||
Storage Temperature | -20℃~25℃:12 months | 20±5℃ is the recommended storage temperature. |
-20℃ ~45℃:3 months | ||
-20℃ ~60℃:1months | ||
Protection | Overcharge Detection | |
Overdischarge Detection | ||
Overcurrent Detection | ||
Short protection | Yes |
