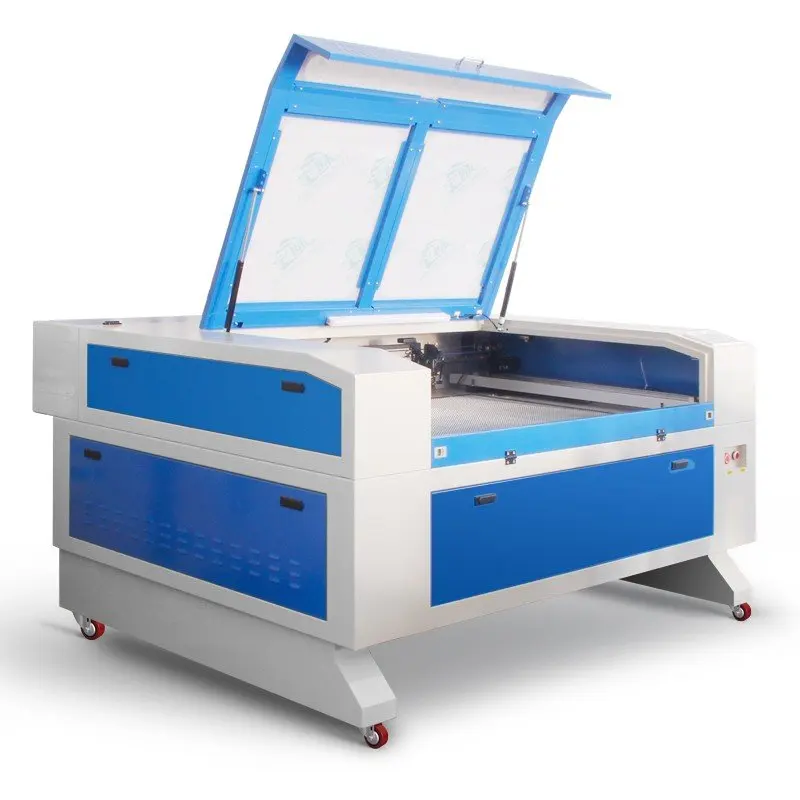

1390 1810 1610 6040 5070 1325 CO2 Laser Cutting Machine For Foam Fabric Leather Acrylic Wood Mdf Cardboard Plastic Rubber PVC
- Category: >>>
- Supplier: Liaocheng Dongchangfu Ketai Laser Equipment Co. Ltd.Liaocheng Ltd.
Share on (1601283860901):
Product Overview
Description
Product Description

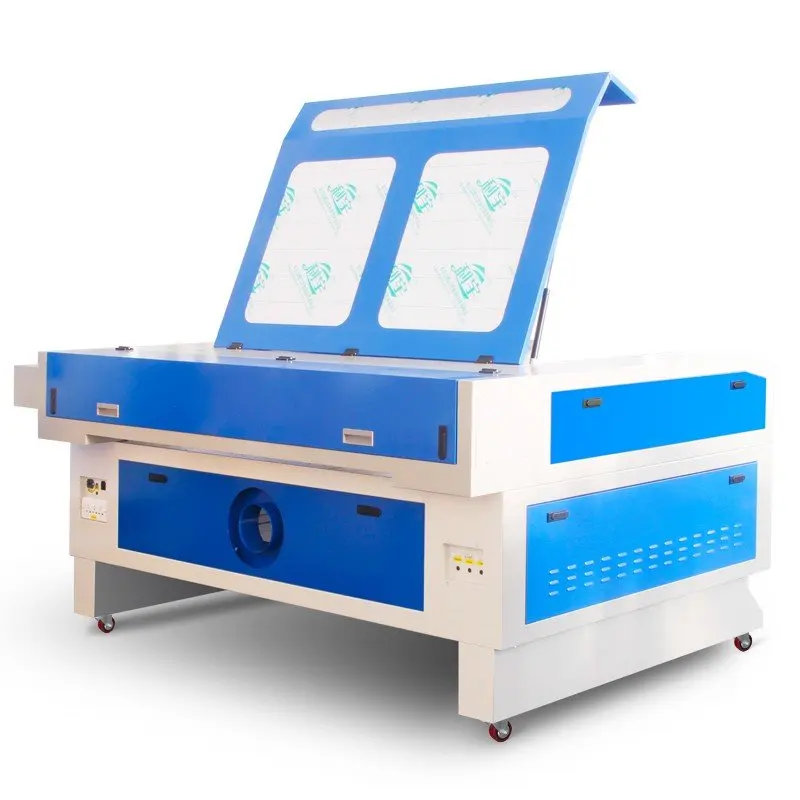

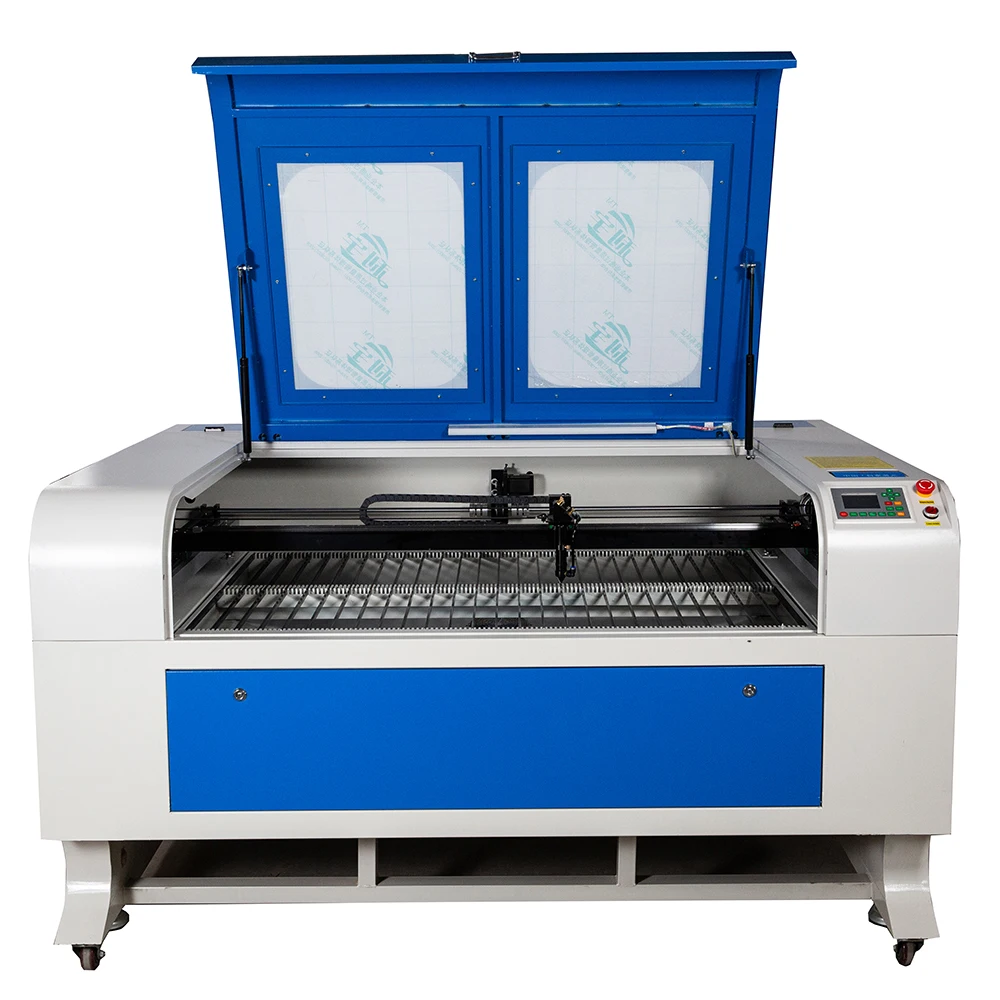

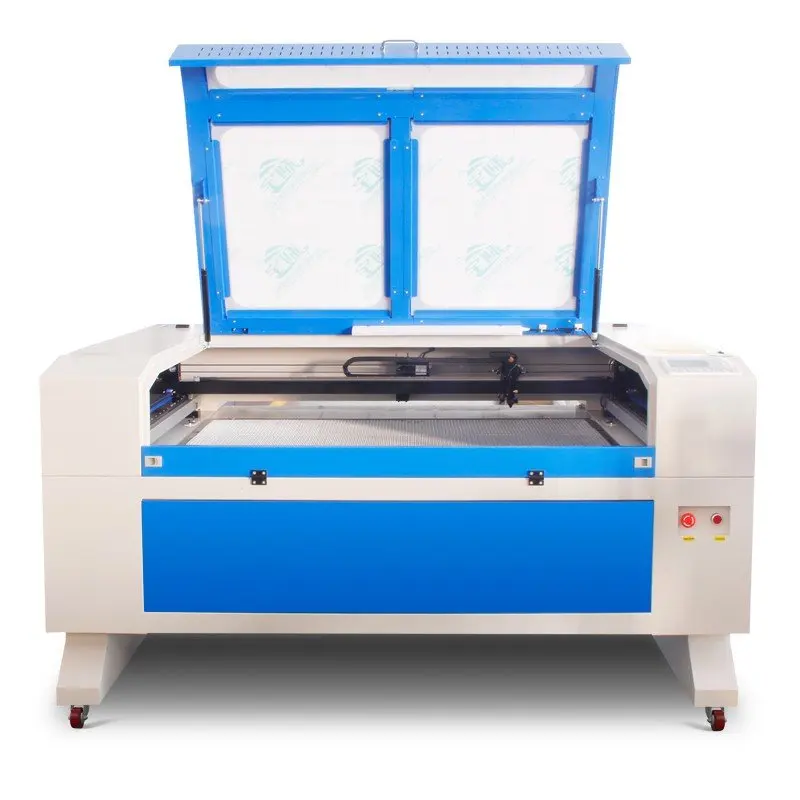

1290 1390 Laser engraving cutting machine
CO2 laser cutter can engrave and cut non metal materials such as paper, acrylic, wood, double-color board, ABS board, rubber, plastic, glass, leather, etc. it is widely used in acrylic processing, cloth, leather, toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products industries.
1.Adopting the imported laser head, it has the advantages of high processing accuracy, high speed and low noise.
2.Equipped with the protection cover, it not only guarantees the personal safety of the operator, and also makes the entire processing production more environmentally friendly.
3.With High processing accuracy and the processing accuracy can reach 0.02 mm.
4.The wiring is professional and firm, clean and tidy, and the conduction quality is high.
5.Worktable: electric lifting worktable,the worktable can be up and down.
6.Auxiliary blowing system, which quickly reduces the temperature of the material cutting part and prevents the material from smearing and cutting the deformation

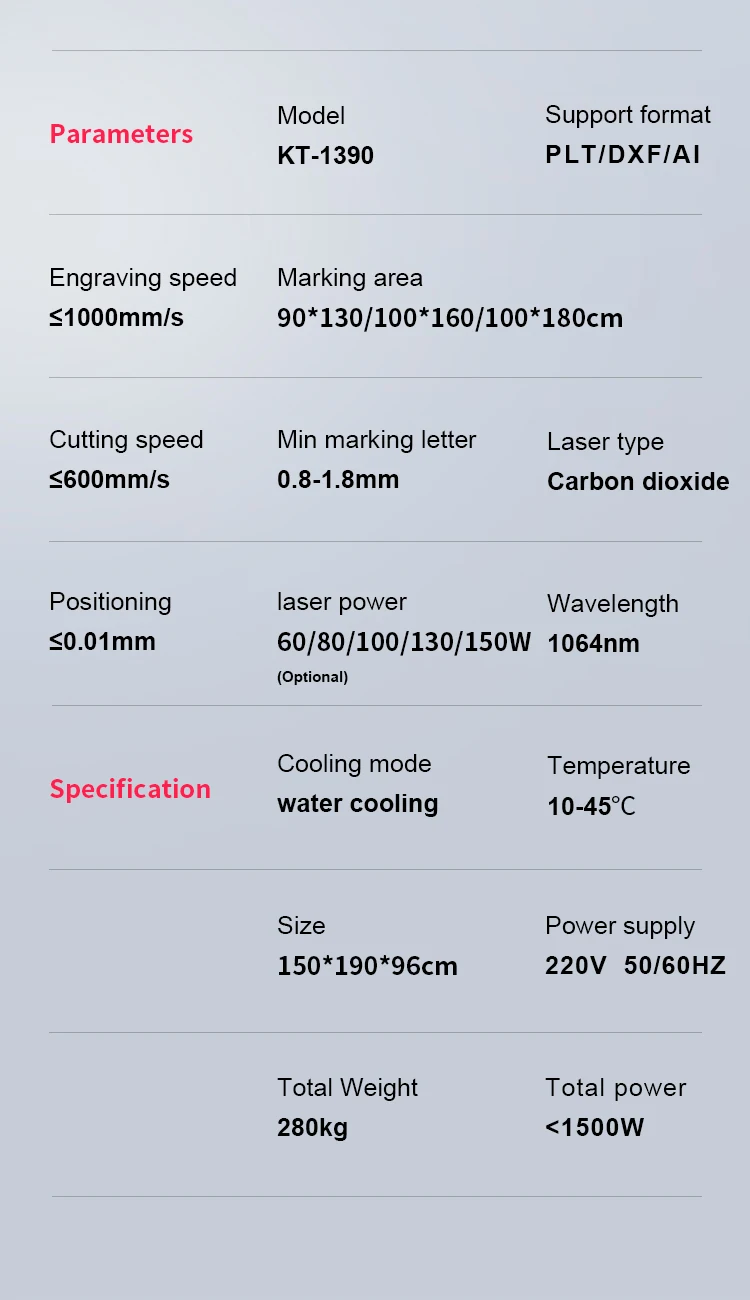

Specification
Model | KT-1390 1290 |
Worktable | Honeycomb/blade |

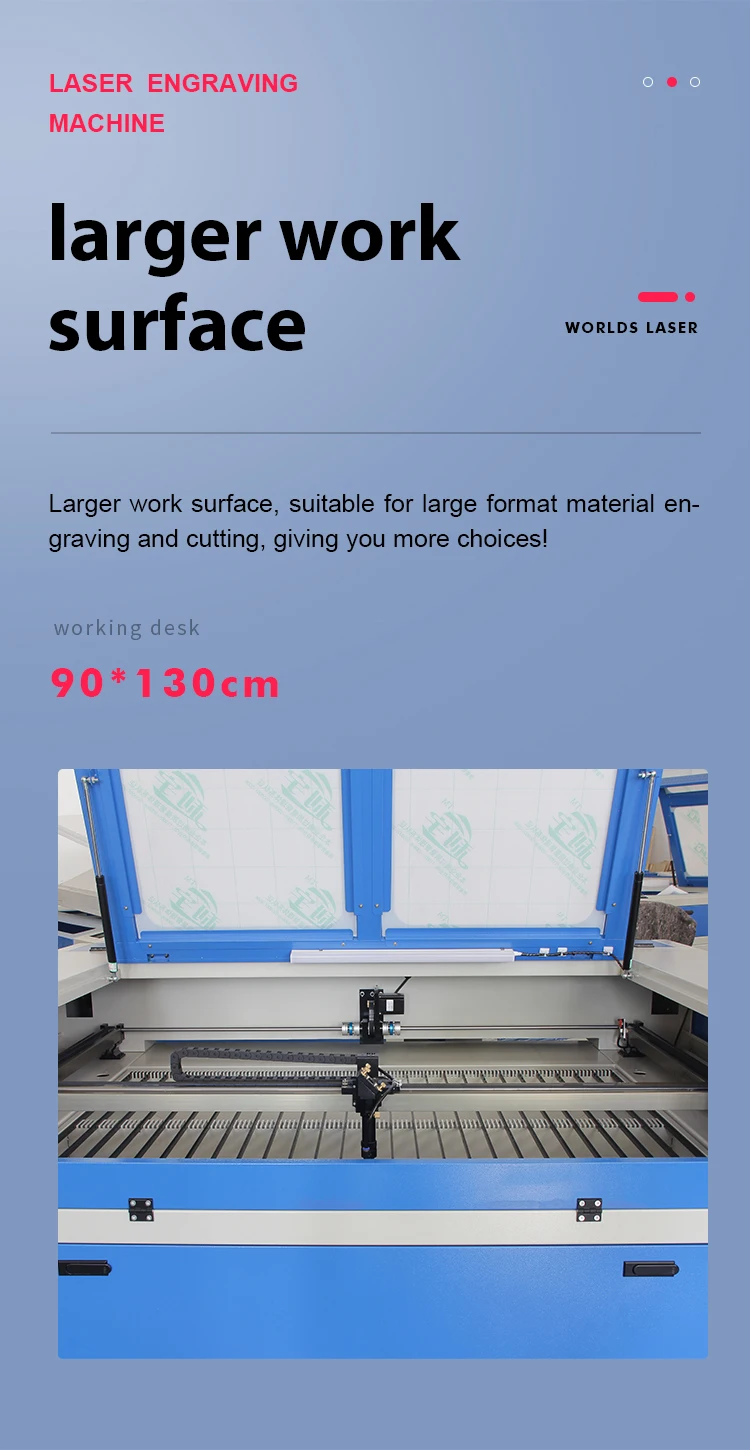

Eneraving area | 1200*900mm/1300*900mm/1400*1000mm |
Laser Power | 60W/80W/100W/110W/130W/150W |
Engraving Speed | 500mm/s Max |
Engraving Depth | 3mm |
Cutting Speed | 60mm/s |
Up and down work table | Ec Up and down 250mm adjustable |
Minimum Shaping Character | 1 X 1mm |
Resolution Ratio | 0.0254mm (1000dpi) |
Power Supply | 220V(or110V)+/-10% 50Hz |
Resetting Positioning | Accuracy less than or equal to 0.01mm |
Water protecting sensor and alarm | Yes |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows XP/VISTA/Windows 7/8/10 |
Software | RDWORKS |
Control Configuration | RUIDA 6445G |
Water Cooling(Yes/No) | Yes |
Details

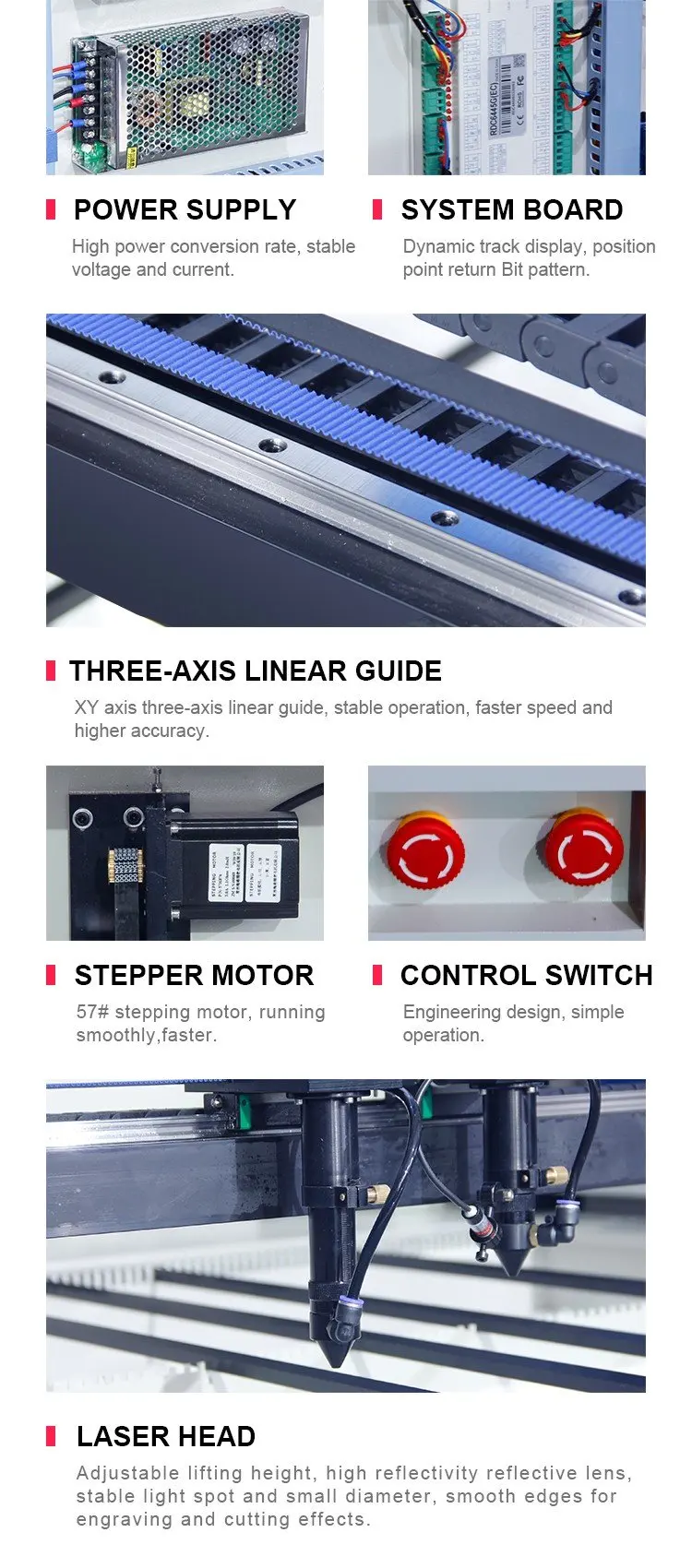

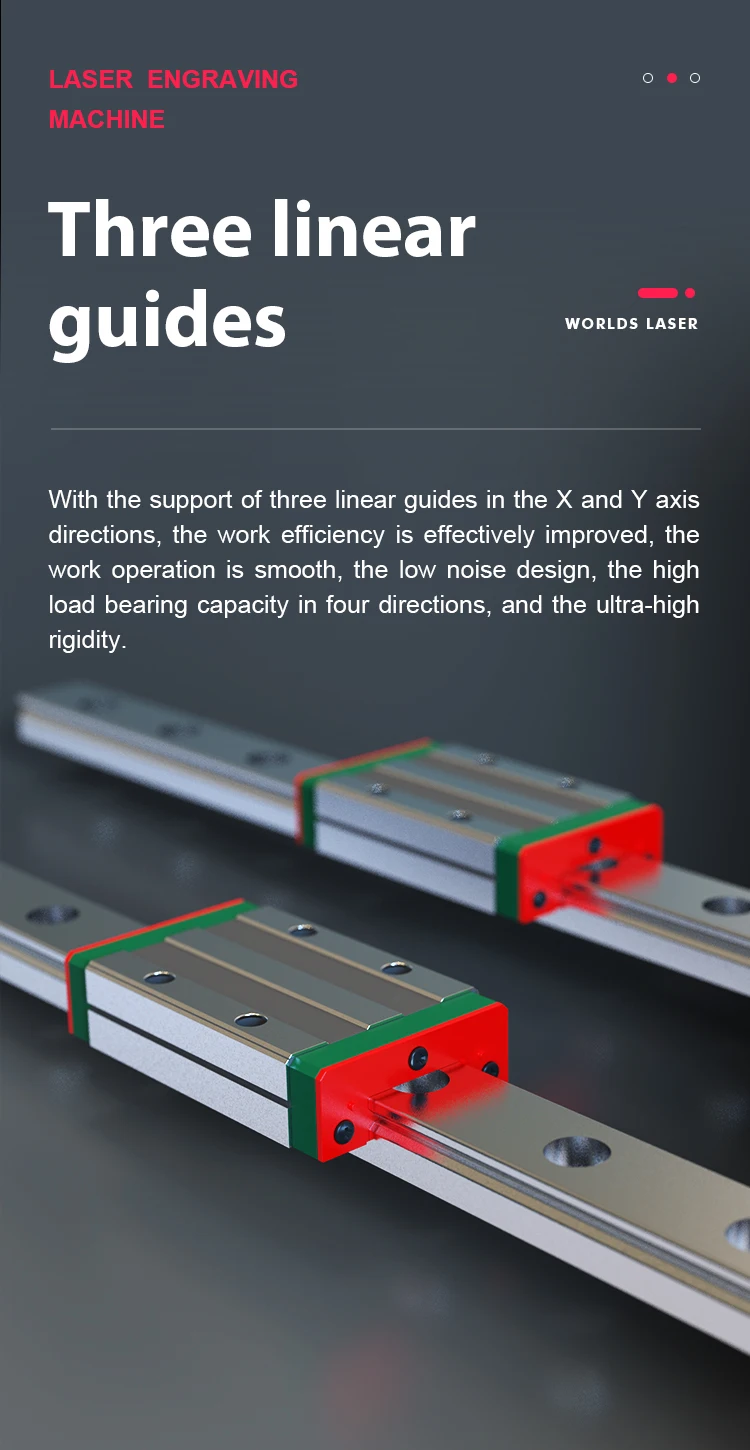

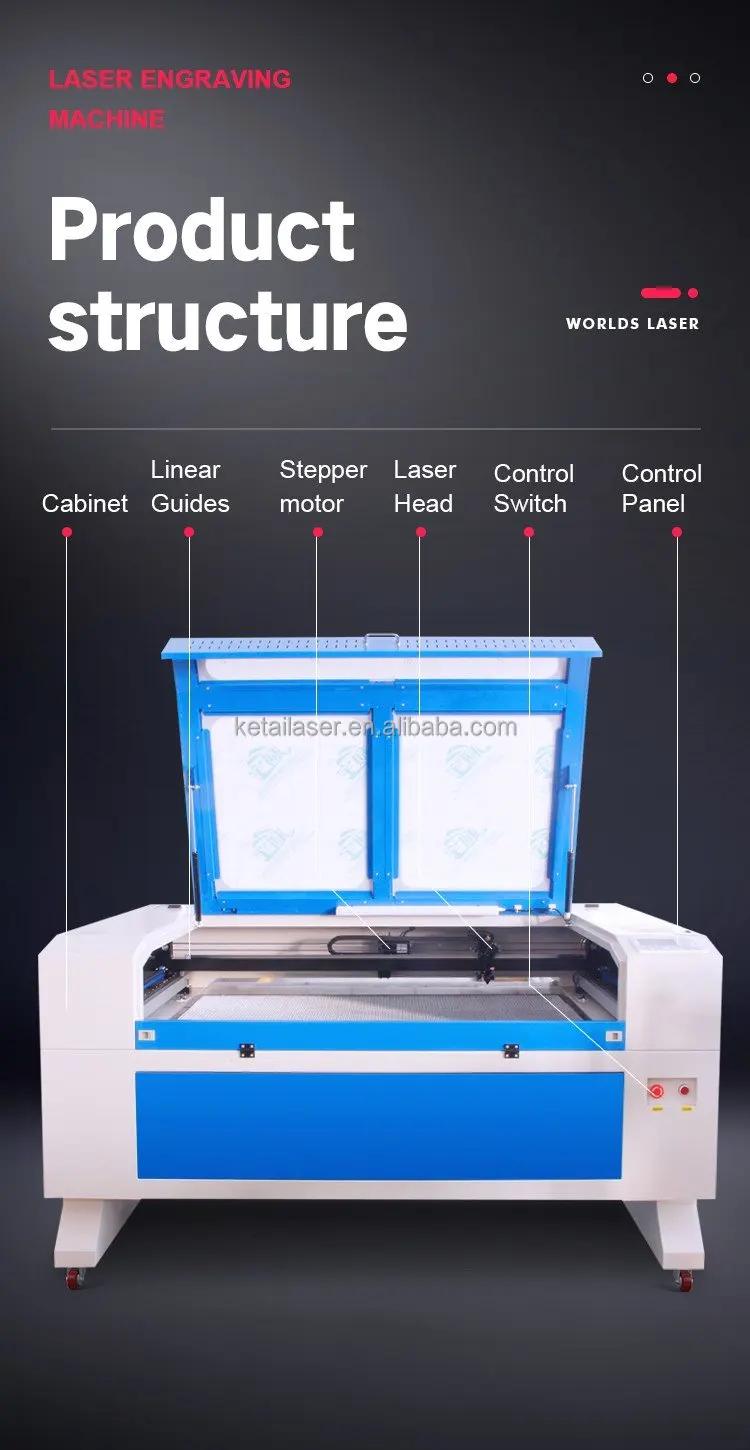

1390 laser cutting machine Compared with the traditional sliding guide 1/50 and XY three-axis linear guide design, the high-precision linear motion can reduce the friction coefficient, and simultaneously bear the loads in all directions such as up, down, left, right, return system and streamline.

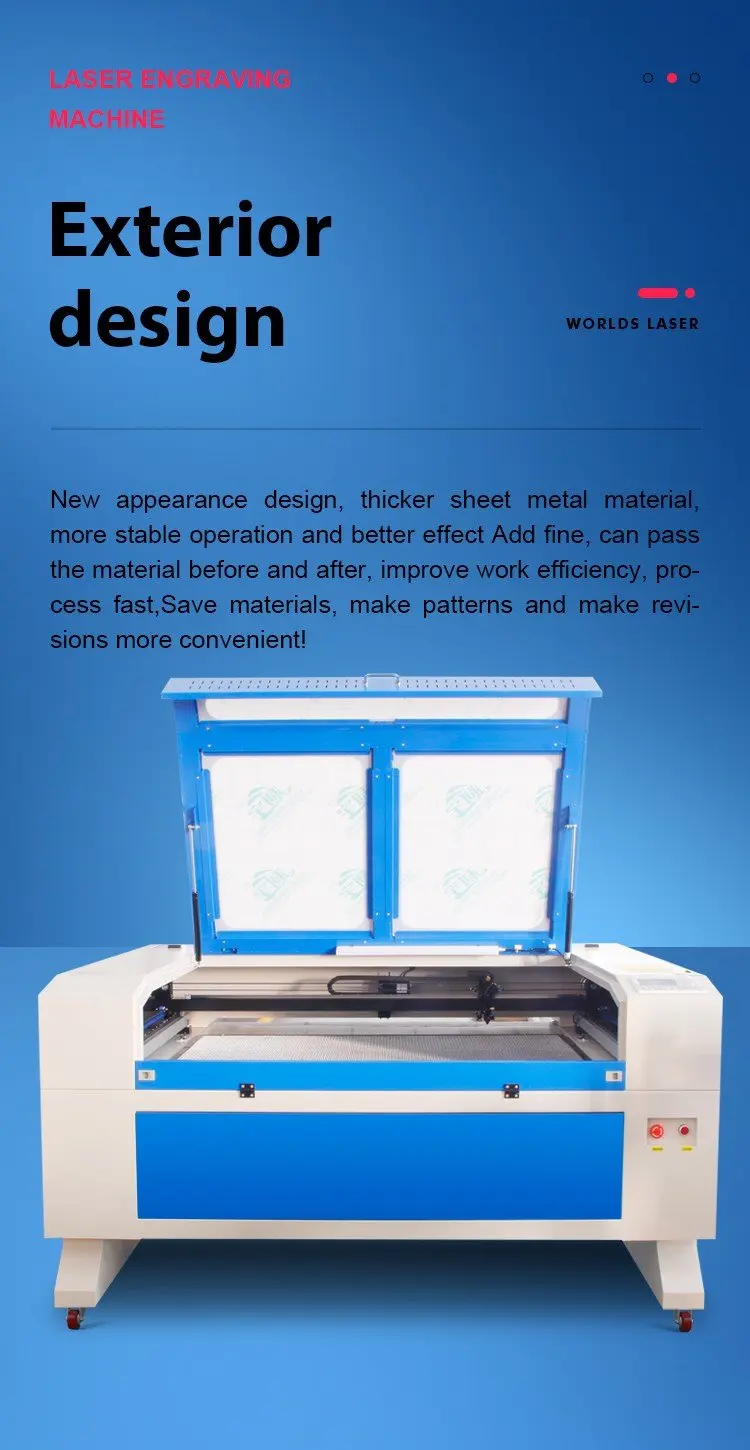

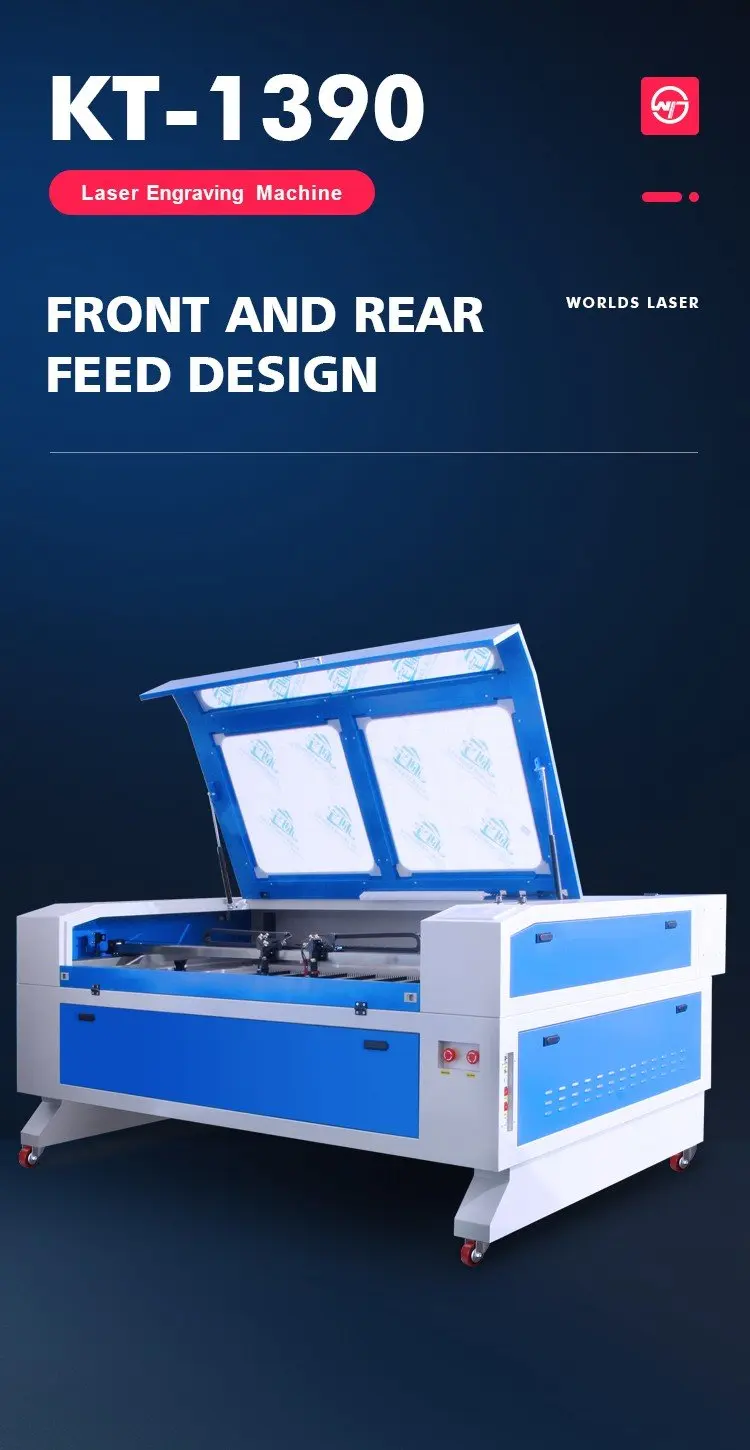

1390 laser cutting machine，The new appearance design, thicker sheet metal materials, more stable operation and better effect add fine, can improve work efficiency through the front and rear materials, processing speed is fast, save materials, and make patterns and modifications more convenient!

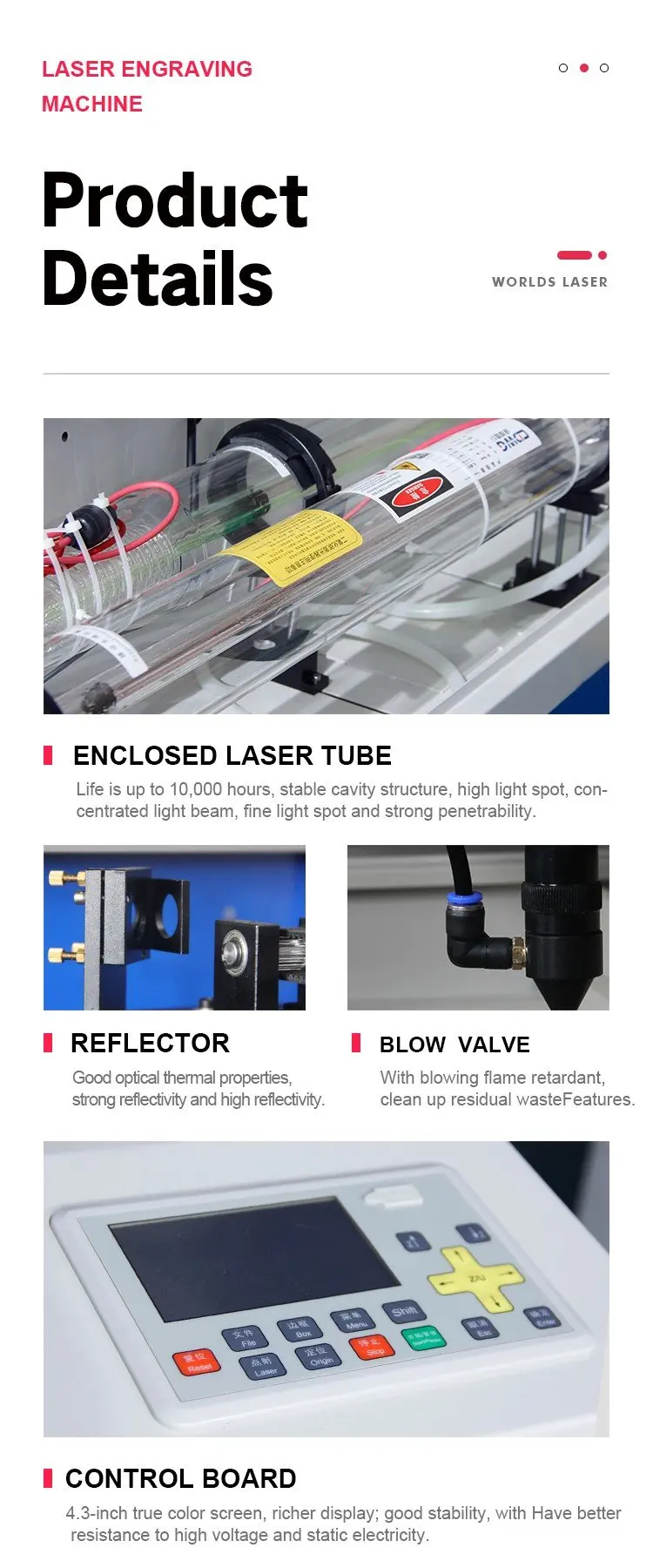

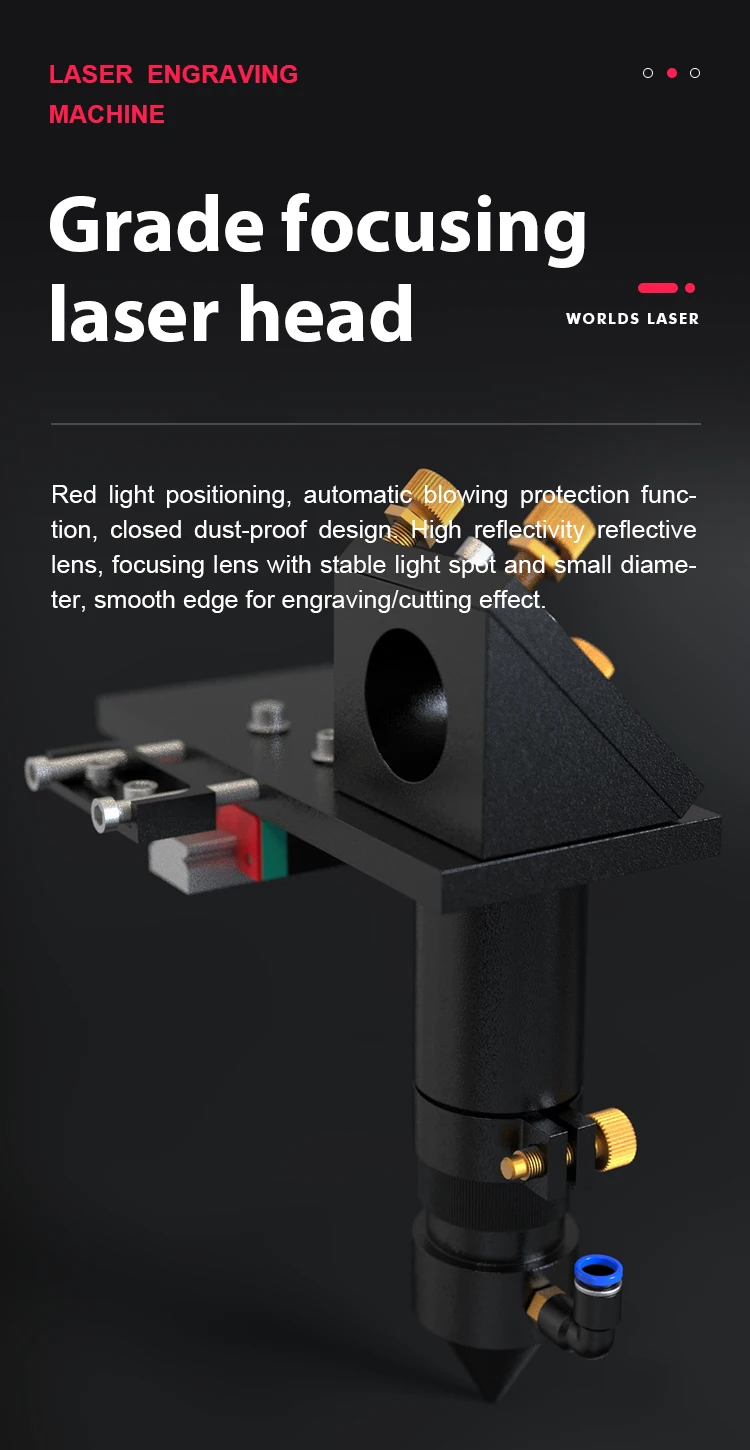

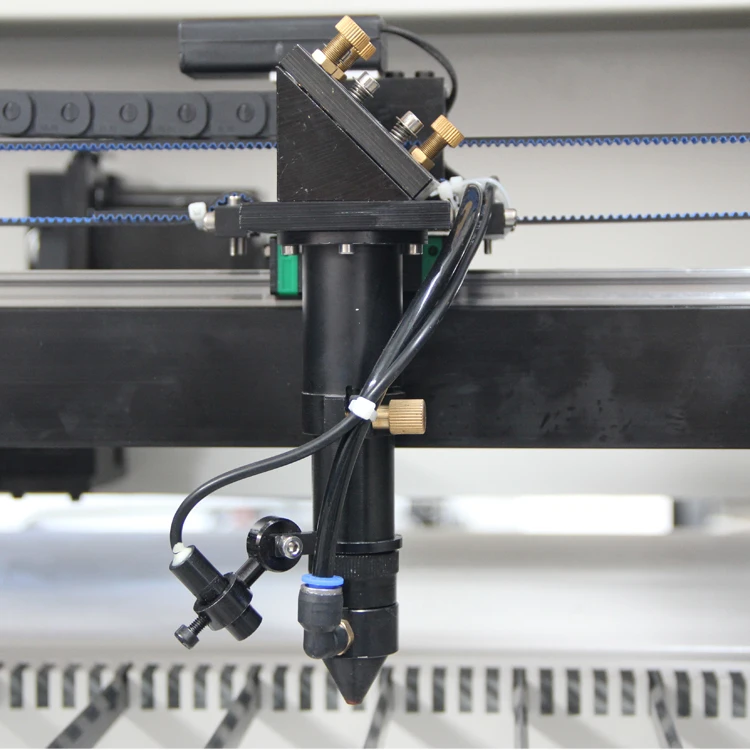

High reflectivity reflective lens, focusing lens with stable light spot and small diameter, carving/cutting effect with smooth edges.

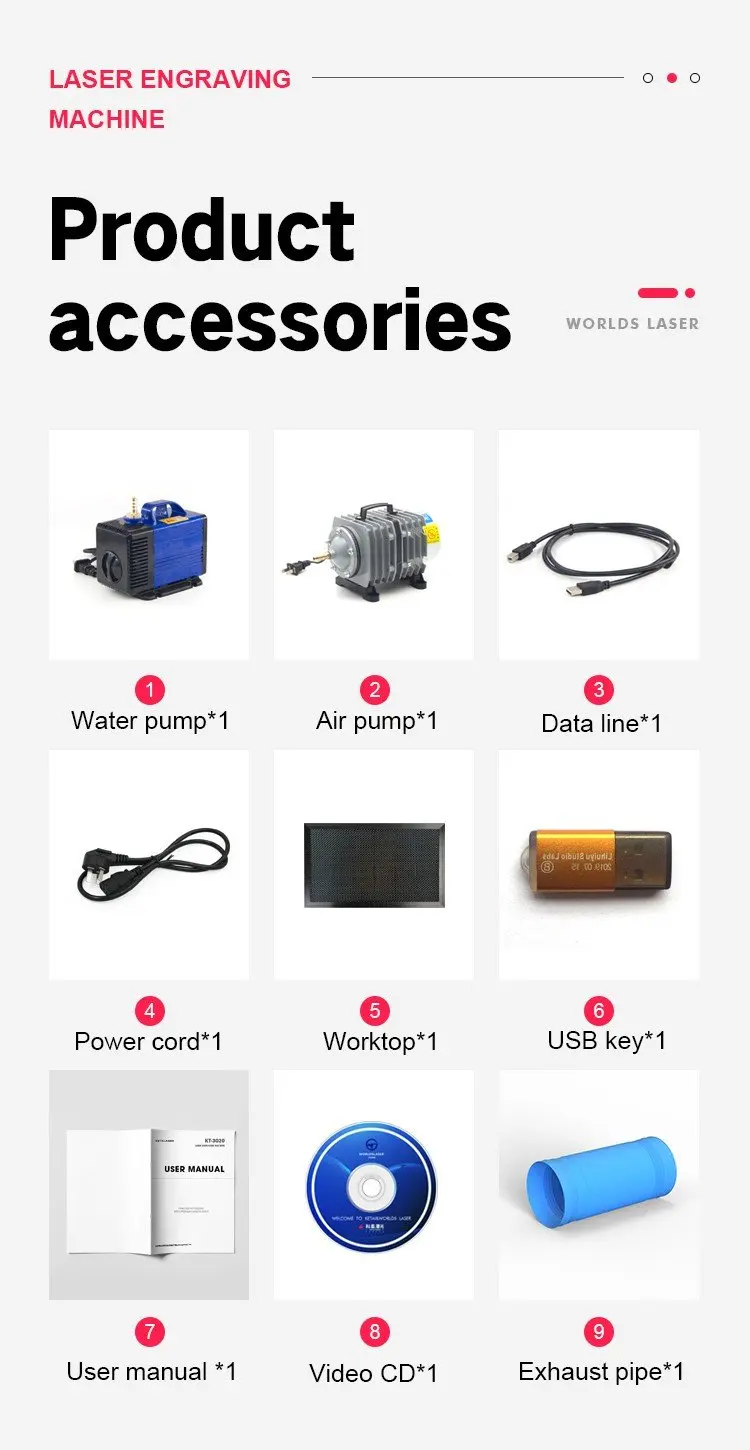

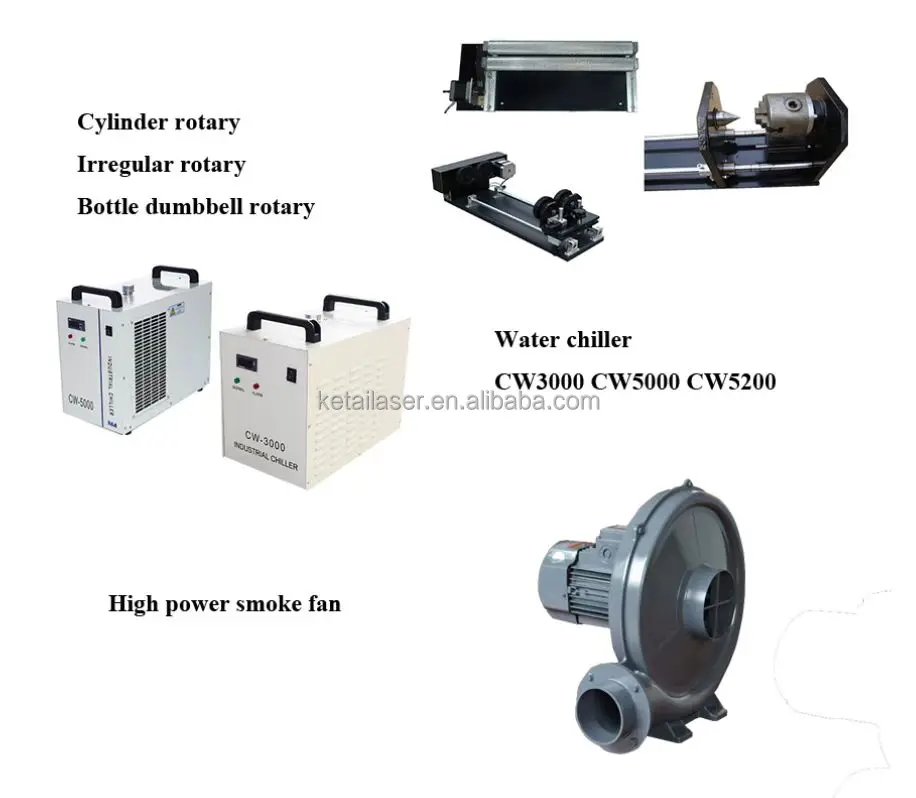

Accessories
Packing & Delivery
1.We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-WorthyPacking or Sea Packing which comply with international standard.

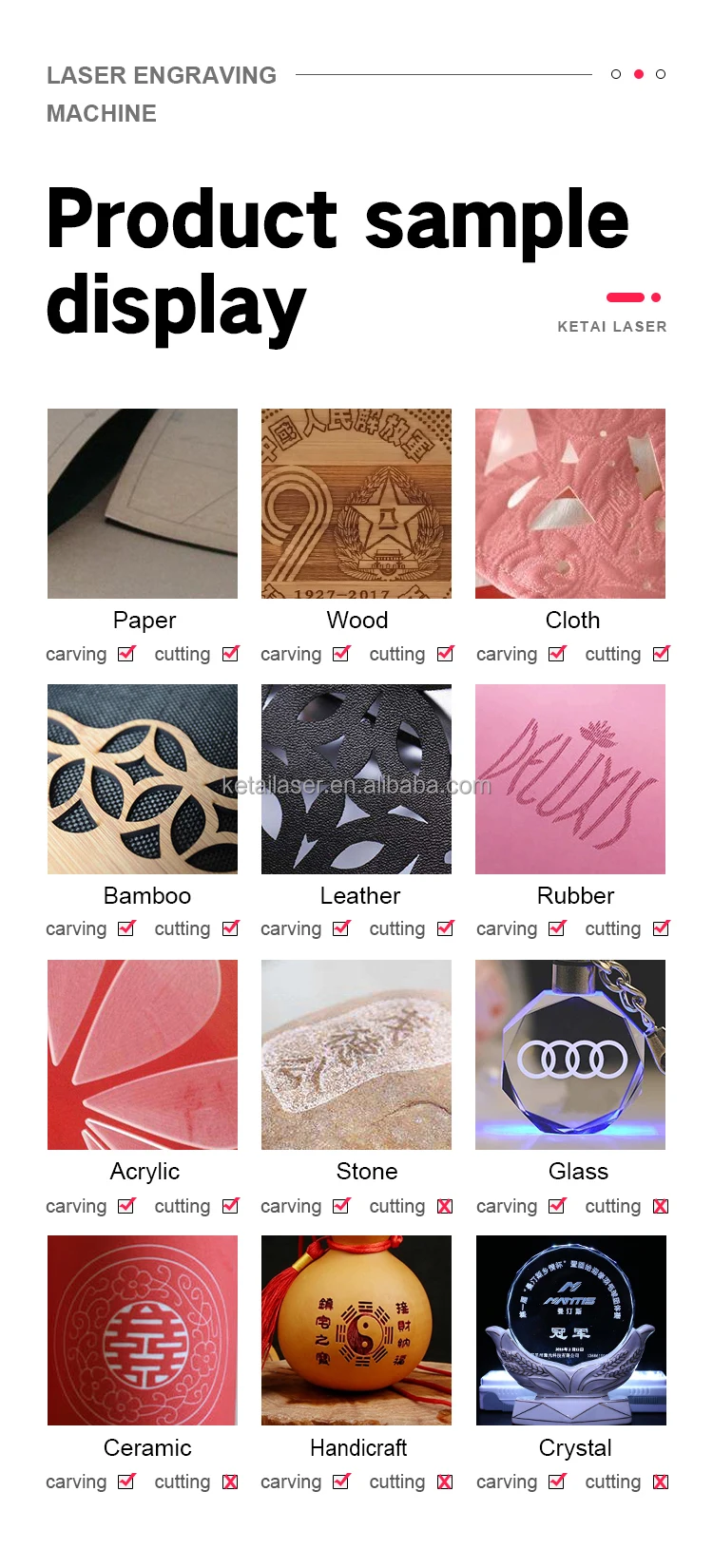

Sample
Application range of 1390 laser engraving machine
1390 laser cutting machine，This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking, furniture model industry, craftwork and other industries.

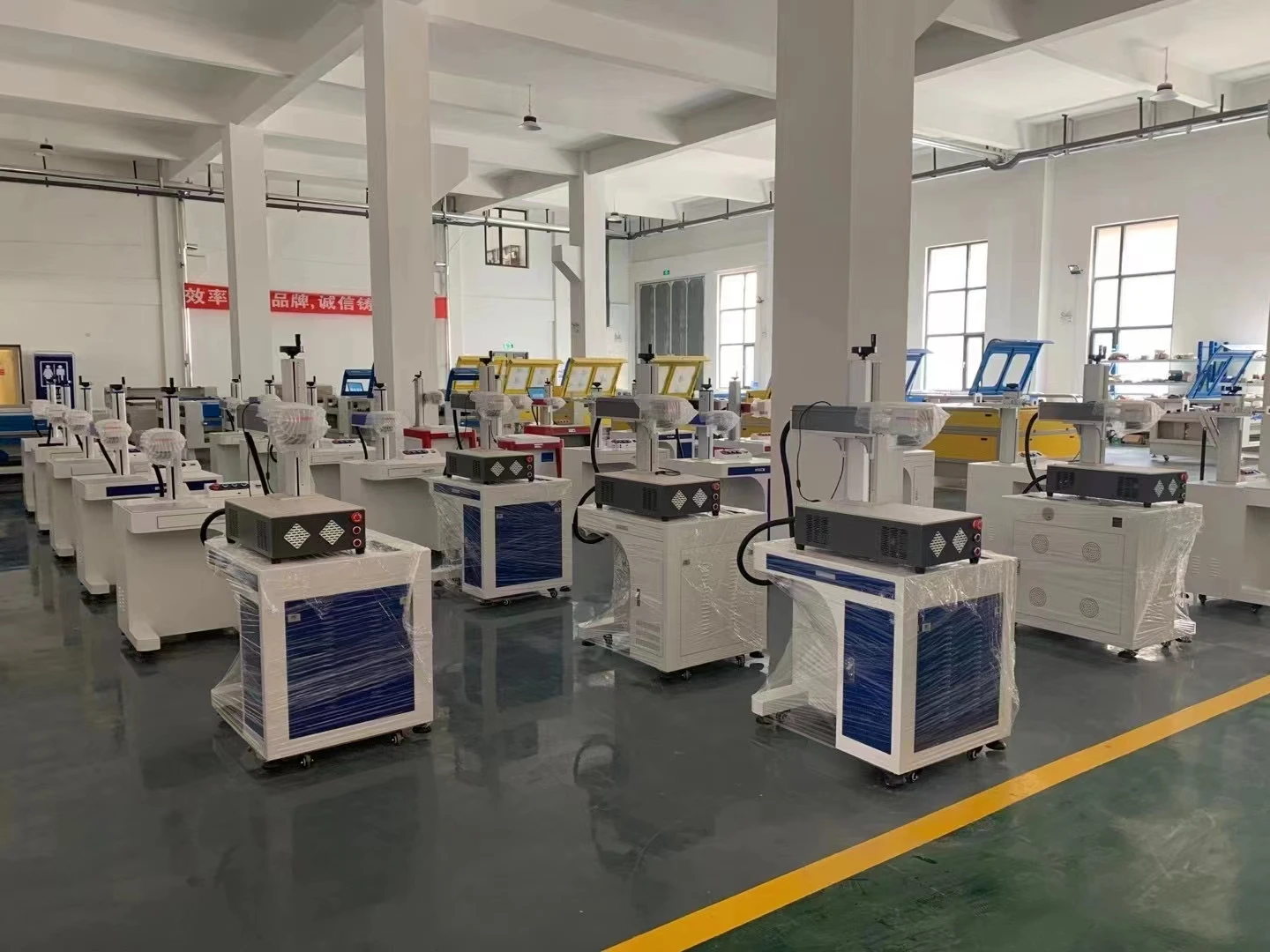

Company Profile
Liaocheng Ketai Laser (Worldslaser) Equipment Co.,Ltd

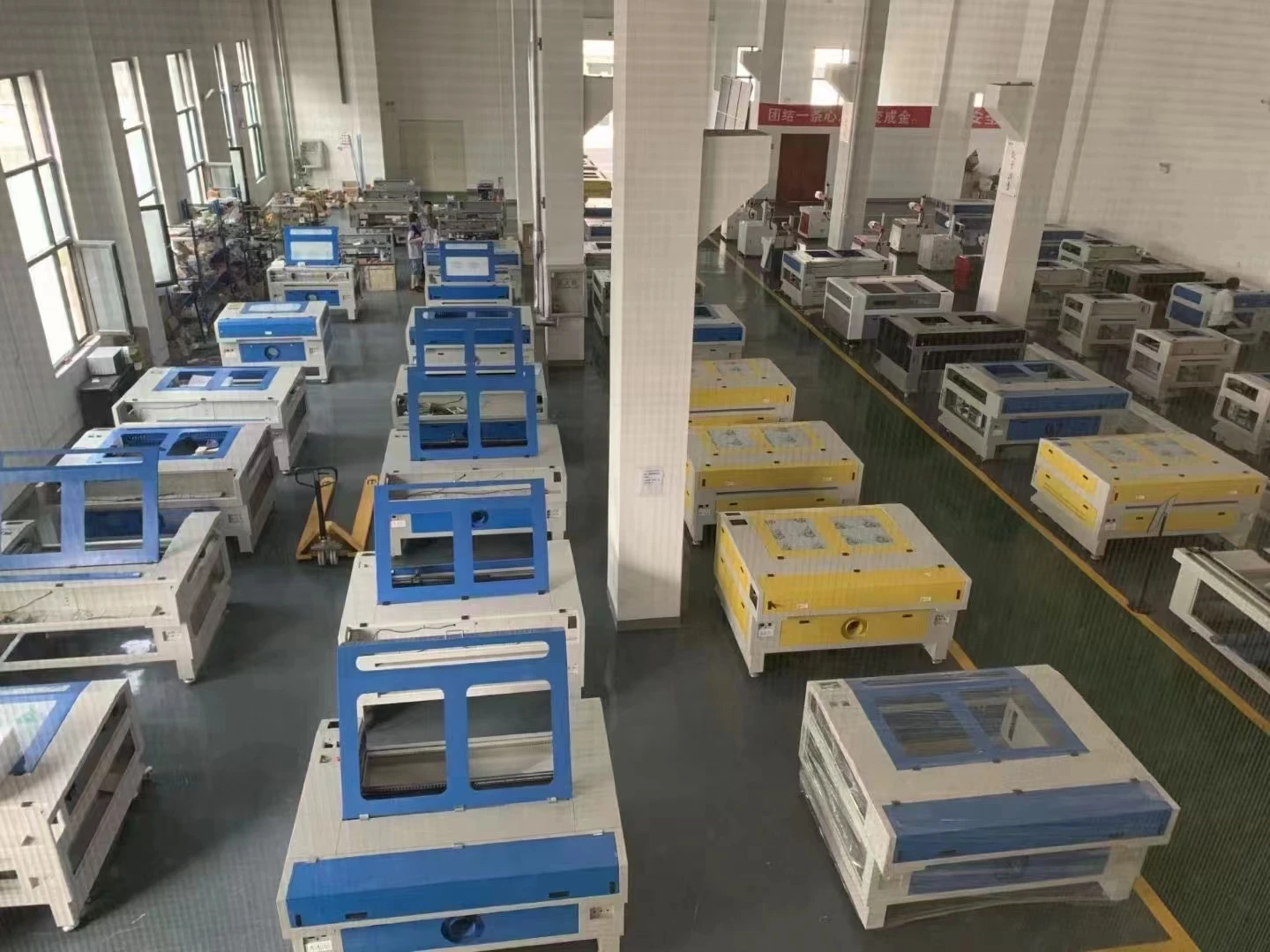

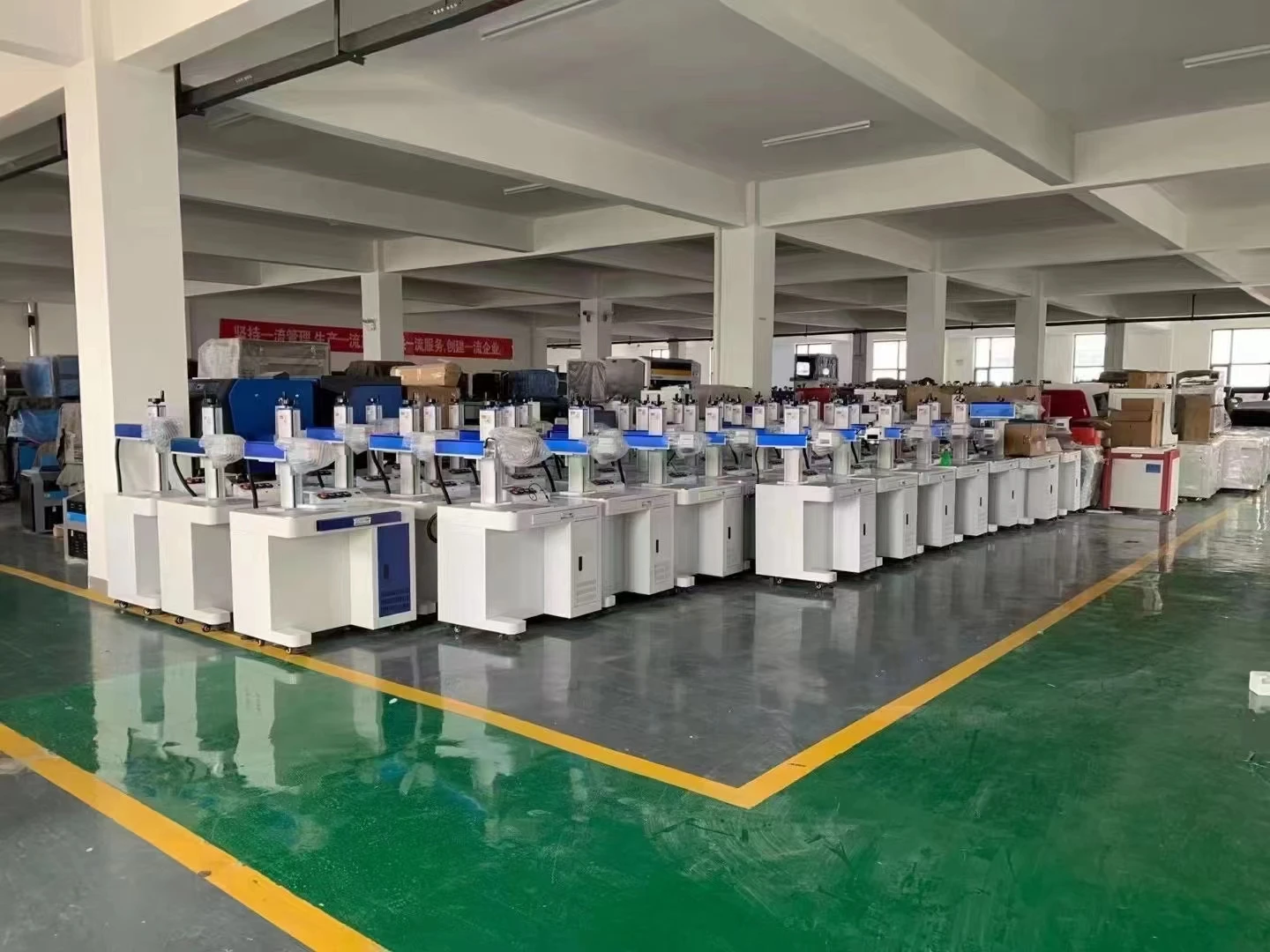

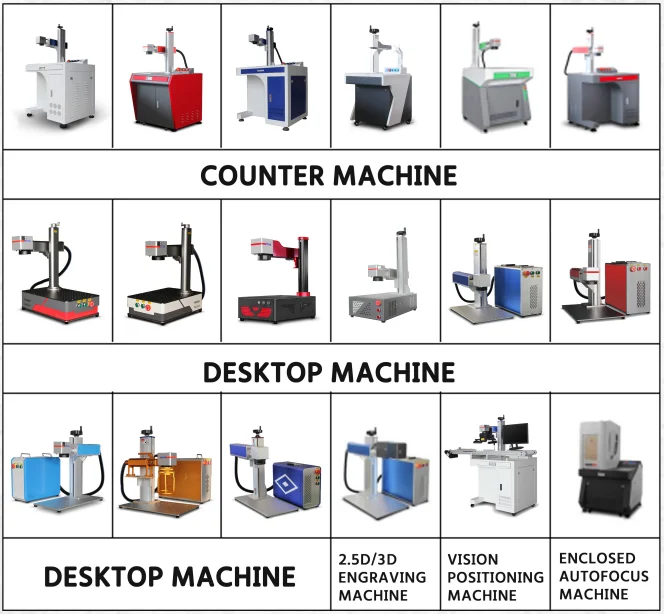

Liaocheng DONGCHANGFU Ketai Laser (Worldlaser) Equipment Co., Ltd. which located in Liaocheng City,Shandong Province, China .It was established in 2007 .We are the professional factory which owns the complete system of R&D,Manufacturing,sales and service integration.We are now specializing in manufacturing laser engraving & cutting machine,desktop laser stamp engraving machine,fiber marking machine,laser tube,liner guide seat,laser heads,working platform for laser machine,and WD series engraving and cutting machines under outstanding quality.
FAQ
Q: Can I do the installation all by myself?
A: Sure you can. All you need to do is to connect the power cord. Engineers have set the parameters before delivery. Meanwhile, we will send you a user manual and operation video to help you use the machine easily.
Q: Warranty?
A: 2 years warranty for core components.
Q: How can I get technical support after deal?
A: You can contact us on skype, Whatsapp and email at anytime. Our professional engineer will solve your problem perfectly. If any remote assistant support is needed, we will provide with Teamviewer software.
Q：How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experiences.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: We will send you manual and guide video in English, it can teach you how to operate the machine. If you still not sure how to operate, we can help you by phone, On E-mail and Teamviewer online.
Q: If the machines has problems in my place, what should I do?
A: We could send free parts to you in warranty period if machine have any problem under normal use.
Q: What’s the guarantee, in case the machine breaks down?
A: The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problems may be according to client’s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q: How about the documents after shipment?
A: After shipment, we’ll send all original documents to you by DHL or TNT including Packing list, commercial invoice, B/L, and other certificates as required by clients.
Q: How long is the delivery time?
A: For standard machines, it would be 5-7 days; for non-standard machines and customized machines according to client’s specific requirements, it would be 7-15 days.
