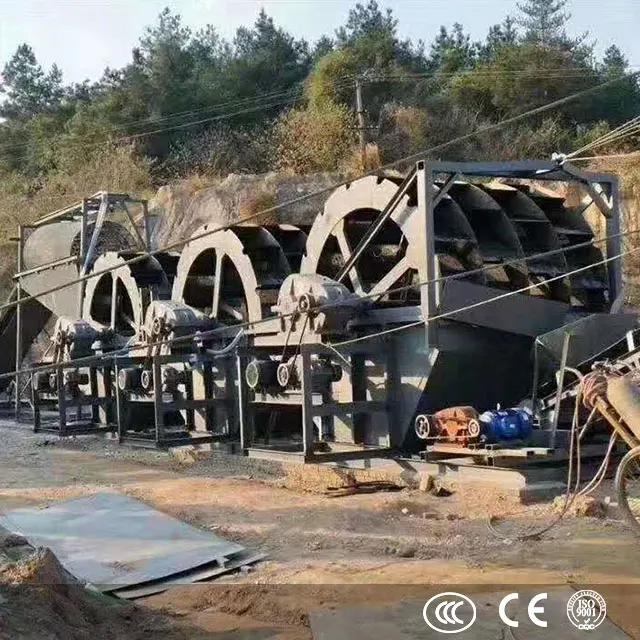

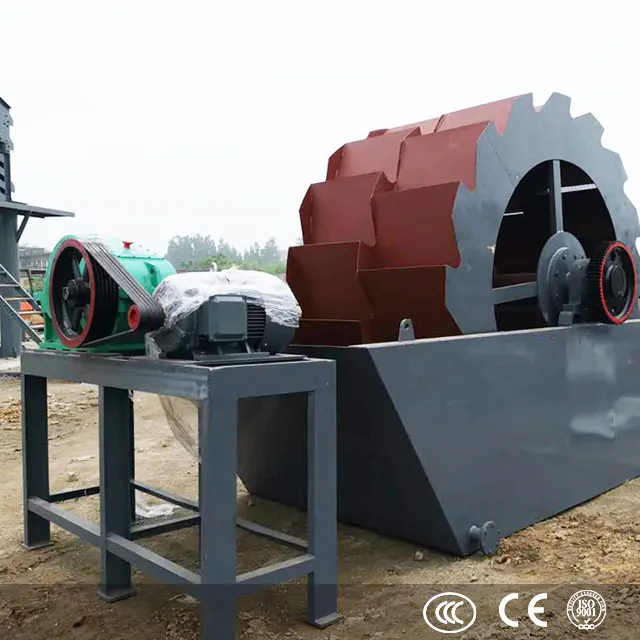

CFTC wheel bucket sand washing machine 120t sand washer price XS 3215 clay bucket sand washer machine
- Category: >>>
- Supplier: Henan China First Engineering Technology Co. Ltd.
Share on (1601283905596):
Product Overview
Description

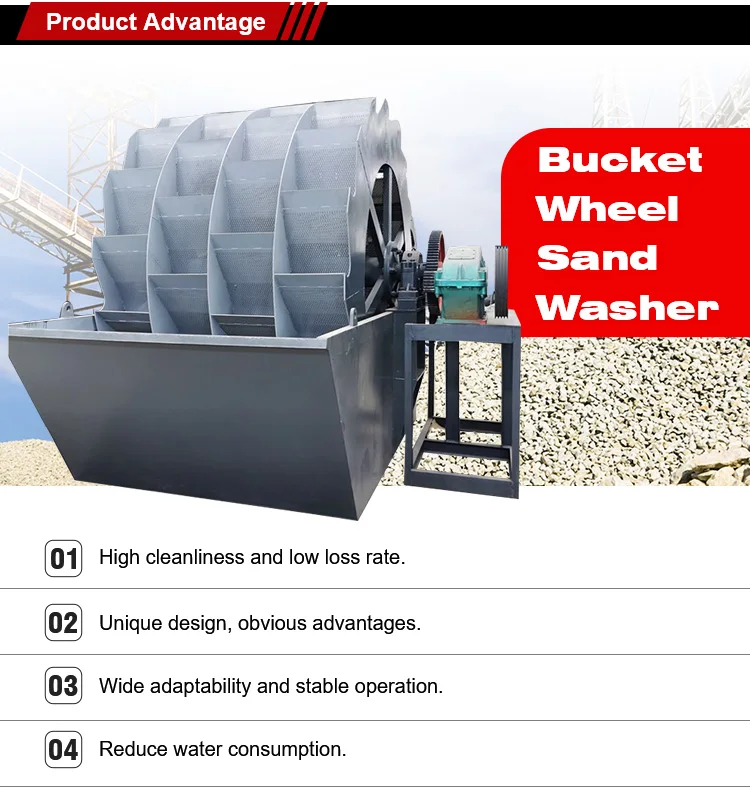

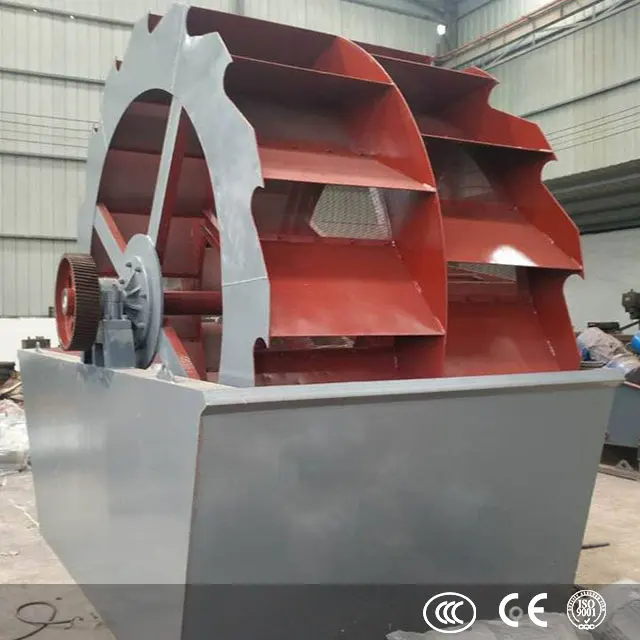

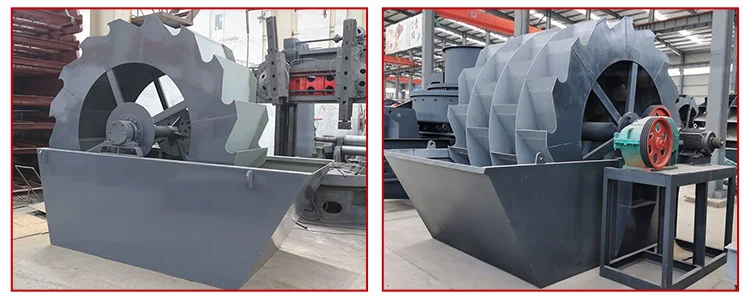

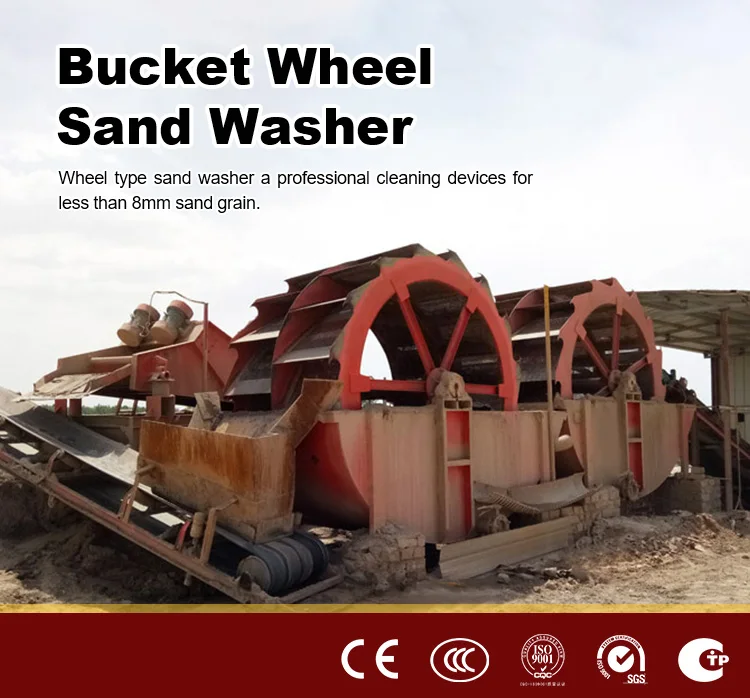

Bucket Wheel Sand Washer is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.

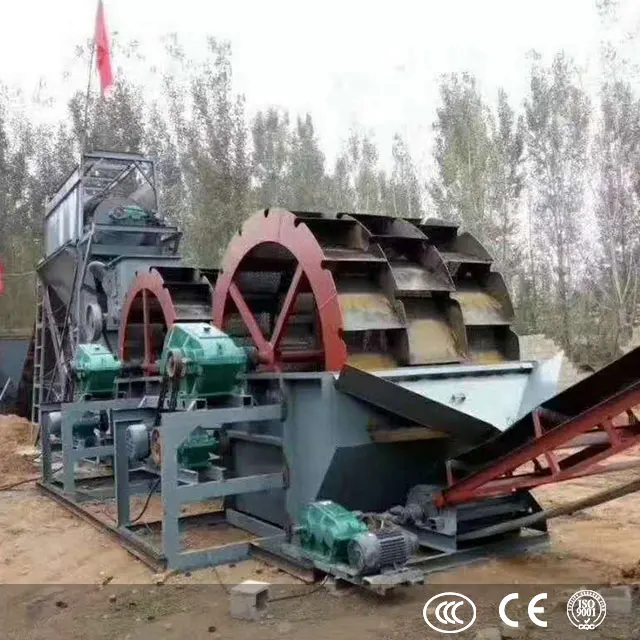

Sand Washing Machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sand.
Sand Washing Machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sand.
Working Principle

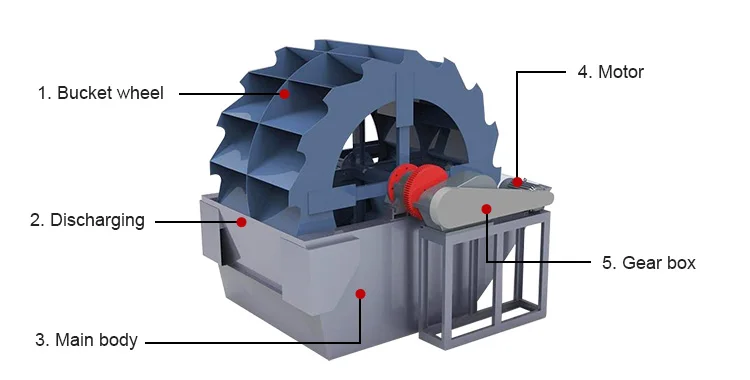

When operating, the motor drives the bucket wheel slowly rotating through the V-belt and reducer. The sand is put into the washing tank through the feeding chute, and rolls over by the bucket wheel driving. During the rolling, the friction between the sand particles strips the impurities, and breaks the vapor coatings around the particles in order to facilitate dehydration. Meanwhile, massive water is put into the washing tank to form a strong water stream to take the impurities and small percentage of foreign matters away immediately and discharge them from the overflow port. The clean sand is taken by the bucket wheel, and rises up slowly. The water contained in the sand leaks out and falls into the washing tank through the filter screen on each bucket. This process not only finishes the dehydration of sand, but also saves the water. Finally, the cleaned sand is put into the output groove from the buckets, finishing the whole washing process.
Model | Diameter of the wheel bucket (mm) | Speed of rotation (r/min) | Max. feeding size(mm) | Processing capacity (t/h) | Motor power (kw) | Weight (t) | Overall dimensions (mm) |
XS-2210 | 2200 | 2.5 | ≤10 | 15-30 | 4 | 2.3 | 3180*1955* 2350 |
XS-2610 | 2600 | 2.5 | ≤10 | 20-50 | 5.5 | 2.5 | 3515*2070* 2672 |
XS-2810 | 2800 | 1.2 | ≤10 | 50-80 | 11 | 3.2 | 3964*3014* 2895 |
XS-2815 | 2800 | 1.17 | ≤10 | 60-100 | 11 | 3.6 | 3964*2137* 2895 |
XS-3016 | 3000 | 1.2 | ≤10 | 70-110 | 11 | 3.9 | 4169*3456* 3055 |
XS-3210 | 3200 | 1 | ≤10 | 80-120 | 15 | 4 | 4340*2760* 3349 |
XS-3215 | 3200 | 1.17 | ≤10 | 95-130 | 15 | 4.2 | 4346*2198* 3345 |
XS-3610 | 3600 | 1 | ≤10 | 110-200 | 15 | 4.6 | 4580*3218* 3600 |
Note: The capacity may vary with different materials and feeding sizes.

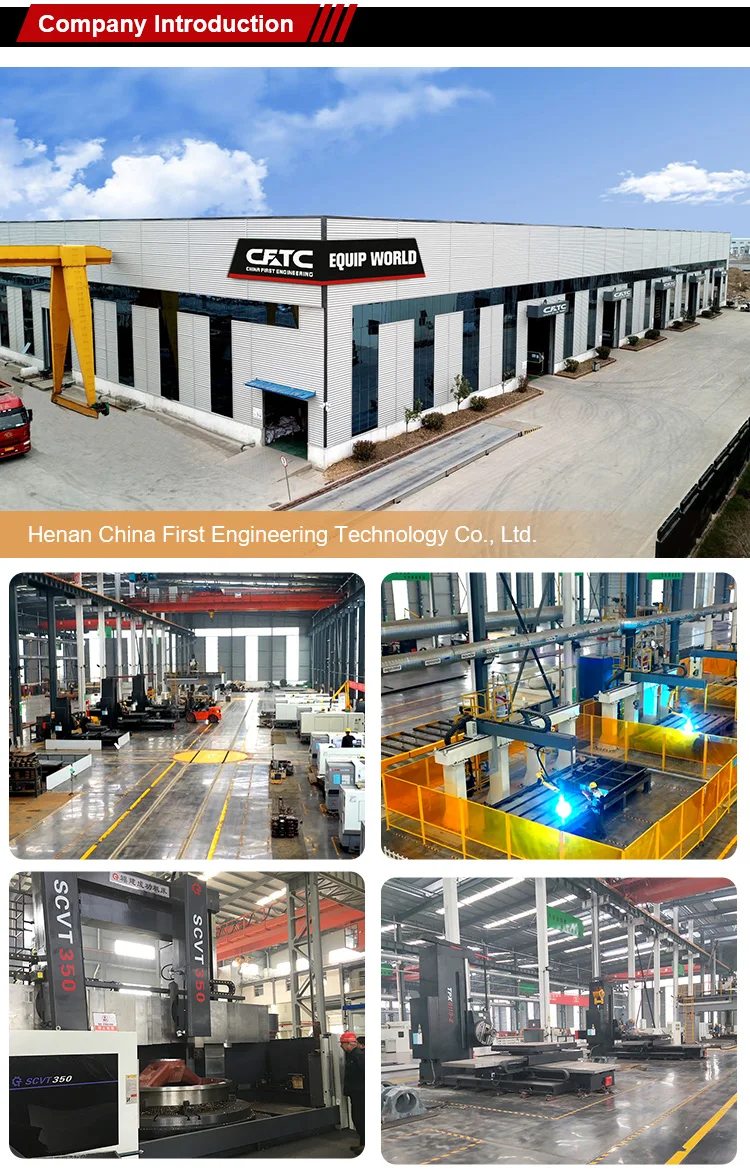

Located in Zhengzhou, Henan Province of China, China First Engineering Technology Co., Ltd. (CFTC) is specialized in research, development, manufacture and sales service of mining equipment. We have the only academician workstation and researching center of high-quality aggregate in China.
FAQ
Q1. Installation
A: We’ll send the technicians to help with the installment in site, if needed, and you need take all the charges.
Q2. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
A1). what is your raw material?
2).what is the max size of the raw material (mm/inch)?
3).what is the required output size?
Q3. How long is the warranty? Does your company supply related spare parts?
A: The crusher equipment is warranted for one year. And we provide spare parts at reasonable price.
Q4: How long is the delivery time?
A: Generally it takes one week if the goods are in stock. Otherwise it needs 15-20 days, and it also depends on the ordered quantity.
A: We’ll send the technicians to help with the installment in site, if needed, and you need take all the charges.
Q2. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
A1). what is your raw material?
2).what is the max size of the raw material (mm/inch)?
3).what is the required output size?
Q3. How long is the warranty? Does your company supply related spare parts?
A: The crusher equipment is warranted for one year. And we provide spare parts at reasonable price.
Q4: How long is the delivery time?
A: Generally it takes one week if the goods are in stock. Otherwise it needs 15-20 days, and it also depends on the ordered quantity.
