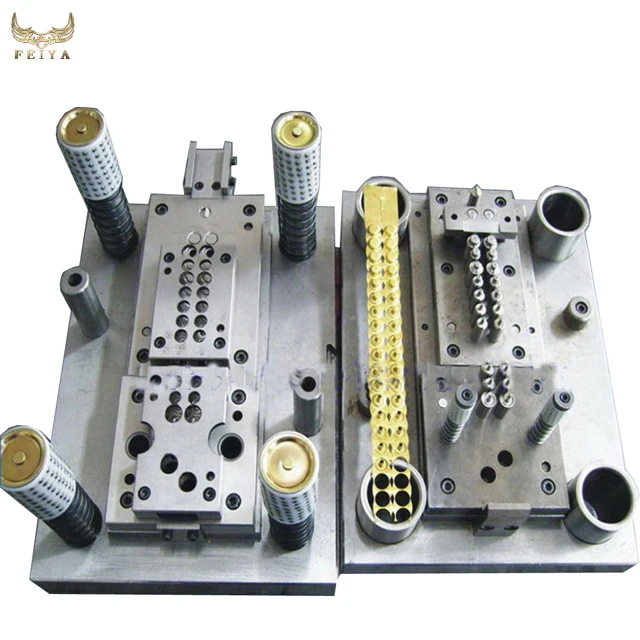

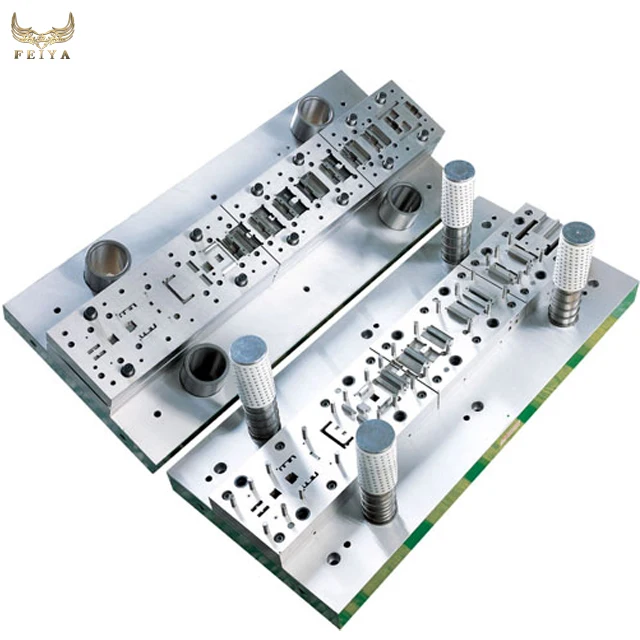

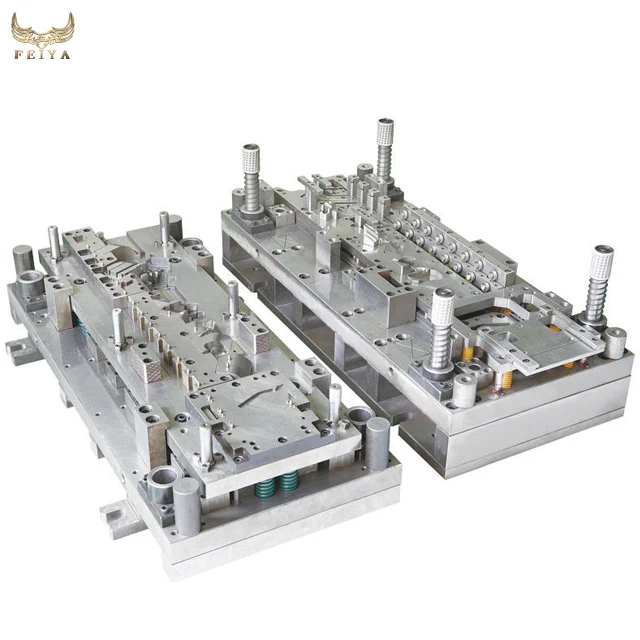

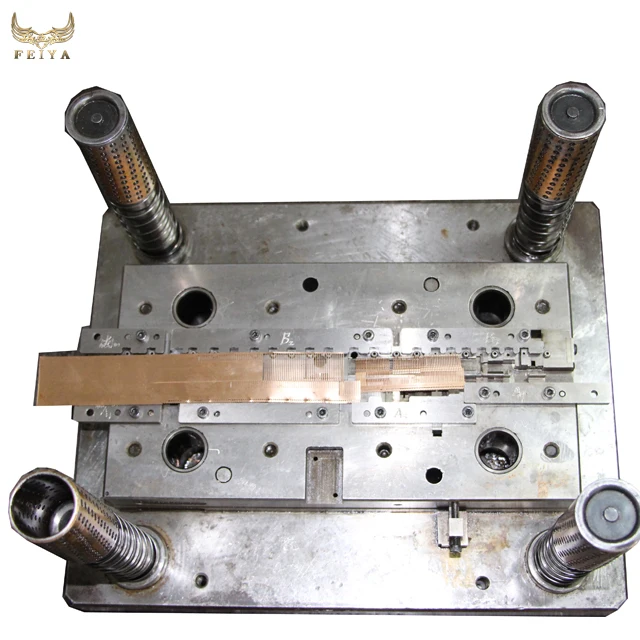

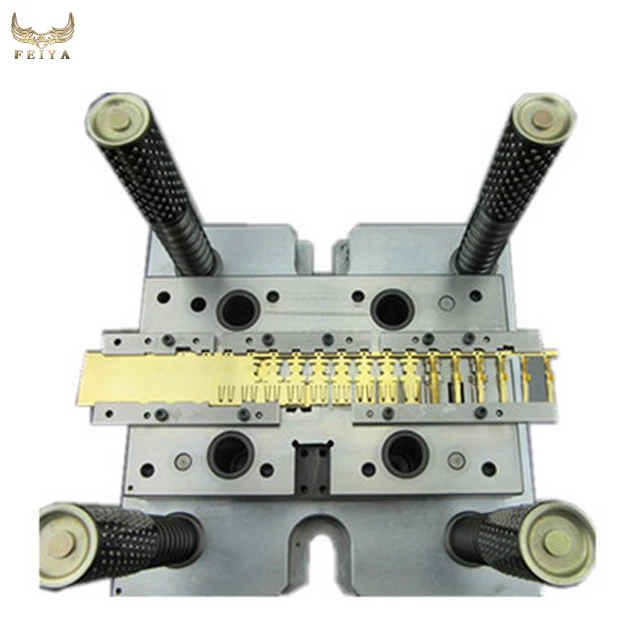

Customized high quality precision rf metal stamping mould pcb shield

Product name

Customized high quality precision rf metal stamping pcb shield

Tooling steel material

Depend on product, we help customer to choose the suitable material.

Commonly used material as below:

Carbide(CD650,V3,KD20), ASP-23, ASP-60, S55C---45#55, SKD11.

Steel of mold base

Depend on product, we help customer to choose the suitable material.

Commonly use S45C.

Mould Standard components

HASCO, MISUMI, Meusburger, DME, etc.

Die concept

2-Plate Die, 3-Plate Die, Module Die

Mold life

Depends on the steel material and your requests.

Commonly used:

50 Million to 300 Million Times

Stamping Product

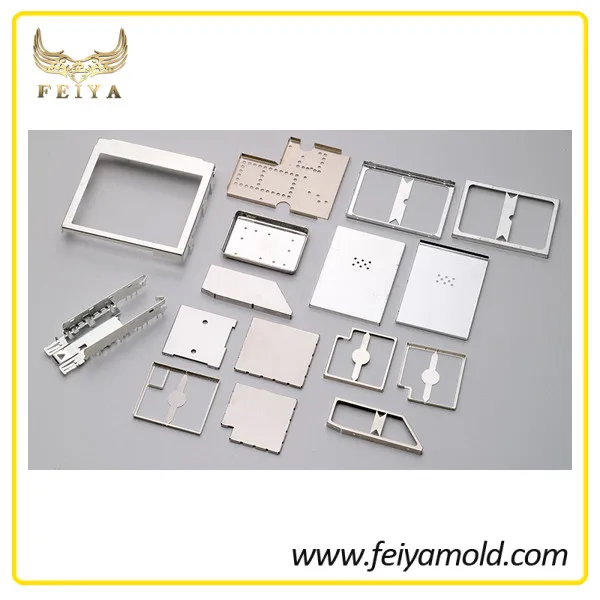

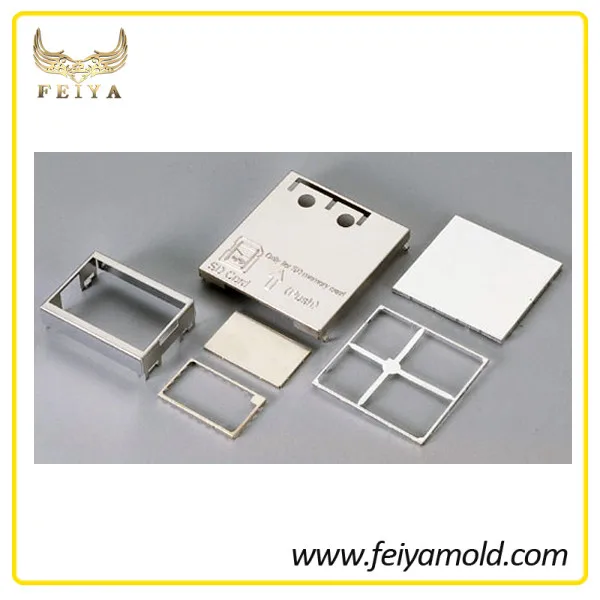

PC Terminal, Power terminal, Press-Fit Terminal, Lead frame, SIM Spring, Connector Shield, Battery, Metal USB shell, custom stamping.

Surface finish

Depends on your requirements.

Commonly: Texture Hatching, EDM Hatching, plating, Polishing, Diamoud Polishing, Mirror Polishing and so on.

Delivery time

Depends on the size and structure.

Normally: 25-30 working days after 50% down payment.

Terms of payment

T/T, L/C, Western Union, D/A, D/P, Paypal.

Machine center

High speed CNC, Wire cutting, EDM, Grinder, Great Grinder, CNC milling, Drilling and milling, Stamping punching machines, injection machine, Inspection.

R&D

1. Drawing design and making for products and mold;

2. Mold drawing revising;

3. Production time and quality control in each machining process. (Our own EPR system).

Production

Pilot Run production and molding production can be provided.
