Subsea Waterproof Electrical Connectors IL8M Inline Plug BH8F Socket Underwater Power Connector
- Category: >>>
- Supplier: Dongguan Dosin Precision Industry Co. Ltd.
Share on (1601283947871):
Product Overview
Description

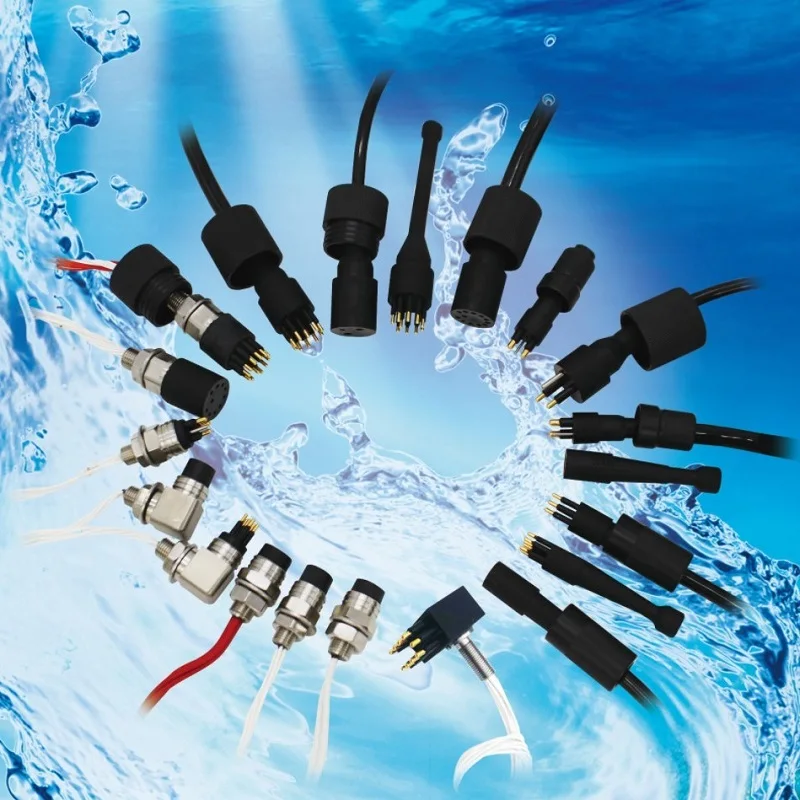

Full Series : Underwater Connector
All types of Circular Connector from OEM Manufacturer in China
Underwater Connector
Also known as deep sea connector, is an electrical connection device used for waterproofing, usually used in environments such as outdoor and diving equipment, which has a special design and material that can effectively prevent water and moisture from entering the interior of the connector, thereby protecting the safe operation of electronic equipment.
Advantages
1. Various types and specifications to meet different application requirements. We provide signal, coaxial, high voltage, high current, optical fiber, fluid, through the wall, wet plug, underwater live plug, oil, field installation and other types of watertight connectors, from 1 to 203 core, the maximum working water depth of 14000 meters.
2. Comply with standards and certification: Watertight connectors usually meet international standards and certification requirements, such as IP67, IP68 and other protection levels, to ensure that it has a certain waterproof performance.
3. Can be customized, can provide a variety of specifications and interface types, can be customized according to customer needs.
4. Compatible with old international products
2. Comply with standards and certification: Watertight connectors usually meet international standards and certification requirements, such as IP67, IP68 and other protection levels, to ensure that it has a certain waterproof performance.
3. Can be customized, can provide a variety of specifications and interface types, can be customized according to customer needs.
4. Compatible with old international products
Products Detail
Excellent Water Resistance
Watertight connectors have excellent waterproof performance, which can effectively prevent moisture, moisture or other liquids from penetrating into the interior of the connector, protect the electrical signals and electrical components in the connector, and ensure the reliability of the system.
Excellent Corrosion Resistance
Watertight connectors are usually made of corrosion-resistant materials, such as stainless steel, nylon and silica gel, which can resist corrosion and oxidation in humid environments, thereby extending the service life of the connector.
High Strength and Durability
Watertight connectors usually have high strength, drop resistance and pressure resistance, and can withstand physical extrusion,impact and vibration in a variety of harsh environments.
Easy Installation and Maintenance
Watertight connector design is simple, easy to install, usually using plug-and-pull connection, easy maintenance and replacement.

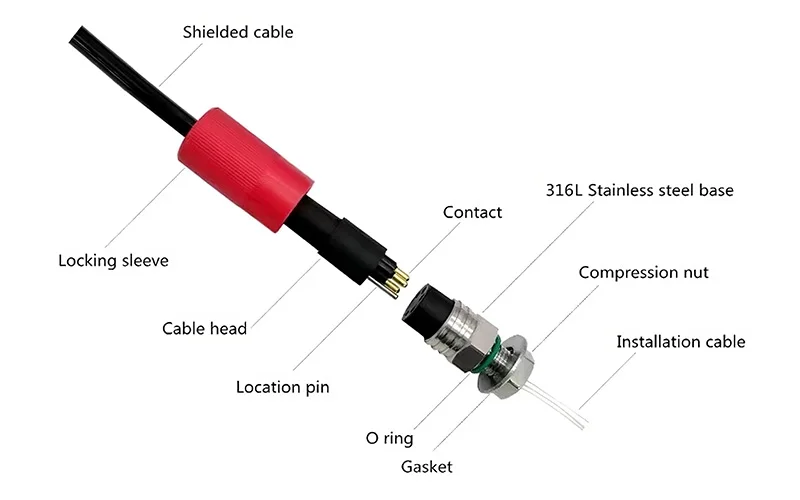

Connector Material | ||
Plug Body Material | Neoprene Rubber | |
Socket Body Material | 316 Stainless Steel/Titanium Alloy | |
Shell Material | Stainless Steel 316L (TI Alloy Shell is Optional) | |
Pin Material | Gold-plated Copper | |
Fiber Core | Special Ceramic | |
Nuts and Gaskets Material | Stainless Steel | |
O Ring Material | Nitrile | |
Lock Cover Material | Polyformaldehyde Resin (Red, Black, Blue) | |
Dustproof Plug | Black POM | |
Watertight Plug | Stainless Steel 316L (TI Alloy Optional) | |
Electrical Performance | ||
Contact Resistance | ＜0.01Ω | |
Insulation Resistance | ＞200MΩ | |
Environmental Performance | ||
Insertion and Removal Times | > 500 Times | |
Operating Temperature | -4°~ +60℃ | |
Working Depth | 6000 Meters | |
Applications

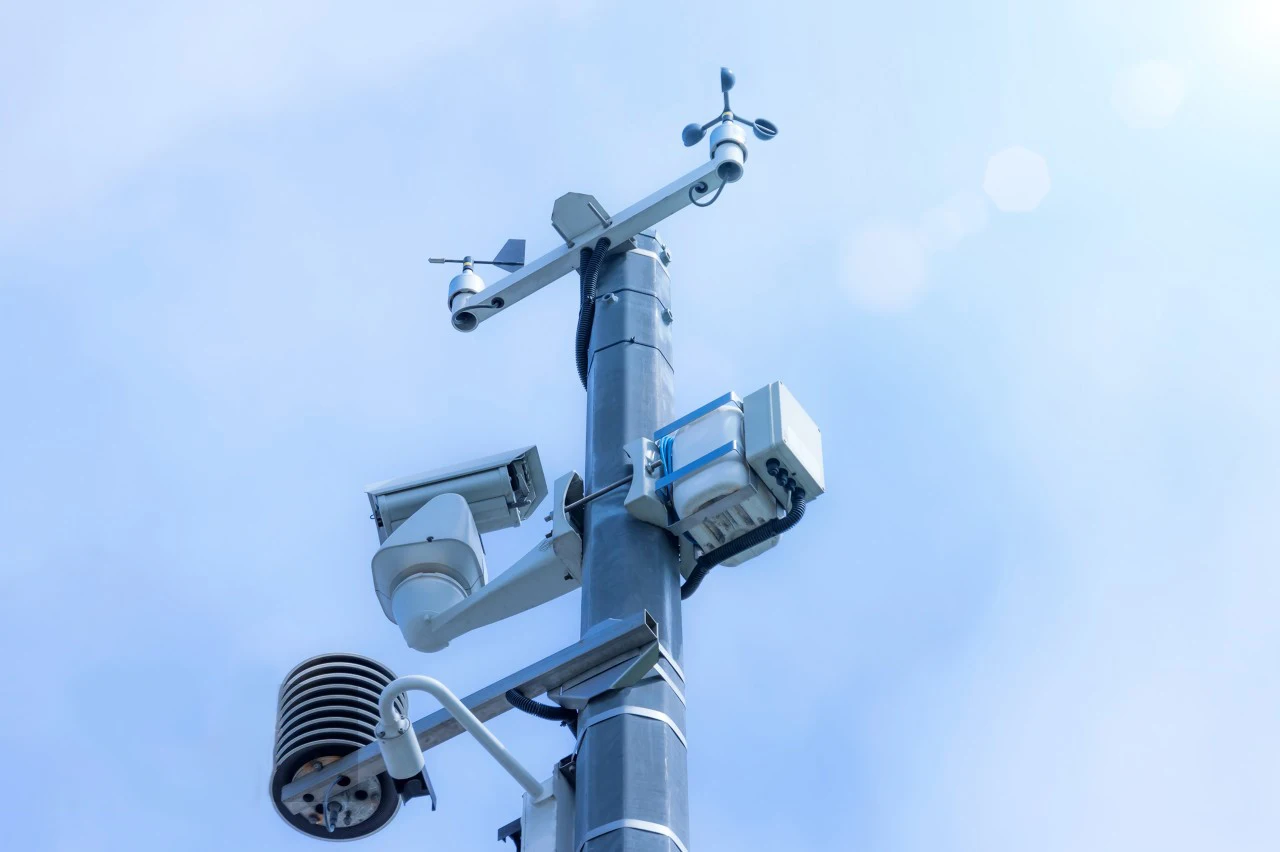

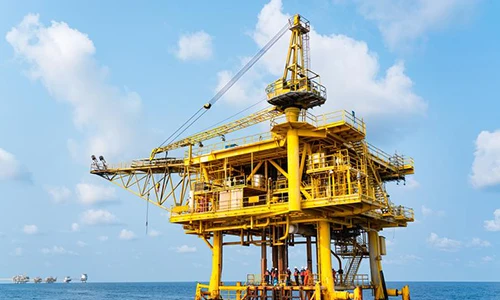

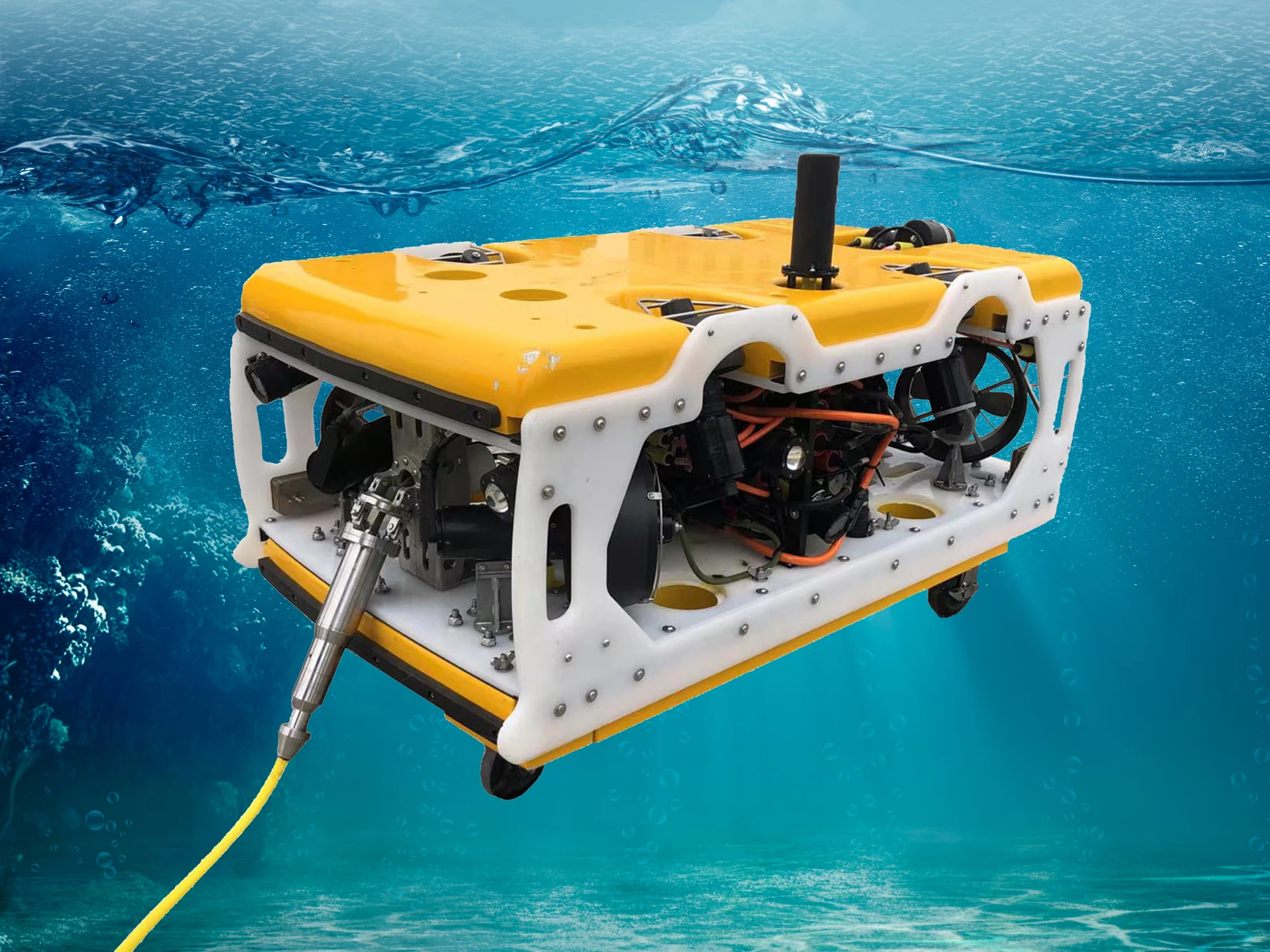

Underwater Connector products are widely used in Marine scientific research, oil drilling, environmental monitoring, Marine industry, Marine aquaculture and fishing and other fields. The main customers come from Marine scientific research institutes, shipyards, ecological environmental protection bureau, hydrographic stations and so on. Underwater photography, deep water communications, ROVs and submersibles.
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Dongguan Dosin Precision Industry Co., Ltd.

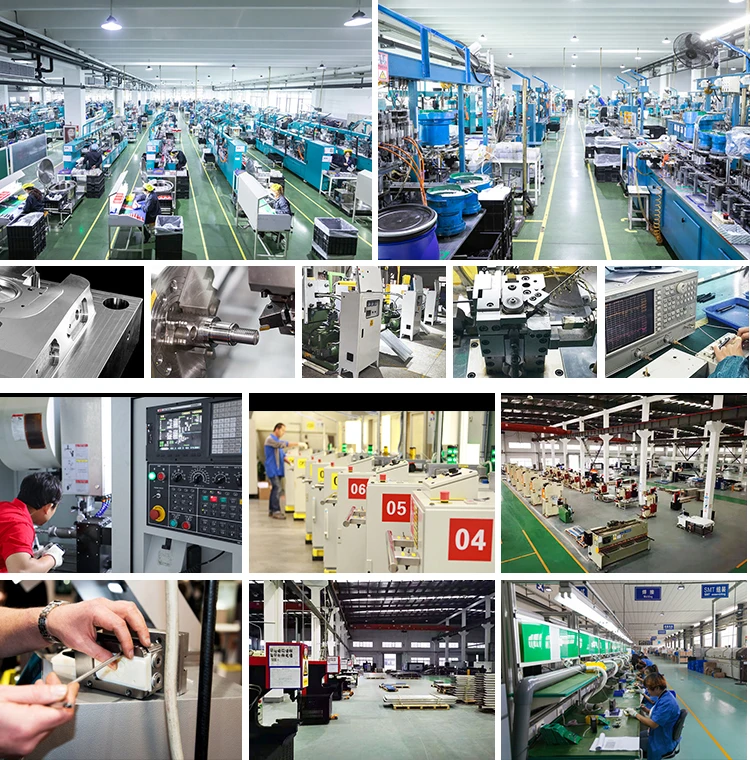

- Dongguan Dosin Precision Industry Co., Ltd. was established in 2005, we located in Dongguan City China, with 3000m2 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, screw and contact pin machining, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
- Dongguan Dosin Hardware Electronics Co., Ltd is a part of Renhotec Group, also including Shenzhen Renhotec, Wuhan Renhotec and Elecbee technology.
- We specialize in Research, Design, Development, Sales and Manufacture with industrial cable and connector. No matter in supply chain management or quality control, we will control strictly every link.
- Our goals is to provide high performance connectors andcables with reliable quality and reasonable price.
- Dongguan Dosin Hardware Electronics Co., Ltd is a part of Renhotec Group, also including Shenzhen Renhotec, Wuhan Renhotec and Elecbee technology.
- We specialize in Research, Design, Development, Sales and Manufacture with industrial cable and connector. No matter in supply chain management or quality control, we will control strictly every link.
- Our goals is to provide high performance connectors andcables with reliable quality and reasonable price.
Packing & Delivery
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. Carton size: 28*24*20(CM)
3. OEM package available
2. Carton size: 28*24*20(CM)
3. OEM package available
Shipping Methods :
1. Samples and Small quantity order FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass
1. Samples and Small quantity order FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass
FAQ
1: Do you provide samples ? Is that free or need to charge.
Yes, samples supply is acceptable. Samples cost depends on the requested quantities .
2: How long is your delivery time?
Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.
3: What is your terms of payment ?
We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
4: What is your after-sales service ？
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
Quotation will be send to you within 24 hours after receiving your specific inquiry. For more information and items, please feel free to contact us > >
