380V Industrial Workshop Light Structure Column Mounted Lifting Jib Crane
- Category: >>>
- Supplier: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601283988164):
Product Overview
Description
Products Description

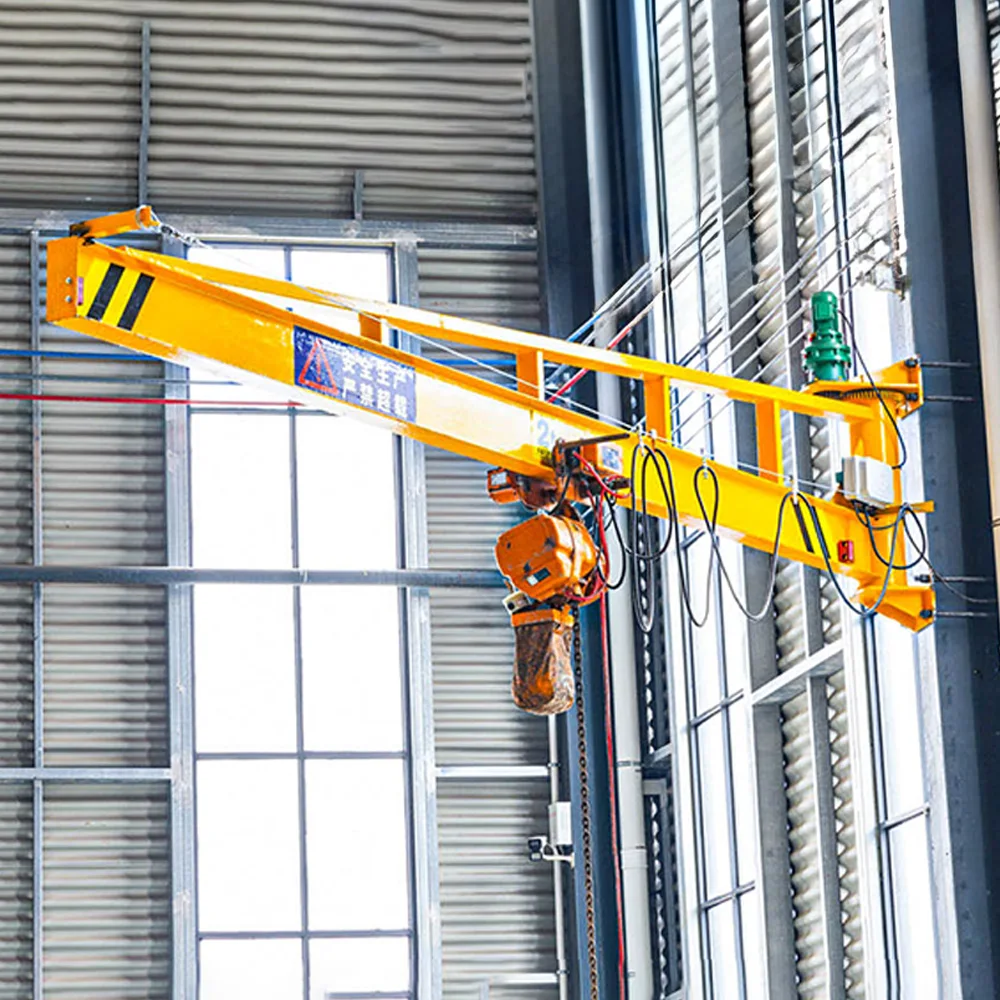

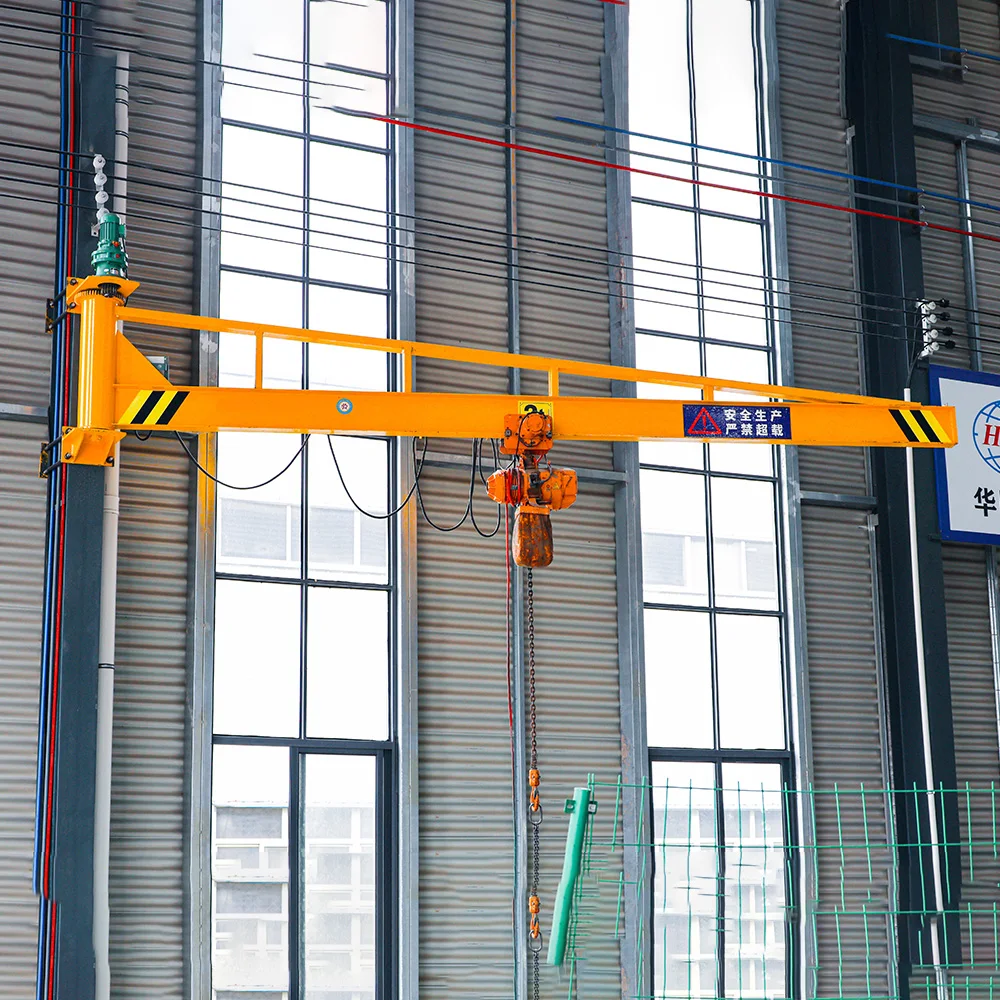

New condition customized light duty wall mounted jib crane on sale is a particular kind of crane with an outward-extending horizontal jib (boom) that is fastened to a wall or other vertical structural support. Because it can cover a specific region along a wall, this crane is perfect for lifting and transferring things in a small, cramped workstation. Wall-mounted jib cranes are commonly utilized in manufacturing lines, workshops, and warehouses with constrained floor areas and high volume of repetitive lifting activity.

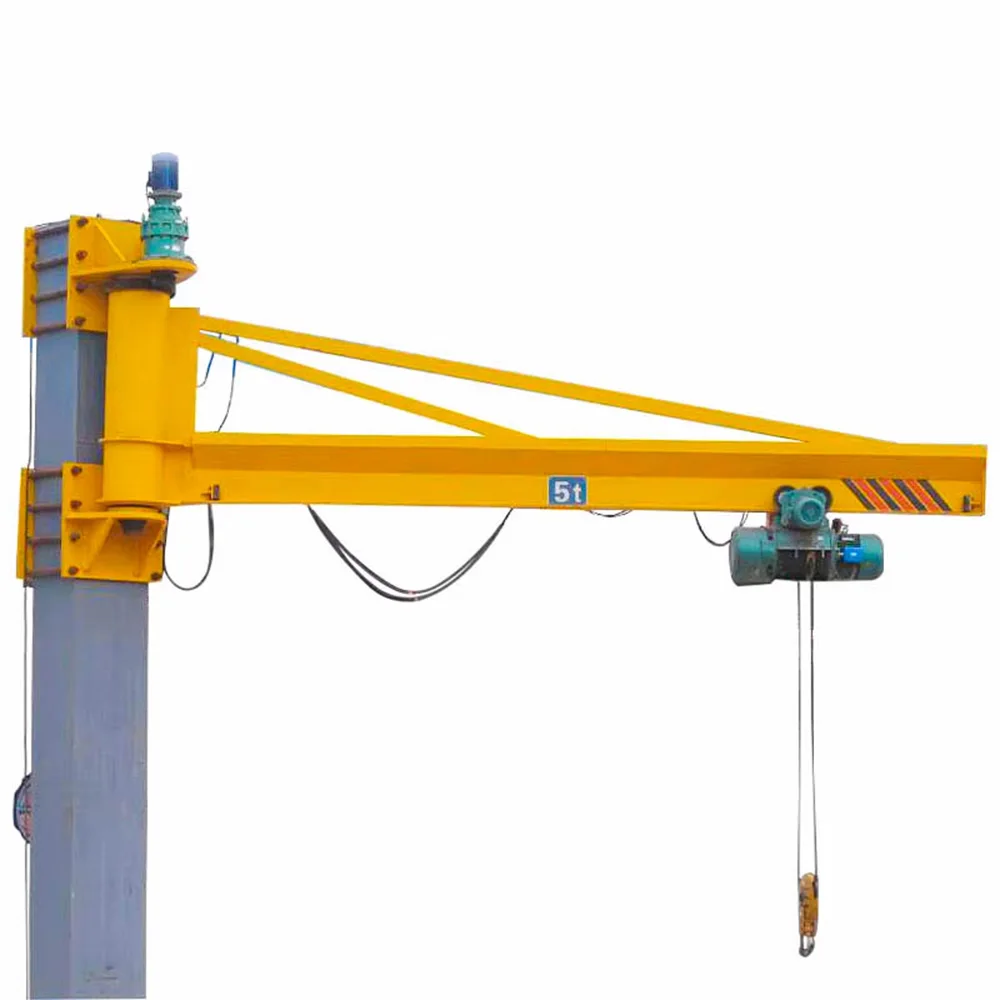

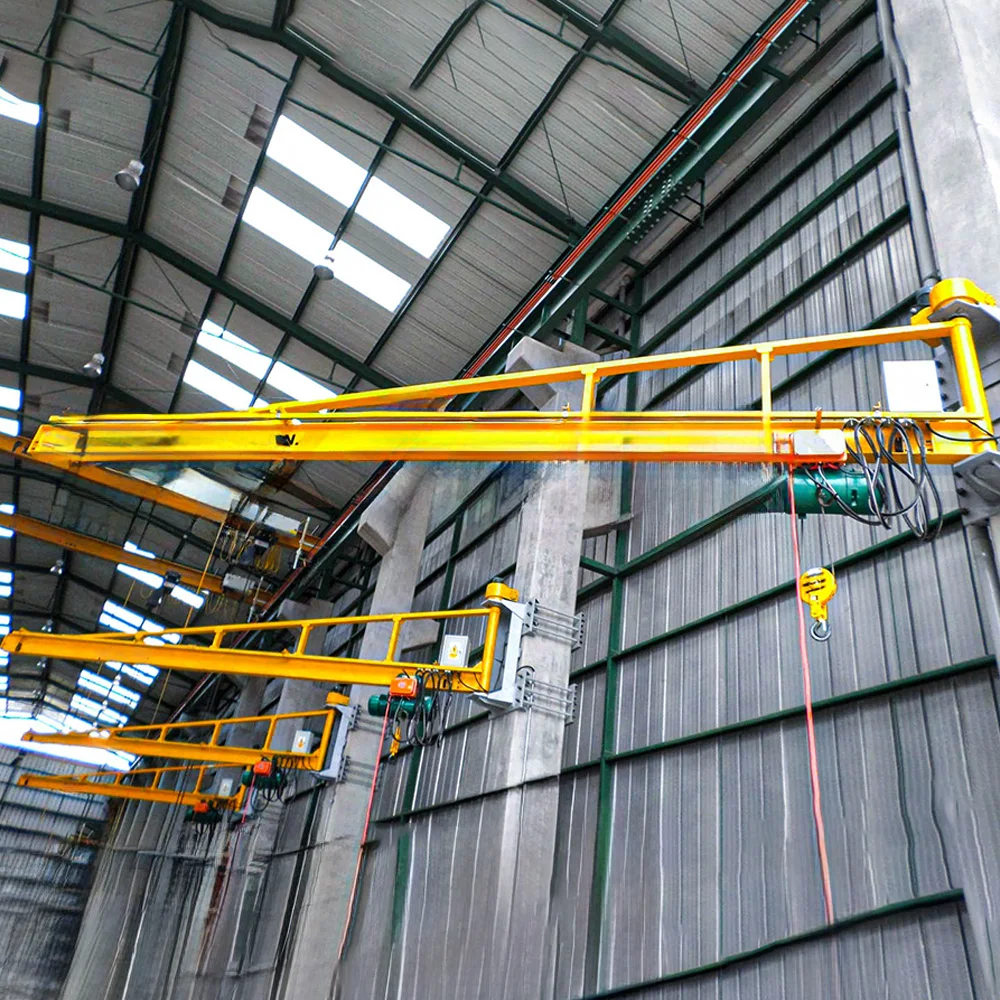

Because they are among the simplest types of cranes to install, wall-mounted jib cranes are the most economical choice. The wall must be strong enough to support the crane's weight, our engineer can provide guidance on this. An other choice would be to mount the crane onto an existing building column, which is frequently employed to support commercial structures.
Features
Efficient Use of Space
Frees up floor space by being mounted on the wall, making it ideal for congested work areas.
Wide Coverage Area
Offers a horizontal reach across a specific area, covering multiple workstations or machinery.
Smooth Rotation
Provides 180-degree rotation, allowing for easy access to a wide area around the crane.
Adjustable Jib Length
The length of the jib can be customized to meet specific operational needs.
Electric or Manual Hoist
Options available for powered lifting or manual operation, depending on the application.
Easy Installation
Can be mounted on existing walls or vertical supports with minimal structural modification.
Detailed Images

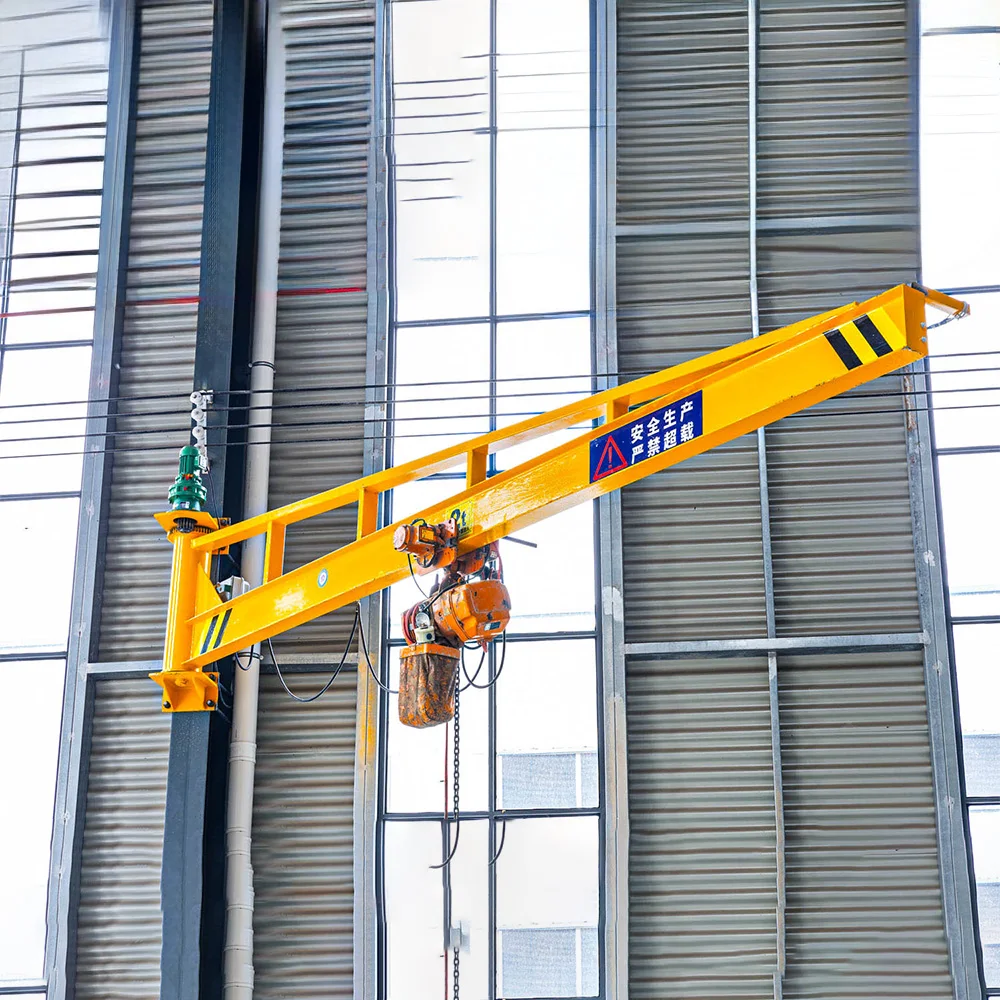

Wall Bracket/Support
The mounting structure that secures the crane to the wall, providing the necessary support and stability.
Jib/Boom
The hoist-bearing horizontal arm that protrudes from the wall bracket enables the weight to be moved.
Hoist
The lifting mechanism attached to the jib, responsible for raising and lowering loads.
Control System
Consists of remote or pendant controls that are used to operate the jib and hoist.

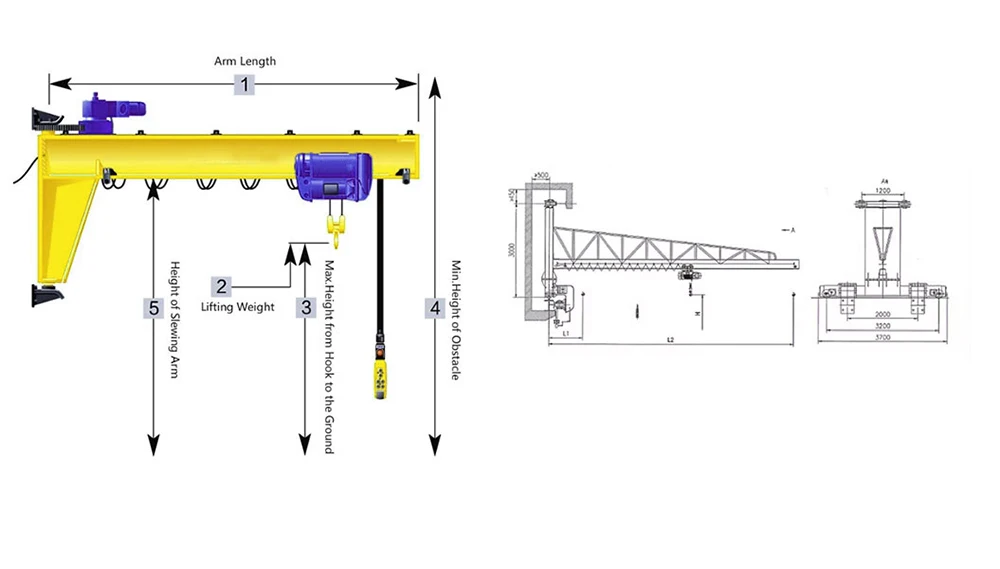

Technical Parameter
Lifting Capacity | 0.25 ton | 0.5 ton | 1 ton | ||||||||||||||
Lifting Height | 5m | 5.5m | 6m | 5m | 5.5m | 6m | 5m | 5.5m | 6m | ||||||||
Valid Radius | 4m | 4.5m | 5m | 4m | 4.5m | 5m | 4m | 4.5m | 5m | ||||||||
Working Class | A3 | ||||||||||||||||
Lifting slow speed | 0.8 m/min | ||||||||||||||||
Liftting normal speed | 8 m/min | ||||||||||||||||
Travelling speed | 20 m/min | ||||||||||||||||
Slewing angle | 180° 270° 360° or customized | ||||||||||||||||
Center height | 1.2m | 1.6m | 2.56m | ||||||||||||||
Power source | 3phase,AC, 50Hz, 220/380/440V or customized | ||||||||||||||||
Application

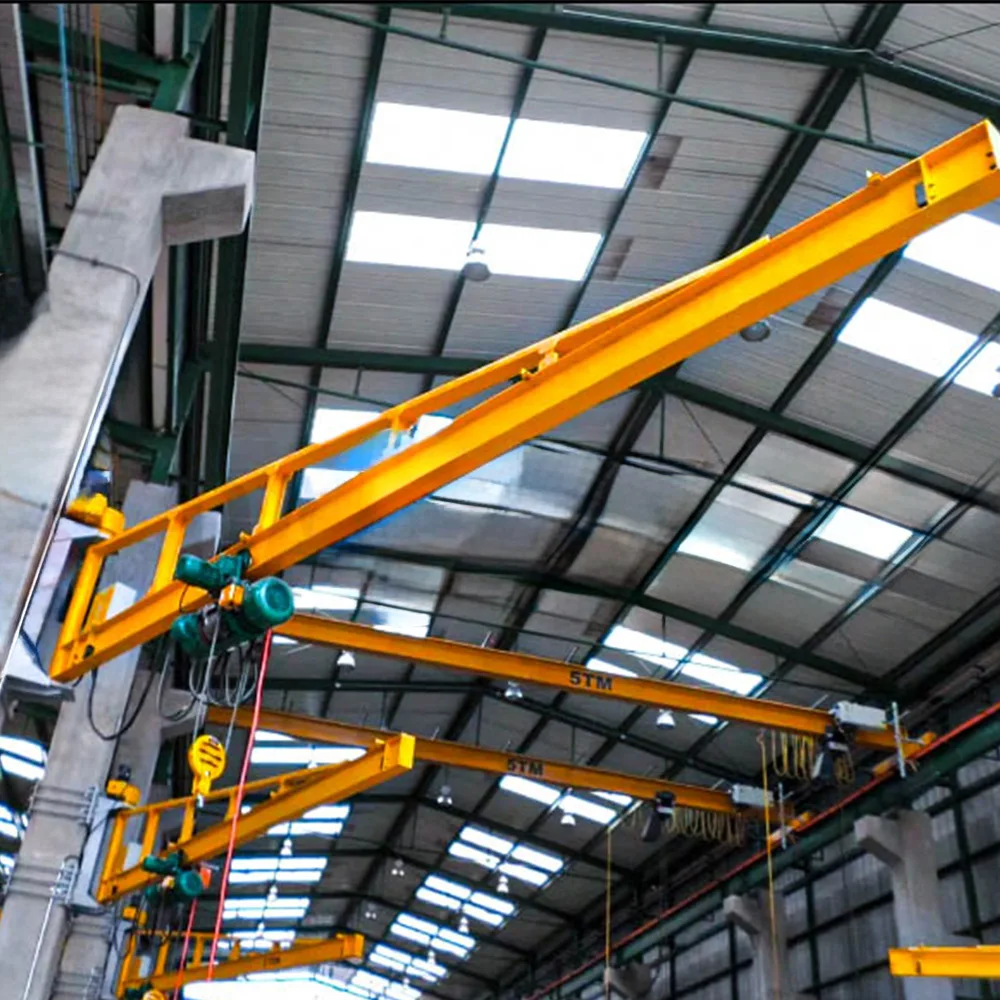

Workshops Production
Loading and Unloading Goods
Machinery Installation
Recommend Products

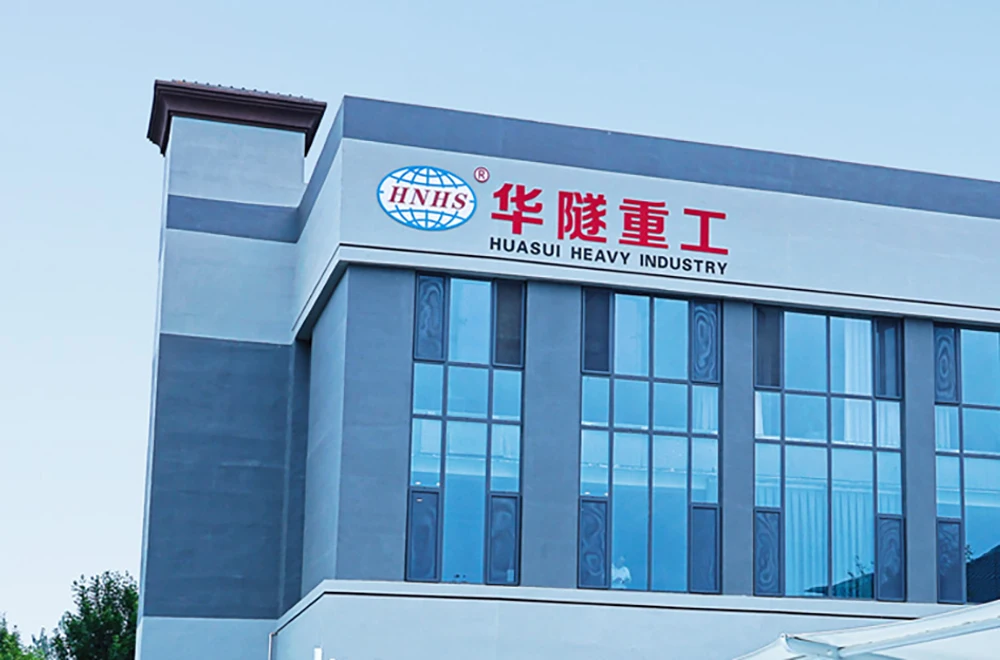

About Our Factory
Henan Huasui Heavy Industry Machinery Equipment Co., Ltd. was established in 1998 as a leading manufacturer of bridge construction lifting equipment. Our company has participated in numerous major road and bridge construction projects in China, where we have gained invaluable technical knowledge and experience. This has enabled us to develop a highly skilled engineering and installation service team. In response to market demand for general lifting equipment in the second decade of the 21st century, Huasui has established a brand-new factory and equipment. The company is committed to providing excellent products and one-stop service to more customers.
Through the integration of technology and optimization of manufacturing process, Huasui has gained a firm foothold in the manufacturing of overhead cranes, gantry cranes, wire rope electric hoists, straddle carriers and beam launcher in compliance with FEM standards.
