4 6TPH Bitumen Melting Plant DT4 Asphalt Melting Machine For Sale
- Category: >>>
- Supplier: Zhengzhou SINOSUN Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601284040137):
Product Overview
Description

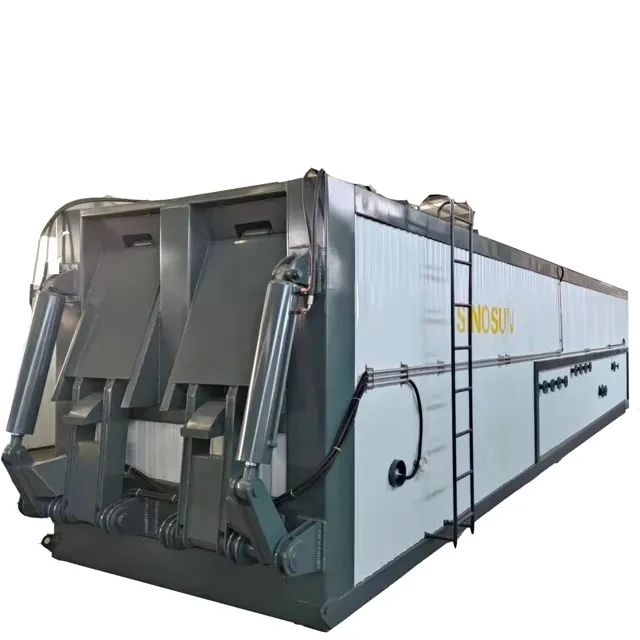

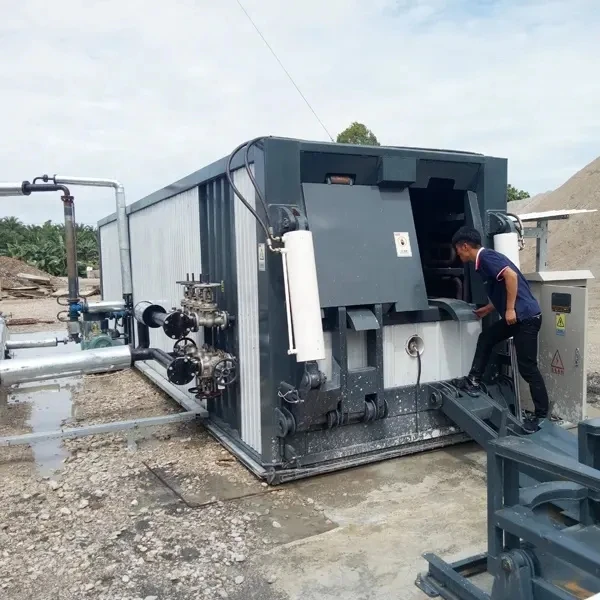

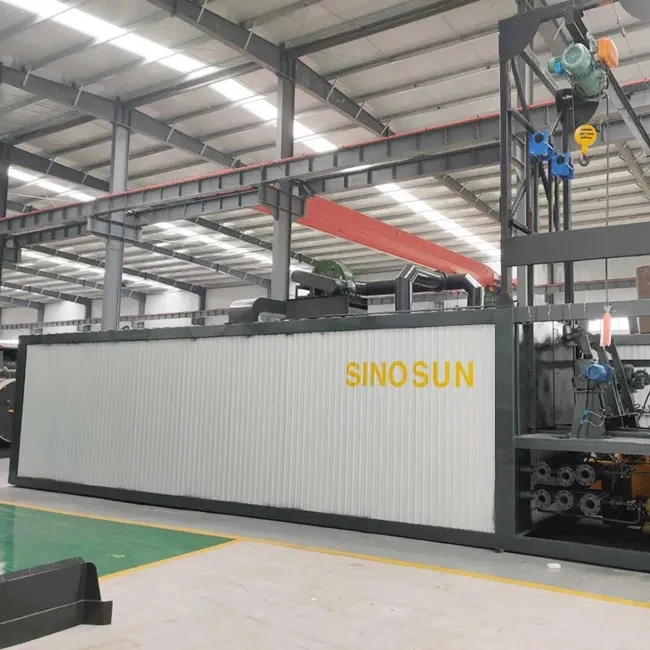

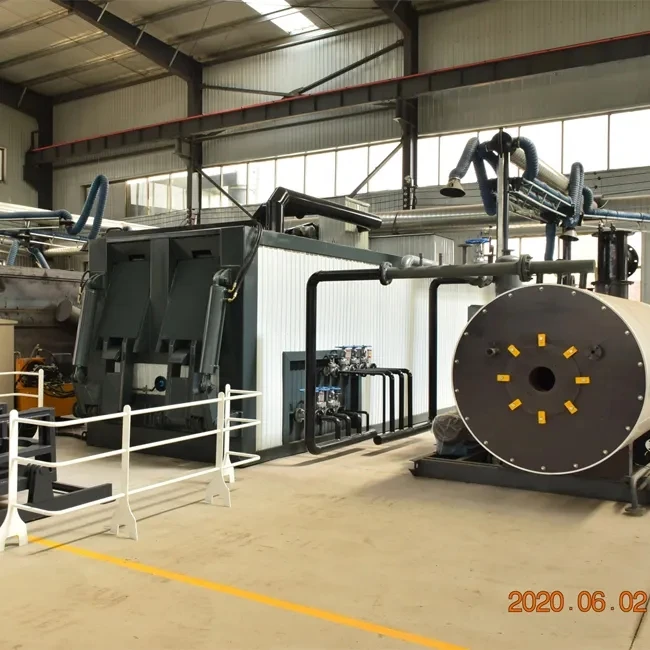

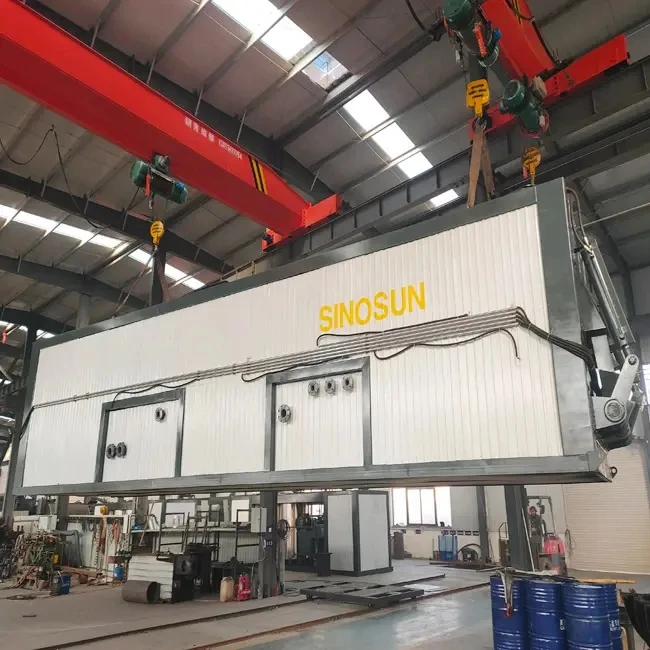

4-6TPH Bitumen Melting Plant DT4 Asphalt Melting Machine For Sale
Product Description
Our asphalt melting machine can decant asphalt out of drums and heating up asphalt.
DT series asphalt melting machine could make full use of hot gas of Burner to make asphalt coming out of drums,and use the hot oil heating coils to indirectly heat up asphalt, which can prevent asphalt from aging during heating.
Other functions of asphalt melting plants are dehydration and removing residue automatically.
DT series asphalt melting machine is popular for its energy saving and environment friendly features.
The function and features of this DT4 asphalt melting machine
1. This asphalt melting machine utilizes oil furnace chimney exhausts heat directly heat the barrel, thus can utilize the heat to the maximum degree.
2. This machine has bitumen circulatory system, the bitumen can realize dehydration at the same time of warming.
3. This asphalt melting machine has automatically scarfing cinder system, the sediment automatically focus to one end during bitumen circulation, indraft to sediment tank with the help of bitumen pump.
4. Bitumen level meter adopts float level meter, which is display all the process, simple and convenient.
5. Electrical equipment adopts centralized control, has button and indicator for each electronic control part.
6. Main engine is semi-mobile structure, easy to remove, fast to install. Planetary containerized for easy road transport.
Technical Parameter
Technical parameter of SINOSUN DT4 asphalt melting machine 4tph
1 | Model | DT4 |
2 | Outer dimension(transport) | 7.5×2.25×2.56(L x W x H)(m) |
3 | Production rate:(t/h) | 4-6(when the temperature is 20°C) |
4 | Suitable barrel shape | Barrel bitumen with different model both home and abroad |
5 | Barrel quantity(barrel/trolley) | 26 |
6 | Bitumen oil pool capacity(M3) | 12 |
7 | Thermal oil furnace capacity(Kcal/h) | 500000 |
8 | Electric installed capacity(KW) | 26 |
9 | Complete machine weight(t) | 16 |
Thermal oil furl heating furnace performance parameter
1 | Model | DRY50 |
2 | Rated heating capacity(KCAL/H) | 500000 |
3 | Max. service temperature(°C) | According to the process requirement, generally ≤250 |
4 | Design pressure(Mpa) | 1.0 |
5 | Electric power(Kw) | 16.5 |
6 | Total weight(t) | 5 |
7 | Outer dimension(L x W x H)(M) | 5.0x1.7x2.3 |
Related Products
 |  |  |
| 40-400TPH Stationary Asphalt Plant | 40-160TPH Mobile Asphalt Plant | 20-120TPH Drum Mix Asphalt Plant |
 |  |  |
| 6-10TPH Emulsion Bitumen Plant | 4-10 TPH Bitumen Melting Machine | Bitumen Tank for Asphalt Plant |
Company Information
SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.
We mainly supply:
1.Stationary asphalt mixing plant (SAP series)
2.Recycle asphalt mixing plant (SR series)
3.Mobile asphalt mixing plant ( MAP series)
4.Continuous asphalt mixing plant (CAP series)
5.Twin-shaft asphalt mixing plant (QLB series)
6.Twin-drum asphalt mixing plant (SLB series)
7.Emulsion Bitumen Plant (RH series)
8.Bitumen Melting Machine (DT series)
Customer Visiting
Warmly welcome all of customers come to visit our asphalt mixing plant and seek for cooperation !
FAQ
Q:Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q:How many workers are needed to operate one set of asphalt plant?
A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.
Q:How many days are used for installation of one set asphalt plant?
A:Around 20-30 days, according to local situation.
Q:Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q:How long is the delivery time?
A:30-40 days, according to different configuration. We promise to delivery on time.
Q:Can you sent me some spare parts freely?
A:Some spare parts will be sent to you together with asphalt plants freely.
Q:How to go to your asphalt plant factory easily?
A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q:How long is the warranty of your asphalt plant?
A:12 months
Q:What payment terms you accept?
A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways according to the practical situation.
Get the quotation of asphalt mixing plant, welcome contact us at any time.
Pls following us for more information of asphalt plant and related equipment.
