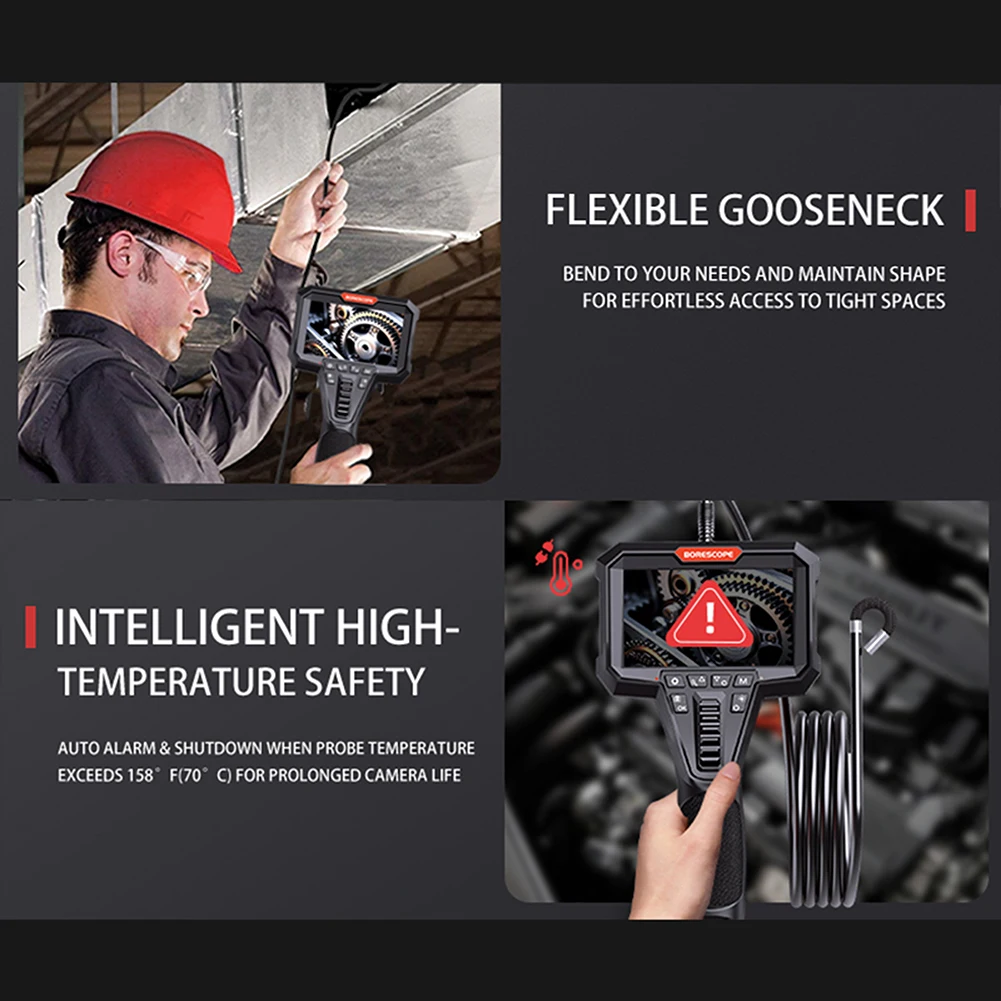

The VS-Y400 Series Steering Borescope is the newly introduced tool endoscope product of VSNDT. It is specially used for pipeline inspection, household appliance maintenance, three-way catalytic sensor of automobile evaporator combustion chamber and other narrow and curved spaces that are difficult to enter. The product has two-way 210 rotation detection function, unique high temperature alarm function, IP67 waterproof lens, which is convenient for users to penetrate small probes into narrow spaces. The 4.3-inch high-definition IPS display screen can present vivid, clear and all-round videos and pictures to meet Your diversified testing needs.

| PRODUCT PARAMETERS [ VS-Y400 ] | ||

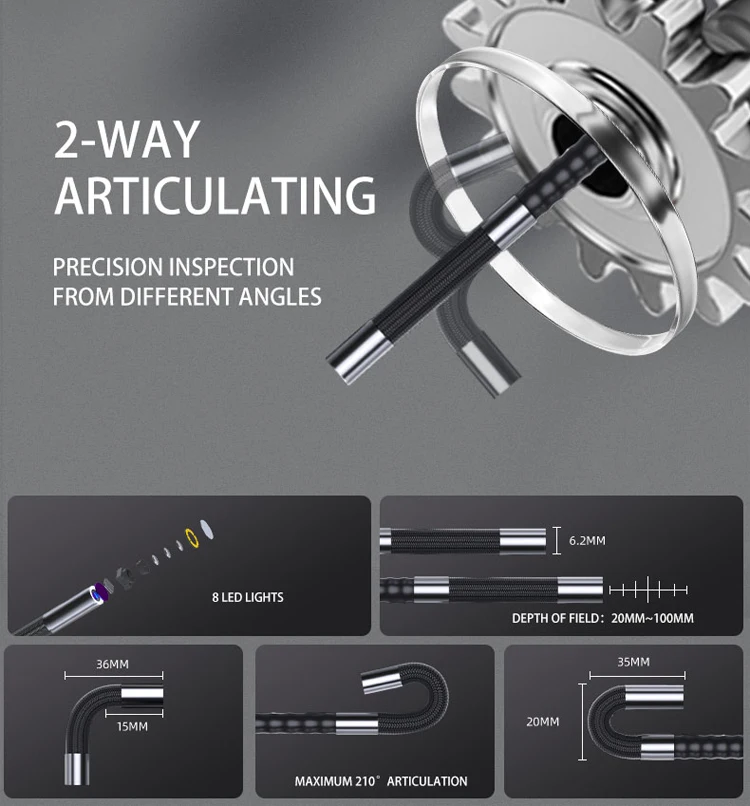

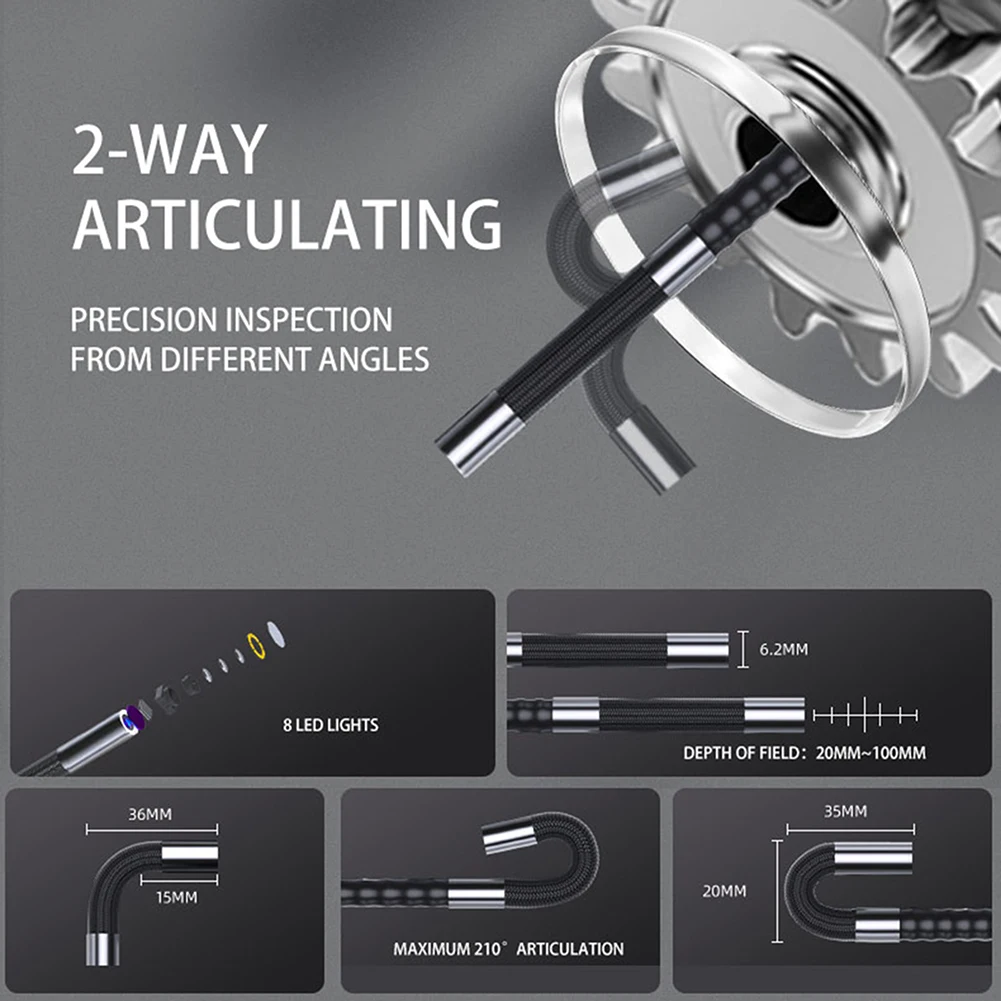

Camera diameter | 6.2mm | |
Probe length | 1m | |
Probe material | Metal + plastic | |
DOF | 20-100mm | |
| FOV | 100° | |
Light source | 6 pcs high-brightness LED | |
| Sensor | 1/9" CMOS | |
Pixels | 1.0MP | |
Screen size | 4.3 inch | |
Lighting adjustment | Support | |
Language | Chinese, Japanese, English, Korean, French, Spanish, German, Italian, Russian | |
| Power supply | 14.8WH | |
| Storage | TF card(Maximum support 32G) | |
Operating environment | -10℃-50℃ | |
| IP Grade | The whole machine is not waterproof | |
| Functions | Camera articulation, Light adjustment, Photographing, Video recording,Image rotation, High temperature alarm, Temperature display, Recording | |

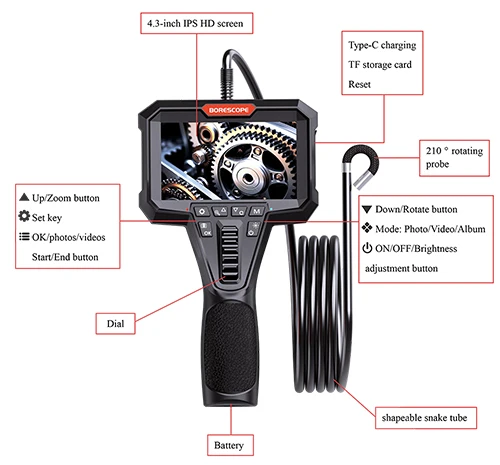

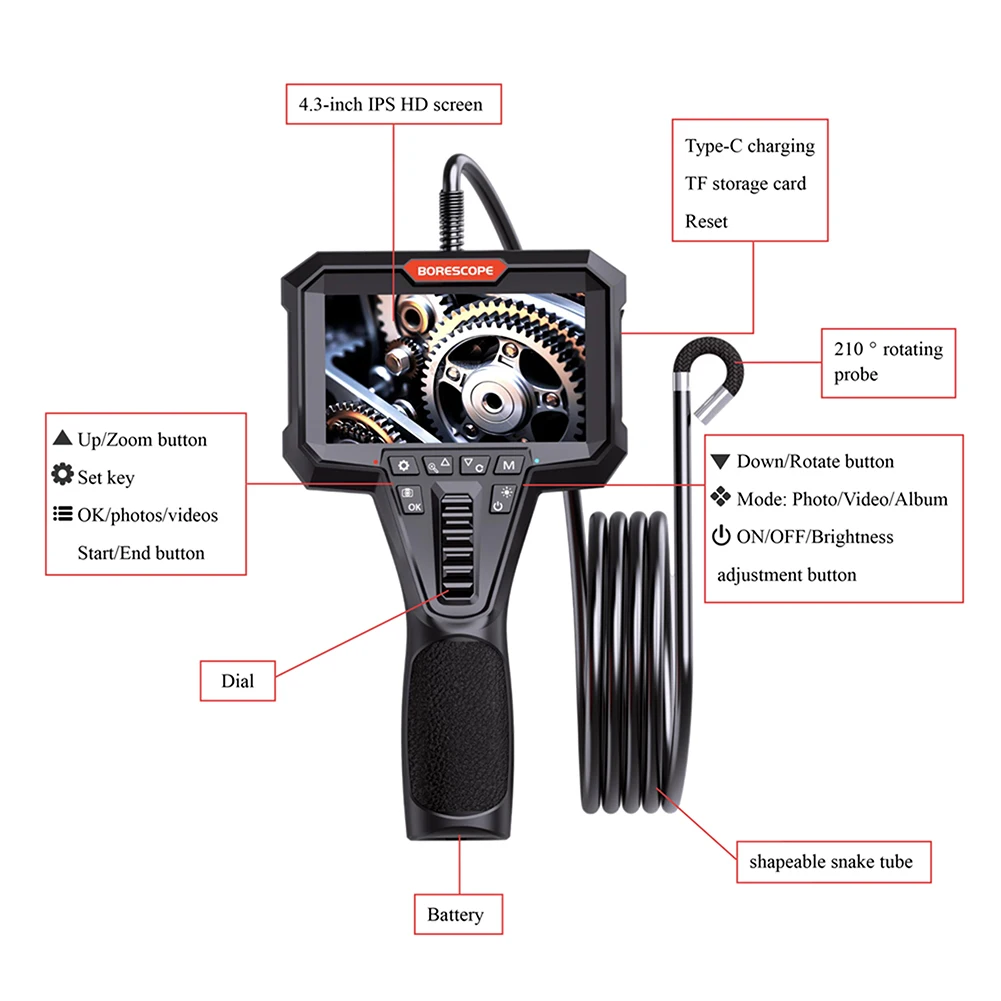

| STRUCTURE DETAILS [ VS-Y400] |
![]() |






![]() ![]() ![]() ![]() |
