New style gepon olt ma5608t ma5608 MA5683T/MA5680T 10G Uplink GPBD GPFD C C EPFD 8/16 port GPON EPON XGS PON SmartAX MA5608
- Category: >>>
- Supplier: Xiamen OuXinda Intelligent Technology Co.
Share on (1601284237161):
Product Overview
Description
Model | MA5608T |
Chassis | MA5608T (19 inch 2U AC / DC) |
Uplink 1G configuration | 2*MCUD+1*MPWC |
Uplink 10G configuration | 2*MCUD1+1*MPWC |
Slot | 2 Service slots |
Model | MA5608T | MA5683T | MA5680T | |||
Dimension | 442*233.5*88mm, 2U, 19" | 442*283.2*263mm 6U, 19" | 490*275.8*447.2mm 10U, 19" | |||
Service Slots | 2 service slots | 6 service slots | 14 service slots | |||
Power Supply | -48V DC input Supports dual power protection Working Voltage range -38.4V～-72V Support 220V / 110V AC input | -48V DC input Supports dual power protection Working Voltage range -38.4V～-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V～-72V | |||
Backplane Exchange capacity | 720Gbit/s | 1.5Tbit/s | 3.2Tbit/s | |||
Control Board Exchange Capacity | 512Gbit/s | 960Gbit/s | 1920 Gbit/s | |||
Access Capacity | 32 GPON/EPON 16 XG-PON/10G EPON 96 GE/FE | 96 GPON/EPON 48 XG-PON/10G EPON 288 GE/FE | 224 GPON/EPON 112 XG-PON/10G EPON 672 GE/FE | |||
Access Type | Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface | |||||
System Performance | Layer 2 / Layer 3 wire-speed forwarding Support static router /RIP/OSPE.MPLS BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting ratio Maximum support 60KM logical distance | |||||

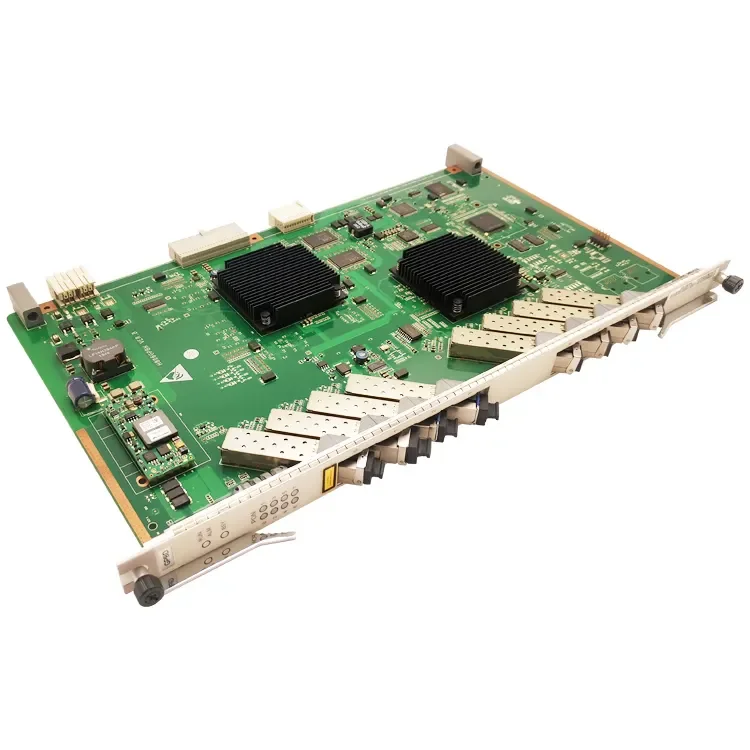

GPON Service Board | GPFD: 16Ports C+/C++ GPON boards, GPBD: 8Ports C+/C++ GPON boards | |||||
Product Specifications: The high-performance and compact box-type OLT device SmartAX MA5608T enables FTTx access coverage in small-capacity scenarios such as townships. 2U high box-type OLT equipment MA5608T, with the large-capacity OLT at the central office, can achieve long-distance PON coverage of up to 100 kilometers and 2000 user access Mini-OLT MA5608T supports 32 channels of GPON/EPON ports or 96 channels of FE/GE downstream, and the service board is compatible with large and medium-sized OLTs; it supports dual master control, dual power supply redundancy design, TypeB/C/D protection and Type C Dual-homing, etc., meet high reliability requirements and low-latency service access requirements such as WiFi/LTE; support 10G-GPON/10G-EPON evolution. | ||||||
Q1: Are you a factory or a trading company?
A1: We are a professional production of all kinds of communication equipment and consumables communication factory, has more than
10 years of history.
Q2: Do you accept OEM service?
A2: Yes, we do. Custom designs are also accepted.
Q3: Can I try it for free? How long is the trial?
A3: Samples are available, but not free. The sample fee depends on the quantity and item you choose and can be refunded once the
official order is fulfilled. Samples take about 10-20 days.
Q4: What if we can't meet your minimum order quantity?
A4: We also accept small trial orders. Please feel free to contact us and we will be happy to help you.
Q5: How do you guarantee quality?
A5: We have a professional QC team, in the production process and before shipping quality inspection, and passed BSCl,RoHS,
iso9001.fcc. International quality product certification.
Q6: What are your delivery items?
A6: We can express, air and sea. We accept EXW,FOB,DDU,DAP, etc.
You can choose the most convenient and economical way.
A1: We are a professional production of all kinds of communication equipment and consumables communication factory, has more than
10 years of history.
Q2: Do you accept OEM service?
A2: Yes, we do. Custom designs are also accepted.
Q3: Can I try it for free? How long is the trial?
A3: Samples are available, but not free. The sample fee depends on the quantity and item you choose and can be refunded once the
official order is fulfilled. Samples take about 10-20 days.
Q4: What if we can't meet your minimum order quantity?
A4: We also accept small trial orders. Please feel free to contact us and we will be happy to help you.
Q5: How do you guarantee quality?
A5: We have a professional QC team, in the production process and before shipping quality inspection, and passed BSCl,RoHS,
iso9001.fcc. International quality product certification.
Q6: What are your delivery items?
A6: We can express, air and sea. We accept EXW,FOB,DDU,DAP, etc.
You can choose the most convenient and economical way.
