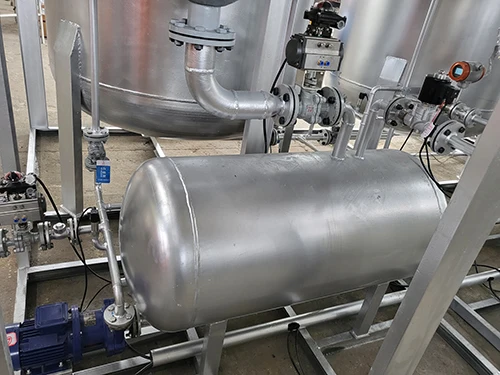

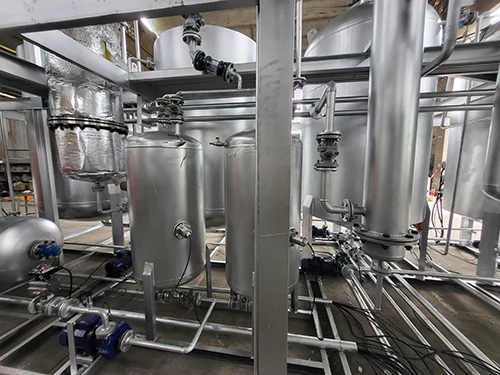

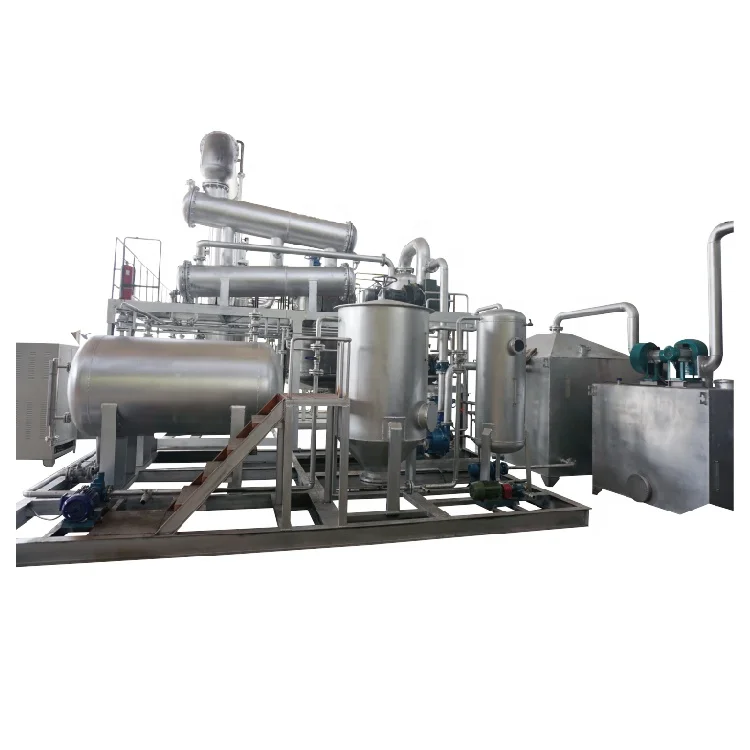

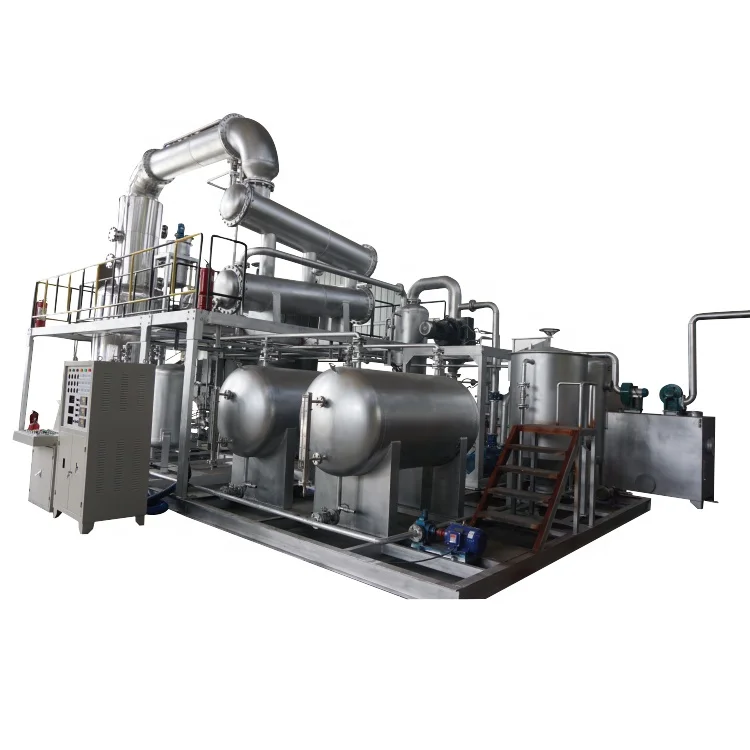

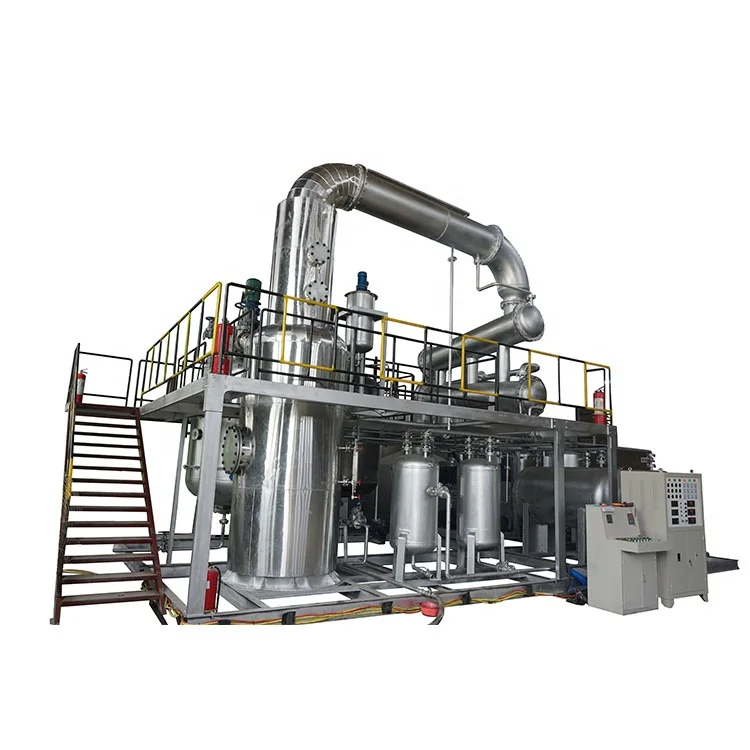

Tire Plastic Pyrolysis Oil Refining Waste Engine Oil To Diesel Distillation Plant
- Category: >>>
- Supplier: Chongqing Kaiqian Oil Purifier Manufacture Co. Ltd.
Share on (1601284290771):
Product Overview
Description
High Vacuum Distillation Waste Oil Distillation Black Engine Oil Refining Recycling Plant
KTS Series Waste Distillation Plants are mainly used for recycling lubricating oil such as engine oil, lubrication oil, hydraulic oil, gear oil, diesel, and other oil mixture by vacuum distillation to acquire the qualified base oil and bits of gasoline or diesel. During the process of distillation, the hydrocarbon chain breaks to reform new the molecule of the oil, then turns into oil mist. Then the oil mist turns into liquid by condensation and the qualified oil comes out finally. This plant can effectively remove wearing debris, pitches, waxes, impurities, water contents, carbon deposits, oxides from the oil and decrease its acid value.
The core technology of this equipment is vacuum catalytic cracking process and chemical extraction technology. Equipped with environmentally friendly exhaust gas burner and exhaust gas treatment system. A safe and efficient way to perfect the final diesel/base oil color and remove oil odor. The final oil yield is no less than 80%-85%. It adopts advanced manufacturing process design and high-quality raw materials, fully automatic PLC system, and automatic pressure alarm device to ensure long-term safe operation of the equipment.
SPECIFICATIONS
Model | Item | KTS-1 | KTS-5 | KTS-10 | KTS-15 | KTS-20 | ||||
Capacity | T/D | 1 | 5 | 10 | 15 | 20 | ||||
Working Pressure | Mpa | ≤0.5 | ||||||||
Working vacuum | pa | -5~ -20 | ||||||||
Temperature | ℃ | ≤350 | ||||||||
Working Noise | dB（A） | ≤85 | ||||||||
Power | V | 380V 50HZ 3Phase 4Wires | ||||||||
Total Power | KW | 35 | 80 | 125 | 135 | 150 | ||||
Cooling Water | M³ | 5 | 45 | 50 | 70 | 80 | ||||
Weight | T | 4 | 16 | 19 | 22 | 26 | ||||
Dimension | L(m) | 6*3*4 | 15*6*6 | 17*6.5*6 | 17*9*6 | 25*12*6 | ||||
FAQ
Q1: What is the application of this waste oil distillation plant?A1: It is used for used engine oil, used motor oil, tyre
oil,plastic oil, pyrolysis oil and other industrial oils.
Q2: What is the capacity of this plant?
A2: The capacity is about 1-100tons per day.
Q3: Is there any additive used inside?
A3: Yes, there will have additive use inside on the refining process, which is to further restoring the output oil
Q4: What is the heating method of this plant?
A4: Heating method is customized by customer, we support electric heating, fuel oil heating and gas heating.
oil,plastic oil, pyrolysis oil and other industrial oils.
Q2: What is the capacity of this plant?
A2: The capacity is about 1-100tons per day.
Q3: Is there any additive used inside?
A3: Yes, there will have additive use inside on the refining process, which is to further restoring the output oil
Q4: What is the heating method of this plant?
A4: Heating method is customized by customer, we support electric heating, fuel oil heating and gas heating.
