Ex Stock deye hybrid inverter single phase with 48v LiFePO4 Battery for single phase solar system
- Category: >>>
- Supplier: Shenzhen Jiri Solarpower Technology Co. Ltd.Shenzhen Ltd.
Share on (1601284347749):
Product Overview
Description
Product Description

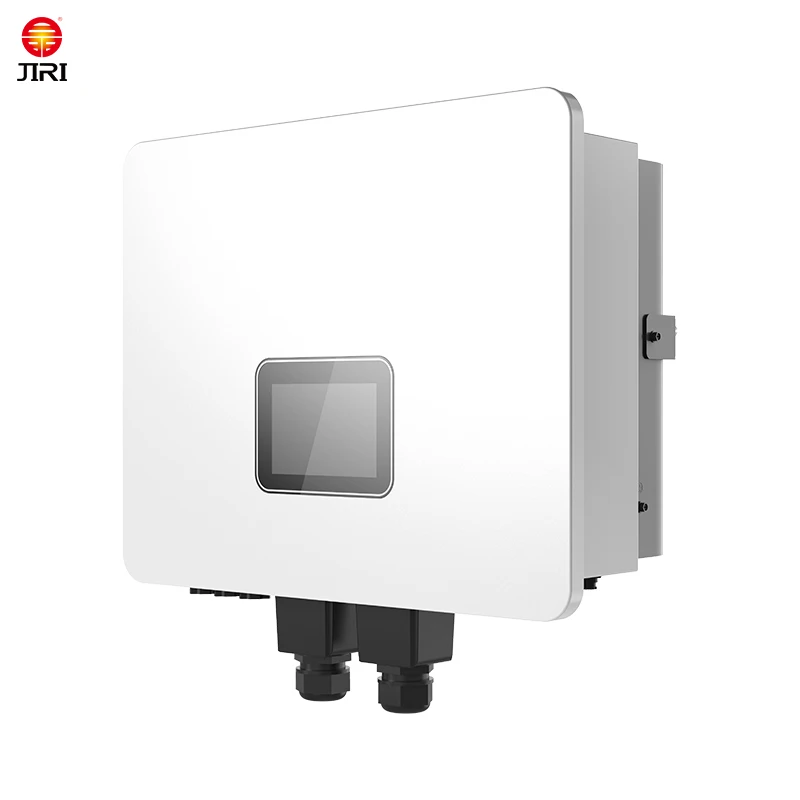

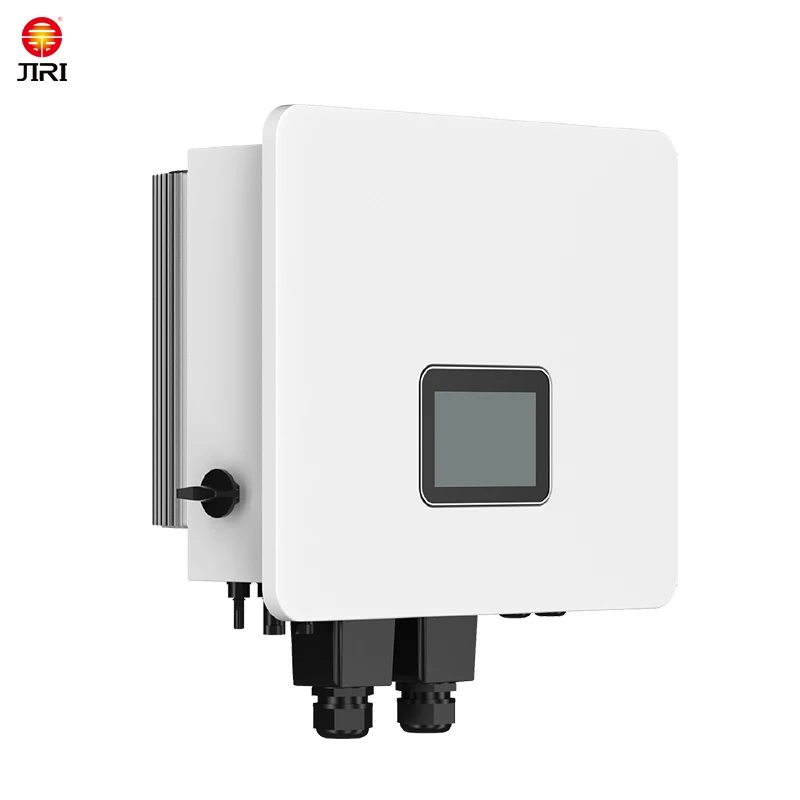

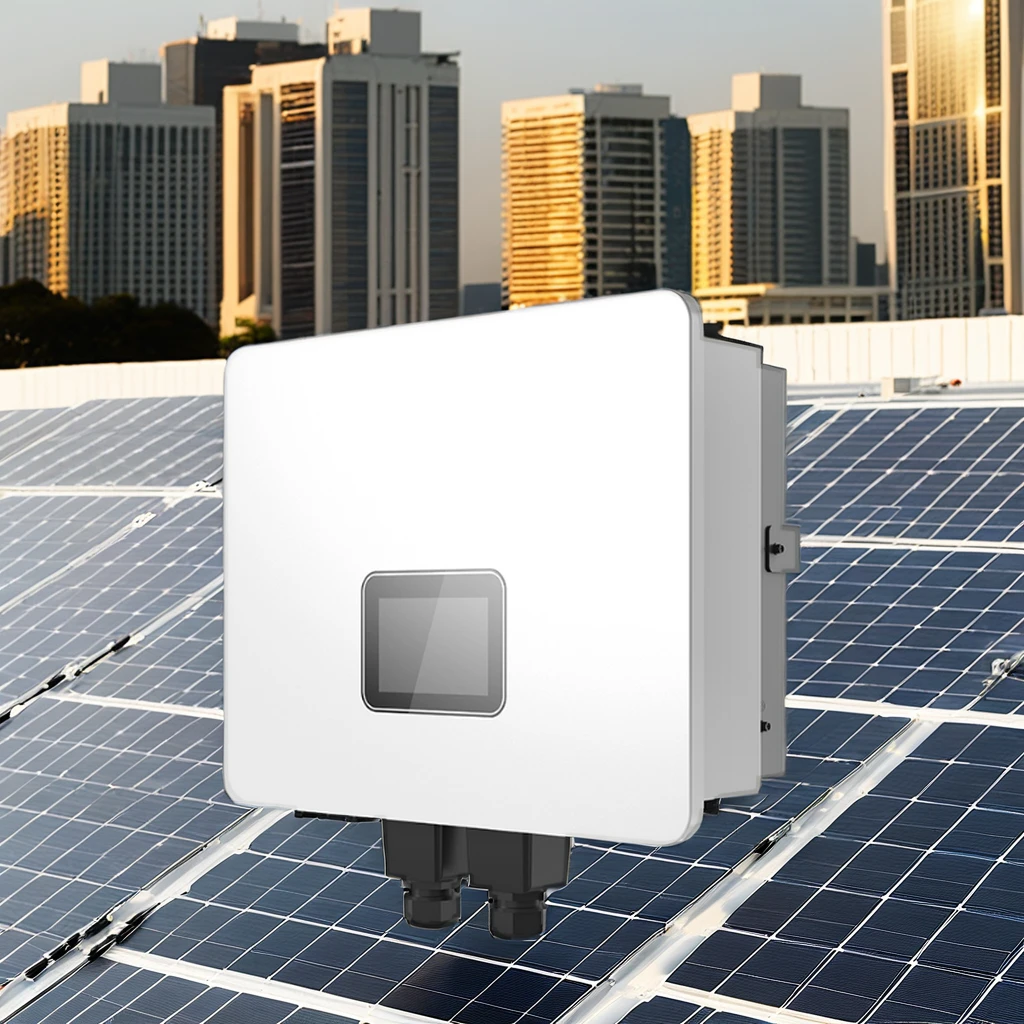

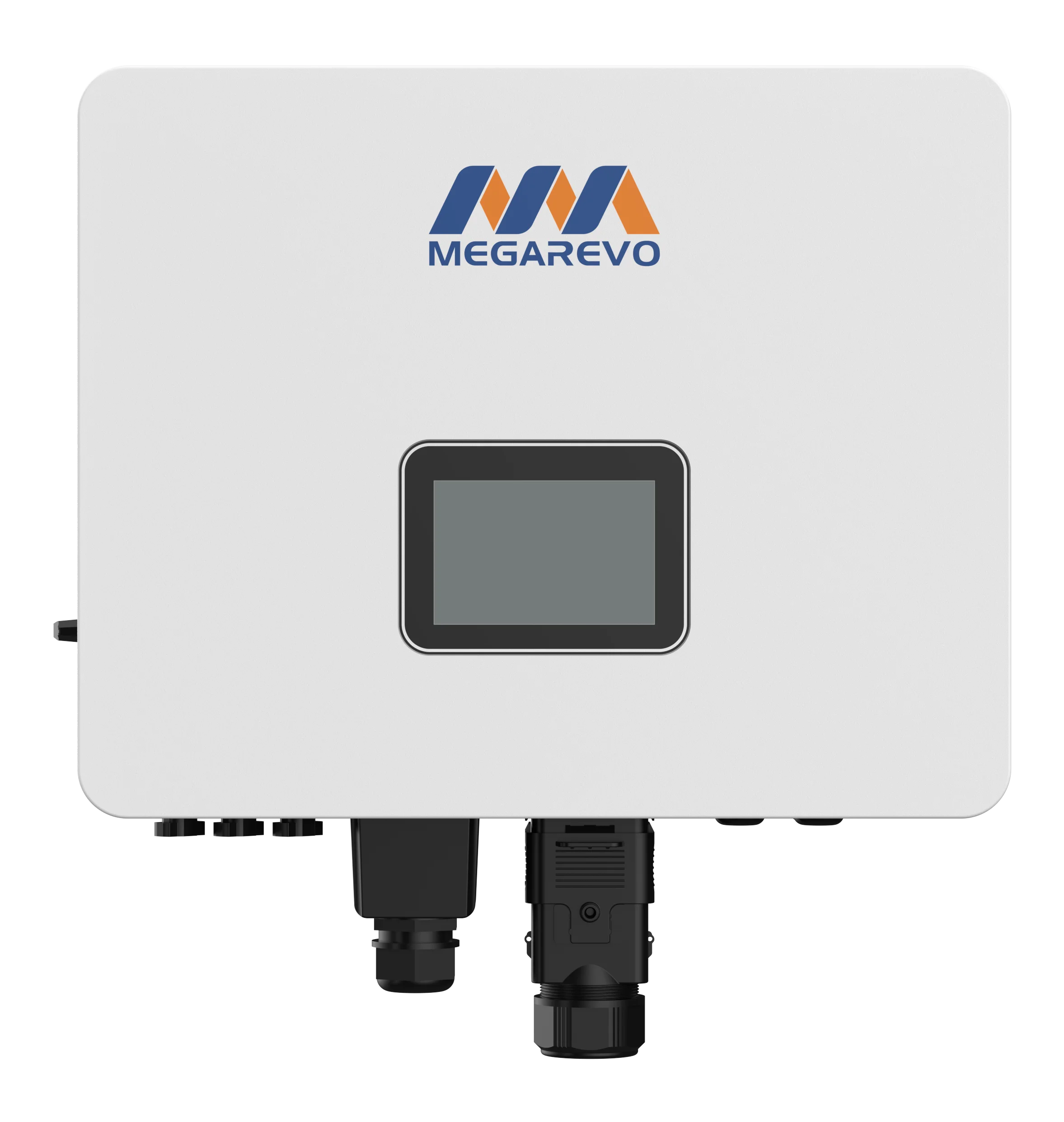

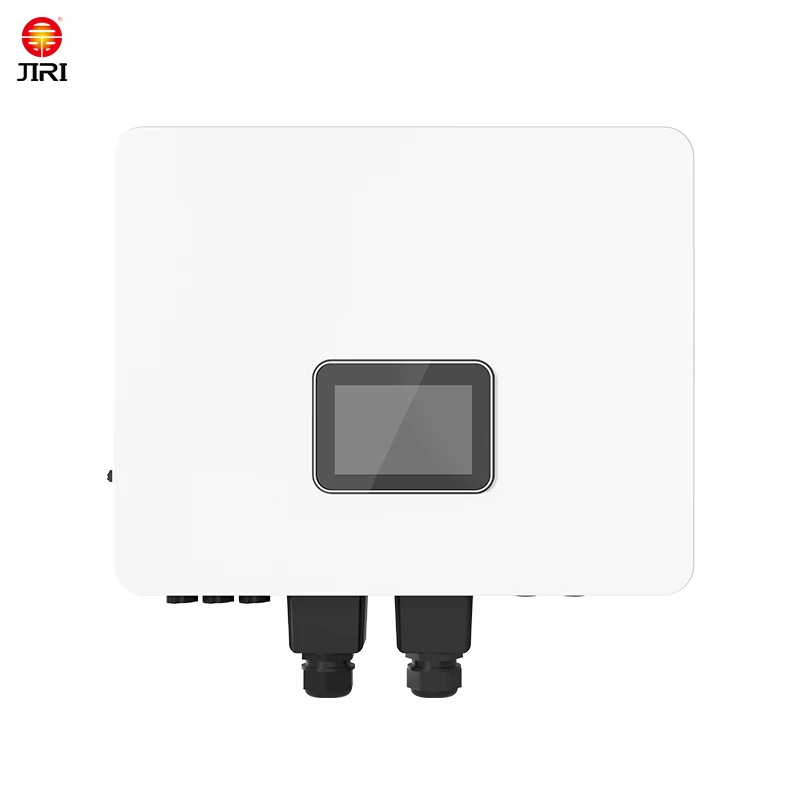

3-8kW Hybrid Inverter Single Phase
✅Using soft switching technology, the overall machine efficiency is increased by 0.5%.
✅Compact design Save 50% on installation costs.
✅Support AC coupling function.
✅Suitable for the latest 210mm high-power PV panel (Isc=18.5A).
✅Support mobile phone (Bluetooth +WIFI) setting and maintenance.
✅Ultra-low starting voltage, longer power generation time.
✅Compact design Save 50% on installation costs.
✅Support AC coupling function.
✅Suitable for the latest 210mm high-power PV panel (Isc=18.5A).
✅Support mobile phone (Bluetooth +WIFI) setting and maintenance.
✅Ultra-low starting voltage, longer power generation time.
Specification
G2 series energy storage inverter | ||||||||||
PV string input | ||||||||||
Model | R3KL1D-G2 | R4KL1D-G2 | R5KL1D-G2 | R6KL1D-G2 | R8KL1D-G2 | |||||
Rated power (kW) | 4.5 | 6 | 7.5 | 9 | 12 | |||||
Start-up voltage(V) | 100 | |||||||||
Max.PV input voltage(V) | 550 | |||||||||
MPPT range/nominal (V) | 80~500/360 | |||||||||
Max.input current of single MPPT(A) | 16/16 | 16/32 | ||||||||
Max.short-circuit current(A) | 18.5/18.5 | 18.5/37 | ||||||||
AC output | ||||||||||
Model | R3KL1D-G2 | R4KL1D-G2 | R5KL1D-G2 | R6KL1D-G2 | R8KL1D-G2 | |||||
Rated power (kW) | 3 | 4 | 5 | 6 | 8 | |||||
Max.AC current output to grid (A) | 14.3 | 19.1 | 21.7 | 28.7 | 38.3 | |||||
Nominal voltage/range (V) | 230 /176～270 | |||||||||
Frequency (Hz) | 50 /60 | |||||||||
Power factor | 1(0.8 leading-～0.8 lagging ) | |||||||||
THDi | <3% | |||||||||
AC grid type | L+N+PE | |||||||||
Battery | ||||||||||
Battery voltage range (V) | 40～58 | |||||||||
Max.charging voltage (V) | 58 | |||||||||
Max.charge/discharge current (A) | 60/60 | 80/80 | 100/100 | 120/120 | 160/160 | |||||
Battery type | Lithium /Lead-acid | |||||||||
Communication Interface | CAN/RS485 | |||||||||
Max.battery output power/duration | / | 8/20 | ||||||||
EPS output | ||||||||||
Rated power (kW) | 3 | 4 | 5 | 6 | 8 | |||||
Rated voltage (V) | 230 | |||||||||
Max.Ac current output to grid (A) | 14.3 | 19.1 | 21.7 | 28.7 | 38.3 | |||||
Rated frequency (Hz) | 50/60 | |||||||||
Automatic switchover time (ms) | <10 | |||||||||
THDu | <2% | |||||||||
Overload capacity | 110%, 60S/ 120%, 30S/ 150%, 10S | |||||||||
General data | ||||||||||
Battery charge/discharge efficiency | 96% | |||||||||
PV Max.efficiency | 98% | |||||||||
Europe efficiency | 97% | |||||||||
MPPT efficiency | 99.9% | |||||||||
Ingress protection | IP65 | |||||||||
Noise emission ( (dB) | <35 | |||||||||
Operation temperature (℃) | -25～60 | |||||||||
Cooling | Natural | |||||||||
Relative humidity | 0～95%(non-condensing) | |||||||||
Operating altitude (m) | 2,000(>2,000 Derating) | |||||||||
Dimensions W*D*H (mm) | With Generator: 454.5*220*499.7 Without Generator: 454.5*220*467 | With Generator 484.5*220*499.7 Without Generator 484.5*220*467 | ||||||||
Net weight (kg) | 19(2020 With Generator Input) | 22 | ||||||||
Topology | Non-isolated | |||||||||
Standby loss (W) | <15 | |||||||||
Display | Optional (colorful touch screen /no screen) | |||||||||
Interface: RS485/Wifi/4G/CAN/DRM | Yes/Opt/Opt/Yes/Yes | |||||||||
