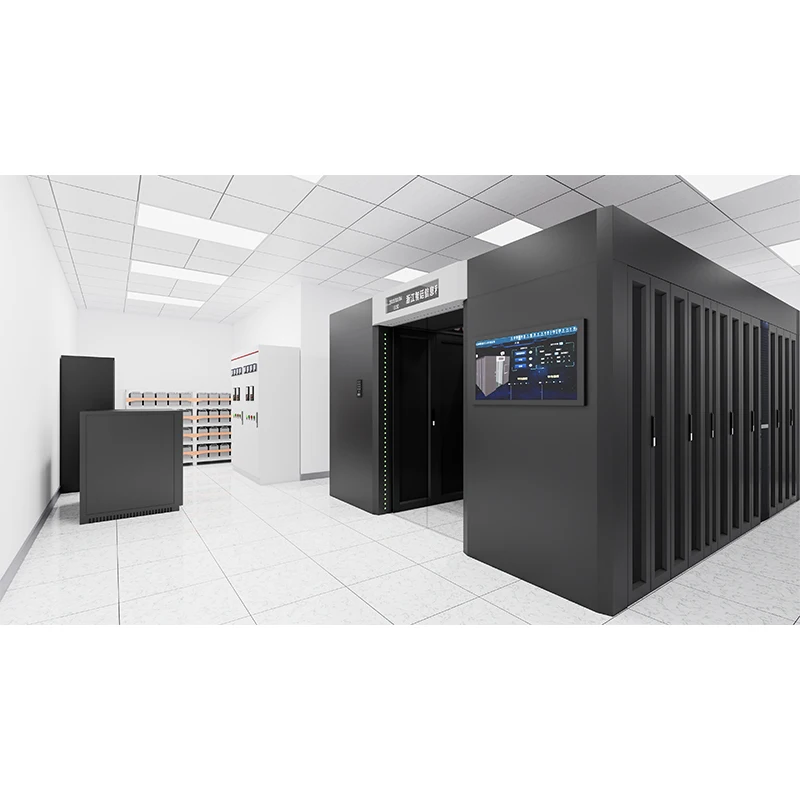

ZTMM Data Cabinet network Cabinet data center air conditioning unit integrated solution
- Category: >>>
- Supplier: Zhejiang Zhiting Information Technology Co. Ltd.
Share on (1601284468940):
Product Overview
Description
Products Description
Name | Quantity ( PCS ) | Name | Quantity ( PCS ) |
Front curved door | 1 | Side door | 2 |
Front closure | 2 | Management channel | 2 |
Vertical support | 4 | Baseplate | 2 |
Item | Specifications | ||

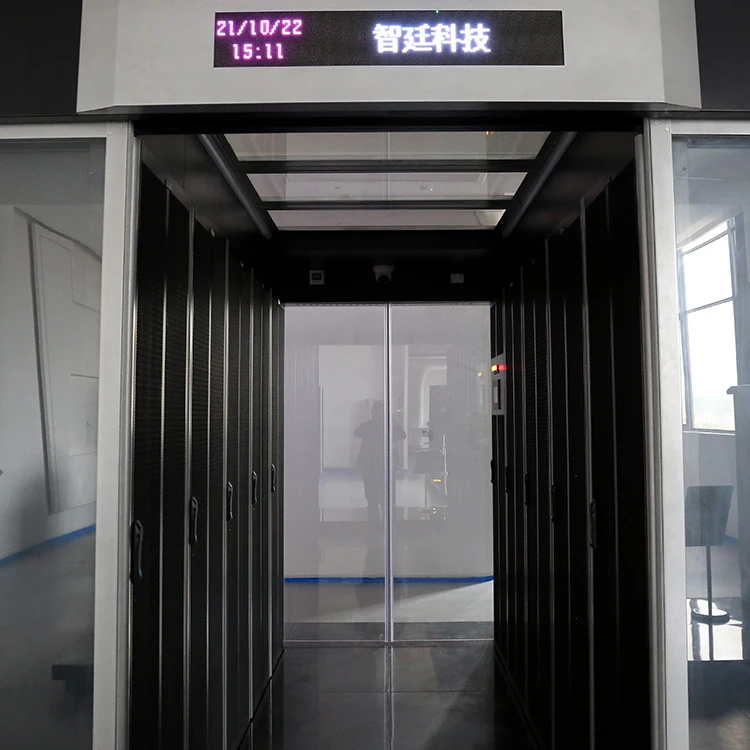

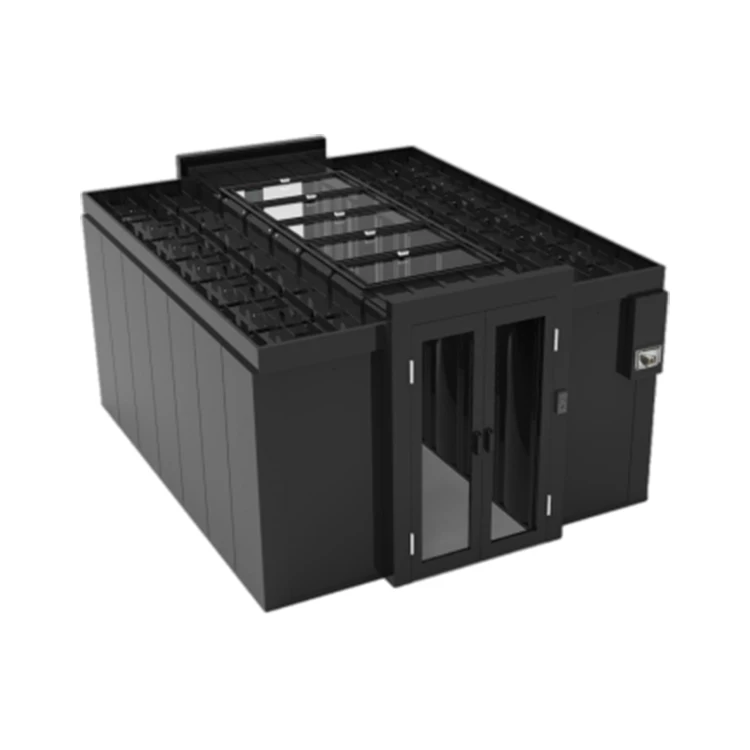

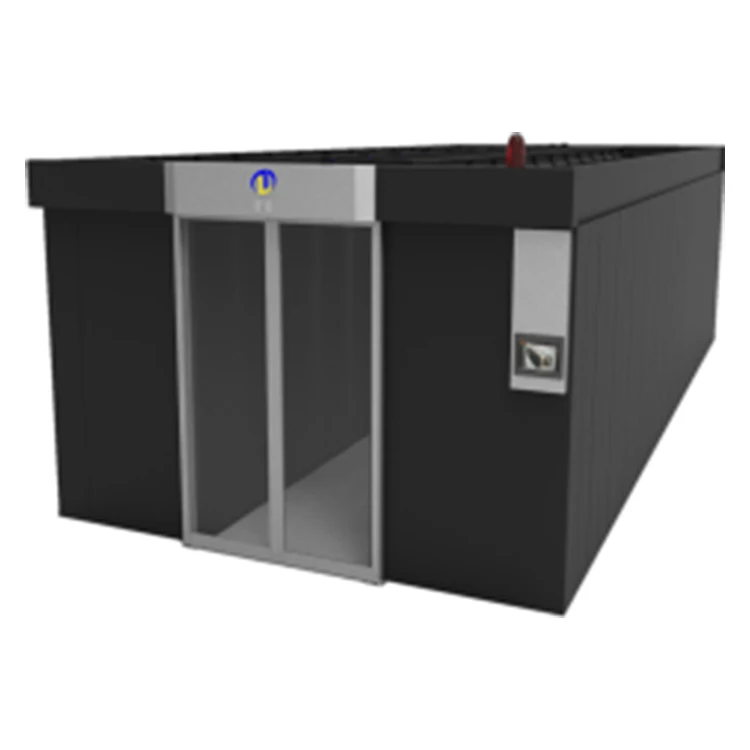

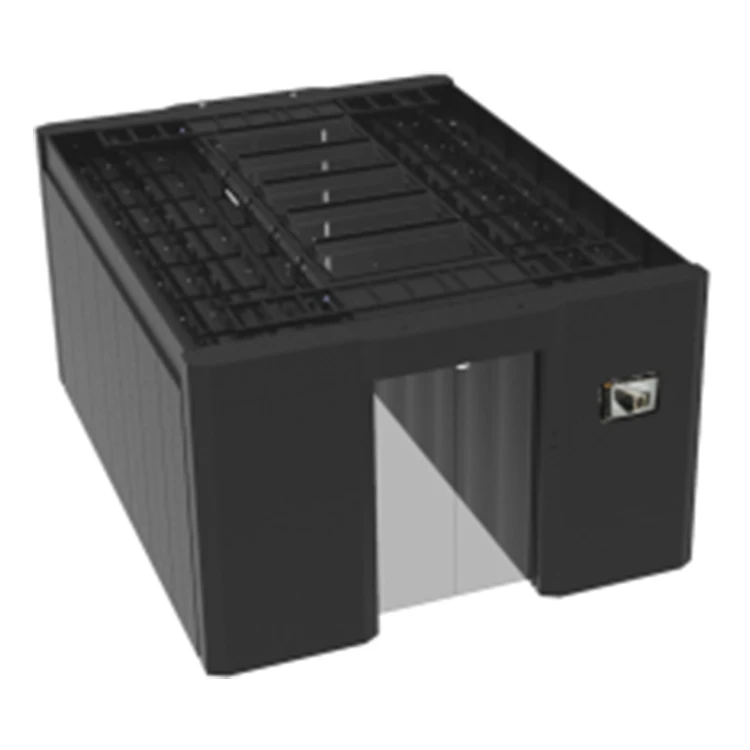

Micro Module | Dimensions | Single channel (with aisle containment) (L x W x H): L x 2,200 mm x2,300mm L x 2,200 mm x2,400mm L x 2,400 mm x 2,300 mm L x 2,400 mm x 2,400 mm Customized | |
Double channel (with aisle containment) (L x W x H): L x 3,200 x 2,300 mm L x 3,200 x 2,400 mm L x 3,600 x 2,300 mm L x 3,600 x 2,400 mm Customized | |||
Cabinets per module | Single channel ≤ 24 cabinets; dual channel ≤ 48 cabinets | ||
Power supply | 208V/380V/400V/415V DC/AC, 50 Hz/60 Hz, 3 Ph + N + PE | ||
Max IT load per module | 125 kW (with integrated UPS) / 145 kW (with integrated PDC) / 235kW (with precision PDC) | ||
Cable routing | Routed in/out through the top of cabinets | ||
Installation | Installing on raised floor | ||

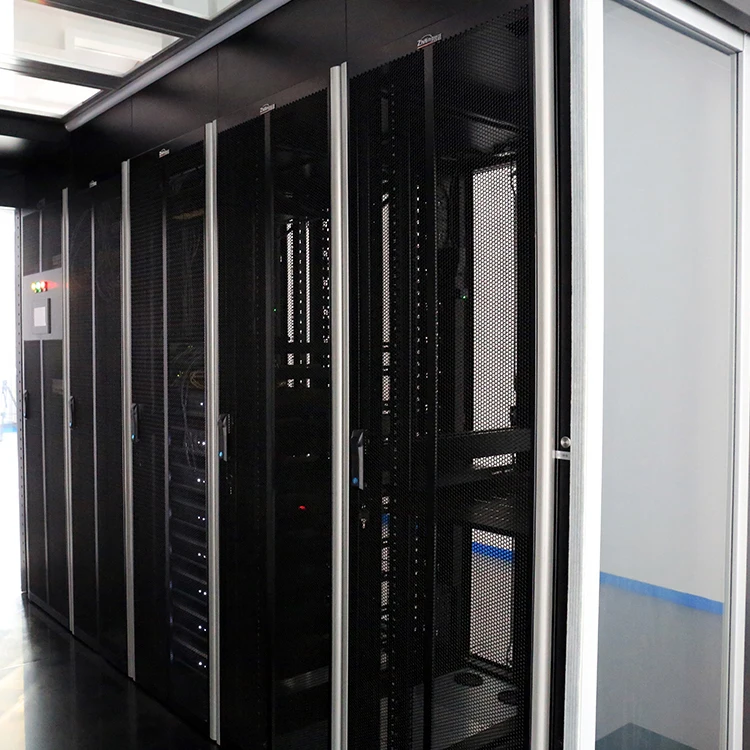

Cabinet | Dimensions (H x W x D) | 2,000 mm x 600/800 mm x 1,200 mm 2,000 mm x 600/800 mm x 1,100 mm 2,200 mm x 600/800 mm x 1,200 mm | |
Space available | 42U/47U | ||
Protection level | IP20 | ||
Air Conditioner | Installation | In-Row or vertical direction of one end | |
Refrigeration | Direct expansion air cooling, chilled water and cooling water system | ||
In-Row Air Conditioner | Cooling capacity | Optional | |
Dimensions (H x W x D) | 2,000 mm x 300 mm x D 2,000 mm x 600 mm x D | ||
Power supply | 208V/380V~ 415V AC, 50 Hz/60 Hz, 3 Ph + N + PE | ||
Refrigerant | R410A R407C | ||
Integrated UPS | Input voltage | 208V/380V/400V/415V AC, 50 Hz/60 Hz, 3 Ph + N + PE | |
Input | 250A/400A MCCB | ||
Input power factor | Full load > 0.99, Half load > 0.98 | ||
Output power factor | 1 | ||
Rated capacity | 25 kVA~125 kVA | ||
Output | IT: 40A/1P x 24 x 2; A/C: 40A or 63A/3P x 8; lighting: 10A/1P x 3 | ||
Efficiency | ≥ 96% | ||
Integrated Power Distribution Cabinet (UPS outside) | Input voltage | 380V/400V/415V AC, 50Hz/60Hz, 3 Ph + N + PE | |
Input | IT: 160A/250A MCCB; A/C: 160/250A MCCB | ||
Rated input current | IT: 160A/250A, A/C: 160A/250A IT: 32A/1P x 2 per cabinet; A/C: 40A or 63A/3P per; | ||
Output | lighting: 10A/1P | ||
Precision Power Distribution Cabinet(UPS outside) | Input voltage | 208V/380V/400V/415V AC, 50 Hz/60 Hz, 3 Ph + N + PE | |
Input | 160A/250A/400A MCCB | ||
Output | 32A/1P, maximum 144 routes | ||
Smart Busway(UPS outside) | Input voltage | 208V/380V/400V/415V AC, 50 Hz/60 Hz, 3 Ph + N + PE | |
Input | 160A/250A MCCB | ||
Output | 32A/1P | ||
