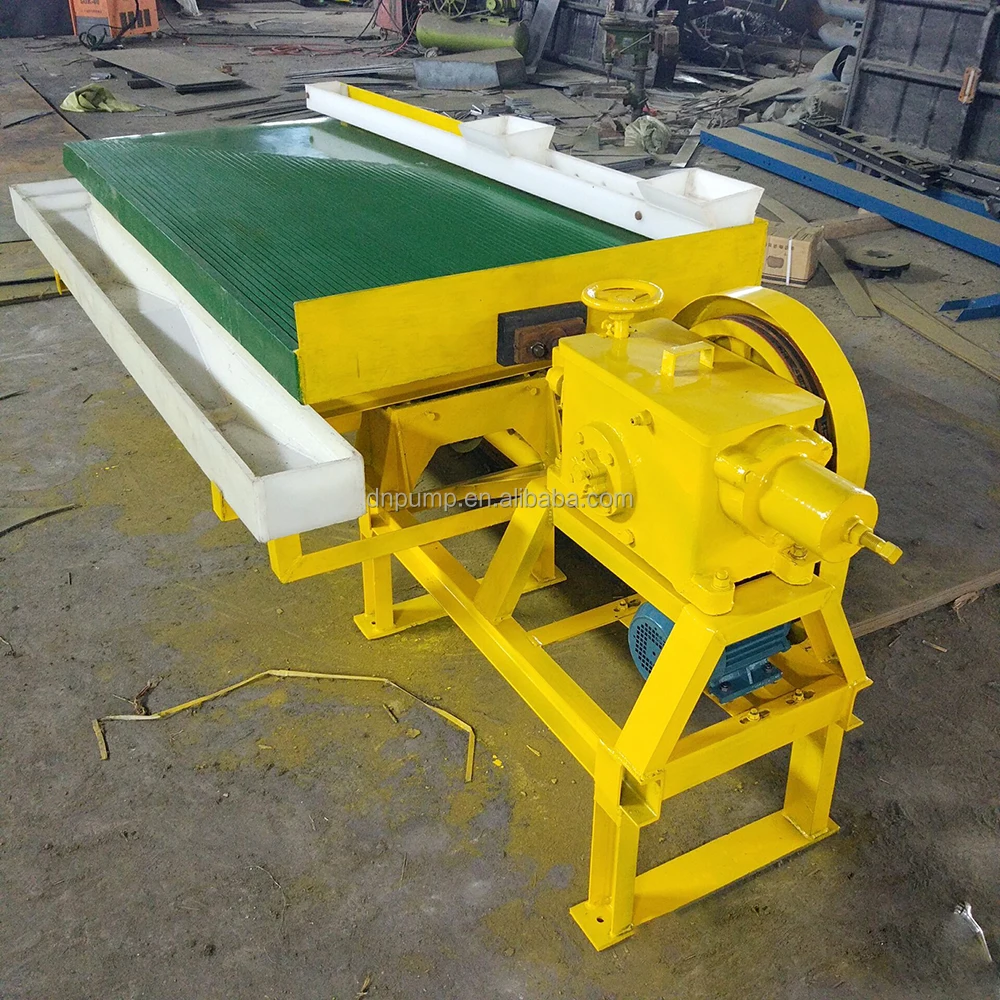

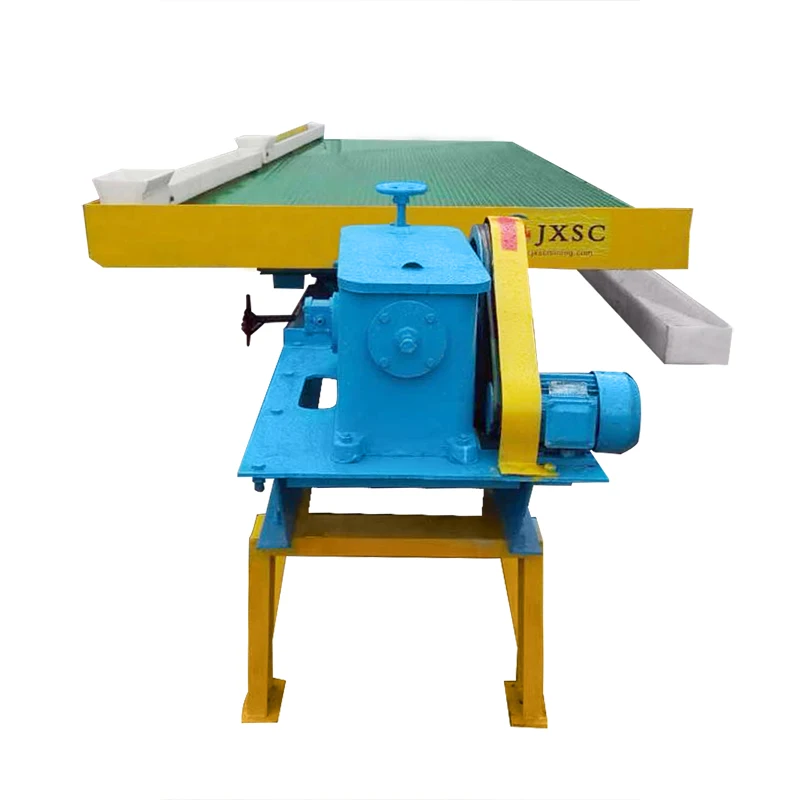

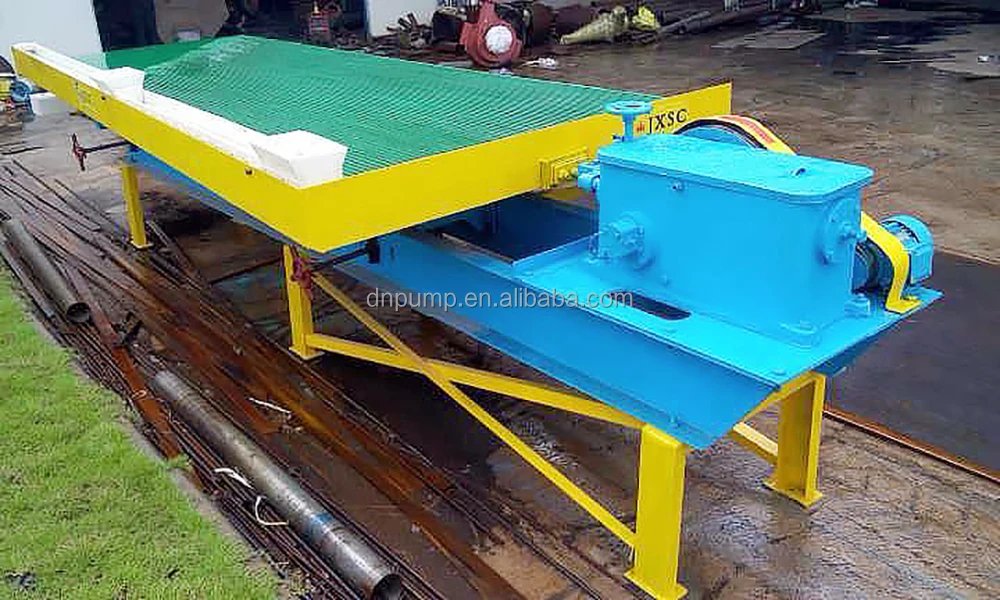

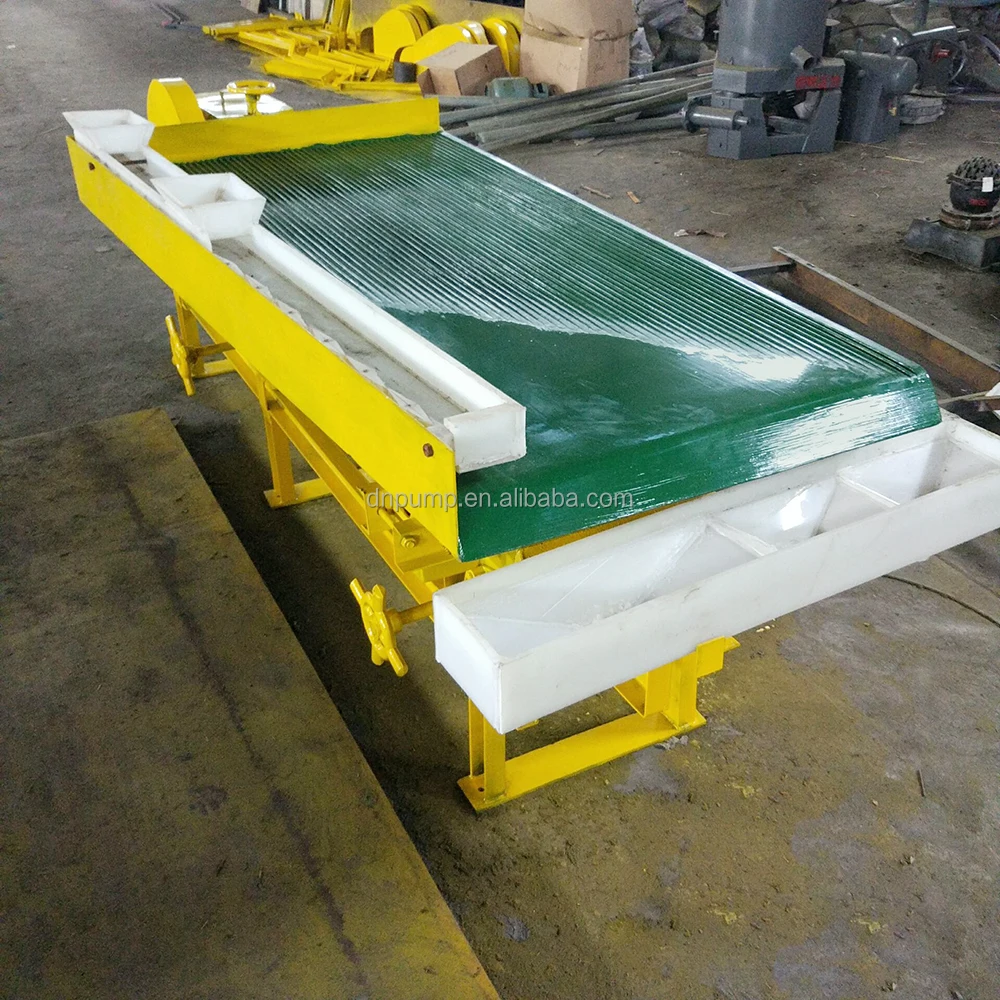

JXSC Placer Gold / Rock Gold Gold Concentration Shaking Table Machine
- Category: >>>
- Supplier: Ganzhou Eastman Technology Co. Ltd
Share on (1601284473126):
Product Overview
Description
Product Description
Product Introduction:
Mineral Separation Equipment/Gold Machine Gold Refining Shaking Table as one of gravity mining equipment, 6S shaking table is widely applied on separating Gold, Silver, Tin, Columbium, Tantalum Niobium, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, and other rare metals and the noble metal ore. 6S shaking table & LY shaking table can be used in different stages in mining, like rough concentration, retreat and scanvenging.

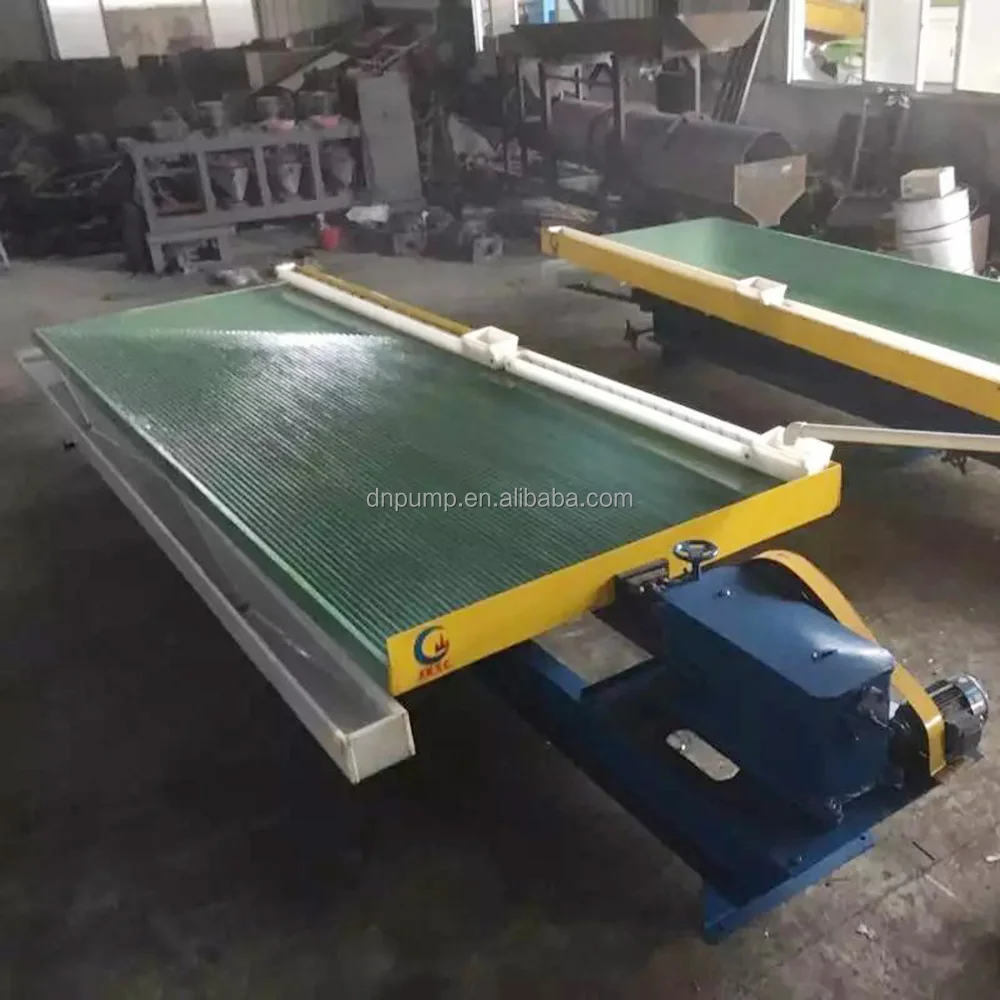

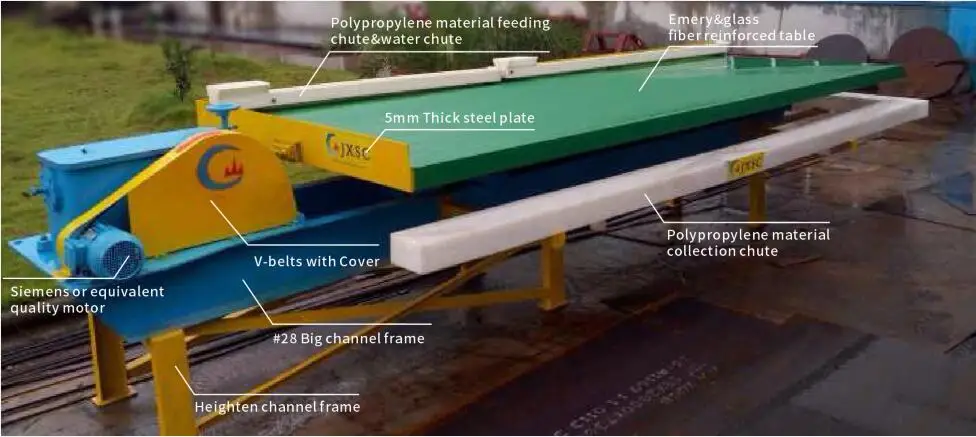

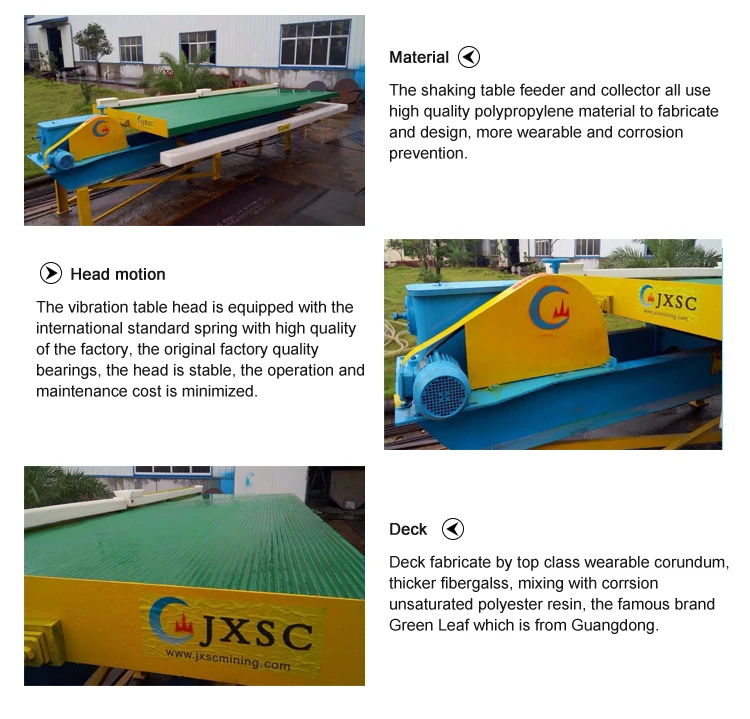

Head motion: gravity gold shaking table cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.

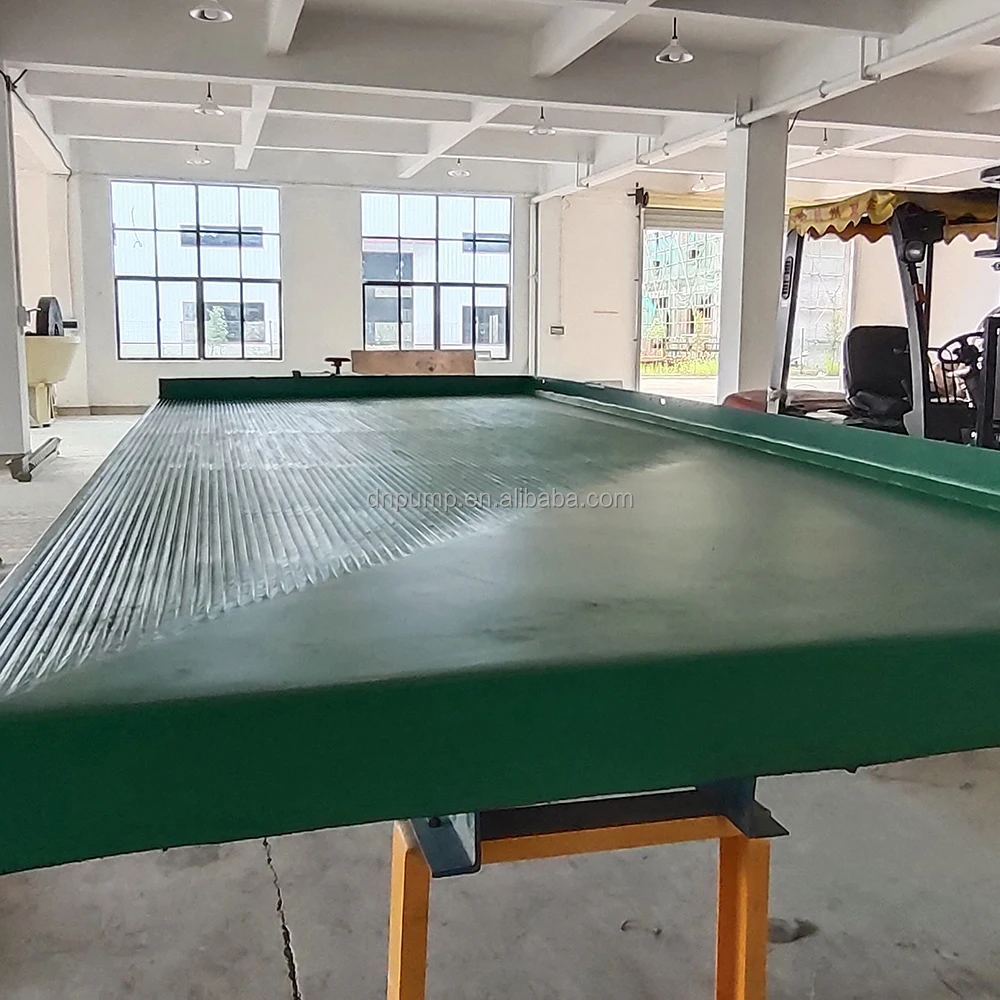

Decks: gravity gold shaking table have three distinct deck designs available. The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.1 mm to 1mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.5 mm.
Feeding Chute and Water Chute: A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.1 mm to 1 mm) and slime (0.037-0.5 mm). Effective mineral recovery size range is 0.037 mm to 2 mm.
Head motion: gravity gold shaking table cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
Decks: gravity gold shaking table have three distinct deck designs available. The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.1 mm to 1mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.5 mm.
Feeding Chute and Water Chute: A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Specifications
Model Performance | 6S-4500 | LY-2100 | LY-1100 | ||
Deck Size(mm) | 4500×1850×1560 | 2100×1050×850 | 1100×500×430 | ||
Feeding Range(mm) | Sand ore | -2 | -2 | -2 | |
slime | -0.074 | -0.074 | -0.074 | ||
Feeding Density | % | 10-30 | 10-30 | 10-30 | |
Capacity (t/h) | Sand ore | 0.5-1.8 | 0.4-0.8 | 0.1-0.2 | |
slime | 0.5-0.8 | 0.3-0.5 | 0.05-0.1 | ||
V-belt (mm) | A-2000 | B-2007 | A-1245 | ||
Size(mm) Length × width × height | 5600×1850×860 | 3040×1050×1020 | 1530×500×800 | ||
Weight(kg) | 1100 | 480 | 160 | ||
This is the basic parameter, we can according to the condition of your mine to specify the exclusive scheme!

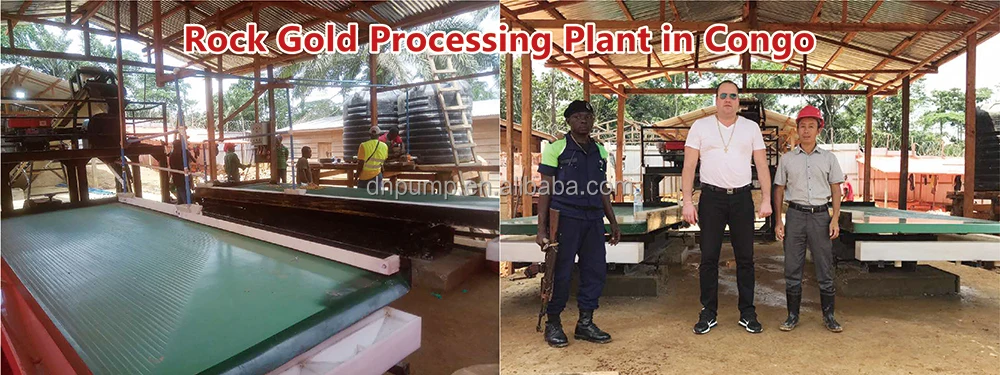

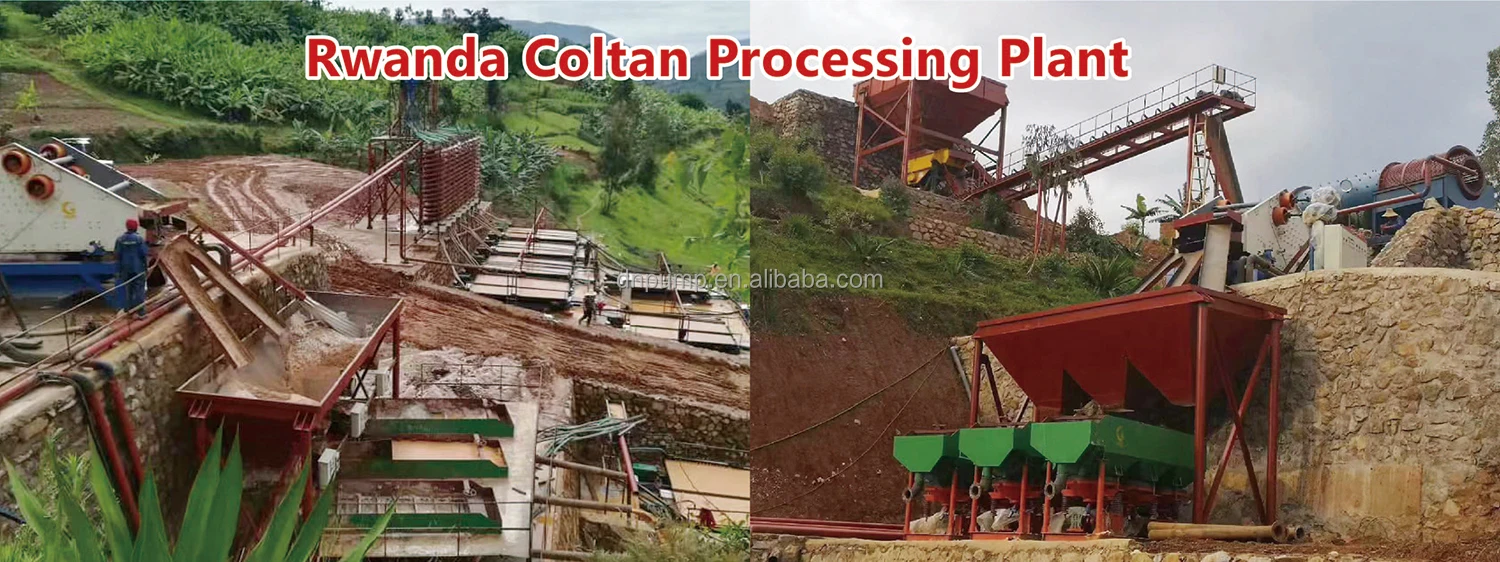

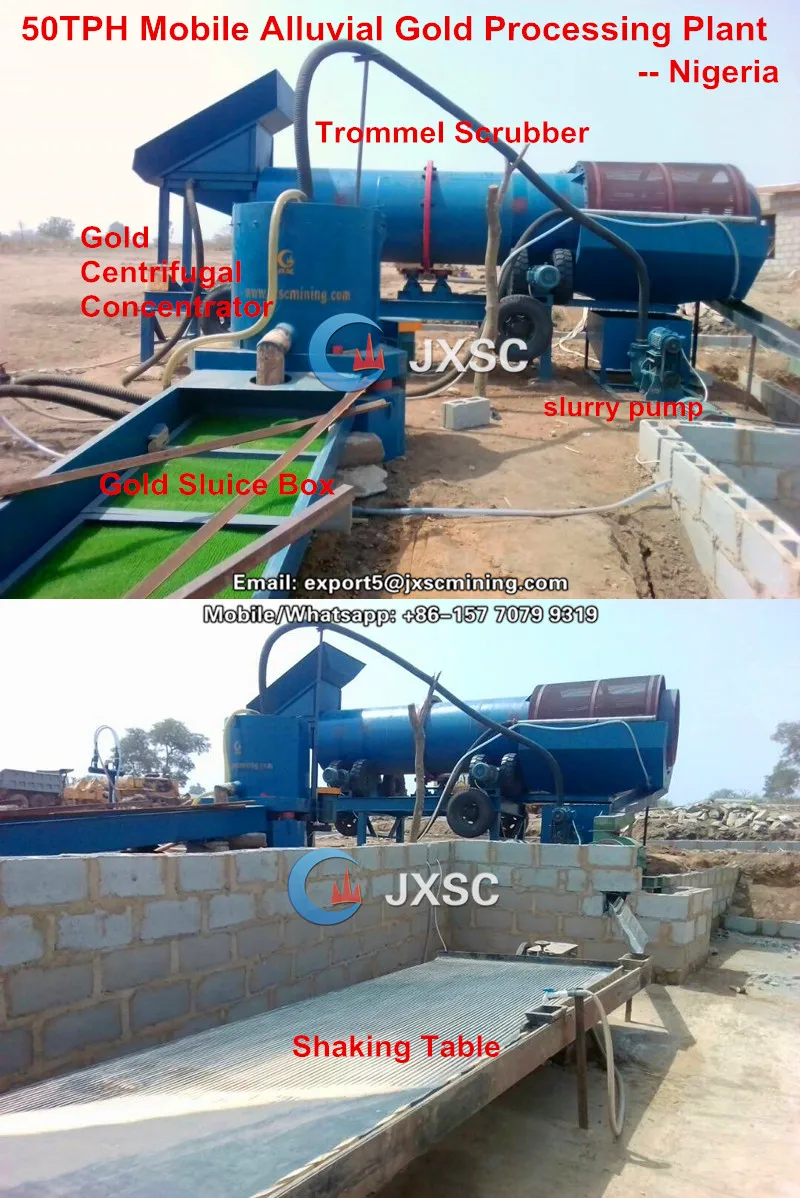

Successful cases
We have provided shaking tables and even mineral processing equipment for many foreign customers. We also have rich production experience and process design experience. Welcome to consult!

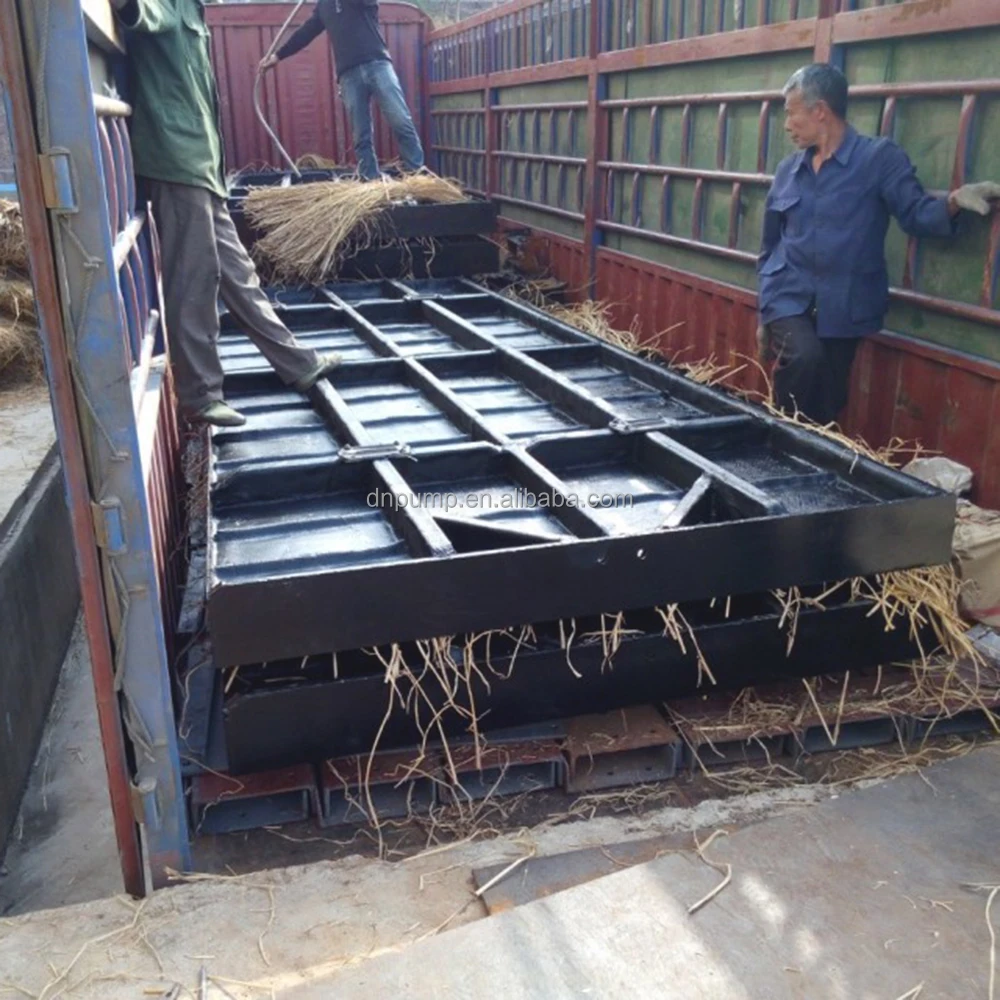

Packing & Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Why Choose Us
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 40% deposit, 60% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 40% deposit, 60% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
