DEYE Good Quality SUN 30K SG01HP3 EU BM3 20kW 30kW 40kW 50kW Three Phase High Voltage Hybrid Solar Inverter With Certificated
- Category: >>>
- Supplier: Eitai (Xiamen) New Energy Technology Co. Ltd.
Share on (1601284475827):
Product Overview
Description
Product Description
Configuration List
Model | SUN-30K-SG01HP3 -EU-BM3 | SUN-40K-SG01HP3 -EU-BM4 | SUN-50K-SG01HP3 -EU-BM4 | |||
Battery Input Data | ||||||
Battery Type | Li-lon | |||||
Battery Voltage Range (V) | 160~800 | |||||
Max. Charging Current (A) | 50+50 | |||||
Max. Discharging Current (A) | 50+50 | |||||
Number of battery input | 2 | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 39000 | 52000 | 65000 | |||
Max. DC Input Voltage (V) | 1000 | |||||
Start-up Voltage (V) | 180 | |||||
MPPT Range (V) | 150-850 | |||||
Full Load DC Voltage Range (V) | 360-850 | 360-850 | 450-850 | |||
Rated DC Input Voltage (V) | 600 | |||||
PV Input Current (A) | 36+36+36 | 36+36+36+36 | ||||
Max. PV I (A) | 55+55+55 | 55+55+55+55 | ||||
No.of MPP Trackers | 3 | 4 | ||||
No.of Strings per MPP Tracker | 2 | |||||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 30000 | 40000 | 50000 | |||
Max. AC Output Power (W) | 33000 | 44000 | 55000 | |||
AC Output Rated Current (A) | 45.5/43.5 | 60.7/58 | 75.8/72.5 | |||
Max. AC Current (A) | 50/47.8 | 66.7/63.8 | 83.4/79.7 | |||
Max. Three-phase Unbalanced Output Current | 60 | 70 | 83.3 | |||
Max. Continuous AC Passthrough (A) | 150 | |||||
Peak Power (offff grid) | 1.5 time of rated power, 10 S | |||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||
Grid Type | Three Phase | |||||
General Data | ||||||
Operating Temperature Range (℃) | -40~60℃, >45℃ derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | <45 dB | |||||
Communication with BMS | RS485; CAN | |||||
Size (mm) | 527W×894H×294D | |||||
Weight (kg) | 75 | |||||
Protection Degree | IP65 | |||||
Warranty | 5 years | |||||
Related products

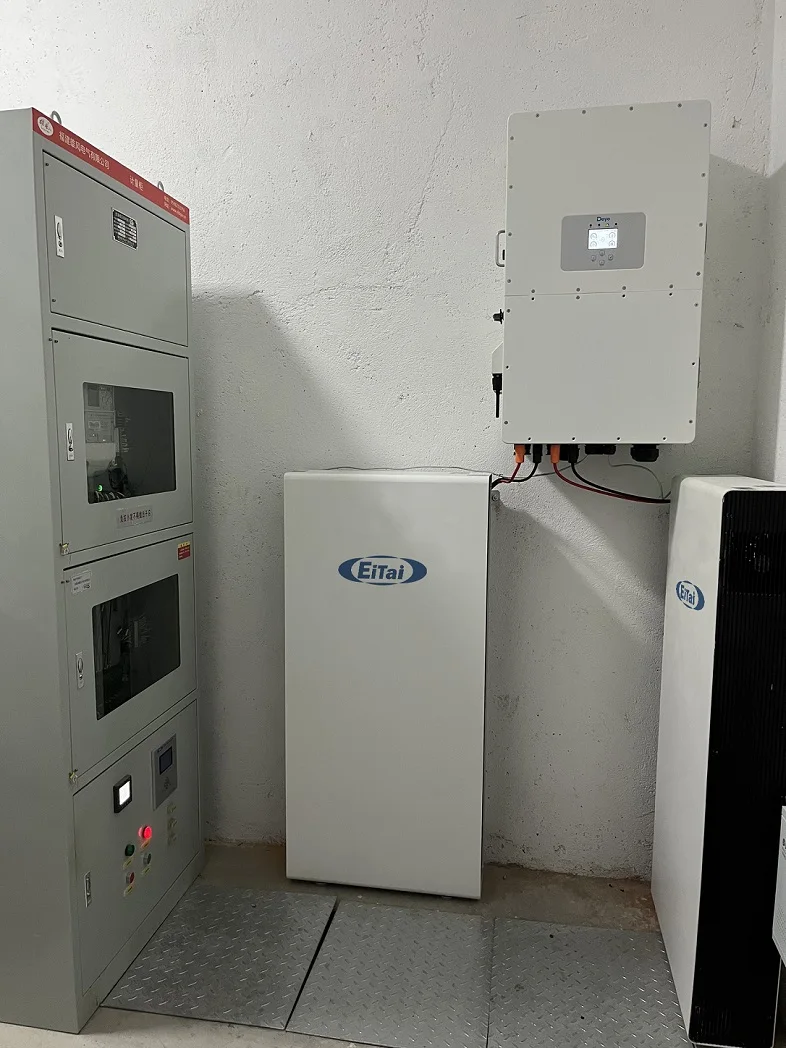

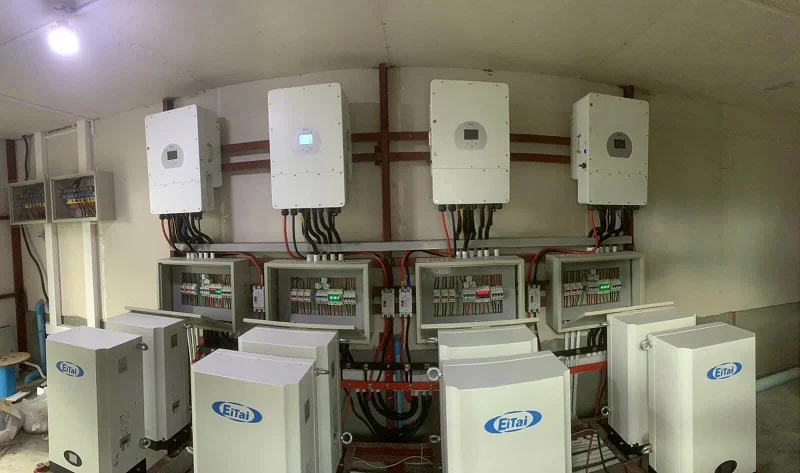

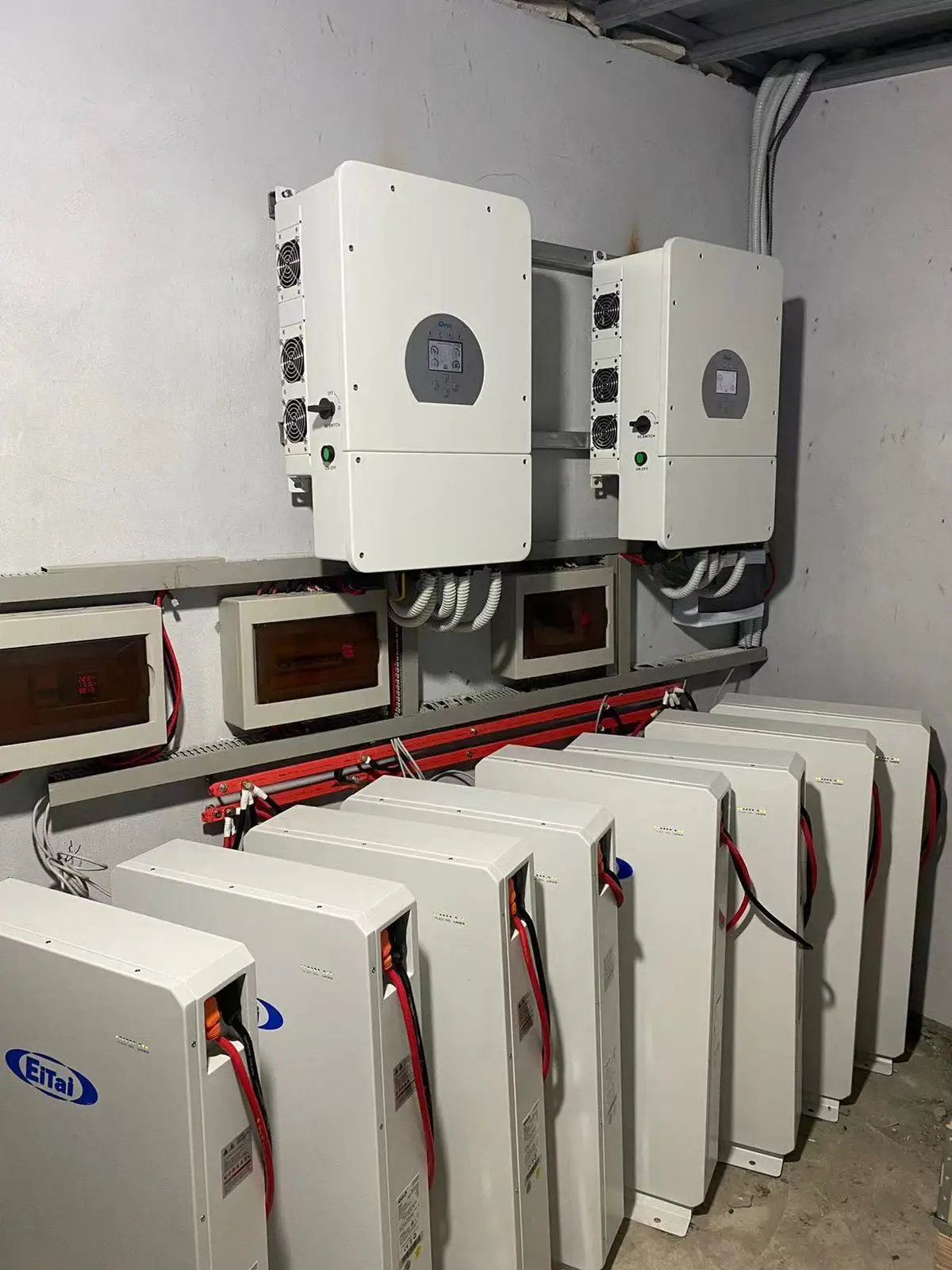

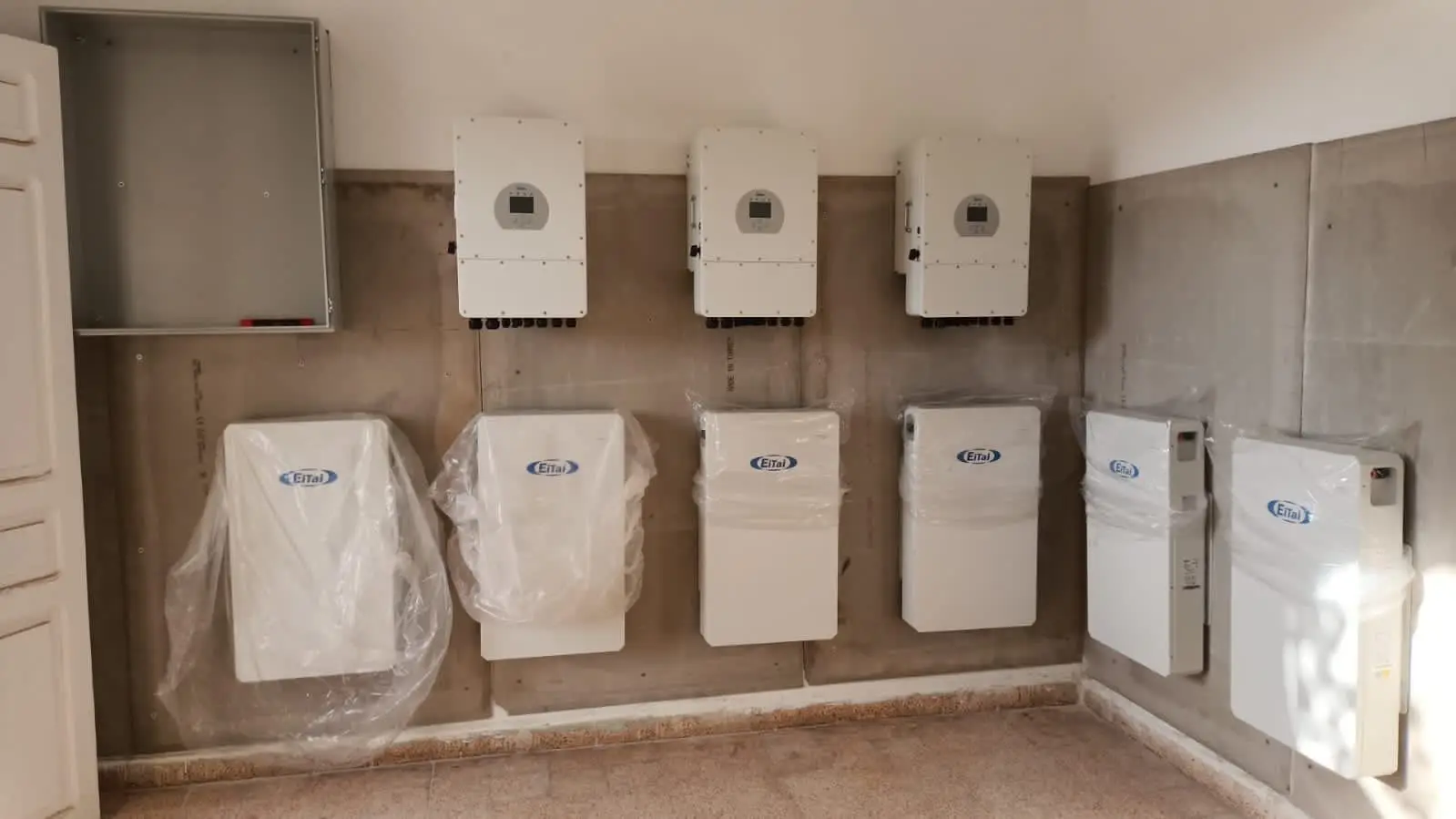

Product Application
Deliver and Payment
Perfect packaging for easy transportation and safe shipping
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : ship within 5days after payment
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : ship within 5days after payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,00 USD, we can accept L/C at sight | ||||
West Union | Amount lower than 5000USD | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
