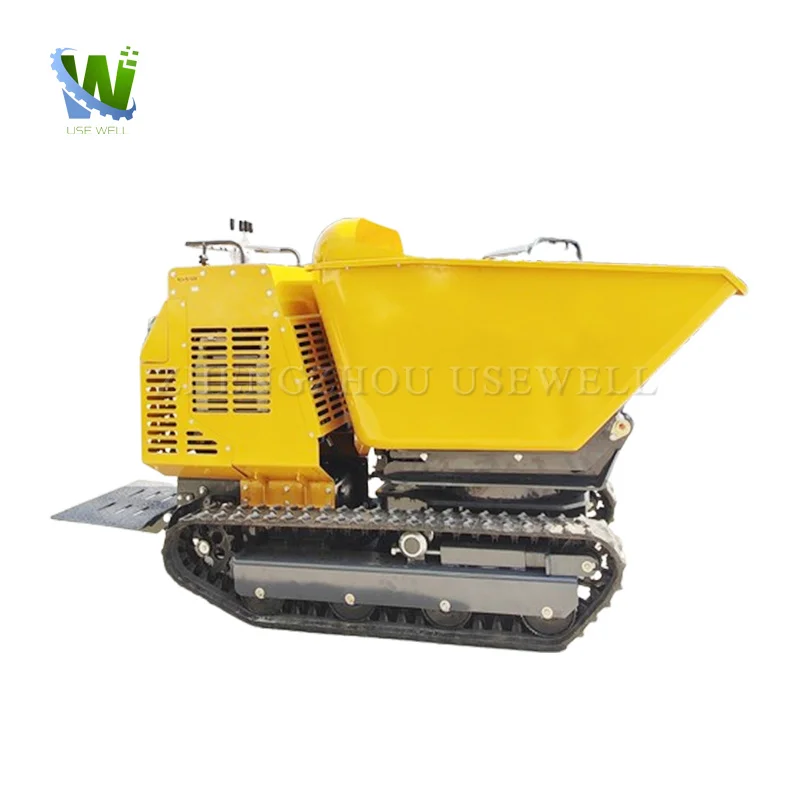

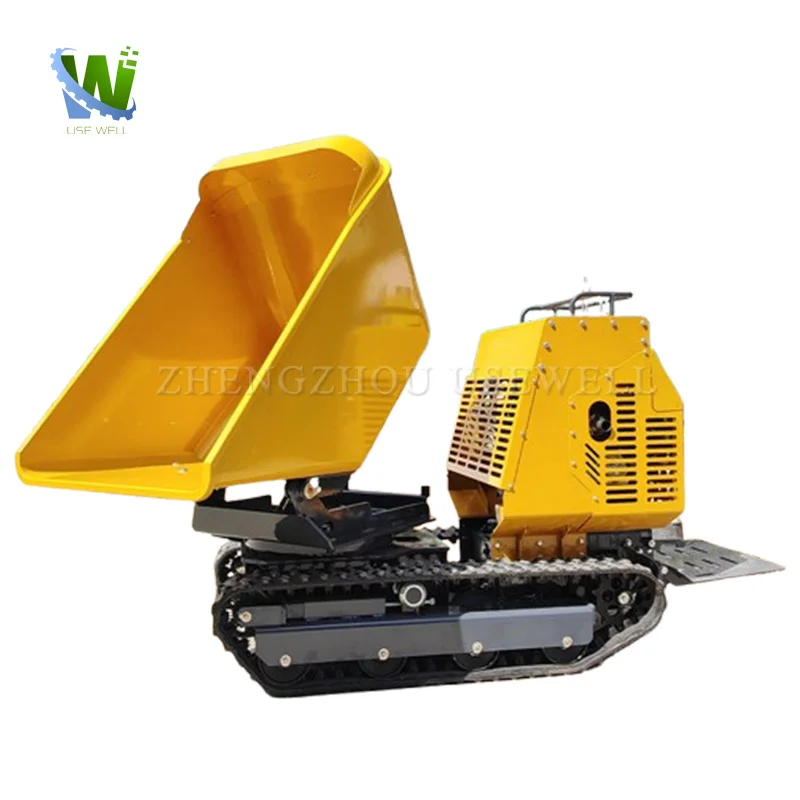

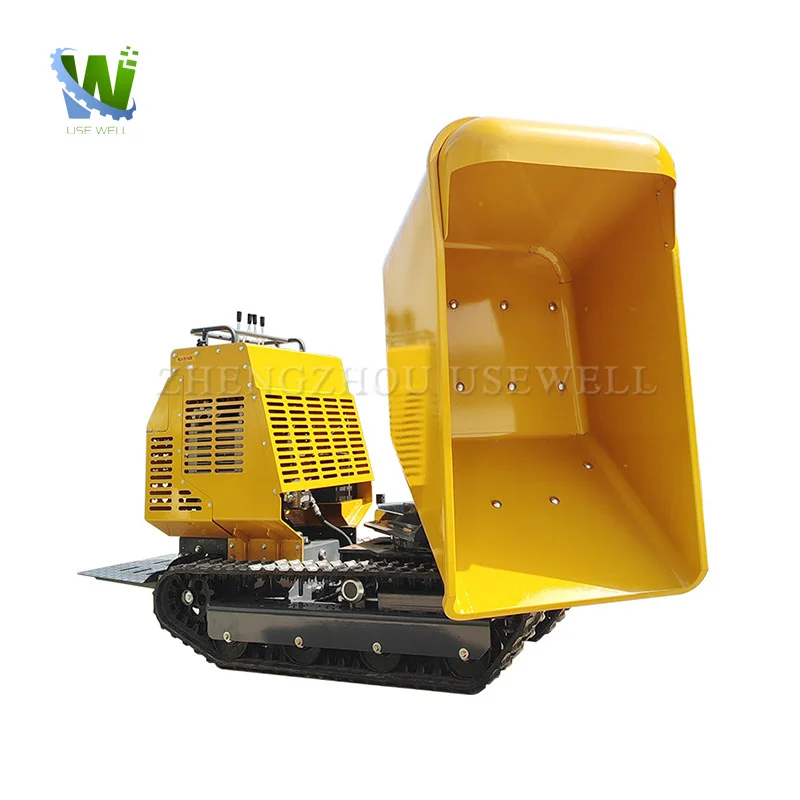

Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale
Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale
Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale
Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale
Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale
Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale
Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale

Portable Gasoline Hydraulic Mini Dumper Self Loading Dump Truck Mini Dumper Crawler Dump Truck for Sale

Share on (1601284534808):


Price:$5,200.00

Quantity:


Product Overview

Description



Products Description




Engine data
Engine Model
Briggs & Stratton Pioneer
Engine Type
Single cylinder, OHV,4-stroke, air cooling
Displacement(ML)
420CC
Rated Power
13.5HP/3600rpm
Fuel Type
92 # Gasoline
Fuel Tank capacity
6.5L
Weight data（KG/MM）
Net weight
850
Maximum load capacity
1200
Body size(Footboard not included)
2060*900*1400
Pedal machine size included
2470*900*1400
Container size
1400*800*600
Chassis width
900
Rotating data(MM)
Maximum rotation Angle
260
Rotation mode
Hydraulic rotation
Tipping interval
320
Track data(MM)
Track width
180
Track grounding length
1000
Chassis ground clearance
140
Hopper data
Cargo box Capacity
594dm³
Tipping Systme
Hydraulic Tipper
Tilting Angle
90°
Clearance after tipping container
300MM
Walk data
Walking Speed
5km/h
Climbing abillty
25°


Features

1. Compact and flexible: The mini crawler dump truck is compact in size and can flexibly shuttle in narrow spaces and adapt to various complex terrains.
2. Crawler walking: It adopts a crawler walking system, which has good off-road performance and ground adaptability, and can drive stably in muddy, slippery or rugged terrain.
3. Hydraulic tipping bucket: The tipping function realized by the hydraulic system can dump materials quickly and smoothly, improving work efficiency.
4. Large load capacity: Although small in size, mini crawler dump trucks are usually designed with larger load capacity to meet transportation needs in different scenarios.
5. Easy to operate: The operation is simple and easy to learn, and the driver can get started quickly, reducing the difficulty of operation and labor costs.

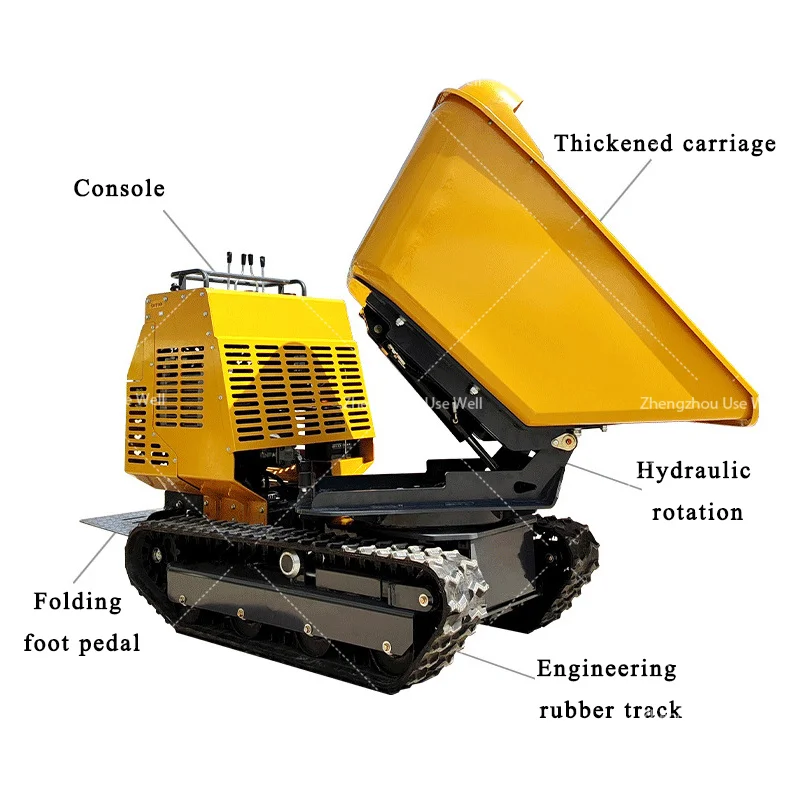

Details Images

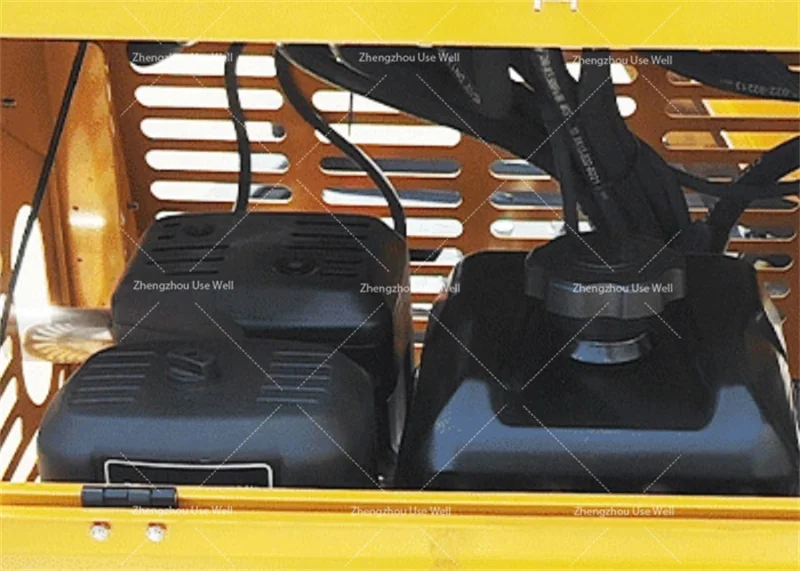

Engine

Gasoline engine, high power, low noise, low maintenance cost

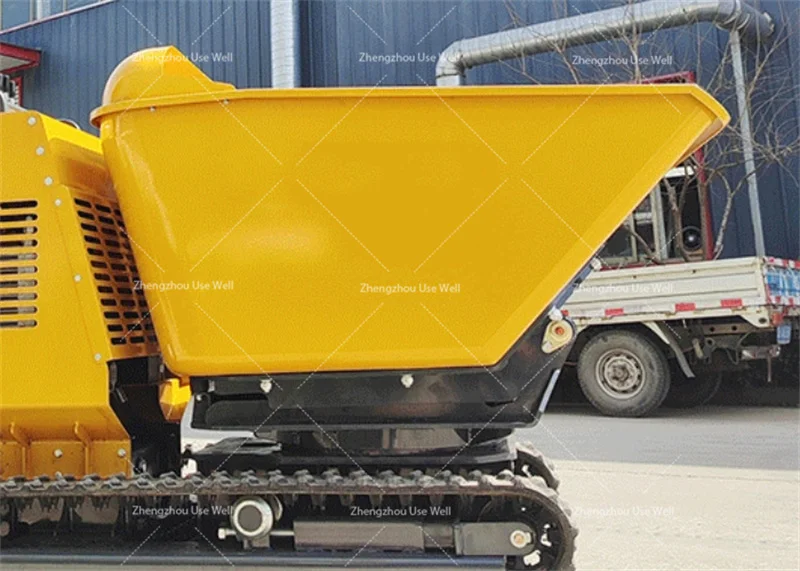

Thickened Compartment

The thickened carriage is made of thick steel plates Strong loading capacity

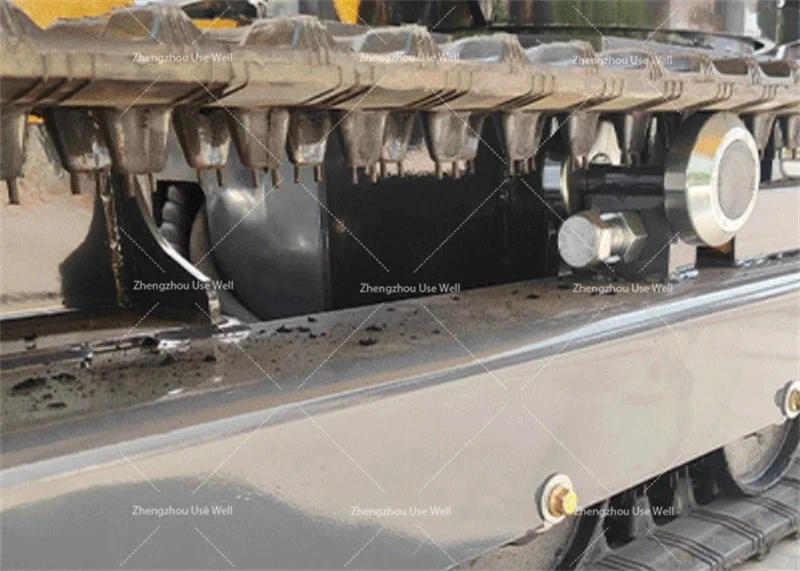

Rubber Tracks

Engineering rubber tracks, anti-slip and wear-resistant

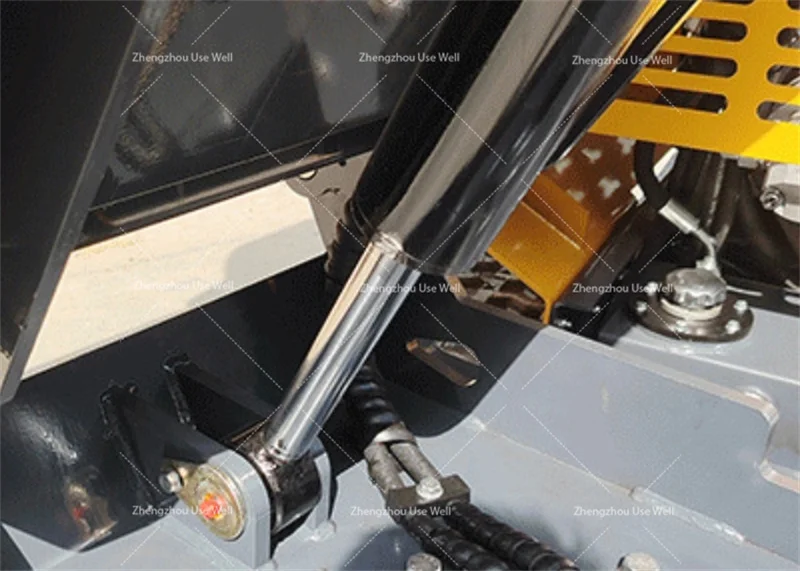

Hydraulic Transmission

Select the most appropriate speed based on terrain to reduce maintenance and fuel consumption


Application




1.Farmland or orchards: In farmland and orchards, mini crawler dump trucks can be used to transport crops, fertilizers, pesticides and other materials, reducing farmers' labor intensity and improving production efficiency.
2.Construction site construction: On the construction site, mini crawler dump trucks can be used to transport sand, gravel, concrete and other construction materials to help the project advance quickly.
3.Mining: In mines, mini crawler dump trucks can be used to transport ore, waste rock and other materials, providing strong support for mining.

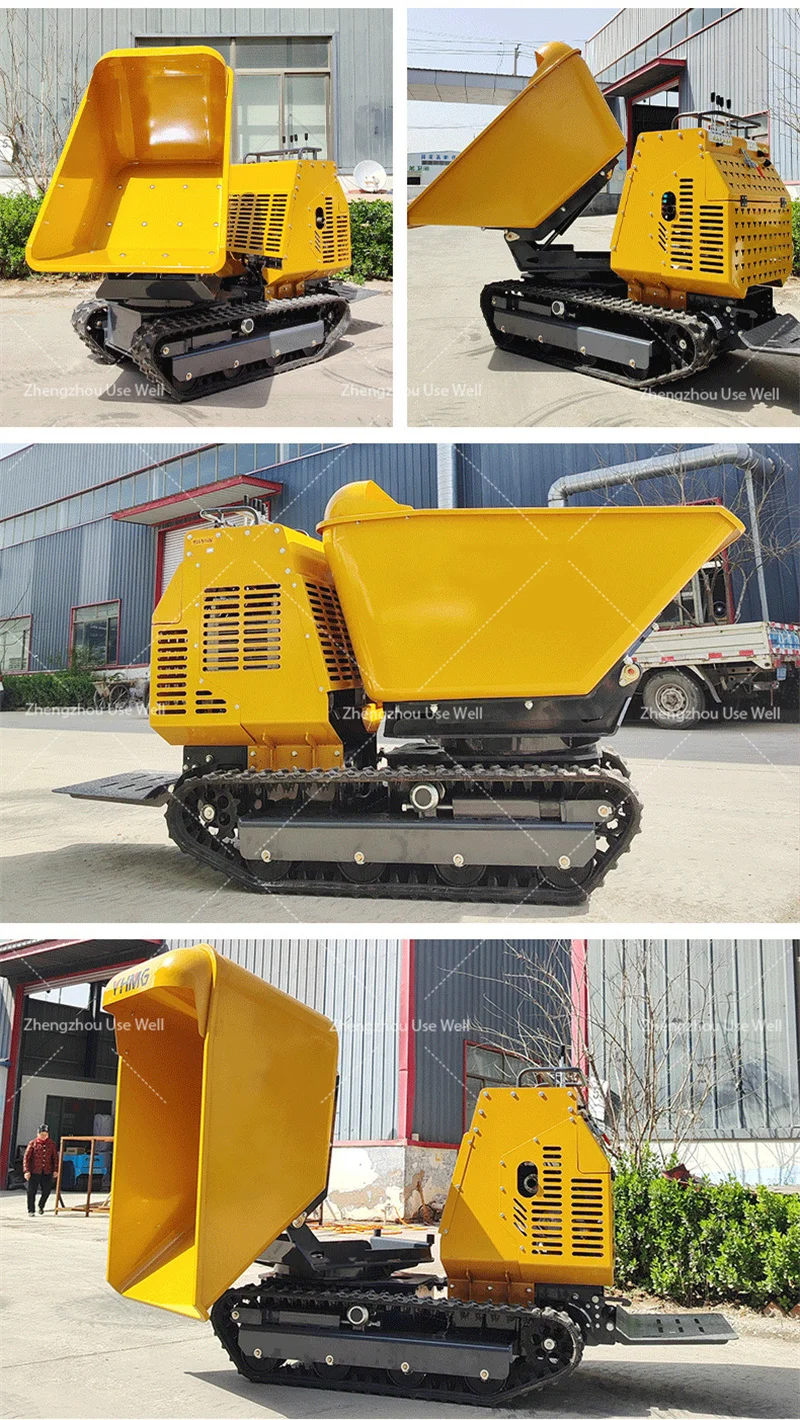

More Image Displays

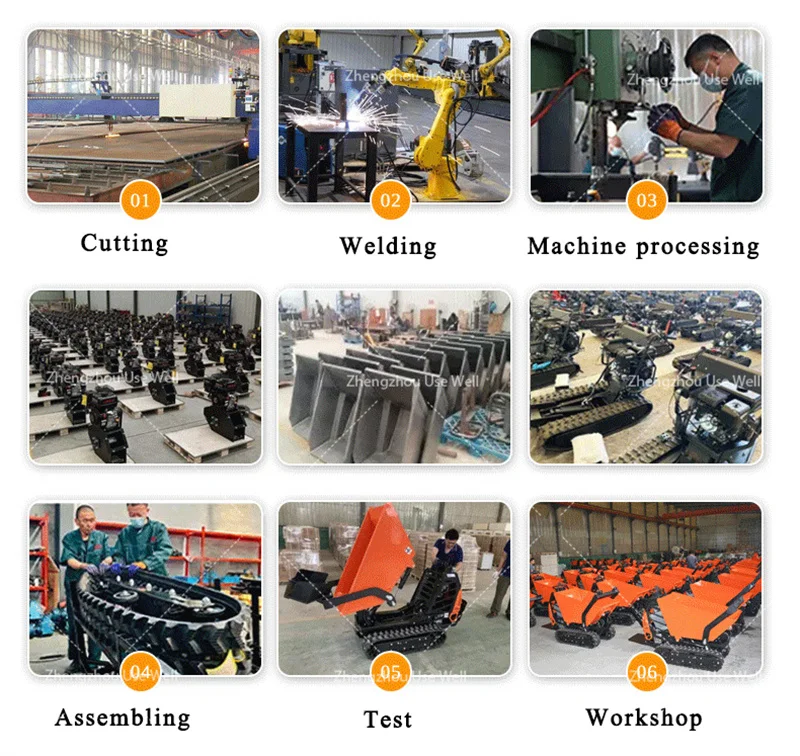

Production Process

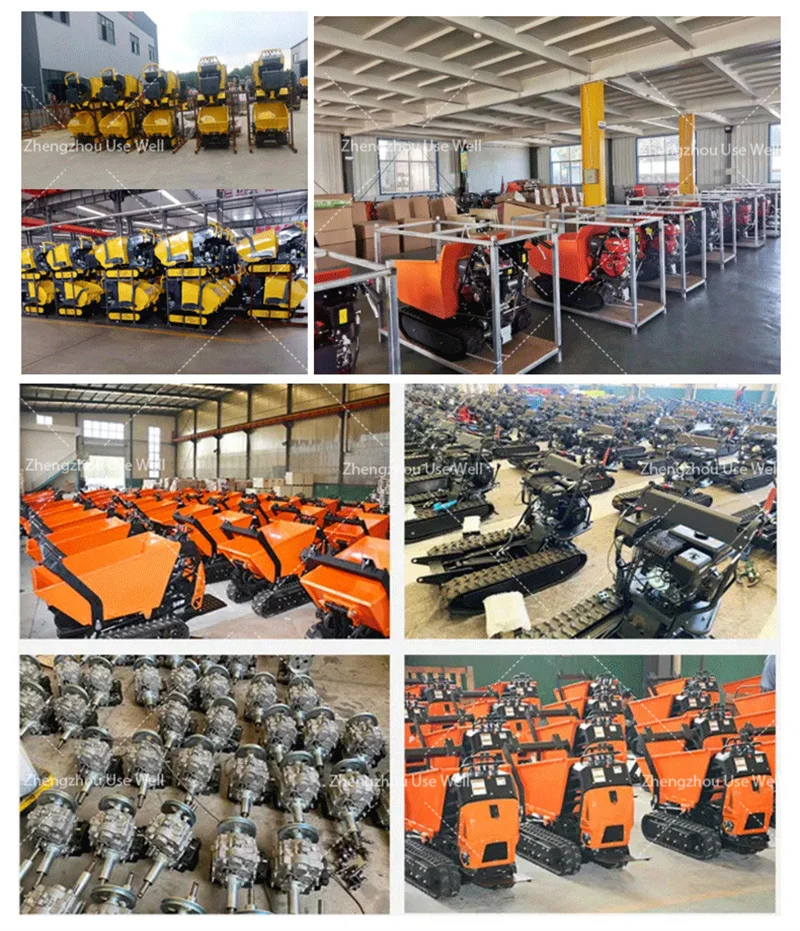

Warehouse Display

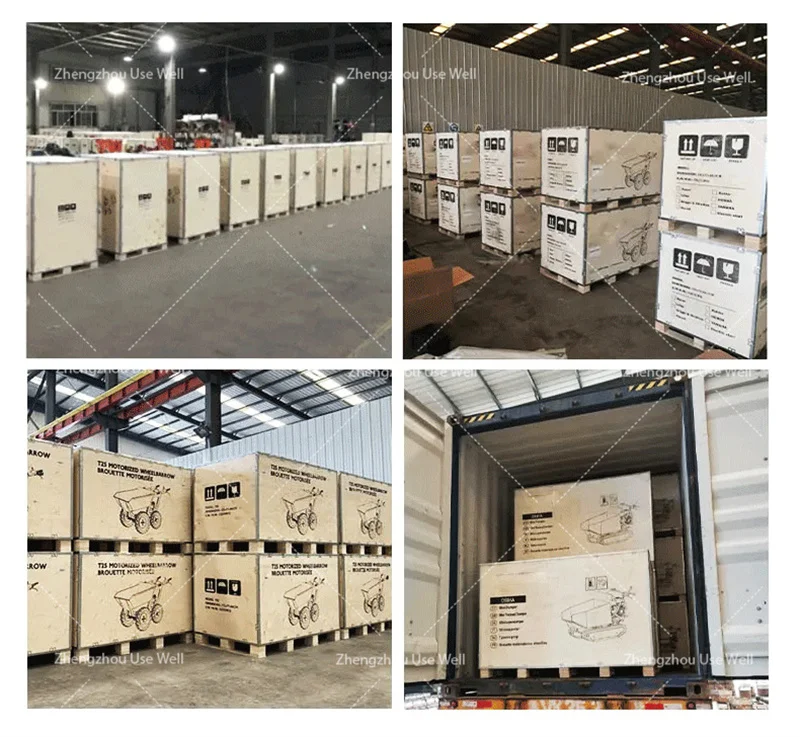

Packaging Display
