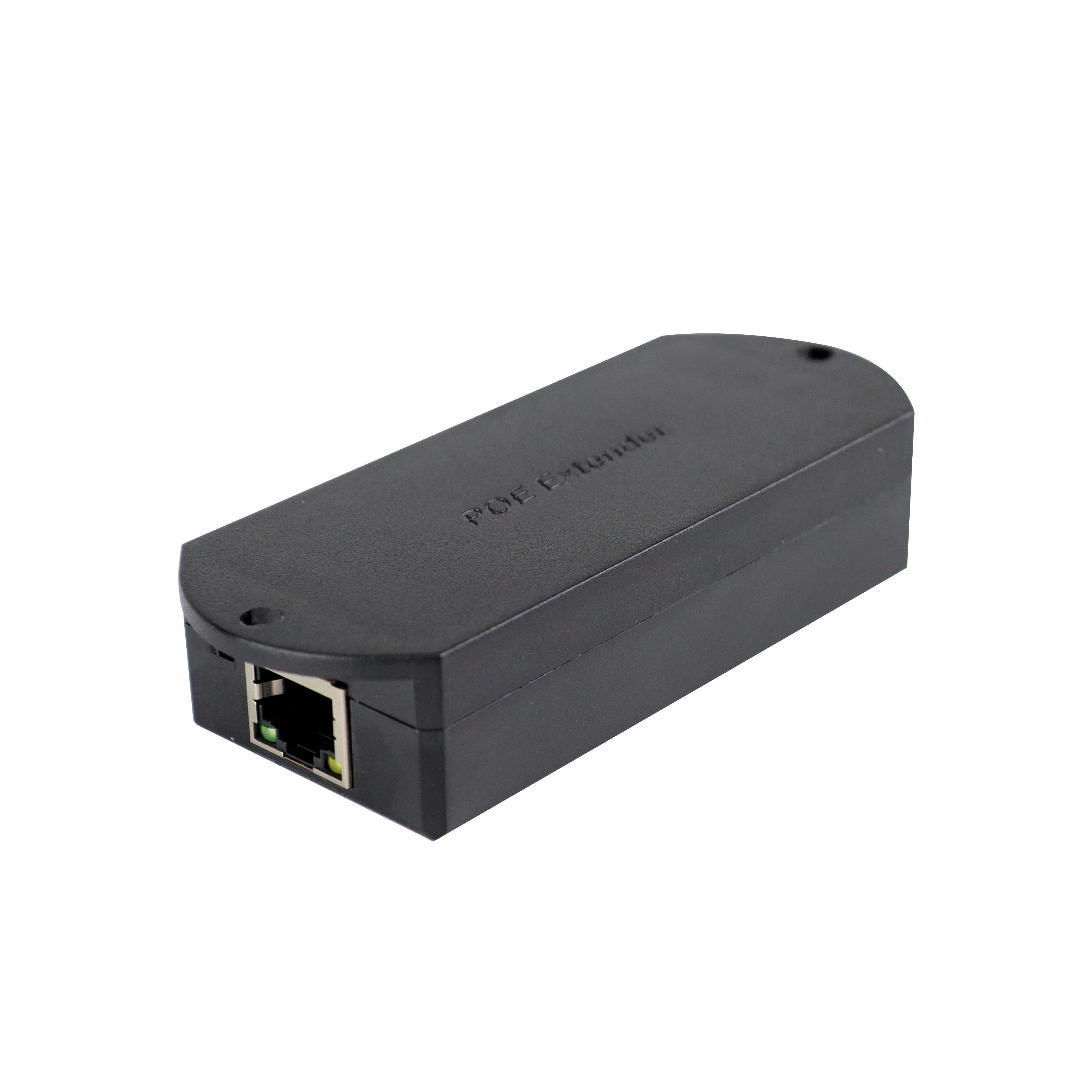

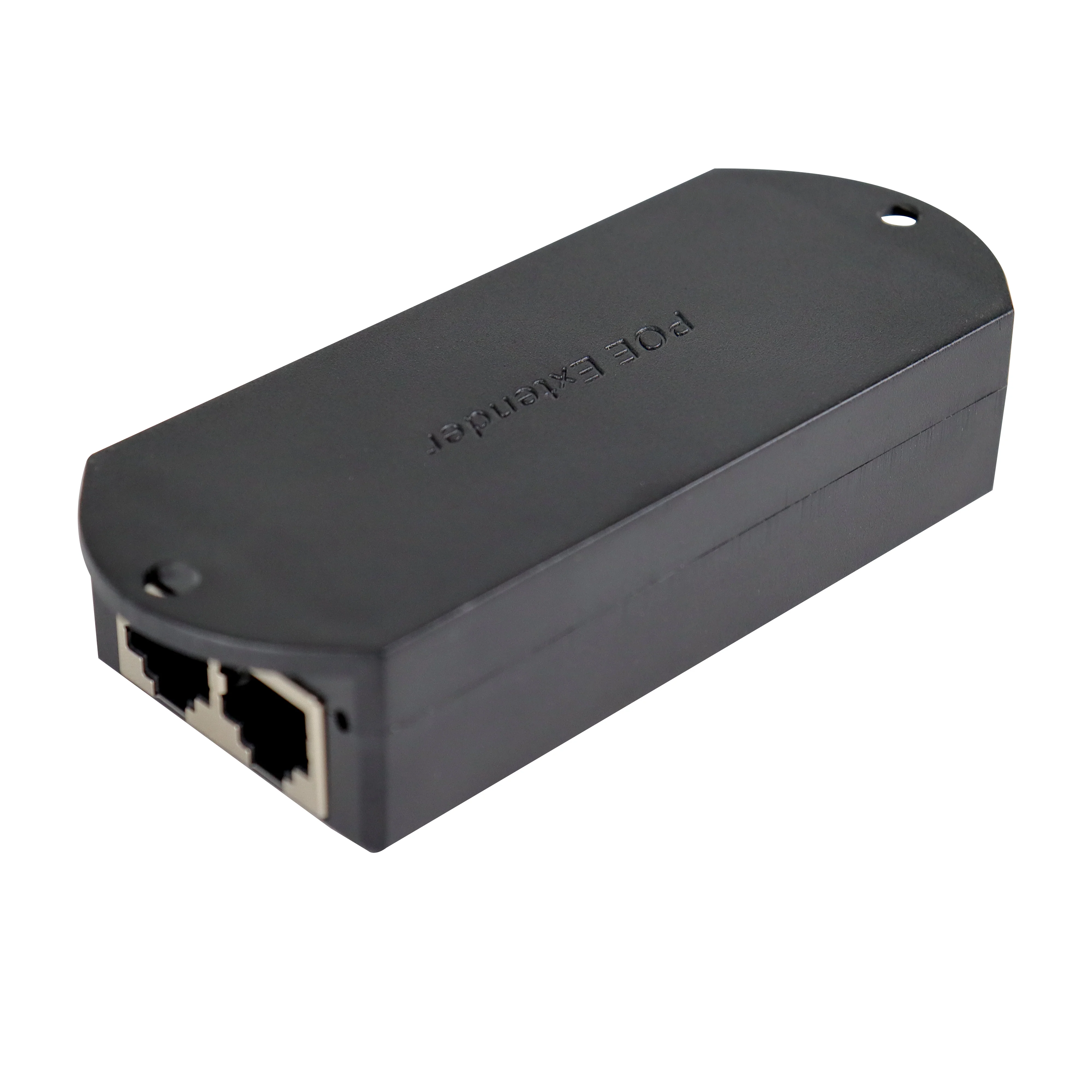

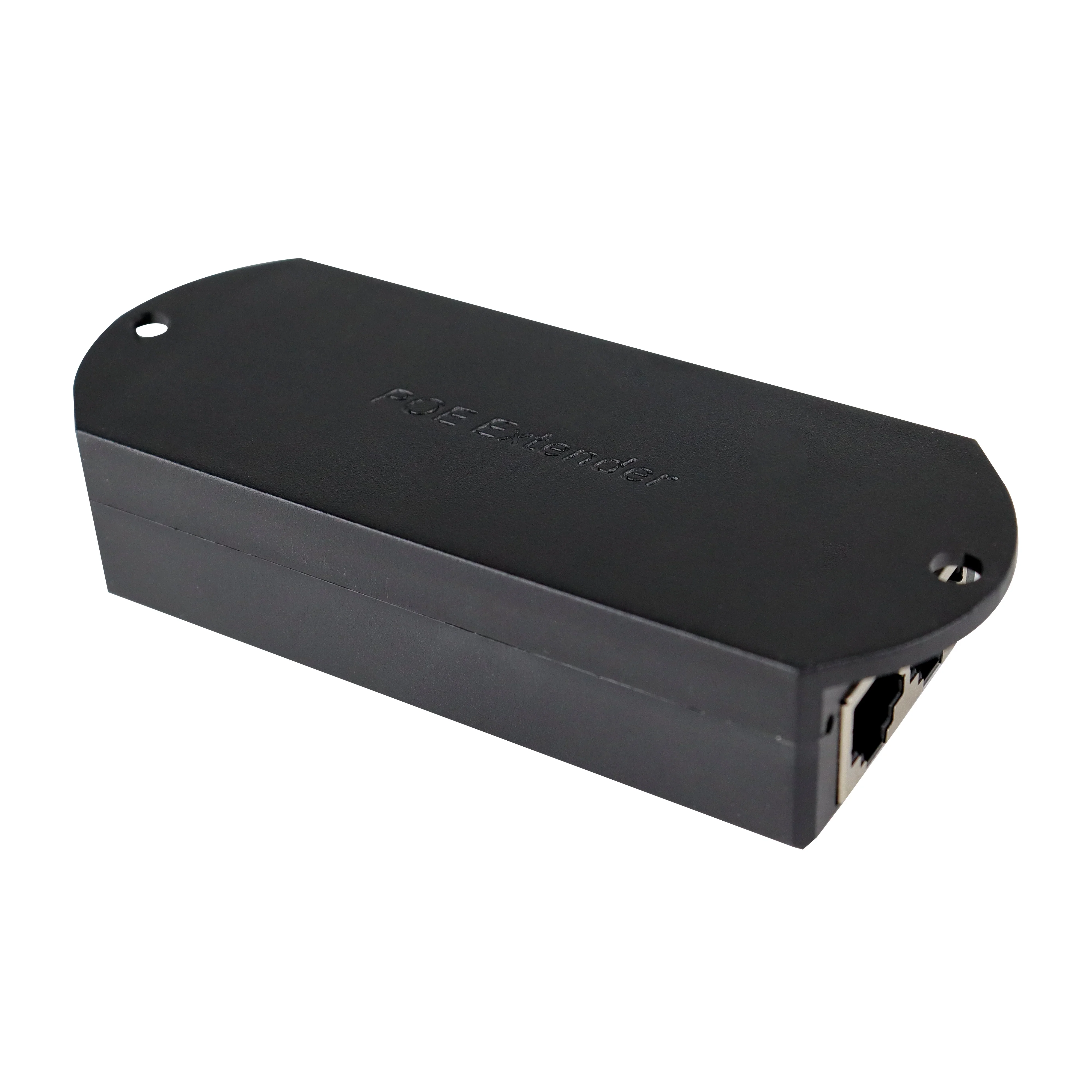

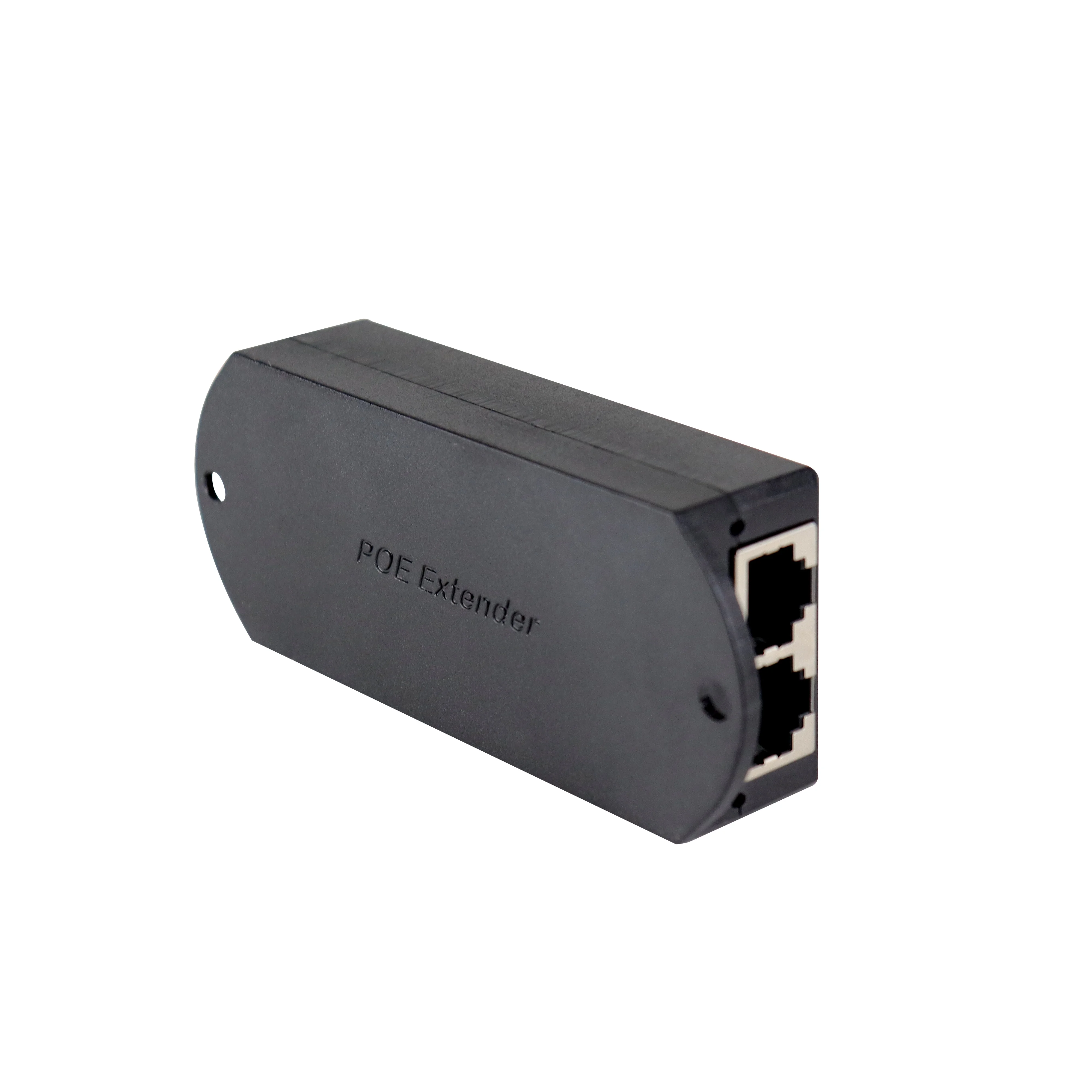

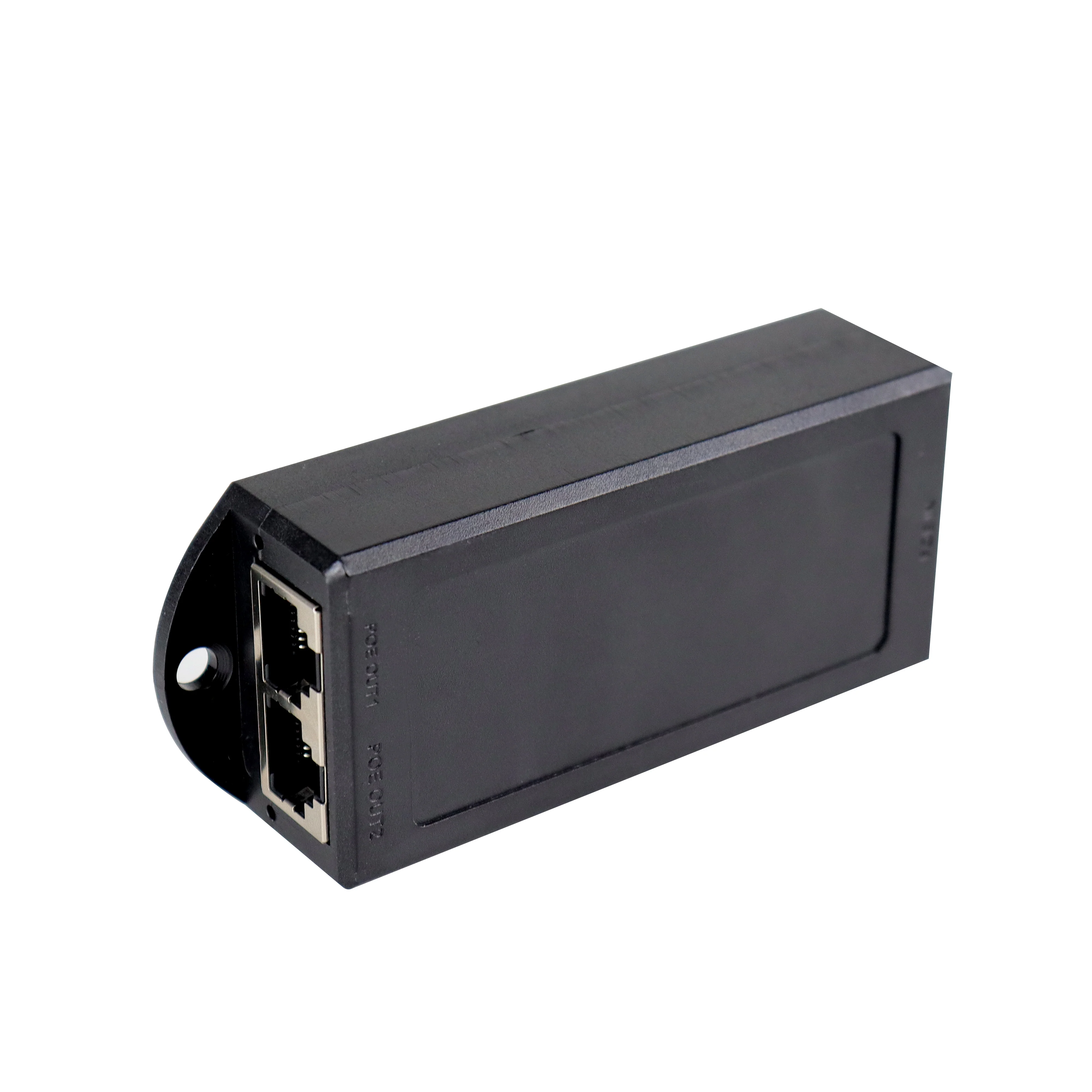

POE Extender 1 T0 2 Port 10/100M 30W for poe IP Camera to Extend 120 Meters IEEE802.3af POE Network Devices
- Category: >>>
- Supplier: Shenzhen Sunsoont Technology Co. Ltd.
Share on (1601284549388):
Product Overview
Description
Product Description
SunSoont OEM price 10/100Mbps 1 to 2 POE extender DC48V for POE cameras
1.SST-LSD200H is a POE extender product that complies with the IEEE802.3af/at standard, featuring fast transmission, low power consumption, no delay, fast response, and dual light indication for medium to long-distance transmission, integrating centralized relay and cascade.
2. Adopting MCU control chip and various protection circuits to safeguard the performance of the product!
3. The product supports IEEE802.3af/at POE protocol
4. POE power of the whole machine: 30W (max)
5. POE input is compatible with non-standard 44-57V power supply (non-standard input can only be supplied through 4,5+, 7,8-)
6. POE input: (1,2+)/(3,6-) and (4,5+)/(7,8-) adaptively support 2-pair and 4-pair input
7. POE OUT1 output: POE (1,2+)/(3,6-), transmission rate 10/100Mbps, transmission distance ≤ 100 meters (max)
8. POE OUT2 output: POE (1,2+)/(3,6-), transmission rate 10/100Mbps, transmission distance ≤ 100 meters (max)
9. By dialing code switching, PORT1 and PORT2 can be forced to have a transmission distance of 10Mbps ≤ 250 meters (max)
2. Adopting MCU control chip and various protection circuits to safeguard the performance of the product!
3. The product supports IEEE802.3af/at POE protocol
4. POE power of the whole machine: 30W (max)
5. POE input is compatible with non-standard 44-57V power supply (non-standard input can only be supplied through 4,5+, 7,8-)
6. POE input: (1,2+)/(3,6-) and (4,5+)/(7,8-) adaptively support 2-pair and 4-pair input
7. POE OUT1 output: POE (1,2+)/(3,6-), transmission rate 10/100Mbps, transmission distance ≤ 100 meters (max)
8. POE OUT2 output: POE (1,2+)/(3,6-), transmission rate 10/100Mbps, transmission distance ≤ 100 meters (max)
9. By dialing code switching, PORT1 and PORT2 can be forced to have a transmission distance of 10Mbps ≤ 250 meters (max)
Specification
Model | SST-LSD200H | ||||||
Standards/Protocols | IEEE 802.1q, IEEE 802.1p,IEEE 802.3az,IEEE 802.3af/at | ||||||
OEM | Support | ||||||
Network Media | 10BASE-T: Unshielded Category 3, 4, 5 twisted pair (max. 100m) 100BASE-TX/100BASE-T: Unshielded Category 5, Ultra Category 5 or higher twisted pair (max. 100m) | ||||||
Interfaces | 2 x 10/100M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 1 10/100M UP-LINK port (Auto Negotiation/Auto MDI/MDIX) | ||||||
Cascade | POE output port → UP-LINK port | ||||||
Forwarding Mode | store-and-forward (computing) | ||||||
MAC Address Capacity | 1K | ||||||
Switching Capacity | 0.6Gbps | ||||||
Packet Forwarding Rate | 0.4464Mpps | ||||||
Packet Cache | 448Kbits | ||||||
Jumbo frames | 1552/1336 bytes | ||||||
Indicator Lights | Machine | Power.System(Power: red) The indicator state is: always on when the load is connected. | |||||
Port | Link/Activity (Link/Act: Green) Indicator state when signal is connected: blinking. | ||||||
Power Supply | No power supply required, UPLINK network port powered 39V-57V (1/2(+),3/6(-),4/5(+),7/8(-), adaptive) | ||||||
Power supply pins | 1/2（+），3/6（-）（POE output ports only） | ||||||
POE Port Output Power | Single port outpu≤30W | ||||||
Speed limiting function | The POE port speed is limited to 10M/100M (when the speed is limited to 10M, the POE transmission distance can reach 250 meters) | ||||||
Static power consumption | Maximum：0.35W | ||||||
Operating Temperature | Operating Temperature: -10℃~70℃ (32℉~127℉) Storage Temperature: -40 ℃~85 ℃ (-97℉~142℉) Operating Humidity:10%~90% non-condensing Storage Humidity:5%~95% non-condensing | ||||||
Dimensions (L×W×H) Housing Material | EnclosureStandard Hardware 89×42×24mm | ||||||

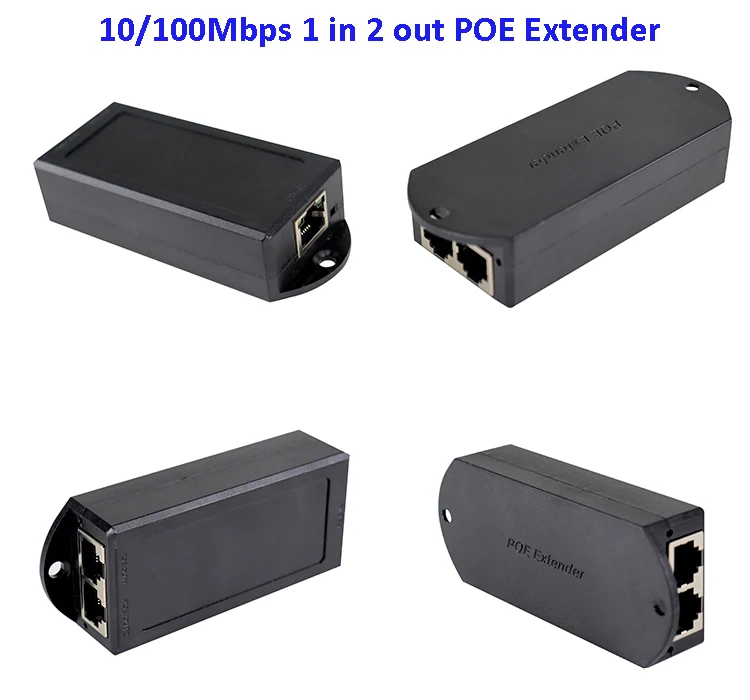

Details Images
