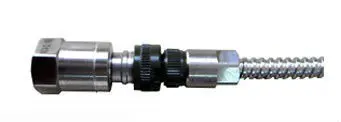

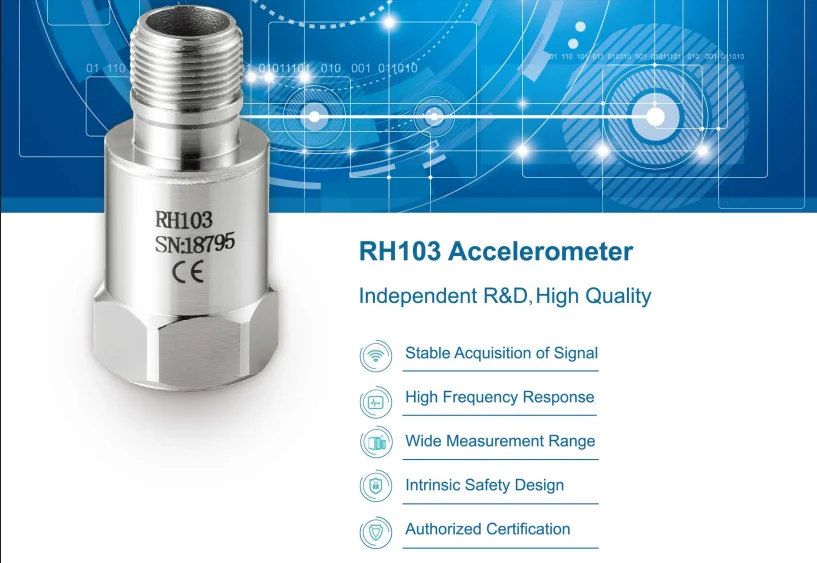

China Ronds Wired sensor RH103 for Condition Monitoring System
- Category: >>>
- Supplier: Anhui Ronds Science & Technology Incorporated Company
Share on (1601284579183):
Product Overview
Description
Product Description
Parameter | Index |
Sensitivity | 100mV/g |
Acceleration Rnage | 80g |
Amplitude Linearity | 1% |
Frequency Response (±10%) | 0.7~10000Hz |
Frequency Response (±3 dB) | 0.4~15000Hz |
Resonance Frequency | 26KHz |
Transverse Sensitivity | ≤5% |
Mount Screw Thread | 6mm |
Bias Voltage | 10-12VDC |
Constant Current | 2-20mA, Typical 4mA |
Voltage Excitation | 18-30VDC, Typical 24VDC |
Output Impedance | ＜100Ω |
Casting Dielectric Resistance | ＞108Ω |
Maximum Shock Level | 5000g |
Weight | 81g |
Dimensions | DXH, 23x50.9mm |
Sealing Arrangement | Laser welding |
Sensor composition | Plane shear |

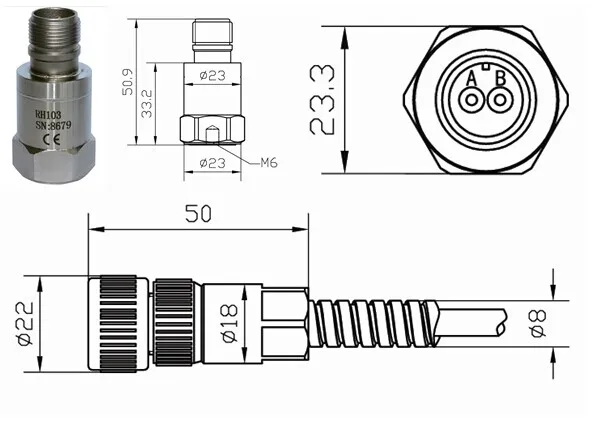

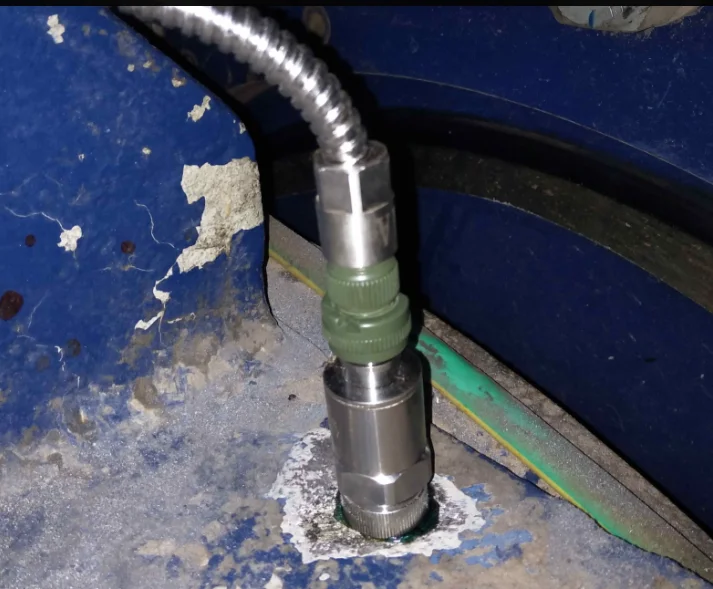

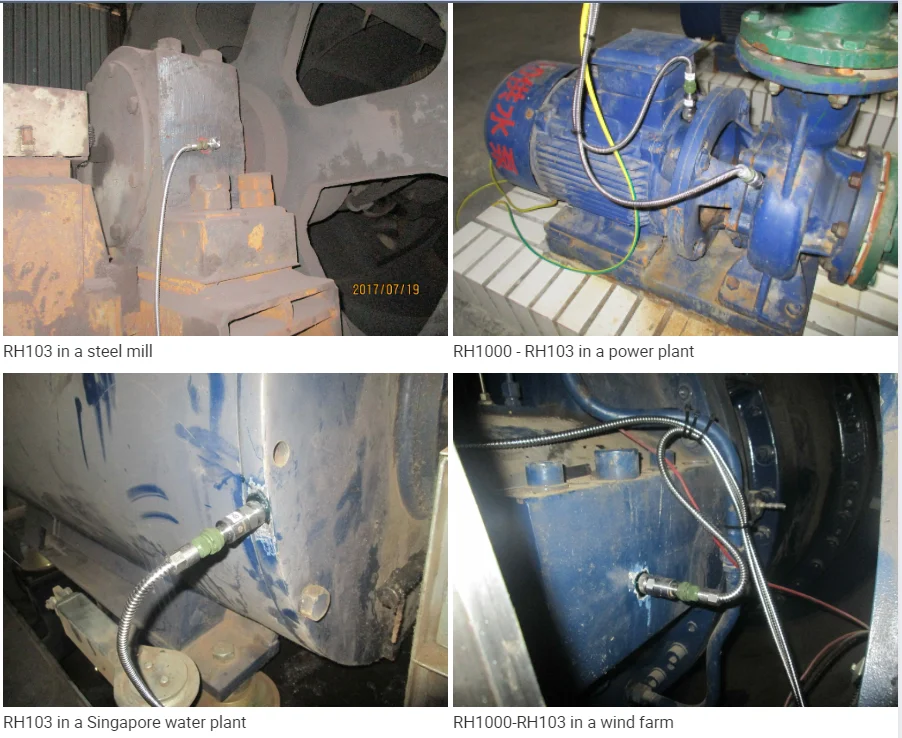

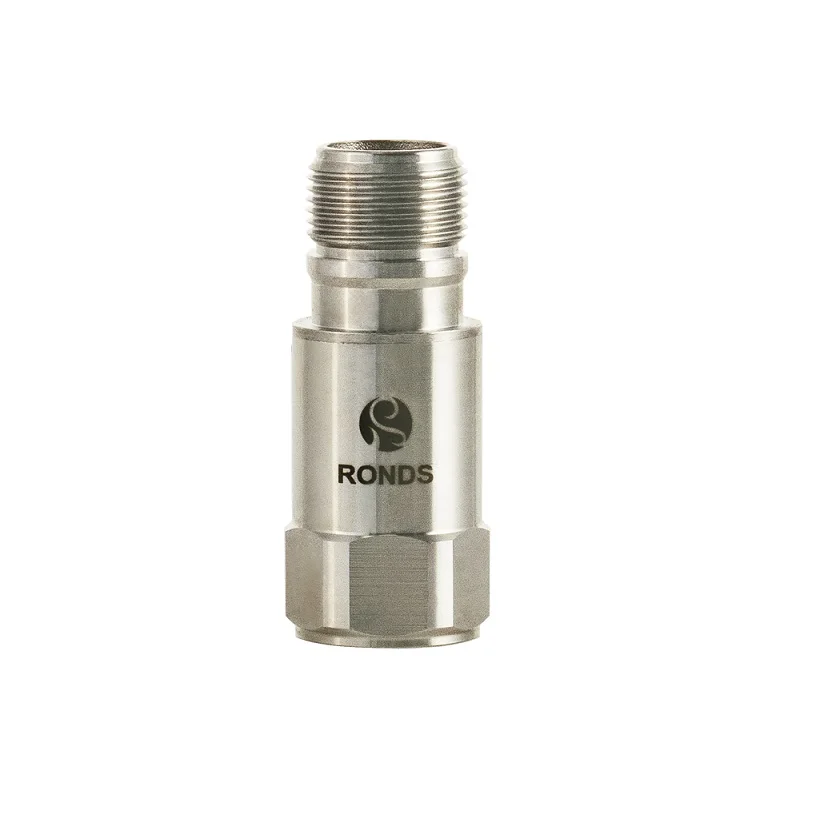

Product Picture
