Product Overview
Description
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development,engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

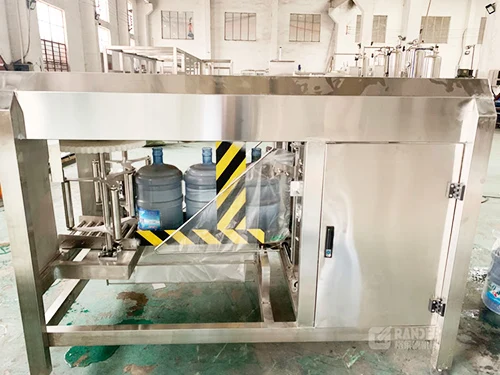

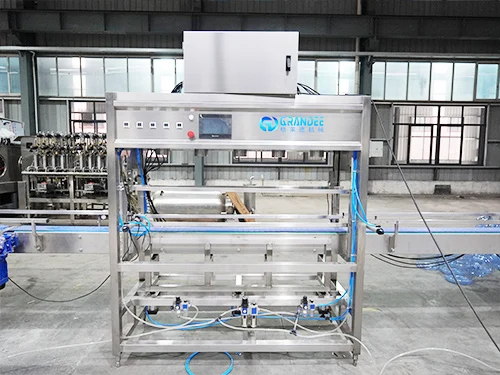

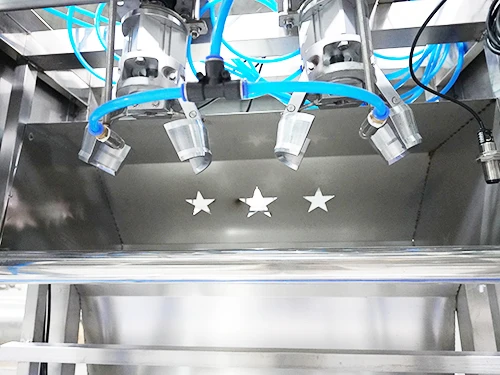

Decapping machine can be used alone, or whole production line. The cap-pulling head is mainly composed of cap pulling claw, cylinder, and other components. The cap-pulling head can be adjusted up and down, and the cap-pulling claw can be fine-tuned. It does not hurt the bottle mouth and has strong applicability to different bottle mouths. The host machine is controlled by PLC.
When the bottle runs to the cap-pulling position, the cap-pulling head drops, the cap-pulling claw grasps the edge of the bucket mouth cover, and the bucket is lifted and the lid is pulled out.
When the bottle runs to the cap-pulling position, the cap-pulling head drops, the cap-pulling claw grasps the edge of the bucket mouth cover, and the bucket is lifted and the lid is pulled out.

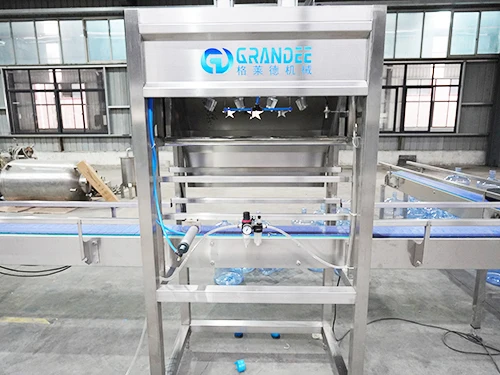

[2] Leakage Tester
Automatic 5 gallon bottle Leaking Detector is a professional equipment to check leakage. With inline design, empty 5 gallon bottle is fed into testing compressed air continuously. After gas filling, pressure keeping, pressure testing, qualified bottle will be sent to next process, the damaged barrels will be kicked out of conveyor.

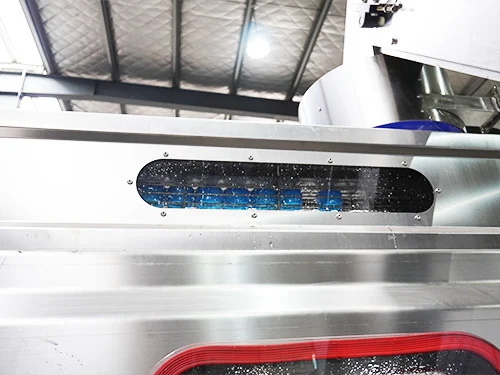

It can wash bottle neck, bottle body, bottle bottom and other parts, the bottle in the machine to complete the revolution around
the main shaft and its own autobiography, to achieve a full range of cleaning, cleaning water after washing. The machine is made
of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt
the products with brands of SIEMENS and OMRON.
the main shaft and its own autobiography, to achieve a full range of cleaning, cleaning water after washing. The machine is made
of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt
the products with brands of SIEMENS and OMRON.

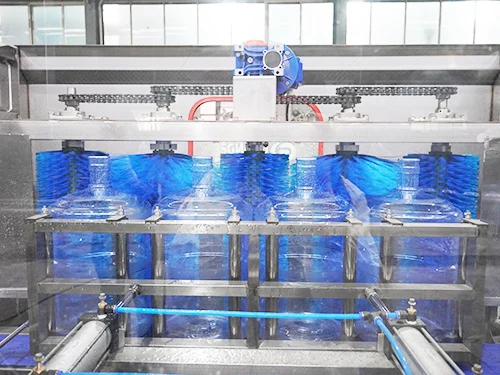

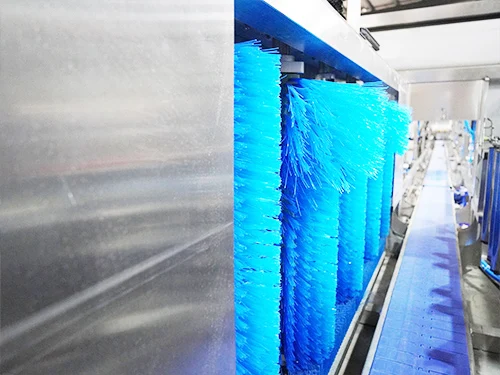

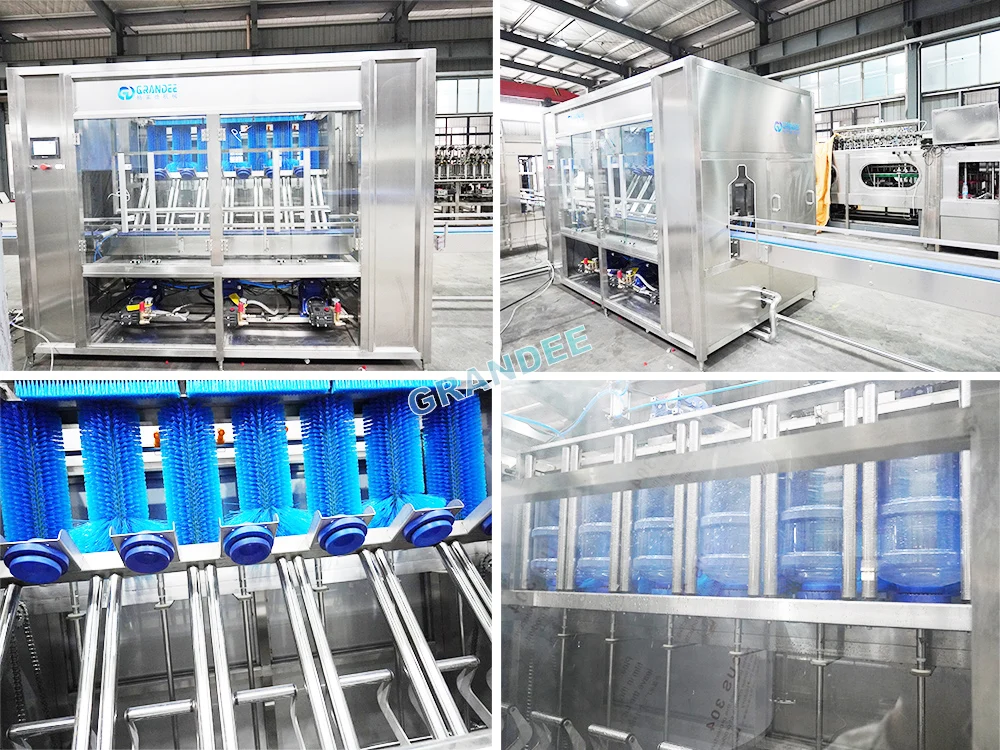

[4] High pressure inside and outside brushing machine
1. high pressure nozzle clean inside, brusher clean outside
2. The machine is special 5 gallons brush barrel machine, the main material is 304, beautiful appearance, reasonable structure,
3. convenient operation, automatic control, the main components is import, internal and external body brush, reduce the user's using area, it is ideal for 5 gallons filling machine equipment.

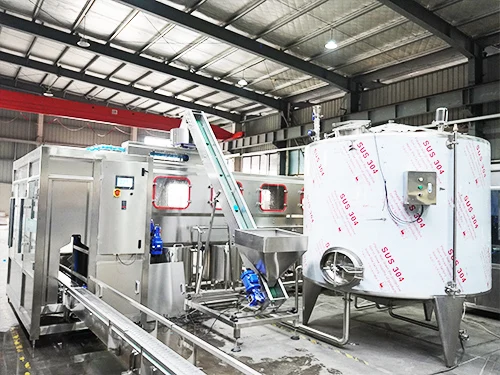

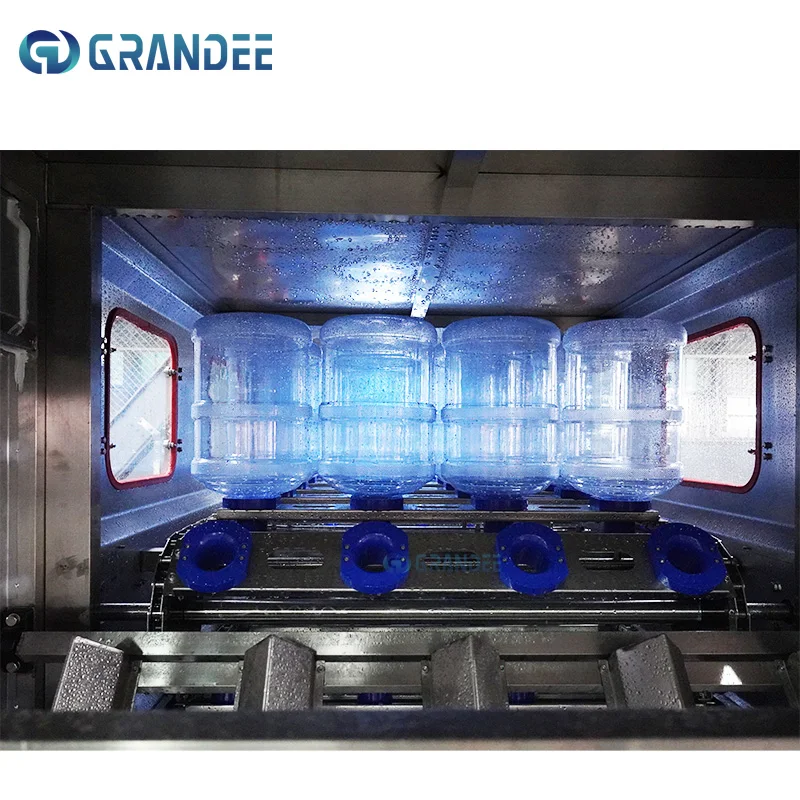

[5-1] The 5 Gallon water filling machine

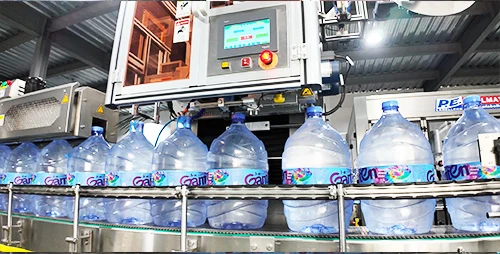

QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water. This machine is consisted of
rinser,filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant
rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The
wholeproduction line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output. It is the good
ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.
rinser,filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant
rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The
wholeproduction line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output. It is the good
ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.

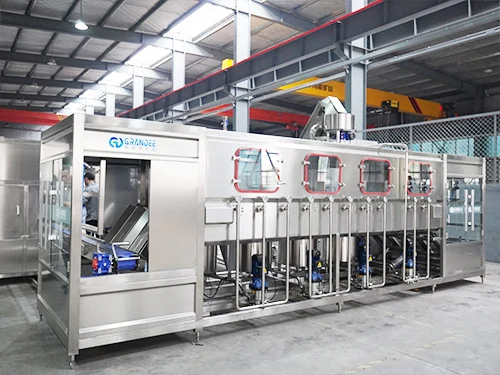

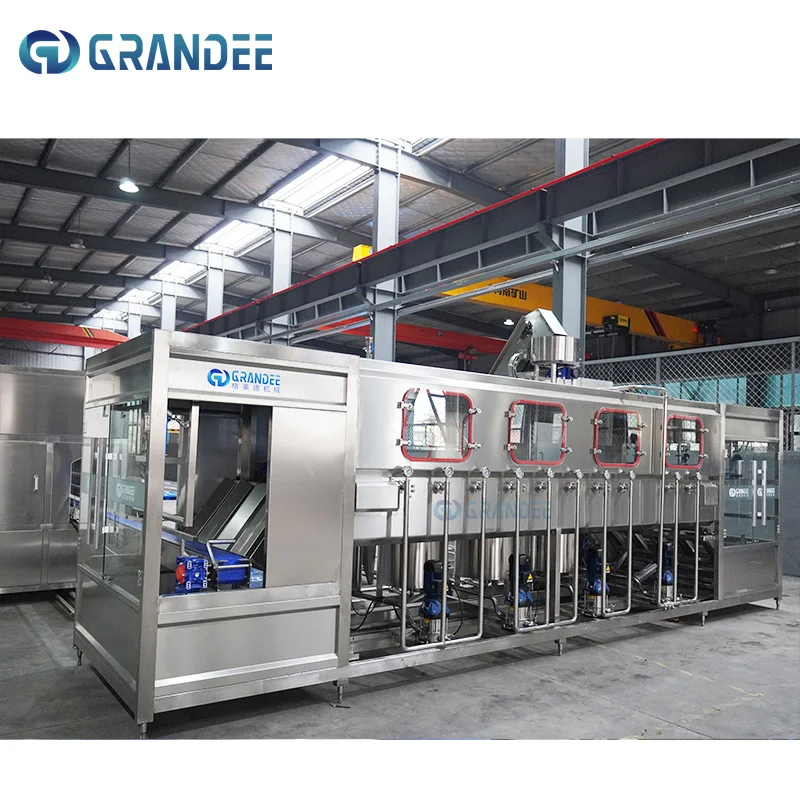

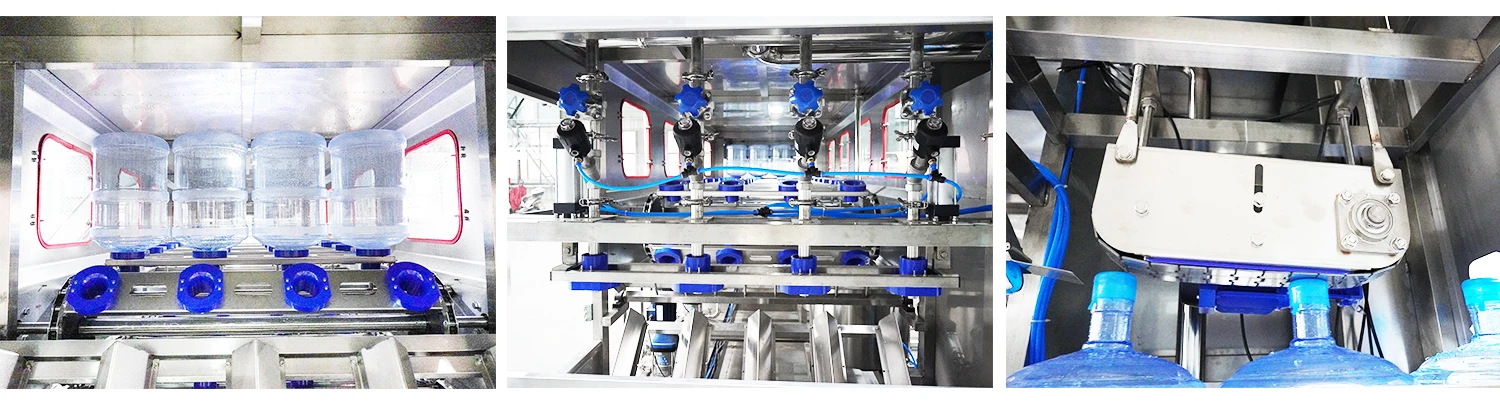

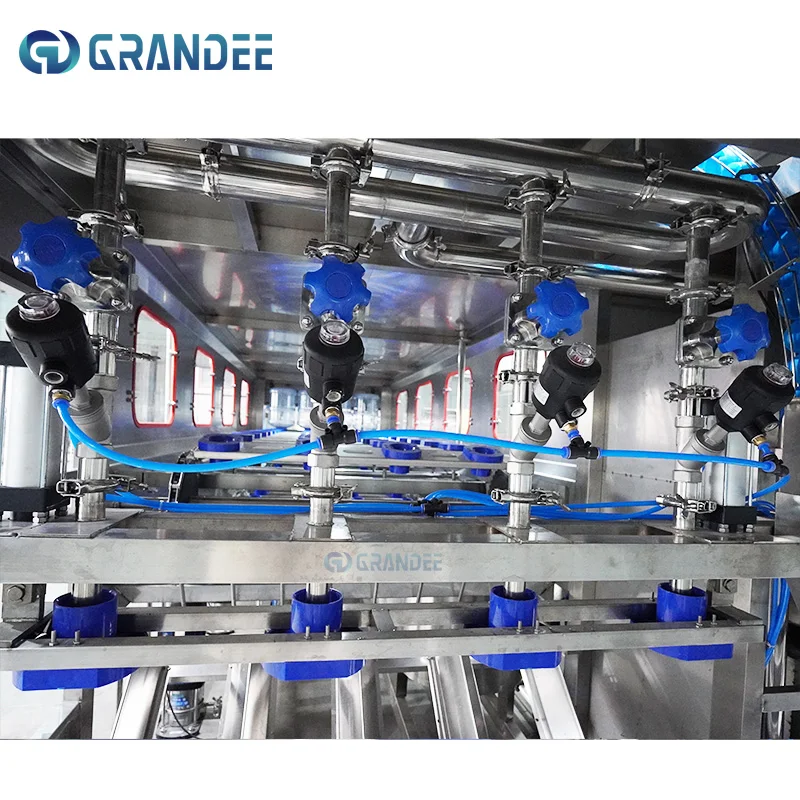

[5-2] Washing-filling-capping 3-in-1 Monoblock
1.4-rows 16-washing stops. Everything stop is about 23 seconds

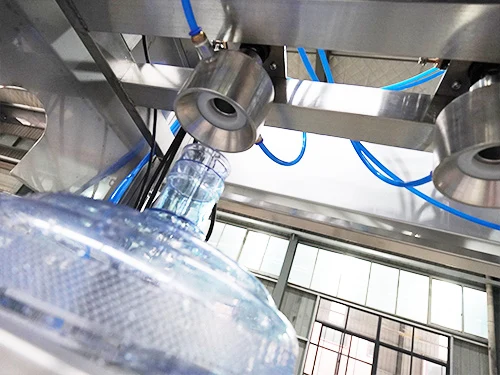

2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.

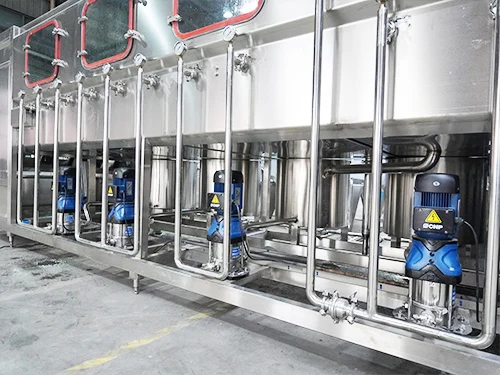

3. Water pump: 304 stainless steel pump.four washing pumps and one filling pumps.
4. Mitsubishi Siemens PLC controlling system, Schneider & Omron brand other electric parts
4. Mitsubishi Siemens PLC controlling system, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder,F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 or 316 Stainless Steel, combine with clear fiber glass windows.

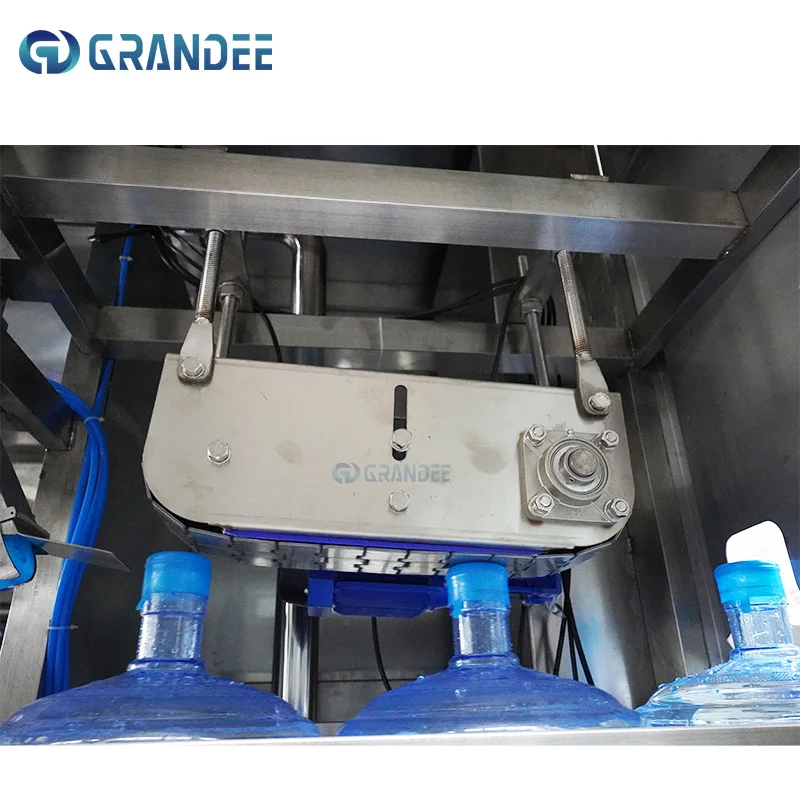

[6] Automatic cap loader and sterilization system
Fully sealed 304 stainless steel cover, conveyor belt cover is smooth, no noise. The fulliy automatic control system, combined with the electronic detection syste, of the capping machine, controls the operation of the machine Machine is equipped with cap sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

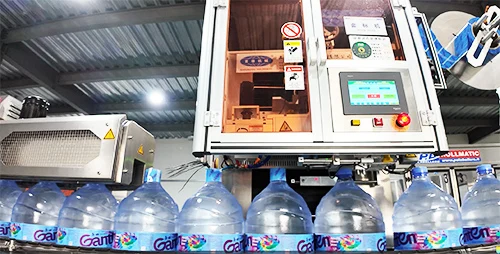

[7] Automatic 5 gallon cap seal shrink labeling machine
Equipment production efficiency: 100bottles/min, single shrink labels for the tray, microcomputer automatic control; Automatic detection, automatic positioning; In the rapid and energy saving, to cut off the position precision.

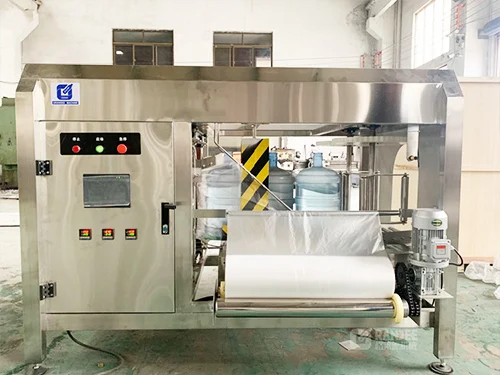

[8] Automatic bag packing machine
Automatic "film feeding", "feed", "bag", "sealing" once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.

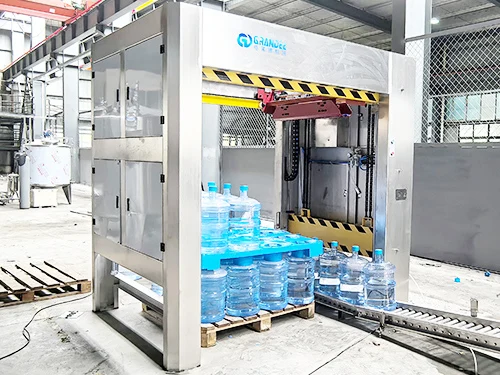

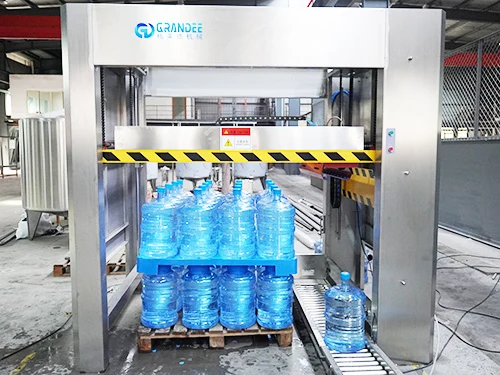

[9] Automatic palletizer
1.The best choice for increasing production and efficiency. 2.Put the packaged buckets on the pallet according to a certain
arrangement code for automatic stacking, which can be stacked in multiple layers and then pushed out to facilitate the forklift to transport to the warehouse for storage.
arrangement code for automatic stacking, which can be stacked in multiple layers and then pushed out to facilitate the forklift to transport to the warehouse for storage.
Model | QGF-100 | QGF-240 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filing heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
Volume(Gallon) | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 |
Barrel size(mm) | Φ270*490 | Φ270*490 | Φ270*490 | Φ270*490 | Φ270*490 | Φ270*490 | Φ270*490 |
Capacity(b/h) | 100 | 240 | 300 | 450 | 600 | 900 | 1200 |
Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.8 | 13.5 |
Weight(kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
For more information, please feel free to contact us to send an inquiry!
