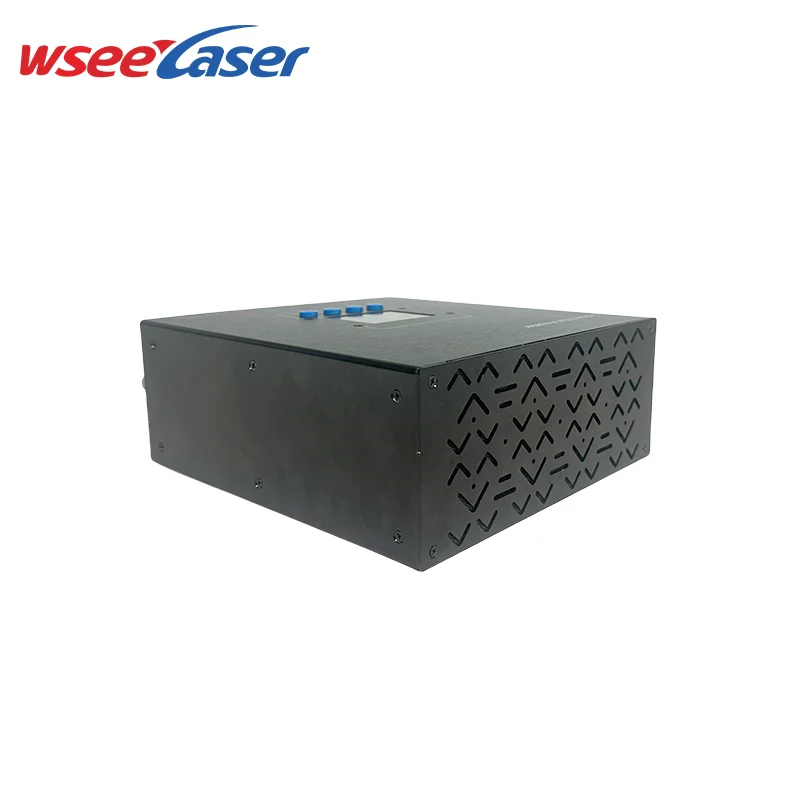

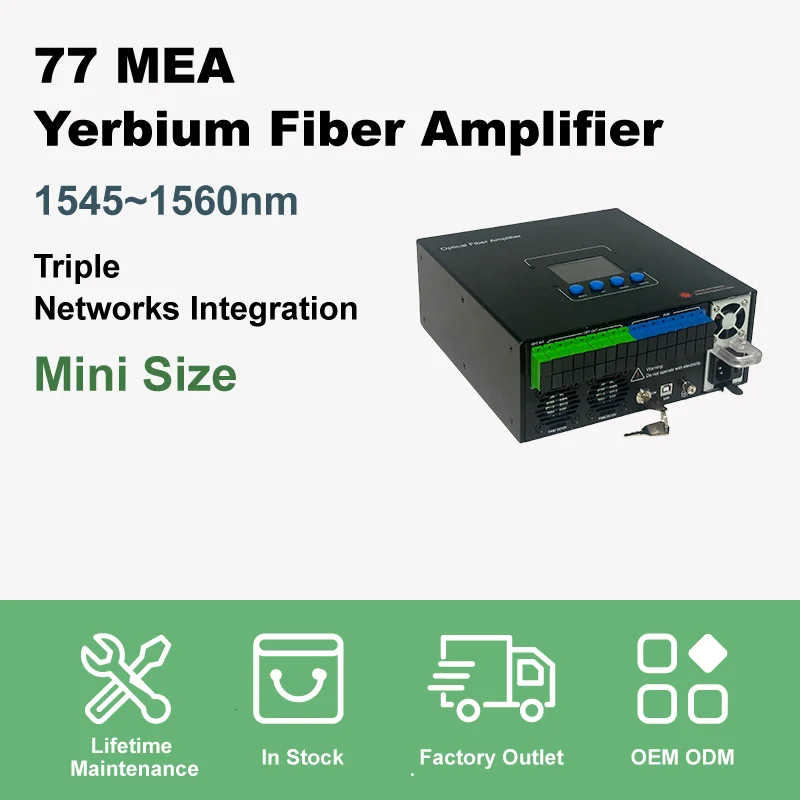

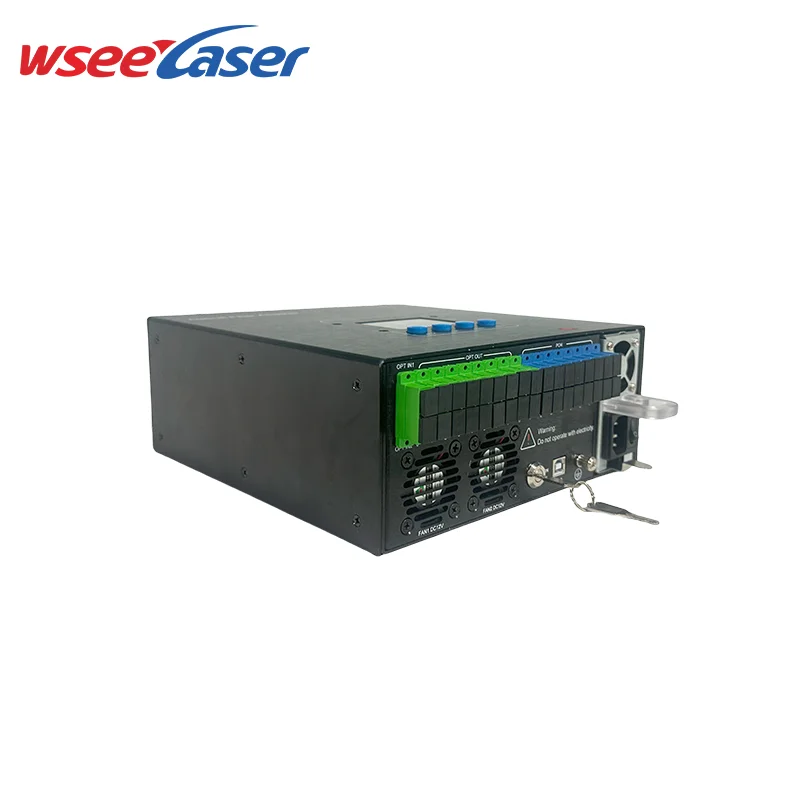

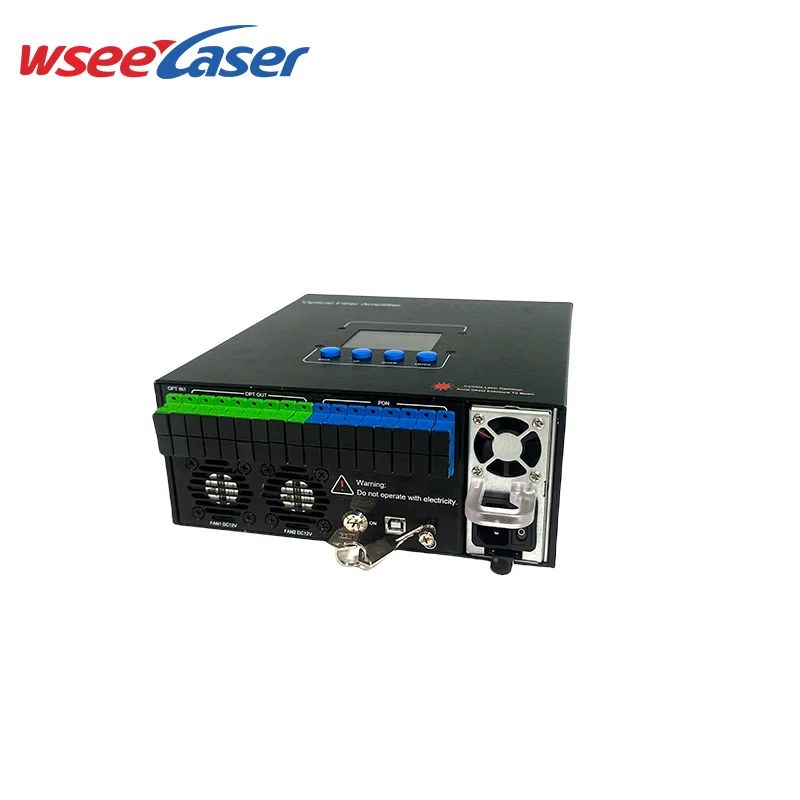

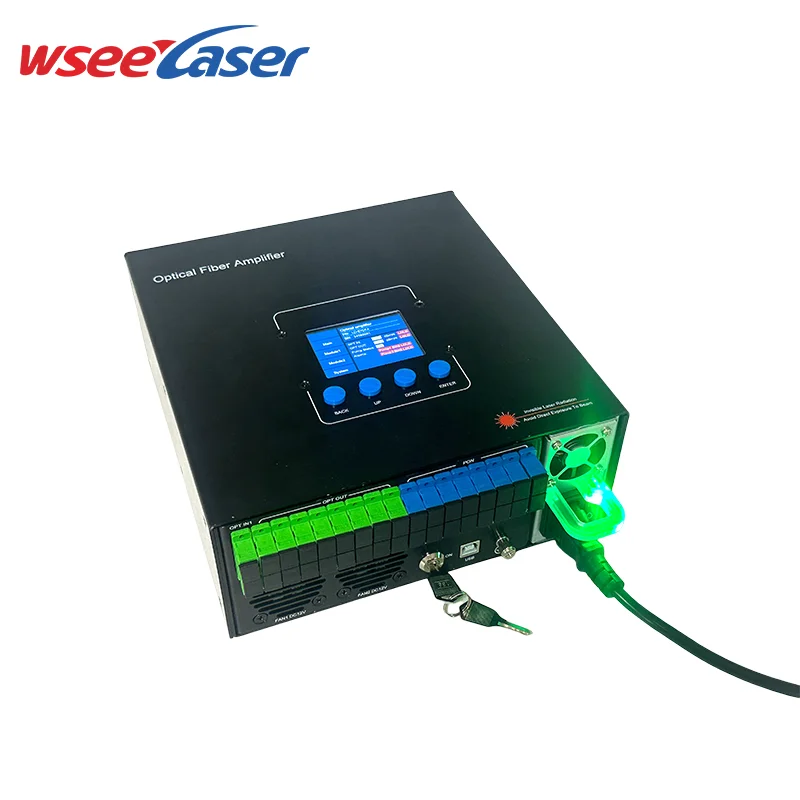

New Design WSEE BRAND CATV MEA 4 Port Mini EDFA 1550nm 16~23dBm mini Optical Amplifier
- Category: >>>
- Supplier: Shandong Wanshuo Optoelectronic Equipment Co Ltd.
Share on (1601284742435):
Product Overview
Description
Item | Unit | Specification | Note | ||
CATV wavelength | nm | 1545~1560 | Central wavelength 1550nm | ||
PON OLT wavelength | nm | 1310/1490 | Customized 1270/1577 | ||
CATV Input Power Range | dBm | -10dBm~+10dBm | |||
Output Power Stability | dB | ±0.1 | |||
Noise | dB | ≤6 | |||
Return Loss | Input | dB | ≥45 | ||
Output | dB | ≥45 | |||
OSW | Input port | 2 | Optional | ||
Insertion loss | dB | ＜1.3 | |||
Switching time | s | ＜0.5 | |||
Optical connector | SC/APC；SC/PC；LC/APC；LC/PC | Customized | |||
C/N | dB | ≥50 | Test conditions are performed according to GD / J115-2020. | ||
C/CTB | dB | ≥65 | |||
C/CSO | dB | ≥65 | |||
Power Supply Voltage | V | AC(90V~264V) | Optional DC or UPS | ||
Consumption | W | ＜75 | |||
Operating Temperature | ℃ | -5-+50 | |||
Max Operating Humidity | % | Maximum of 95% with no condensation | |||
Storage Temperature Range | ℃ | -40~+80 | |||
Max Storage Humidity | % | Maximum of 95% with no condensation | |||
Size | mm | 296(W)*225(D)*110(H) | Without the power handle, flange plate | ||
Package Size(1pc) | mm | 435(W)*375(D)*180(H) | |||
Net weight | kg | 4.8 | |||
Gross weight | kg | 5.6 | |||
