High Quality Powder Coated Steel Cradle Suspended Stage Platform Powered Cradle For Window Cleaning

Product Overview

Description

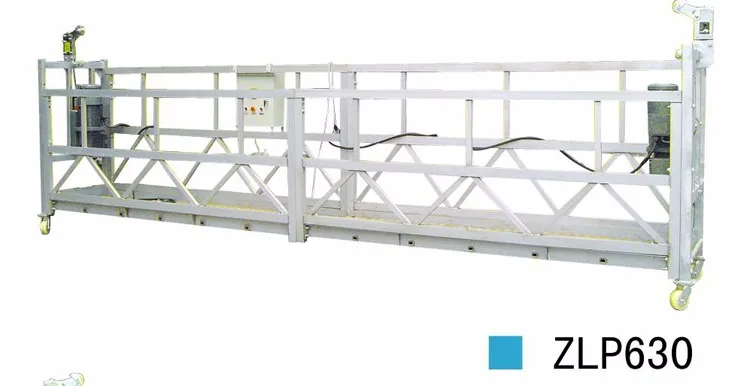

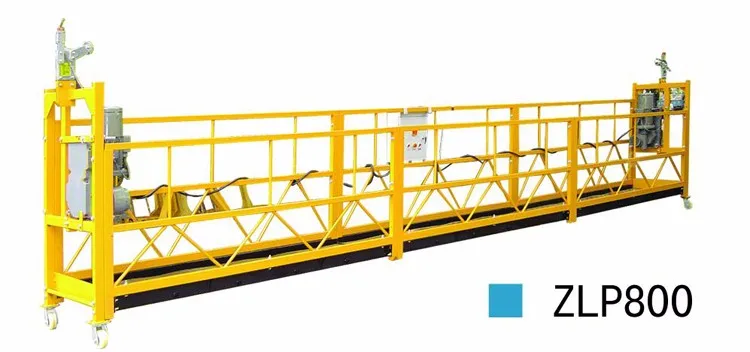

ZLP250/500/630/800 Suspended Platform Construction Platform Powered Cradle for Building Maintanence

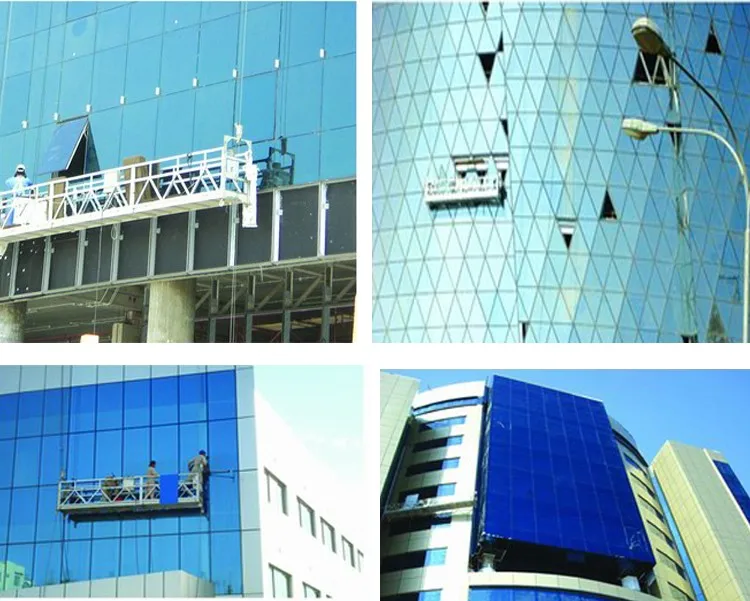

Hollisworth Powered Platform is a substitute of traditional scaffold used for exterior constructi,

 decoration, cleaning of high rise building, and is also ideal for applications such as installation

of elevators, the welding of seagoing ship in shipbuilding industry, cleaning of oil based paint,

big size tanks and high chimneys, construction of reservoir dams, inspection, cleaning and

repair of bridges.



Type	ZLP1000	ZLP800	ZLP630	ZLP500	ZLP250
Rated Load	1000kg	800kg	630kg	500kg	250kg
Lifting Speed	8.7m/min	9.0m/min	9.0m/min	9.0m/min	9.0m/min
Voltage-3phase	380V (415V/220V)	380V (415V/220V)	380V (415V/220V)	380V (415V/220V)	380V (415V/220V)
Frequency	50Hz/ 60Hz	50Hz/ 60Hz	50Hz/ 60Hz	50Hz/ 60Hz	50Hz/ 60Hz
Rated Power	2.0 * 2	1.8 * 2	1.5 * 2	1.1 * 2	1.1 * 1

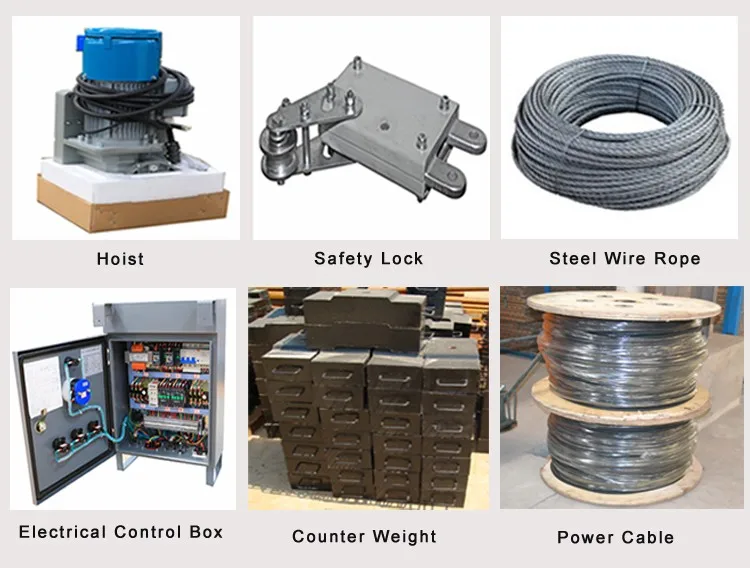

Hoist Model	LTD100	LTD80	LTD63	LTD50	LTD50
Safety Lock Model	LSF310	LSF309	LSF308	LSF308	LSF308
Dia. of Wire Rope	4*31SW+FC-10.2mm	4*31SW+FC-9.1mm	4*31SW+FC-8.3mm	4*31SW+FC-8.3mm	4*31SW+FC-8.3mm
Platform Size (L*W*H)	(2.5*3)*0.76*1.45m	(2.5*3)*0.76*1.45m	(2*3)*0.76*1.45m	(2.5*2)*0.76*1.45m	1.2*0.65*2.3m
Weight of  Suspension Jibs	340kg	340kg	340kg	340kg	340kg
Weight  Of Lifting Part	520kg(Steel)	520kg(Steel)	450kg(Steel)	410kg(Steel)	200kg(Steel)
	340kg  (Aluminum)	340kg  (Aluminum)	310kg  (Aluminum)	290kg  (Aluminum)	140kg  (Aluminum)
Counter Weight	1200kg	1000kg	900kg	800kg	350kg





JIANGXI HOLLISWORTH MACHINERY & EQUIPMENT CO., LTD. is a professional manufacturer produces various kinds of construction machines. We have advanced technology and rich experience in Building Maintenance Units, Tower Crane, Building Hoist, Powered Platform, Elevator, Scissor lift and other construction machineries. We have already exported to U. A. E., Qatar, Saudi Arabia, Kuwait, Iran, Inida, Russia, Brazil, Australia and many other countries and regions for many years. You can be assured of our high quality, fast delivery time and responsuble after-sale service. We insist in : Quality is First " , We will continously do our best to supply reliable quality products and excellent service to our customers.





   A: Our guarantee is one year for main parts.



2. What’s your Payment?

   A: T/T or L/C at sight.



3. How many sets of suspended platform containers can be loaded?

Type	Container	QTY
ZLP500	20GP	8 SETS
	40GP	14 SETS
ZLP630	20GP	8 SETS
	40GP	13 SETS
ZLP800	20GP	7 SETS
	40GP	12 SETS
