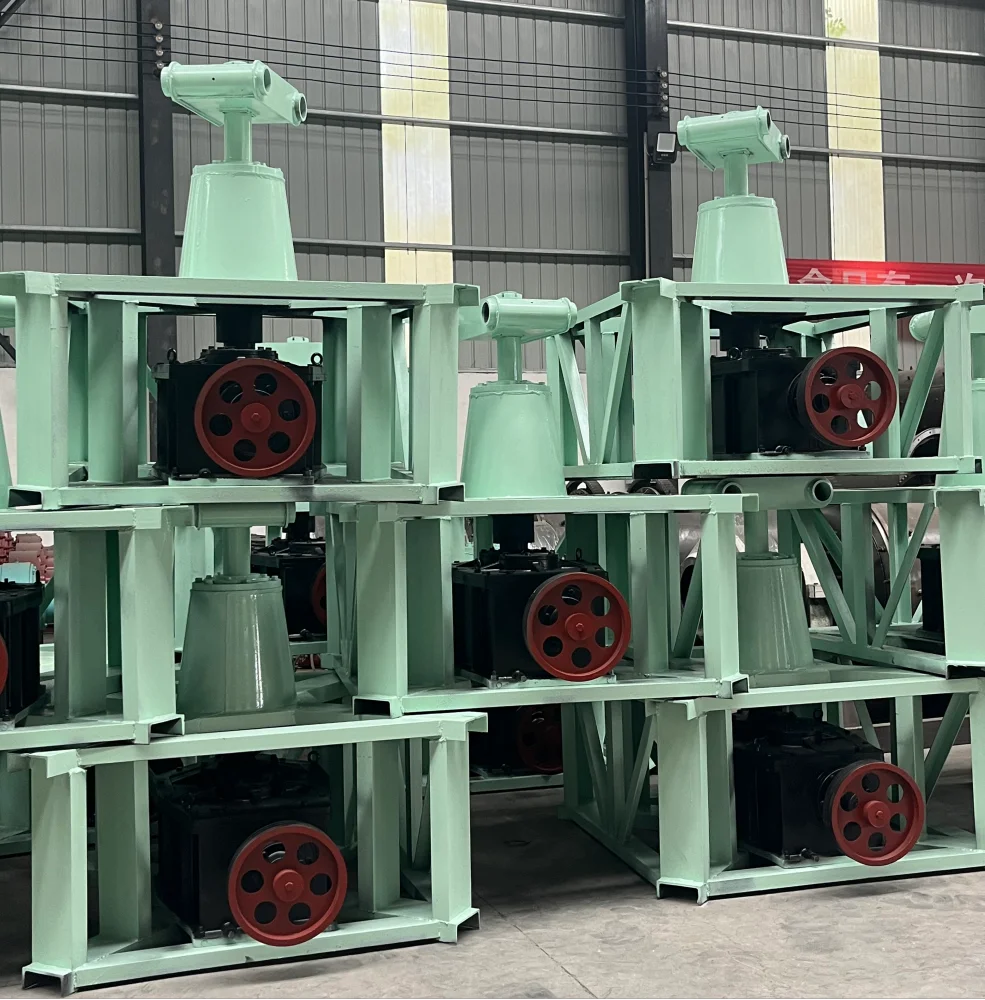

1200 wet pan Grinding mill Stone Grinding Machine Gold Ore Mining mills For Gold Mine
- Category: >>>
- Supplier: Zhengzhou Debang Machinery Manufacturing Co. Ltd.
Share on (1601284871892):
Product Overview
Description
Product descriptions from the supplier
Overview

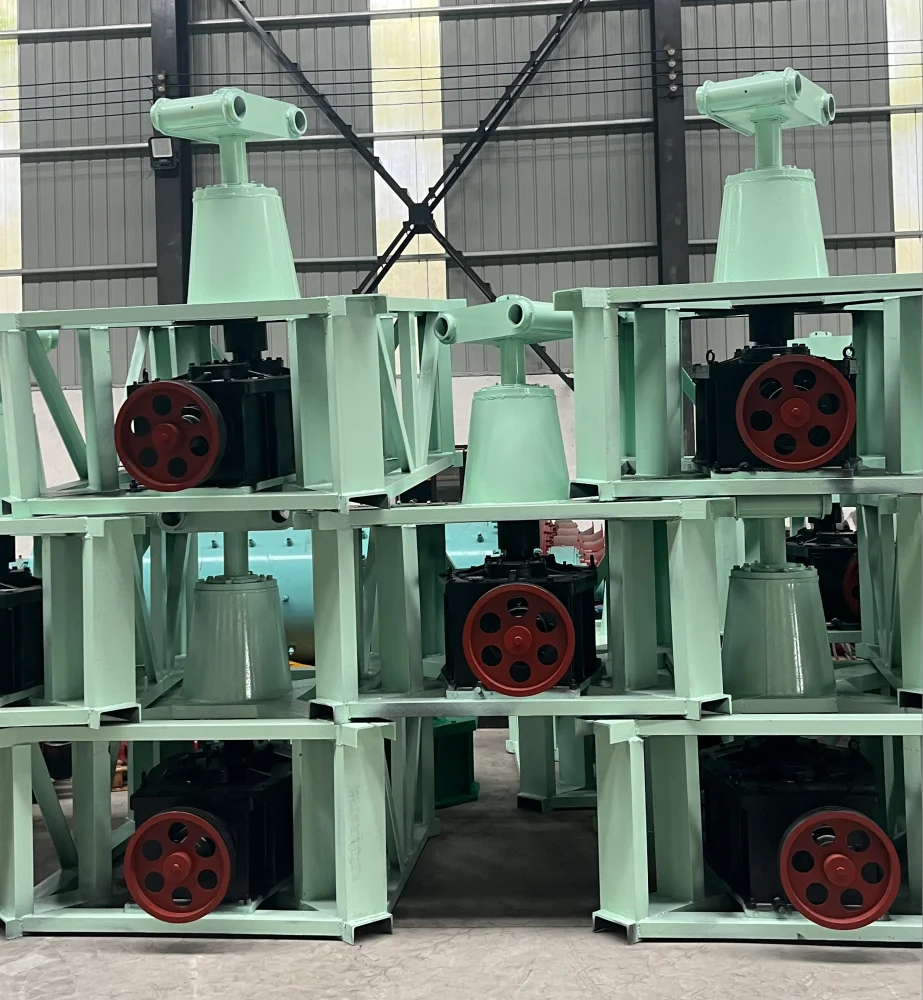

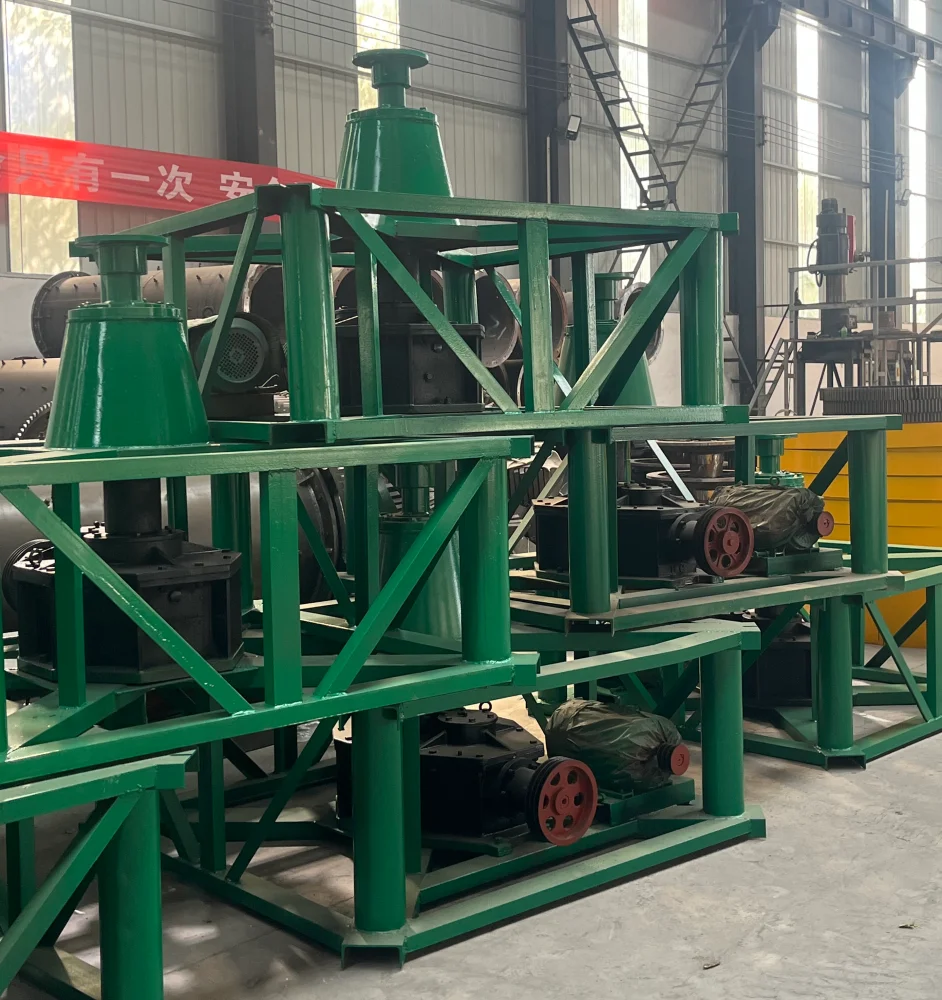

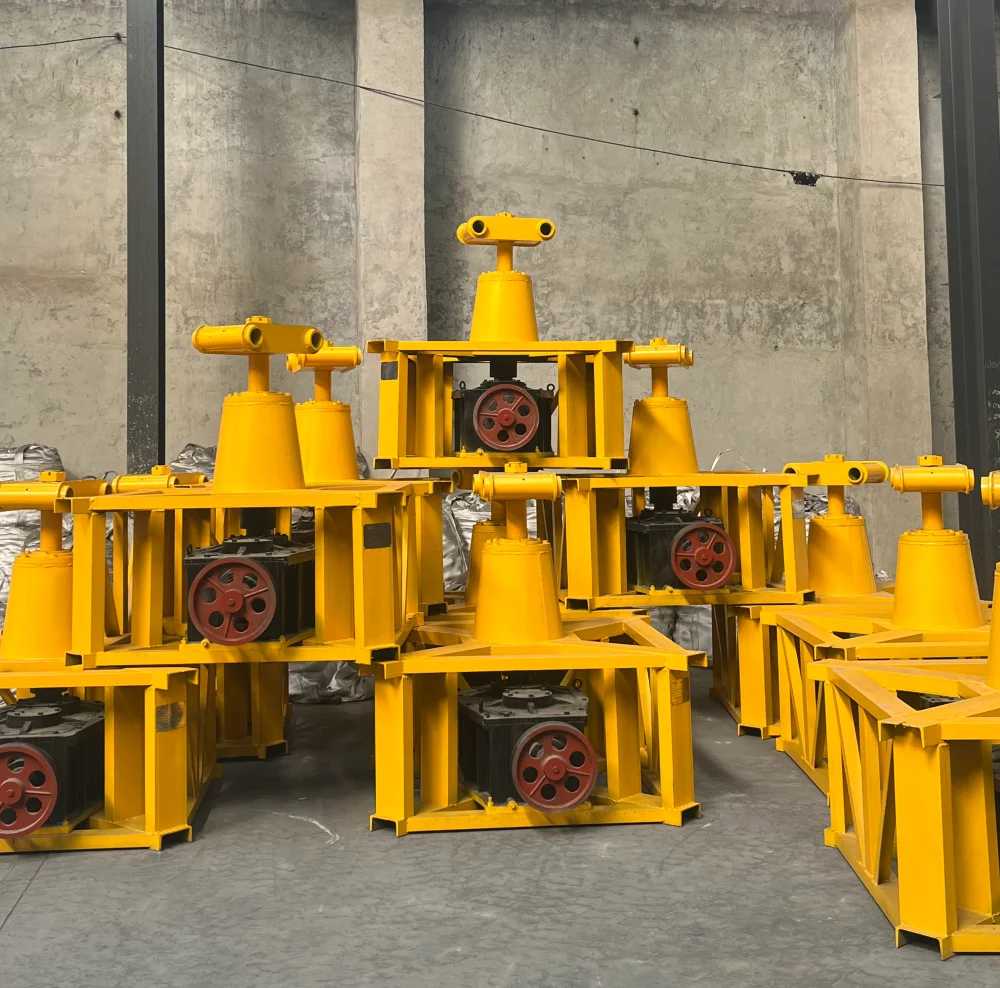

Product Display
Gold mill is called wet mill or wheel mill, which is mainly used to be the equipment for crushing the materials after crushing. It is widely used in gold processing, molybdenum processing, cement, silicate products, rare non-ferrous metal beneficiation and glass ceramics and other production industries.
Product characteristics
Wet pan mill for gold grinding is the best equipment to replace ball mill. because it have small investment, high output, lowproduction cost, good efficiency and easy installation. And the machine is the ideal beneficiation equipment for small andmedium-sized enterprise. wet pan mill for gold grinding is mainly used to process the gold, silver, lead, zinc, iron, molybdenum,copper, antimony.

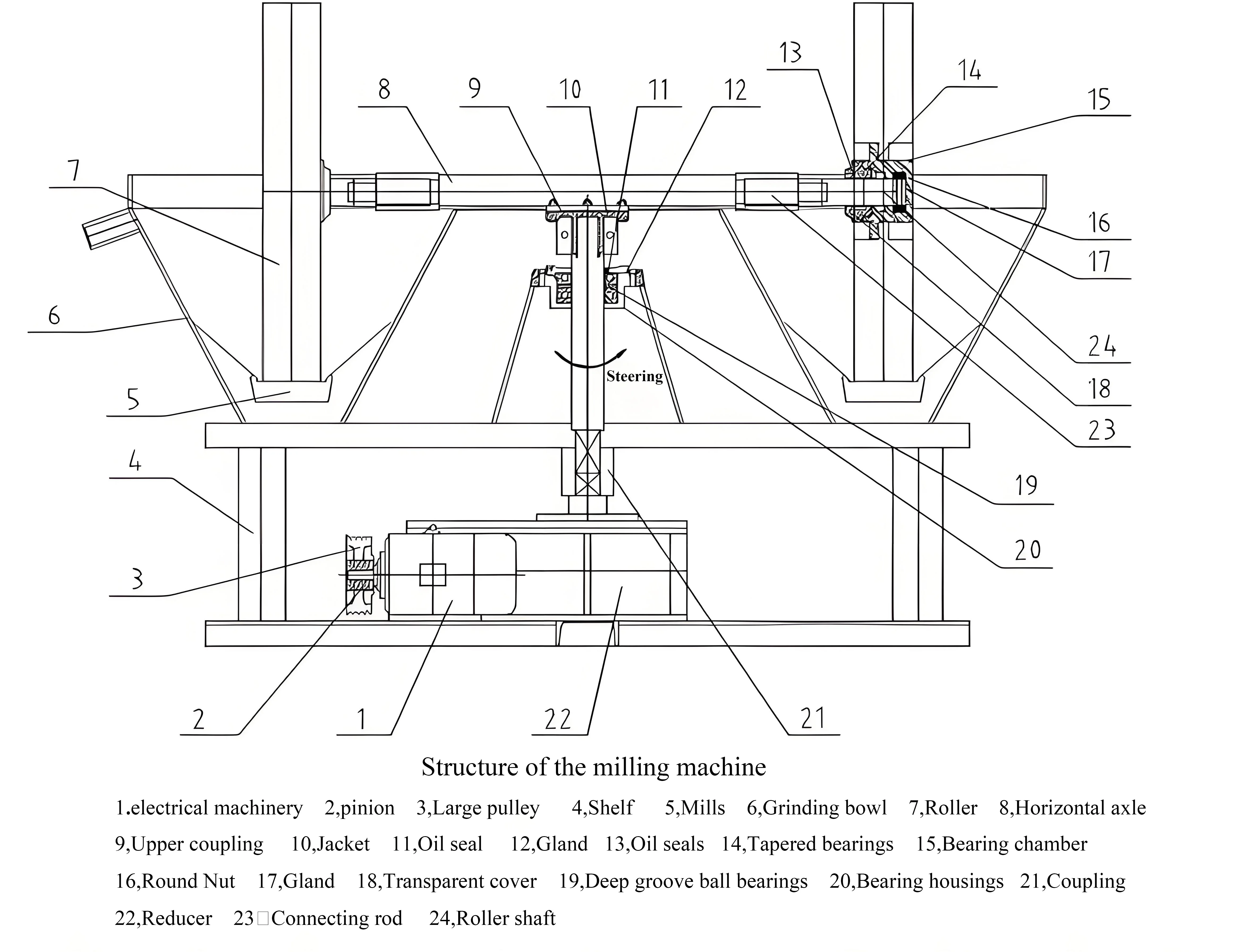

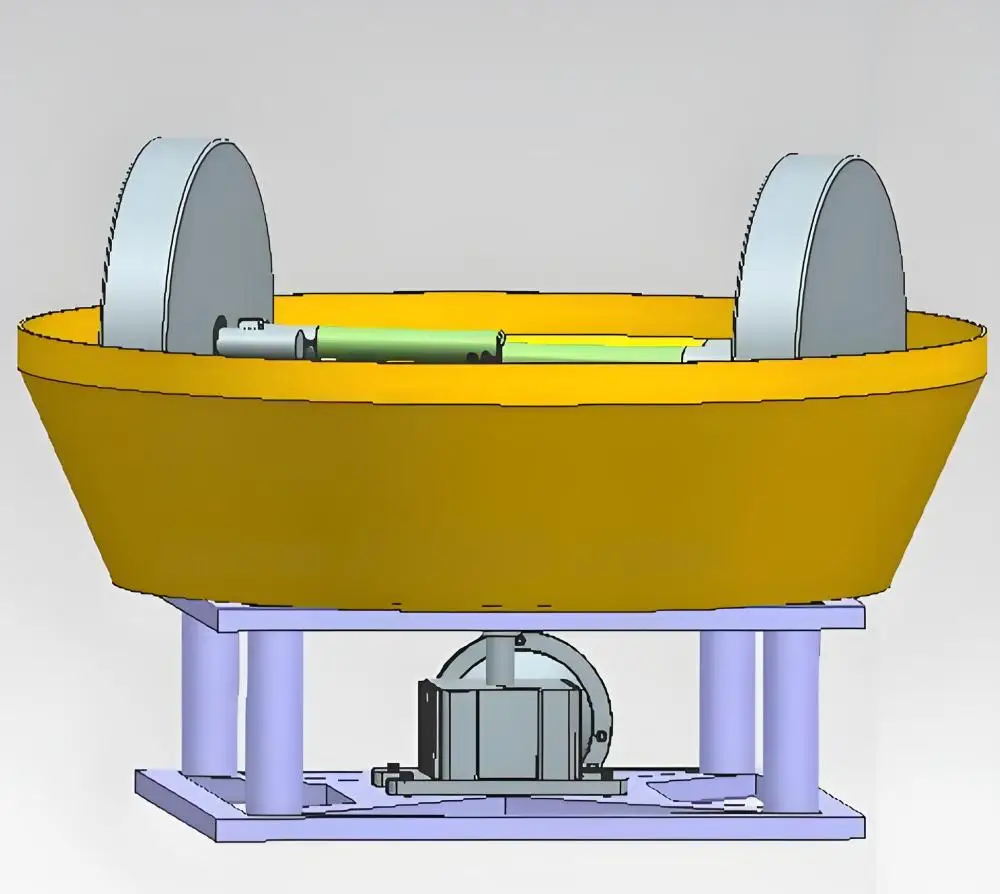

Main components and working principle
Main components
The pellet mill is mainly composed of power unit (motor, reducer, transmission parts), frame, water basin, milling wheel, milling disk, feeding device, discharging device and other parts.working principle
The gold mill mainly relies on the relative motion of the milling wheel on the milling plate to crush and refine the ore and other materials by squeezing and grinding. In the working process, the material enters into the milling disk from the feeding port, and with the rotation of the milling wheel, it is subjected to constant crushing and grinding, and finally reaches the required particle size. At the same time, according to the need to add the appropriate amount of water, the formation of slurry, easy to subsequent processing.
Characteristics:
1,Good material processing effect: through the mixing, rolling, crushing, repeated rolling and other operations on the raw materials, it can make the materials achieve balanced moisture, uniform proportion and low gas content, which improves the molding rate and molding quality, and is conducive to the subsequent processing and treatment.2 ,High efficiency and energy saving: while achieving good processing effect, it can effectively utilize energy, reduce energy consumption and production cost. And the output is high, which can meet the demand of large-scale production.
3,Simple structure: the overall structure is relatively simple, mainly composed of drive, mill, mill wheel and other major components, there is no overly complex mechanical structure, which makes the operation and maintenance of the equipment are relatively convenient.
4,durable: mill roller, mill bottom is generally made of special wear-resistant materials, one-time molding and casting, wear-resistant, durable, stable operation for a long time, reducing the frequency of maintenance and replacement of equipment.
5,small noise: the noise generated in the operation process is relatively small, can provide the operator with a relatively quiet working environment, reduce the noise on the operator's harm and the impact on the surrounding environment.
6,low investment cost: compared with large-scale mineral processing equipment such as ball mill, the price of gold mill is relatively low, the investment cost of the equipment is small, suitable for small and medium-sized enterprises or mining areas.
7,Installation flexibility: small footprint, not subject to site constraints, according to the actual production needs of flexible installation and layout, for the site is limited to the mining area or mineral processing plant is a more ideal choice.

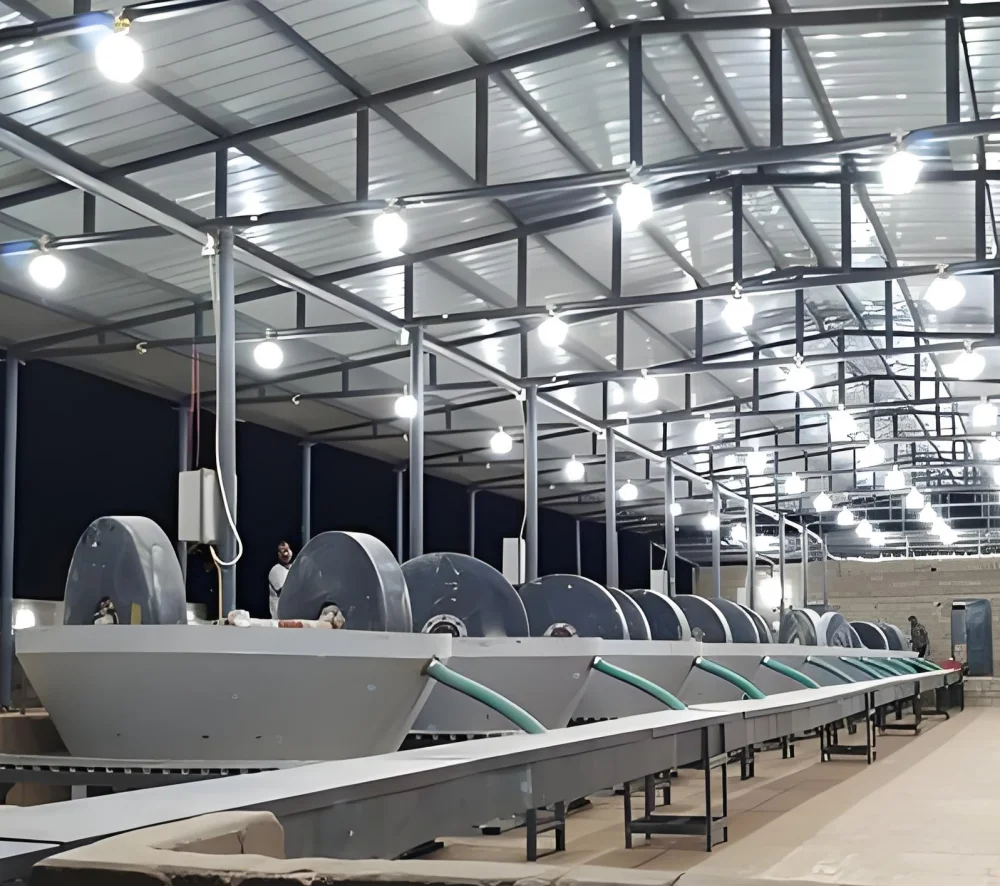

8,Flexible production: can choose a single table ore dressing to meet the needs of small-scale production or experimental production; can also be used in multiple group ore dressing to improve production efficiency and adapt to the requirements of large-scale production.
9,Wide range of application: it can be used for grinding and selecting all kinds of metal minerals, non-metallic minerals, rare metals and other materials, such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin, etc., and all the minerals that can be selected by the ball mill can be used by the wet mill, and it is also widely used in the production of cement, silicate products, new building materials, refractory materials, fertilizers and other production industries.
Scope of application
It can be used for grinding and selecting various metal minerals,
non-metallic minerals, rare metals and other materials.
Product Specifications
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control overthe industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the support. 24 hours service with.
Model | Roller diameter (mm) | Disk diameter (mm) | Feed size (mm) | Rotation speed (r/min) | Motor power (kw) | Weight (t) | Daily output (t) |
DB-900 | 900 | 1585 | ＜20 | 16～18 | 2.2 | 1.8 | 1.5～3 |
DB-1100 | 1100 | 2060 | ＜25 | 13～18 | 5.5 | 4.6 | 4～8 |
DB-1200 | 1200 | 2060 | ＜25 | 13～18 | 7.5 | 4.9 | 8～11 |
DB-1600 | 1600 | 2600 | ＜25 | 13～18 | 30 | 9 | 10～20 |
Impact crusher has a variety of models, among which the most popular models are DB-1100、DB-1200and so on.
Usage:Widely used in the grinding and separation of various metallic minerals, non-metallic minerals, rare metals and other materials, such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin, etc.
Usage:Widely used in the grinding and separation of various metallic minerals, non-metallic minerals, rare metals and other materials, such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin, etc.
Advantages:Good material handling effect, high efficiency and energy saving, simple structure, durable, low noise, low investment cost, flexible installation, flexible production, wide range of application.。
Company information
Zhengzhou Debon Environmental Protection Technology Co., Ltd. is a professional manufacturer of crushing crusher, hammer crusher, box crusher, impact crusher, vibration feeder, belt conveyor and other equipment, widely used in mining, construction and other fields, factory all kinds of metal processing, riveting, assembly, the company has a perfect sales system and after-sales service system, Make sure every customer comes with excitement and satisfaction. The company can choose the equipment model for customers, we can also design and manufacture products according to customer needs, and train technical personnel and operators for customers to ensure customer satisfaction.

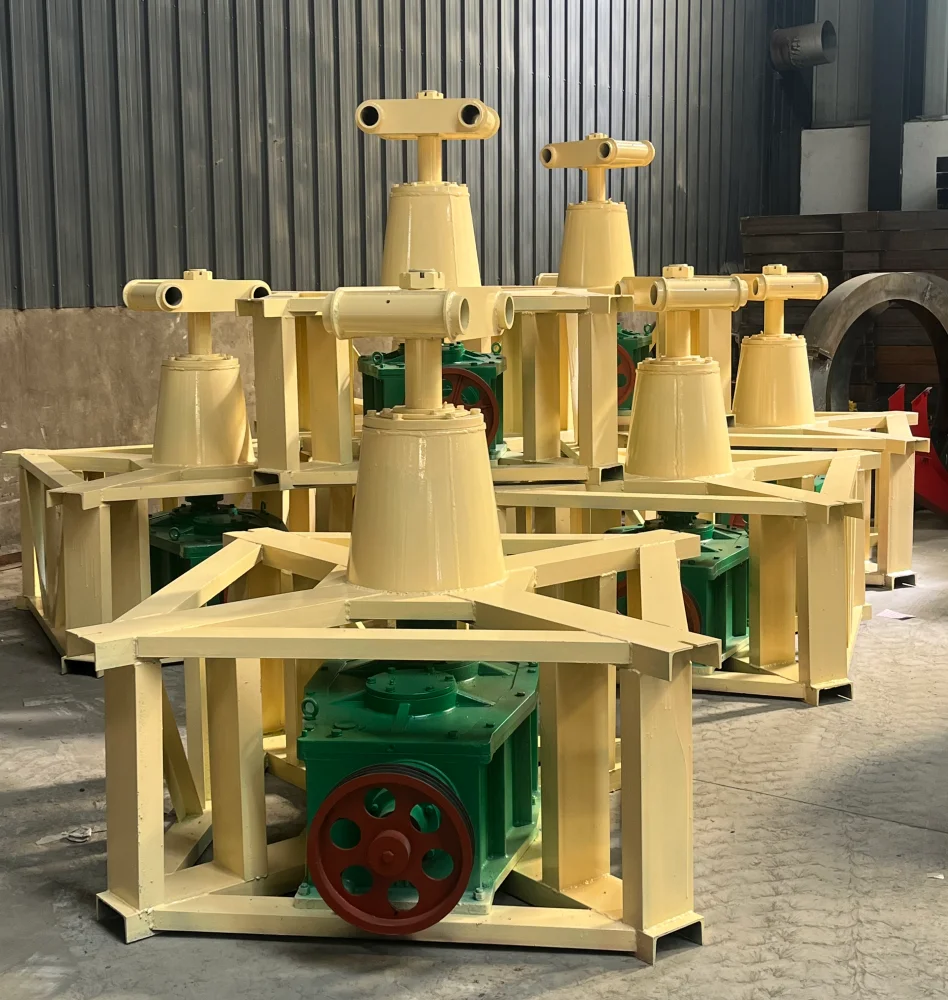

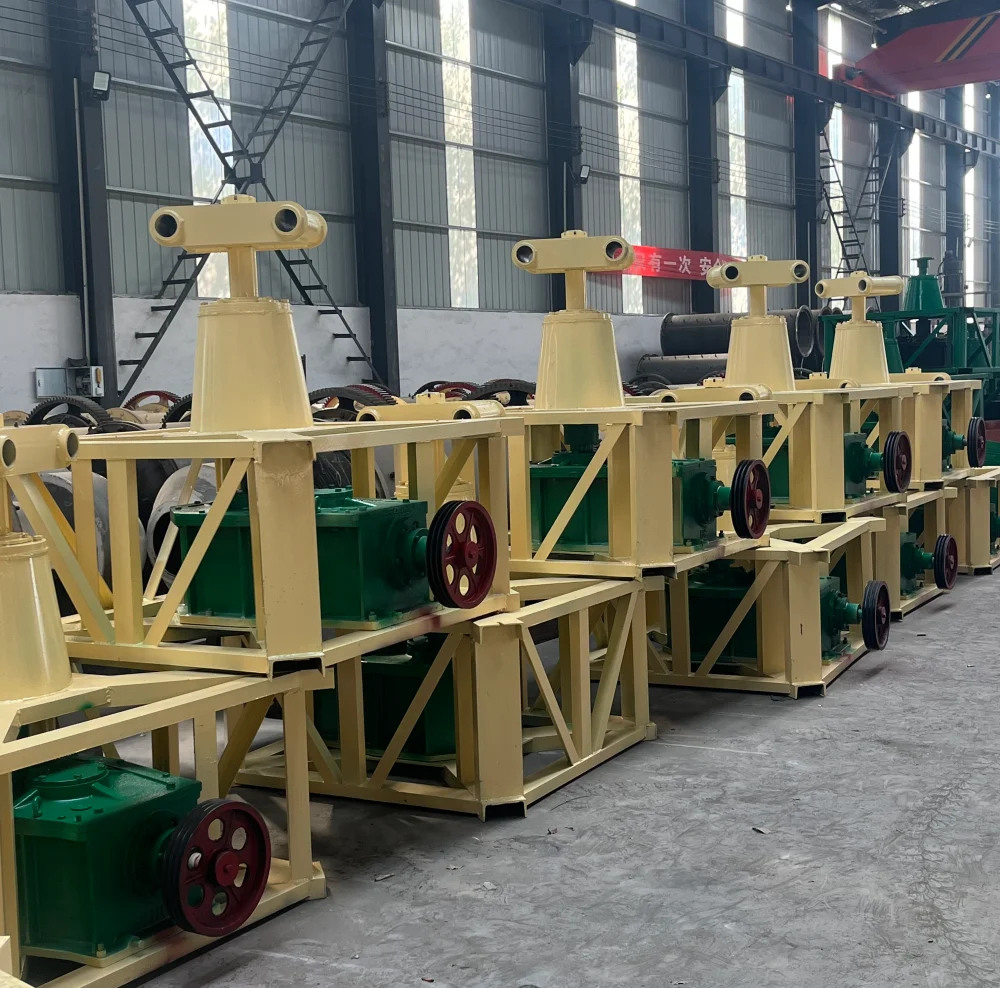

Our factory
Our customers

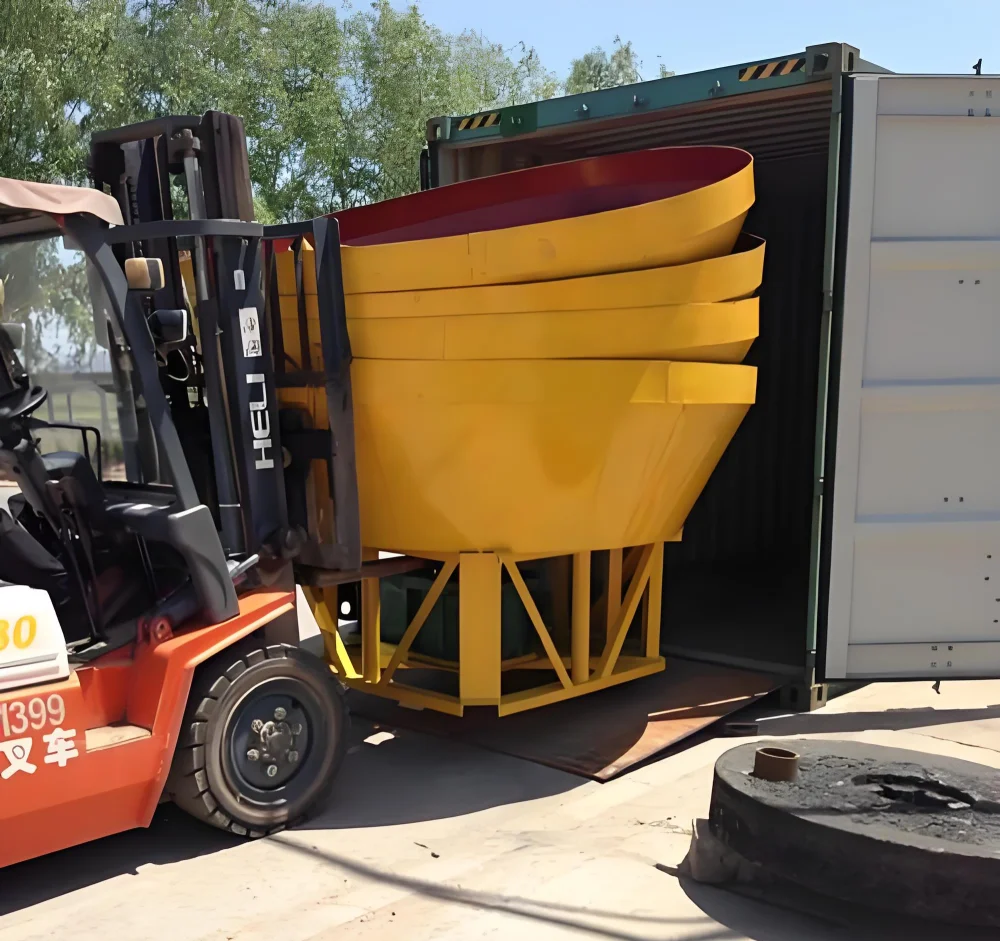

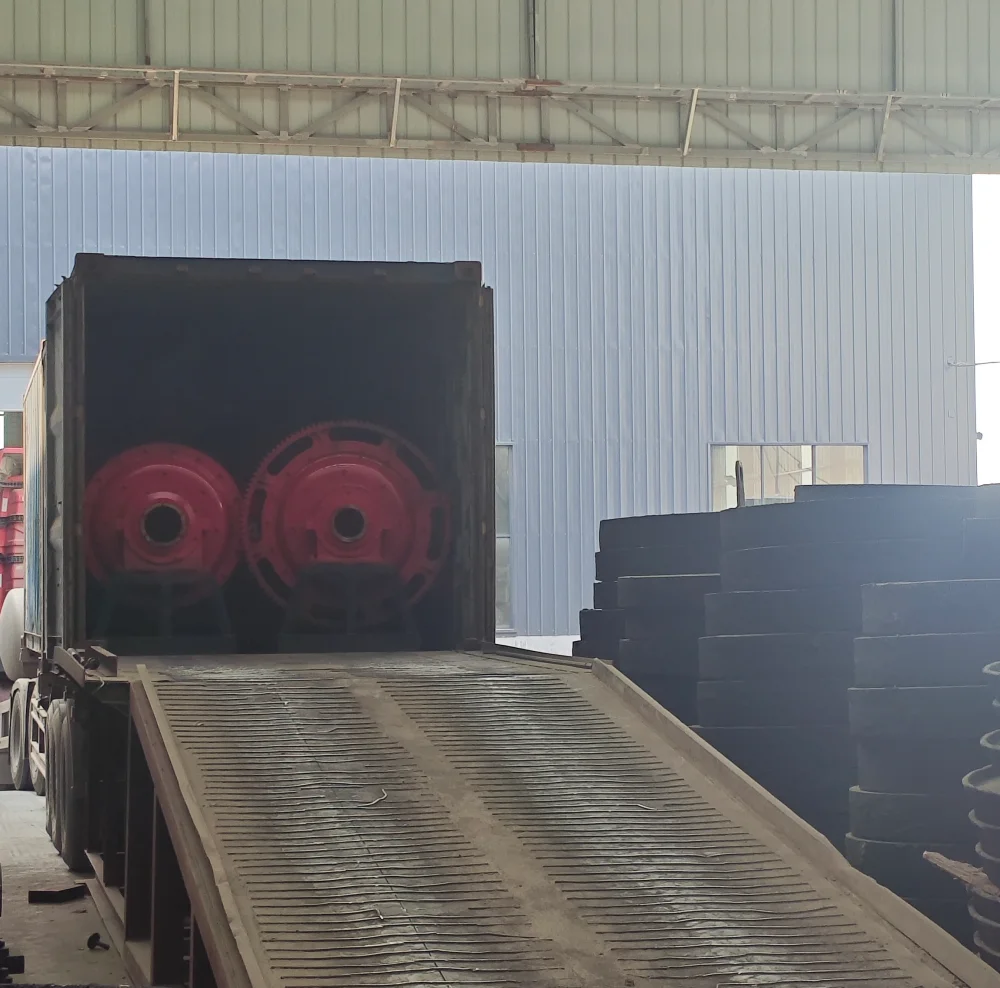

Packing & Shipping

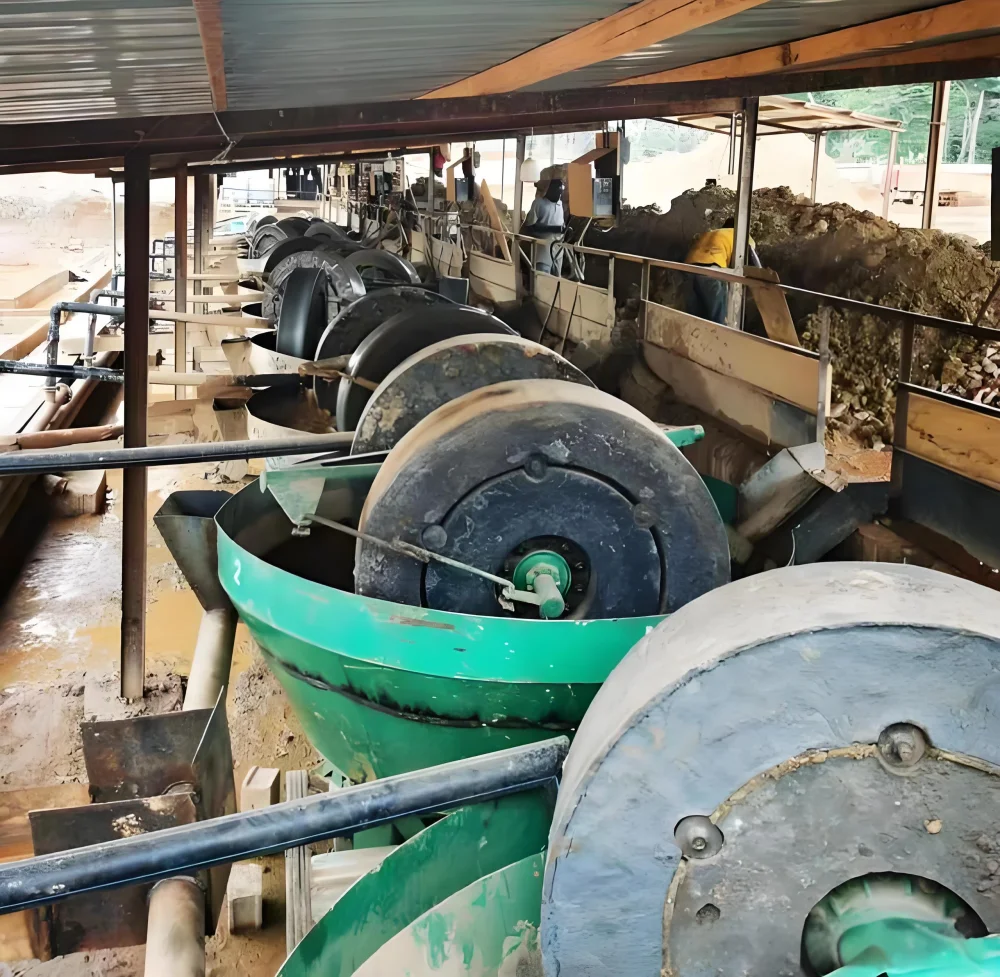

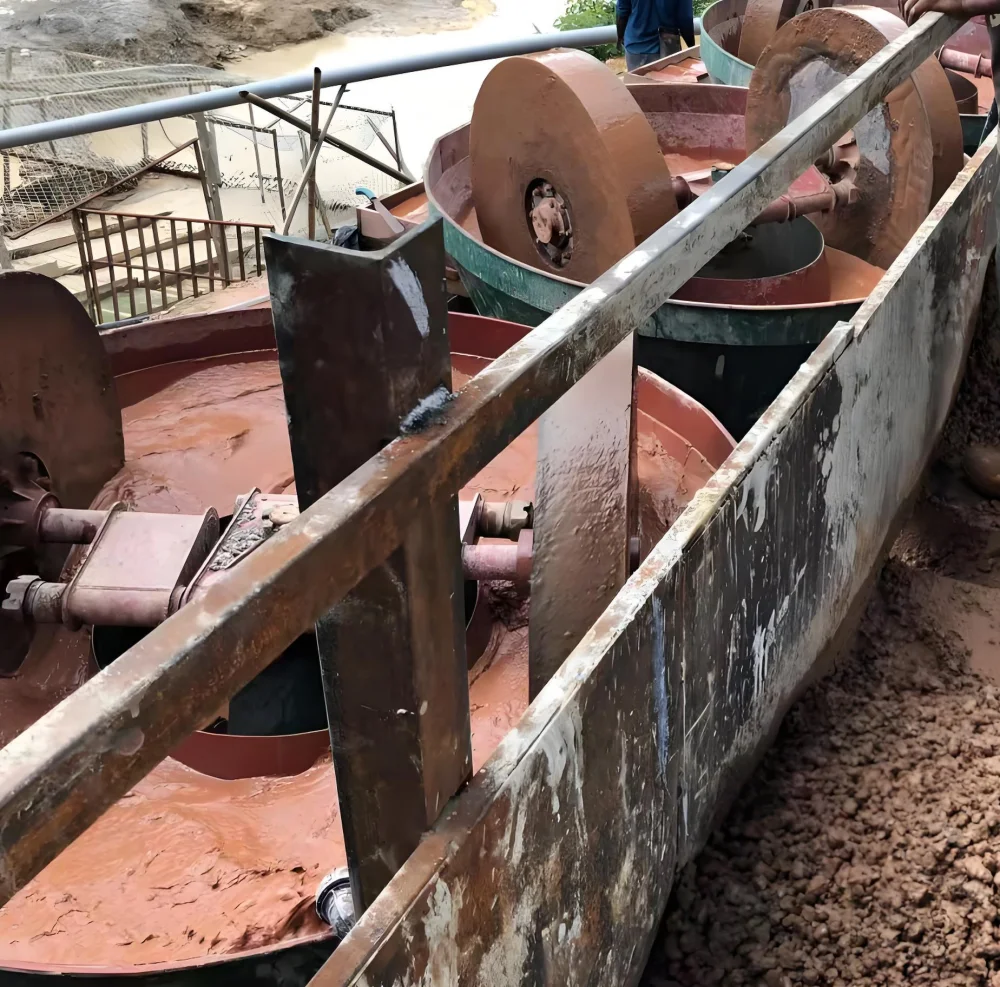

Customer case
Products sell well in more than 160 countries and regions
Our Services
Warranty 100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
Pre-sale services:
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
