Product Overview
Description
Product Overview

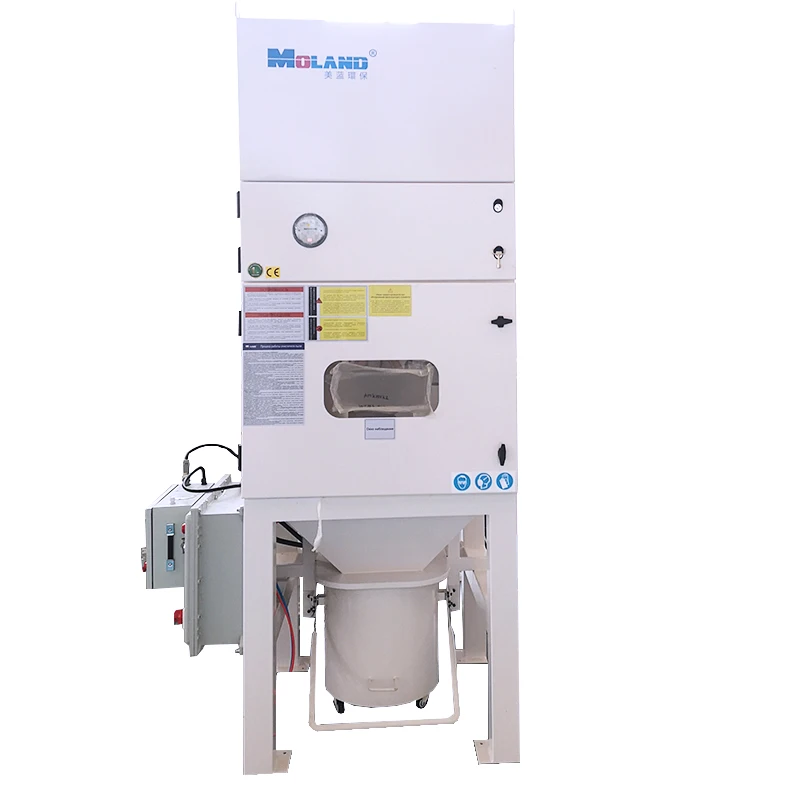

MLWF400 Dust Collector
Moland MLWF400 dust bin industrial dust collector is suitable for straight seam, ring seam welding machine, plasma intersecting line cutting, 3015 laser cutting and other dust purification work.
Industrial Dust Collectors and Centralized Fume Extraction Systems for extraction and filtration of dust, combustible dust, fumes and oil mist as well as waste management. Moland´s solutions contribute to clean air for improved working conditions, lower environmental impact, production efficiency.
Specification
Model | MLWF400 |
Motor Power | 3KW |
Working Voltage | 380V 50Hz |
Air Volume | 3500~4500 m^3/h |
Filter Accuracy | 0.3μm |
Filter Material | Flame retardant coated polyester fiber |
Filter Size | Dia.325*660mm |
Filter Qty | 4pcs |
Cleaning Mode | Automatic pulse back blow |
Noise Level | 75dBA |
Size | 981*955*2580mm |
Weight | 450kg |
Details Images

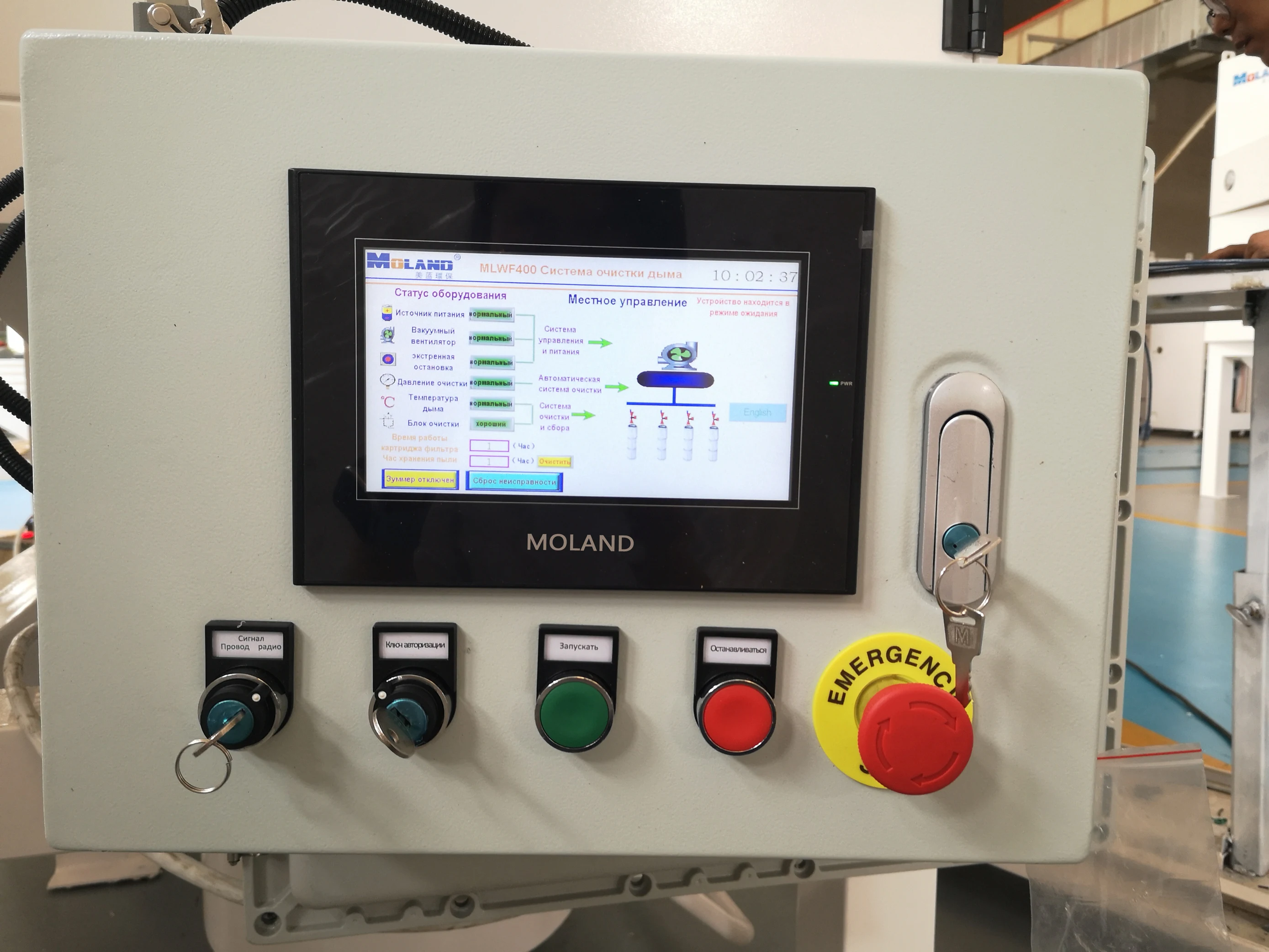

Intelligent Control System
Moland's independently developed control system is intelligent and automatic.
Customized remote control function.
Filter Element
Toray PTFE coated polyester fiber, with high filtration precision and long service life.
Customized explosion-proof filter.
Siemens Bede Motor（Optional）
Brand fan, stable operation and low noise. It can be used continuously for a long time.
Differential Pressure Gauge
Visually display the clogging pressure of filter element
Pulse blowback
Automatic pulse back blowing cleaning filter element
Electrical System
Electric parts of Schneider, Delixi and other brands are safe and reliable
Oil -Water Separator
Separate the water and oil produced by compressed air in the air storage tank, and assist the pulse back blowing function
Dust Bin
Large capacity dust collection bin. Easy to pull out and dump the dust.
With locking device to prevent dust leakage.
Ground Wire
Each equipment of Moland is equipped with grounding protection to prevent accidents
Suitable for:
welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and
cutting materials to produce
Performance description
· Integral structure with Fuma wheel at the bottom, flexible movement and fixing
· Anti-suction device to make the effect of ash cleaning more thorough
· Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pressure condition monitoring: alarm for low pressure of gas source to prevent incomplete dust cleaning.
· Pressure differential gauge shows the working state of filter element intuitively, and automatic pulse back blowing with excessive pressure difference
Recommended working condition
Welding Workstation
Artificial Welding Position *2
Grinding machine, intersecting wire cutting and oth er working conditions
Standard Configuration
· Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge

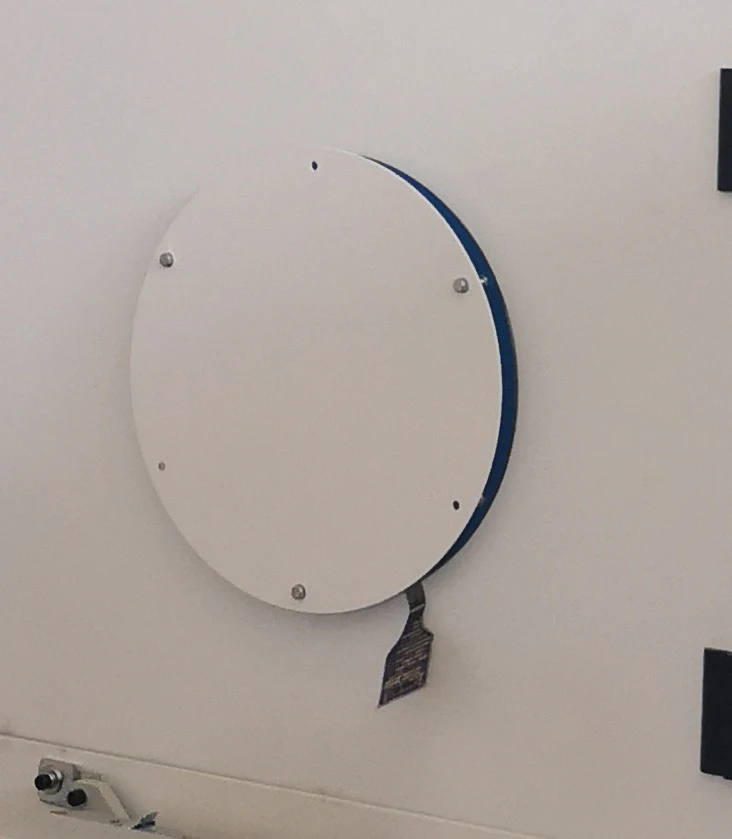

· Observation window
· 30L Dust Collection Drawer
· Left and right air intakes (φ200)
· 5m Power cord
· Spark trap (large particle dust pre-filter)
welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and
cutting materials to produce
Performance description
· Integral structure with Fuma wheel at the bottom, flexible movement and fixing
· Anti-suction device to make the effect of ash cleaning more thorough
· Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pressure condition monitoring: alarm for low pressure of gas source to prevent incomplete dust cleaning.
· Pressure differential gauge shows the working state of filter element intuitively, and automatic pulse back blowing with excessive pressure difference
Recommended working condition
Welding Workstation
Artificial Welding Position *2
Grinding machine, intersecting wire cutting and oth er working conditions
Standard Configuration
· Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· 30L Dust Collection Drawer
· Left and right air intakes (φ200)
· 5m Power cord
· Spark trap (large particle dust pre-filter)
Field cases

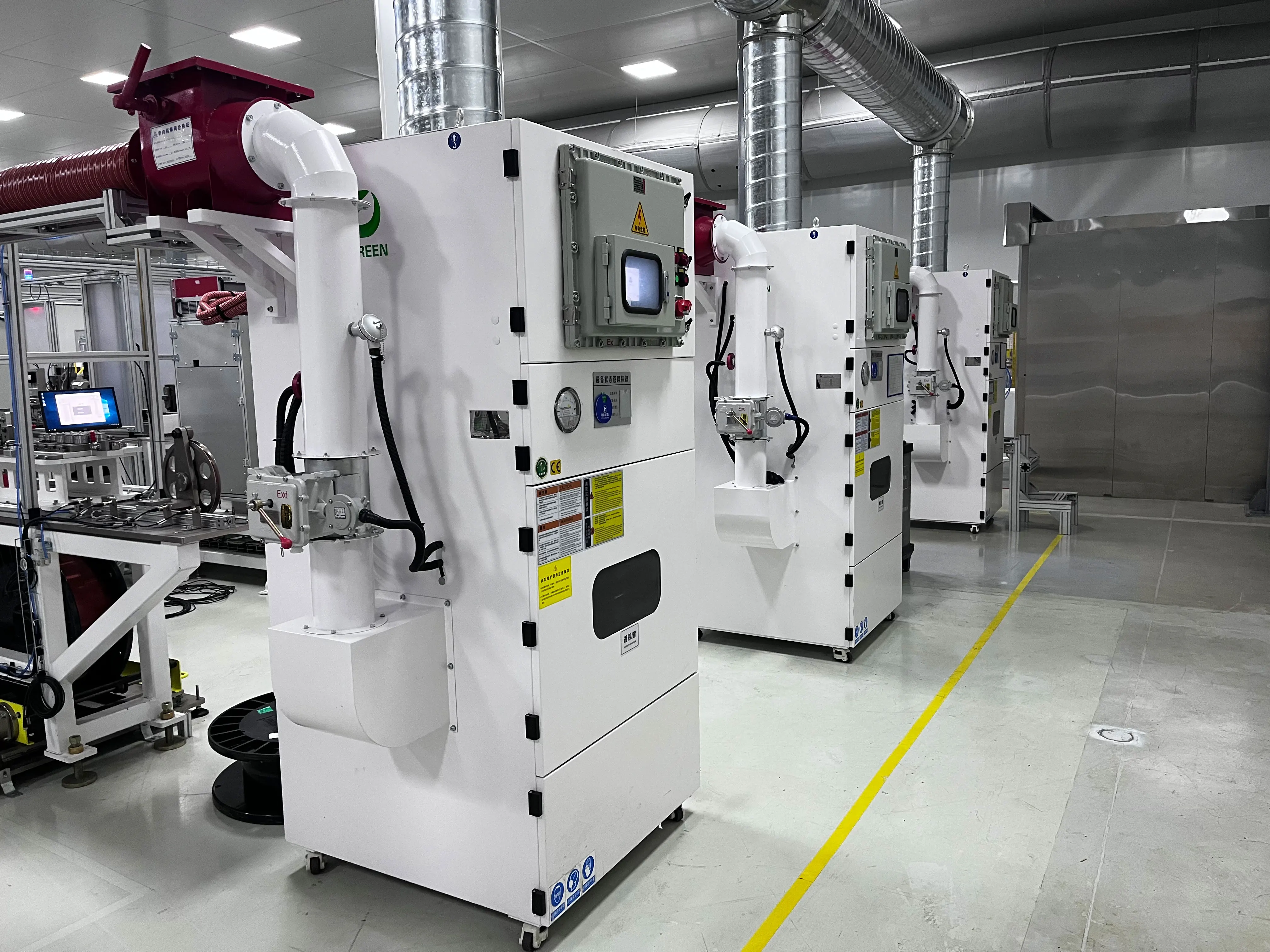

Robot Welding

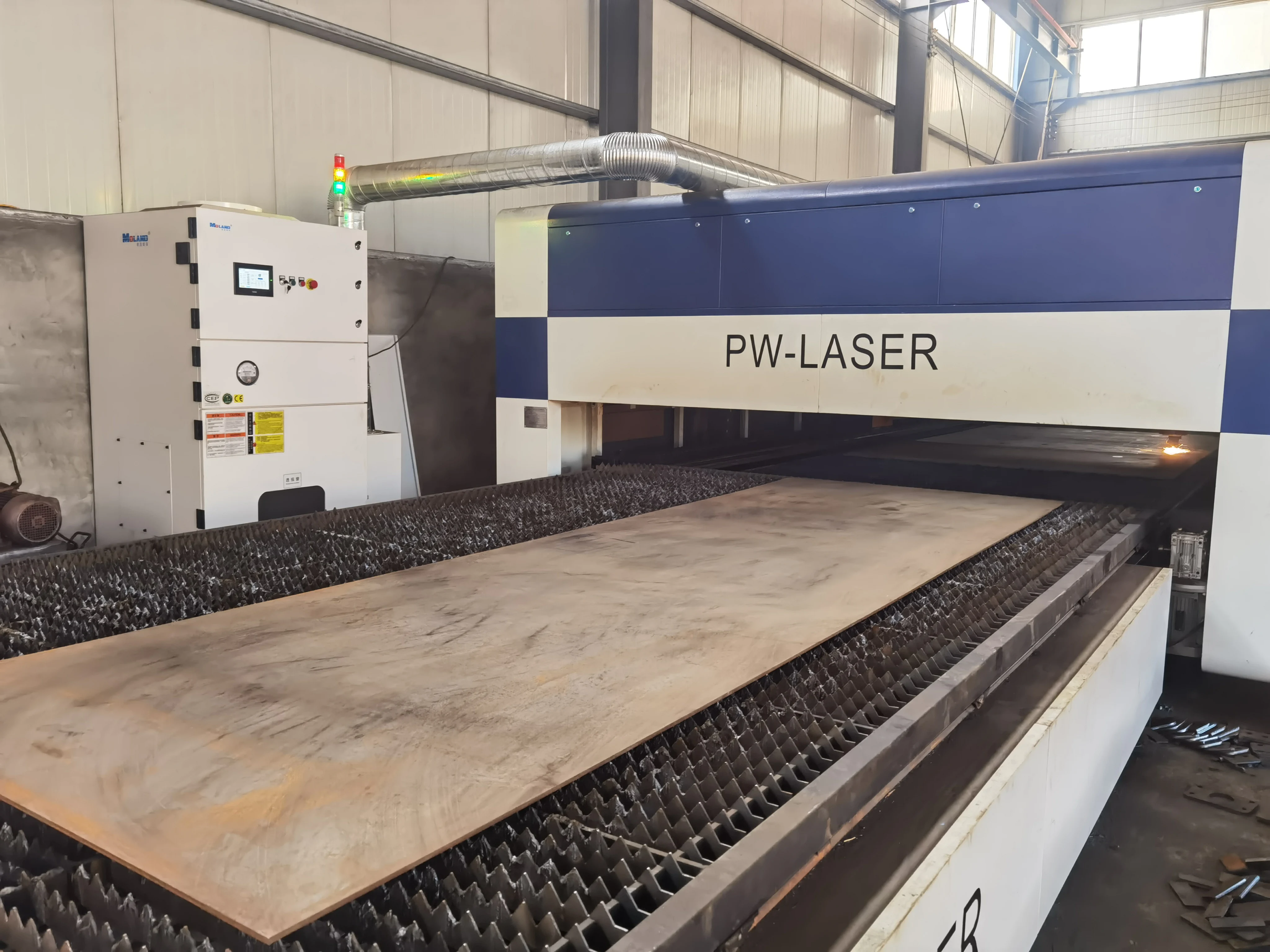

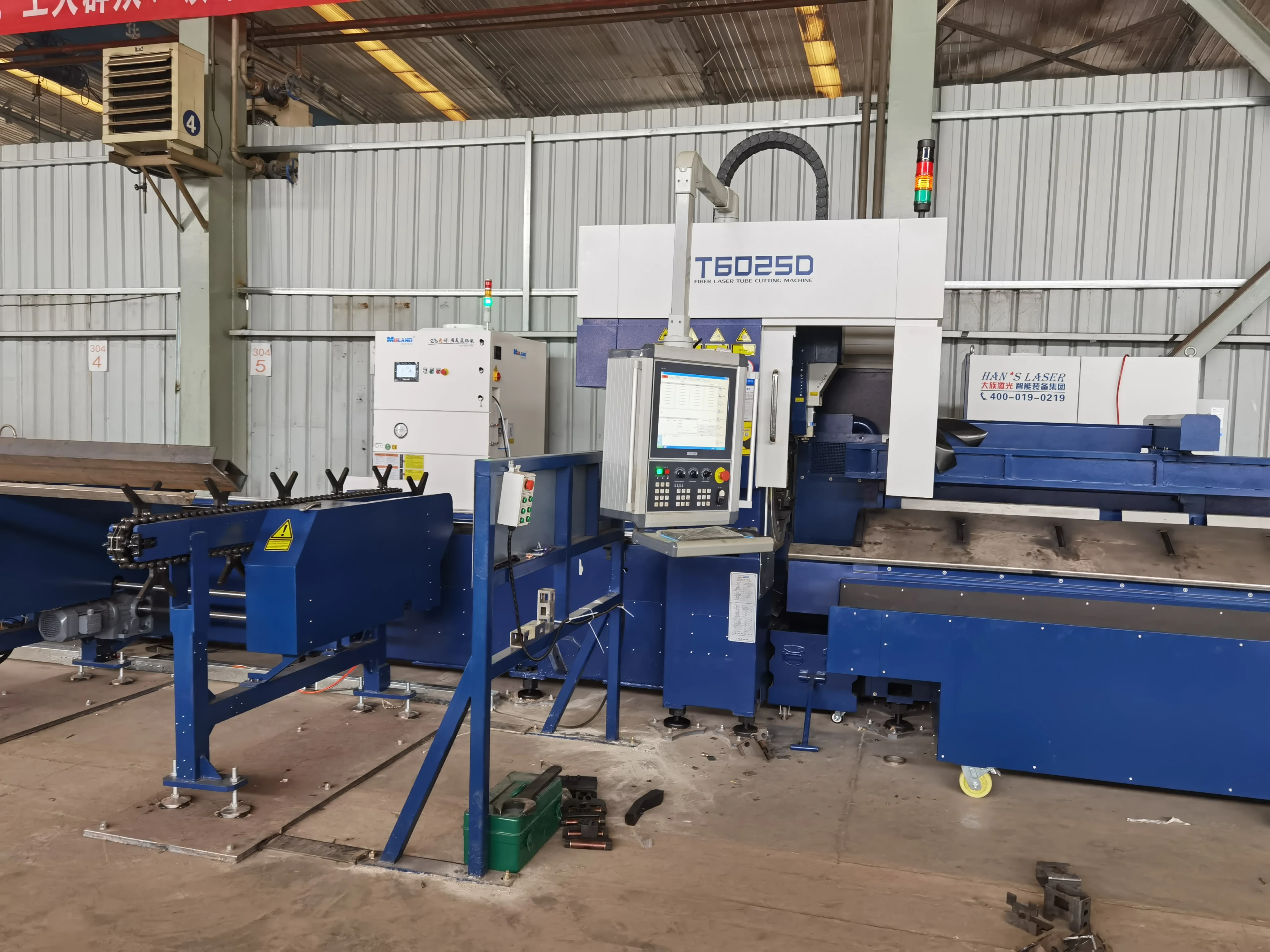

Laser Cutting
Welding Station
Company Profile
Shandong Moland Environmental Tech Co.,Ltd is located in No. 11889 Jingshi West Road, Changqing District, Jinan City, Shandong, China, established in 2016. It’s an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification systems.
The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries. The company has passed the ISO 9001 quality management system certification, obtained the certification of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents.
Through continuous R&D and innovation, many products of the company have reached the international leading level.
Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
Customer Feedback
FAQ
Q1:What's the OEM serivce of Moland?
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements,colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements,colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
