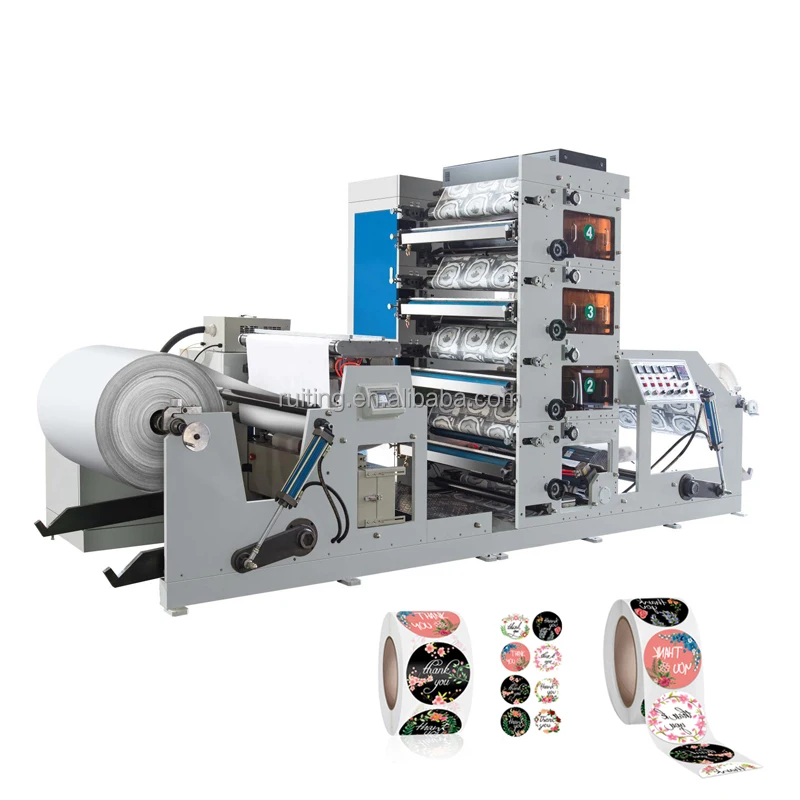

RTRY 950 Paper Cup Fan 4 Color IR dryer Printer double face print Sticker Labels Flexo Printing Machine

Share on (1601285098900):


Price:

Quantity:


Product Overview

Description





Description:

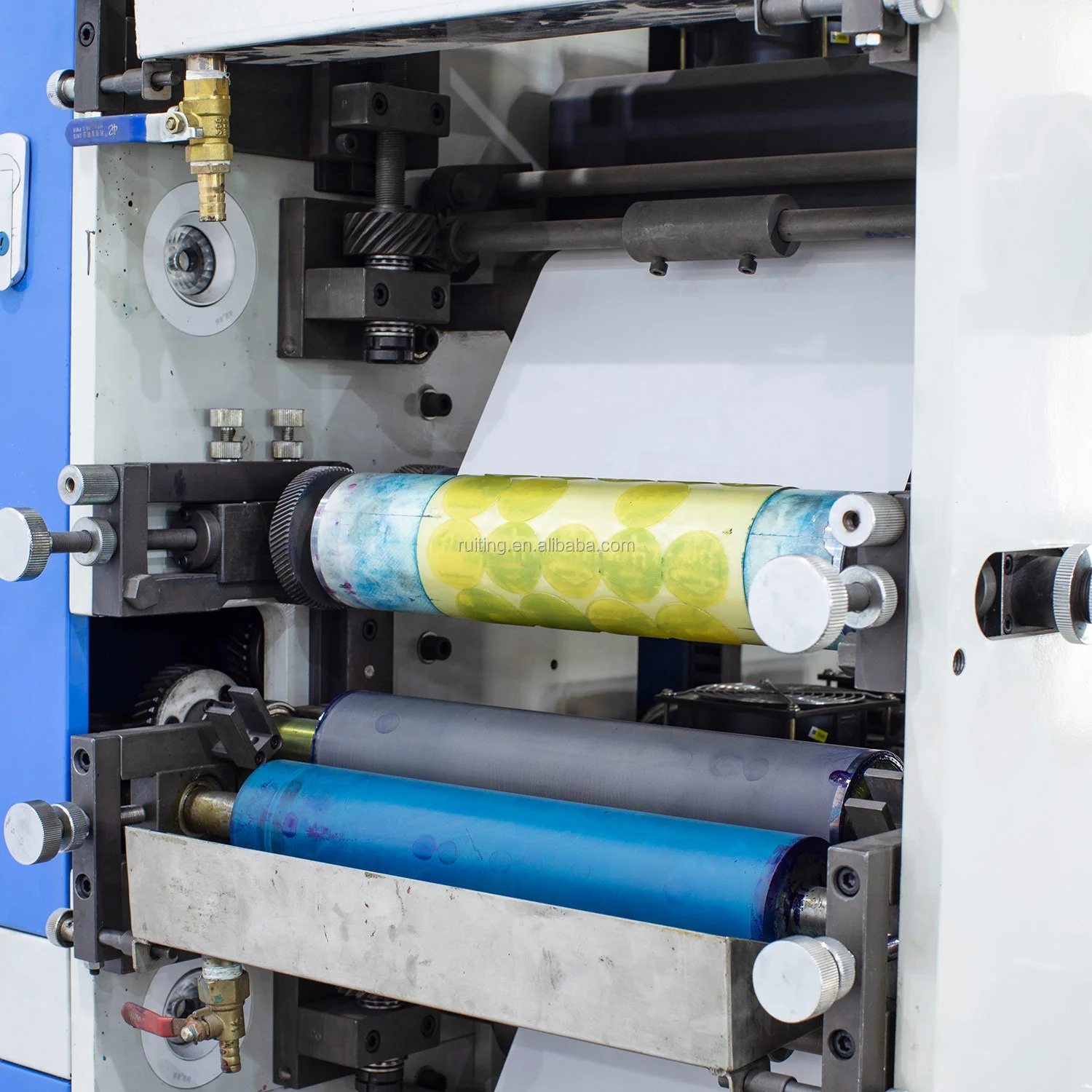

1) One set ceramic anilox cylinder to transfer the ink
2) One set printing cylinder

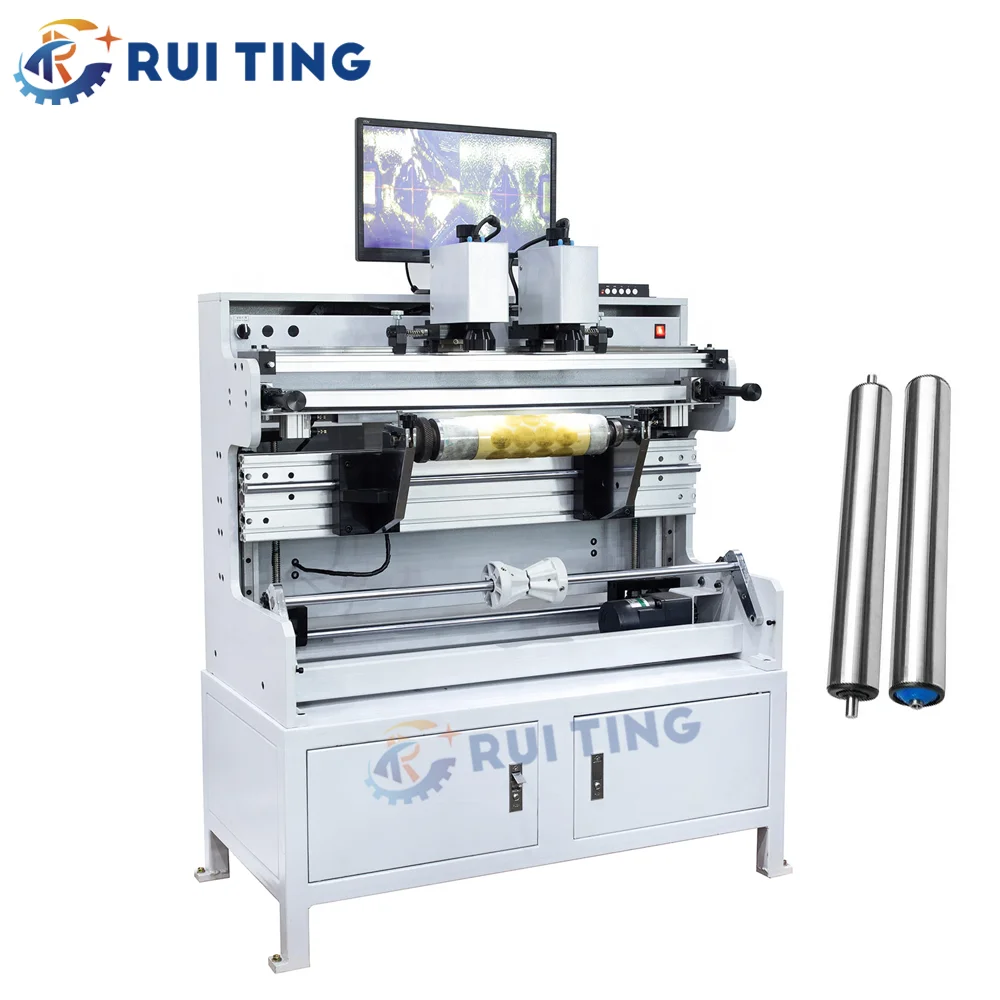

3) Manual plate mounting machine

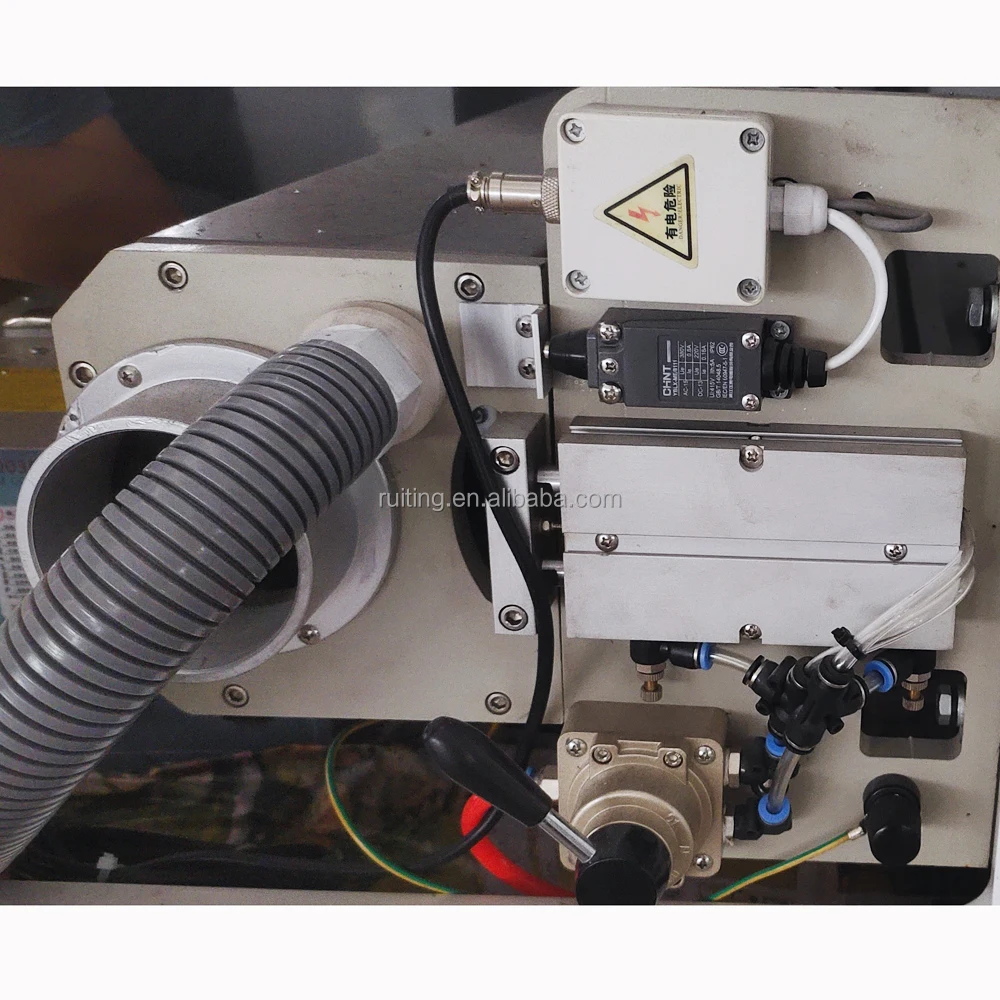

4) Automatic magnetic powder brake controller for unwinding & rewinding
5) Printing unit: 360°Plate-adjustment
6) IR dryer for each printing unit.

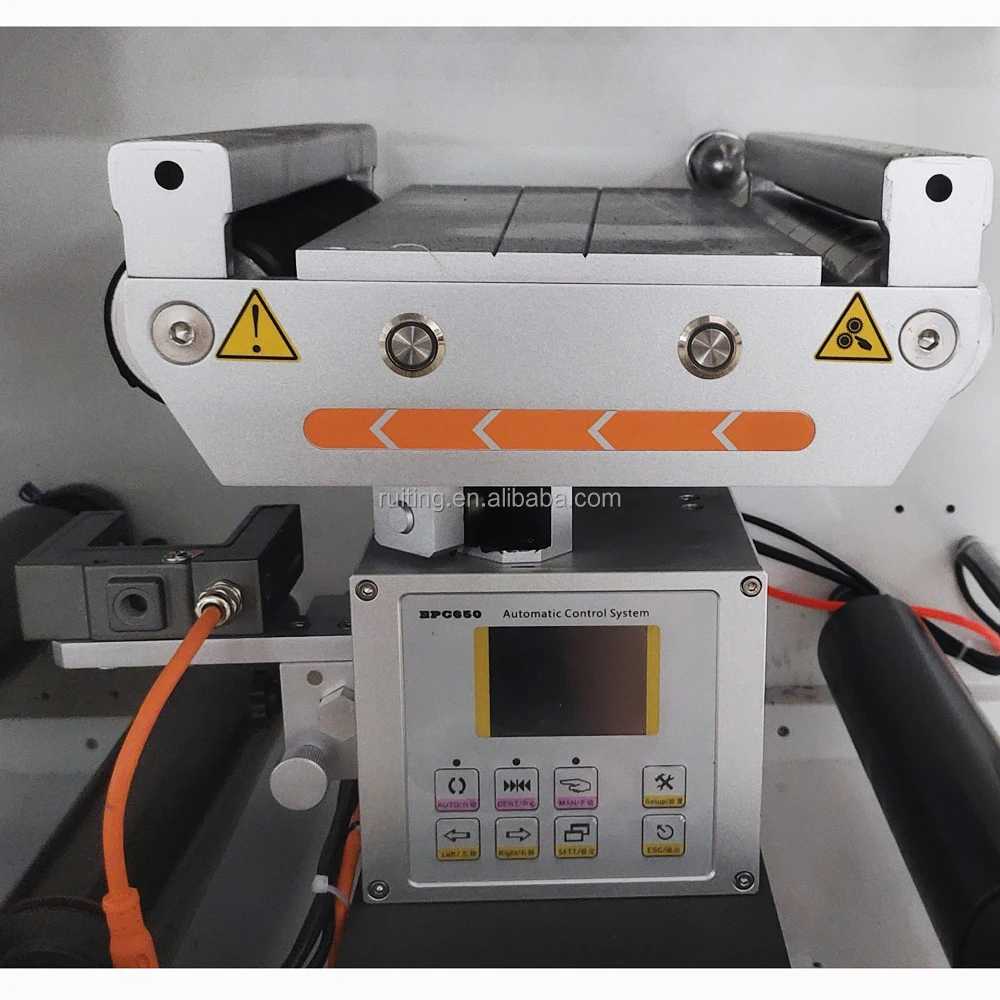

7) Web guide system in the machine
8) Unwind and rewind adopt auto loading and unloading system
9) The ink rollers will be separated from the printing roller, and keep running, when machine stopped.
10) Frequency converter for speed controlling
11) Feed paper form roll material, print, dry automatically by IR and rewinding completed in one time.
12) It is an ideal machine for printing trade invoice and top-grade adhesive label, PVC, paper cup, plastic and aluminium foil.






Model
RTRY-950
Printing speed
60m/minute
Printing color number
4 color
Max width of paper
950mm
Max printing wide
950mm
Max unwinding diameter
1000mm
Max rewinding diameter
1000mm
Printing length
175-325mm
Precision of overprint
±0.1mm
Overall dimension
3.3m(L)×2.3m(W)×2.5m(H)
Weight
about 4200kg
