Micoe Wall Mounted and Floor Standing Hydraulic Module for R290 R32 Monoblock Heat Pump Heating Cooling Hot Water System OEM
- Category: >>>
- Supplier: Jiangsu Micoe Solar Energy Co. Ltd.Jiangsu Ltd.
Share on (1601285209154):
Product Overview
Description
Products Description
Designed to meet the diverse needs of residential and commercial applications, our Hydraulic Module Heat Pump offers exceptional performance and energy efficiency. With its innovative design, it seamlessly integrates hydraulic components with a heat pump, providing a comprehensive solution for your heating and cooling requirements.

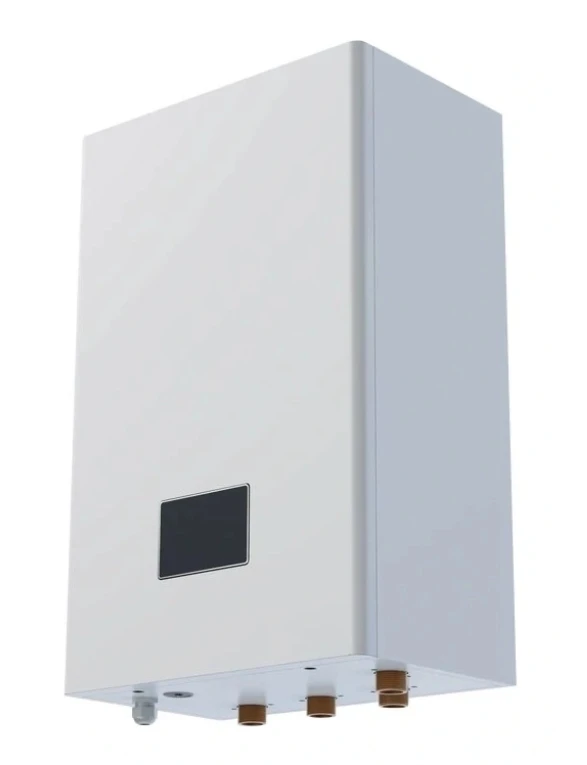

Hydraulic Module Without Water Tank
·Wi-Fi & Modbus interface as standard
· Inverter technology
· User-friendly functions
· High efficiency
· A+++ energy class
· Wide operating range
· Inverter technology
· User-friendly functions
· High efficiency
· A+++ energy class
· Wide operating range

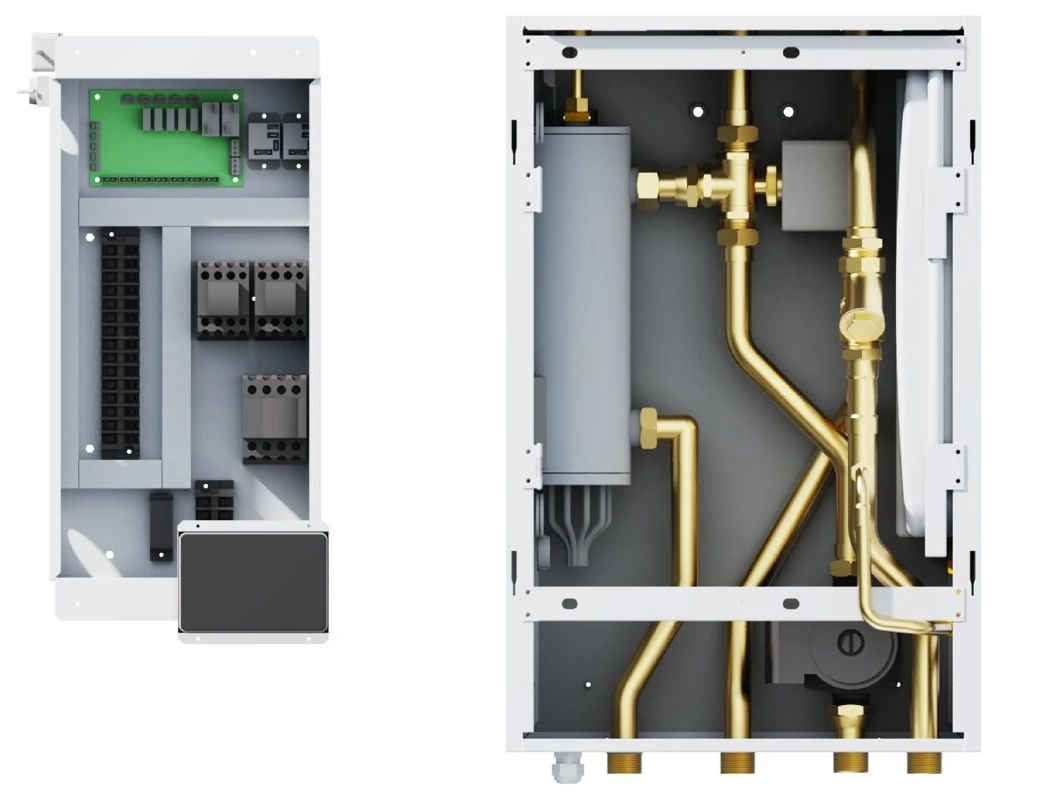

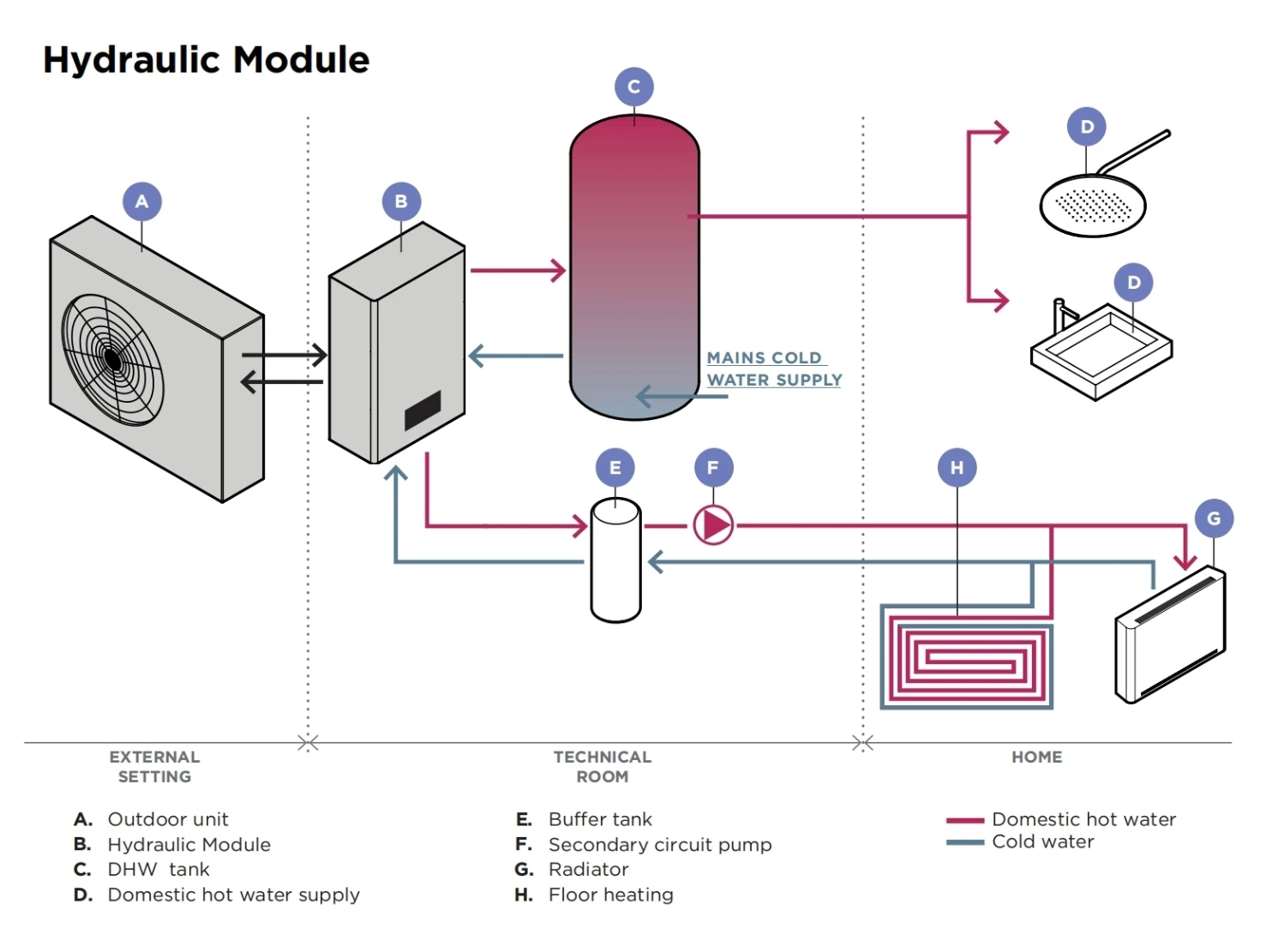

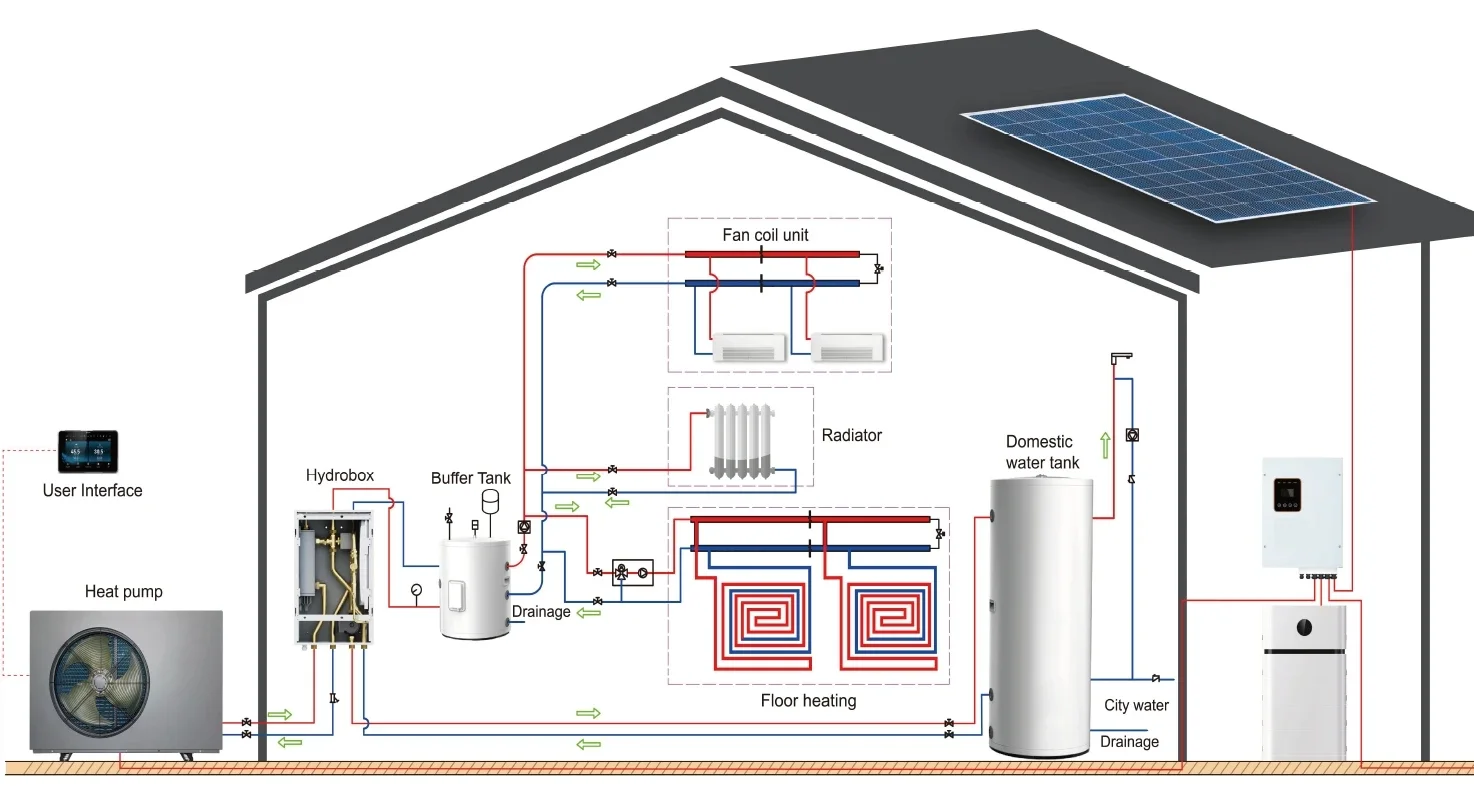

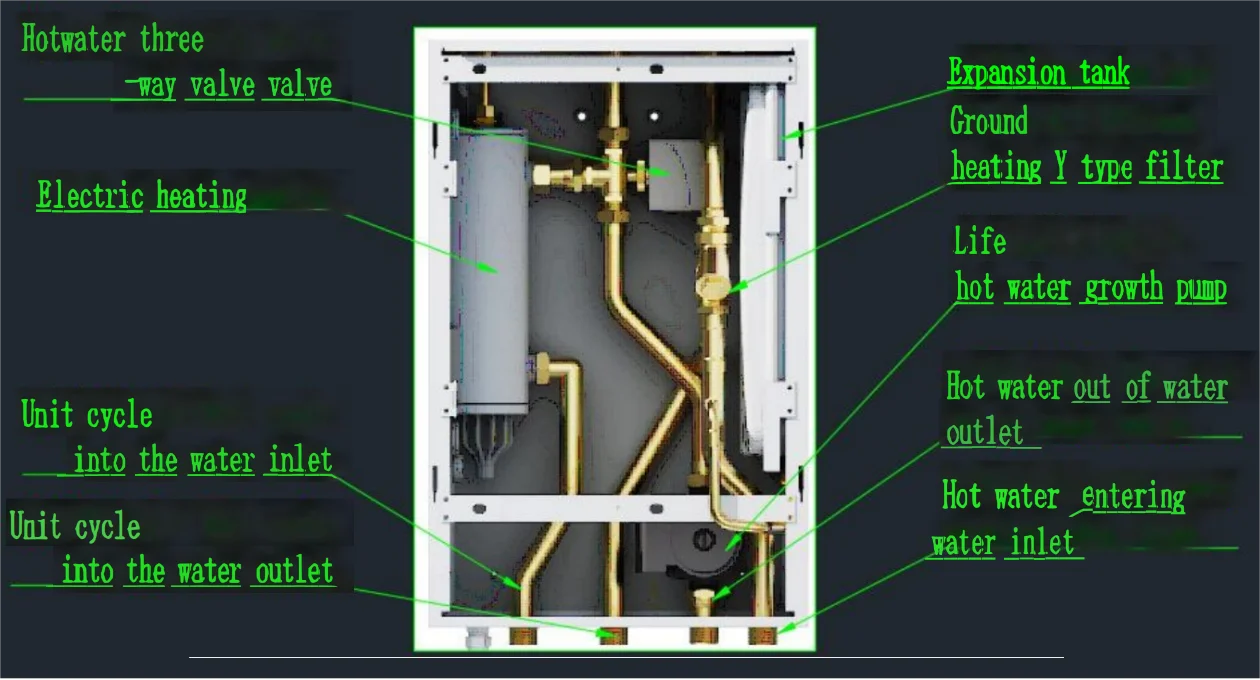

Internal hydraulic module with circulation pump and heat exchanger connected to the outdoor unit via refrigerant pipes. A flexible solution is suitable for the implementation of tailor-made systems.

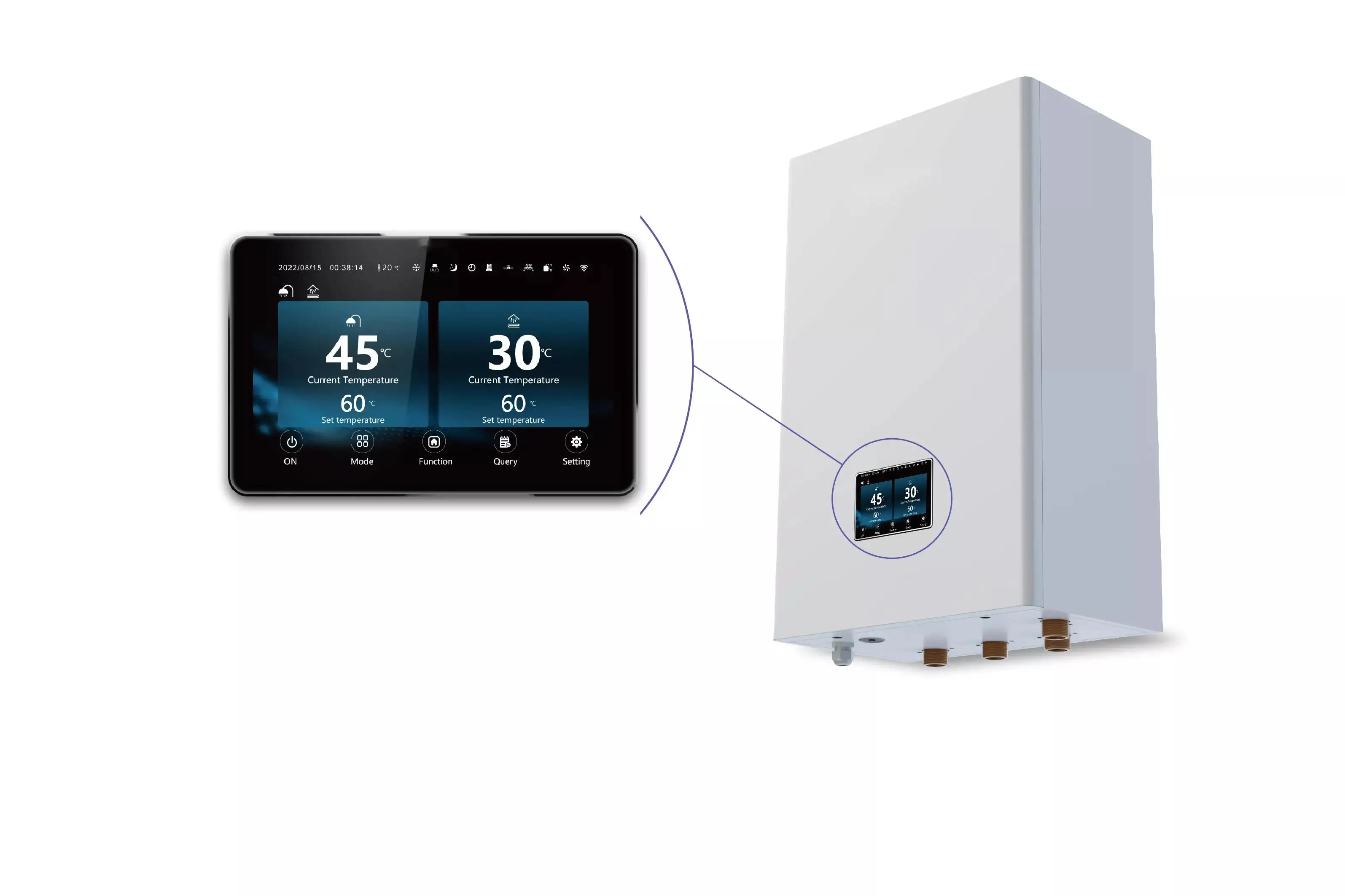

User-friendly Control
All menus are accessible through the color LED screen. We've organized the functions and settings on one page for simplicity.
Wi-fi Control
All models come standard with Wi-Fi capability, allowing for remote monitoring and adjustment of the pump's functionality with ease.
Energy Savings
DC Inverter heat pumps offer big energy savings for both heating and creating hot water due to their high SCOP levels. When compared to regular heating systems like a boiler, the amount of energy used over a single winter could cost 30% to 50% less.
Reduced Space Requirments
Every part is built into the internal module. HYDRAULIC MODULE is a great space-saver for home use because it comes with a built-in hot water tank. Unlike usual separate installs, this all-in-one pack includes pre-set-up hydronic parts and hot water parts. This makes setup faster and frees up your living space. The HYDRAULIC MODULE is simple to run and really dependable and efficient.
Exclusive Design To Work In The Most Extreme Condition
This equipment can function in a broad range of outdoor temperatures: even in extreme conditions from -25°C to 45°C.

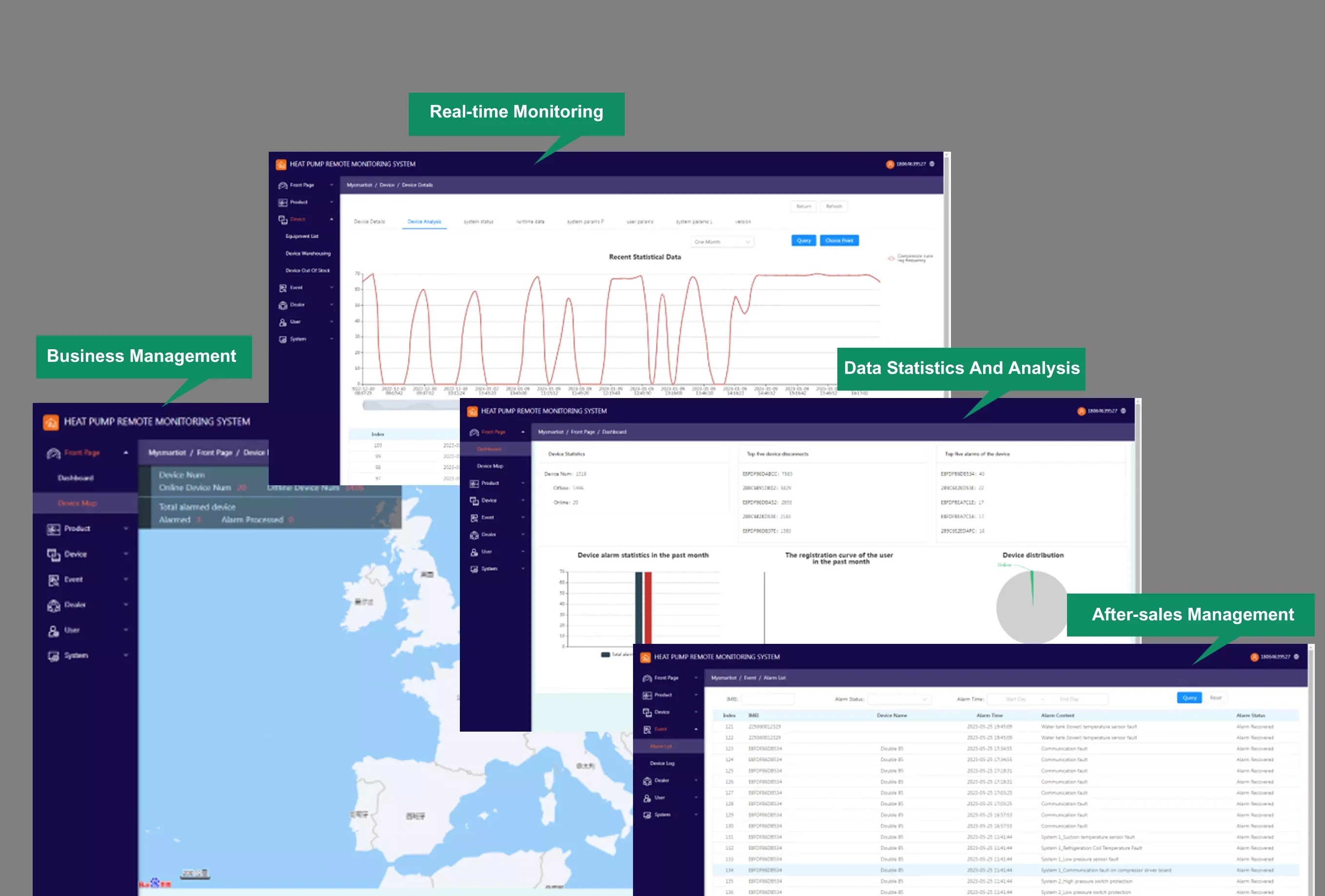

Efficient IoT Solution
IoT customer management platform can effectively save labor costs for dealers. It can be connected with WIFI or DUT to realize remote monitoring of data record all the operating parameters of the units and synchronize it to the management background of dealers and manufacturers. If the heat pump has an error report, the dealer can quickly provide users with the best solutions
according to this report.
Product Paramenters
Model | HU-3K/6LA1 | HU-9K/6LA3 | ||
Power Supply | V/Ph/Hz | 220-240/1/50 | 380-415/1/50 | |
Auxiliary heater power | KW | 3 | 6 | |
Power Input Max. | KW | 3.5 | 3.5 | |
Current Input Max. | A | 15.6 | 16.2 | |
Electrical Shockproof | / | I | ||
Water Piping Connections | In | G1 | ||
Water Pressure Drop | kPa | 10 | ||
Water Pressure Min/Max | Mpa | 0.1/0.3 | ||
Sound Pressure level | dB(A) | 35 | ||
Unit Dimensions (W/H/D) | mm | 420×670×260 | ||
Shipping Dimensions (W/H/D) | mm | 480×720×310 | ||
Net Weight | kg | 29 | ||
Gross Weight | kg | 33 | ||
Company Profile

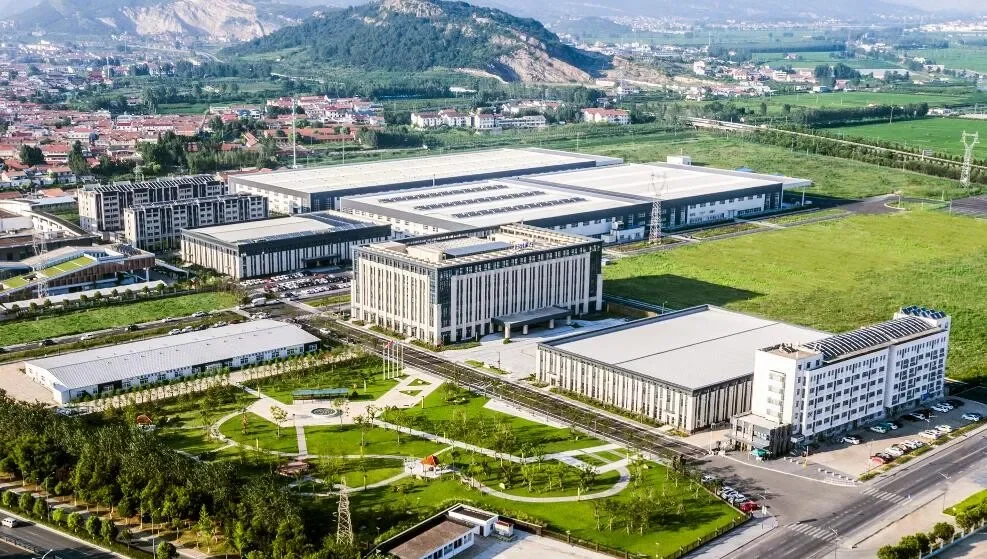

Jiangsu Micoe Solar Energy Co., Ltd.
As an international company, is specialized in researching and providing solar thermal systems for families, factories and industries around the world. Founded in 2000, Micoe has developed into the most professional company in China solar thermal industry with main business of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP.
Today, with the climate and environment quality deterioration and the fuel cost increasing due to the fewer and fewer regular energy, the world calls for a new, clean and sustainable energy. The application of Micoe system not only helps reduce the overall electricity and fuel expenditure but also gives you the opportunity to participate in activities of the environmental protection.
As a cooperative partner of China Space and a high-tech enterprise, MICOE is Listed in Shanghai A-Share Stock Market (Stock code 603366SH) specialized in researching, developing and applicating renewable energy, providing comfortable hot water and space heating solutions. Nowadays MICOE is the largest manufacturer and seller of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP in the industry, exporting to more than 100 countries and areas. Making sunshine brighter, air fresher, water cleaner is the sustainable developing strategy of micoe.
Today, with the climate and environment quality deterioration and the fuel cost increasing due to the fewer and fewer regular energy, the world calls for a new, clean and sustainable energy. The application of Micoe system not only helps reduce the overall electricity and fuel expenditure but also gives you the opportunity to participate in activities of the environmental protection.
As a cooperative partner of China Space and a high-tech enterprise, MICOE is Listed in Shanghai A-Share Stock Market (Stock code 603366SH) specialized in researching, developing and applicating renewable energy, providing comfortable hot water and space heating solutions. Nowadays MICOE is the largest manufacturer and seller of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP in the industry, exporting to more than 100 countries and areas. Making sunshine brighter, air fresher, water cleaner is the sustainable developing strategy of micoe.

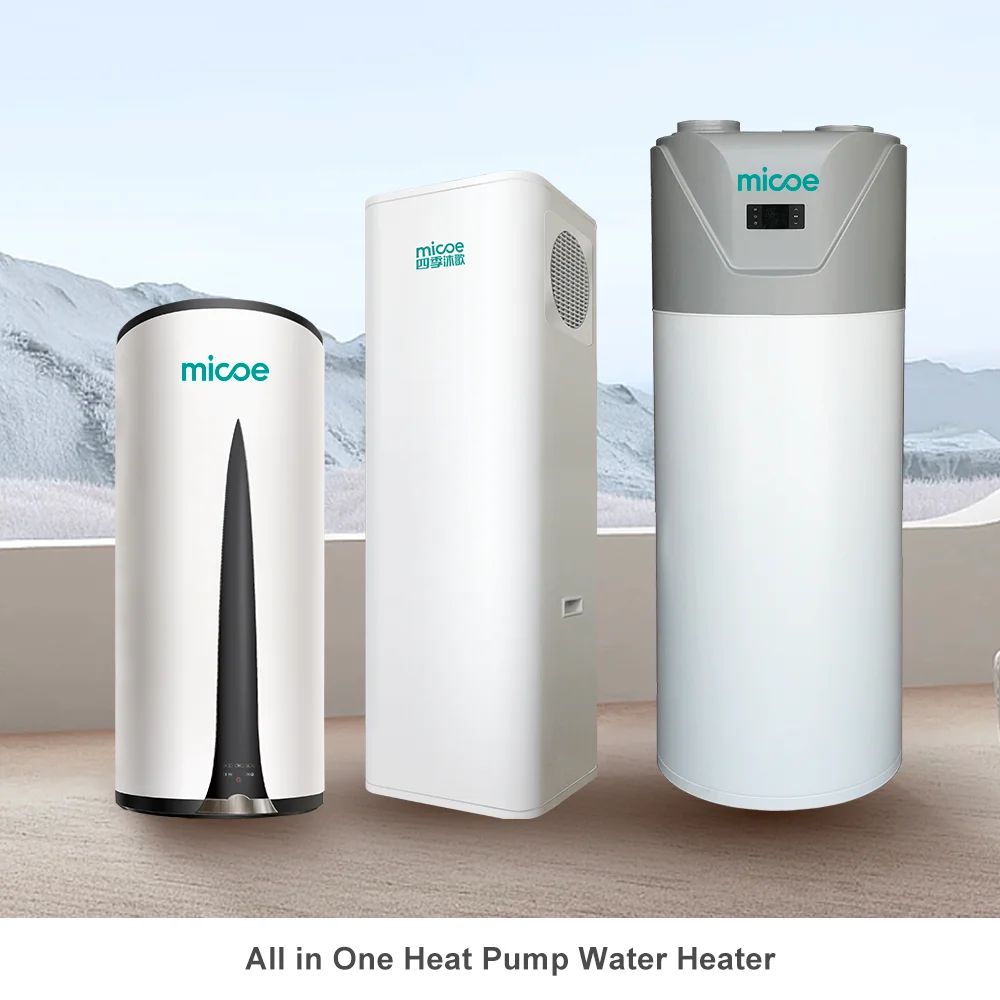

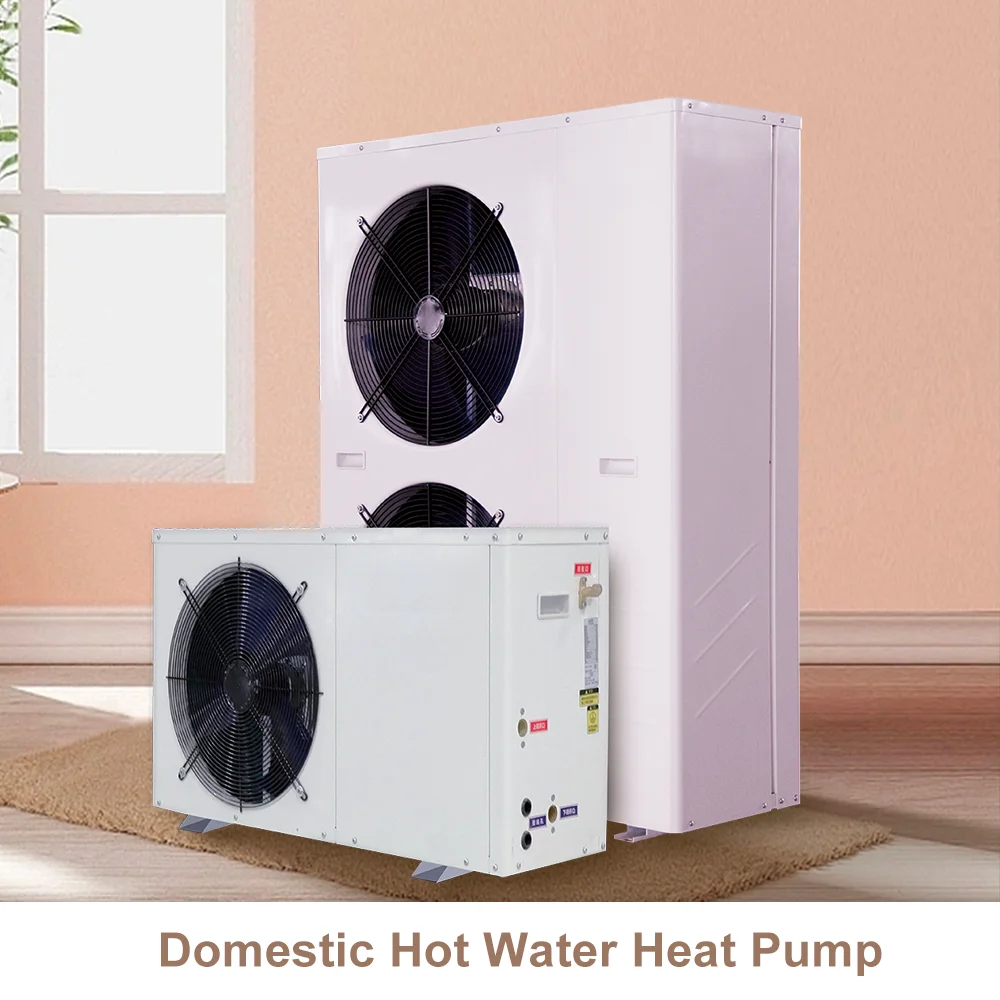

Our Main Products
Recommend Products
Successful Projects
FAQ
1. Who are we?
We are a leading manufacturer for solar water heaters,heat pump since 1999 in China.
We MICOE has full experience in the field of heat pumps for more than 18 years.MICOE has kept growing rapidly during these years.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What others products do you have?
Solar Water Heater & collector; Air Source Heat Pump: monoblock heat pump, all in one heat pump water heater, swimming pool heat pump, commercial heat pump; Water Purifier; Water Heater; Photovoltaic Panel; Hybrid Inverter; Energy Storage system.
4. Why should you buy from us not from other suppliers?

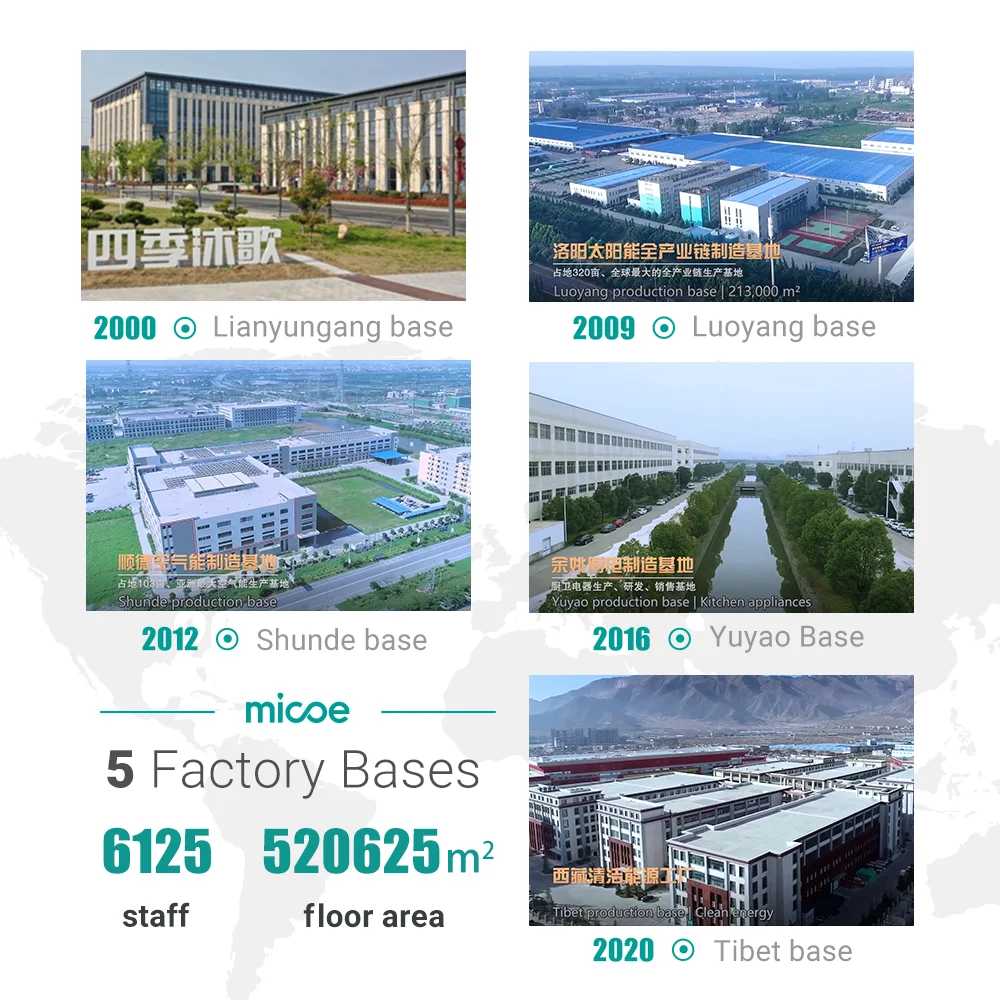

We have seven production lines and five national labs in China. We can guarantee quality on the basis of timely delivery.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, AUD, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese, Spanish, Korean
6. Do you accept OEM & ODM?
Yes. We can produce MICOE standard products under clients' brand, modify the products to satisfy client's personalized
requirements and work together with clients to design and produce a totally new products.
7. How to contact us?
E-mail: Bob@micoe.com
Tel/whatsapp: +86-15251232312
We are a leading manufacturer for solar water heaters,heat pump since 1999 in China.
We MICOE has full experience in the field of heat pumps for more than 18 years.MICOE has kept growing rapidly during these years.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What others products do you have?
Solar Water Heater & collector; Air Source Heat Pump: monoblock heat pump, all in one heat pump water heater, swimming pool heat pump, commercial heat pump; Water Purifier; Water Heater; Photovoltaic Panel; Hybrid Inverter; Energy Storage system.
4. Why should you buy from us not from other suppliers?
We have seven production lines and five national labs in China. We can guarantee quality on the basis of timely delivery.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, AUD, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese, Spanish, Korean
6. Do you accept OEM & ODM?
Yes. We can produce MICOE standard products under clients' brand, modify the products to satisfy client's personalized
requirements and work together with clients to design and produce a totally new products.
7. How to contact us?
E-mail: Bob@micoe.com
Tel/whatsapp: +86-15251232312
