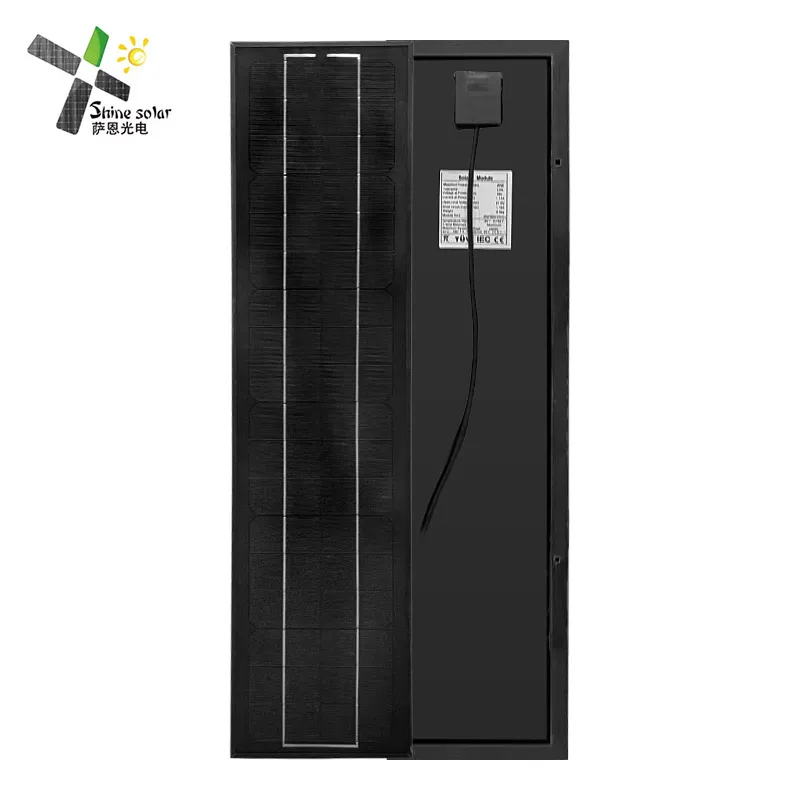

Slim Solar Panel 12v 18v Solar Power Plate 5w 10w 20w 30w 50w 80w 100w 150w Narrow Solar Strip Panel for Off Grid System
- Category: >>>
- Supplier: Shenzhen Shine Solar Co. Ltd.
Share on (1601285223836):
Product Overview
Description
Product Information
Custom Narrow Long Thin Solar Panel 10W 20W 30W 50W 80W 100W Mono Photovoltaic Panels 12V 18V PV Module for Solar Light RVs
About this 30W solar panel
* 【New Design】 Using 210mm solar cell has higher cell efficiency. It also has a better and longer lifespan.
* 【Product Dimensions】Product Dimensions:690*240*25mm
* 【Maximum Power】30W, voltage at Pmax (Vmp):18V, current at Pmax (Imp): 1.66A
* 【Easy Installation】Pre-attached wire with MC4 connector, pre-drilled mounting holes on the frame allow for easy and quick install.
* 【Warranty】12-year limited material and workmanship warranty, 25-year 80% output warranty.
About this 30W solar panel
* 【New Design】 Using 210mm solar cell has higher cell efficiency. It also has a better and longer lifespan.
* 【Product Dimensions】Product Dimensions:690*240*25mm
* 【Maximum Power】30W, voltage at Pmax (Vmp):18V, current at Pmax (Imp): 1.66A
* 【Easy Installation】Pre-attached wire with MC4 connector, pre-drilled mounting holes on the frame allow for easy and quick install.
* 【Warranty】12-year limited material and workmanship warranty, 25-year 80% output warranty.
We are 13 years OEM factory
any shape/size/voltage/connector can be customized.
Send inquire to get samples
Below are our hot selling small solar panel, if you need different sizes, you can also contact us for customization！
Model | Pmax(watt) | Vmp(V) | Imp(A) | Dimension(mm) |
SN-M10 | 10W | 18V | 0.56A | 345*225*18mm or customize |
SN-M20 | 20W | 18V | 1.11A | 400*345*25mm or customize |
SN-M30 | 30W | 18V | 1.66A | 530*345*25mm or customize |
SN-M40 | 40W | 18V | 2.22A | 680*345*25mm or customize |
SN-M50 | 50W | 18V | 2.78A | 530*510*25mm or customize |
SN-M60 | 60W | 18V | 3.33A | 680*510*30mm or customize |
SN-M80 | 80W | 18V | 4.44A | 680*630*30mm or customize |
SN-M100 | 100W | 18V | 5.56A | 760*670*30mm or customize |
SN-M120 | 120W | 18V | 6.67A | 910*680*30mm or customize |
SN-M150 | 150W | 18V | 8.33A | 1135*680*30mm or customize |

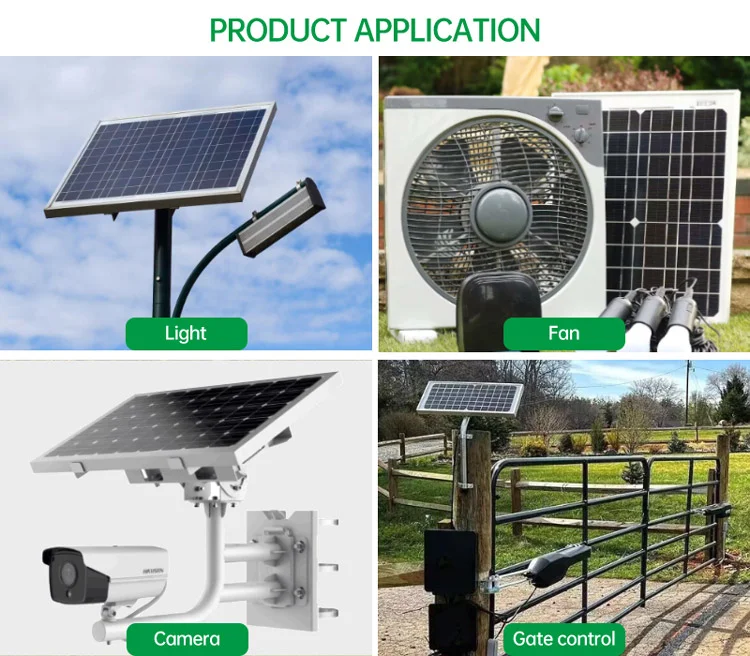

Applications
Certificate
Visit our factory
FAQ
Questions from our clients:
1. Can you supply sample for testing?
・ TUV, CE, RoHS, LVD, ISO
3. Do you support OEM?
・ Yes, we can put your brand on the product.
4. How long you can ship goods after payment?
・Sample 2 week
・ Yes, but if it is for personal use, then we recommend customers to buy locally because shipping is not cost-effective.
2. What certificate do you have?
2. What certificate do you have?
・ TUV, CE, RoHS, LVD, ISO
3. Do you support OEM?
・ Yes, we can put your brand on the product.
Any size,shape, voltage can be produced according to your requirements
4. How long you can ship goods after payment?
・Sample 2 week
・Bulk order 25 days
