JX Servo PDI 4409MG 10KG 180 Degree Large Torque High performance Digital standard Servo with 25T metal arm for 1/8 1/10 rc car
JX Servo PDI-4409MG 10KG 180 Degree Large Torque High performance Digital standard Servo with 25T metal arm for 1/8 1/10 rc car
JX Servo PDI-4409MG 10KG 180 Degree Large Torque High performance Digital standard Servo with 25T metal arm for 1/8 1/10 rc car
JX Servo PDI-4409MG 10KG 180 Degree Large Torque High performance Digital standard Servo with 25T metal arm for 1/8 1/10 rc car
JX Servo PDI-4409MG 10KG 180 Degree Large Torque High performance Digital standard Servo with 25T metal arm for 1/8 1/10 rc car

JX Servo PDI 4409MG 10KG 180 Degree Large Torque High performance Digital standard Servo with 25T metal arm for 1/8 1/10 rc car

Share on (1601285435640):


Price:$11.09 - $13.70

Quantity:


Product Overview

Description


JX Servo PDI-4409MG 10KG 180 Degree Large Torque High performance Digital standard Servo



What is the Details of our Product ?

Features
High performance digital standard servo

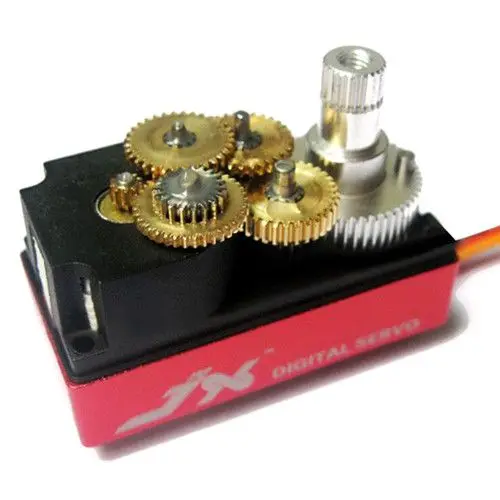

High-precision Taiwan-made aluminium gears with hard anodizing
CNC aluminium middle Shel
Dual ball bearings
Pulse Width: 900-2100us
Angle: 120 Degree (Suitable for Remote Controller)
Maximum Pulse Width: 500-2500us
Maximum Angle 180 Degree (Suitable for Control Board)



Product Details

Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.13 sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 7.8 kg/cm
Stall Torque (6V): 9.2 kg/cm
Dimensions: 40.5X20.3X28mm
Weight: 44.5 g
Connector Wire Length: JR 265 mm
Bearing: 2BB

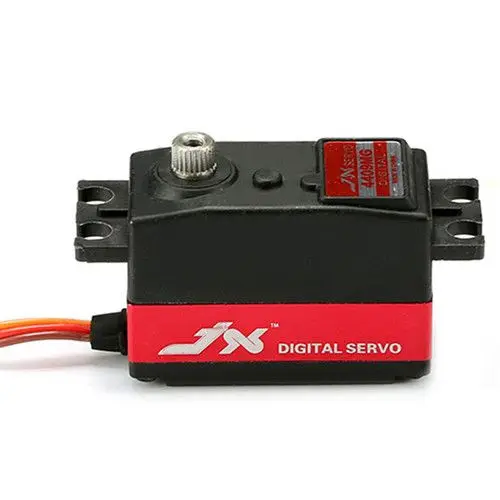

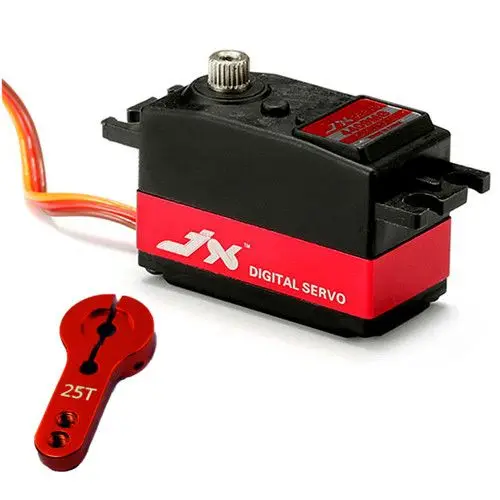

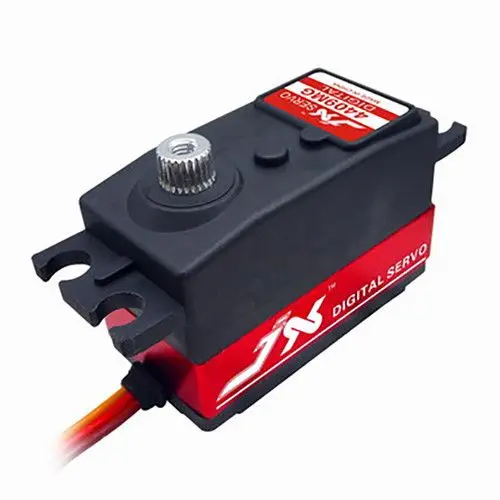

Product Pictures

PACKING AND SHIPPING

JX4409MG Servo x 1

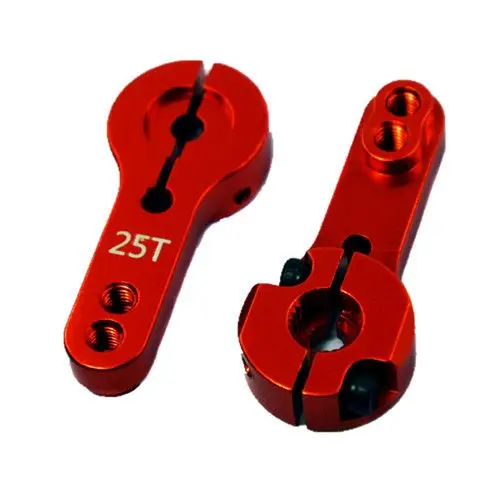

25T Metal arm x 1
