Jiangchuan 210 1.8 Meters High Standard Small Power Roller Sublimation Printing Machine Calendar Heat Press Machine

Share on (1601285483253):


Price:$5,572.00-6,143.00

Quantity:


Product Overview

Description


Jiangchuan 210 1.8 Meters High Standard Small Power Roller Sublimation Printing Machine Calendar Heat Press Machine



Product Description

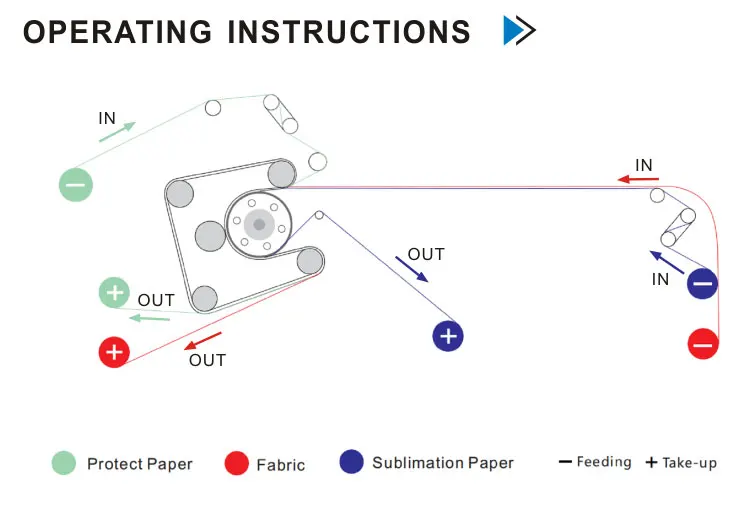

The roll heat press machine is designed to feed the transfer paper into the heat press with the design side facing up for easy cut part registration. The unwind/rewind systems which are standard with the machine allow multiple ways of feeding the machine:





·  sheet paper with cut fabric parts which require registration to the design





·  roll to roll print paper with cut fabric parts





·  roll fabric with cut transfer paper





·  roll to roll paper and fabric


Specification




















































































Brand NameJiangchuan
Printing/Roll Width1800MM
Roller diameter210MM /8.27Inch
Voltage220/380/420 Three-phase
Power 12KW
Sublimation Speed35-50 meters per hour
Weight1020KG
Packing Size248x100x165CM
Feeding MethodTop feeding
Other SizeAvailable
Air Compressor RequiredRequired
Blanket MaterialNomex:High Temperature Resistance
Drum SurfaceChrome:High hardness and abrasion performance
DrumOil 100%
Temperature Range0-399℃
Scope Of DeliveryRoller heat transfer machine,Power cable without plug,some electronic spare parts for free
NoteCustom size by your special order
Customized machine to work with different power supplier
WarrantyOne Year
MOQOne Set

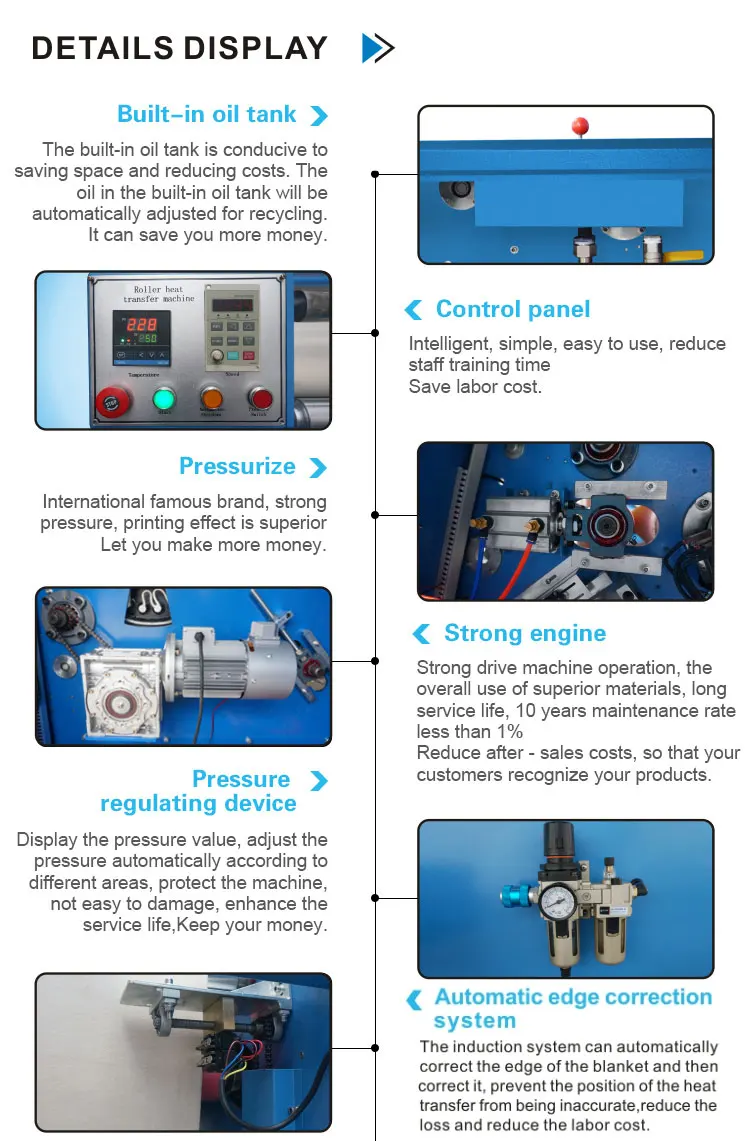

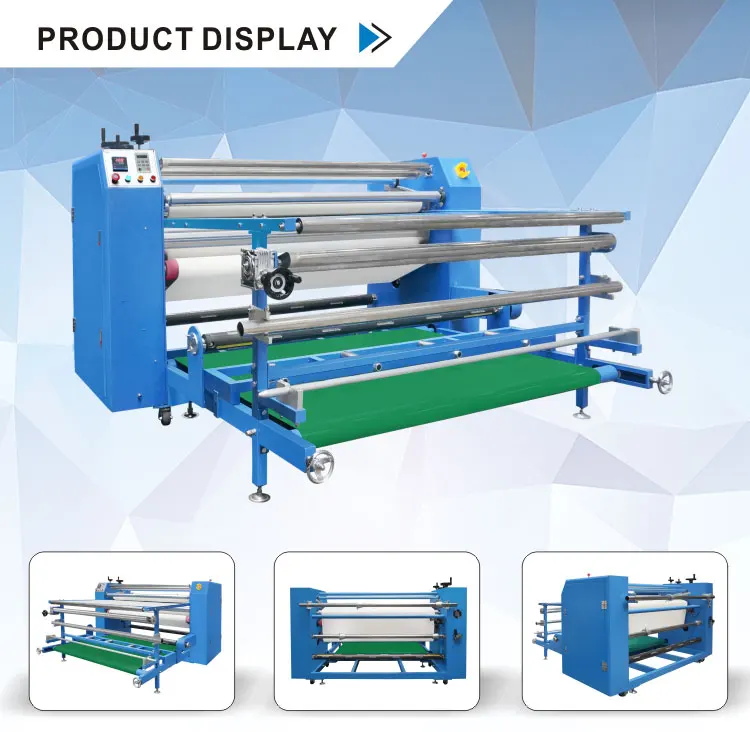

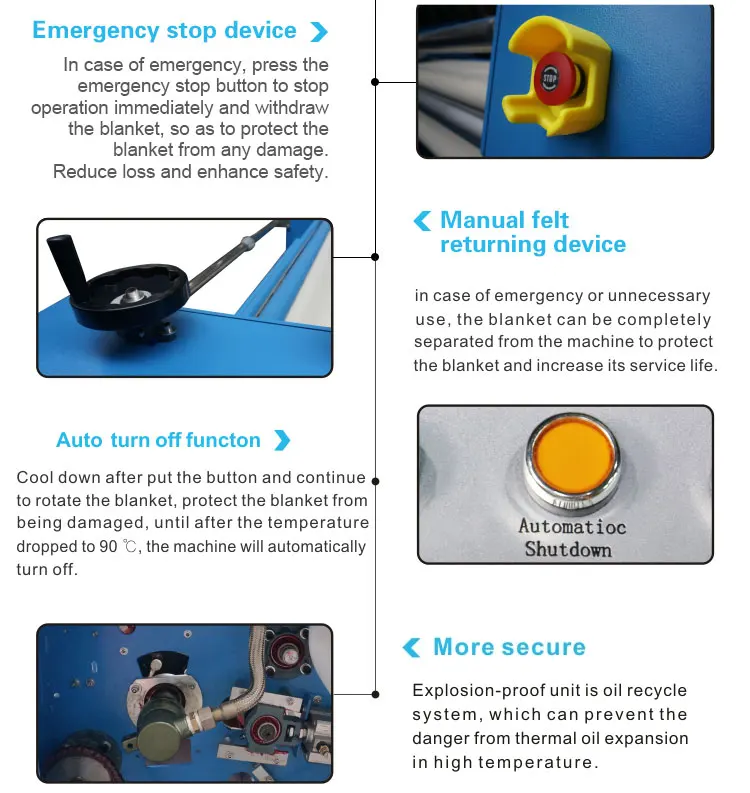

rollheatpress (3)rollheatpress (5)rollheatpress (6)rollheatpress (7)rollheatpress (8)
