6mm/12.7mm/16mm/20mm/25mm Industrial Vertical Drilling Tool with High Precision

Name: 6mm/12.7mm/16mm/20mm/25mm Industrial Vertical Drilling Tool with High Precision
SKU: 1601285684506
Availability: InStock

Price:

Quantity:

Product Description

Specification

Maximum drilling diameter mm	Z4116	Z512B	Z512-2	Z4120	Z4112A	Z4116A	Z4125
Voltage (V) HZ	220V/ 380V	220V/ 380V	220V/ 380V	220V/ 380V	220V/ 380V	220V/ 380V	380V
Column diameter mm	16	12.7	12.7	20	12.7	16	25
Maximum spindle stroke mm	85	70	70	85	70	70	85
Distance from spindle center to column busbar mm	125	100	100	125	100	100	125
Maximum distance from spindle end to worktable (mm)	240	193	193	240	193	193	240
The maximum distance from the spindle end to the base table is mm	297	315	332	367	95	95	367
Spindle taper	560	556	556	630	320	320	630
Main spindle speed range r/min	MT2	B16	B16	MT2	B16	MT2	MT3
Spindle speed series	365-3150	480-4100	480-4100	365-3150	400-4090	400-4090	365-3150
Workbench size mm	280x300	265X265	265X265	280X300	250X250	250X250	280X300
Base size mm	590x375	528X360	528X360	590X375	495X375	495X375	590X375
Total height mm	1127	1037	1037	1127	850	850	1127
Electric motor w ，according to voltage	750/750	370/550	370/550	750/1100	370/550	550/750	1100
Gross net weight kg	165/140	108/90	108/90	165/140	120/102	120/102	165/140
Packaging size cm	82x48x102	77X42X94	77X42X94	82X48X102	83X42X92	83X42X92	82X48X102

Spindle box and worktable lifting method:

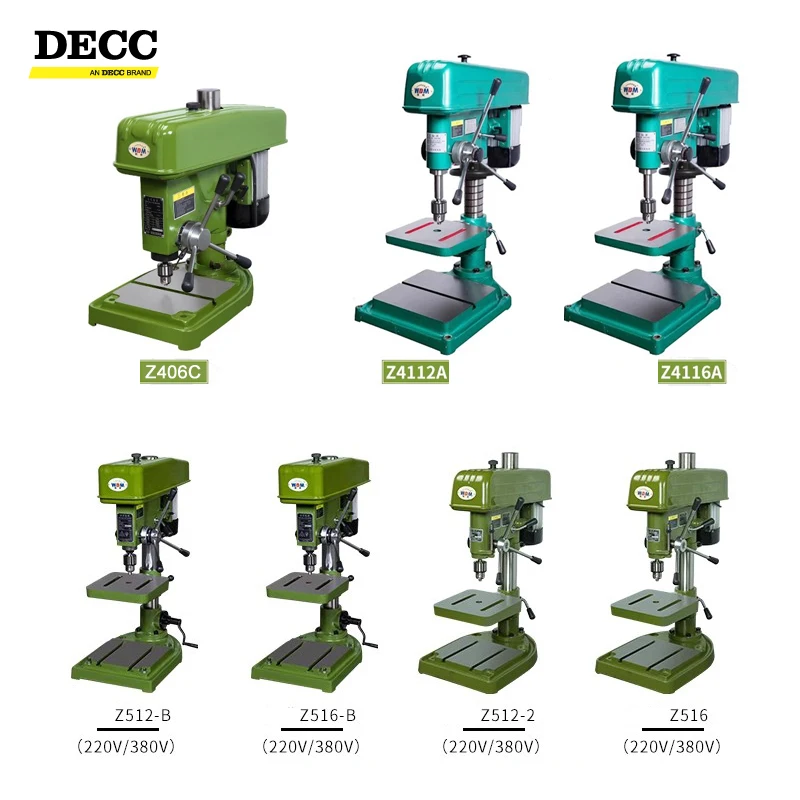

MODEL	Power	Maximum drilling diameter	Spindle box lifting method	Workbench lifting method	Depth determination
Z406C	220V 50/60Hz 50/60Hz/380V 250W	6mm	Manual lifting	No workbench	Dial
Z512-2	220v 50/60Hz 370W/380V 550W	12.7mm	Manual lifting	Manual lifting	Ruler
Z516	220v 50/60Hz 370W/380V 550W	16mm	Manual lifting	Manual lifting	Ruler
Z512B	220V 50/60Hz 370W/380V 550W	12.7mm	Manual manual lifting/indirect handle lifting	Shake handle lifting	Dial
Z516B	220V 50/60Hz 370W/380V 550W	16mm	Manual manual lifting/indirect handle lifting	Shake handle lifting	Dial
Z4116	220V 50/60Hz 750W/380V 750W	16mm	Manual manual lifting/indirect handle lifting	Shake handle lifting	Dial
Z4120	220V 50/60Hz 750W/380V 1100W	20mm	Manual manual lifting/indirect handle lifting	Shake handle lifting	Dial
Z4125	380V 1100W	25mm	Manual manual lifting/indirect handle lifting	Shake handle lifting	Dial
Z4112A	220V 50/60Hz 370W/380V 550W	12.7mm	Handwheel lifting	Manual lifting	Dial
Z4116A	220V 50/60Hz 550W/380V 750W	16mm	Handwheel lifting	Manual lifting	Dial

Packing & Delivery

New products from manufacturers at wholesale prices
