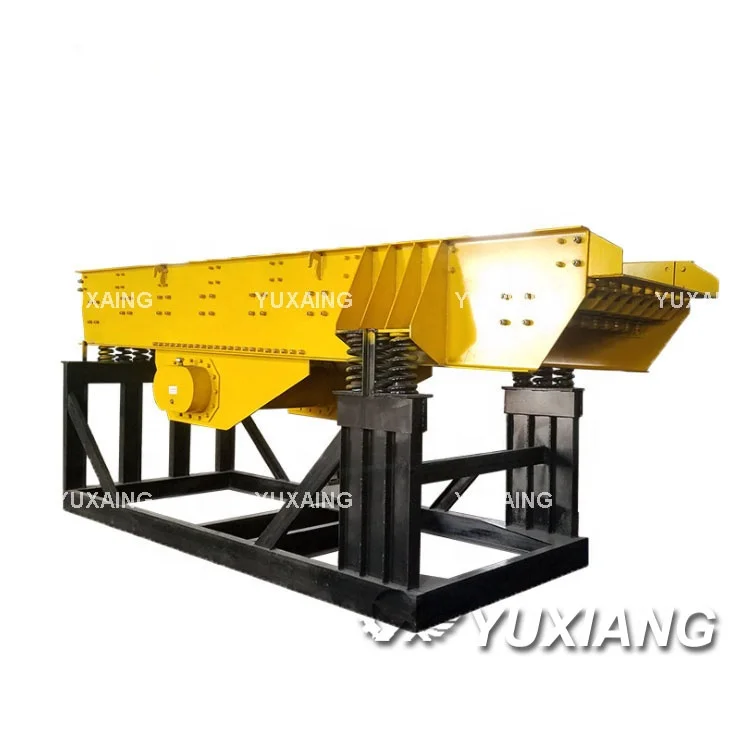

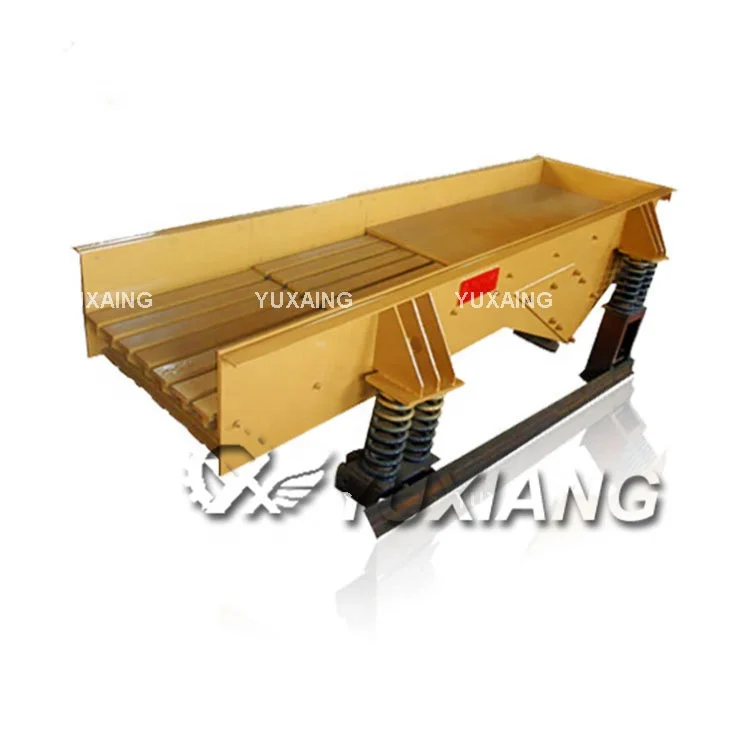

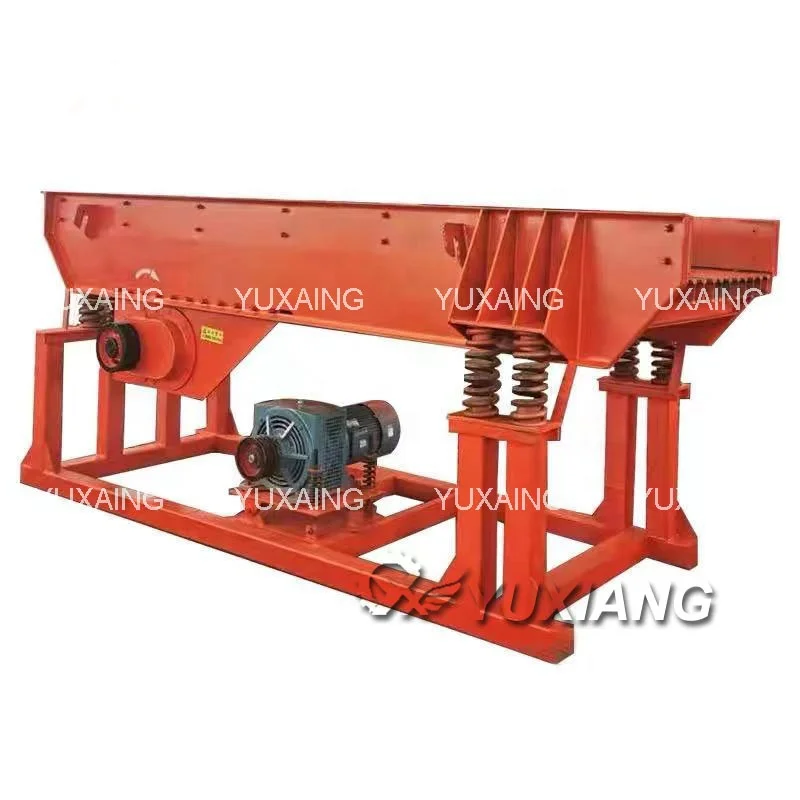

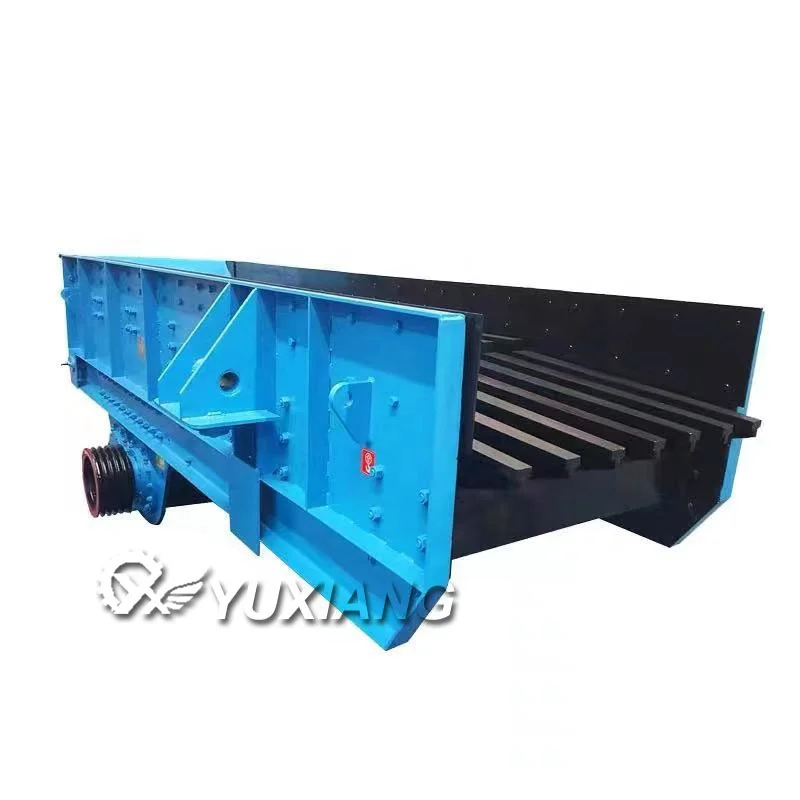

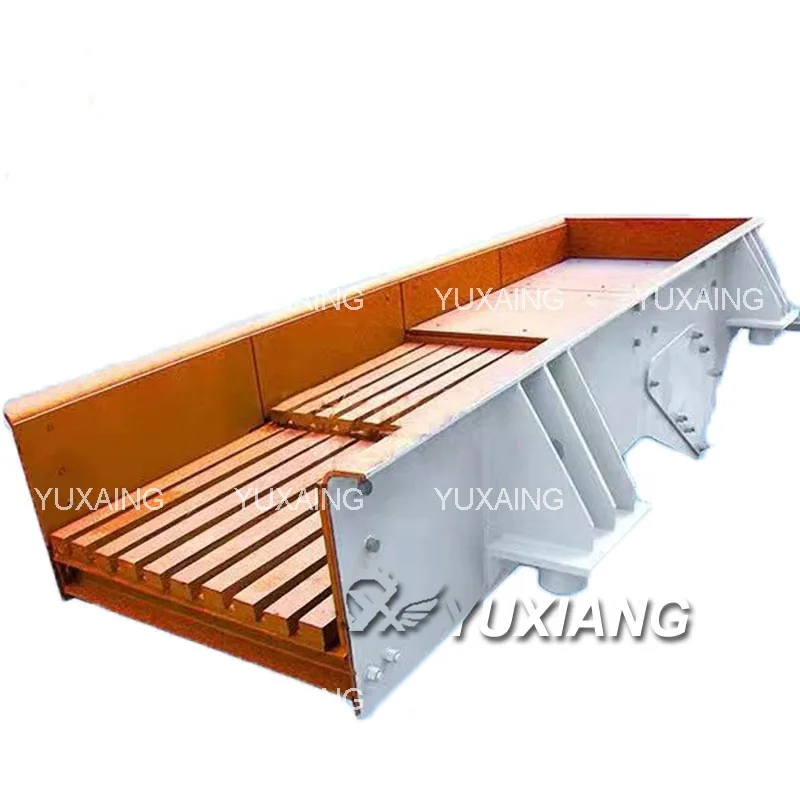

High Efficiency Electromagnetic Linear Vibrating Feeder for Mining Machinery
- Category: >>>
- Supplier: Gongyi City Yuxiang Heavy Machinery Co. Ltd.
Share on (1601285874523):
Product Overview
Description
Wide Application Grizzly Mining Vibrating Feeder Machine price for Stone Crusher
Product Description
Vibrating feeder is a new type heavy-duty feeder which uses the vibration and gravity to push the material forward. It can transport the large stone materials uniformly, regularly and continuously to rock crusher machine from the hopper. Our equipment is an ideal vibrating feeder for feeding rock aggregates, coal, ore, gold, crushed stone. And widely used in metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives, and other industries in the crushing, screening and joint equipment.
Application

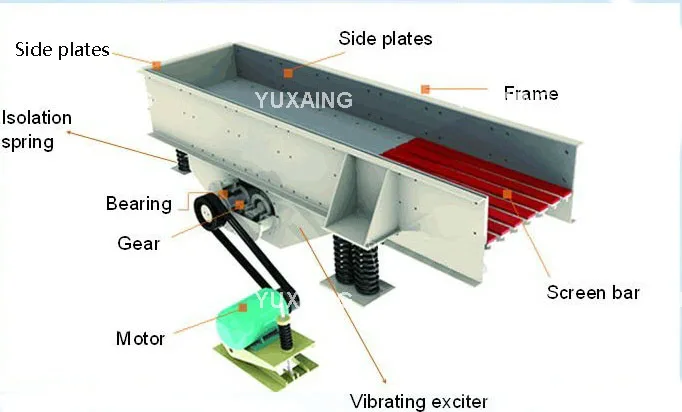

Product Structure
The vibrating feeder is made up of side plates, frame, bearing, gear, motor and vibrating exciter. There are many characteristics, compared with other feeder:
1) Simple structure, easy installation
2) High accuracy and feeding capacity;
3) Low energy consumption and low noise
4) Easy to adjust and maintain
5) Less damage to vibrating feeder.
2) High accuracy and feeding capacity;
3) Low energy consumption and low noise
4) Easy to adjust and maintain
5) Less damage to vibrating feeder.
Specification
Model | Vibrating Frequency (r/min) | Double Amplitude (mm) | Capacity (t/h) | Power (KW) | Dimension(mm) | Weight(t) |
GZD0624 | 970 | 4-6 | 50-100 | 2x1.1 | 2510x1170x1290 | 1.6 |
GZD0830 | 970 | 4-6 | 90-150 | 2x1.1 | 3110x1370x1370 | 2.5 |
GZD9538 | 970 | 4-6 | 120-210 | 2x3 | 3910x1520x1460 | 3 |
GZD1149 | 970 | 4-6 | 160-320 | 2x5.5 | 5010x1670x1710 | 4.3 |
GZD1249 | 970 | 4-6 | 180-380 | 2x5.5 | 5010x1770x1710 | 4.5 |
GZD1360 | 970 | 4-6 | 200-450 | 2x7.5 | 6120x1870x1950 | 5.7 |
GZD1560 | 970 | 4-6 | 240-590 | 2x11 | 6120x2070x1950 | 7.3 |

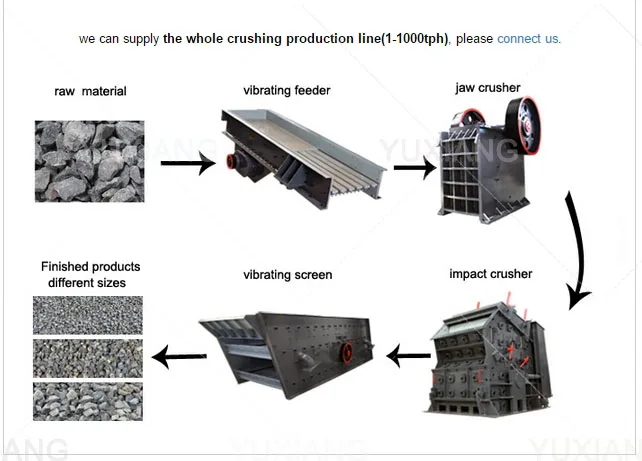

Production Line

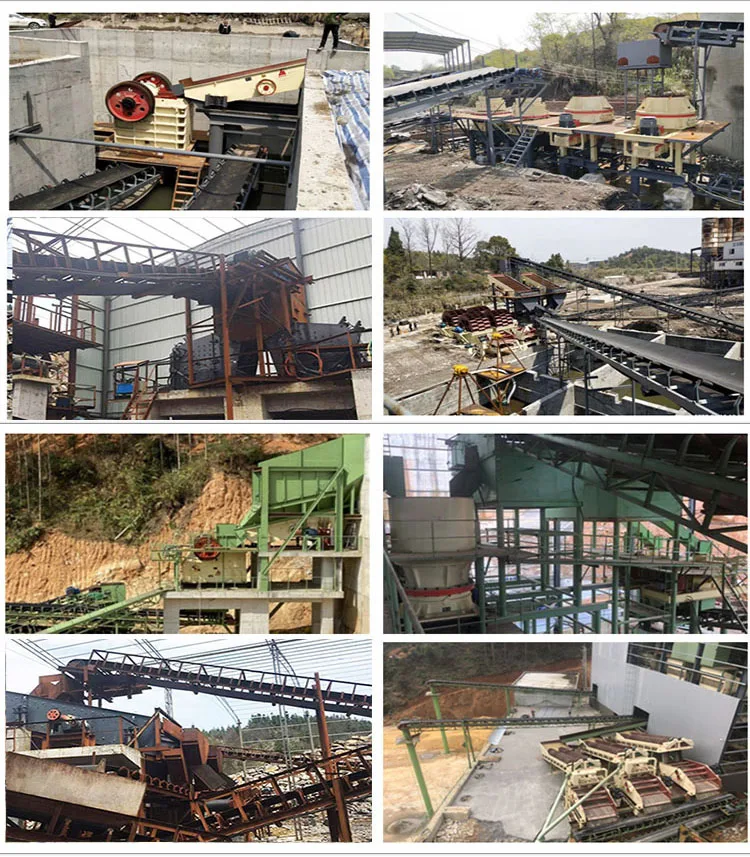

Product Case

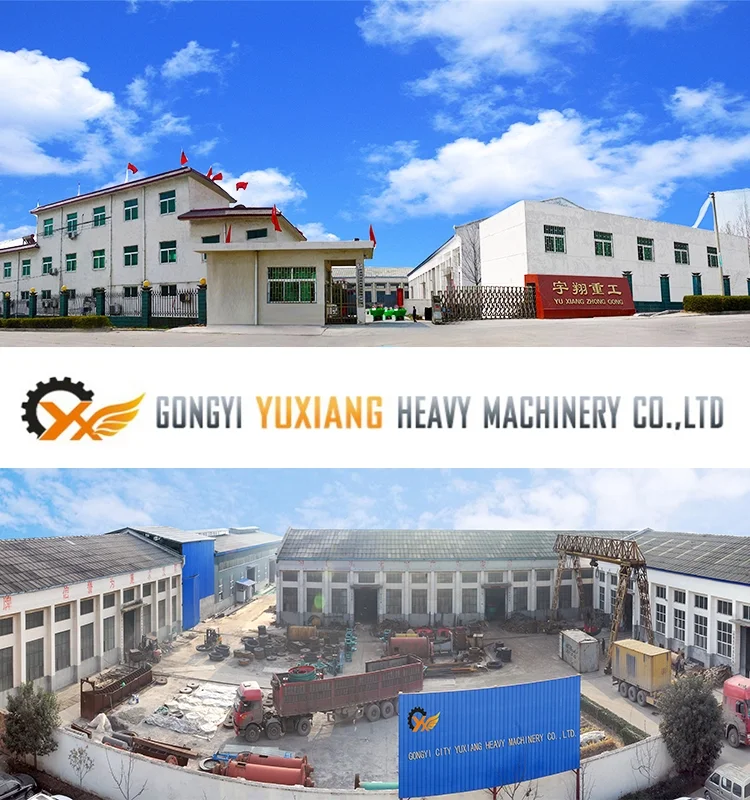

Company Profile
Gongyi Yuxiang Heavy Machinery Factory has been established for more than 20 years. It is a large and medium-sized heavy machinery manufacturing co., LTD., which integrates r&d, manufacturing and sales. Since its establishment, the use of scientific modern enterprise management methods, excellent product quality and perfect after-sales service, set up a good image at home and abroad.
Our products include crusher series, grinding machine series, drying machine series, charcoal machine series, sand making machine, granulator series. It is widely used in mining, building materials, metallurgy, chemical industry, communications, water conservancy and other industries. Our products are not only sold to more than 20 provinces, cities and autonomous regions, but also exported to more than 10 countries and regions such as Eastern Europe, Middle East, Asia, Africa, North America, SouthAmerica and Oceania.
Our products include crusher series, grinding machine series, drying machine series, charcoal machine series, sand making machine, granulator series. It is widely used in mining, building materials, metallurgy, chemical industry, communications, water conservancy and other industries. Our products are not only sold to more than 20 provinces, cities and autonomous regions, but also exported to more than 10 countries and regions such as Eastern Europe, Middle East, Asia, Africa, North America, SouthAmerica and Oceania.
