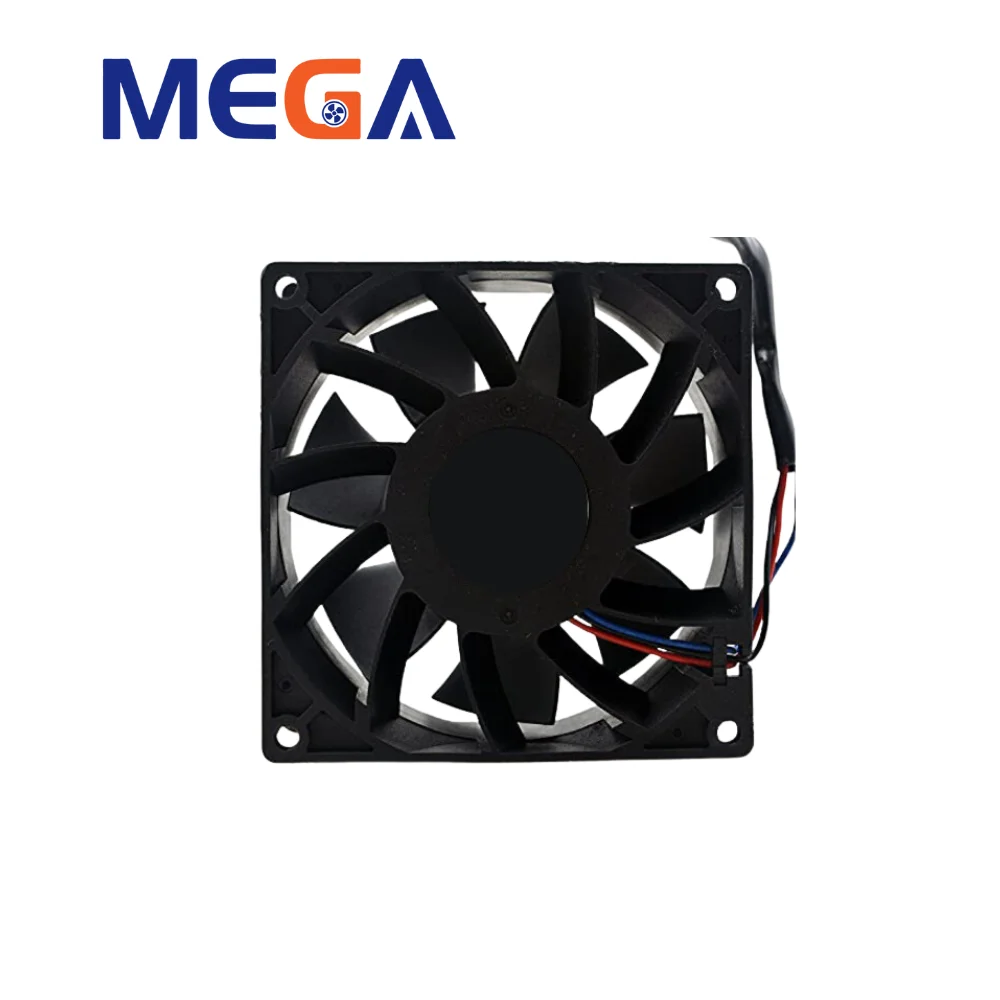

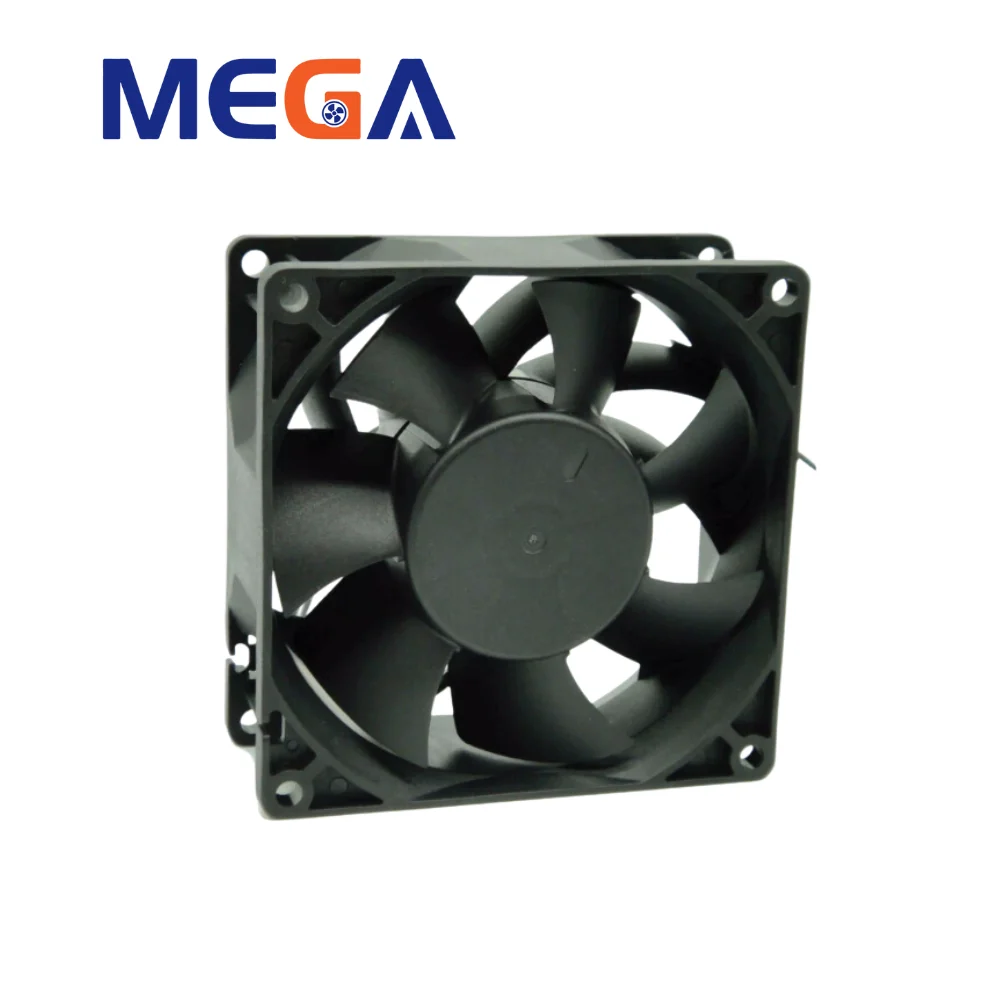

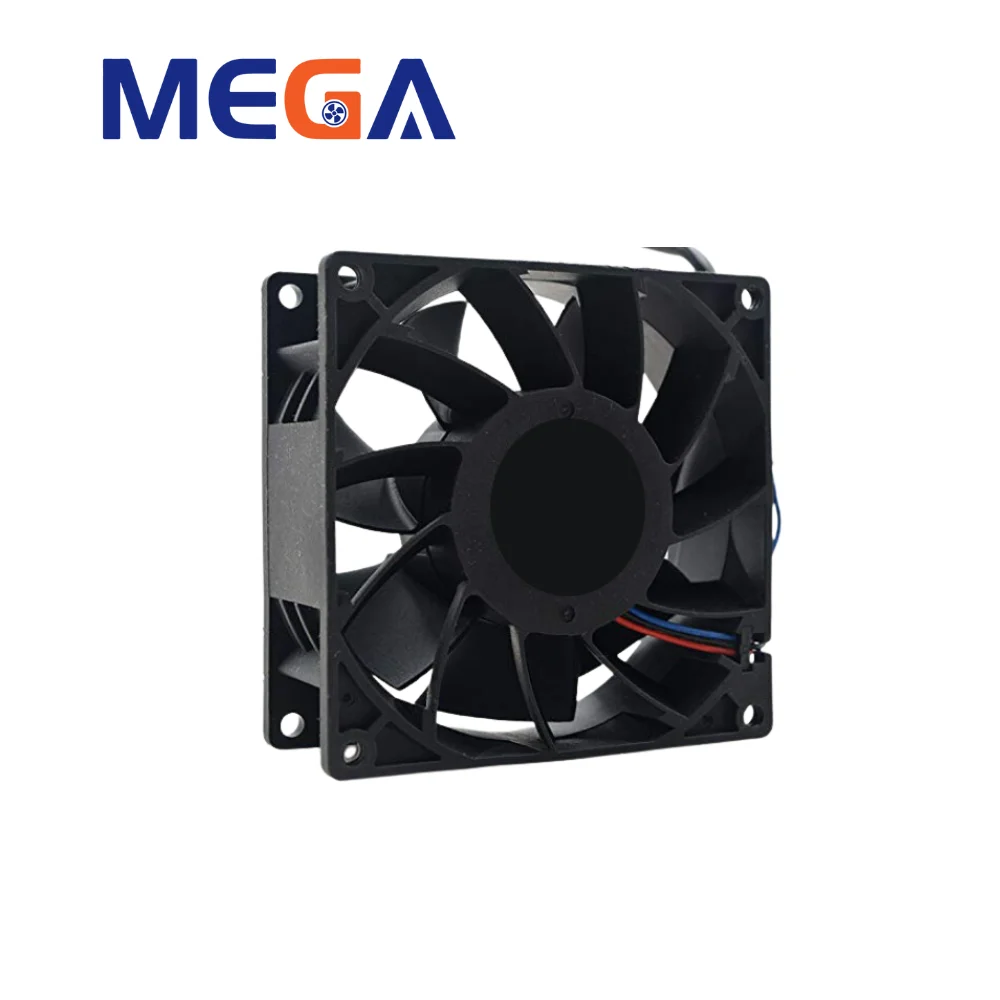

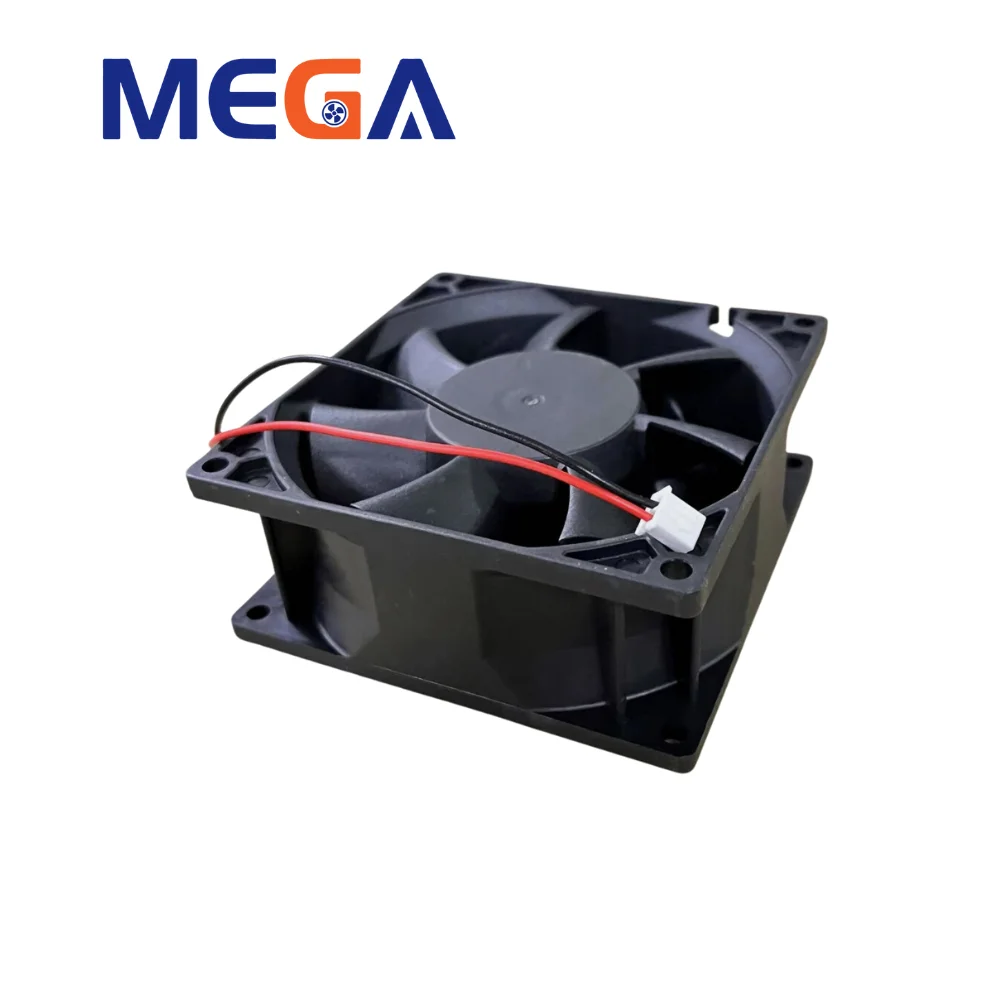

DC 24V 48V 90mm 92X92X38mm 9238 7500rpm Axial Cooling Fan
- Category: >>>
- Supplier: Guangzhou Mega Technology Limited Company
Share on (1601285882665):
Product Overview
Description
DC 24V 48V 90mm 92X92X38mm 9238 7500rpm Axial Cooling Fan
www.cnmegatech.com
We can custom all kinds of famous brand fan, some data replacement fan, please feel free to contact
lisa@cnmegatech.com
whatsapp: 86-13570567086
Product Description
Product Overview

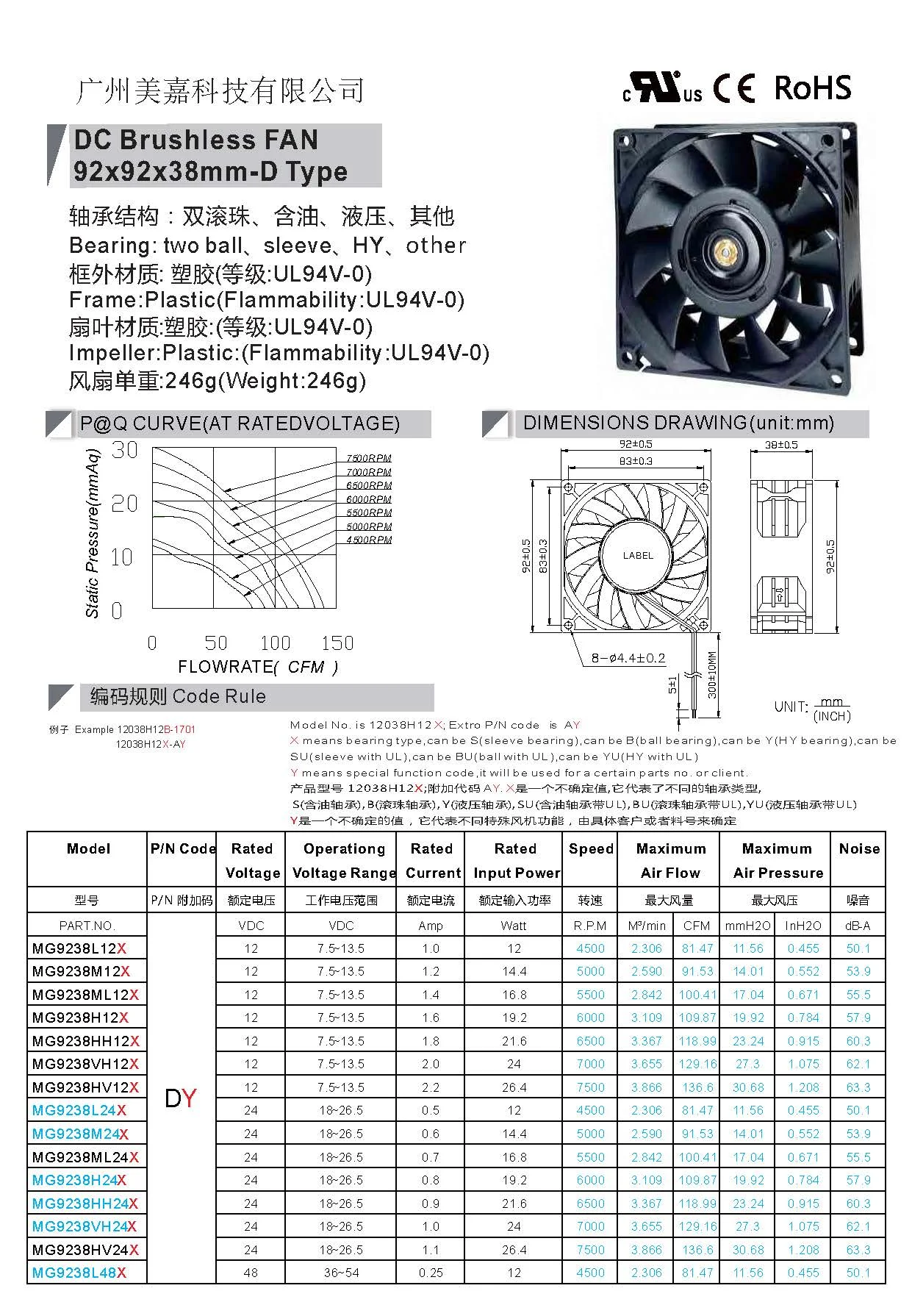

This is a DC brushless fan produced by Guangzhou Mega Technology Co., Ltd., with the model number 92x92x38mm-D Type. The fan adopts dual ball bearings, ensuring high reliability and a long lifespan. The fan blades, frame, and other components are made of flame-retardant materials, meeting the UL94V-0 standard, and have good safety performance.
Parameter Value
Product Type: DC brushless fan
1. Size: 92x92x38mm
2. Bearing Type: ball、sleeve、HY、other
3. Frame Material: plastic (UL94V-0)
4. Blade Material: plastic (UL94V-0)
5. Weight: 246g
6. Rated Voltage: 12V，24V，48V
7. Operating Voltage Range: 7-13.5V(12V）, 18-26.5V(24V)
8. Rated Current: 0.3-2.2A
9. Rated Input Power:12-26.4W
10. Speed:4500-7500RPM
11. Air Flow:81.47-136.6CFM
12. Maximum Air Pressure:11.56-30.68mmH2O
13. Noise Level:50.1-63.3dB-A
This is a DC brushless fan produced by Guangzhou Mega Technology Co., Ltd., with the model number 92x92x38mm-D Type. The fan adopts dual ball bearings, ensuring high reliability and a long lifespan. The fan blades, frame, and other components are made of flame-retardant materials, meeting the UL94V-0 standard, and have good safety performance.
Parameter Value
Product Type: DC brushless fan
1. Size: 92x92x38mm
2. Bearing Type: ball、sleeve、HY、other
3. Frame Material: plastic (UL94V-0)
4. Blade Material: plastic (UL94V-0)
5. Weight: 246g
6. Rated Voltage: 12V，24V，48V
7. Operating Voltage Range: 7-13.5V(12V）, 18-26.5V(24V)
8. Rated Current: 0.3-2.2A
9. Rated Input Power:12-26.4W
10. Speed:4500-7500RPM
11. Air Flow:81.47-136.6CFM
12. Maximum Air Pressure:11.56-30.68mmH2O
13. Noise Level:50.1-63.3dB-A

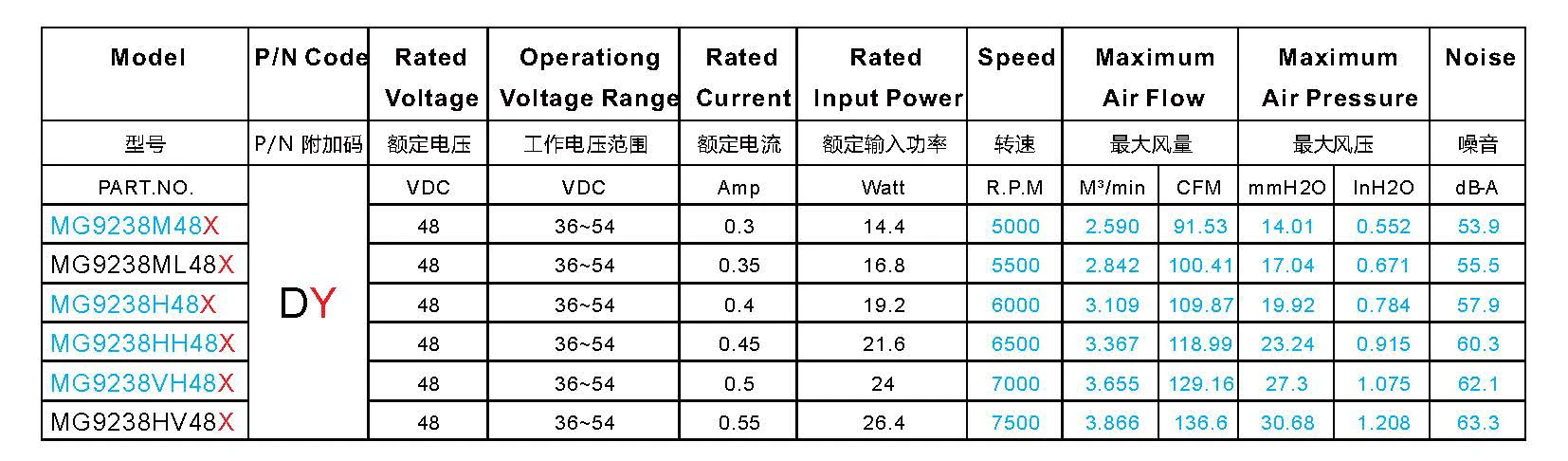

Product Parameters
Model | Rated Voltage | Operationg Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
PART.NO. | VDC | VDC | Amp | Watt | R.P.M | CFM | mmH2O | dB-A |
MG9238L12X | 12 | 7.5~13.5 | 1 | 12 | 4500 | 81.47 | 11.56 | 50.1 |
MG9238M12X | 12 | 7.5~13.5 | 1.2 | 14.4 | 5000 | 91.53 | 14.01 | 53.9 |
MG9238ML12X | 12 | 7.5~13.5 | 1.4 | 16.8 | 5500 | 100.41 | 17.04 | 55.5 |
MG9238H12X | 12 | 7.5~13.5 | 1.6 | 19.2 | 6000 | 109.87 | 19.92 | 57.9 |
MG9238HH12X | 12 | 7.5~13.5 | 1.8 | 21.6 | 6500 | 118.99 | 23.24 | 60.3 |
MG9238VH12X | 12 | 7.5~13.5 | 2 | 24 | 7000 | 129.16 | 27.3 | 62.1 |
MG9238HV12X | 12 | 7.5~13.5 | 2.2 | 26.4 | 7500 | 136.6 | 30.68 | 63.3 |
MG9238L24X | 24 | 18~26.5 | 0.5 | 12 | 4500 | 81.47 | 11.56 | 50.1 |
MG9238M24X | 24 | 18~26.5 | 0.6 | 14.4 | 5000 | 91.53 | 14.01 | 53.9 |
MG9238ML24X | 24 | 18~26.5 | 0.7 | 16.8 | 5500 | 100.41 | 17.04 | 55.5 |
MG9238H24X | 24 | 18~26.5 | 0.8 | 19.2 | 6000 | 109.87 | 19.92 | 57.9 |
MG9238HH24X | 24 | 18~26.5 | 0.9 | 21.6 | 6500 | 118.99 | 23.24 | 60.3 |
MG9238VH24X | 24 | 18~26.5 | 1 | 24 | 7000 | 129.16 | 27.3 | 62.1 |
MG9238HV24X | 24 | 18~26.5 | 1.1 | 26.4 | 7500 | 136.6 | 30.68 | 63.3 |
MG9238L48X | 48 | 36~54 | 0.25 | 12 | 4500 | 81.47 | 11.56 | 50.1 |
MG9238M48X | 48 | 36~54 | 0.3 | 14.4 | 5000 | 91.53 | 14.01 | 53.9 |
MG9238ML48X | 48 | 36~54 | 0.35 | 16.8 | 5500 | 100.41 | 17.04 | 55.5 |
MG9238H48X | 48 | 36~54 | 0.4 | 19.2 | 6000 | 109.87 | 19.92 | 57.9 |
MG9238HH48X | 48 | 36~54 | 0.45 | 21.6 | 6500 | 118.99 | 23.24 | 60.3 |
MG9238VH48X | 48 | 36~54 | 0.5 | 24 | 7000 | 129.16 | 27.3 | 62.1 |
MG9238HV48X | 48 | 36~54 | 0.55 | 26.4 | 7500 | 136.6 | 30.68 | 63.3 |
Product Advantages
Key Features:
1. Moderate Dimensions: The 92x92x38mm size makes it suitable for heat dissipation in various electronic devices, such as computers, industrial equipment, and home appliances.
2. Diverse Bearing Types: Offers a variety of bearing options including dual ball bearings, oil-filled bearings, and hydraulic
bearings, allowing users to choose the appropriate bearing type based on different application scenarios and load requirements to ensure the stability and lifespan of the fan.
3. Safe and Reliable Materials: Fan blades, frames, and other components are made of flame-retardant plastic, meeting the UL94V-0 standard, with good safety performance, effectively preventing fire hazards caused by high temperatures.
4. Wide Voltage Range: A wide range of product models are available, with voltages ranging from 12V to 48V to meet the voltage requirements of different devices, offering high versatility.
5. Comprehensive Performance Parameters: Provides detailed performance parameters such as airflow, air pressure, speed, current, power, and noise, allowing users to select the appropriate model based on actual needs.
6. Clear Coding Rules: The product model coding rules are simple and clear, allowing users to quickly understand the product specifications based on the code, facilitating selection.
Product Advantages:
1. High Reliability: The use of dual ball bearings ensures the stable operation and long service life of the fan.
2. High Safety: The use of flame-retardant materials effectively improves product safety.
3. Strong Versatility: A wide range of models and a wide voltage range make it suitable for a variety of applications.
4. Excellent Performance: Detailed performance parameter curves facilitate the selection of the most suitable model for users.
5. Easy Installation: Standardized dimensions make installation quick and easy.
Key Features:
1. Moderate Dimensions: The 92x92x38mm size makes it suitable for heat dissipation in various electronic devices, such as computers, industrial equipment, and home appliances.
2. Diverse Bearing Types: Offers a variety of bearing options including dual ball bearings, oil-filled bearings, and hydraulic
bearings, allowing users to choose the appropriate bearing type based on different application scenarios and load requirements to ensure the stability and lifespan of the fan.
3. Safe and Reliable Materials: Fan blades, frames, and other components are made of flame-retardant plastic, meeting the UL94V-0 standard, with good safety performance, effectively preventing fire hazards caused by high temperatures.
4. Wide Voltage Range: A wide range of product models are available, with voltages ranging from 12V to 48V to meet the voltage requirements of different devices, offering high versatility.
5. Comprehensive Performance Parameters: Provides detailed performance parameters such as airflow, air pressure, speed, current, power, and noise, allowing users to select the appropriate model based on actual needs.
6. Clear Coding Rules: The product model coding rules are simple and clear, allowing users to quickly understand the product specifications based on the code, facilitating selection.
Product Advantages:
1. High Reliability: The use of dual ball bearings ensures the stable operation and long service life of the fan.
2. High Safety: The use of flame-retardant materials effectively improves product safety.
3. Strong Versatility: A wide range of models and a wide voltage range make it suitable for a variety of applications.
4. Excellent Performance: Detailed performance parameter curves facilitate the selection of the most suitable model for users.
5. Easy Installation: Standardized dimensions make installation quick and easy.
Product Applications
1. Computers and Servers
1. Chassis Fans: Used for air circulation within the chassis to dissipate heat generated by core components such as CPUs and GPUs.
2. Power Supply Fans: Help dissipate heat from the power supply, improving the stability and lifespan of the power supply.
3. Heatsink Fans: Assist CPU heatsinks or GPU heatsinks in heat dissipation.
2. Network Equipment
1. Router and Switch Fans: Help dissipate heat from network equipment, ensuring the stable operation of the equipment.
2. Server Fans: Used for heat dissipation in large server racks, ensuring the stability of data centers.
3. Industrial Equipment
1. Control Cabinet Fans: Used for ventilation and heat dissipation inside control cabinets to prevent equipment overheating.
2. Motor Fans: Help dissipate heat from motors, improving motor efficiency and lifespan.
3. Inverter Fans: Used for inverter heat dissipation, ensuring the stable operation of the inverter.
4. Home Appliances
1. Power Adapter Fans: Help dissipate heat from power adapters, improving the service life of power adapters.
2. Printer Fans: Used for internal heat dissipation in printers to ensure print quality.
3. Projector Fans: Help dissipate heat from projectors, extending the service life of projectors.
5. Other Electronic Products
1. Set-top Box Fans: Help dissipate heat from set-top boxes, improving the stability of set-top boxes.
2. Audio Amplifier Fans: Help dissipate heat from audio amplifiers, improving sound quality.
3. In-Vehicle Electronic Device Fans: Used for heat dissipation of automotive electronic devices such as car navigation systems and in-car computers.
1. Computers and Servers
1. Chassis Fans: Used for air circulation within the chassis to dissipate heat generated by core components such as CPUs and GPUs.
2. Power Supply Fans: Help dissipate heat from the power supply, improving the stability and lifespan of the power supply.
3. Heatsink Fans: Assist CPU heatsinks or GPU heatsinks in heat dissipation.
2. Network Equipment
1. Router and Switch Fans: Help dissipate heat from network equipment, ensuring the stable operation of the equipment.
2. Server Fans: Used for heat dissipation in large server racks, ensuring the stability of data centers.
3. Industrial Equipment
1. Control Cabinet Fans: Used for ventilation and heat dissipation inside control cabinets to prevent equipment overheating.
2. Motor Fans: Help dissipate heat from motors, improving motor efficiency and lifespan.
3. Inverter Fans: Used for inverter heat dissipation, ensuring the stable operation of the inverter.
4. Home Appliances
1. Power Adapter Fans: Help dissipate heat from power adapters, improving the service life of power adapters.
2. Printer Fans: Used for internal heat dissipation in printers to ensure print quality.
3. Projector Fans: Help dissipate heat from projectors, extending the service life of projectors.
5. Other Electronic Products
1. Set-top Box Fans: Help dissipate heat from set-top boxes, improving the stability of set-top boxes.
2. Audio Amplifier Fans: Help dissipate heat from audio amplifiers, improving sound quality.
3. In-Vehicle Electronic Device Fans: Used for heat dissipation of automotive electronic devices such as car navigation systems and in-car computers.

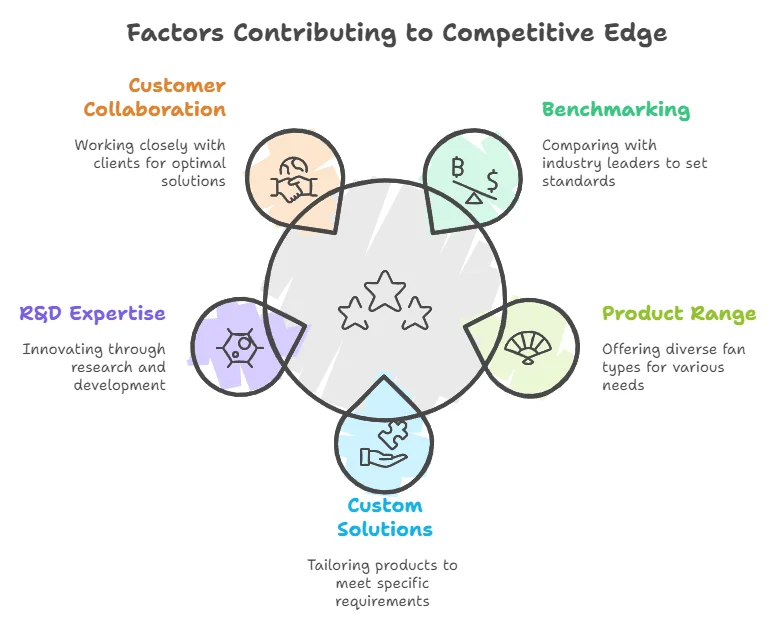

Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers' performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers' performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Application
Automotive | Computers and laptops | Drones | HVAC equipment |
Telecommunications | Consumer appliances | Medical devices | Industrial machinery |
Medical diagnostic | 3d Printers | Refrigerator | Solar Photovoltaic |
Company Profile
Guangzhou Mega technology Co.,LTD
*Established in 2008, specializes in the R&D and production of DC/AC cooling fans, blowers.
*Products are customized according to Clients' application.
*Sample Available, Small Quanity 0rder Available, Quick Delivery
*Our products are mainly used for equipment ventilation heat dissipation in the fields such as computers, home appliances, cars, medical equipment, industrial controls, electrical power, printing, electric welding machines and instrument panels.
*Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but alsohave special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !
* Your Satisfaction Is Our Aim. Feel free to contact us !
Product packaging
Packing And Deliver are all according to Client's requirement
Why Choose Us
Always Give Customer Best
* Experienced Staff * Guarantee/Warranty
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
Customer Satisfaction
FAQ
1. What is a bearing?
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
One is testing during production
Another is 100% testing before packing.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
5. What's your MOQ and delivery date ?
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
