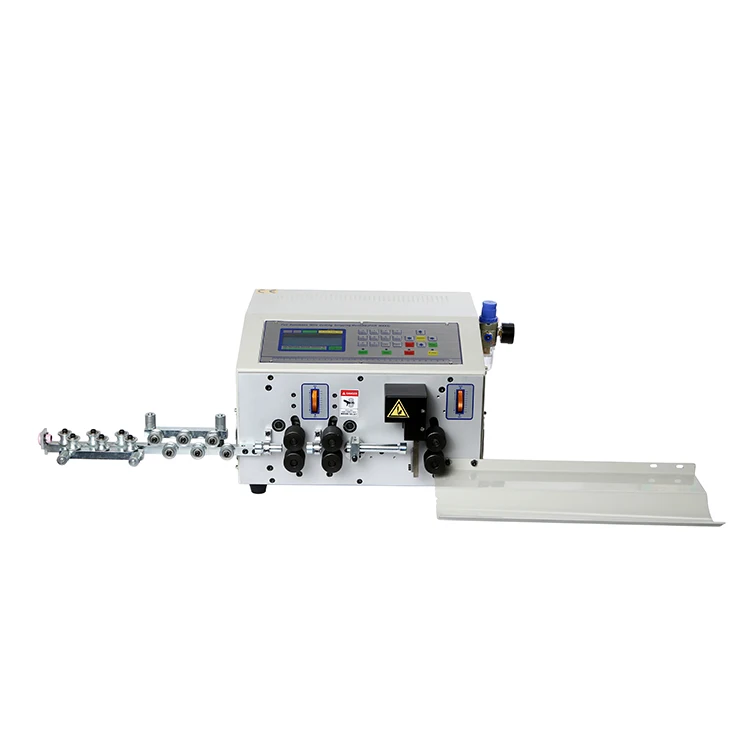

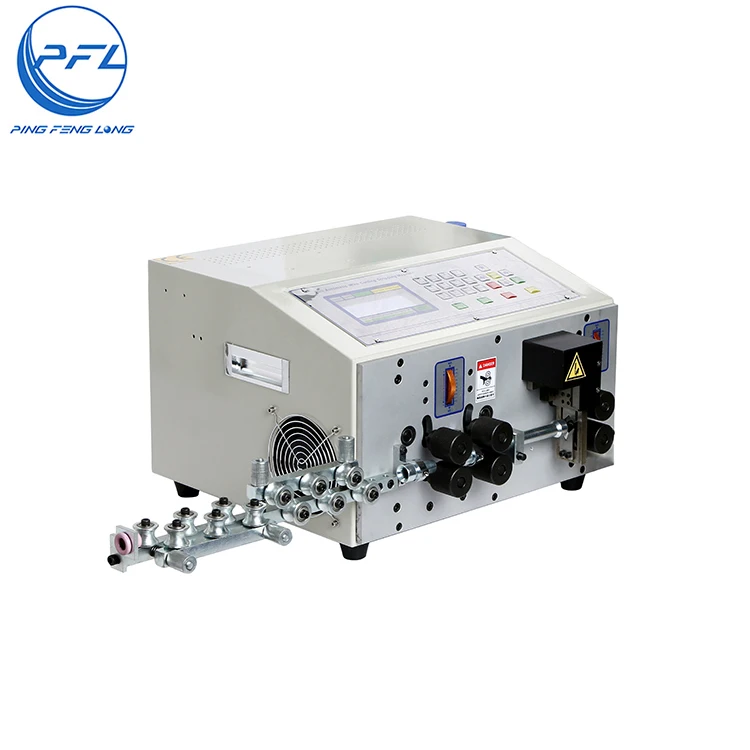

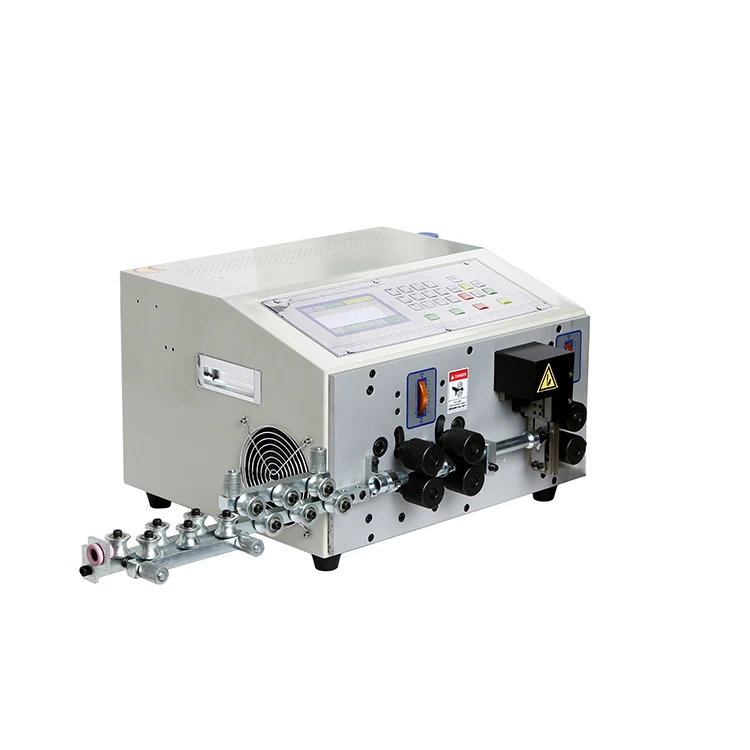

PFL 04M Electrical Automatic Heavy Duty Large Powerful Round Cable Stripping Machine
- Category: >>>
- Supplier: Kunshan Pingfenglong Trade Co. Ltd.
Share on (1601285889034):
Product Overview
Description
| Features: |
Automatic Full Computer Wire Stripping Machine adopt the advanced automation technology from
Japan,Taiwan.
It is a kind of numerical control equipment.
| Apply for: |
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other
various products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.
| Specification: |
| Available Wire Cross-Section Range: | 0.2~25.0mm2 | |
| Conduit Diameter: | 13mm | |
| Cutting Length: | 1mm~100000mm | |
| Cutting Tolerance: | ±(0.002×L) (L=Cutting Length) | |
| Stripping Length: | Head 0~50mm, Tail 0~50mm | |
| Middle Stripping Section: | Max 13 | |
| Speed: | 2000-4000pcs/h | |
| Display Way: | English/Chinese LCD display | |
| Drive Mode: | 6 Wheels Driving | |
| Blade Material: | Hard tungsten steel | |
| Appropriate Wire: | Electrical wires,PVC/Glass fiber/Teflon cables | |
| Power Supply: | 220V/50Hz 110V/60Hz | |
| Power Rating: | 500W | |
| Measurement: | 390*515*345mm | |
| Weight: | 35kg | |
| Products details: |
| Sample: |
| All models: |
