500W 600W 1000W Hydrogen Fuel Cell Stack Generator with Air Cooling PEM Technology
- Category: >>>
- Supplier: Gatechn New Energy Technology (shanghai) Co. Ltd.Gatechn Ltd.
Share on (1601286010812):
Product Overview
Description
Product Description
Product Presentation
Our air-cooled hydrogen fuel cells are produced in-house starting from individual cells, ensuring product quality stability. We use performance-stable graphite boards, with an efficiency exceeding 40%.
They are lightweight, compact, and easy to install and move. They feature a silent design, a simple structure, and high reliability. They start quickly, have short response times, and are suitable for various application environments. They adapt well to changing weather conditions. Their control strategy is straightforward and easy to integrate into various application systems.
Model Number | 600W Air-Cooling |
Number of Cells | 40 |
Operating Voltage | 20-37V |
Operating Current | 0-25A |
Working Temperature | -5~35℃ |
Hydrogen Consumption | 9.4L/min |
Hydrogen Pressure | 0.05~0.06Mpa |
Hydrogen Purity | ≥99.99% (CO<1PPM) |
Working Environment Humidity | 10%~95% (No mist) |
Noise | ≤70dB |
Stack with Fan (mm) | 217*127*166 |
Controller (mm) | 166*86*48 |
Weight (g) | 3140 ± 10 |

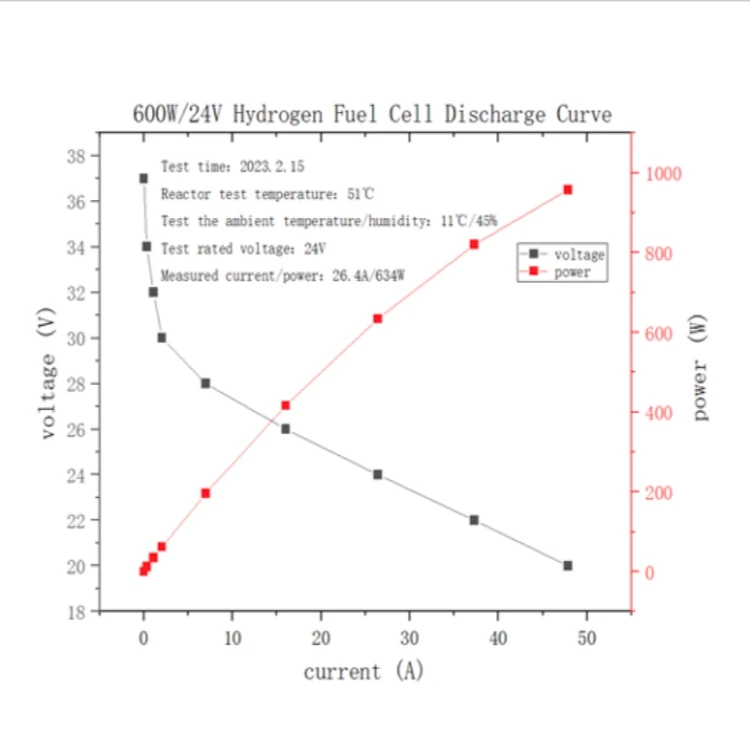

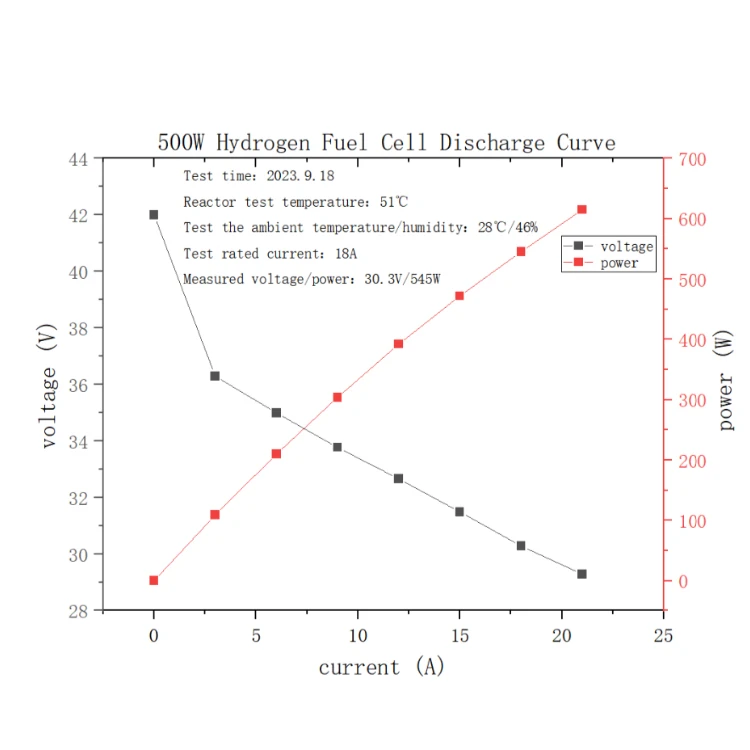

Hydrogen Fuel Cell Discharge Curve
They are lightweight, compact, and easy to install and move. They feature a silent design, a simple structure, and high
reliability. They start quickly, have short response times, and are suitable for various application environments. They adapt well to changing weather conditions. Their control strategy is straightforward and easy to integrate into various application systems.
reliability. They start quickly, have short response times, and are suitable for various application environments. They adapt well to changing weather conditions. Their control strategy is straightforward and easy to integrate into various application systems.
Detailed Images
Product detail drawing & Product generational changes

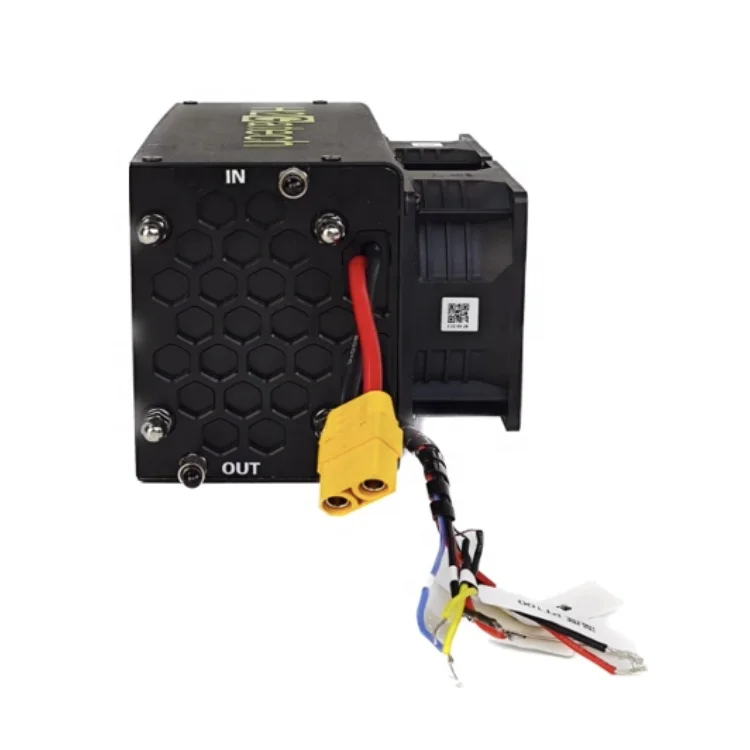

Standardization of Connection Ports
Clear Indicators
Stable Graphite Board
The first generation
Our product has undergone several upgrades, from the first generation with a glass fiber casing (drawback: susceptible to scratches)
The second generation
The second generation with a stainless steel casing (with minor polishing marks).
The third generation
Finally, the third generation with a black matte casing. The latest generation has successfully addressed the shortcomings of the previous two versions and offers enhanced aesthetics.
Application showcase
Hydrogen Fuel cell Backup Power Supply
A hydrogen backup power supply refers to a system that utilizes hydrogen as an alternative power source to provide electricity
during times of power outages or when the primary power source is unavailable. These systems typically involve the use of fuel
cells, which electrochemically convert hydrogen gas into electricity.
The benefits of hydrogen backup power supplies include their high energy density, low emissions (as the byproduct is usually just
water), and longer runtimes compared to traditional batteries.
during times of power outages or when the primary power source is unavailable. These systems typically involve the use of fuel
cells, which electrochemically convert hydrogen gas into electricity.
The benefits of hydrogen backup power supplies include their high energy density, low emissions (as the byproduct is usually just
water), and longer runtimes compared to traditional batteries.
Hydrogen fuel cell scooter
Hydrogen sightseeing vehicle
Use: Used as vehicles for tourist destinations and parks.
Product Features: The fuel cell tour vehicle features a 5kW fuel cell stack for its power system, with a solid-state hydrogen supply system, providing long effective operating times and quick refueling.
Considering the use of solid-state hydrogen storage tanks, we can design an airflow system to transfer the heat generated during the operation of the fuel cell stacks to the tank body, facilitating hydrogen release.
Product Features: The fuel cell tour vehicle features a 5kW fuel cell stack for its power system, with a solid-state hydrogen supply system, providing long effective operating times and quick refueling.
Considering the use of solid-state hydrogen storage tanks, we can design an airflow system to transfer the heat generated during the operation of the fuel cell stacks to the tank body, facilitating hydrogen release.
Electrolysis Hydrogen Production Teaching Aid
This is a complete set of PEM (Proton Exchange Membrane) electrolysis hydrogen production, filtration, fuel supply for fuel cells,
and power generation processes.
Company Introduction
Gatechn New Energy Technology (Shanghai) Co.,Ltd. focuses on the research, development and manufacturing of hydrogen fuel cells, its core materials and key components. It’s a high-tech company and which is dedicated to the Hydrogen Fuel Cell membrane electrode (MEA), hydrogen fuel cell stack system and other related equipment.
The company has developed core materials of hydrogen fuel cell independently, mastered the core technologies of producing various catalysts and membrane electrodes, hydrogen fuel cell stacks and hydrogen fuel cell power systems. The company has developed the whole industrial chain involving hydrogen production and consumption, as well as the application of by-products generated in hydrogen production, etc. the 8 fuel cells production related patents. Moreover, the company has drafted several enterprise standards of "hydrogen fuel cell stack" and "multi-function hydrogen rich machine" production, which have been reviewed and approved by experts.
Our products and services are widely used in many fields such as automotive companies, industrial handling vehicles, communication base stations, unmanned aerial vehicles, standby power supplies, field demonstration emergency power supplies, gas sensors, etc.
The company has developed core materials of hydrogen fuel cell independently, mastered the core technologies of producing various catalysts and membrane electrodes, hydrogen fuel cell stacks and hydrogen fuel cell power systems. The company has developed the whole industrial chain involving hydrogen production and consumption, as well as the application of by-products generated in hydrogen production, etc. the 8 fuel cells production related patents. Moreover, the company has drafted several enterprise standards of "hydrogen fuel cell stack" and "multi-function hydrogen rich machine" production, which have been reviewed and approved by experts.
Our products and services are widely used in many fields such as automotive companies, industrial handling vehicles, communication base stations, unmanned aerial vehicles, standby power supplies, field demonstration emergency power supplies, gas sensors, etc.
Exhibition display
We have applied for 25 fuel cell-related patents, with 5 of them granted.
Packing&Shipping
FAQ
When was your company established? What are your advantages?
We were established in 2019 with the participation of many industry experts. The company is headquartered in Shanghai and the new factory is located in Yangzhou, Jiangsu. Our operations team consists of technical experts with more than 20 years of experience in hydrogen fuel cell research and development.
We have established comprehensive cooperative relationships with many well-known domestic universities and research institutes to provide advanced technical knowledge and resource support for hydrogen fuel cell research and development.
We have exported our products to countries and regions including the United States, Canada, Mexico, France, Spain, Chile, South Korea, Malaysia, India, and Taiwan.
What is the minimum order quantity for your products?
One piece
Do you have it in stock?
No, our products need to be ordered and produced.
What is your delivery time?
Delivery time varies from 5 to 20 business days depending on the order.
Do you provide samples?How to get samples?
Samples are available upon placing an order.
What are your payment terms?
Prepayment 100%
We were established in 2019 with the participation of many industry experts. The company is headquartered in Shanghai and the new factory is located in Yangzhou, Jiangsu. Our operations team consists of technical experts with more than 20 years of experience in hydrogen fuel cell research and development.
We have established comprehensive cooperative relationships with many well-known domestic universities and research institutes to provide advanced technical knowledge and resource support for hydrogen fuel cell research and development.
We have exported our products to countries and regions including the United States, Canada, Mexico, France, Spain, Chile, South Korea, Malaysia, India, and Taiwan.
What are your main products?
Hydrogen Fuel Cell membrane electrode (MEA),PEM CCM, hydrogen fuel cell stack system and other related equipment.
Hydrogen Fuel Cell membrane electrode (MEA),PEM CCM, hydrogen fuel cell stack system and other related equipment.
What is the minimum order quantity for your products?
One piece
Do you have it in stock?
No, our products need to be ordered and produced.
What is your delivery time?
Delivery time varies from 5 to 20 business days depending on the order.
Do you provide samples?How to get samples?
Samples are available upon placing an order.
What are your payment terms?
Prepayment 100%
