Tobee Effluent Handling
$12,600

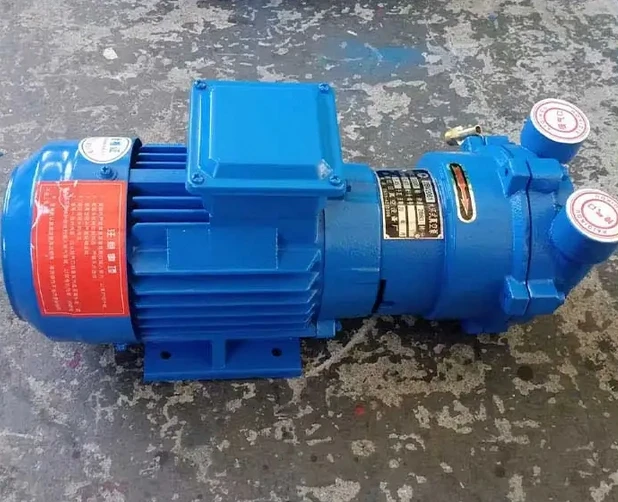

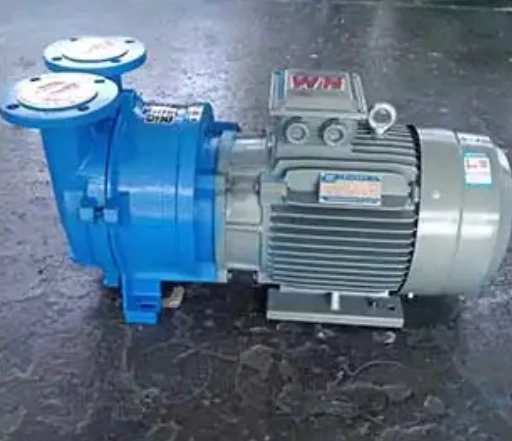

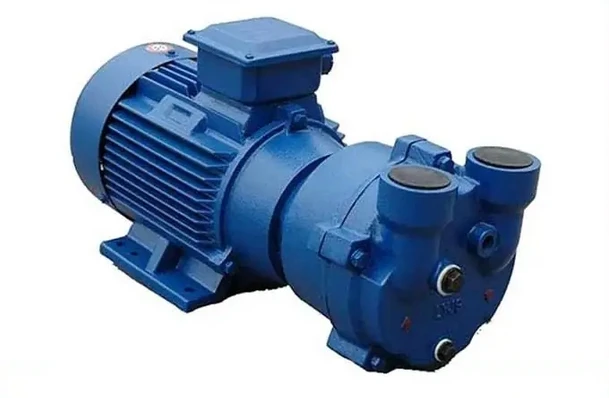

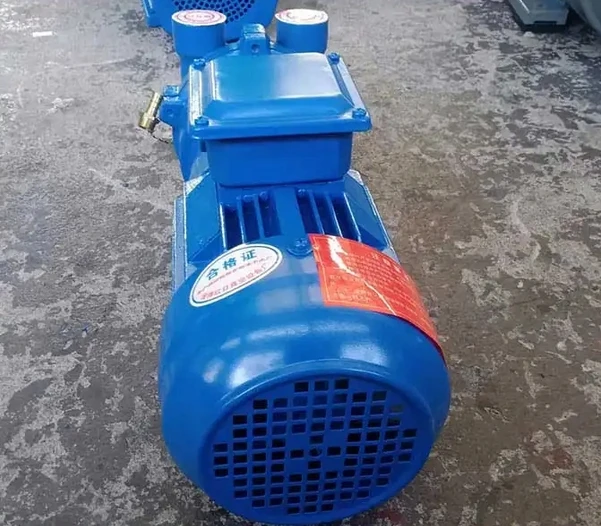

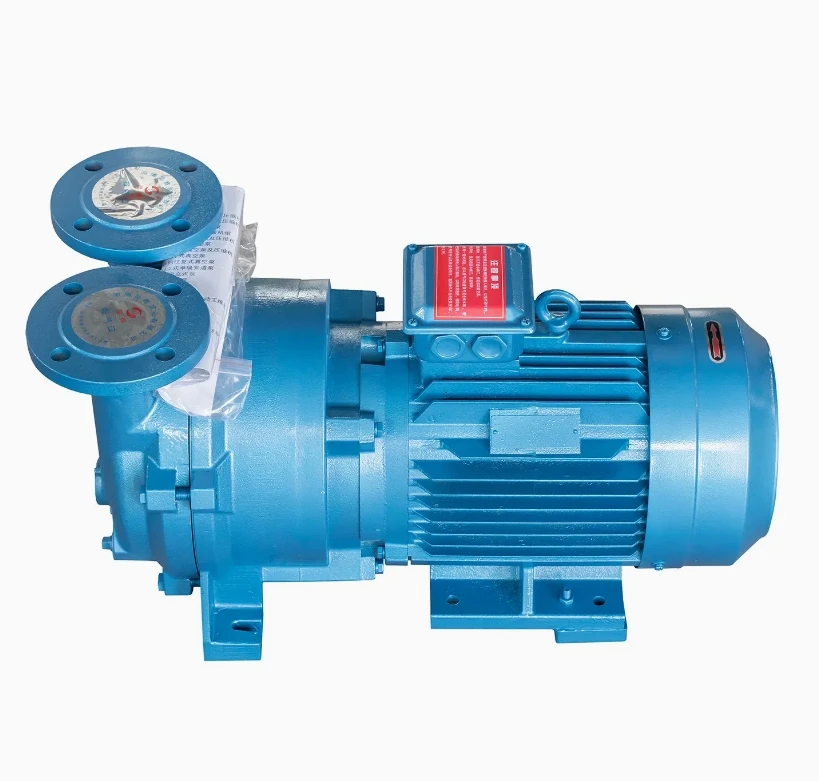

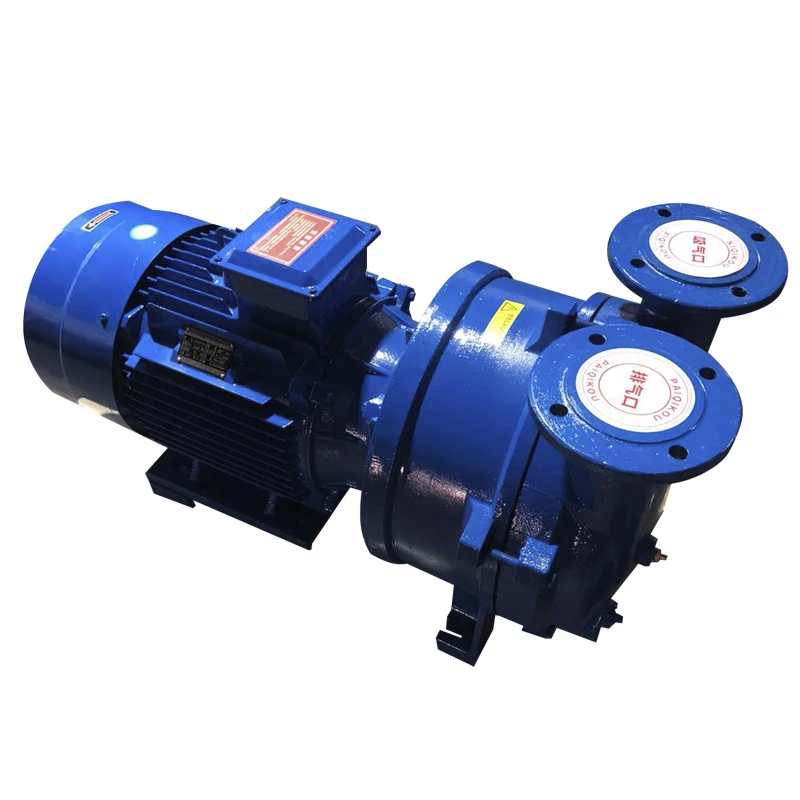

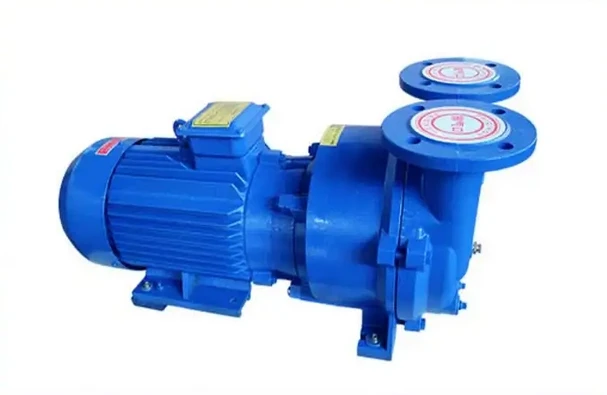

2BV water ring vacuum pumps small circulating water vacuum equipment horizontal liquid ring circulating water pumps
- Category: >>>
- Supplier: Shandong Hanqi Industrial Co. Ltd.Shandong Ltd.
Share on (1601286019454):
Product Overview
Description
Products Description
◆ The design of direct connection of motor saves space, easy to install and convenient to maintain.
◆ All of them are equipped with vapor protection pipe interface.
◆ Unique flexible exhaust port design without over-compression ensures that the 2BV has the best efficiency in its performance range.
◆ All of them are equipped with vapor protection pipe interface.
◆ Unique flexible exhaust port design without over-compression ensures that the 2BV has the best efficiency in its performance range.
Product Showcase

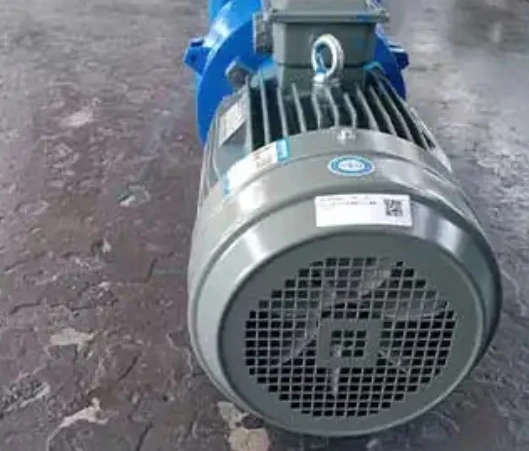

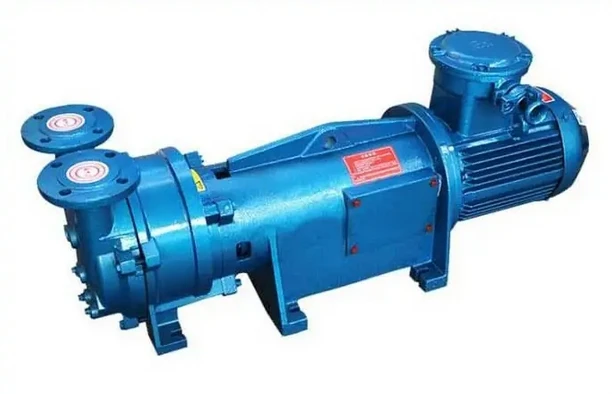

01 optional explosion-proof motor
Pure copper wire coil, more security, longer service life, explosion-proof performance, high processing accuracy
02 preferred materials
We refuse to cut corners, precision casting, good sealing, thickened pump body, toughness, wear-resistant, longer service life
03 durable
Processing of selected raw materials, the pump body is strong and durable, with drop resistance, and corrosion resistance is not easy to rust.
04 stable performance
High precision, more stable pressure relief performance, high quality material selection, high surface finish of pump body, strong sealing.
Model | Motor power KW | Maximum air volume m³/h | Ultimate pressure MPa | Working fluid flow rate L/min | Noise dB(A) | r.p.m | Weight KG |
2BV-2060 | 0.81 | 27 | -0.097 | 0.12 | 62 | 2880 | 35 |
2BV-2061 | 1.45 | 52 | -0.097 | 0.12 | 65 | 2880 | 38 |
2BV-2070 | 2.35 | 80 | -0.097 | 0.15 | 66 | 2880 | 60 |
2BV-2071 | 3.85 | 110 | -0.097 | 0.25 | 72 | 2880 | 65 |
2BV-5110 | 4 | 165 | -0.097 | 0.4 | 63 | 1450 | 100 |
2BV-5111 | 5.5 | 230 | -0.097 | 0.5 | 68 | 1450 | 120 |
2BV-5121 | 7.5 | 280 | -0.097 | 0.6 | 69 | 1450 | 150 |
2BV-5131 | 11 | 400 | -0.097 | 0.9 | 73 | 1450 | 210 |
2BV-5161 | 15 | 500 | -0.097 | 1.2 | 74 | 980 | 320 |
Company Profile
FAQ
Q: What is your warranty period?
Our warranty lasts for 12 months after receipt of the goods. Free replacement of damaged parts during the warranty period. Outside the warranty period, provide timely, high-quality technical services and spare parts with favorable prices to ensure the continuous safe and high-quality operation of the equipment.
Q: How does your factory control product quality?
We have a quality inspection department. All products are sampled before leaving the factory to check the quality. If there is any quality problem, we will restart production.
Our warranty lasts for 12 months after receipt of the goods. Free replacement of damaged parts during the warranty period. Outside the warranty period, provide timely, high-quality technical services and spare parts with favorable prices to ensure the continuous safe and high-quality operation of the equipment.
Q: How does your factory control product quality?
We have a quality inspection department. All products are sampled before leaving the factory to check the quality. If there is any quality problem, we will restart production.
Q.What are your terms of payment?
A. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTERINSPECTION BEFORE SHIPPING.B.100% IRREVOCABLE L/C AT STGHT
Q. How long will it take to ship after order?
A.20~30 days for one container.
Q. Where is your factory? Can i visit your factory?
A.20~30 days for one container.
Q. Where is your factory? Can i visit your factory?
A.Our factory is located in Zibo, Shandong, welcome to visitour factory.
