Poultry Cage Equipment 6 Tiers Chicken Farming Chicken Cage Extra Large Metal For Chicken Used
- Category: >>>
- Supplier: Ningbo Connect Machinery Co. Ltd.Ningbo Ltd.
Share on (1601286036569):
Product Overview
Description

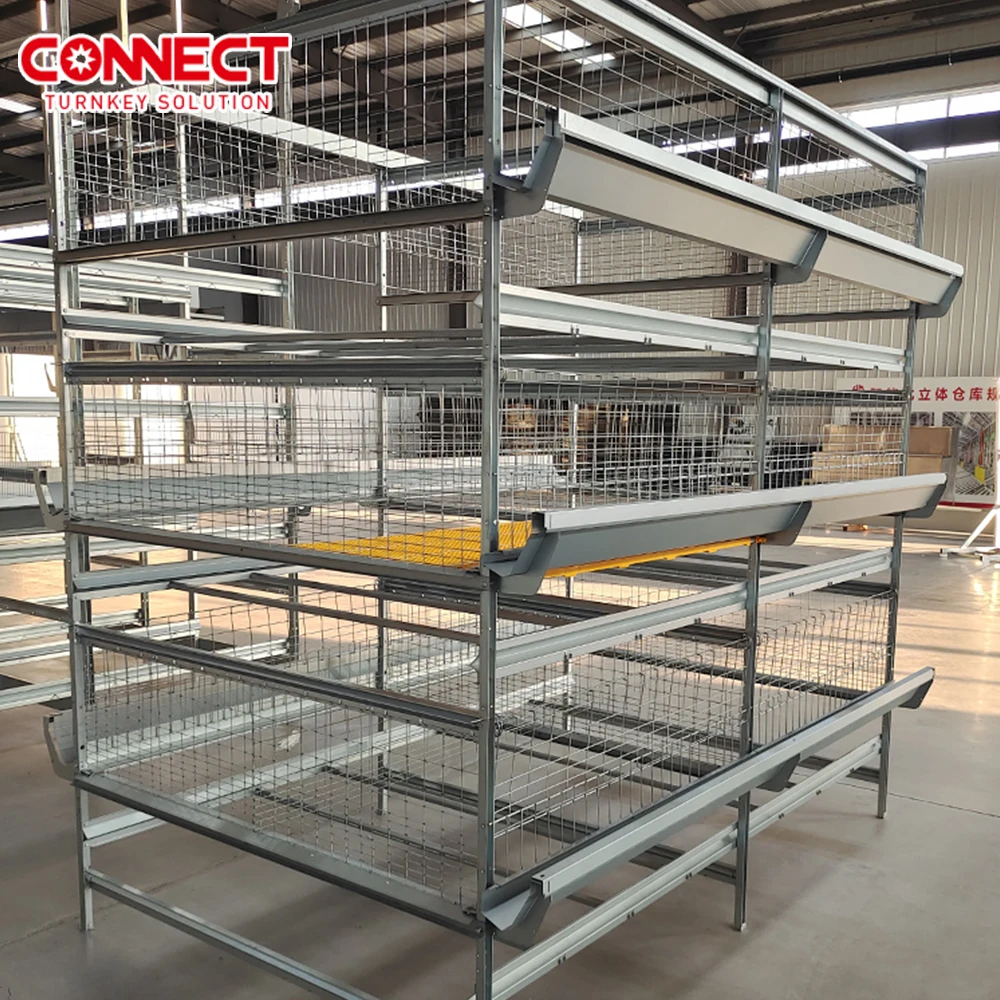

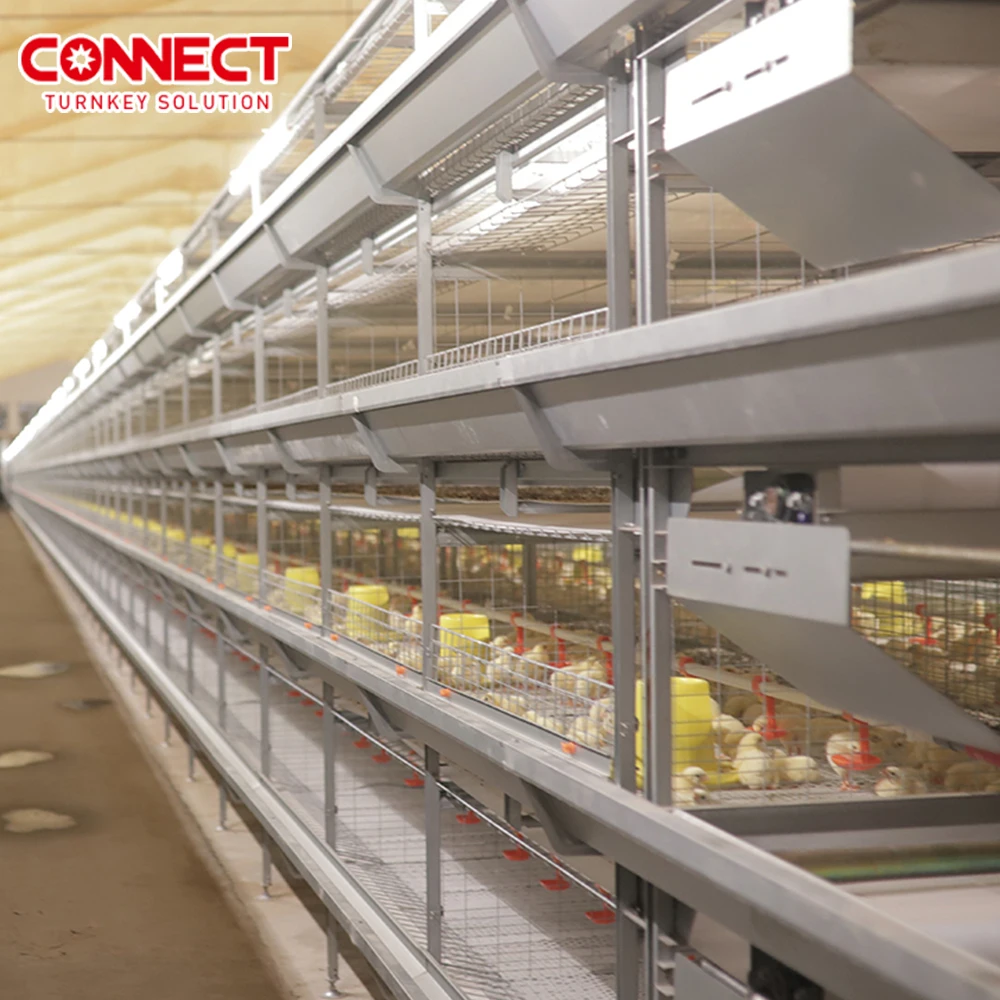

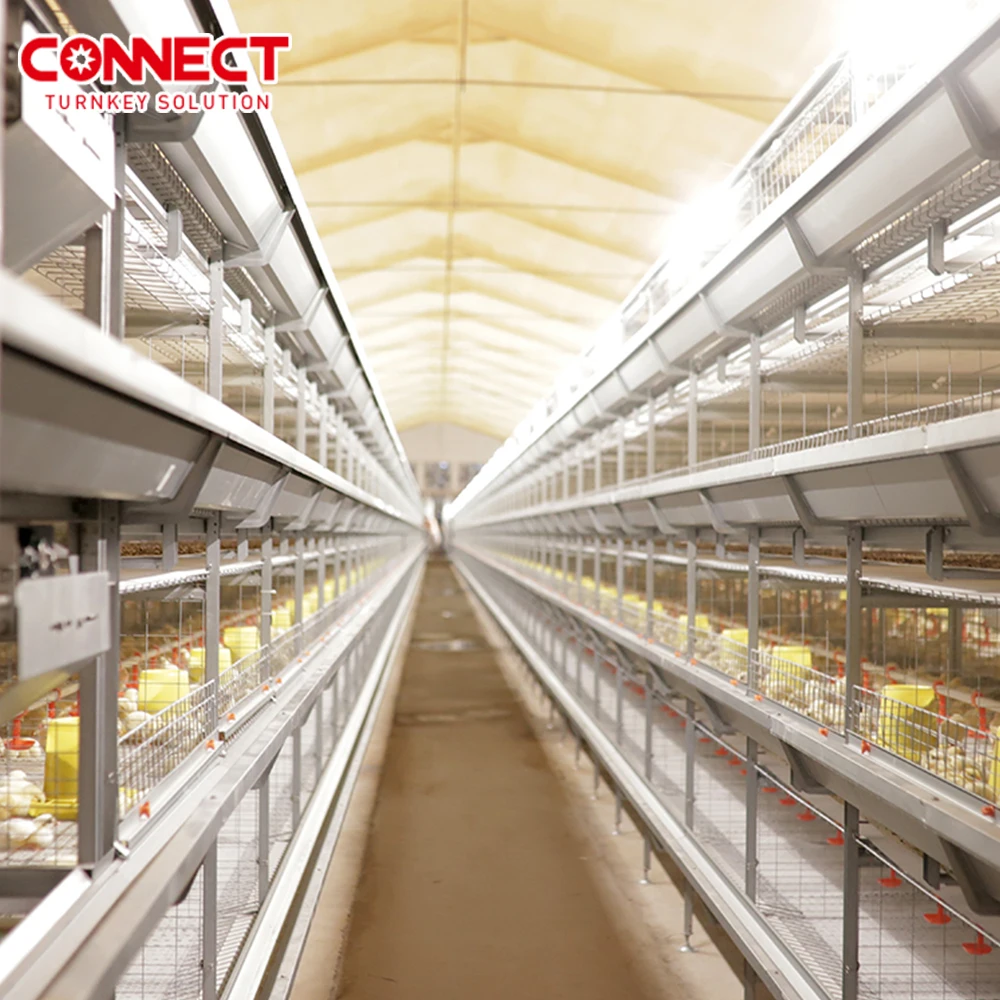

Broiler cage size
Type of chicken | Floor height( mm ) | Cage height (mm) | Cage width(mm) | Cage depth (mm) | Bottom manure belt height(mm) | Tunnel width (mm) | |||||
White feather broiler | 585 | 460 | 1200,1500 | 700/800/900 | 235 | /300 /400 | |||||
Yellow feather broiler | 565 | 350-450 | 1200 | 600/700/800 | 235 | ||||||
Male chicken cage | 625 | 500 | 1200 | 800 | |||||||
Tier | 2 tiers/3 tiers/4 tiers; with second floor platform can design 5 tiers / 6 tiers /7 tiers / 8 tiers | ||||||||||
The tunnel space between two back to back cages is optional 0mm, 300mm and 400mm according to cient different
raising environmental condition, the cart feeding or pan feeding is optional.
The cage partition wire distance is optional depending on the pan arranged in cage to match different client raising
requirement.
raising environmental condition, the cart feeding or pan feeding is optional.
The cage partition wire distance is optional depending on the pan arranged in cage to match different client raising
requirement.
Broiler automated harvesting cage size
Tier | Floor height (mm) | Cage height (mm) | Cage width(mm) | Cage depth (mm) | Unit cage height (mm) | ||||
3 tier | 750 | 450 | 1200/1500 | 1400/1600/1800 | 2510 | ||||
4 tier | 565 | 350-450 | 1200 | 600/700/800 | 3260 | ||||
Note | Feeding pan or Feed walking cart is optional, With second floor platform can design 6-8 tier | ||||||||

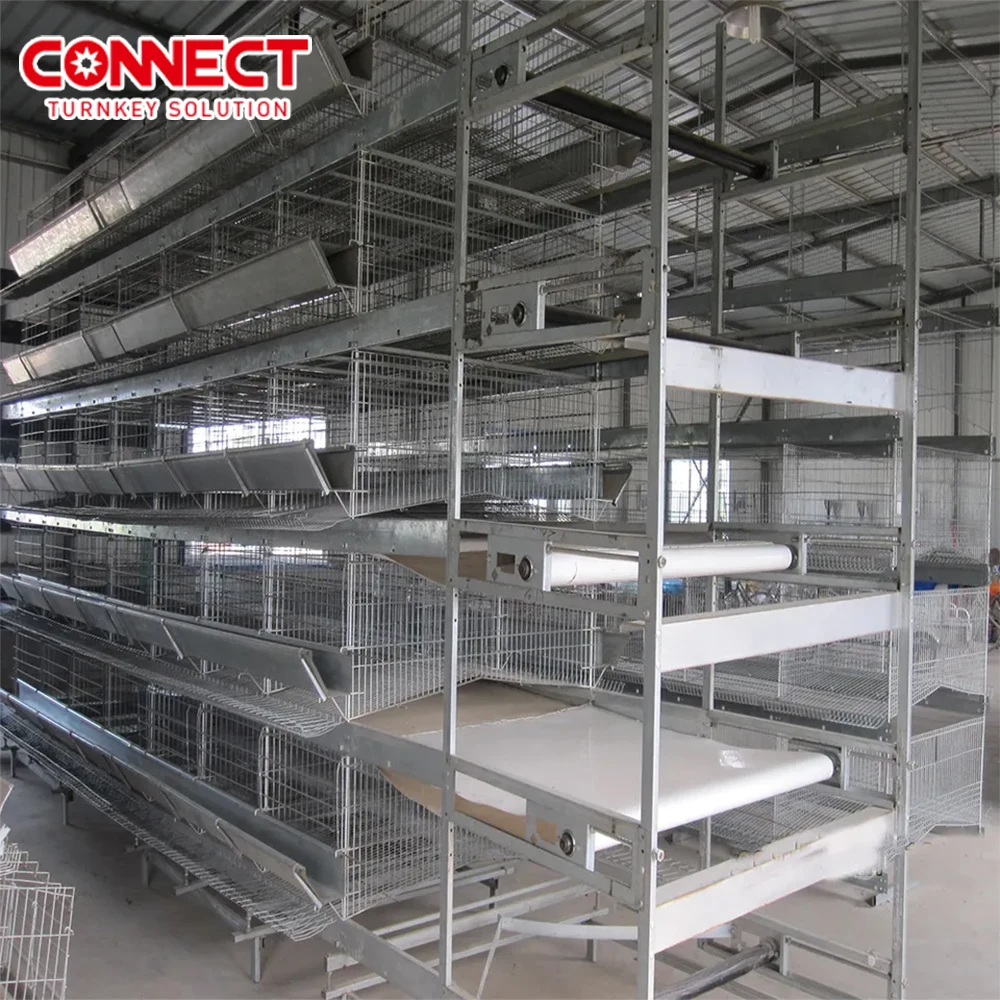

CONNECT auto. Broiler harvesting cage is designed for automatic move-out the chicken through manure belt, which less
labors needed, and raise the chicken move-out speed. As don't have labor manual catching the chicken, so minimized hurt
for chicken and raise the chicken meat guality. The slats on each cage cell can be move manually by labor or Mechanic
moving, then the chicken drop to manure belt and transport it out of house
Each cell of cage size is 1㎡ which length is 1 .25meter, and deep 0.8meter, there are two cages back to back with a
partition wire at each segment cage. The feeding trough or feeding pans are optional for broiler raising cage.
labors needed, and raise the chicken move-out speed. As don't have labor manual catching the chicken, so minimized hurt
for chicken and raise the chicken meat guality. The slats on each cage cell can be move manually by labor or Mechanic
moving, then the chicken drop to manure belt and transport it out of house
Each cell of cage size is 1㎡ which length is 1 .25meter, and deep 0.8meter, there are two cages back to back with a
partition wire at each segment cage. The feeding trough or feeding pans are optional for broiler raising cage.
