Multi Specification Heavy Duty Stainless Steel Superior quality all kinds of easy use product Eye Terminal
- Category: >>>
- Supplier: Decorstainless International Co. Ltd.Decorstainless Ltd.
Share on (1601286076198):
Product Overview
Description
Product Description
Product Description | ||

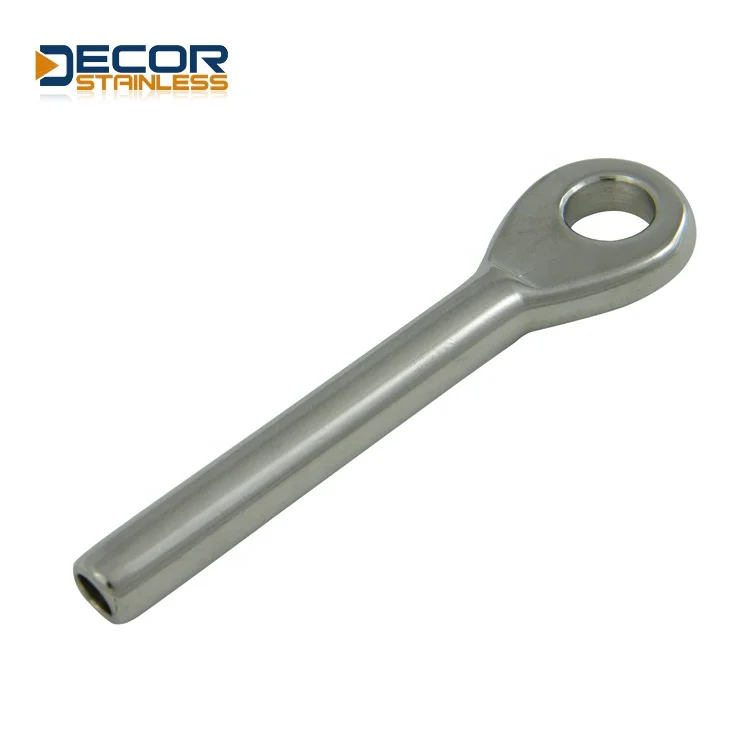

Product Name | Eye Terminal | |
Material | Stainless steel 316 or 304 | |
Surface finish | Highly Polished | |
Color | Nickel White | |
Standard | Metric and UNF | |
Advantage | Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. | |
Thread | coarse, fine | |

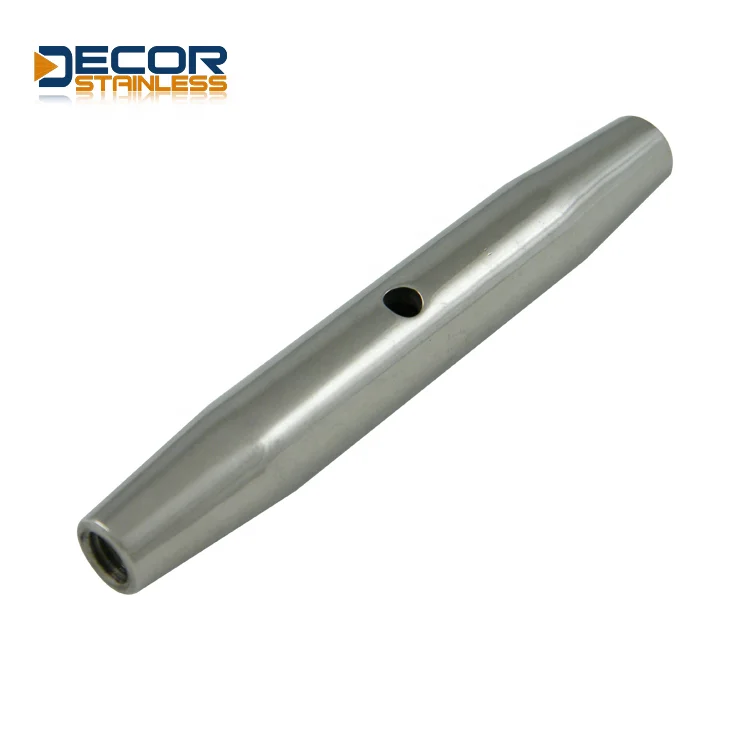

Used | These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends. | |
| Dimension | B | D | D1 | D2 | L1 | L | Breaking Load |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 2 | 13 | 5.4 | 2.2 | 5.5 | 30 | 48.5 | 800 |
| 2.5 | 13 | 5.4 | 2.7 | 5.5 | 30 | 48.5 | 800 |
| 3 | 14 | 6.5 | 3.3 | 6.35 | 36 | 55 | 1300 |
| 4 | 18 | 8.5 | 4.3 | 7.5 | 39 | 65 | 2350 |
| 5 | 22 | 10 | 5.3 | 9 | 50 | 80 | 3500 |
| 6 | 28 | 12.5 | 6.4 | 12.6 | 62 | 94 | 5600 |
| 7 | 28 | 12.5 | 7.4 | 14.2 | 68 | 105 | 6200 |
| 8 | 32 | 14.5 | 8.4 | 16 | 85 | 124 | 7600 |
| 10 | 36 | 16.4 | 10.5 | 18 | 90 | 142 | 9800 |
| 12 | 40 | 19.3 | 12.6 | 20 | 105 | 160 | 13000 |
| 14 | 47 | 23 | 14.7 | 25 | 140 | 206 | 17000 |
| 16 | 53 | 26 | 16.9 | 28 | 160 | 232 | 24000 |
| 19 | 65 | 28.5 | 20 | 34.5 | 200 | 302 | 27000 |
| 22 | 70 | 33 | 23.2 | 40.5 | 230 | 348 | 31000 |
| 26 | 77 | 36 | 27.5 | 46 | 280 | 400 | 43000 |
Contact Us
Certifications
FAQ
Q: What is material you can supply?
A: Stainless steel 316 or stainless steel 304
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance upon copy of B/L.
If you have another question, pls feel free to contact us.
