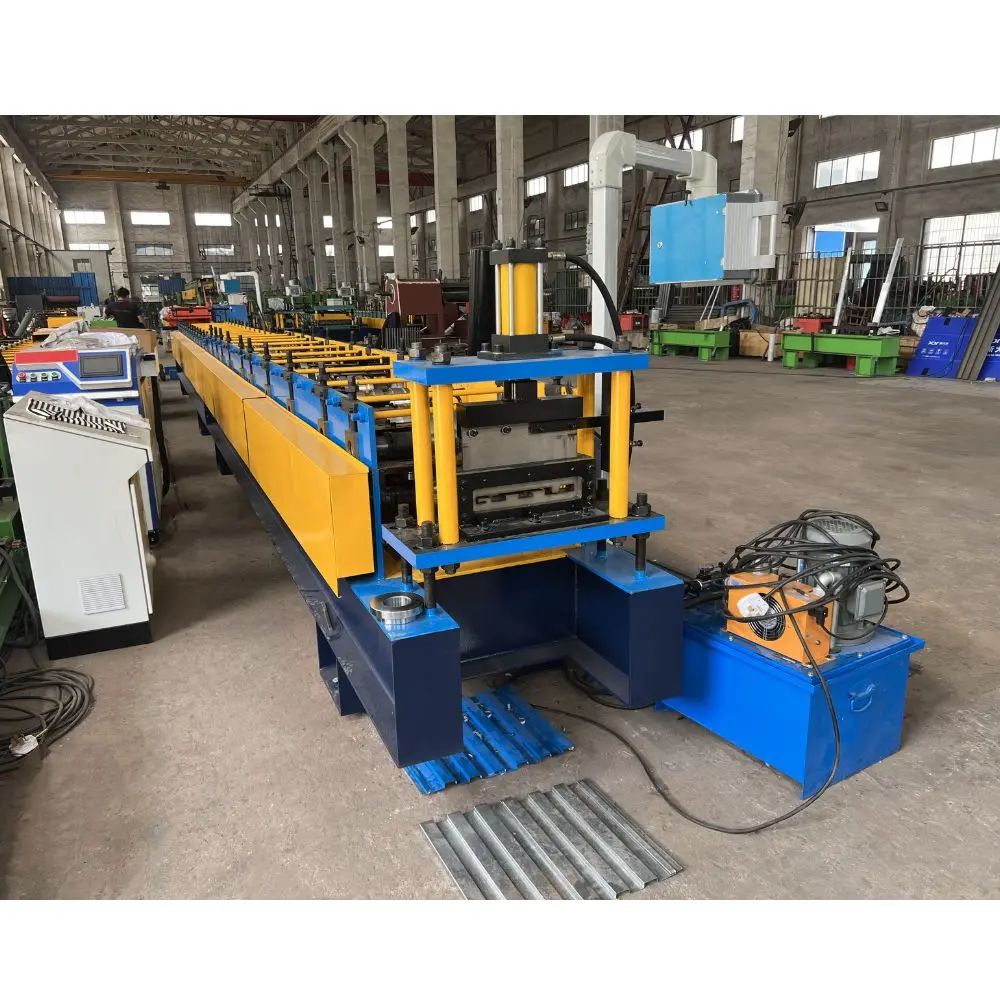

USA Popular Aluminum PPGI Galvalume Metal Fastern Concleased Metafor Z Box Wall Siding Cladding Panel Roll Forming Machine
- Category: >>>
- Supplier: Sussman Modular House (wuxi) Co. Ltd.
Share on (1601286137913):
Product Overview
Description
Product Description
The advantages of using a Metal Wall Panel & Siding Roll Forming Machine include high efficiency, precision in producing
consistent profiles, and the ability to manufacture panels in various lengths and profiles according to project requirements.
These machines are commonly used in the construction industry to produce exterior cladding materials for buildings, including commercial, industrial, and residential structures.
consistent profiles, and the ability to manufacture panels in various lengths and profiles according to project requirements.
These machines are commonly used in the construction industry to produce exterior cladding materials for buildings, including commercial, industrial, and residential structures.
Technical Data:
Item NO | Description | Offered specification |
1.0 | Roll forming machine | |
1.1 | Rolling speed | 10-12 meters/min(not include cutting time) |
1.2 | Rolling thickness | 0.3mm-0.8mm |
1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
1.4 | Main Motor | 7.5KW |
1.5 | Dimension | About 1100×1600×1200(mm) |
1.7 | Roller stations | About 16 stations |
1.8 | Roller material | 45#forge steel, coated with chrome |
1.9 | Shaft diameter | Φ76mm |
1.10 | Transmission | By chain 1.2 inch |
1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
1.13 | Tolerance | 10m+-1.5mm |
1.14 | Hydraulic station | 4kw |

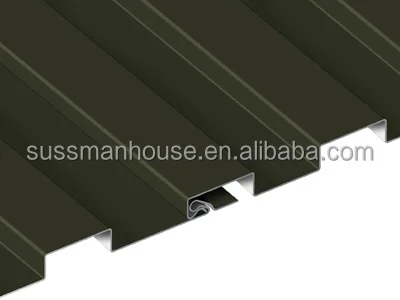

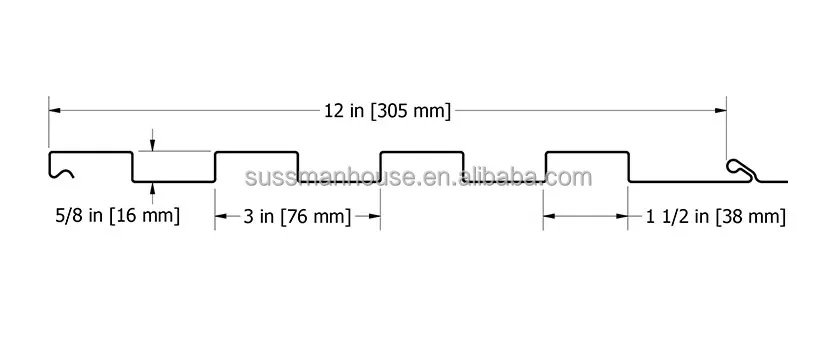

Profile Drawing:
Product Display

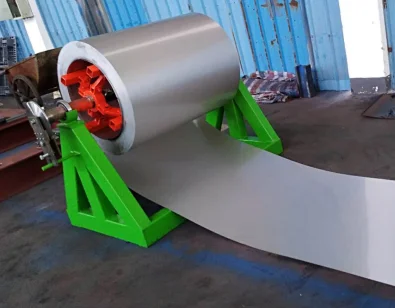

5 tons passive decoiler
Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm

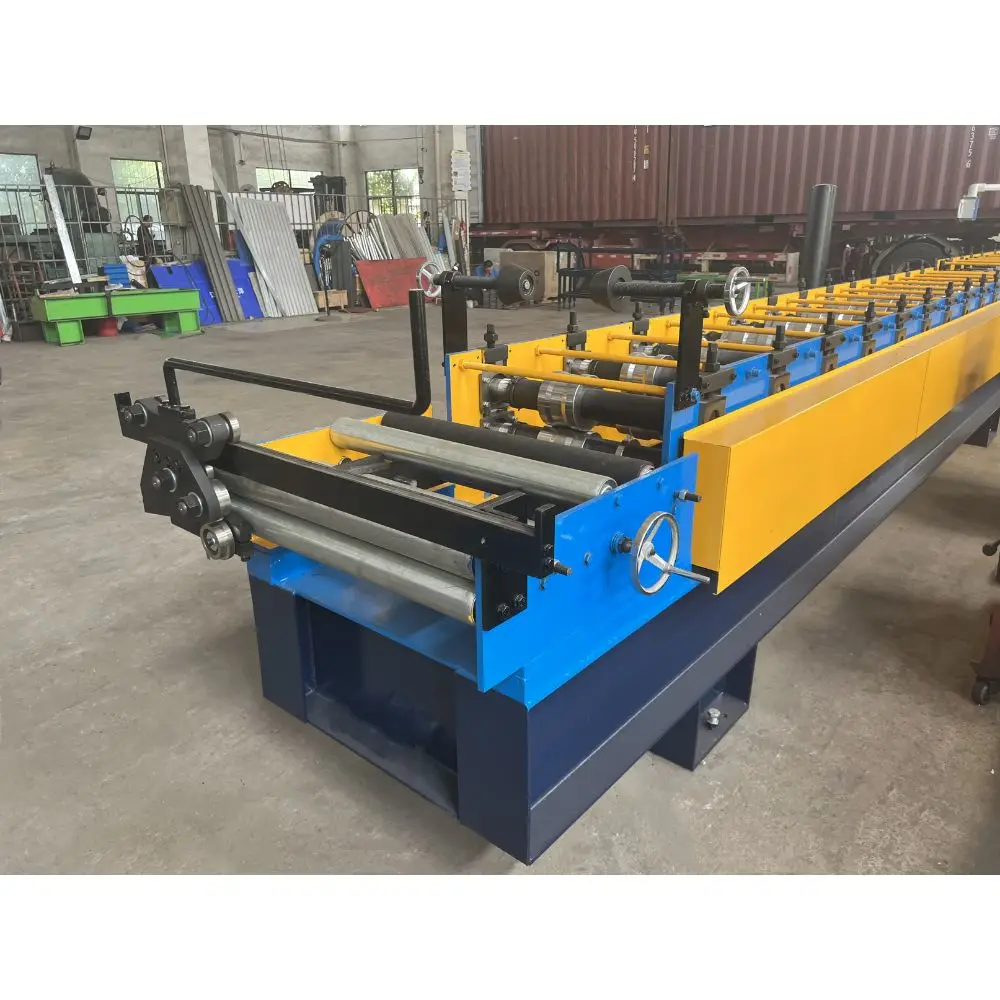

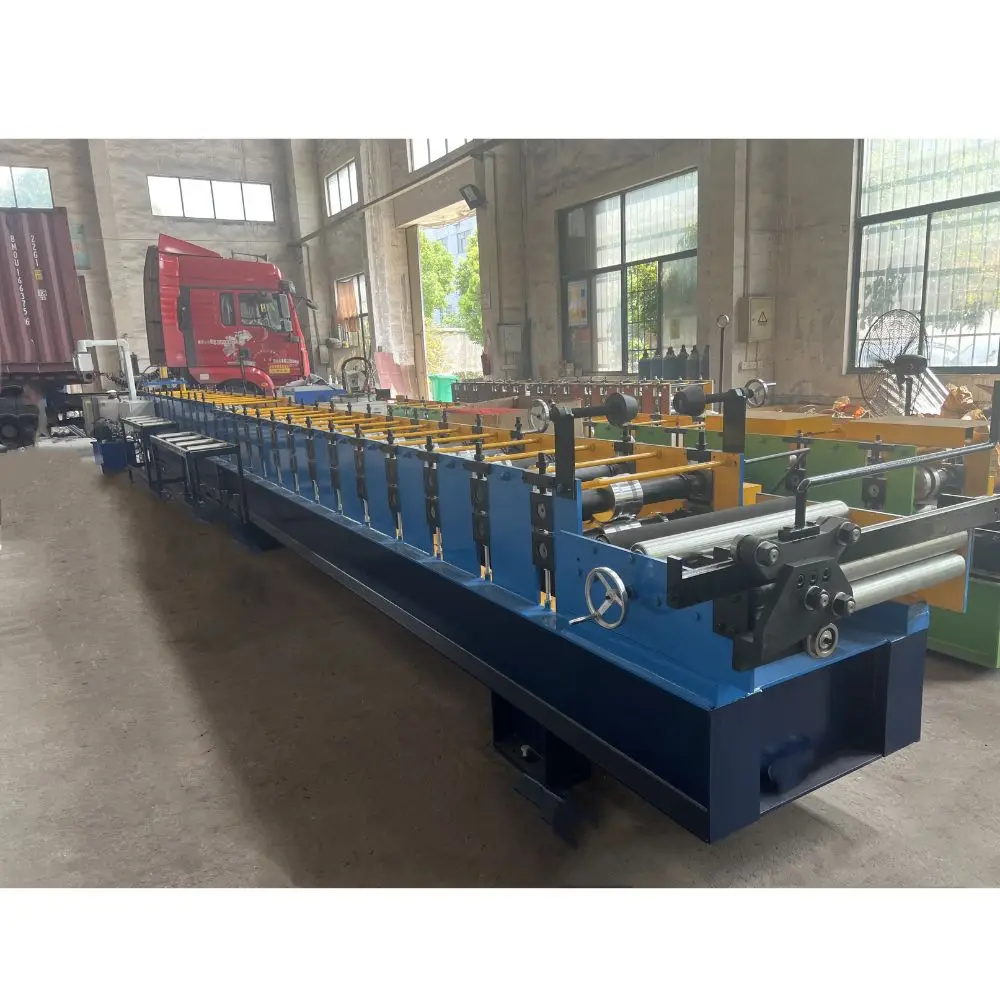

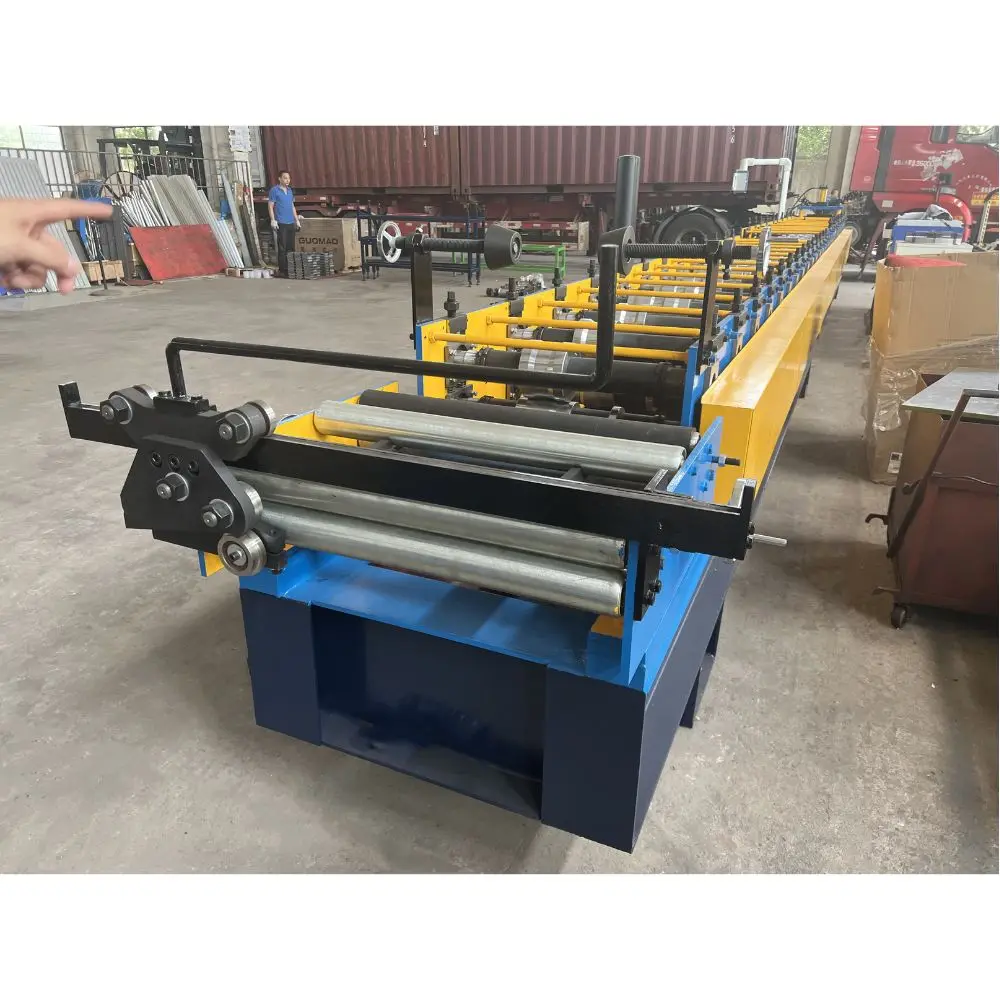

Roll Forming Part
* Rolling Speed : 10-12m/min(cutting time is not include)
* Steel sheetThickness: 3-0.8mm thickness, color painted sheets and galvanized steel, Aluminium Steel
* Control System:PLC
* Steel sheetThickness: 3-0.8mm thickness, color painted sheets and galvanized steel, Aluminium Steel
* Control System:PLC

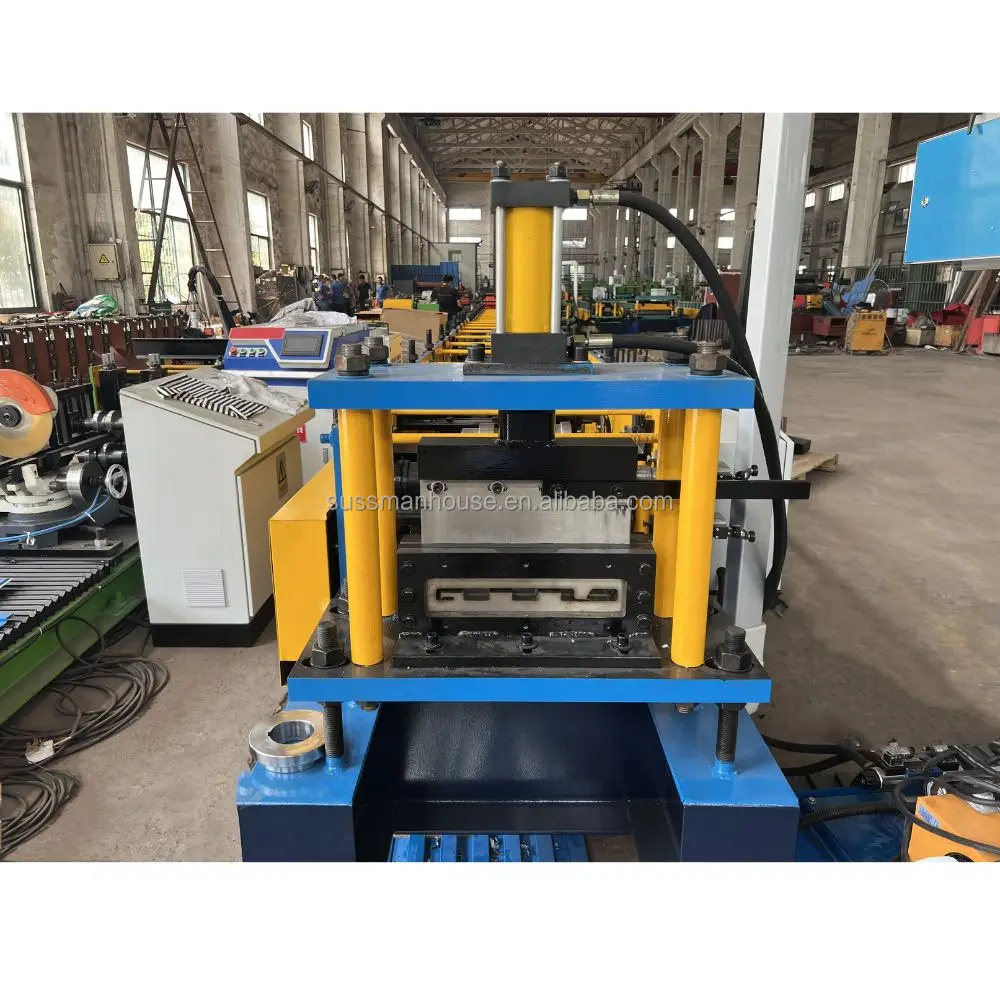

Hydraulic Cutting
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.4- 0.8mm
(5) Hydraulic Station Power: 5.5 KW
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.4- 0.8mm
(5) Hydraulic Station Power: 5.5 KW
Title goes here.
It adopts welded steel and supported roller to transmit the products.
Size：2000*1350*1000mm, 2 units
Size：2000*1350*1000mm, 2 units
