Megarevo Hybrid Inverter for Hybrid Solar System 8KW 10KW 12KW Cheap Price Lithium Battery 380V/120V/240V Output LCD Display
- Category: >>>
- Supplier: Anhui Solarasia Energy Technology Co. Ltd.Anhui Ltd.
Share on (1601286144955):
Product Overview
Description
Product Description
Technical Specifications
PV string input | ||||||||
Model | R5KLNA | R6KLNA | R8KLNA | R1OKLNA | ||||
Max. power (kw) | 7.5 | 9 | 12 | 13 | ||||
MPPT voltage range (V) | 120~500 | |||||||
No. of MPPT trackers | 4 | |||||||
AC output | ||||||||
Rated output power (kVA) | 5 | 6 | 8 | 10 | ||||
Rated output current(A) | 20.8 | 25 | 33.3 | 41.7 | ||||
AC output voltage (V) | 120/240(split phase),240(single phase) | |||||||
Frequency(Hz) | 50/60 | |||||||
AC output topology | Split phase,2/3 phase,single phase | |||||||
Battery | ||||||||
Battery voltage range (V) | 40~58 | |||||||
Max. charging voltage(V) | 58 | |||||||
Battery type | lithium /Lead-acid | |||||||
Communication interface | CAN | |||||||
EPS output | ||||||||
Rated power (kVA) | 5 | 6 | 8 | 10 | ||||
Rated output voltage (V) | 120/240(split phase),240(single phase) | |||||||
Rated output current(A) | 20.8 | 25 | 33.3 | 41.7 | ||||
Overload capacity | 110%/60s,120%/30s,150%/10s | |||||||
General data | ||||||||
MPPT Efficiency | 99.9% | |||||||
Ingress protection | IP65/Type 3R | |||||||
Dimensions W *D *H(mm) | 460*225*760 | |||||||
Net weight (kg) | 41 | |||||||
Relative humidity | 0~95%(non-condensing) | |||||||
Display and communication | ||||||||
Display | LCD/touch screen | |||||||
Safety standard | UL1741,CSA C22.2 No. 107.1:16,UL1998 | |||||||
EMC | FCC Part 15, Class B | |||||||
DC ARC-Fault | UL1699B | |||||||
Project Case

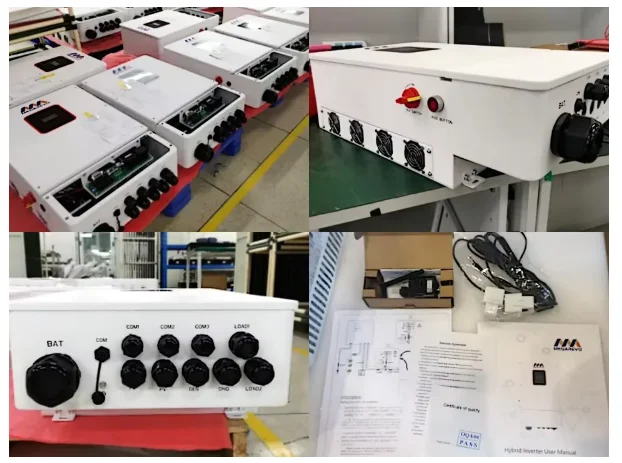

Product Detail

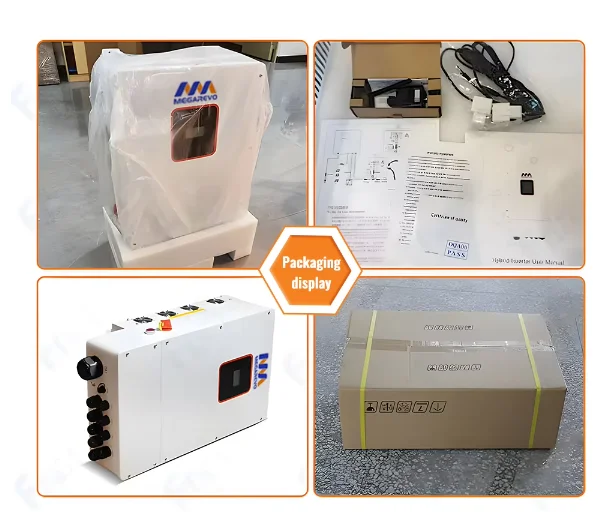

Product packaging
Related Products
FAQ
Q1：What if l don't have import experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q2：How long is the warranty of your products?
The warranty for Megarevo off-grid inverters is 3 years, and the warranty for Megarevo on-grid and hybrid inverters is 5 years.
Q3：What is your lead time for mass production?
Typical delivery time is around 7 to 25 days
Q4：How can I make sure it's a secure transaction?
Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you finish the payment, themoney will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba willrelease us the money.
