2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps
2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps
2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps
2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps
2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps
2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps
2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps

2 Inch Small Petrol Gasoline Suction Centrifugal Water Pump Agriculture Water Pumps

Share on (1601286228788):


Price:$220.00-230.00

Quantity:


Product Overview

Description



Product Description


Isg Isw Industrial Vertical Booster High Flow End Suction Inline Pipeline Monoblock Water Pump - Buy Monoblock Water Pump Price is a high-effective energy-saving product designed by Shenghui Pump. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump and extending
the duration and ensuring the operation place clean and tidy.







The centrifugal water pump specially deliver clean water and other clean liquid with physical nature.


Item
Isg Isw Industrial Vertical Booster High Flow End Suction Inline Pipeline Monoblock Water Pump - Buy Monoblock Water Pump Price
model
ISW
flow rate
1.5-1600m3/h
lift head
2-125m
temperature
not more than 80Cd
power
0.18-250kw


application

industry and city drainage, high building water supply, garden irrigation, long-distance water supply, cold&hot water circulation and pressurization.
voltage
AC 380/400, 50/60hz, 3phase or clients' request

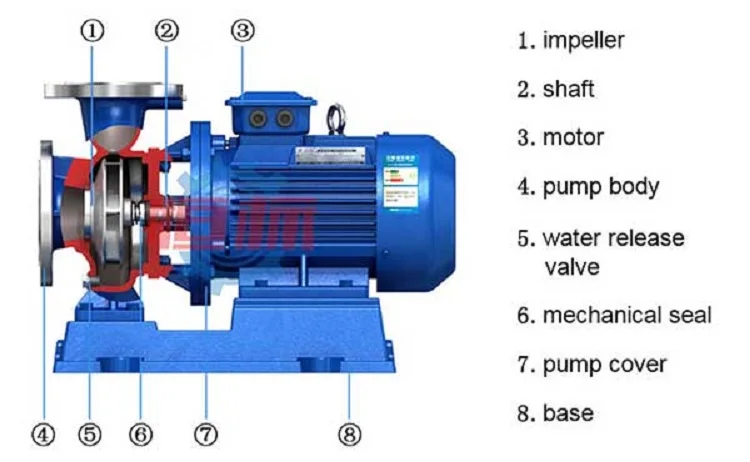

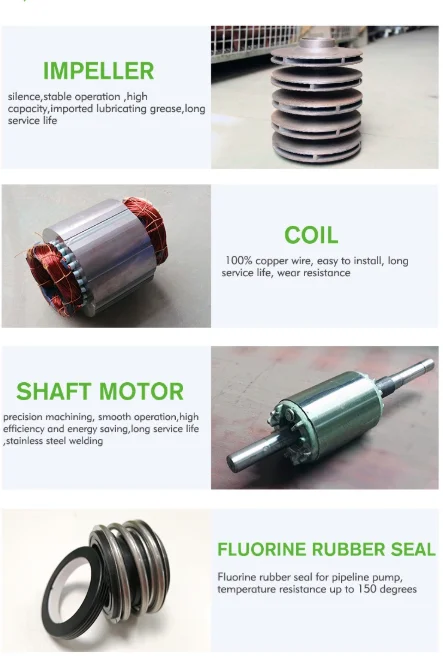

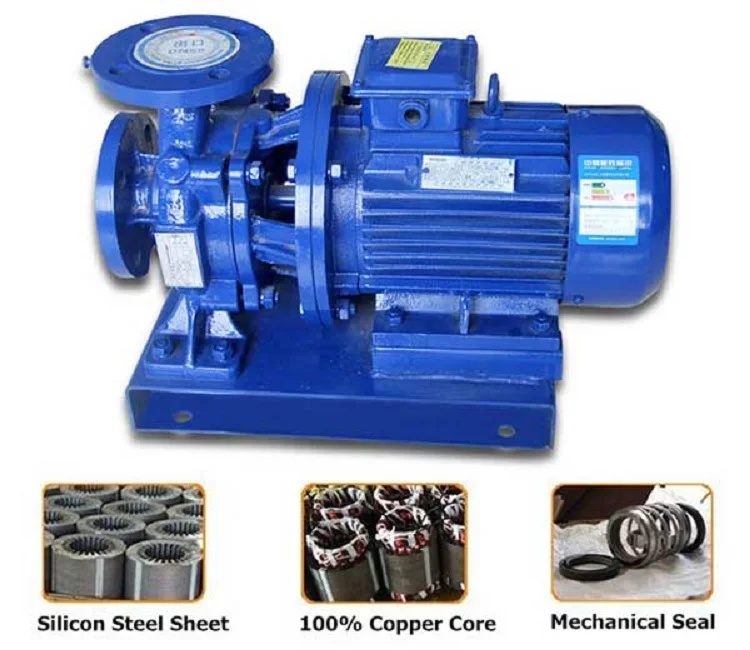

Details Images











Product Paramenters


Model
Q
Head(m)
Efficiency(%)
Rev(r/min)
Motor(kW)

(m3/h)
(L/S)




15-80
1.5
0.42
8
34
2800
0.18
20-110
2.5
0.69
15
34
2800
0.37
20-160
2.5
0.69
32
25
2900
0.75
25-110
4
1.11
15
42
2900
0.55
25-125
4
1.11
20
36
2900
0.75
25-125A
3.6
1
16
35
2900
0.55
25-160
4
1.11
32
32
2900
1.5
25-160A
3.7
1.03
28
31
2900
1.1
32-100
4.5
12.5
12.5
44
2900
0.55
32-100(I)
6.3
1.75
12.5
54
2900
0.75
32-125
5
1.39
20
44
2900
0.75
32-125A
4.5
1.25
16
43
2900
0.55
32-160
6.5
5
32
44
2900
1.5
32-160A
4
1.1
25
34
2900
1.1
32-160(I)
6.3
1.75
32
40
2900
2.2
32-200
4.5
12.5
50
32
2900
3


(The above data is for reference,if you have any questions,please contact us directly)


Application



Generally used in
ISW type horizontal pipeline pump is used for transferring clear water and other liquids with physical and chemical properties similar to clear water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire-fighting pressurization, long-distance transportation, heating and ventilation refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment matching, and the service temperature is T < 80 ℃.




Packaging&Shipping




Comanpy information




Our products are consist of gear pump,screw pump,centrifugal pump,high viscosity rotator pump series and the main products are RY hot oil pump, KCB gear pump,YCB arc gear pump,2CY gear pump,3RP cam follower rotator pump,SHGB cam follower rotator pump,3G,SN,SM three screw pump,3GCL vertical screw pump,3GB heat preservation pitch three screw pump,2W.W sealing twin screw pump,G single screw pump,NYP,GNB inner ring high viscosity pump,LYB vertical arc gear pump,JQB turbine shear pump,CYZ self-suction centrifugal oil pump,KCG,2CG high temperature gear pump,LC,LCW roots pump,LCB pitch heat preservation pump,TSB chemical decoloration pump,LB refrigerating pump,ZYB,ZYB-B coke oil pump,oil pump,RJB solvent pump,CBN thickened oil pump,AH,H,M slurry pump,vertical slurry pump,YHCB circular gear pump,FXA-FXB stainless outer lubrication gear pump,ZA,ZE petrochemical process pump,IH single suction centrifugal pump,IHF fluoroplastic centrifugal pump,pneumatic and electric diaphragm pump,water ring and rotary vacuum pump,FB,AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.








FAQ


1. Who are we?
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump

4. Why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Hindi,Italian
