Best Selling 150W Monocrystalline Solar Panel High Efficiency High Quality 18V PV Green Energy Max Power 600W From China
- Category: >>>
- Supplier: Guangzhou Future Green Machinery Co. Ltd .Guangzhou .
Share on (1601286232204):
Product Overview
Description
Company Profile
About US
We are Future Green Technology, a company based in Guangzhou, China with two factories that provide solar power systems and various types of batteries globally. Our company is committed to providing clean energy for the world and is a future oriented emerging company.
We are proud to offer a wide range of high-quality solar panels and solar energy systems at Future Green Technology. Our solar panels are made with the latest technology and materials, ensuring maximum efficiency and durability. We offer a variety of sizes and power output options to fit your specific needs, whether for residential or commercial use. Our solar energy systems are designed to provide reliable, clean energy to power your home or business. We provide complete one-stop solutions for solar energy systems, including installation, maintenance, and repair services. At Future Green Technology, we are committed to providing environmentally friendly, cost-effective, and sustainable energy solutions for our customers.
At Future Green Technology, we are dedicated to being your personal home clean energy solution provider. Thank you for considering us as your battery and solar power system supplier.
Product Description

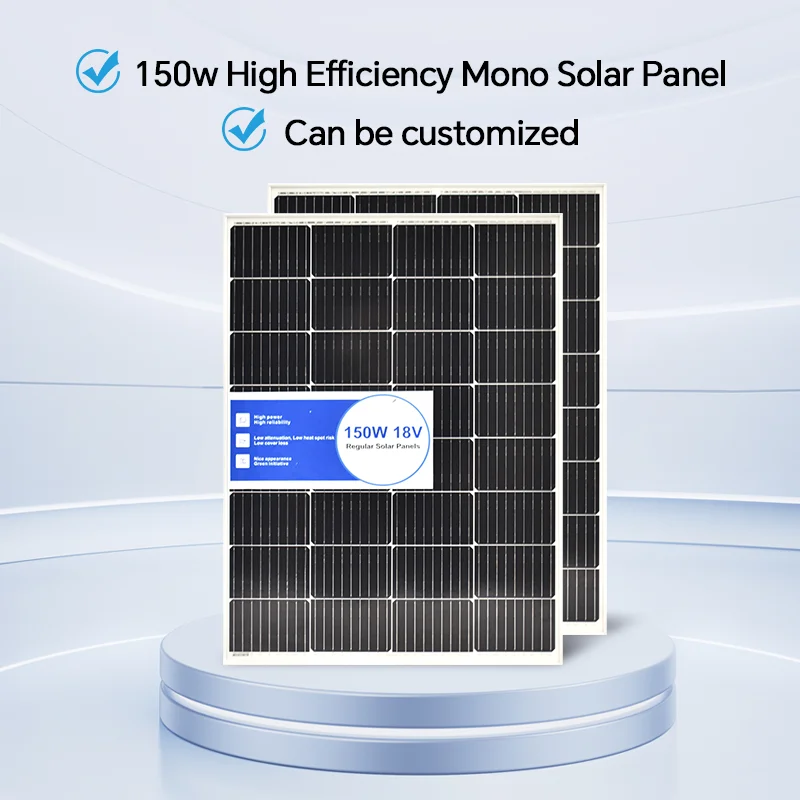

FGET High Quality Renewable Energy Monofacial 150W Solar Panel
Product Paramenters
Product Name | SP150M |
Peak Power Watts-PMAX Wp* | 150 |
Maximum Power Voltage-VMPP(V) | 18.24 |
Maximum Power Current-IMPP(A) | 8.77 |
Open Circuit Voltage-VOC(V) | 21.80 |
Short Circuit Current-ISC(A) | 9.30 |
Module Efficiency | 20.20％ |
Solar Cells | Mono (182mm) |
Cell Orientation | 32cells 4*8 |
Module Dimensions | 1040*760*30mm |
Weight | 8.30kg |

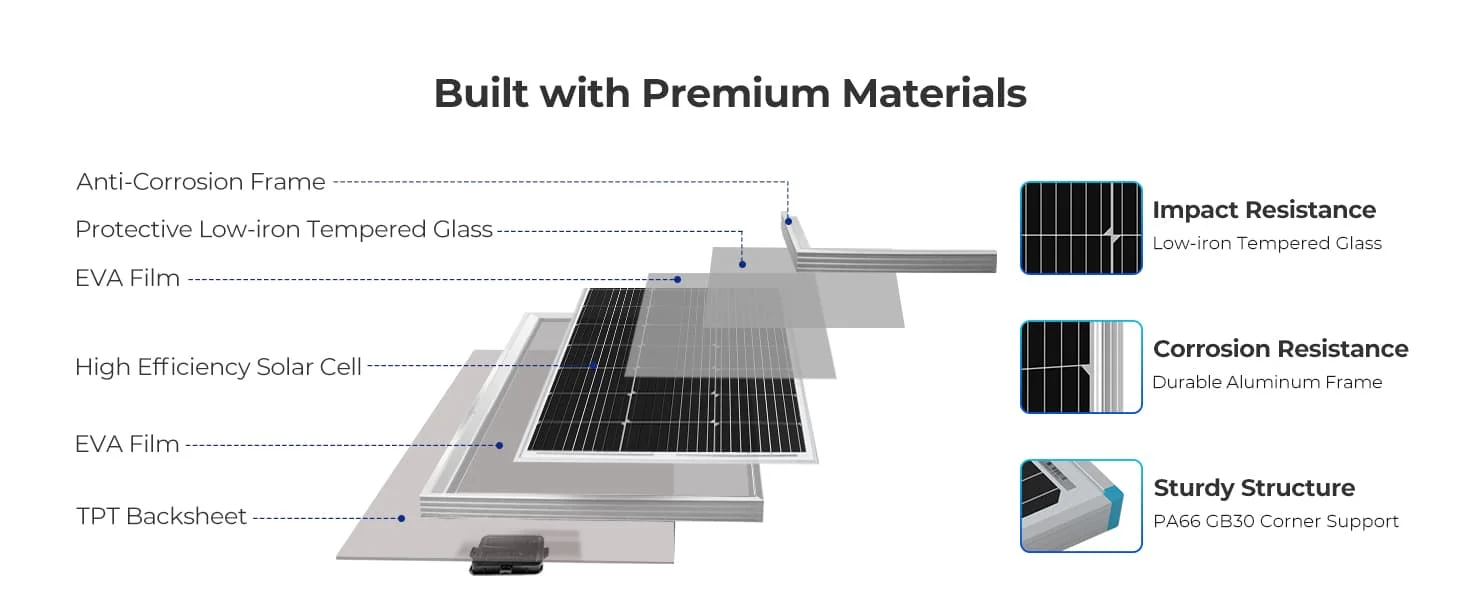

Glass | 3.2 mm for Std Mono |
Frame | Anodized Aluminium Alloy |

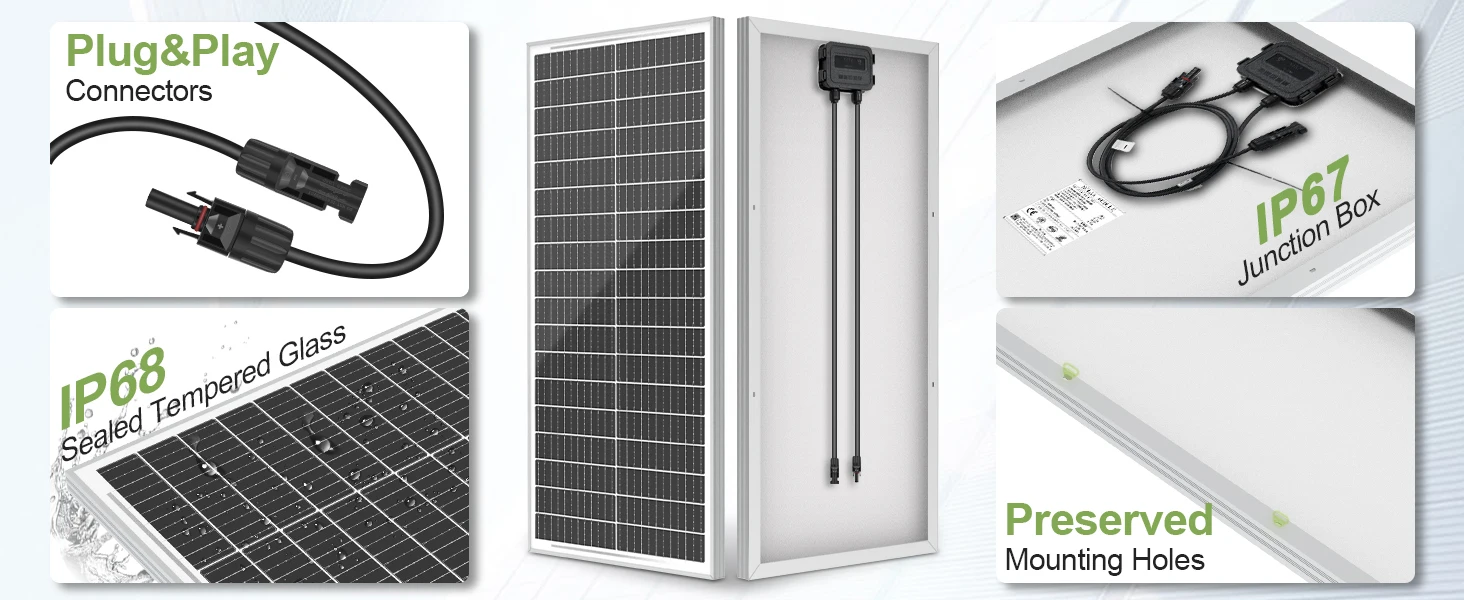

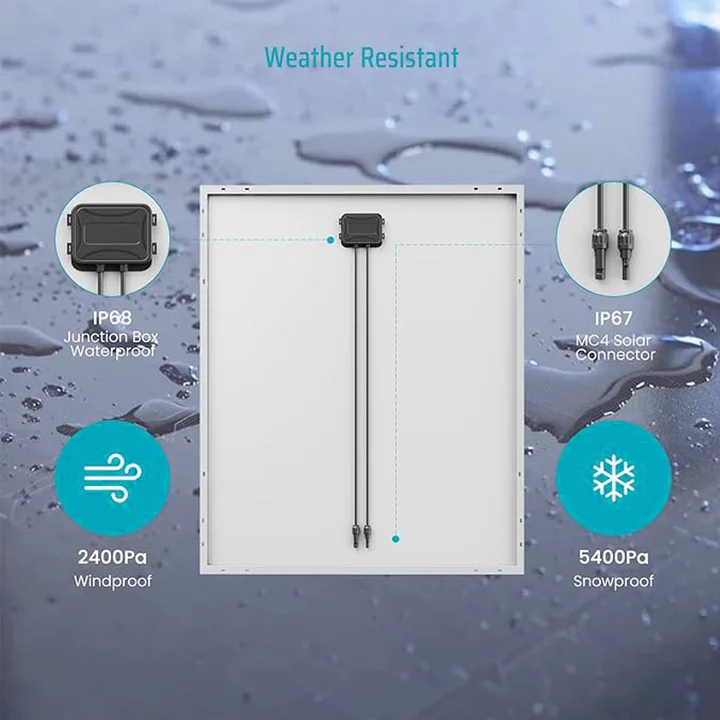

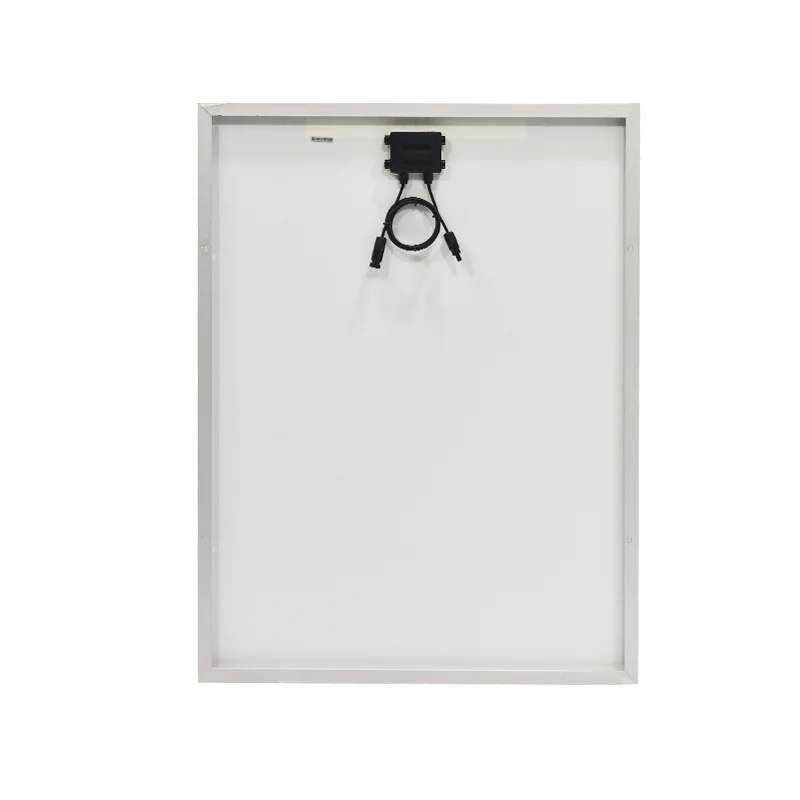

J-Box | IP 67、3*bypass diode |
Cables | Photovoltaic Technology Cable 4.0mm², 1000 mm |
Connector | Original MC4/Compatible MC4 |
Mechanical Load | Front 5400PA/back 2400PA |
Mono solar panel series
Item No. | SP450M-60 | SP360M-60 | SP200M-32 | SP100M-32 | Can offer to you | ||||
Maximum power(Pmax) | 450 | 360 | 200 | 100 | Customized | ||||
Voltage at Pmax(Vmp) | 34.20 | 34.20 | 18.24 | 18.24 | Customized | ||||
Open-circuit voltage(Voc) | 41.04 | 41.04 | 21.80 | 21.80 | / | ||||
Current at Pmax(Imp) | 13.16 | 10.53 | 10.96 | 5.48 | / | ||||
Solar Cells Efficiency | 20.80％ | 20.60％ | 20.40％ | 19.30％ | / | ||||
Dimension L×W×H (mm) | 1909*1134*35 | 1540*1134*35 | 1290*760*30 | 680*760*30 | Customized | ||||
Net Weight (±3%KG) | 22.9 | 18.8 | 10.30 | 6.30 | / | ||||
Power Tolerance(W) | ±3％ | / | |||||||
LOGO | FGET Brand or Customized | ||||||||
Carton | FGET Brand or Customized | ||||||||

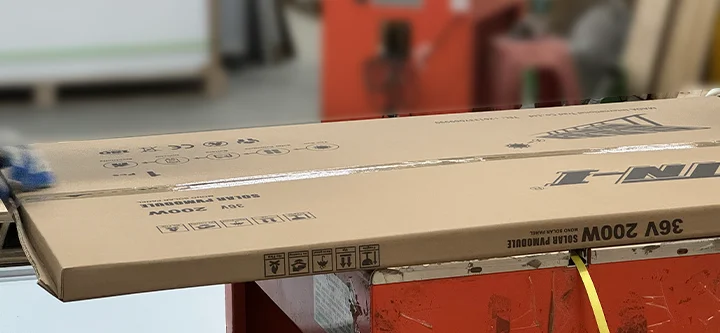

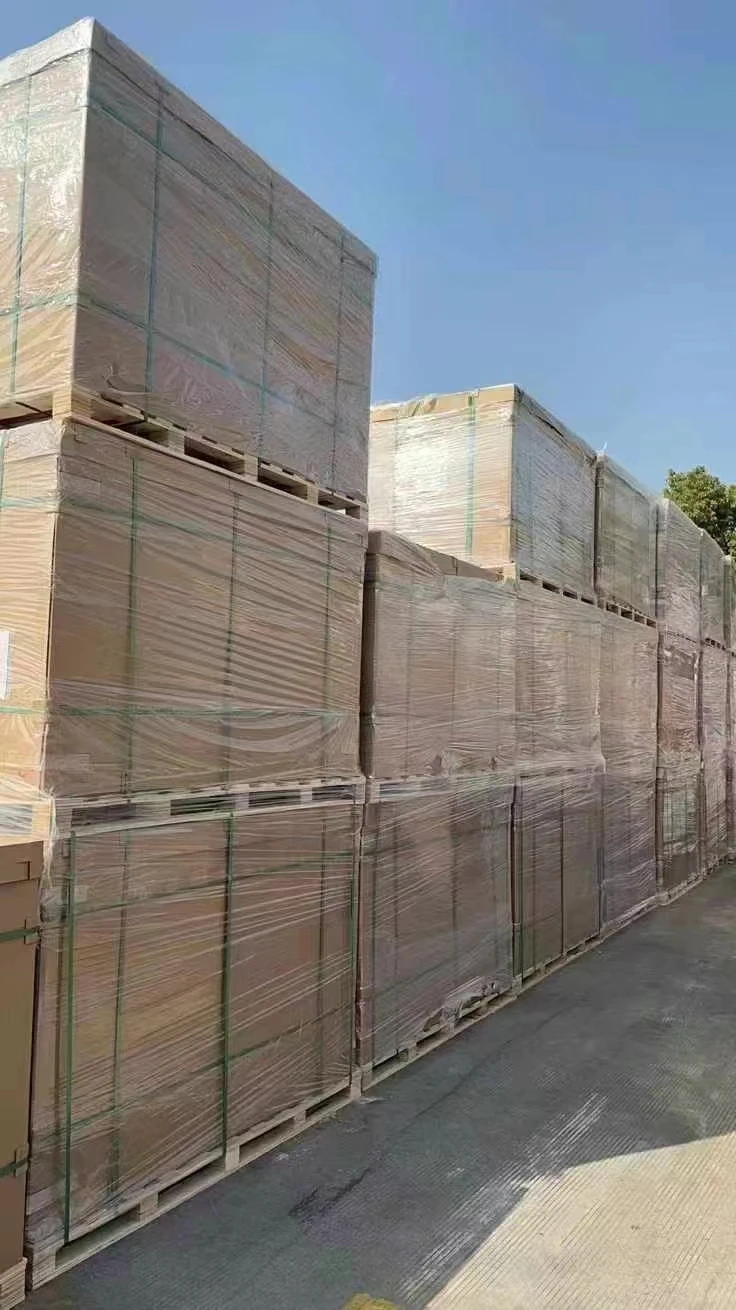

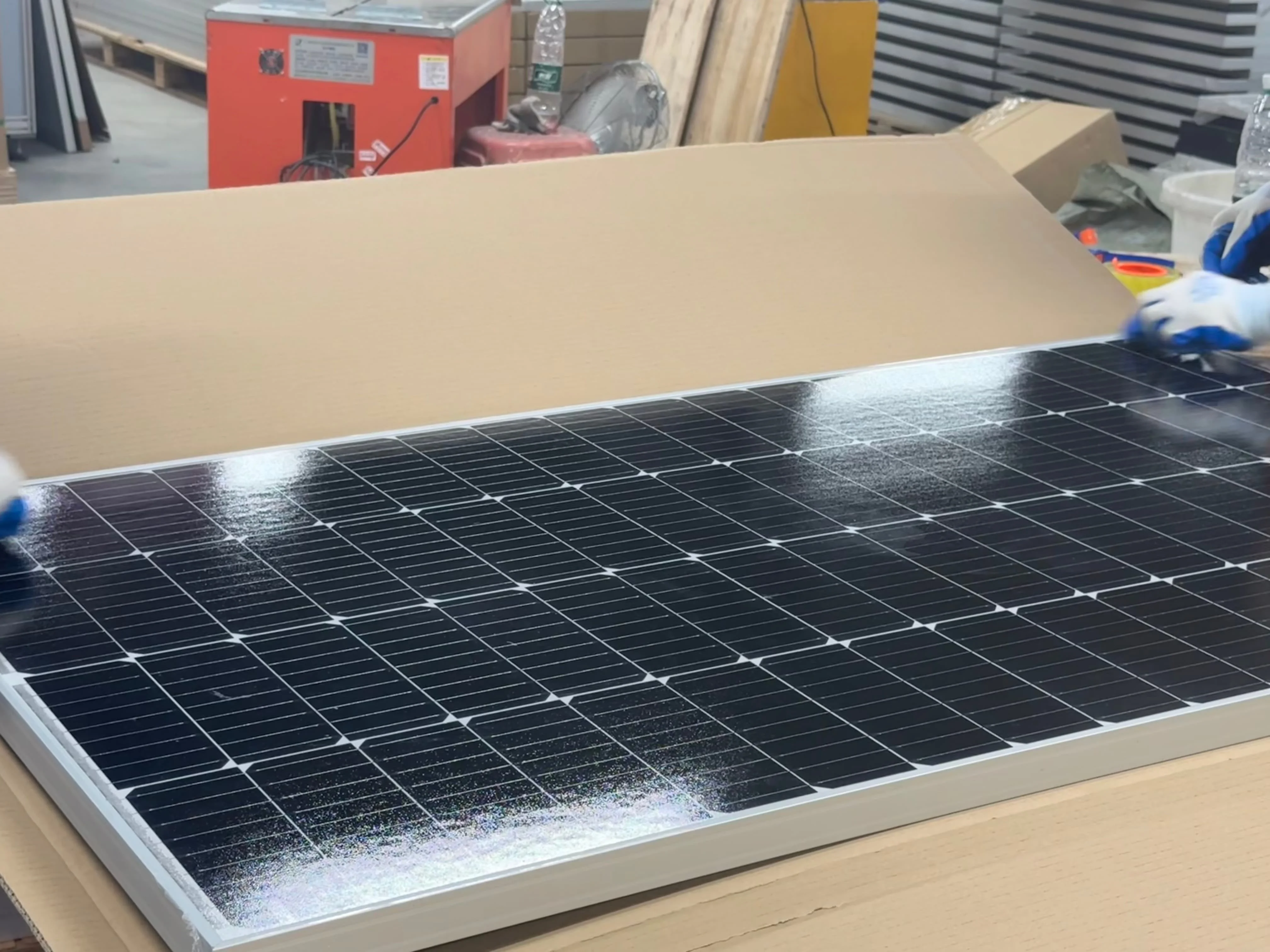

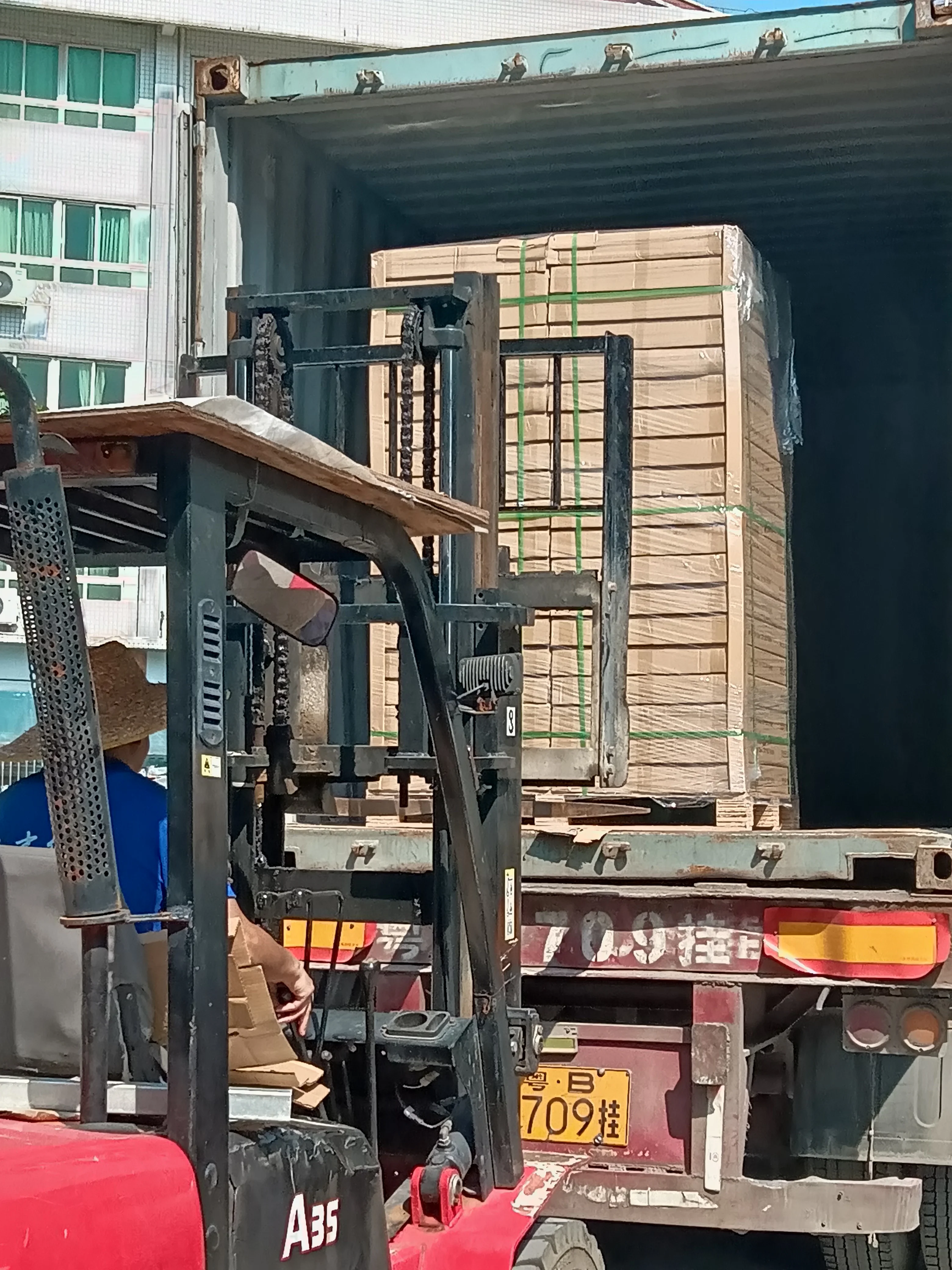

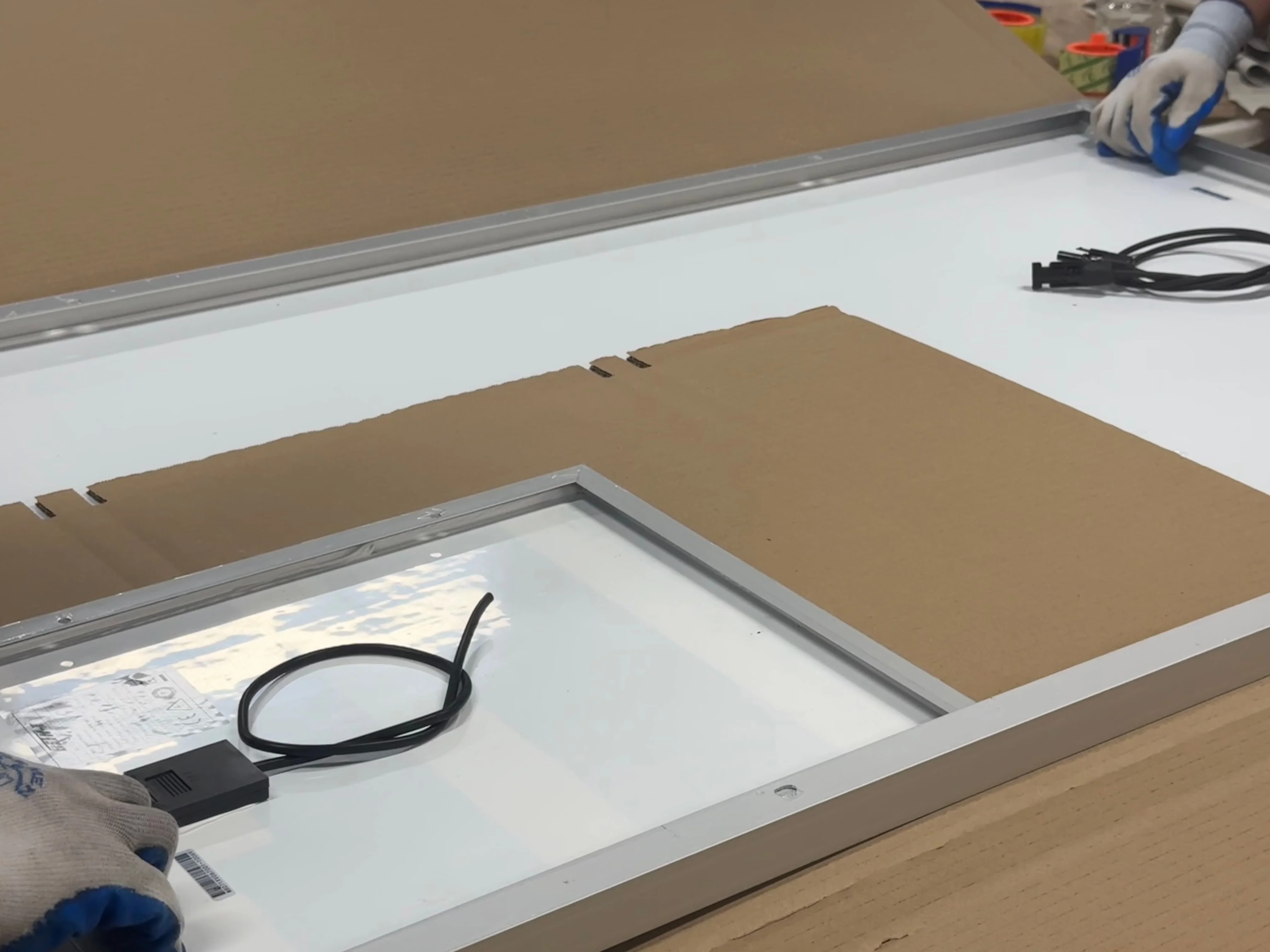

Packing & Delivery

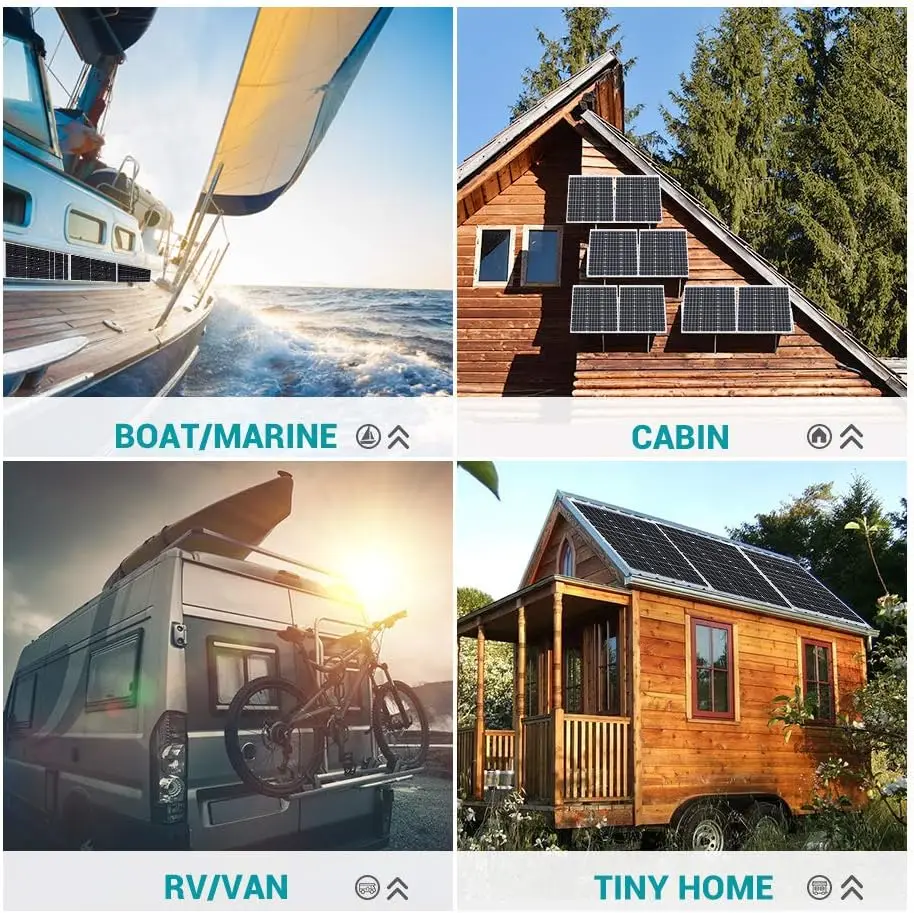

Application Scenario
FAQ
Q1: Are you factory?
A1: Yes, we are factory which located in Guangzhou, China.
Q2: How about the delivery time?
A2: 7 days for sample; about 15 working days for bulk order.
Q3: How to choose the right solar panel?
A3: Tell us your demands, then we will recommend suitable solar panel for you. There are many different types of solar panel technologies to choose from, and choosing the right solar panel will depend on what your needs are.
Q5: How to Ask for Support if product failure in a warranty?
A5: 1. Email us about the PI number, serial number, Product S/N number, show us more details such as Pictures, your testing report or video, if it is the quality problem of the product itself, we will resend a new one in the next order.
2. We will submit your case to our after-sales department, and solve it in 24 hours.
A1: Yes, we are factory which located in Guangzhou, China.
Q2: How about the delivery time?
A2: 7 days for sample; about 15 working days for bulk order.
Q3: How to choose the right solar panel?
A3: Tell us your demands, then we will recommend suitable solar panel for you. There are many different types of solar panel technologies to choose from, and choosing the right solar panel will depend on what your needs are.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How to Ask for Support if product failure in a warranty?
A5: 1. Email us about the PI number, serial number, Product S/N number, show us more details such as Pictures, your testing report or video, if it is the quality problem of the product itself, we will resend a new one in the next order.
2. We will submit your case to our after-sales department, and solve it in 24 hours.
